Linear Drain Kit: Trimmable Linear Drain with Silver Lin cover and DUO waste system

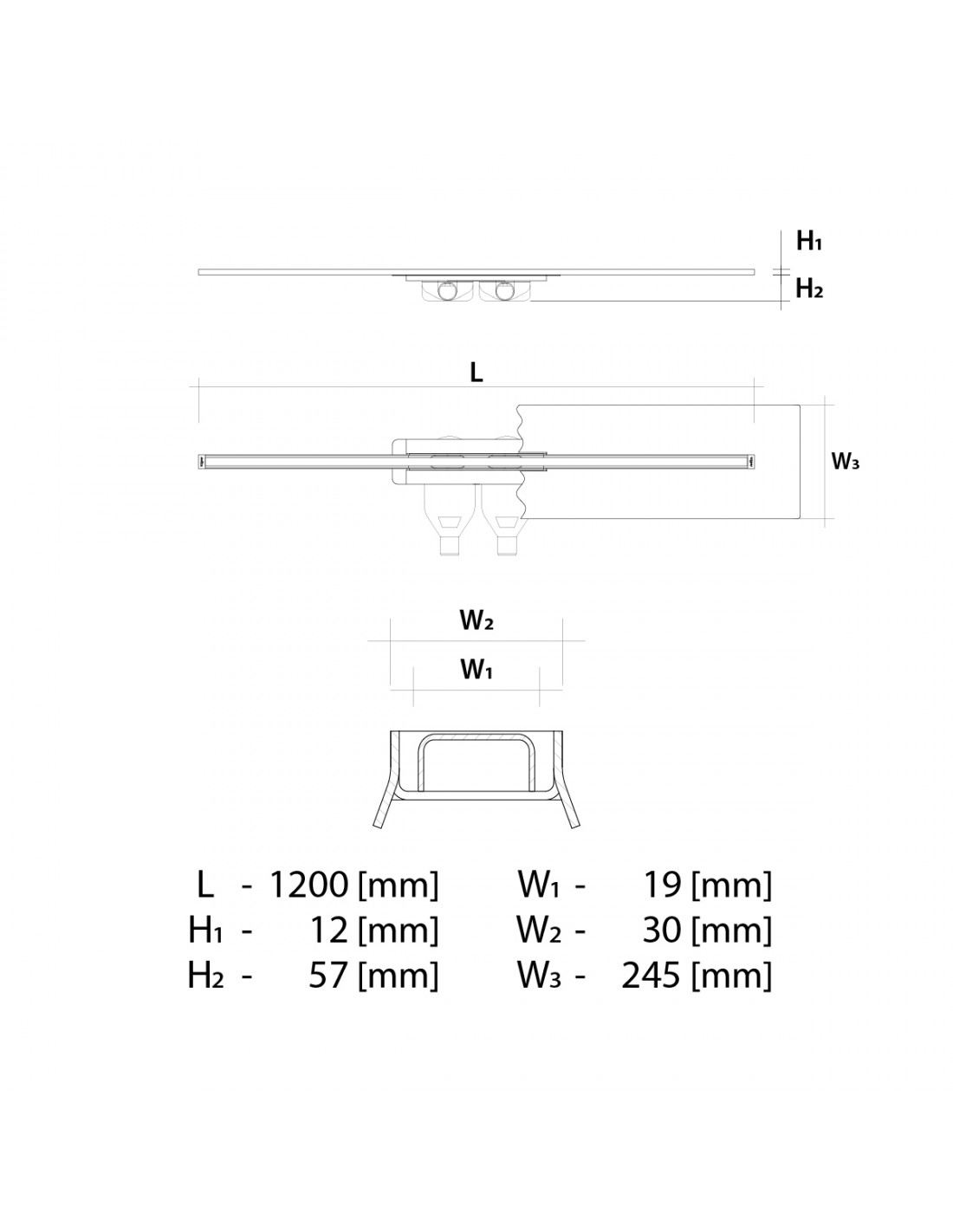

Technical drawing: Linear drain Wiper 500 - 1200 mm INTENSI 316

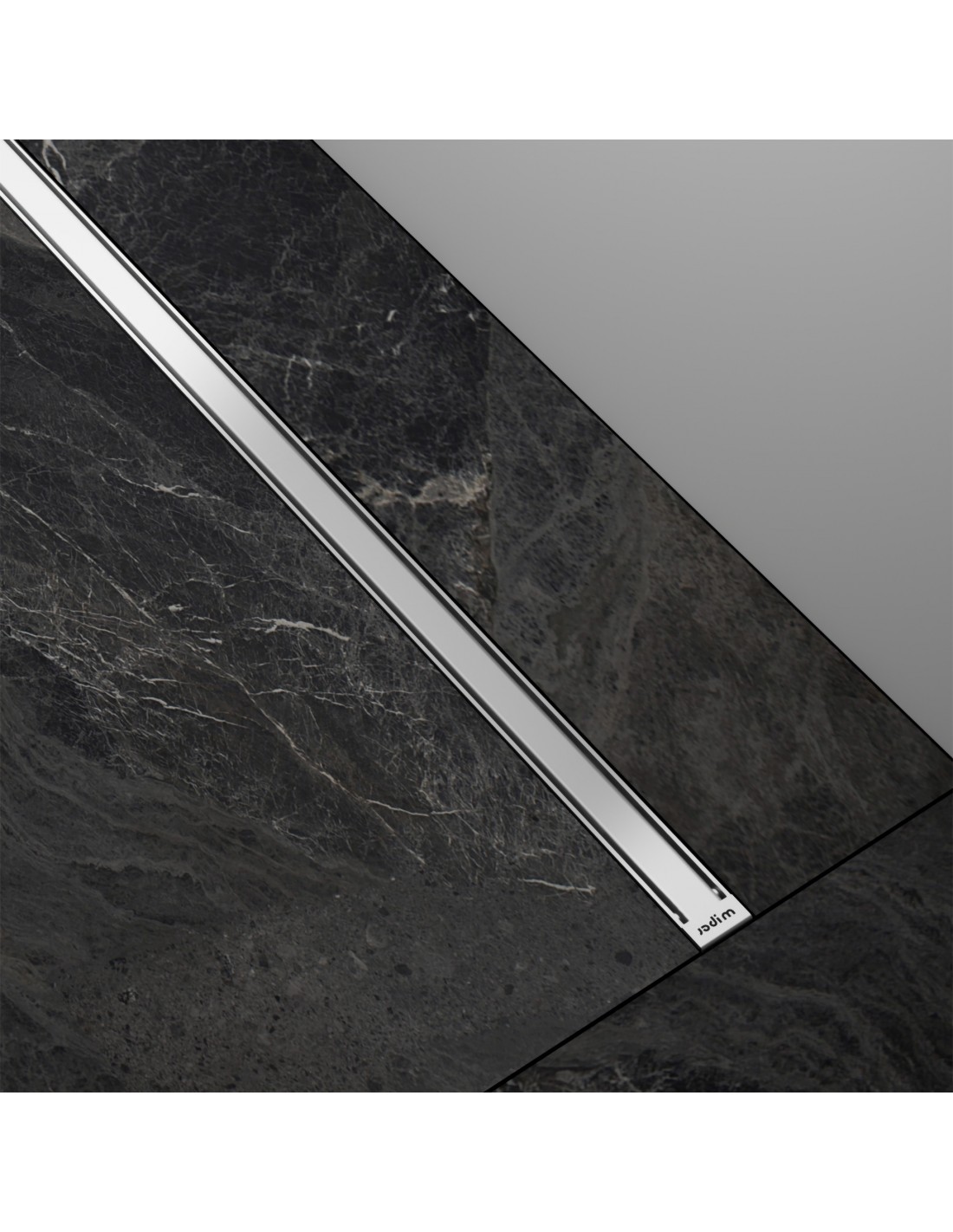

Example of a built-in slim and modern looking INTENSI 316 linear drain in Silver in black marble floor

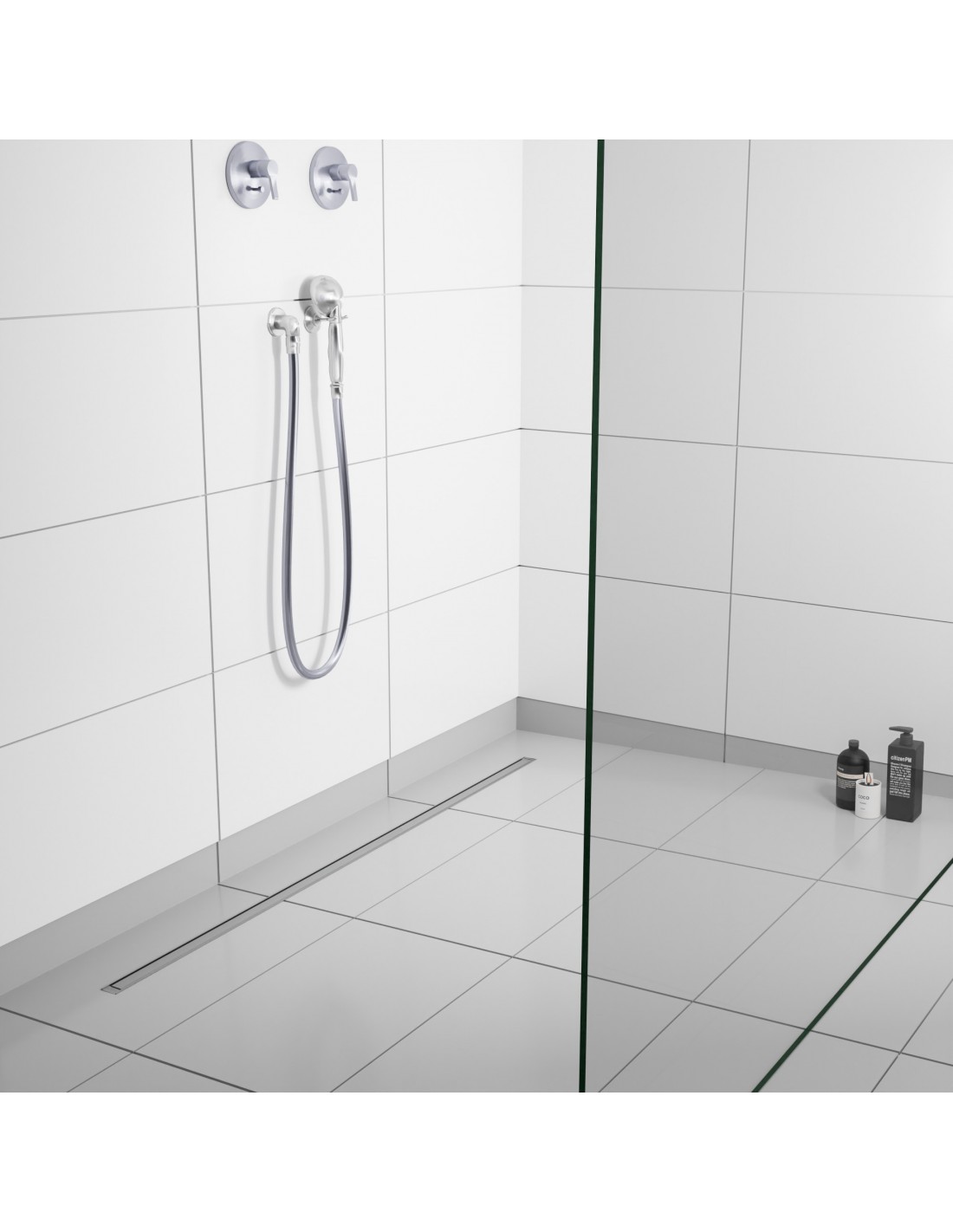

Example of a light-colored shower area with large-format tiles and INTENSI 316 linear channel in Silver

Example of a modern bathroom with dark shower area and instaled linear drain INTENSI 316 in Silver

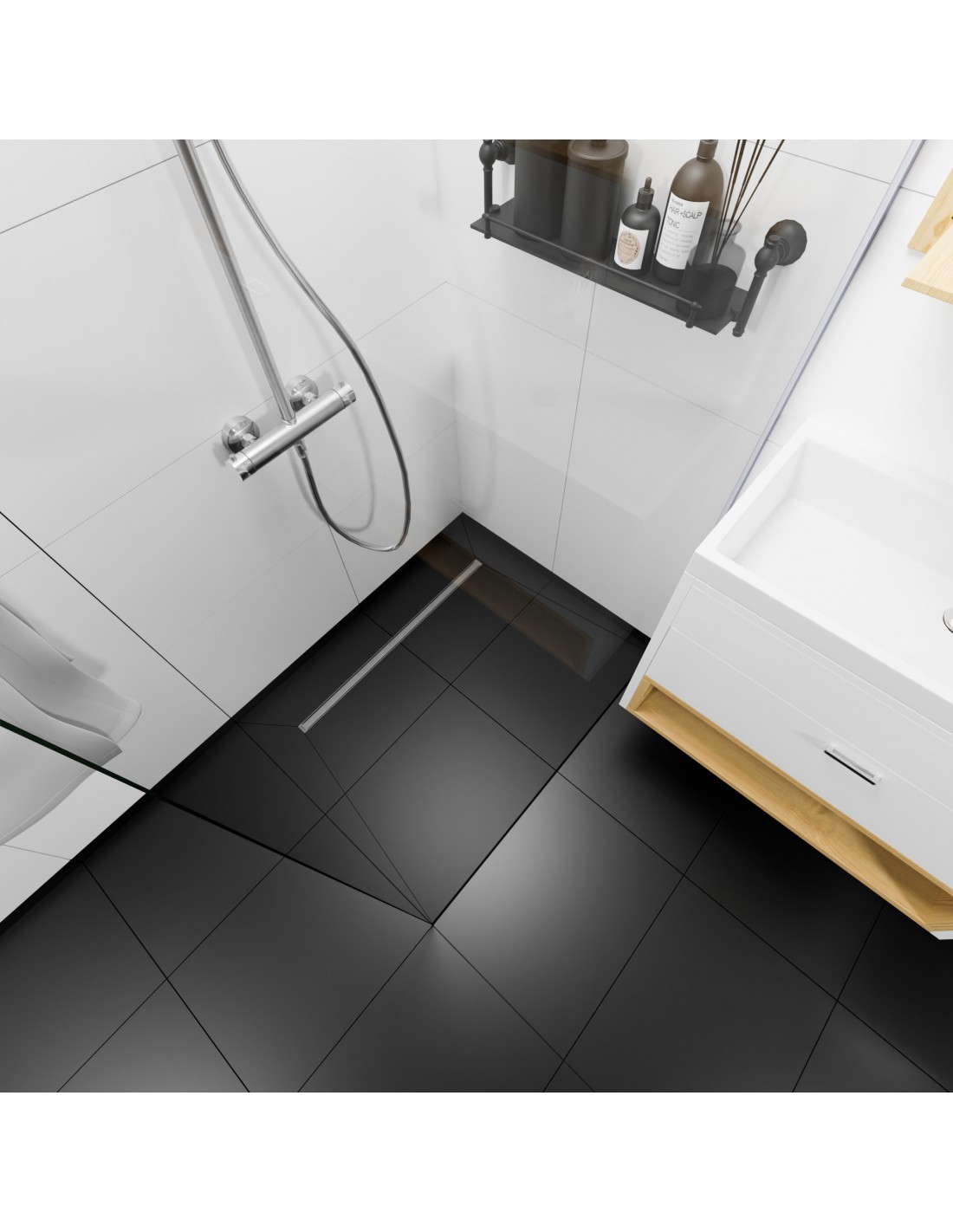

Example: View from above on a black and white shower area featuring INTENSI 316 linear channel in Silver

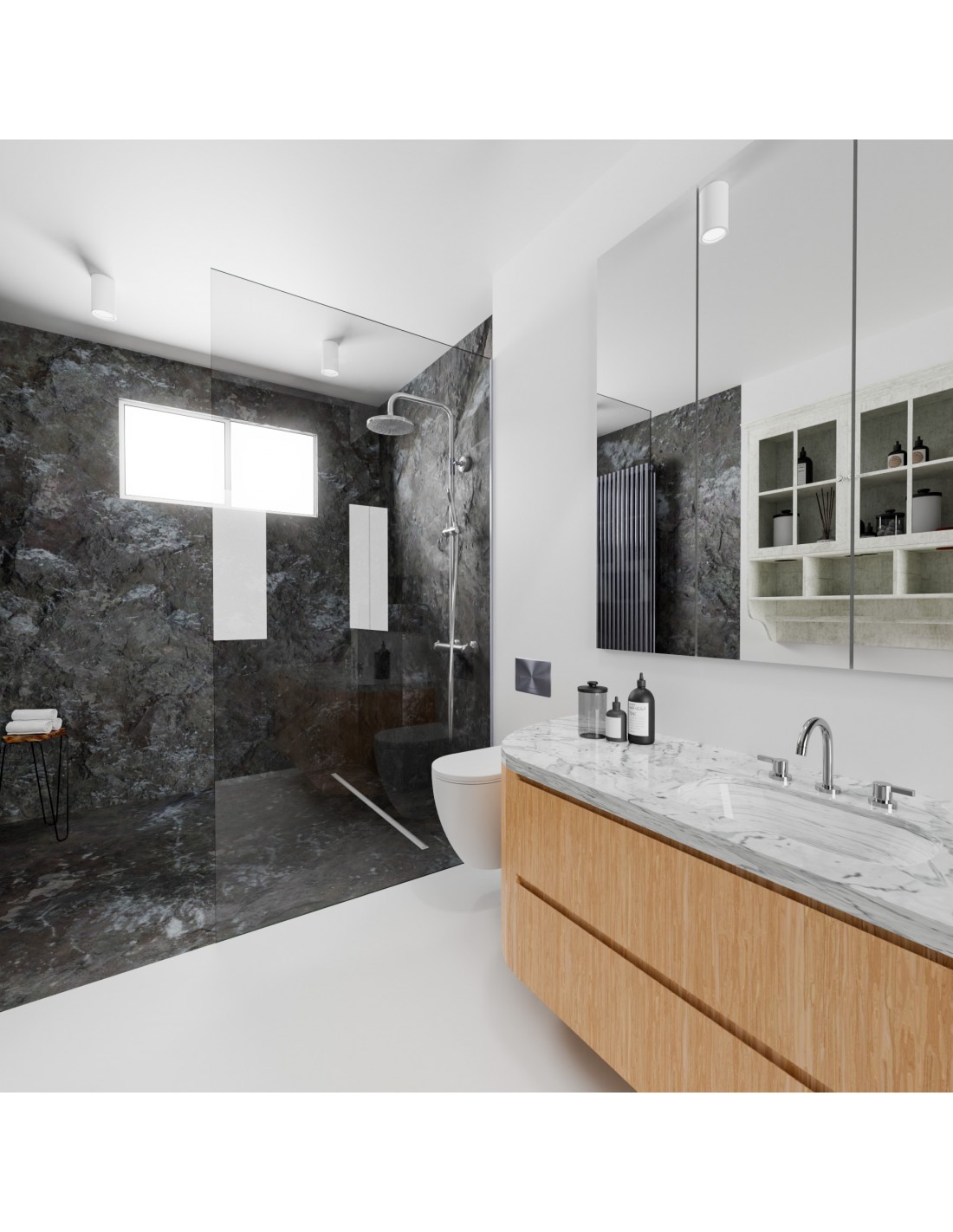

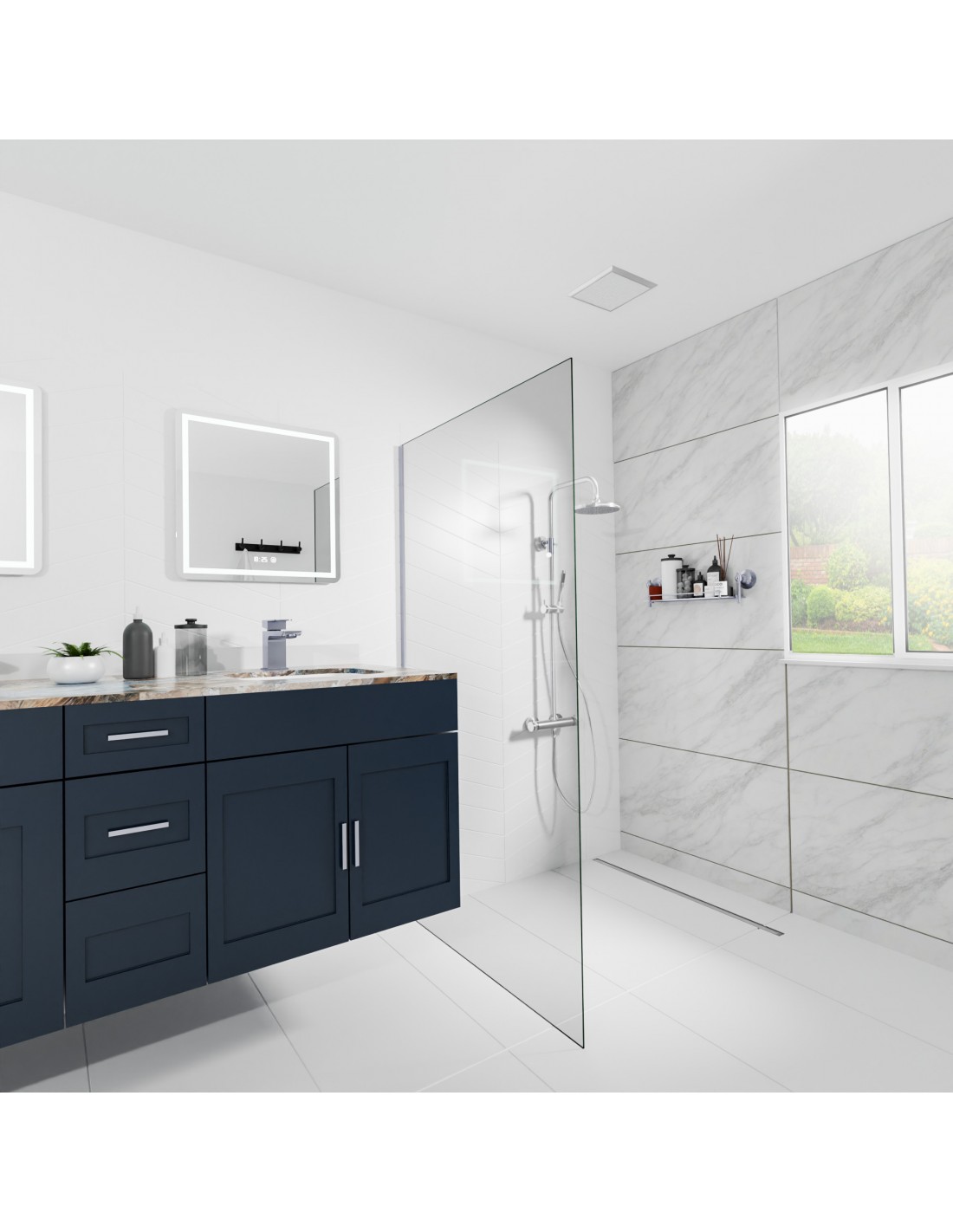

Example of a modern timeless bathroom concept with open shower area and built-in linear drain INTENSI 316 in Silver

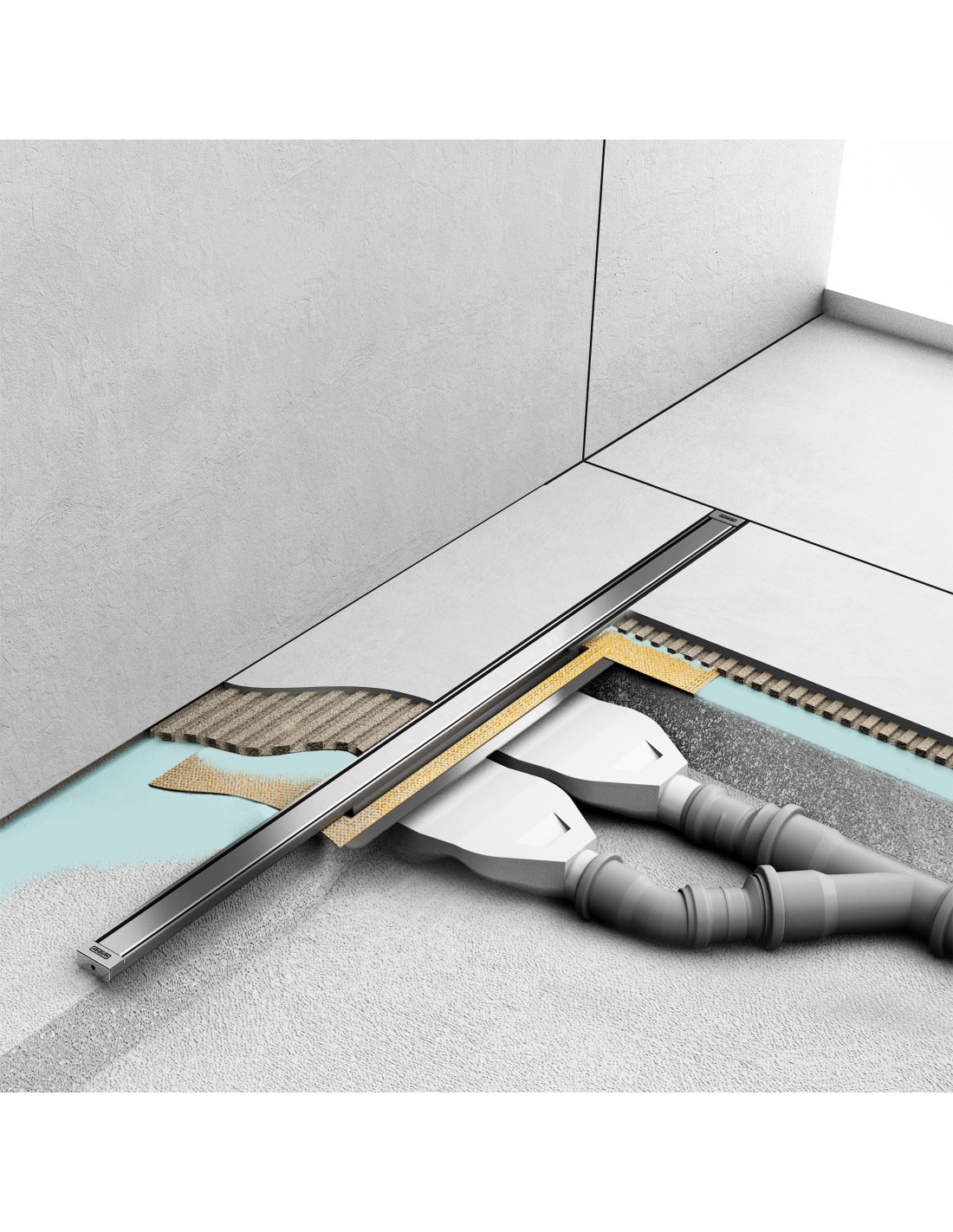

Visualization of how the DUO waste trap system is installed in the shower area

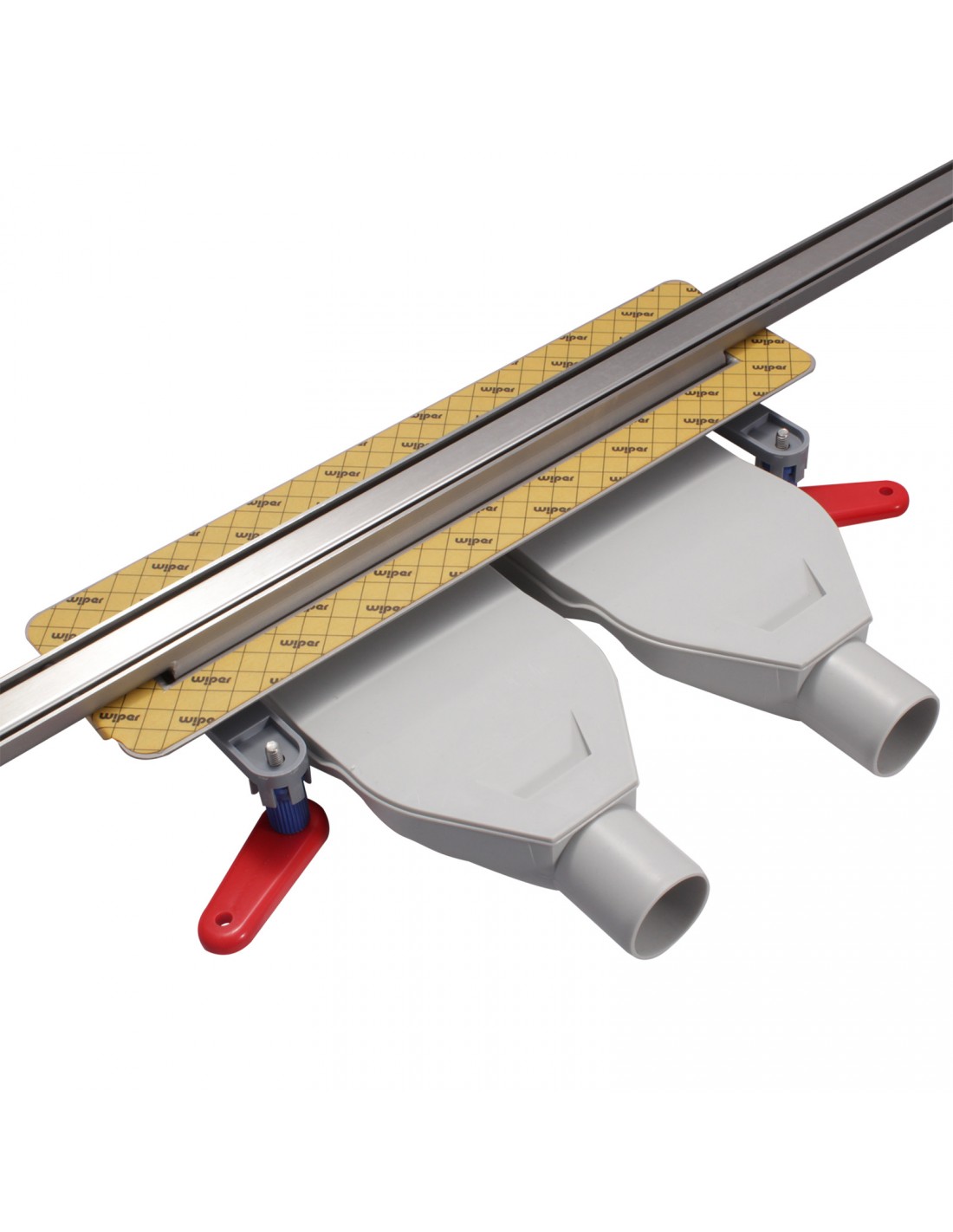

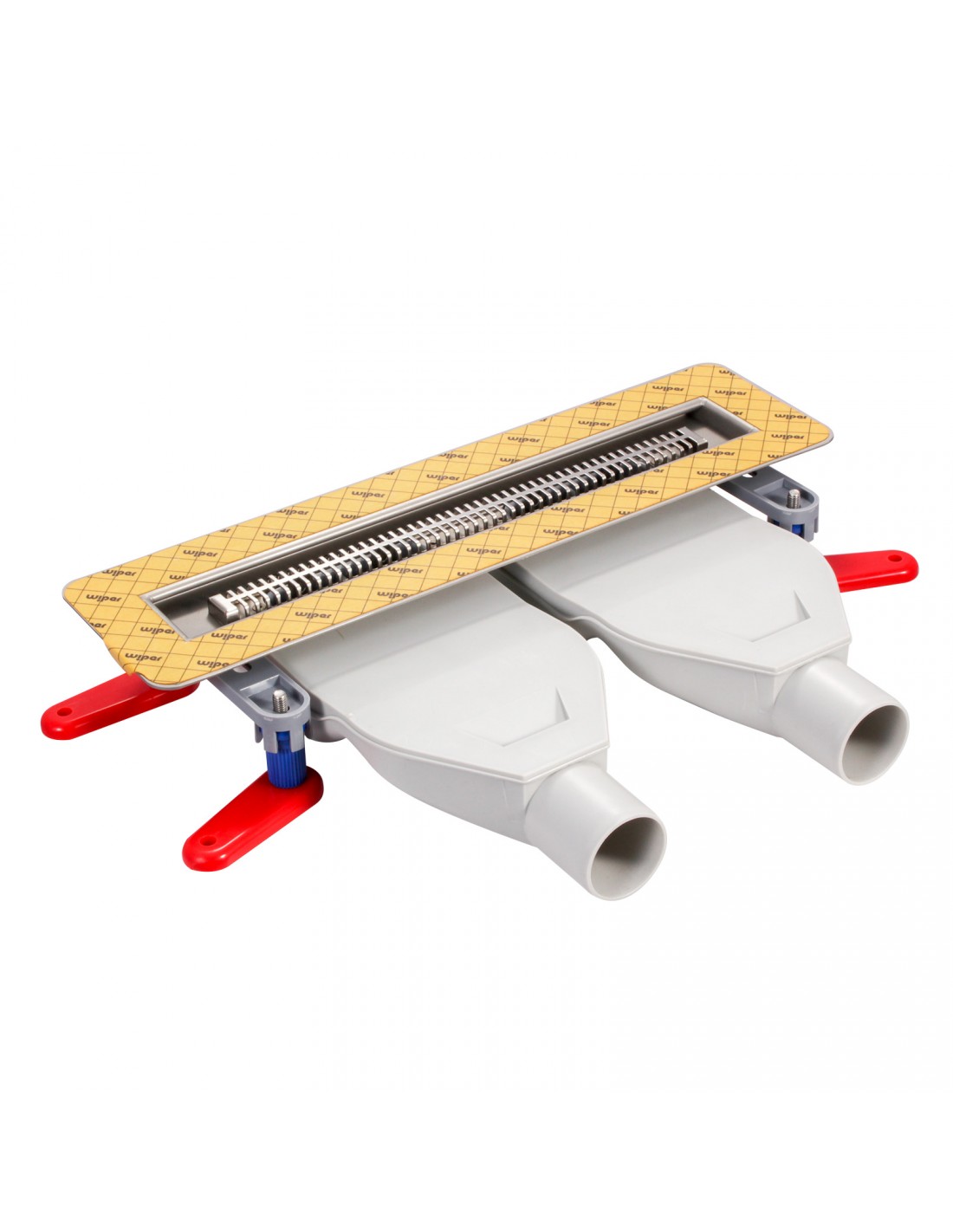

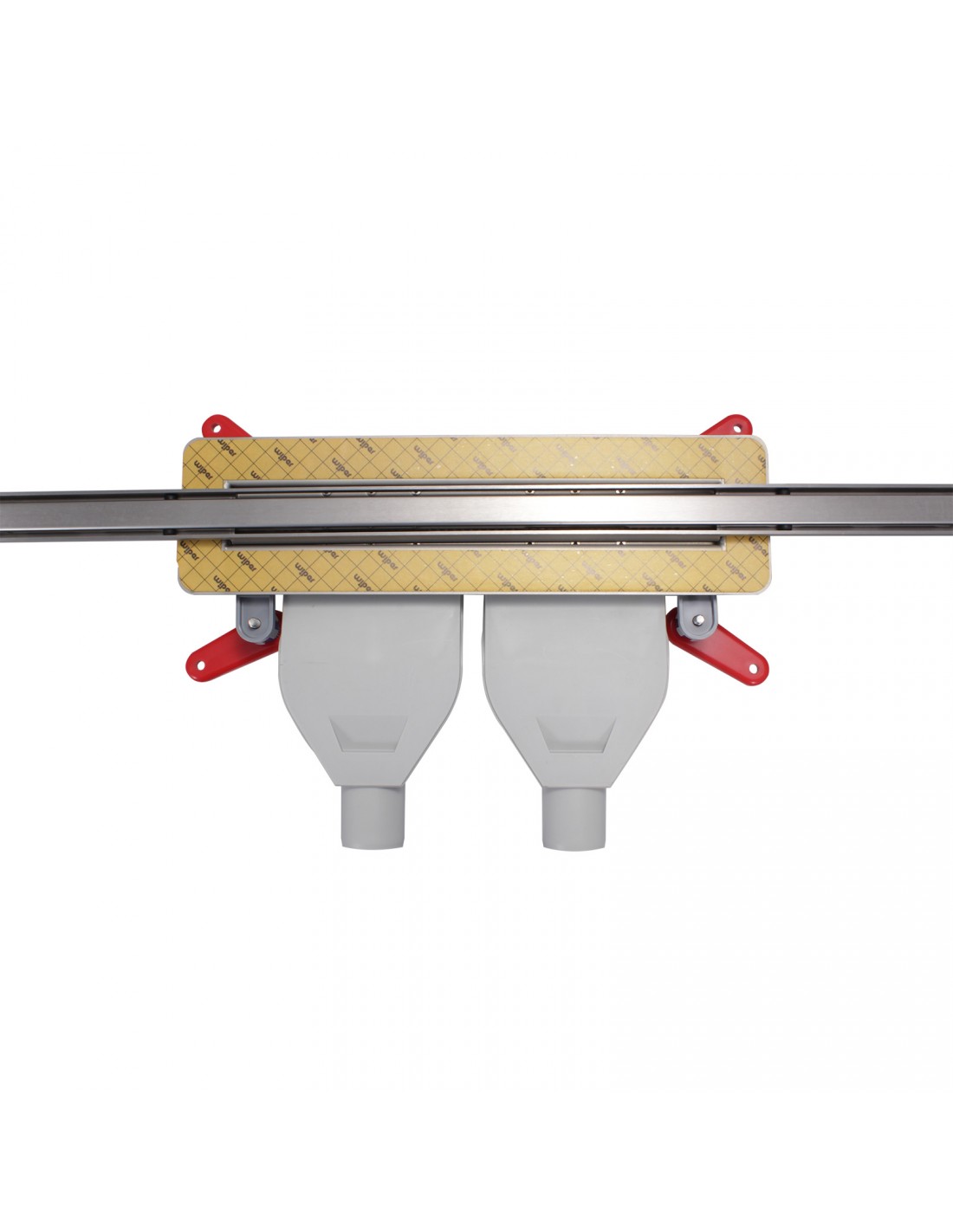

INTENSI 316 drain body with DUO waste trap system

Close up on INTENSI 316 drain featuring Lin cover in Silver

View from above on INTENSI 316 linear channel with slim modern design cover

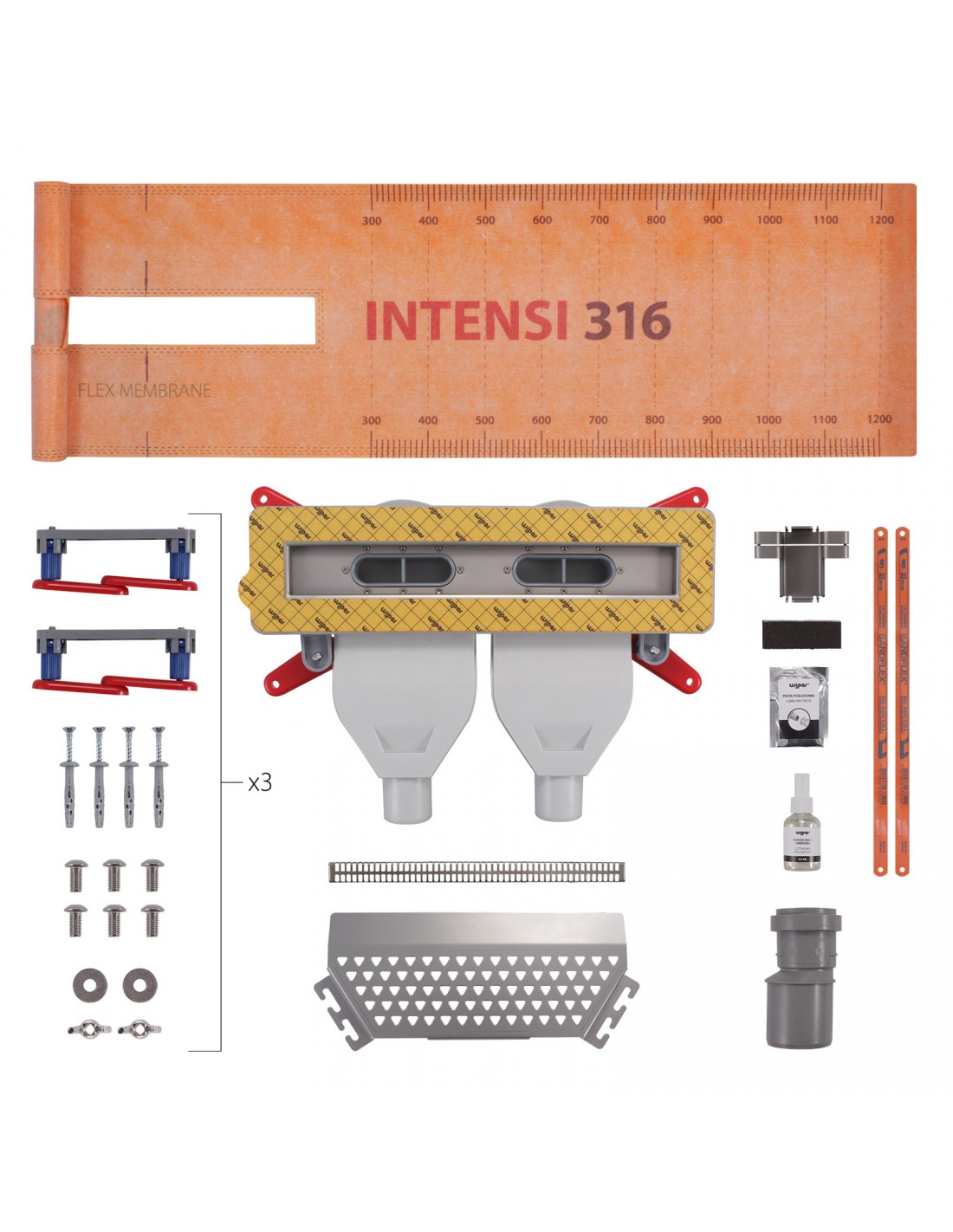

Complete Base Set showing all parts included

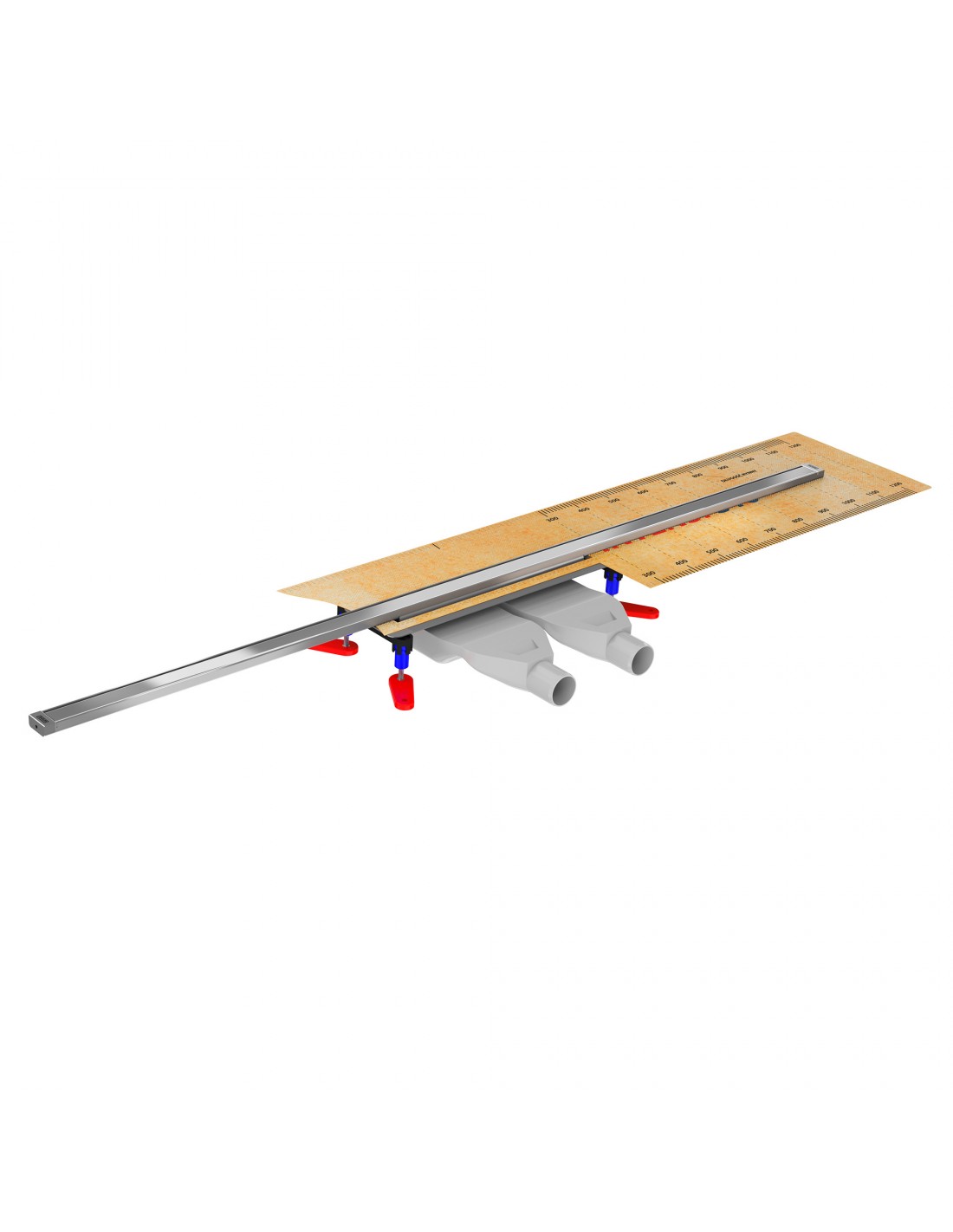

Visualization of single construction steps and parts of this drain

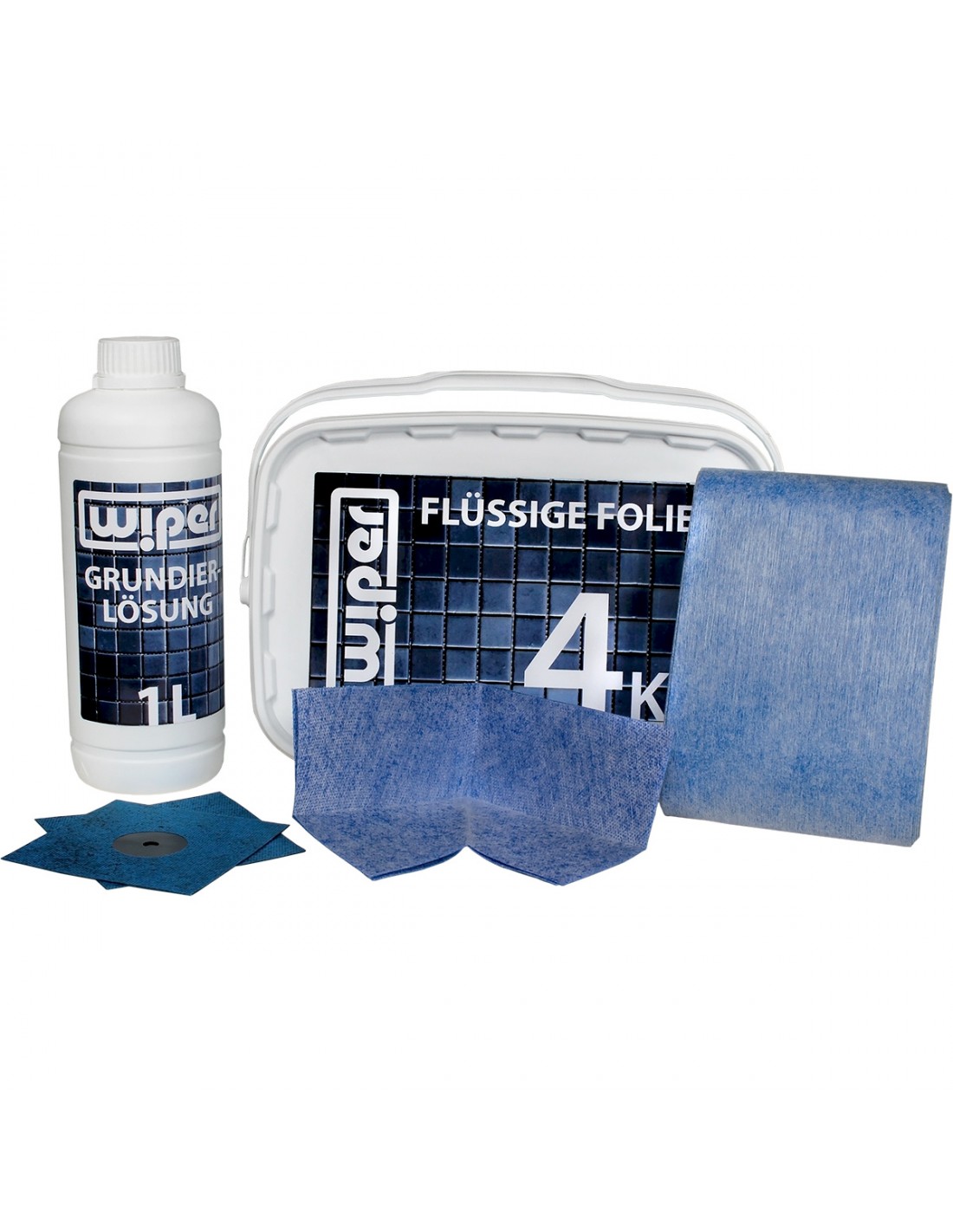

Wiper shower waterproofing kit incl. primer, tanking liquid, sealing tape, sealing corners and flexible pipe collar

Linear Drain Intensi 316 DUO Lin PVD Silver Polished Adjustable 500 - 1200 mm

Name: Linear Drain Intensi 316 DUO Lin PVD Silver Polished Adjustable 500 - 1200 mm
Brand: WIPER
SKU: LIN512DLISRP
Price: 456.74 GBP
Availability: InStock

Silver trim-able shower drain, perfect for wall to wall applications. Made of 316 grade stainless steel. The Polished finished LIN cover and drain body come with a Duo drainage system that has a 54 L min flowrate.

See parts included

The Intensi 316 line of shower drains offers a modern look that is as much functional as it is elegant. It is designed to be easily trimmed to size, on site by the installer. The clever end caps and cutting guide make the process quick and easy, leaving a clean straight cut that does not discolour or deform the drain body or cover.

Available in a multitude of colours and finishes it is easy to find the perfect one to fit your project.

These drains are all made using high quality 316 grade stainless steel and are coloured using a process called Physical Vapor Deposition (PVD). This ensures that the drains are highly resistant to chemical cleaning agents and will not fade or chip.

The very low profile of the drain body and the waste trap makes it easy to install where the floor height is limited.

The drain body is tapered end to end meaning it collects water along the entire length of the drain, and funnels it toward either a single (36L/min) or dual (54L/min) waste trap system. Ensured peace of mind when installed in a multi function shower or wet room.

The cutting guide, two hacksaw blades, cutting lubricant, sanding sponge and membrane roller are also included to complete the set and make installation a breeze.

Reference LIN512DLISRP

£456.74

Tax included

To get an extra 5% discount simply increase your cart value to £500.

Trade discounts are available for both wholesalers and loyal customers. To receive a discount, your cart total value, overall purchase value, or overall account purchases must cross the required threshold. Trade discount policy

Threshold	Discount
£500	5%
£1000	10%
£2000	15%
£5000	20%
£10000	25%
£25000	30%

or for further details explore our trade discounts.

Add to cart your current selections, and you only need to add £43.26 more to unlock a 5% discount for the entire order.

2 Views during the last 24 hours

Based on current settings, if you Add to cart current set and then order, you will receive the following items:

Intensi 316 Linear Drain - The latest product in our range!

The trimmable membrane collar allows for the drain to be compatible with hydro-isolation systems and the steel packaging doubles as screeding guides with the extra adjustable polycarbon leveling legs that come in the set. The cutting guide, two hacksaw blades, cutting lubricant, sanding sponge and membrane roller are also included to complete the set and make installation a breeze.

The INTENSI 316 linear drain was designed with the latest trends and market expectations in mind. Its very low build-up allows for installation in difficult conditions. Available in two variants with the possibility of cutting to the desired length, the drain makes it fit perfectly into the size of the shower area. It is fitted with the SNAKE BEAN siphon. The INTENSI 316 collects water along its entire length. The standard length of the base is 300 mm, while the gutter and grating set is 1200 mm long. All made of certified 316 grade steel polished, brushed or matt. PVD (Physical Vapour Deposition) is a process of physical deposition of thin layers from the vapour phase, carried out under high vacuum.

The resulting coating is characterised by versatile properties. The most important of these are: excellent colour quality and a wide colour gamut, high abrasion and corrosion resistance, high thermal stability and chemical inertness.

Trim-able Design - cut to fit any size

The Intensi 316 linear drain is the only one in our range that is designed to be cut to the required size. In our state-of-the-art linear drain, you will find all the tools you need to cut your drain safely. Amongst them you will find: a cutter for the shower drain channel, grate, guides, a stainless steel cutting fluid and detailed installation instructions. The Intensi 316 system is also equipped with grinding block and end caps to insulate the drainage area.

Thanks to this feature, you don't have to worry about whether the drain will fit in your dream bathroom.

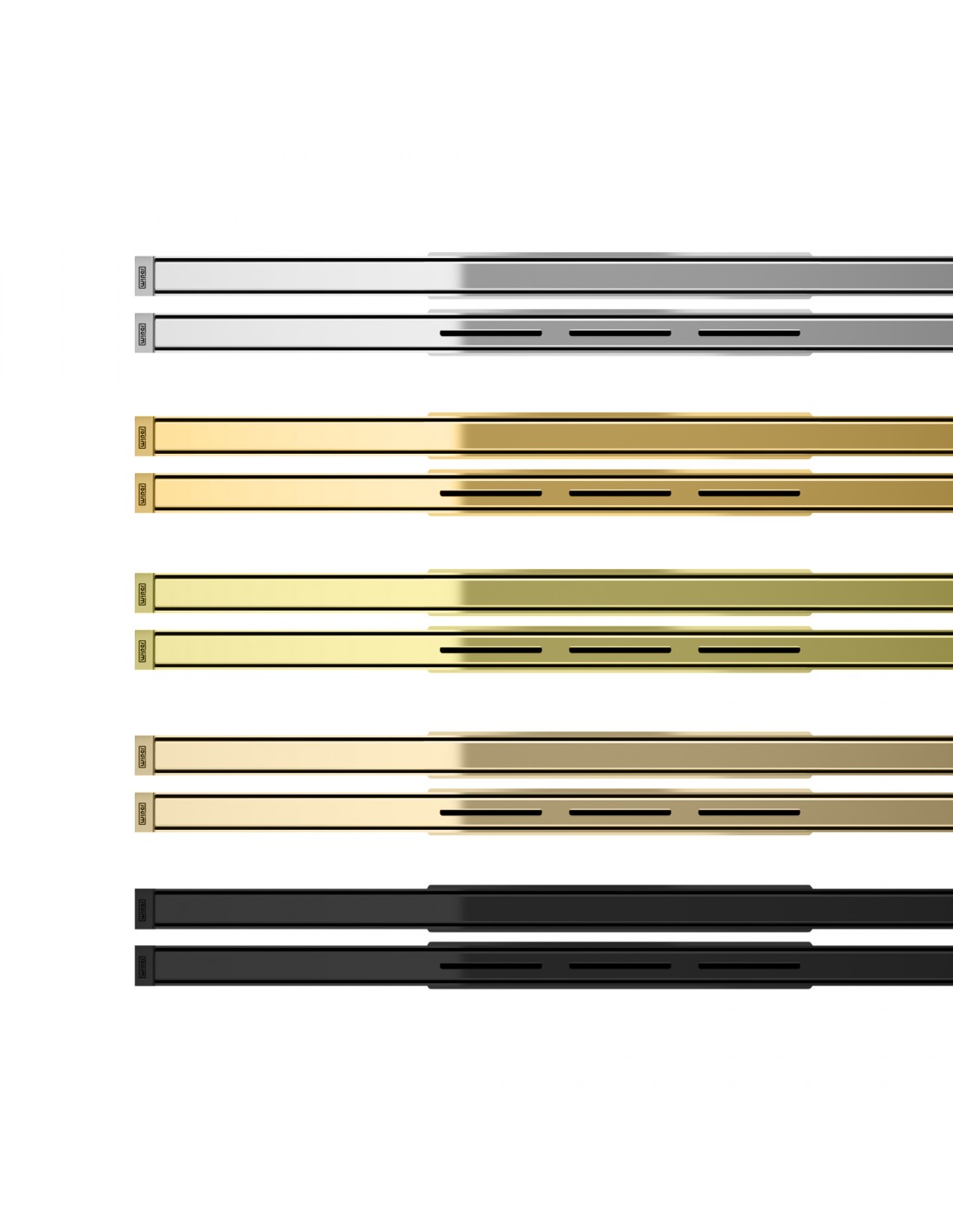

Various Colours and Finishes Available - PVD coating won't chip or fade

The Intensi 316 Drain is available in a variety of colours. Each one as stunning as the next, you’ll be sure to find one that matches your design needs. The drais are PVD Coated so they are highly resistant to any staining or fading from cleaning agents, ensuring that they will keep their appearance for years to come.

Sliver - Classic, Elegant and neutral in nature
Copper - Bold, almost amber in tone, makes a statement
Gold - Rich, conventional, adds a taste of luxury
Bronze - Delicate unique alternative
Graphite Black - sophisticated modern solution

Low Profile - 69 mm total height

One of the distinctive features of the INTENSI 316 drain is its low build. This drain allows for installation in difficult conditions where we cannot afford to chisel away the concrete floor. The low overall height of the drain is made possible by the use of a Bridge Bean siphon and the included adjustable legs.

A - Height to drain base - 57 mm
B - Height of the drain channel - 12 mm
C - Width of the drain grating - 19 mm
D - Width of the drain channel - 30 mm
E - Width of the drain base - 96 mm
Width of the drain: 1200 mm
Waste pipe diameter: ⌀40 / ⌀50

Quality made in the EU - 316 grade stainless steel

The most important feature of the linear drain is: excellent quality of the stainless steel, high abrasion and corrosion resistance, high thermal stability and chemical inertness. Linear Drain Intensi 316 is available in 3 different finishes. The drain body, cover and end caps are all finished in the same way so that the end result is a uniform look across the entire visible portion of the drain.

Polished - Glossy mirrored finish
Matt - flat matt, opposite alternative to the glossy finish.
Brushed - Brushed stainless steel finish is a compromise of the first to its a semi gloss finish with a textured look.

Channel length: 1200mm (trimmable)
Grate style: Lin
Total height: 69 mm
Channel width: 30 mm
Material: Stainless Steel 316
Additionals: Tanking kit
Drain surface: polish · brush · matt
Waste trap: Plastic (PCV)
Cleaning: From above (Easy clean system)
Model: Intensi 316
Set consists: Drain Base · Drain Body · Drain Cover · Sealing Membrane · Bridge Bean Waste Trap · Adjustable Legs · Cutting Profiles · Cutting Blades · Accessories

Intensi 316 Instruction

Download (608.03k)

Complete Underfloor Heating Kit

It is possible to include a complete Underfloor Heating Kit to your order. All you need to do is to choose the required size. Additional package, with heating mat, appropriate thermostat, sensor and instructions will be dispatched together with the other goods.

To calculate required mat size you need to get square coverage of the floor and exclude any permanent / fixed fixtures from them. It is also recommended to buy slightly smaller mat than calculated size - you can shape it but cannot cut the cables, therefore too large mat could not be installed.

SUNFLOOR Underfloor Heating

The SUNFLOOR Electric Heating Mat is a unique type of floor heating mat. The system has been designed to be used on an existing tiled floor or an existing finished floor, so that floor heating can still be installed there. The mat is approximately 4 mm thick and can be included in a layer of adhesive without any demolishing or grinding. The mat fits virtually underneath the surface. This decreases the heating time of the floor, that also makes this system suitable for rooms that are not permanently occupied including bathrooms, studies, playrooms, etc.

Heating mat

Underfloor heating mat set consists of all necessary parts for installation. One Thermostat is needed for every 23 m² of heating mat. It is included as optional, to allow ordering mat for custom areas, for example if you need 13 m² of mat total, you should buy 10 m² with one of the thermostats set as include and 3 m² with thermostat not included. In case you require less mat coverage than possible to buy from our product pictures, for example 14.5 m² you should always round low with your purchase and buy 14 m² as the mat is impossible to cut. It can be shaped but not shortened to size.

Discover our range of electric heating mats now!

Details:

2.5 meter 3-core supply cable
Fully encased in an aluminium earthed sheath
Unique blind connection between the heating and the connection cable
Chrome/Nickel resistance wire
PTFE (Teflon) insulation
PVC protective sheath
10 -11 watt per meter resistance wire, 230 Volt
Cable diameter approximately 4 mm
Complies with current NEN standards for installation in completely wet rooms

Thermostat

The C16Wi-Fi is an intuitive programmable thermostat used to control the electrical floor heating system or water heating system. It will keep home comfortable temp whilst minimizing energy use. Install the app on your smartphone to control the heating system remotely with the WiFi thermostat.

Specification:

Voltage: 230 Volt - 50/60 Hz
Maximum load: 16A / 3600W
Temperature range: +5 to +40°C
IP class: IP21
Testing: CE
Cable spec.: ≤ 2,5 mm²
Standby power: ~ 2W
Size: 85 x 85 mm
Integral room sensor and floor sensor
Colour: white or black

This stylish, colourful and refined digital clock thermostat has been specially designed for electric heating systems. The MAGNUM X-treme Control is supplied with every MAGNUM floor heating set (Mat,Cable and Foil types), including external floor sensor, a built-in air sensor and three different frames that suit most brands of switching equipment. The MAGNUM X-treme Control is simple and intuitive to operate using touch sensitive buttons under the display. The new chameleon function is simple to adapt to the colour of your interior. The stylish screensaver shows the time, temperature and current mode without touching the thermostat. The MAGNUM X-treme Control has a new help function that appears after 10 seconds in the menu with a complete description of the setting in question. The MAGNUM X-treme Control also has a wooden floor function whereby the temperature is limited to 28°C. This makes the MAGNUM X-treme Control the idea and safe solution for every electric heating system.

Specification:

Voltage: 230 Volt - 50/60 Hz
Maximum capacity: 16A - 3600 watt
Temperature range: +5 to +40°C
Frame: IP21
Color: Polar white (RAL 9010)
Testing: FI/CE

Technical details:

Control via touch sensitive keys
Chameleon function (8 colour themes)
Screensaver night clock
Automatic start-up menu
Slow start-up function
Wooden floor function (28 °C limit)
Automatic summer and winter times
Multi-programme function (2 periods per day)
Programming multilingual
Including floor and air sensors
Multi-frame adapter system for: Gira, Jung, Elko, Merten, Busch Jager, etc.

In some situations the digital regulation is not required and so the preference is for a simple on/off operation. Specifically industrial applications where the heating must remain on at all times. Therefore MAGNUM has designed the Standard Control: a simple on/off thermostat with temperature regulation that is clearly easy to operate.

Specification:

Voltage: 230 Volt - 50/60 Hz
Maximum load: 16A / 230 V
Temperature range: +5 to +40°C
Housing: IP21
Color: Polar white (RAL 9010)
Testing: CE

Technical details:

On/off thermostat complete with temperature regulation
Including floor sensor
Integral room sensor and floor limit sensor
Multi frame adapter system for: Gira, Jung, Elko, Merten, Busch Jager, etc.

The Intensi 316 shower drain has been designed in two versions UNO (with a single waste trap) and DUO (with a double waste trap). Check the differences between them:

Uno - The single waste trap system has a bean waste trap allowing for 36L/min flow rate. This option is low profile with only 57mm of space required from the flange of the drain body. The drain offers quick and convenient access from the top of the drain for cleaning and maintenance. It also comes with a hair strainer to prevent clogs down the line.

Duo - If you require a higher flow rate drain, we offer the intensi in a duel waste trap system. The duel system has 2 bean waste traps attached to it providing 54L/min flow rate, ensuring the risk of water backing up is minimal. The low profile of 57mm is still maintained so it can be installed even where floor height is at a premium. The duo is also protected by a hair strainer and allows for easy access for maintenance.

After measure the length of the shower drain proceed to the procedure of cutting the linear drain and the grating. Assemble all the necessary components included in the Intensi 316 package.

1. Cut the shower drain channel to the length L by a symmetrical distance from both ends of the channel using the included cutter, stainless steel saw blades, and cutting lubricant (which needs to be applied several times).

A – Installation guide piece (for temporary use)
B – Cutter for the shower drain channel, grate, and guides
C – Shower drain channel

2. Trim the drain grate symmetrically from both its ends by the same length as the drain channel was trimmed; this should result in the grate length 28 mm shorter than the trimmed channel.

A – Installation guide piece (for temporary use)
B – Cutter for the shower drain channel, grate, and guides
C – Shower drain channel
D - Grate

3. Deburr (grind) the cut edges with the included grinding block.

4. Install the caps on both ends of the channel. Then follow the installation instructions.

The linear drain base is integrated into the Bridge Bean siphon (or siphons in the DUO version). The waste trap provides a water seal that prevents any bad smells from getting back into your shower. The siphon is made of 100% polypropylene and has a high flow rate: for the UNO version it will be 32 l/min, for the DUO version with a double siphon - 54 l/min.

Colour: grey,
Total height: 45,00 mm,
Waste pipe diameter: 1.5" (british standard size)
Water seal: 25 mm
Flow rate [l/min]: 32/54 (for UNO/DUO version)
Ready to be connected to waste system

The Intensi 316 shower linear drain comes with the most parts in the kit, giving the buyer all the necessary tools to cut and install the drain. These include:

drain base,
drain body,
drain cover,
sealing membrane,
bridge bean waste trap/traps,
adjustable legs x 8 (2 attached),
cutting profiles,
cutting blades,
accessories - (fitting kit - screws, lubricant paste, cutting liquid, waste trap mask, hair catcher, cutting tool, brushing tool),
