Linear Drain Kit: Trimmable Linear Drain with Copper Lin cover and UNO waste system

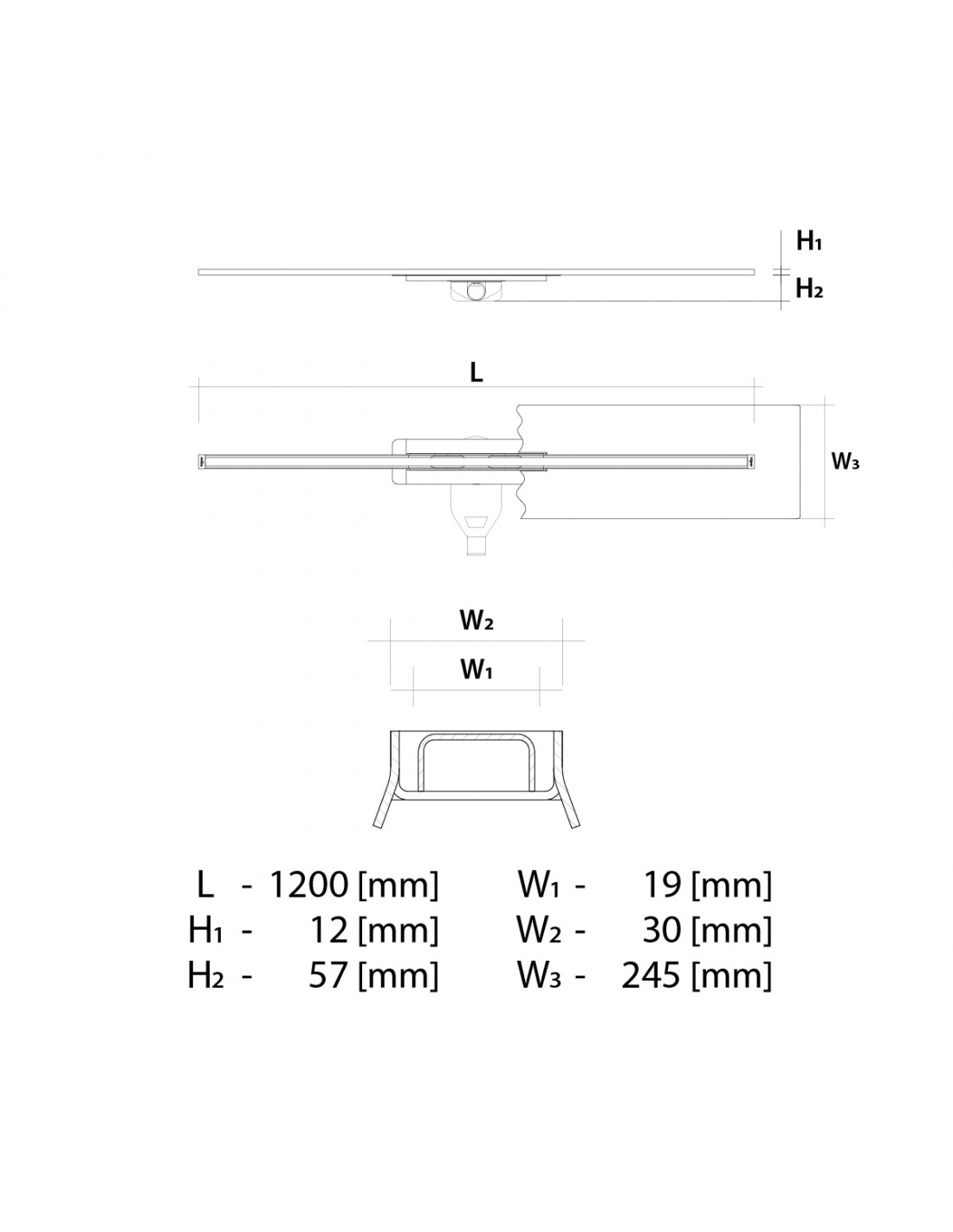

Technical drawing: Linear drain Wiper 500 - 1200 mm INTENSI 316

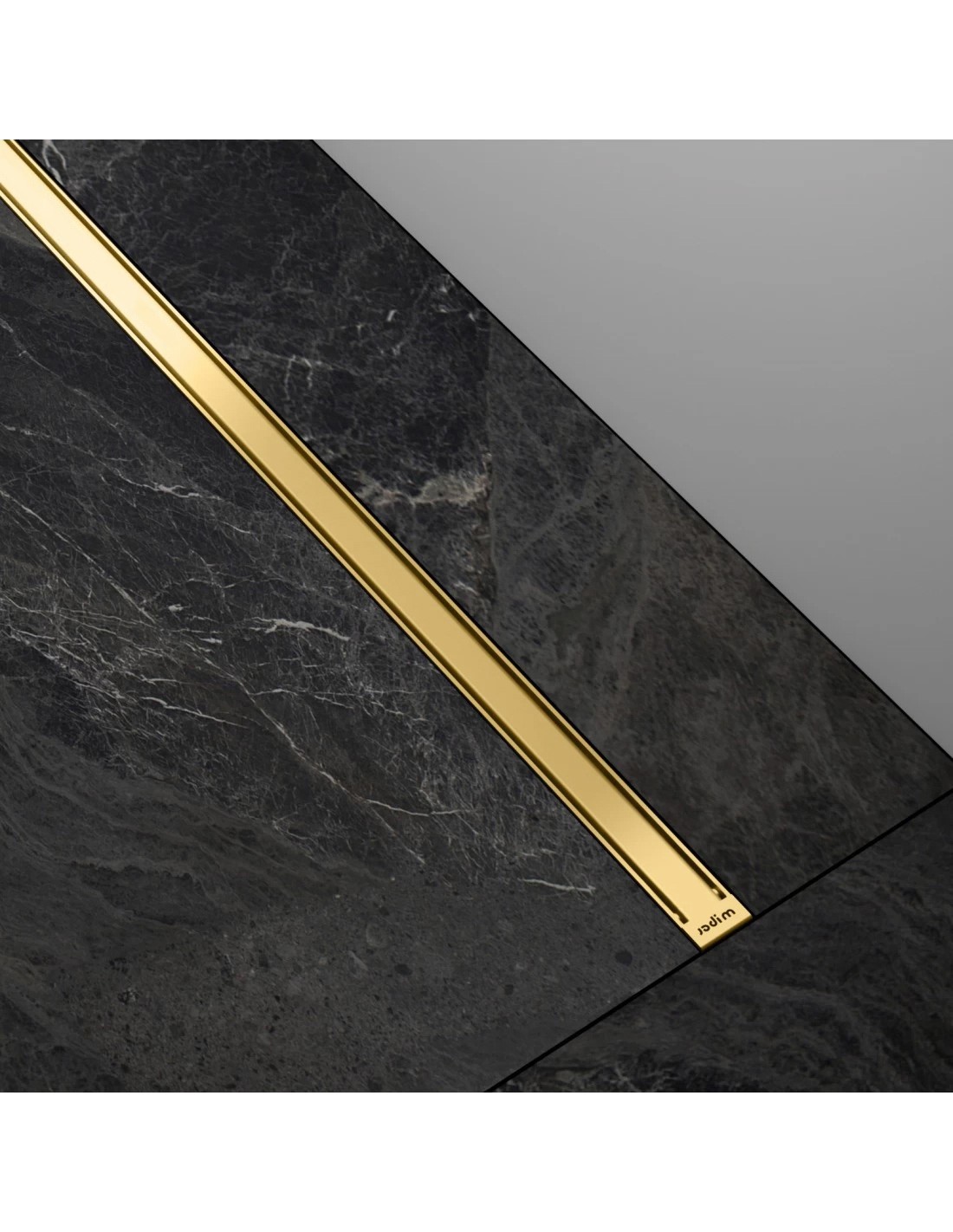

Example of a built-in slim and modern looking INTENSI 316 linear drain in Copper in black marble floor

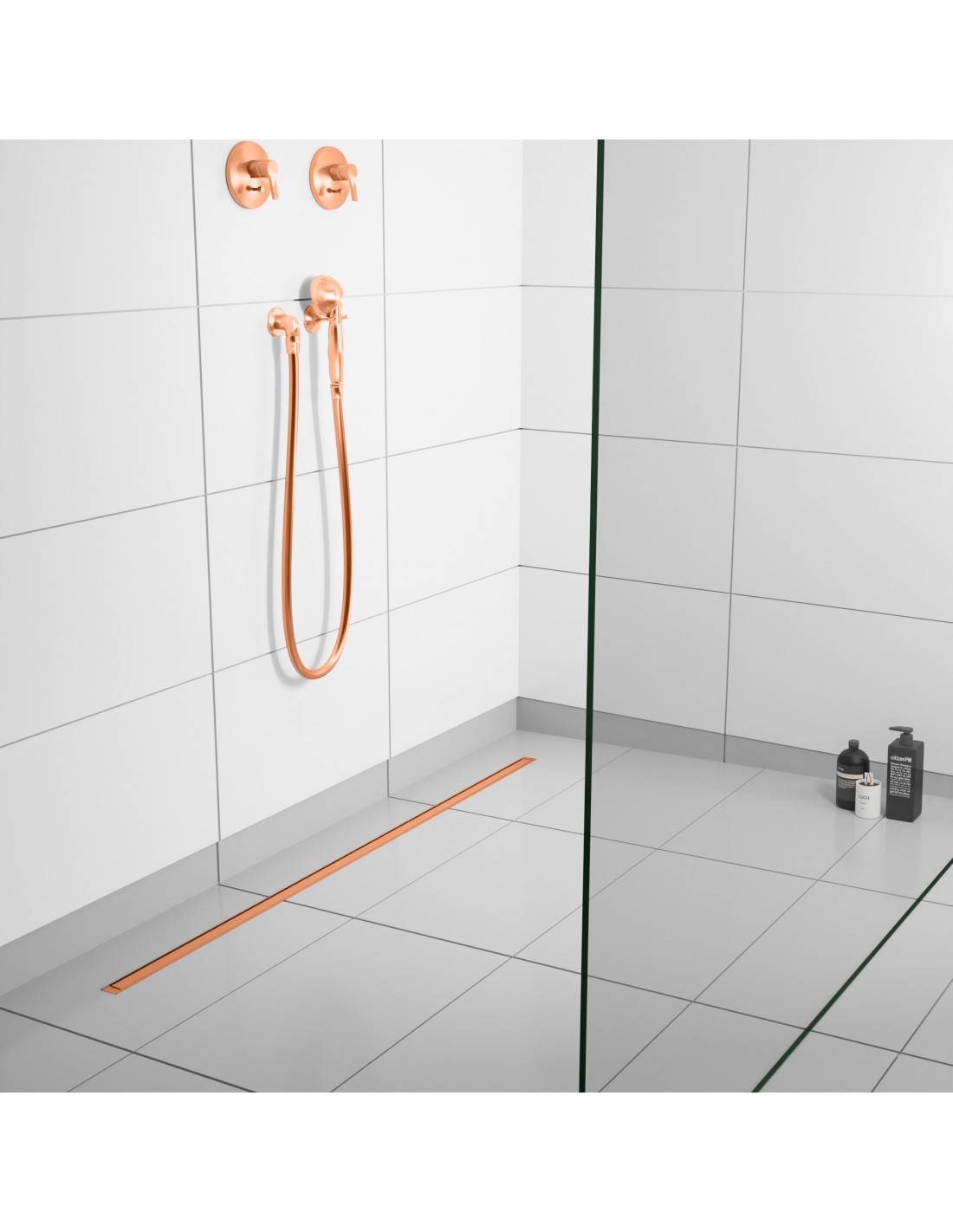

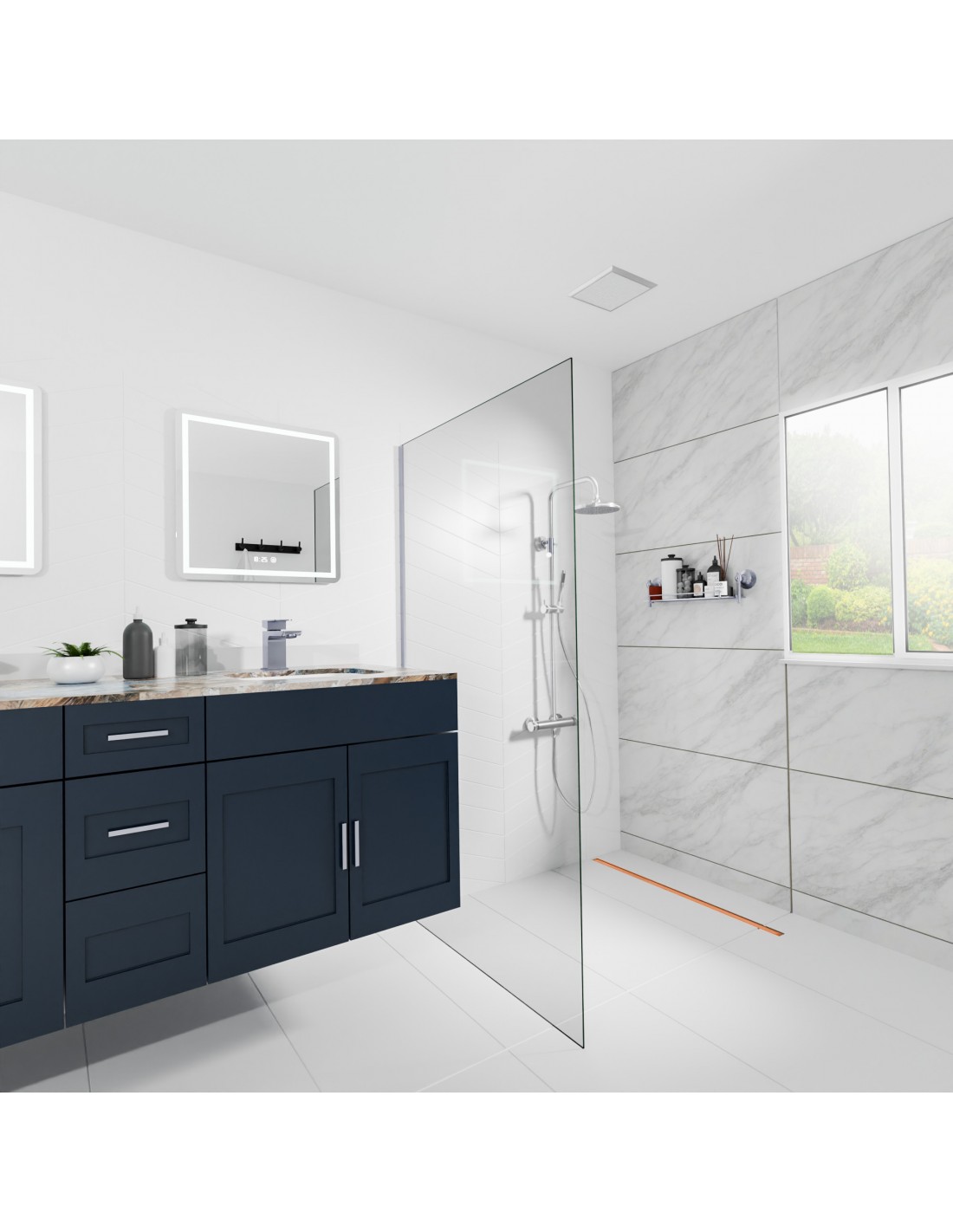

Example of a light-colored shower area with large-format tiles and INTENSI 316 linear channel in Copper

Example of a modern bathroom with dark shower area and instaled linear drain INTENSI 316 in Copper

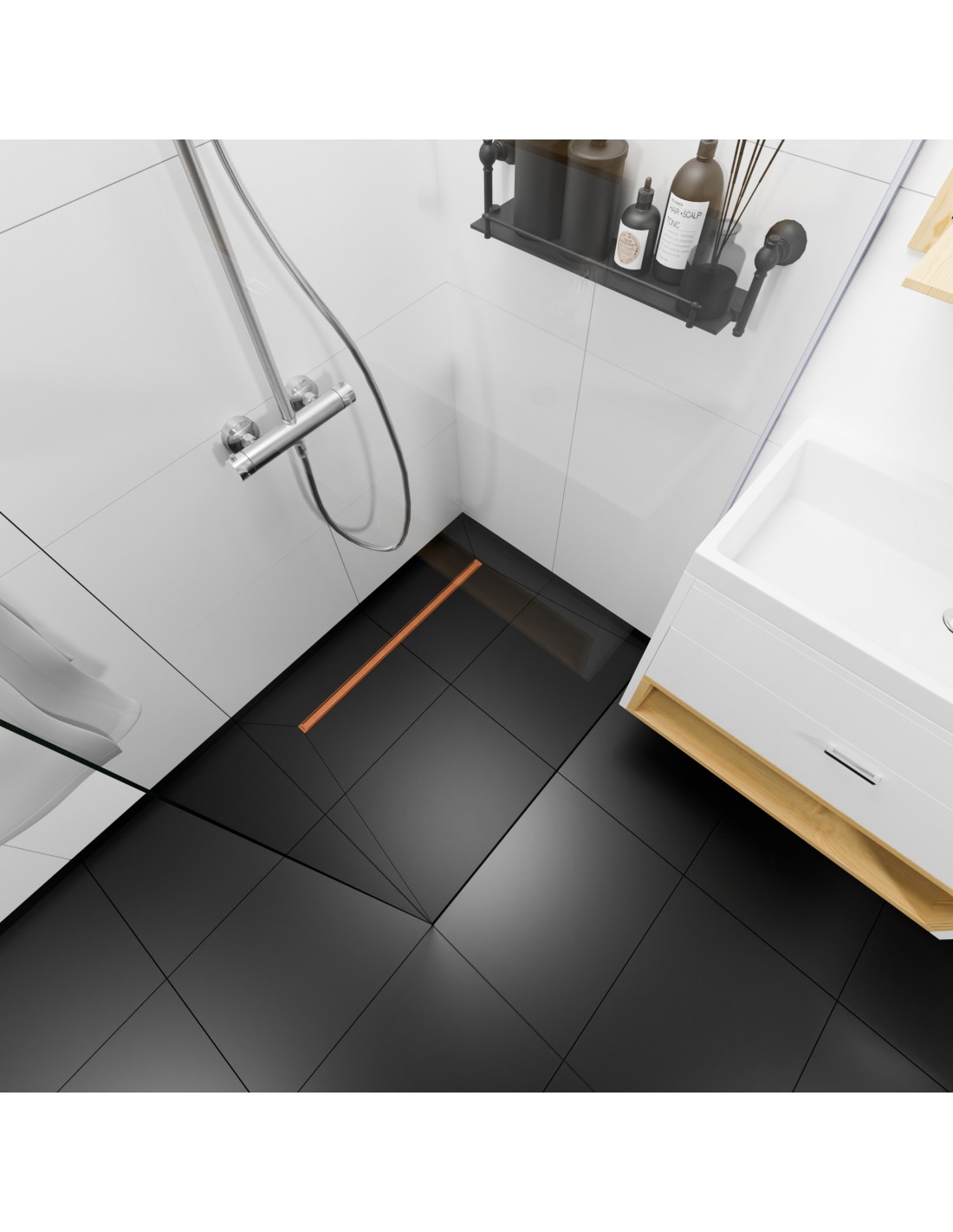

Example: View from above on a black and white shower area featuring INTENSI 316 linear channel in Copper

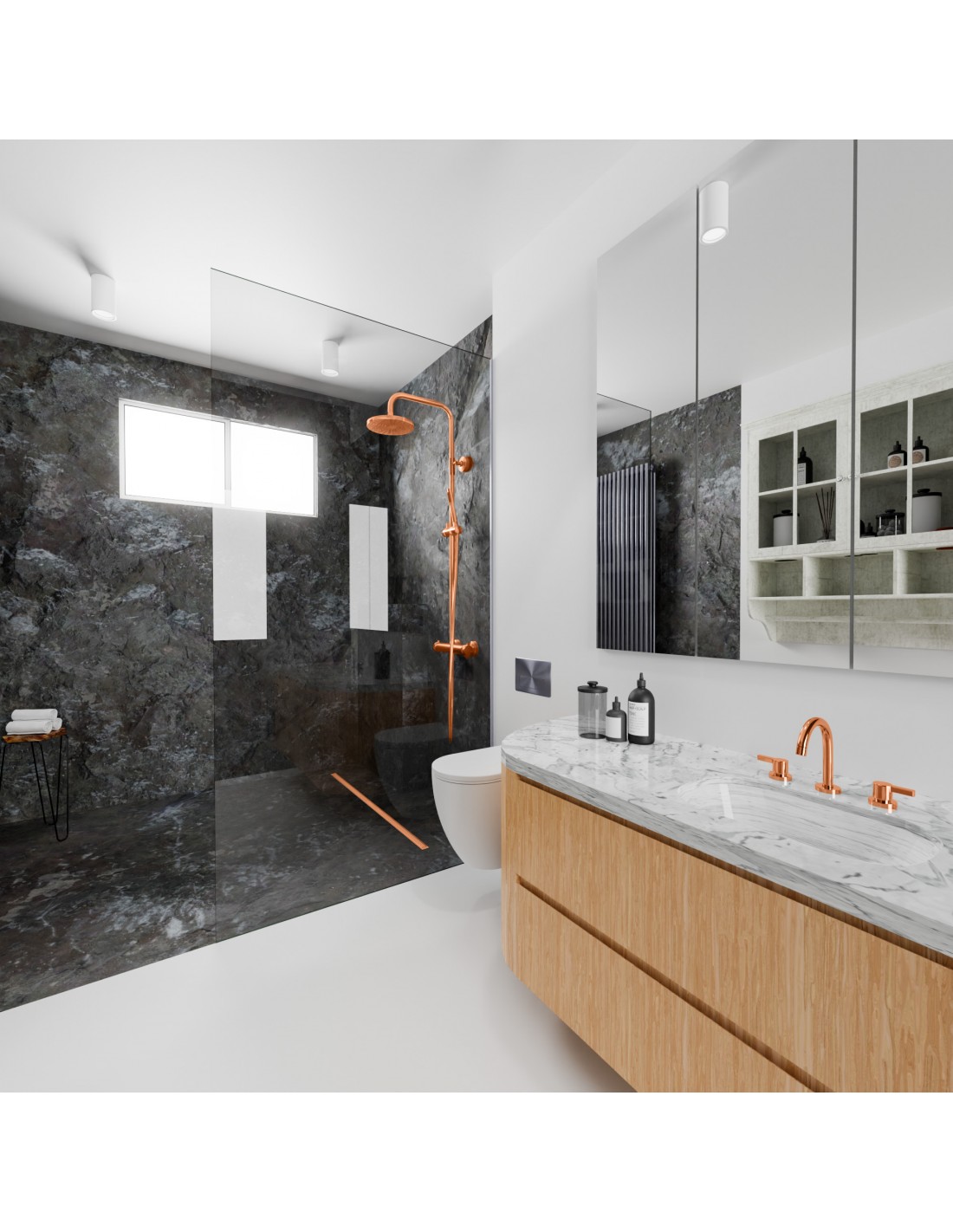

Example of a modern timeless bathroom concept with open shower area and built-in linear drain INTENSI 316 in Copper

Visualization of how the UNO waste trap system is installed in the shower area

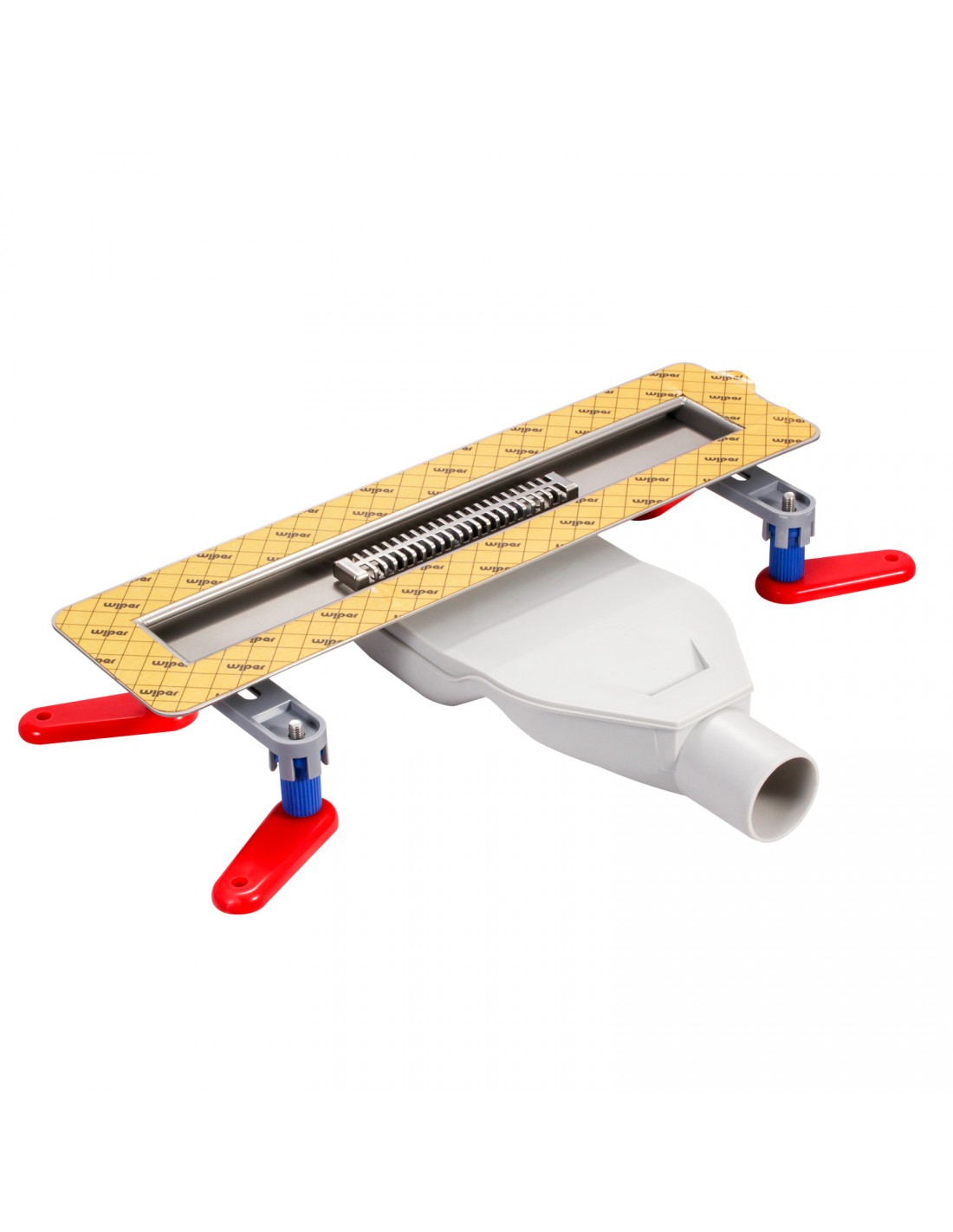

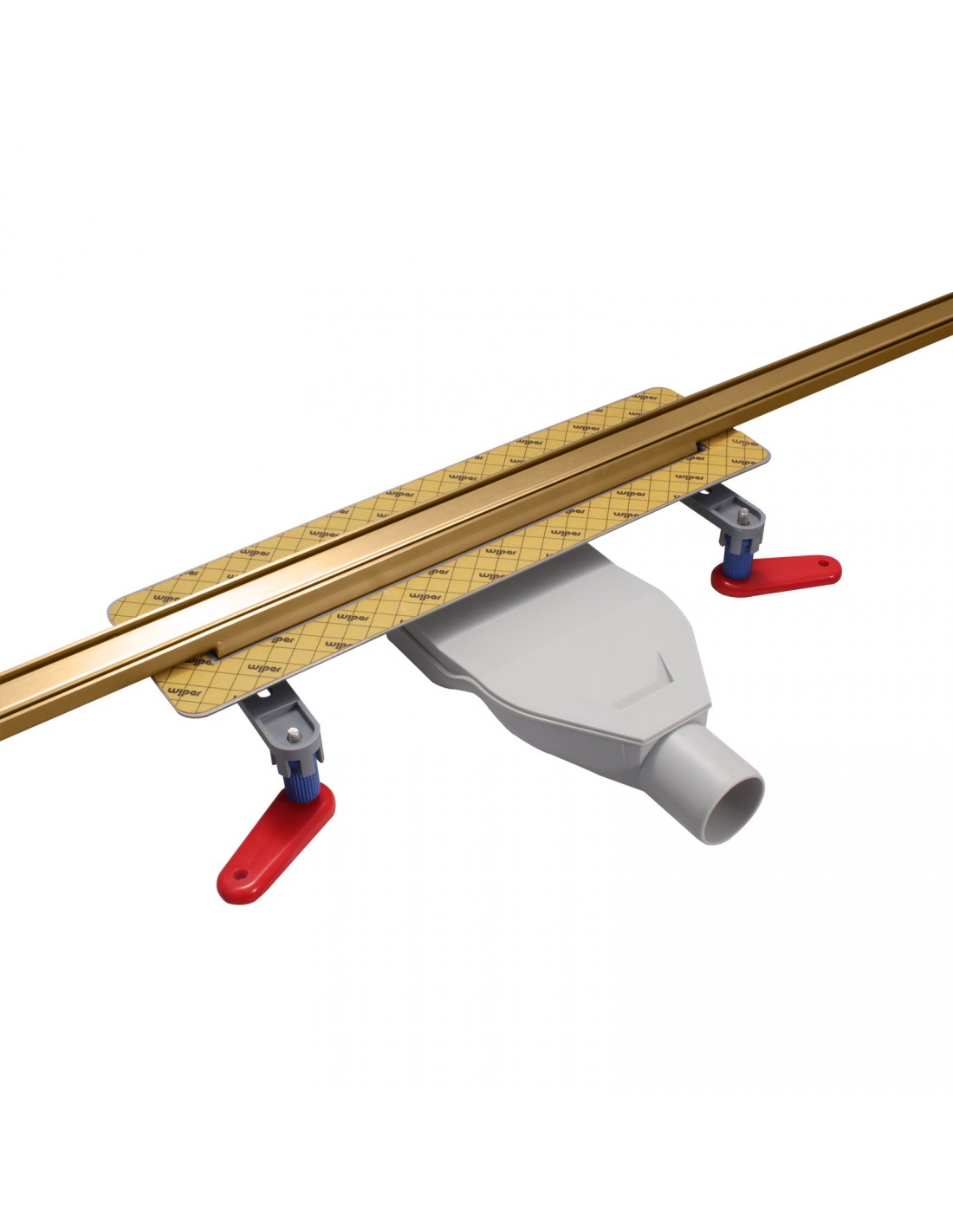

INTENSI 316 drain body with UNO waste trap system

Close up on INTENSI 316 drain featuring Lin cover in Copper

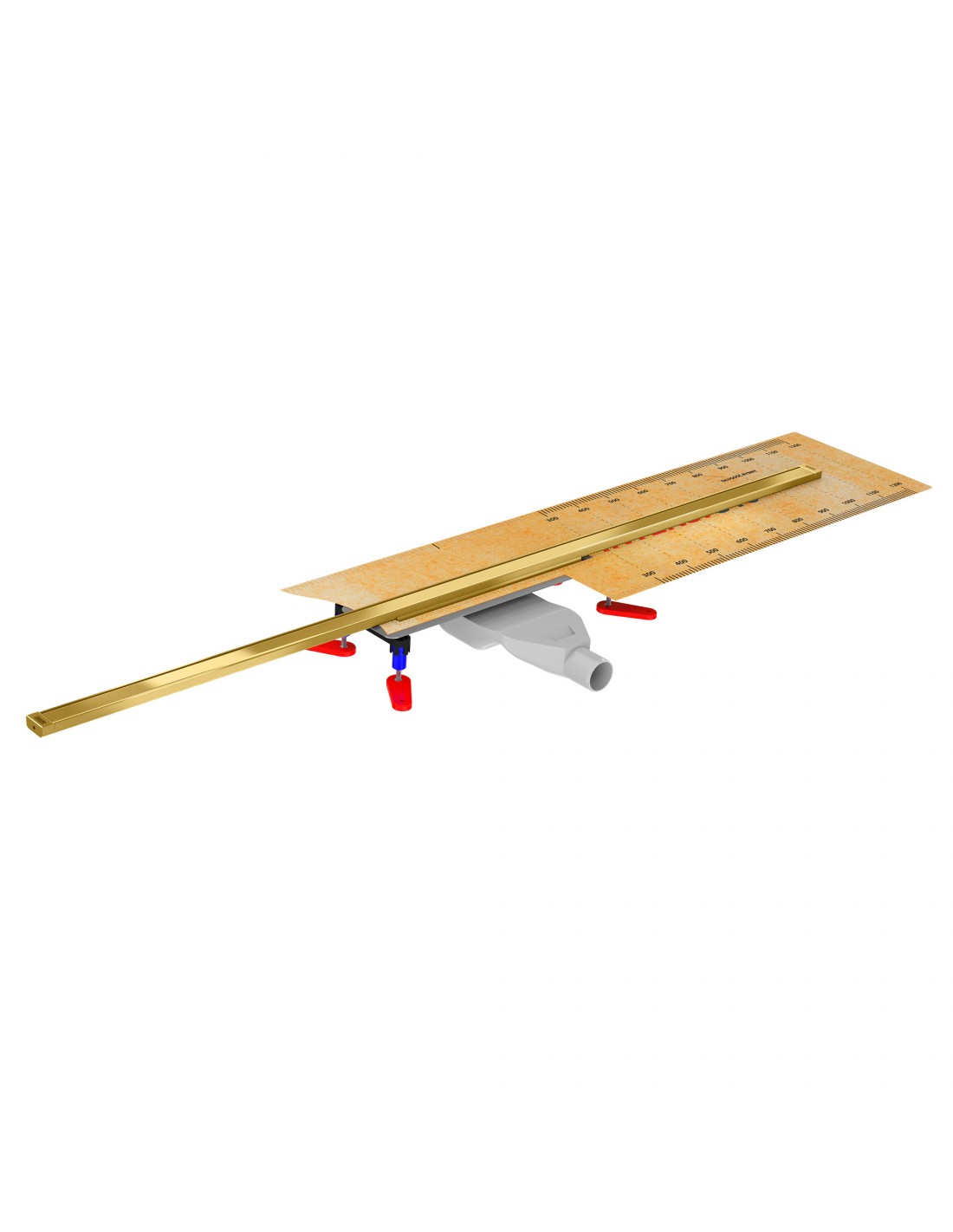

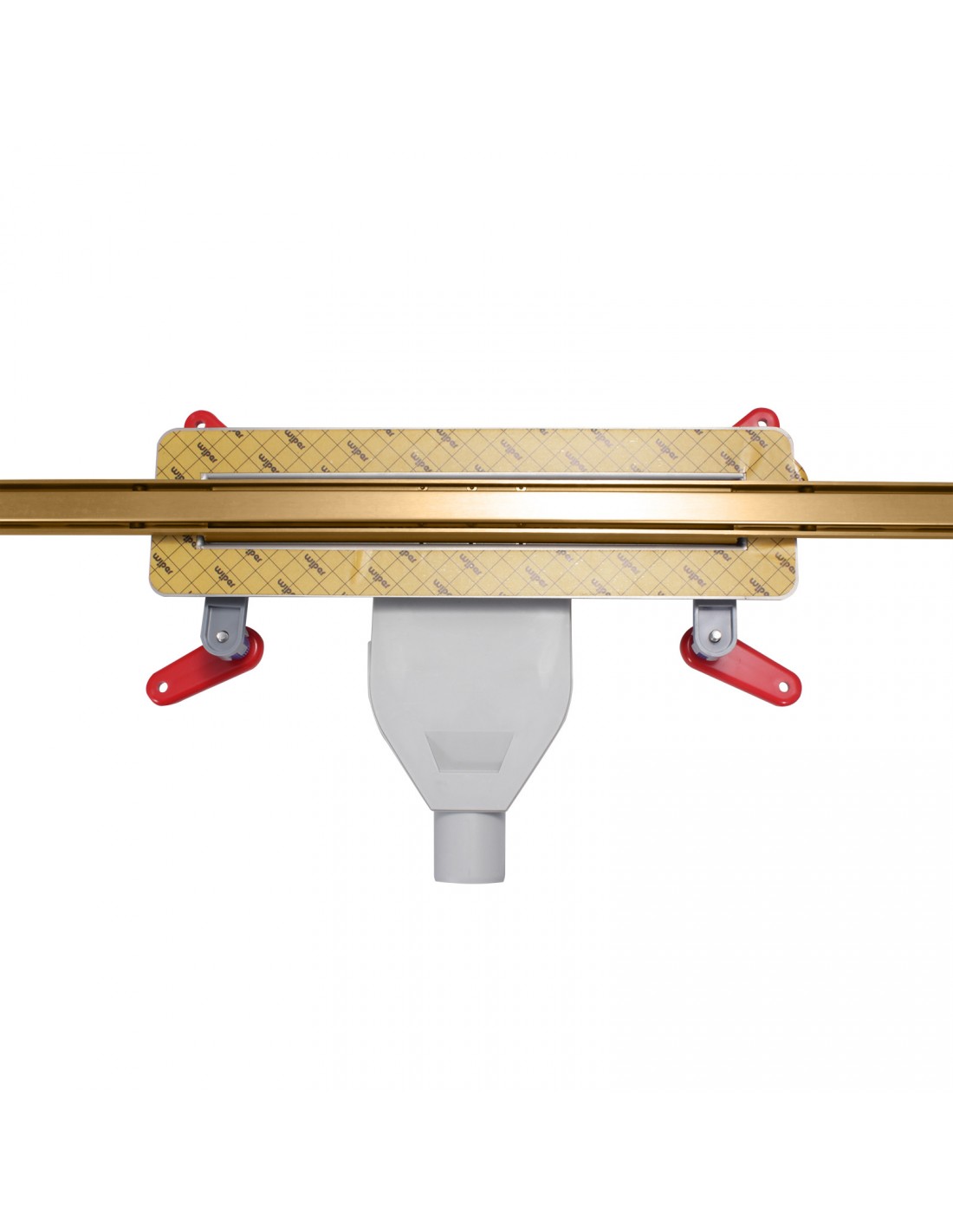

View from above on INTENSI 316 linear channel with slim modern design cover

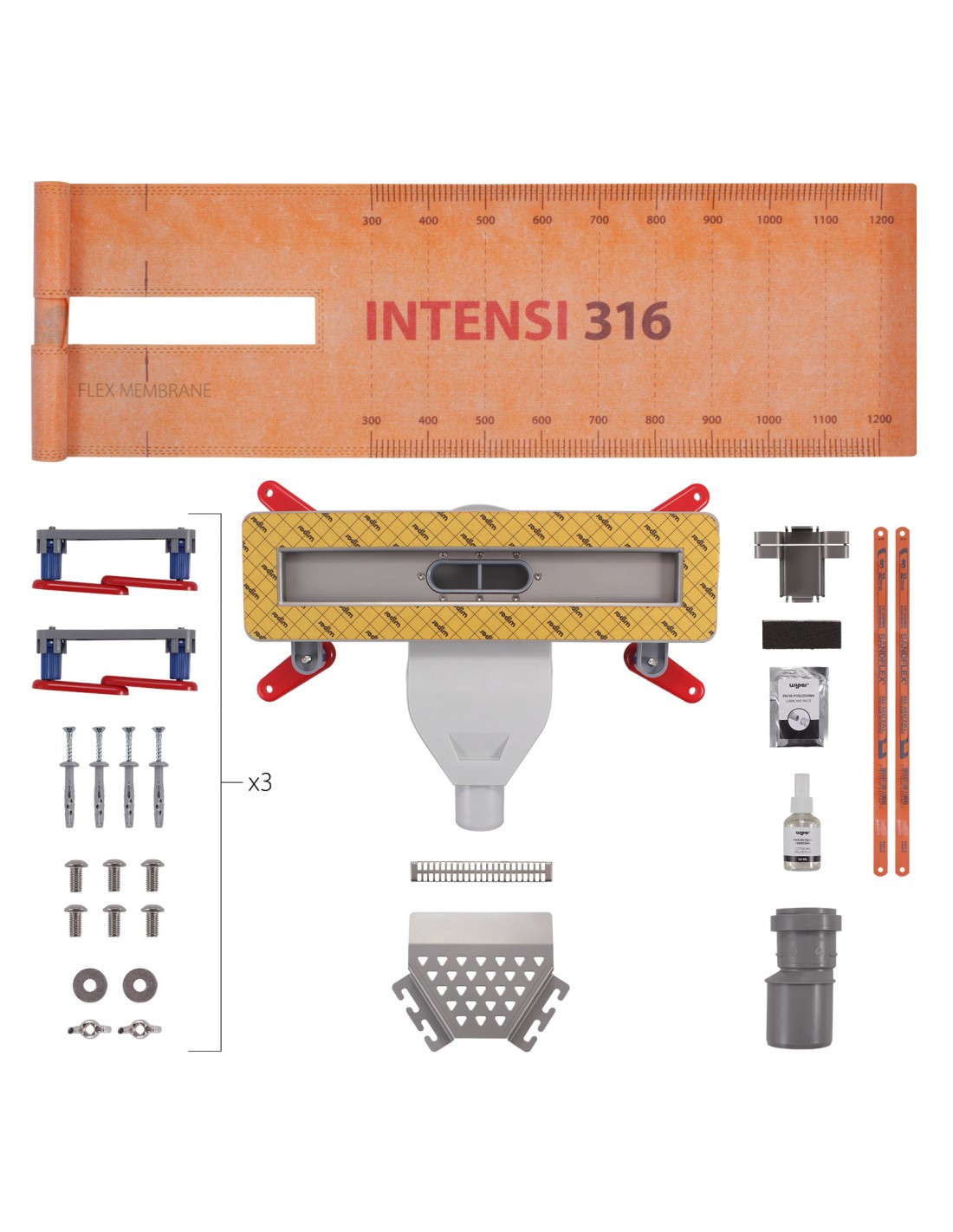

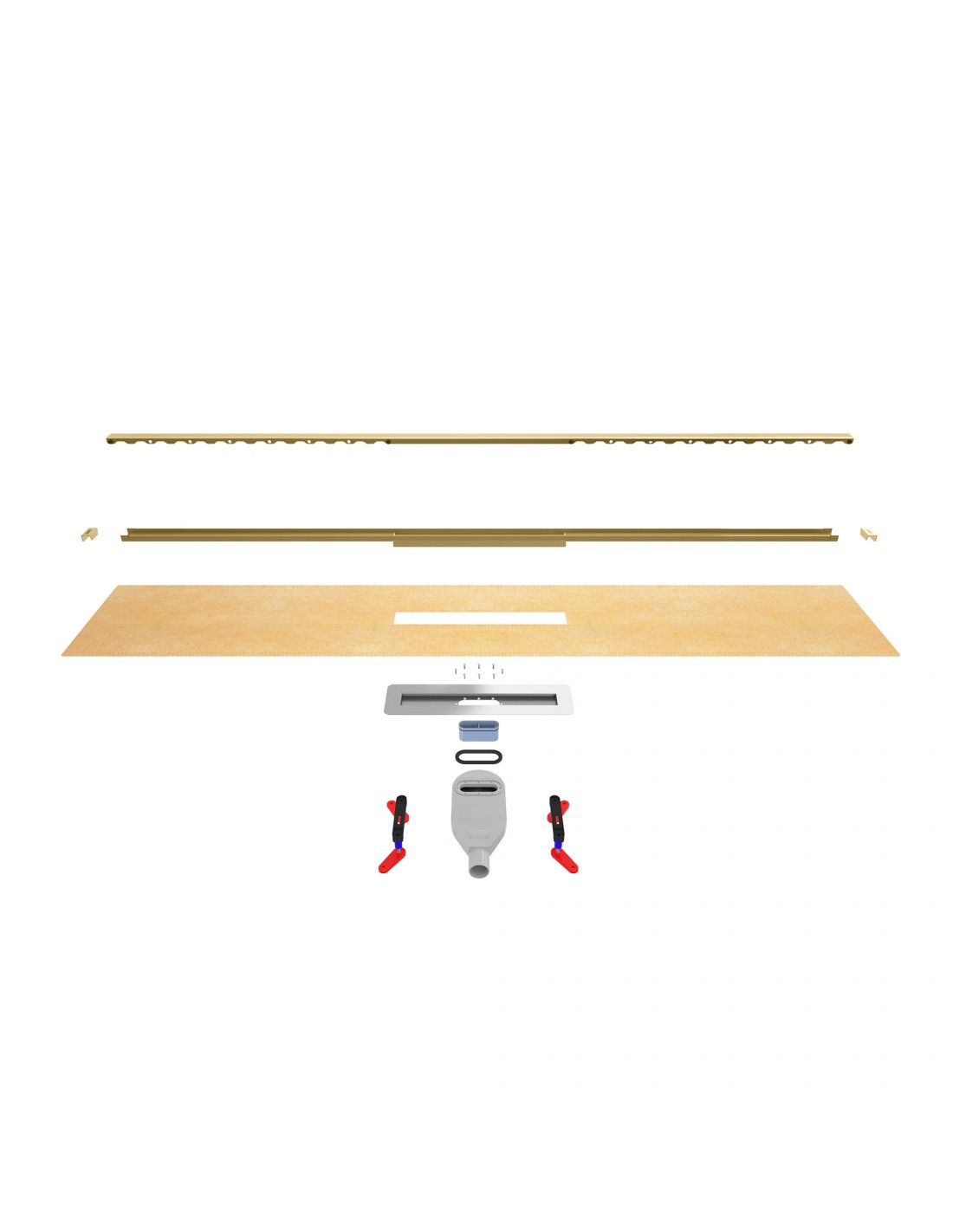

Complete Base Set showing all parts included

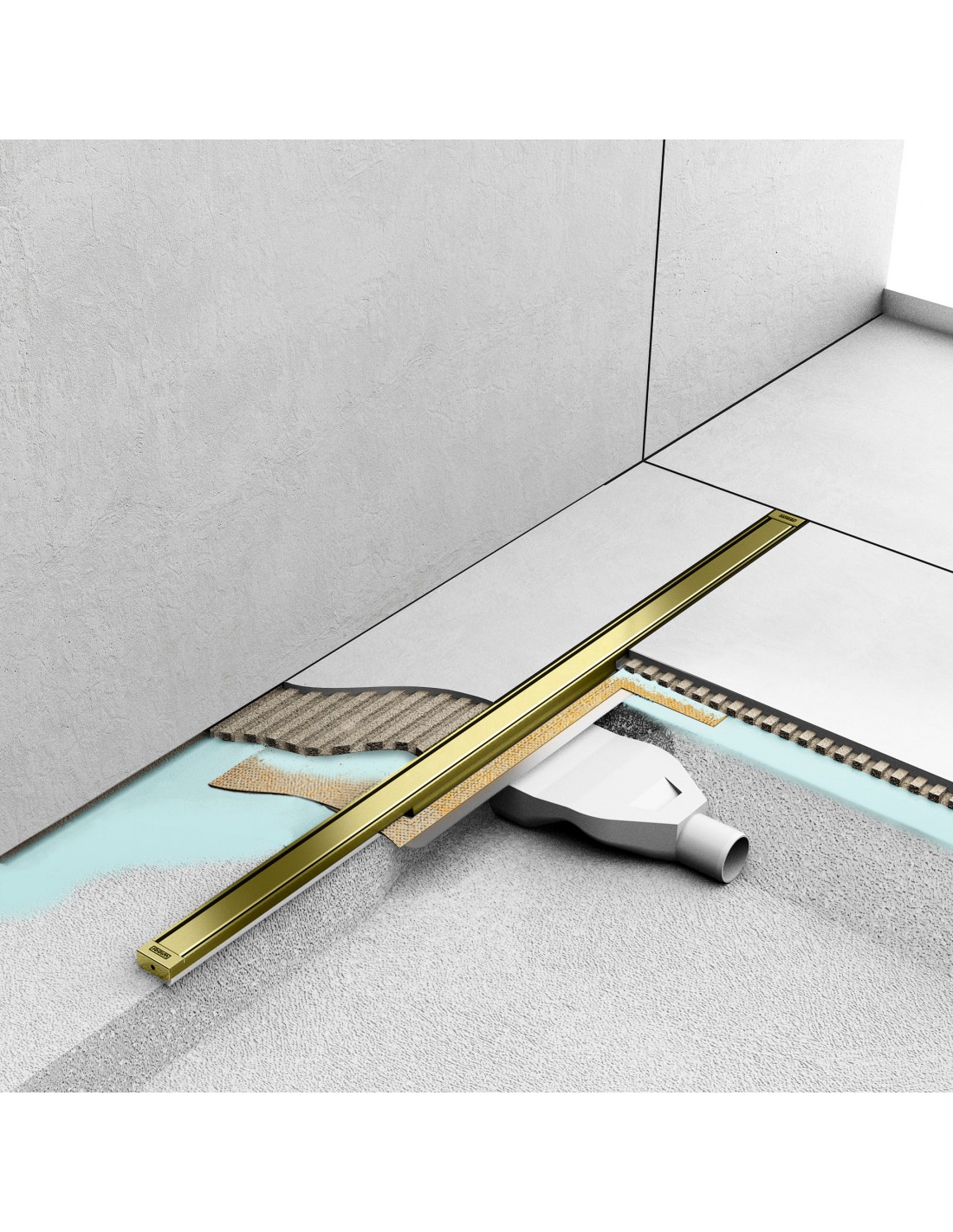

Visualization of single construction steps and parts of this drain

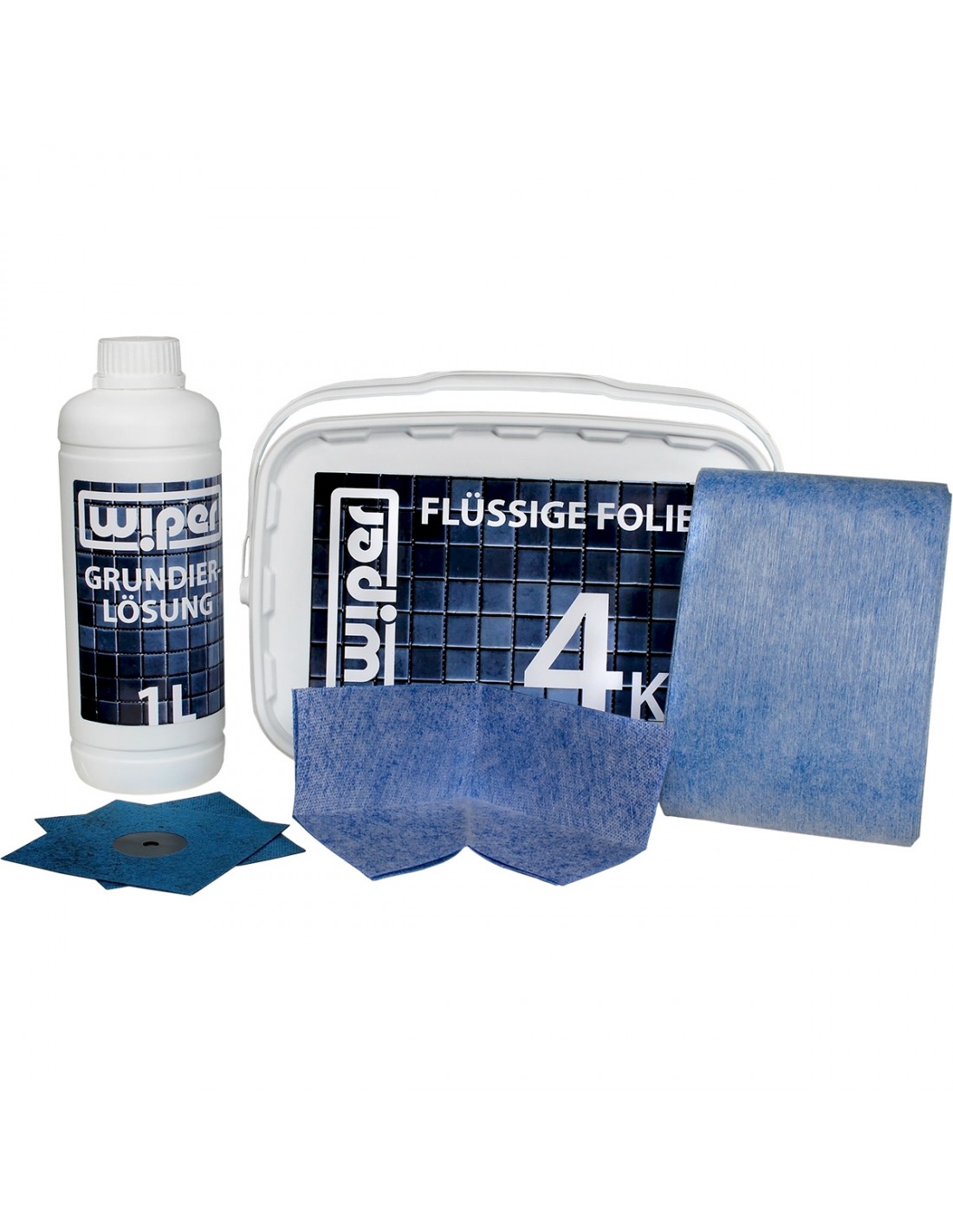

Wiper shower waterproofing kit incl. primer, tanking liquid, sealing tape, sealing corners and flexible pipe collar

Linear Drain Intensi 316 UNO Lan Copper Polished Adjustable 500 - 1200 mm

Name: Linear Drain Intensi 316 UNO Lan Copper Polished Adjustable 500 - 1200 mm
Brand: WIPER
SKU: LIN512ULABGP
Price: 640.16 GBP
Availability: InStock

Copper trim-able shower drain, perfect for wall to wall applications. Made of 316 grade stainless steel. The Polished finished LAN cover and drain body come with a Uno drainage system that has a 36 L min flowrate.

See parts included

The Intensi 316 line of shower drains offers a modern look that is as much functional as it is elegant. It is designed to be easily trimmed to size, on site by the installer. The clever end caps and cutting guide make the process quick and easy, leaving a clean straight cut that does not discolour or deform the drain body or cover.

Available in a multitude of colours and finishes it is easy to find the perfect one to fit your project.

These drains are all made using high quality 316 grade stainless steel and are coloured using a process called Physical Vapor Deposition (PVD). This ensures that the drains are highly resistant to chemical cleaning agents and will not fade or chip.

The very low profile of the drain body and the waste trap makes it easy to install where the floor height is limited.

The drain body is tapered end to end meaning it collects water along the entire length of the drain, and funnels it toward either a single (36L/min) or dual (54L/min) waste trap system. Ensured peace of mind when installed in a multi function shower or wet room.

The cutting guide, two hacksaw blades, cutting lubricant, sanding sponge and membrane roller are also included to complete the set and make installation a breeze.

Reference LIN512ULABGP

£640.16

Tax included

To get an extra 5% discount simply increase your cart value to £500.

Trade discounts are available for both wholesalers and loyal customers. To receive a discount, your cart total value, overall purchase value, or overall account purchases must cross the required threshold. Trade discount policy

Threshold	Discount
£500	5%
£1000	10%
£2000	15%
£5000	20%
£10000	25%
£25000	30%

or for further details explore our trade discounts.

Add to cart your current selections, and you will be eligible for 5% discount and need only £359.84 to get 10% discount.

2 Views during the last 24 hours

Based on current settings, if you Add to cart current set and then order, you will receive the following items:

Drain base including waste trap

36 l/min flow rate · 57 mm total height

Polished drain grating

Lan Copper

Multiuse stainless steel profiles

Drain trimming · creating slope

Accessories & Guarantee

For fitting and using

Waterproofing kit

Size: not included

Underfloor heating kit

Size: not included

Thermostat

Size: not included

Shower screen

Size: not included

Intensi 316 Linear Drain - The latest product in our range!

The trimmable membrane collar allows for the drain to be compatible with hydro-isolation systems and the steel packaging doubles as screeding guides with the extra adjustable polycarbon leveling legs that come in the set. The cutting guide, two hacksaw blades, cutting lubricant, sanding sponge and membrane roller are also included to complete the set and make installation a breeze.

The INTENSI 316 linear drain was designed with the latest trends and market expectations in mind. Its very low build-up allows for installation in difficult conditions. Available in two variants with the possibility of cutting to the desired length, the drain makes it fit perfectly into the size of the shower area. It is fitted with the SNAKE BEAN siphon. The INTENSI 316 collects water along its entire length. The standard length of the base is 300 mm, while the gutter and grating set is 1200 mm long. All made of certified 316 grade steel polished, brushed or matt. PVD (Physical Vapour Deposition) is a process of physical deposition of thin layers from the vapour phase, carried out under high vacuum.

The resulting coating is characterised by versatile properties. The most important of these are: excellent colour quality and a wide colour gamut, high abrasion and corrosion resistance, high thermal stability and chemical inertness.

Trim-able Design - cut to fit any size

The Intensi 316 linear drain is the only one in our range that is designed to be cut to the required size. In our state-of-the-art linear drain, you will find all the tools you need to cut your drain safely. Amongst them you will find: a cutter for the shower drain channel, grate, guides, a stainless steel cutting fluid and detailed installation instructions. The Intensi 316 system is also equipped with grinding block and end caps to insulate the drainage area.

Thanks to this feature, you don't have to worry about whether the drain will fit in your dream bathroom.

Various Colours and Finishes Available - PVD coating won't chip or fade

The Intensi 316 Drain is available in a variety of colours. Each one as stunning as the next, you’ll be sure to find one that matches your design needs. The drais are PVD Coated so they are highly resistant to any staining or fading from cleaning agents, ensuring that they will keep their appearance for years to come.

Sliver - Classic, Elegant and neutral in nature
Copper - Bold, almost amber in tone, makes a statement
Gold - Rich, conventional, adds a taste of luxury
Bronze - Delicate unique alternative
Graphite Black - sophisticated modern solution

Low Profile - 69 mm total height

One of the distinctive features of the INTENSI 316 drain is its low build. This drain allows for installation in difficult conditions where we cannot afford to chisel away the concrete floor. The low overall height of the drain is made possible by the use of a Bridge Bean siphon and the included adjustable legs.

A - Height to drain base - 57 mm
B - Height of the drain channel - 12 mm
C - Width of the drain grating - 19 mm
D - Width of the drain channel - 30 mm
E - Width of the drain base - 96 mm
Width of the drain: 1200 mm
Waste pipe diameter: ⌀40 / ⌀50

Quality made in the EU - 316 grade stainless steel

The most important feature of the linear drain is: excellent quality of the stainless steel, high abrasion and corrosion resistance, high thermal stability and chemical inertness. Linear Drain Intensi 316 is available in 3 different finishes. The drain body, cover and end caps are all finished in the same way so that the end result is a uniform look across the entire visible portion of the drain.

Polished - Glossy mirrored finish
Matt - flat matt, opposite alternative to the glossy finish.
Brushed - Brushed stainless steel finish is a compromise of the first to its a semi gloss finish with a textured look.

Channel length: 1200mm (trimmable)
Grate style: Lan
Total height: 69 mm
Channel width: 30 mm
Material: Stainless Steel 316
Additionals: Tanking kit
Drain surface: polish · brush · matt
Cleaning: From above (Easy clean system)
Model: Intensi 316
Set consists: Drain Base · Drain Body · Drain Cover · Sealing Membrane · Bridge Bean Waste Trap · Adjustable Legs · Cutting Profiles · Cutting Blades · Accessories

Intensi 316 Instruction

Download (608.03k)

The tanking kit is a ready-mixed, under-tile tanking system to protect water sensitive substrates from exposure to water. Suitable for wet areas such as bathrooms, showers in residential buildings, hotels, old people's homes and hospitals. Should not be used in places exposed to pressurised water, for an instance swimming pools. Ready to use, no mixing required and easy to apply with a roller. The kit includes a high performance joint reinforcing tape to protect against movement in floor joins and corners etc. The contents are all INSIDE the bucket and the contents are protected in the bucket with polystyrene infill's to stop transit damage.The instructions are printed on the rear of the tanking kit.

For anti-moisture insulation systems in wet rooms and rooms intended for human residence. The tanking liquid is a ready-to-use singlecomponent, solvent-free sealant composed of polymer dispersion, fillers and modifying additives. When applied to the surface, upon binding it creates a flexible and water-insulating layer.

Tanking kit contains:

4kg Tanking Liquid
1l Primer
10 Metres flexible Sealing Tape
2 Flexible Pipe Collars
2 Corners

Features:

Consumption to 1,2kg/m²
Solvent free
Drying time: 2h

Tanking liquid

The tanking liquid is a ready to use, single component, solvent-free sealant mass, consisting of polymer dispersion, fillers and additives. When applied to a substrate and cured, it forms a flexible waterproofing coating. The product is intended for use inside places intended for human residence, especially in humid areas (such as bathrooms, kitchens, laundries), to perform insulation against moisture under linings and coverings, such as ceramic tiles, glazed tiles, terracotta, wooden floors and panels, and synthetic carpets.

The product is intended for priming absorbent and porous surfaces, inside and outside buildings. It is especially recommended for cement - limestone plaster, gas concrete, plaster-carton boards and cement plaster. The primer has a high penetration ability, is deeply absorbed into the substrate, thus strengthening it, while allowing for „breathing”. These benefits improve the structure of the substrates, which, due to the passage of time, have lost their appropriate parameters. The priming solution improves adhesion to the surface of other materials that will be used on the primed substrate. By reducing the absorbency of the substrate, the wear of the applied coating materials, emulsion paints, glues, mineral putties reduces as well. The solution, due to the content of the biocide and fungicide, protects the primed substrate against the formation of mold and bacteria in the product.

Waterproofing Calculator

Optimize Your Waterproofing with Our Calculator – Accurate, Customizable, and Easy to Use. Get your waterproofing needs sorted with our advanced waterproofing calculator, designed for accuracy and ease of use. Whether you’re waterproofing a bathroom, kitchen, or any other room, our tool allows you to calculate your requirements in three different ways: by room dimensions, simple room coverage, or exact square meter needs. Additionally, you can exclude specific areas like doors and windows, or even calculate for multiple rooms at once. Our calculator provides a tailored list of necessary products, ensuring you get only what you need. Download your estimate as a PDF or add the items directly to your cart for a streamlined ordering experience.

Calculate Needed Waterproofing

The Intensi 316 shower drain has been designed in two versions UNO (with a single waste trap) and DUO (with a double waste trap). Check the differences between them:

Uno - The single waste trap system has a bean waste trap allowing for 36L/min flow rate. This option is low profile with only 57mm of space required from the flange of the drain body. The drain offers quick and convenient access from the top of the drain for cleaning and maintenance. It also comes with a hair strainer to prevent clogs down the line.

Duo - If you require a higher flow rate drain, we offer the intensi in a duel waste trap system. The duel system has 2 bean waste traps attached to it providing 54L/min flow rate, ensuring the risk of water backing up is minimal. The low profile of 57mm is still maintained so it can be installed even where floor height is at a premium. The duo is also protected by a hair strainer and allows for easy access for maintenance.

After measure the length of the shower drain proceed to the procedure of cutting the linear drain and the grating. Assemble all the necessary components included in the Intensi 316 package.

1. Cut the shower drain channel to the length L by a symmetrical distance from both ends of the channel using the included cutter, stainless steel saw blades, and cutting lubricant (which needs to be applied several times).

A – Installation guide piece (for temporary use)
B – Cutter for the shower drain channel, grate, and guides
C – Shower drain channel

2. Trim the drain grate symmetrically from both its ends by the same length as the drain channel was trimmed; this should result in the grate length 28 mm shorter than the trimmed channel.

A – Installation guide piece (for temporary use)
B – Cutter for the shower drain channel, grate, and guides
C – Shower drain channel
D - Grate

3. Deburr (grind) the cut edges with the included grinding block.

4. Install the caps on both ends of the channel. Then follow the installation instructions.

The linear drain base is integrated into the Bridge Bean siphon (or siphons in the DUO version). The waste trap provides a water seal that prevents any bad smells from getting back into your shower. The siphon is made of 100% polypropylene and has a high flow rate: for the UNO version it will be 32 l/min, for the DUO version with a double siphon - 54 l/min.

Colour: grey,
Total height: 45,00 mm,
Waste pipe diameter: 1.5" (british standard size)
Water seal: 25 mm
Flow rate [l/min]: 32/54 (for UNO/DUO version)
Ready to be connected to waste system

The Intensi 316 shower linear drain comes with the most parts in the kit, giving the buyer all the necessary tools to cut and install the drain. These include:

drain base,
drain body,
drain cover,
sealing membrane,
bridge bean waste trap/traps,
adjustable legs x 8 (2 attached),
cutting profiles,
cutting blades,
accessories - (fitting kit - screws, lubricant paste, cutting liquid, waste trap mask, hair catcher, cutting tool, brushing tool),
