Linear Drain Intensi 316 UNO Lin Copper Brushed Adjustable 500 - 1200 mm

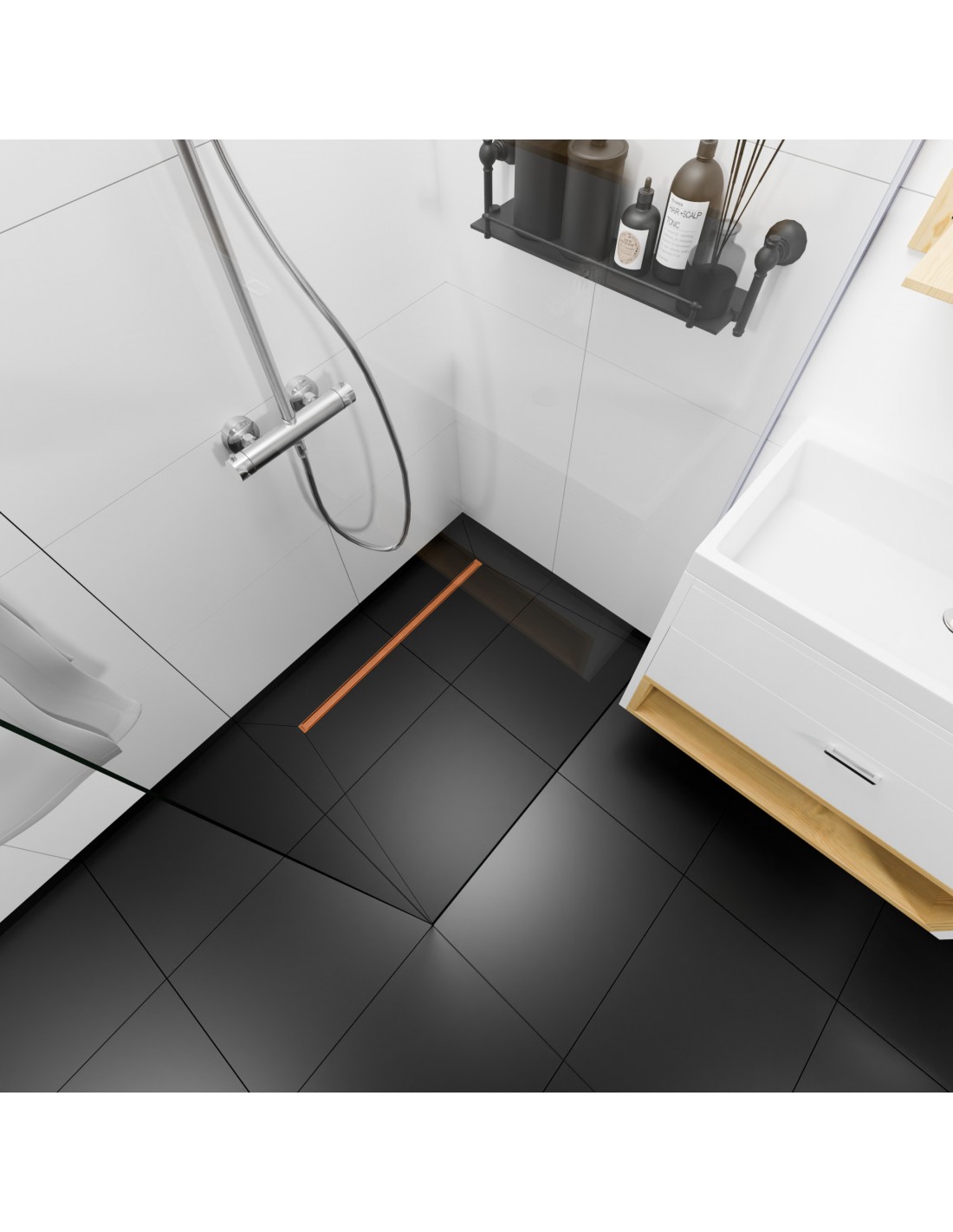

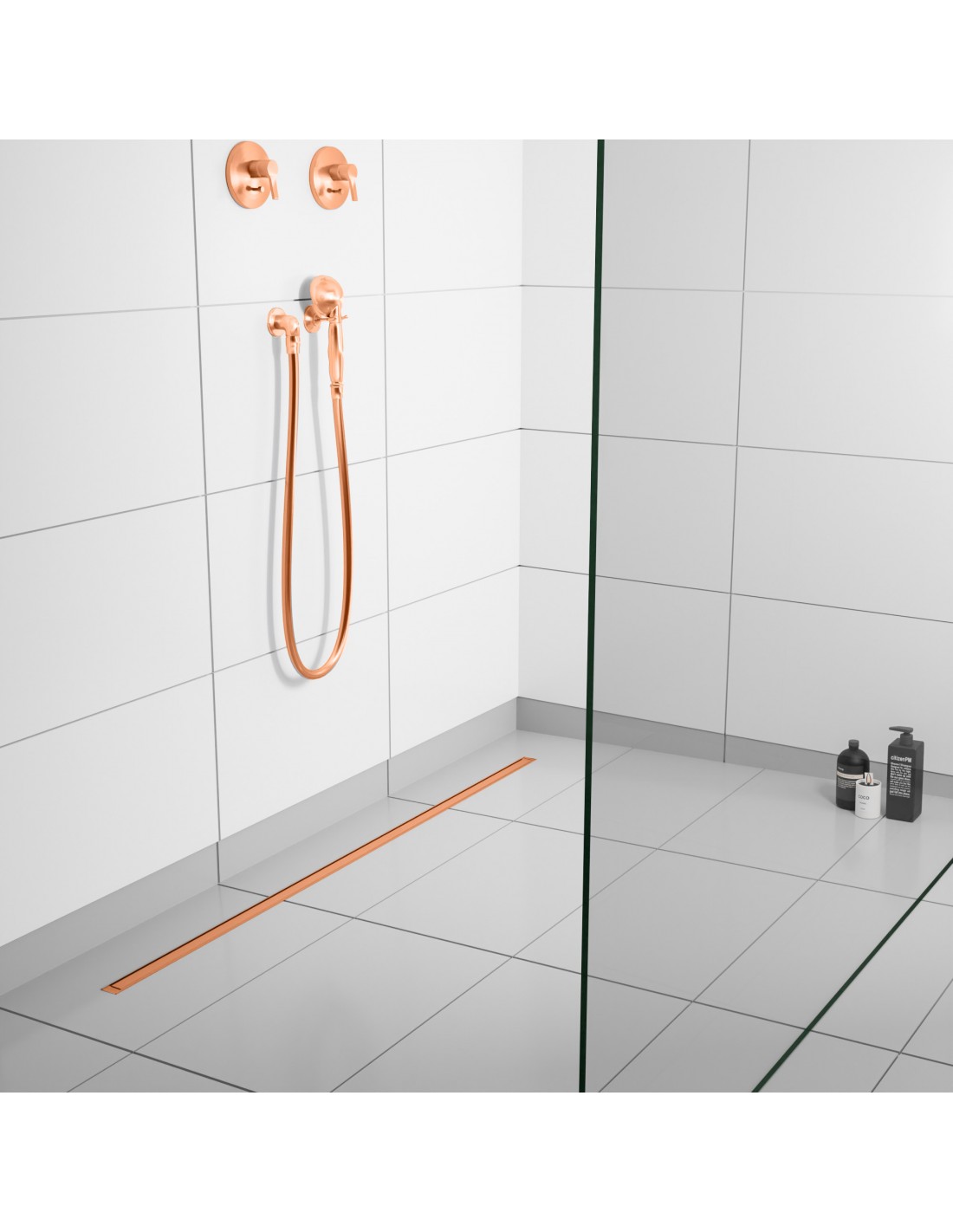

Copper trim-able shower drain, perfect for wall to wall applications. Made of 316 grade stainless steel. The Brushed finished LIN cover and drain body come with a Uno drainage system that has a 36 L min flowrate.

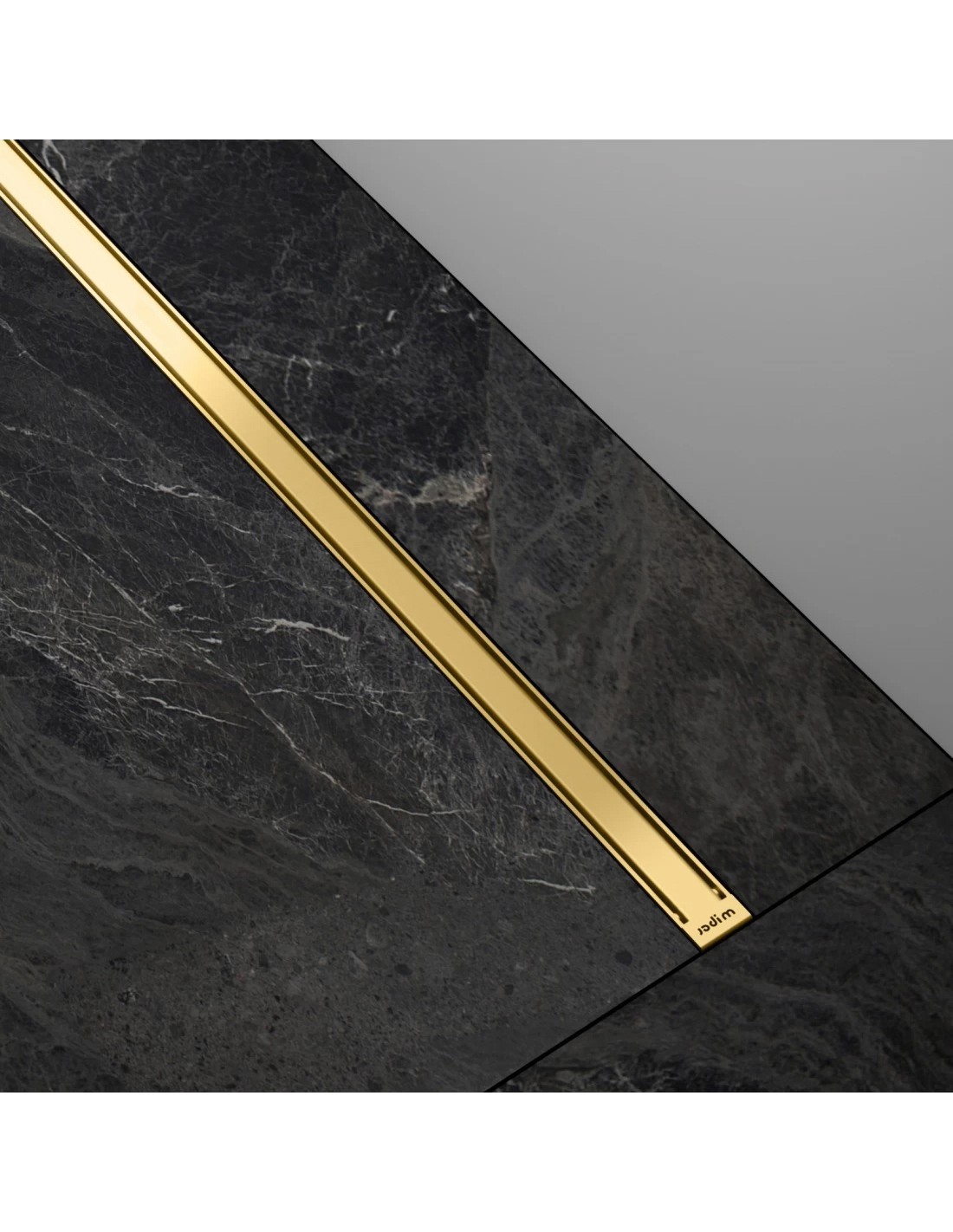

The Intensi 316 line of shower drains offers a modern look that is as much functional as it is elegant. It is designed to be easily trimmed to size, on site by the installer. The clever end caps and cutting guide make the process quick and easy, leaving a clean straight cut that does not discolour or deform the drain body or cover.

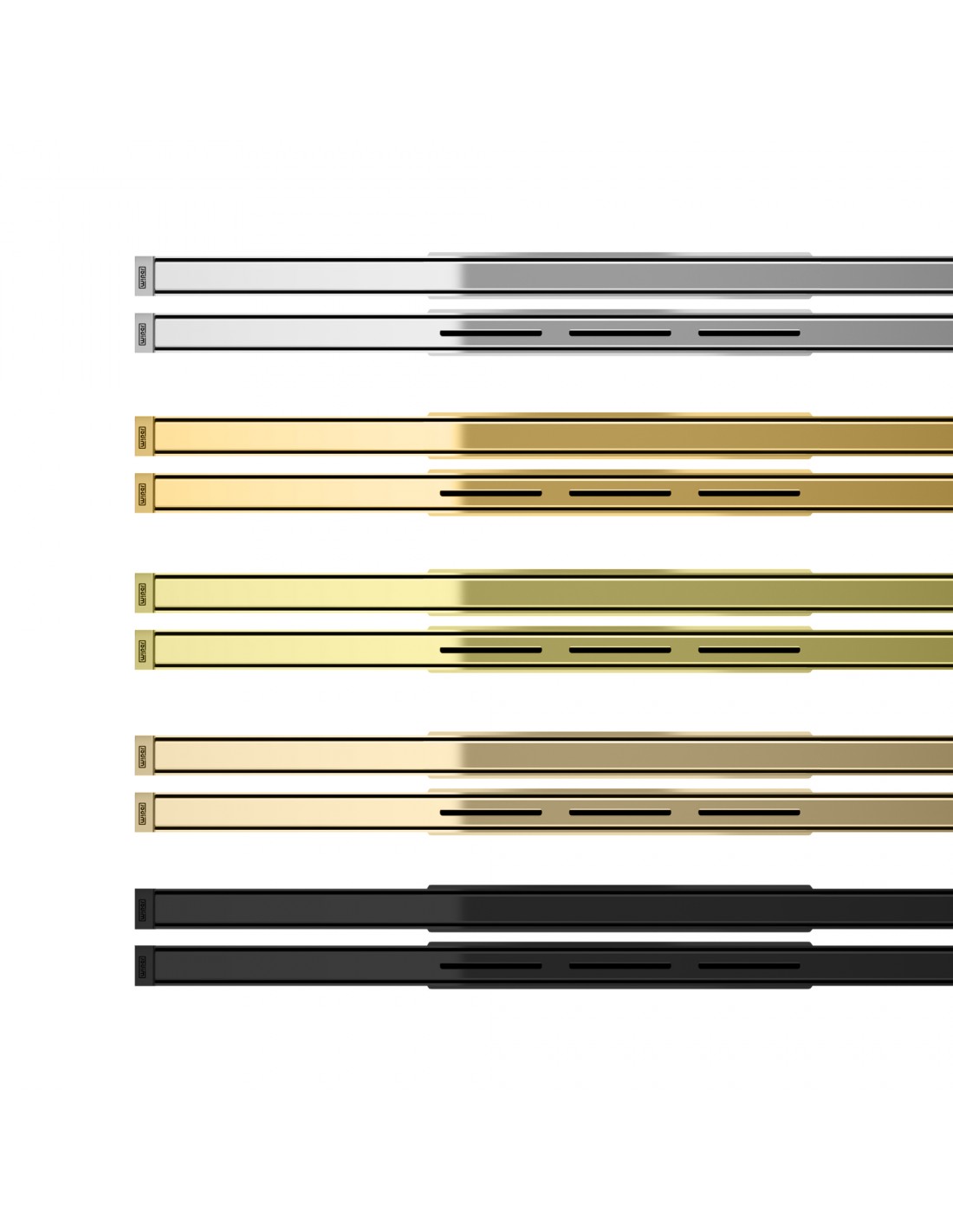

Available in a multitude of colours and finishes it is easy to find the perfect one to fit your project.
These drains are all made using high quality 316 grade stainless steel and are coloured using a process called Physical Vapor Deposition (PVD). This ensures that the drains are highly resistant to chemical cleaning agents and will not fade or chip.

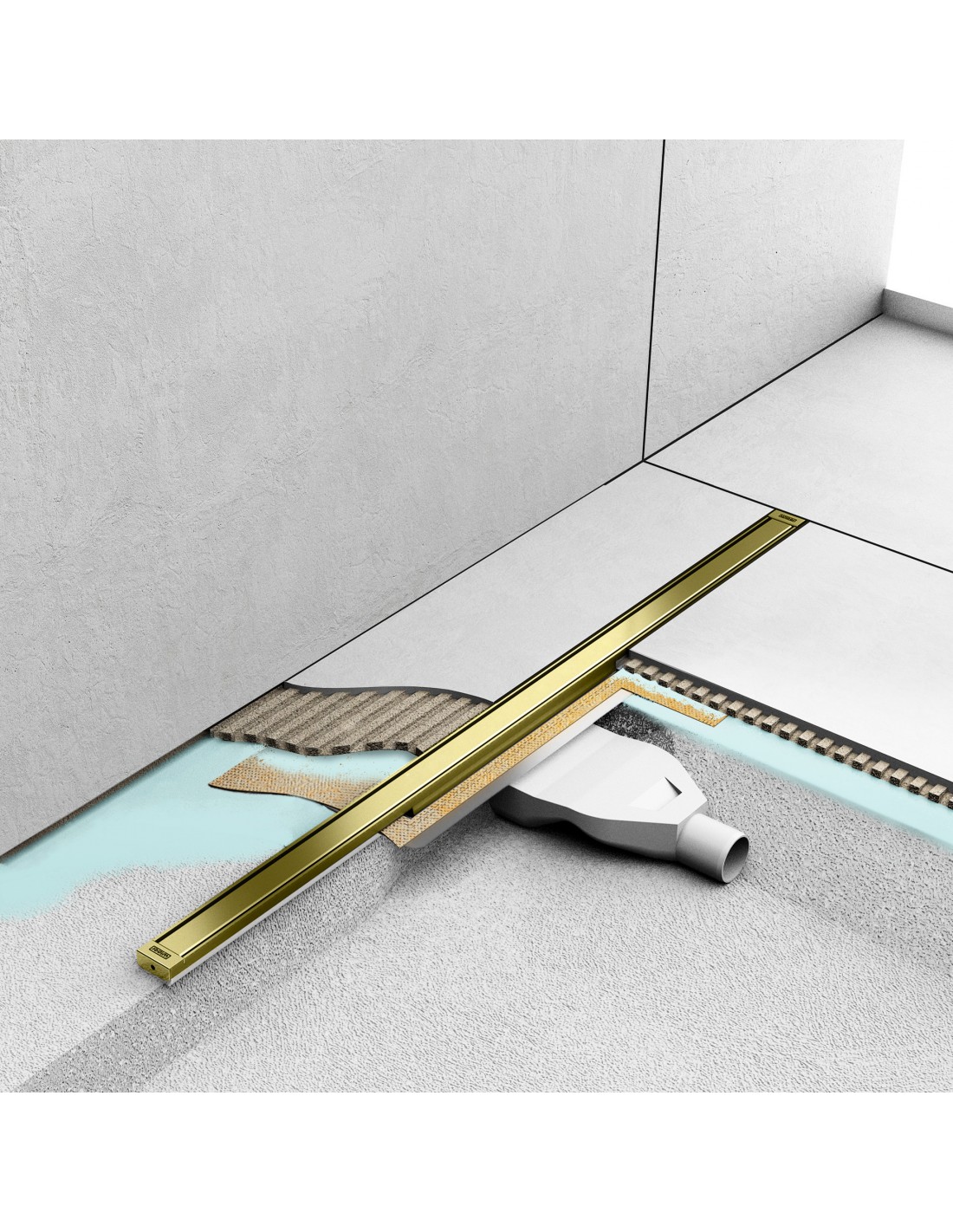

The very low profile of the drain body and the waste trap makes it easy to install where the floor height is limited.

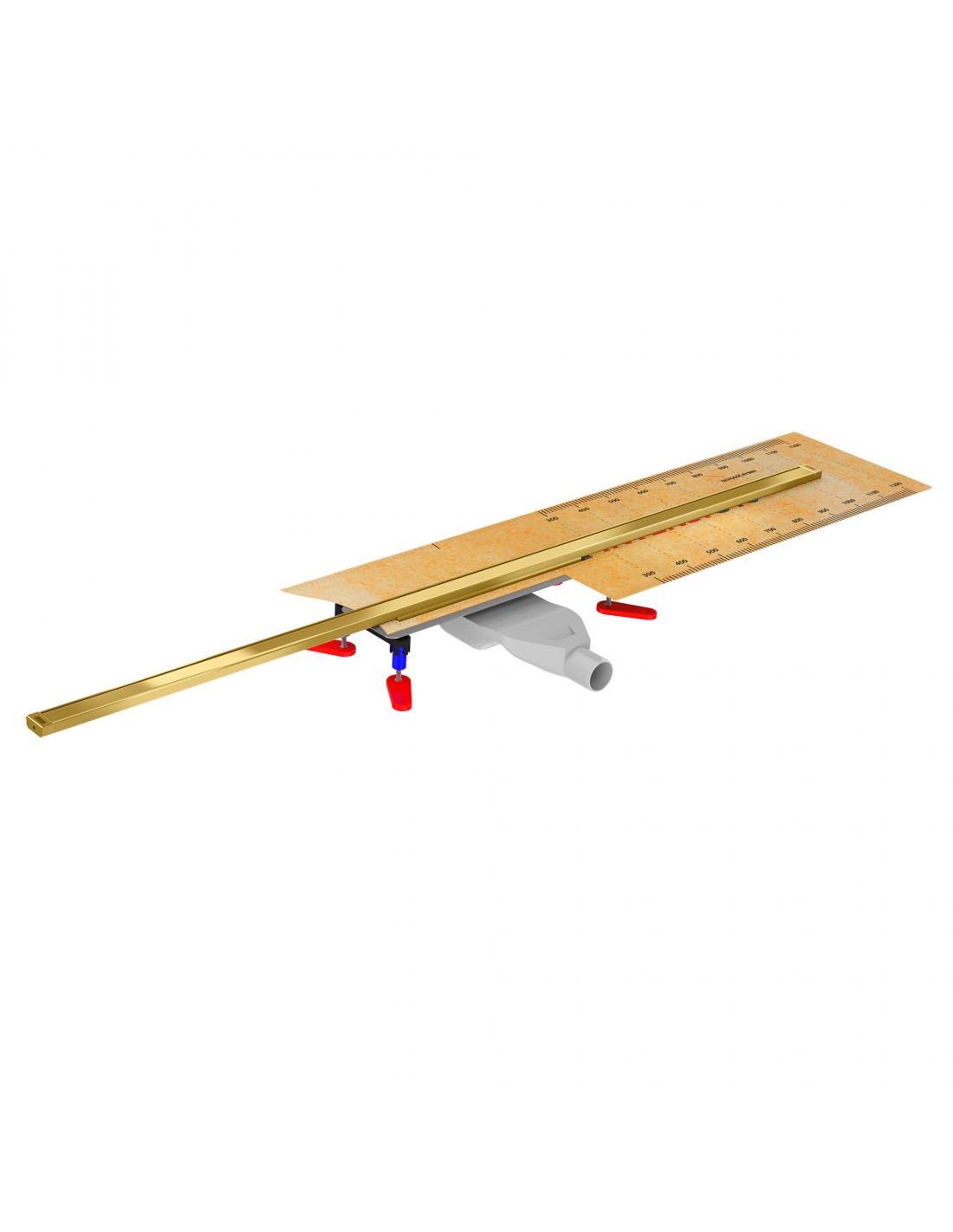

The drain body is tapered end to end meaning it collects water along the entire length of the drain, and funnels it toward either a single (36L/min) or dual (54L/min) waste trap system. Ensured peace of mind when installed in a multi function shower or wet room.
The trimmable membrane collar allows for the drain to be compatible with hydro-isolation systems and the steel packaging doubles as screeding guides with the extra adjustable polycarbon leveling legs that come in the set.
The cutting guide, two hacksaw blades, cutting lubricant, sanding sponge and membrane roller are also included to complete the set and make installation a breeze.
Based on current settings, if you Add to cart current set and then order, you will receive the following items:
Drain base including waste trap
The Intensi 316 shower drain is available in two outlet styles. UNO (with a single waste trap) and DUO (with a double waste trap). Flow rate of the Uno model is 36 l /min, while Duo offers 54 l/min. Both are low profile - only 57 mm is required from the flange to the bottom of the trap.
36 l/min flow rate · 57 mm total height
Multiuse stainless steel profiles
The Intensi 316 shower drain has been designed in two versions UNO (with a single waste trap) and DUO (with a double waste trap). Flow rate of the Uno model is 36 l /min, while Duo offers 54 l/min. Both are low profile - only 57 mm is required from the flange to the bottom of the trap.
Drain trimming · creating slope
Size: not included
Intensi 316 Linear Drain - The latest product in our range!

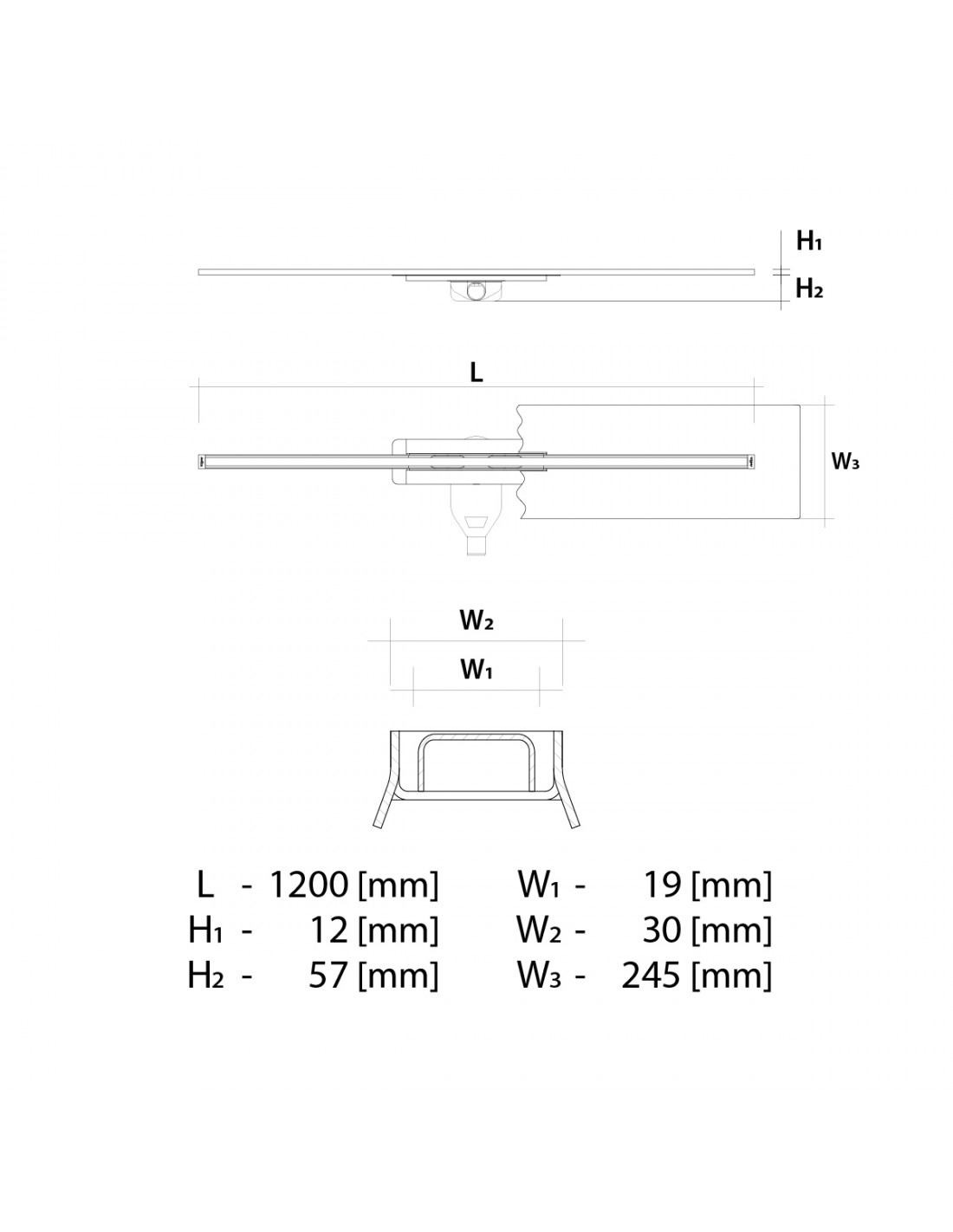

- Channel length
- 1200mm (trimmable)
- Grate style
- Lin
- Total height
- 69 mm
- Channel width
- 30 mm
- Material
- Stainless Steel 316
- Additionals

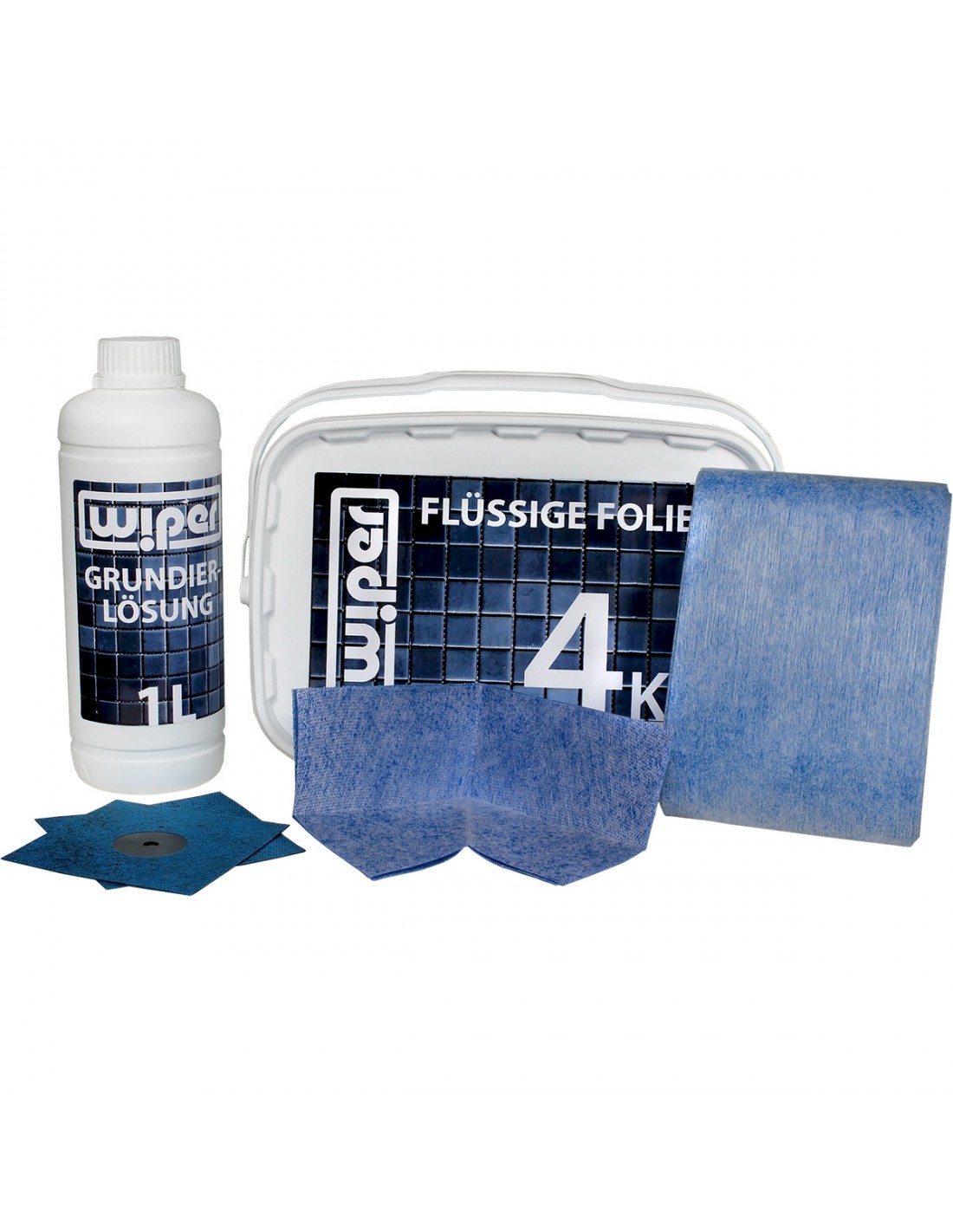

- Tanking kit
- Drain surface
- polish · brush · matt
- Cleaning
- From above (Easy clean system)
- Model
- Intensi 316
- Set consists
- Drain Base · Drain Body · Drain Cover · Sealing Membrane · Bridge Bean Waste Trap · Adjustable Legs · Cutting Profiles · Cutting Blades · Accessories
Complete Underfloor Heating Kit
It is possible to include a complete Underfloor Heating Kit to your order. All you need to do is to choose the required size. Additional package, with heating mat, appropriate thermostat, sensor and instructions will be dispatched together with the other goods.
To calculate required mat size you need to get square coverage of the floor and exclude any permanent / fixed fixtures from them. It is also recommended to buy slightly smaller mat than calculated size - you can shape it but cannot cut the cables, therefore too large mat could not be installed.
SUNFLOOR Underfloor HeatingThe SUNFLOOR Electric Heating Mat is a unique type of floor heating mat. The system has been designed to be used on an existing tiled floor or an existing finished floor, so that floor heating can still be installed there. The mat is approximately 4 mm thick and can be included in a layer of adhesive without any demolishing or grinding. The mat fits virtually underneath the surface. This decreases the heating time of the floor, that also makes this system suitable for rooms that are not permanently occupied including bathrooms, studies, playrooms, etc.
Heating matUnderfloor heating mat set consists of all necessary parts for installation. One Thermostat is needed for every 23 m² of heating mat. It is included as optional, to allow ordering mat for custom areas, for example if you need 13 m² of mat total, you should buy 10 m² with one of the thermostats set as include and 3 m² with thermostat not included. In case you require less mat coverage than possible to buy from our product pictures, for example 14.5 m² you should always round low with your purchase and buy 14 m² as the mat is impossible to cut. It can be shaped but not shortened to size.
-
Details:
- 2.5 meter 3-core supply cable
- Fully encased in an aluminium earthed sheath
- Unique blind connection between the heating and the connection cable
- Chrome/Nickel resistance wire
- PTFE (Teflon) insulation
- PVC protective sheath
- 10 -11 watt per meter resistance wire, 230 Volt
- Cable diameter approximately 4 mm
- Complies with current NEN standards for installation in completely wet rooms
Thermostat
The C16Wi-Fi is an intuitive programmable thermostat used to control the electrical floor heating system or water heating system. It will keep home comfortable temp whilst minimizing energy use. Install the app on your smartphone to control the heating system remotely with the WiFi thermostat.
-
Specification:
- Voltage: 230 Volt - 50/60 Hz
- Maximum load: 16A / 3600W
- Temperature range: +5 to +40°C
- IP class: IP21
- Testing: CE
- Cable spec.: ≤ 2,5 mm²
- Standby power: ~ 2W
- Size: 85 x 85 mm
- Integral room sensor and floor sensor
- Colour: white or black
This stylish, colourful and refined digital clock thermostat has been specially designed for electric heating systems. The MAGNUM X-treme Control is supplied with every MAGNUM floor heating set (Mat,Cable and Foil types), including external floor sensor, a built-in air sensor and three different frames that suit most brands of switching equipment. The MAGNUM X-treme Control is simple and intuitive to operate using touch sensitive buttons under the display. The new chameleon function is simple to adapt to the colour of your interior. The stylish screensaver shows the time, temperature and current mode without touching the thermostat. The MAGNUM X-treme Control has a new help function that appears after 10 seconds in the menu with a complete description of the setting in question. The MAGNUM X-treme Control also has a wooden floor function whereby the temperature is limited to 28°C. This makes the MAGNUM X-treme Control the idea and safe solution for every electric heating system.
-
Specification:
- Voltage: 230 Volt - 50/60 Hz
- Maximum capacity: 16A - 3600 watt
- Temperature range: +5 to +40°C
- Frame: IP21
- Color: Polar white (RAL 9010)
- Testing: FI/CE
-
Technical details:
- Control via touch sensitive keys
- Chameleon function (8 colour themes)
- Screensaver night clock
- Automatic start-up menu
- Slow start-up function
- Wooden floor function (28 °C limit)
- Automatic summer and winter times
- Multi-programme function (2 periods per day)
- Programming multilingual
- Including floor and air sensors
- Multi-frame adapter system for: Gira, Jung, Elko, Merten, Busch Jager, etc.
In some situations the digital regulation is not required and so the preference is for a simple on/off operation. Specifically industrial applications where the heating must remain on at all times. Therefore MAGNUM has designed the Standard Control: a simple on/off thermostat with temperature regulation that is clearly easy to operate.
-
Specification:
- Voltage: 230 Volt - 50/60 Hz
- Maximum load: 16A / 230 V
- Temperature range: +5 to +40°C
- Housing: IP21
- Color: Polar white (RAL 9010)
- Testing: CE
-
Technical details:
- On/off thermostat complete with temperature regulation
- Including floor sensor
- Integral room sensor and floor limit sensor
- Multi frame adapter system for: Gira, Jung, Elko, Merten, Busch Jager, etc.
The Intensi 316 shower drain has been designed in two versions UNO (with a single waste trap) and DUO (with a double waste trap). Check the differences between them:
Uno - The single waste trap system has a bean waste trap allowing for 36L/min flow rate. This option is low profile with only 57mm of space required from the flange of the drain body. The drain offers quick and convenient access from the top of the drain for cleaning and maintenance. It also comes with a hair strainer to prevent clogs down the line.
Duo - If you require a higher flow rate drain, we offer the intensi in a duel waste trap system. The duel system has 2 bean waste traps attached to it providing 54L/min flow rate, ensuring the risk of water backing up is minimal. The low profile of 57mm is still maintained so it can be installed even where floor height is at a premium. The duo is also protected by a hair strainer and allows for easy access for maintenance.
After measure the length of the shower drain proceed to the procedure of cutting the linear drain and the grating. Assemble all the necessary components included in the Intensi 316 package.
1. Cut the shower drain channel to the length L by a symmetrical distance from both ends of the channel using the included cutter, stainless steel saw blades, and cutting lubricant (which needs to be applied several times).
- A – Installation guide piece (for temporary use)
- B – Cutter for the shower drain channel, grate, and guides
- C – Shower drain channel
2. Trim the drain grate symmetrically from both its ends by the same length as the drain channel was trimmed; this should result in the grate length 28 mm shorter than the trimmed channel.
- A – Installation guide piece (for temporary use)
- B – Cutter for the shower drain channel, grate, and guides
- C – Shower drain channel
- D - Grate
3. Deburr (grind) the cut edges with the included grinding block.
4. Install the caps on both ends of the channel. Then follow the installation instructions.

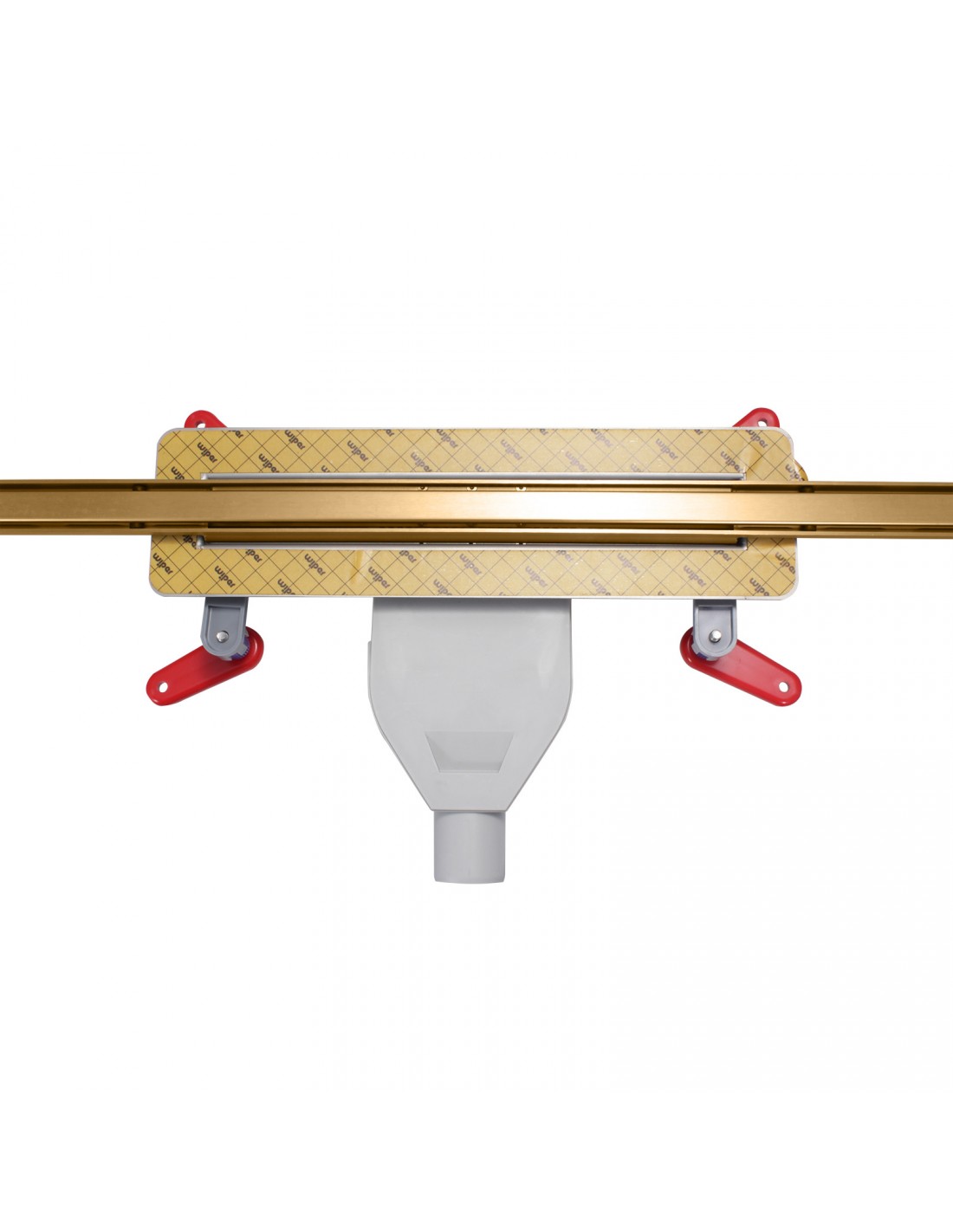

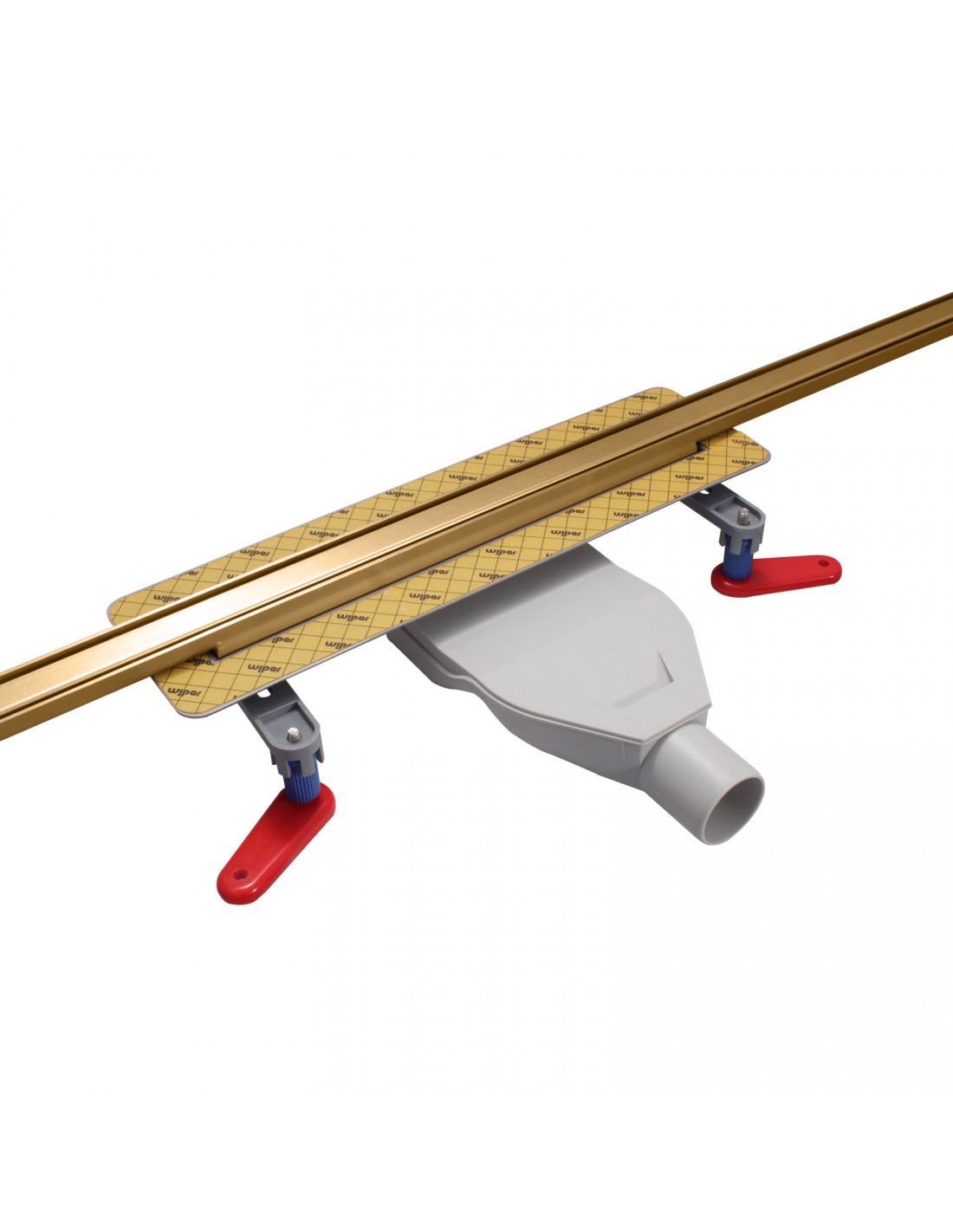

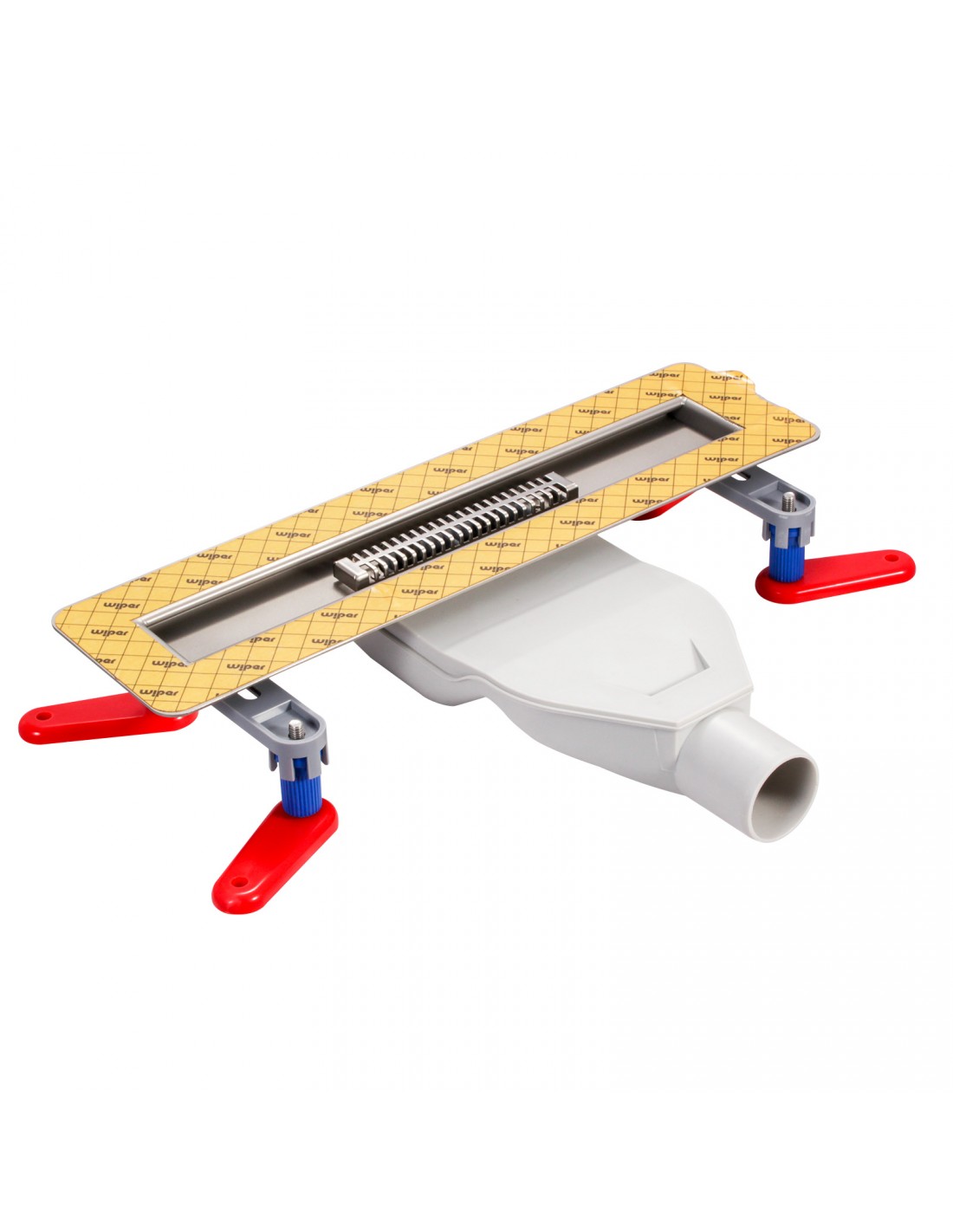

The linear drain base is integrated into the Bridge Bean siphon (or siphons in the DUO version). The waste trap provides a water seal that prevents any bad smells from getting back into your shower. The siphon is made of 100% polypropylene and has a high flow rate: for the UNO version it will be 32 l/min, for the DUO version with a double siphon - 54 l/min.
- Colour: grey,
- Total height: 45,00 mm,
- Waste pipe diameter: 1.5" (british standard size)
- Water seal: 25 mm
- Flow rate [l/min]: 32/54 (for UNO/DUO version)
- Ready to be connected to waste system

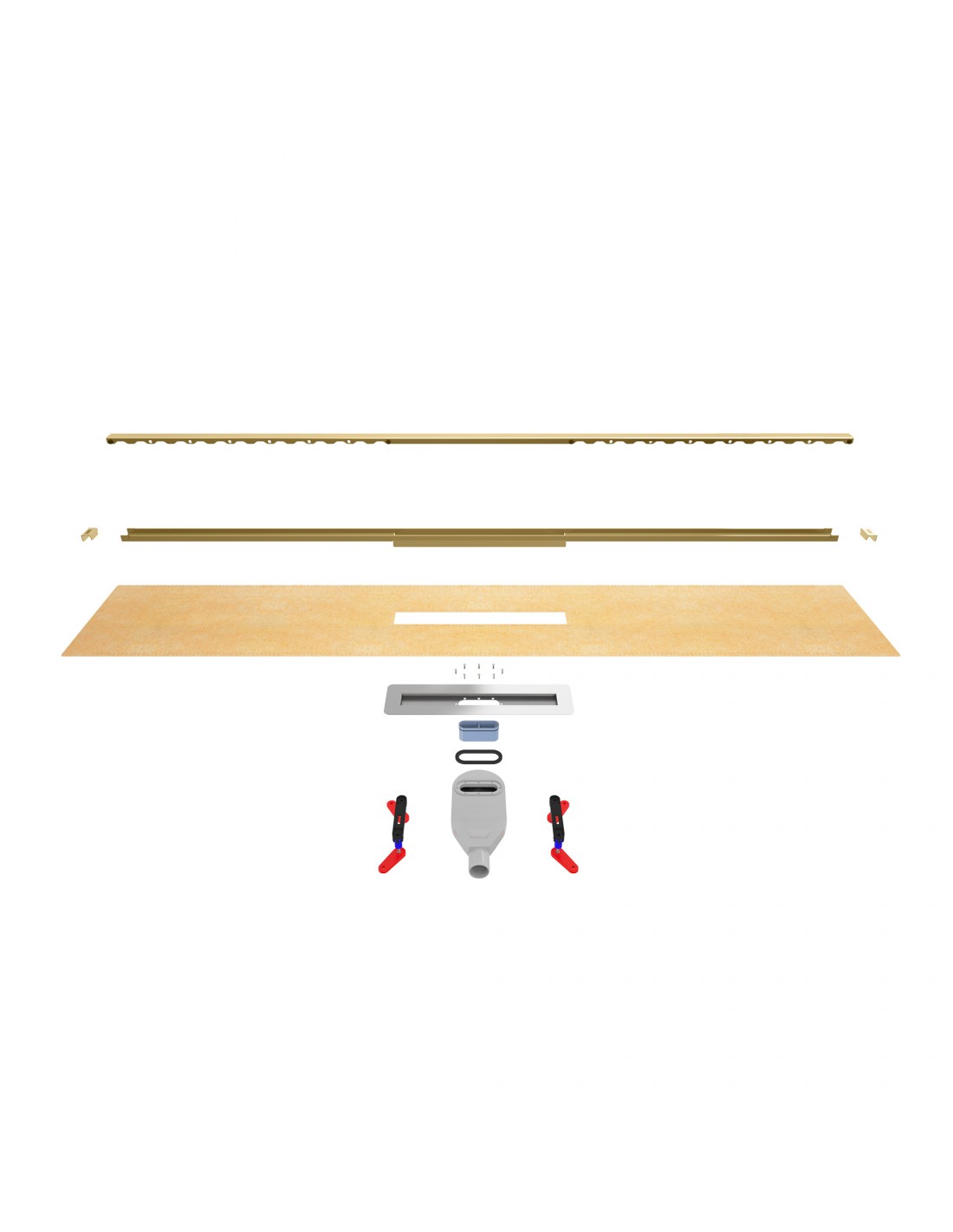

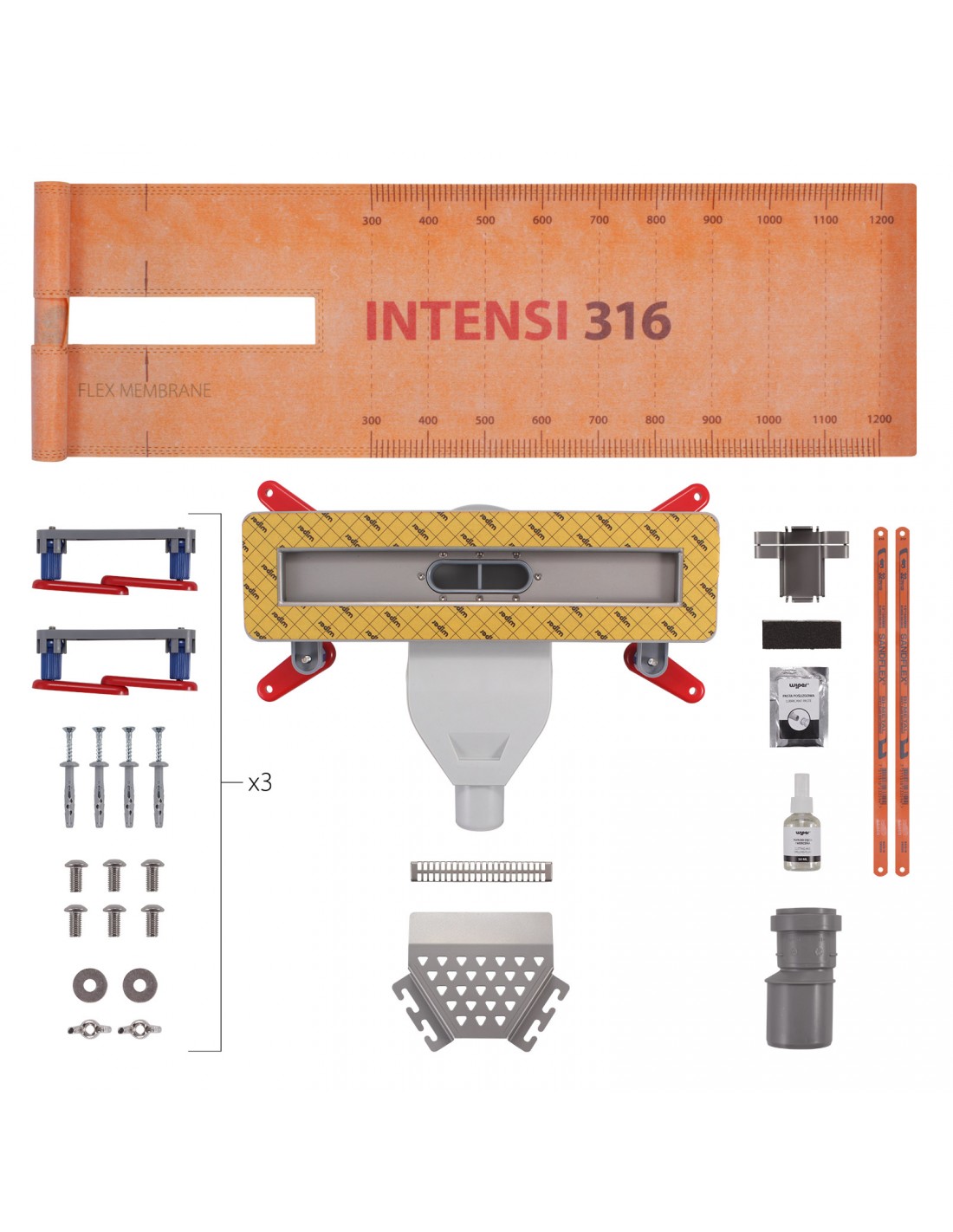

The Intensi 316 shower linear drain comes with the most parts in the kit, giving the buyer all the necessary tools to cut and install the drain. These include:
- drain base,
- drain body,
- drain cover,
- sealing membrane,
- bridge bean waste trap/traps,
- adjustable legs x 8 (2 attached),
- cutting profiles,
- cutting blades,
- accessories - (fitting kit - screws, lubricant paste, cutting liquid, waste trap mask, hair catcher, cutting tool, brushing tool),
