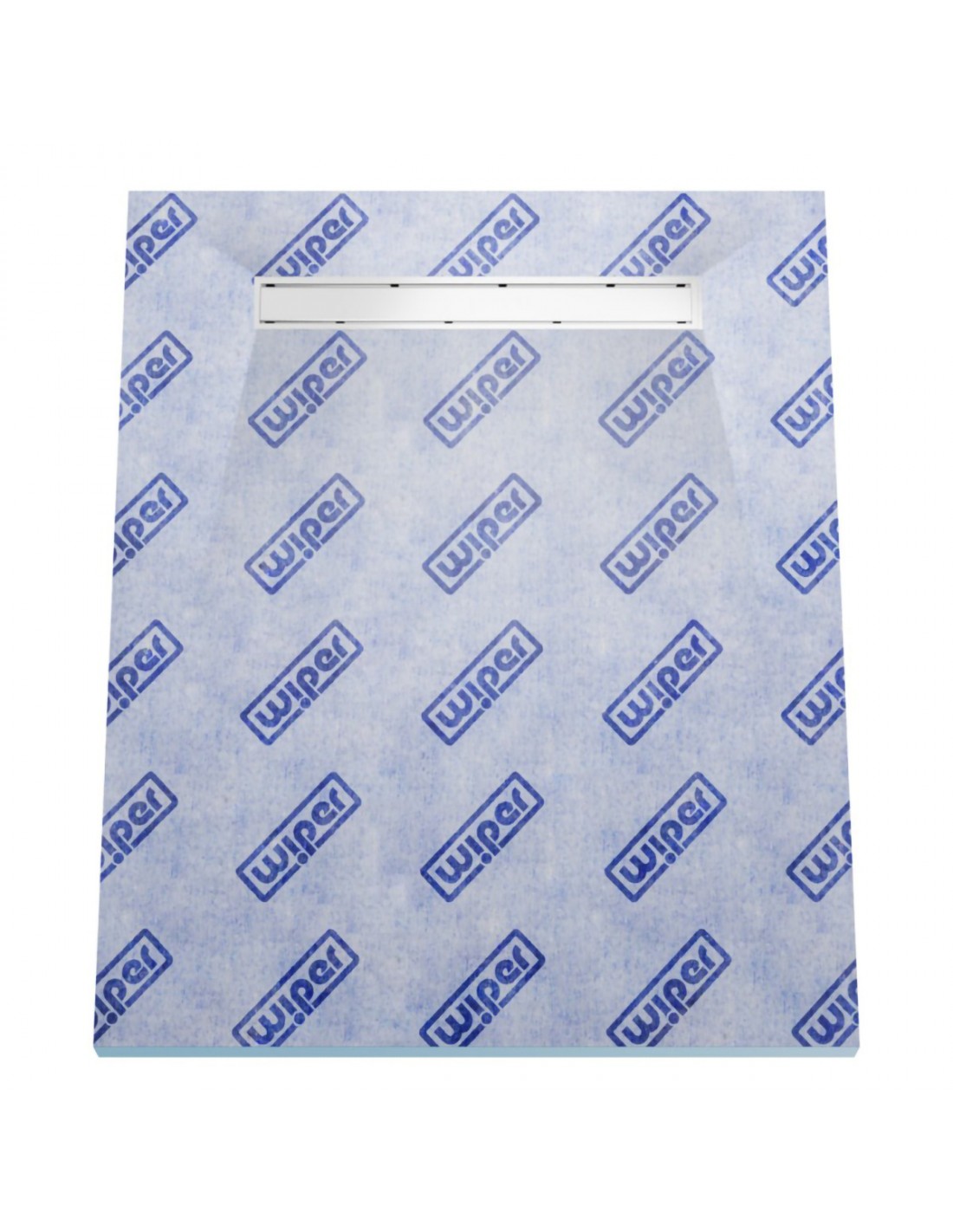

Vinyl floor Wet Room Kit: Shower Tray including Waste Trap and Drain Cover (Ponente)

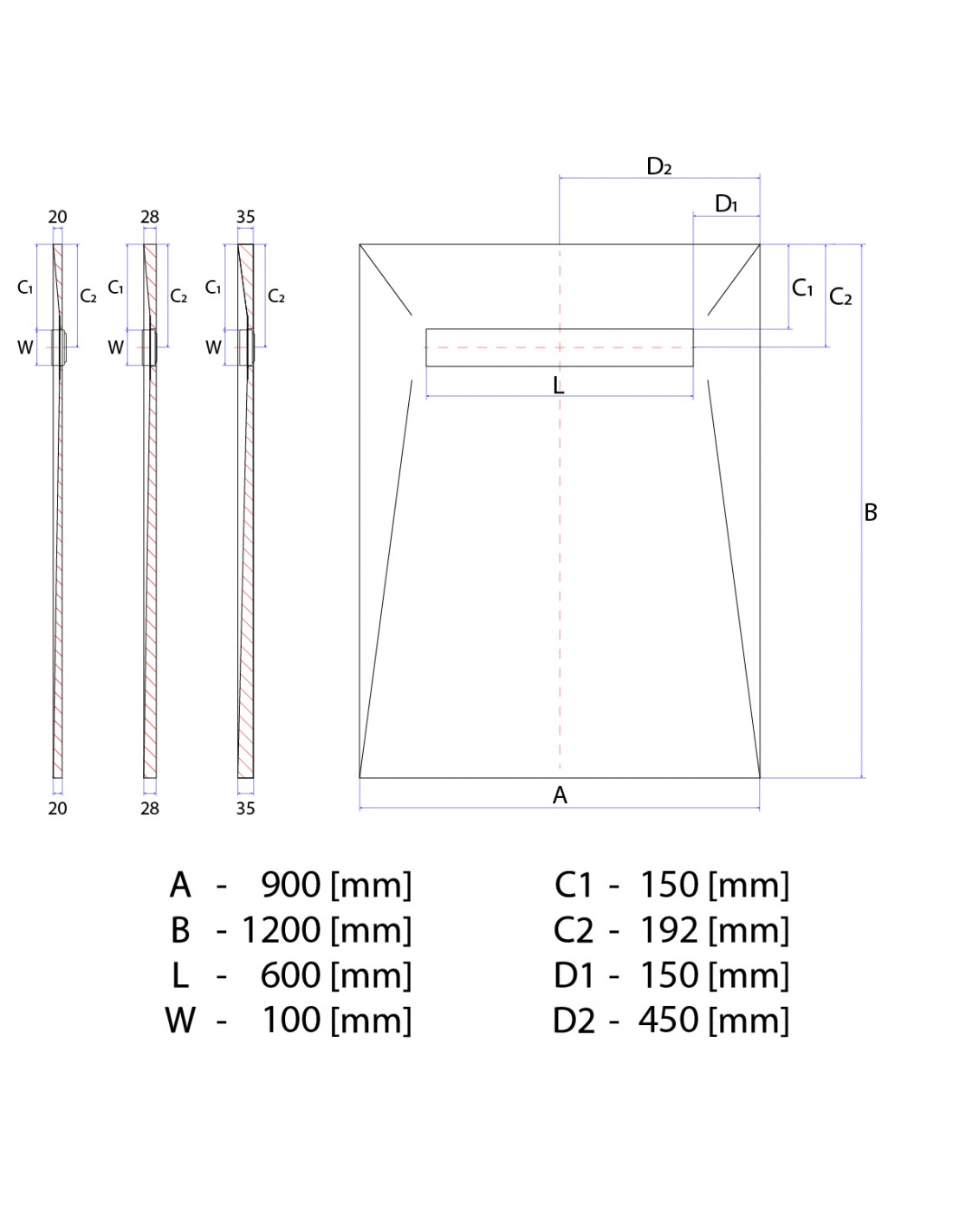

Technical diagram: Showerlay Wiper 900 x 1200 mm Line VF Ponente

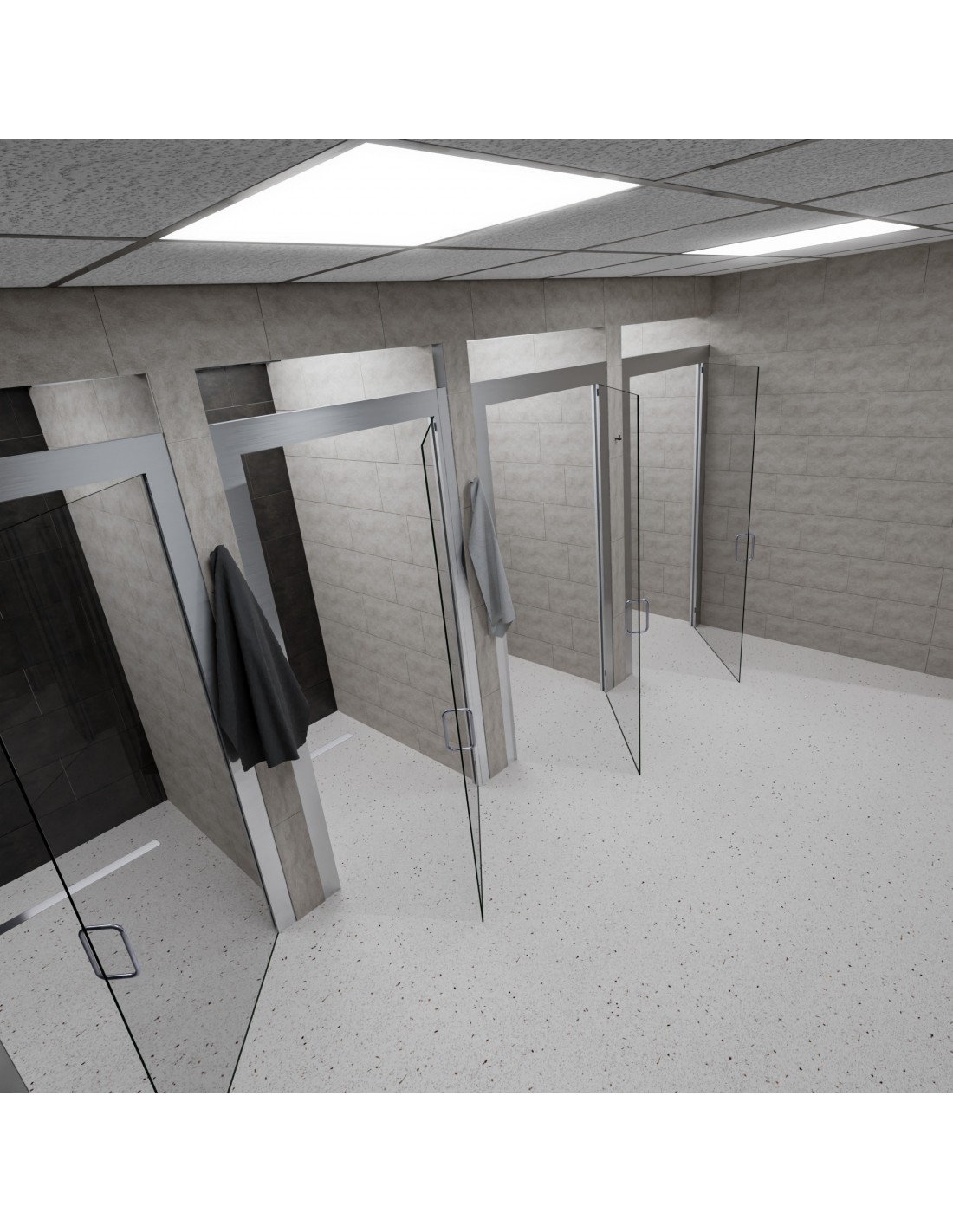

Example of a gym shower area with multiple encloures and bright vinyl flooring

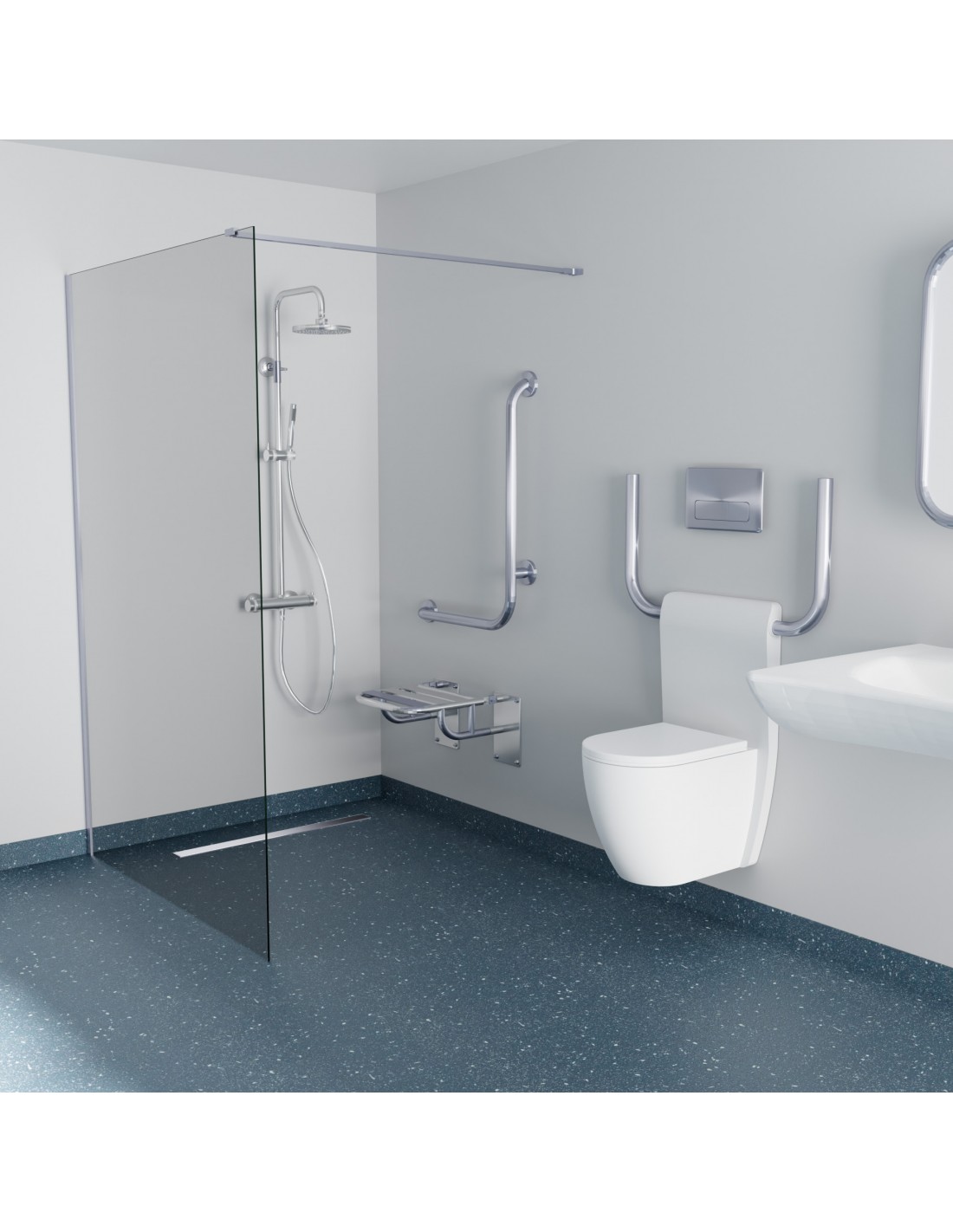

Example of an accesible walk-in shower in a hospital with blue-coloured safety flooring
Example of a finished wet room in a shower with floor covered black with vinyl tiles

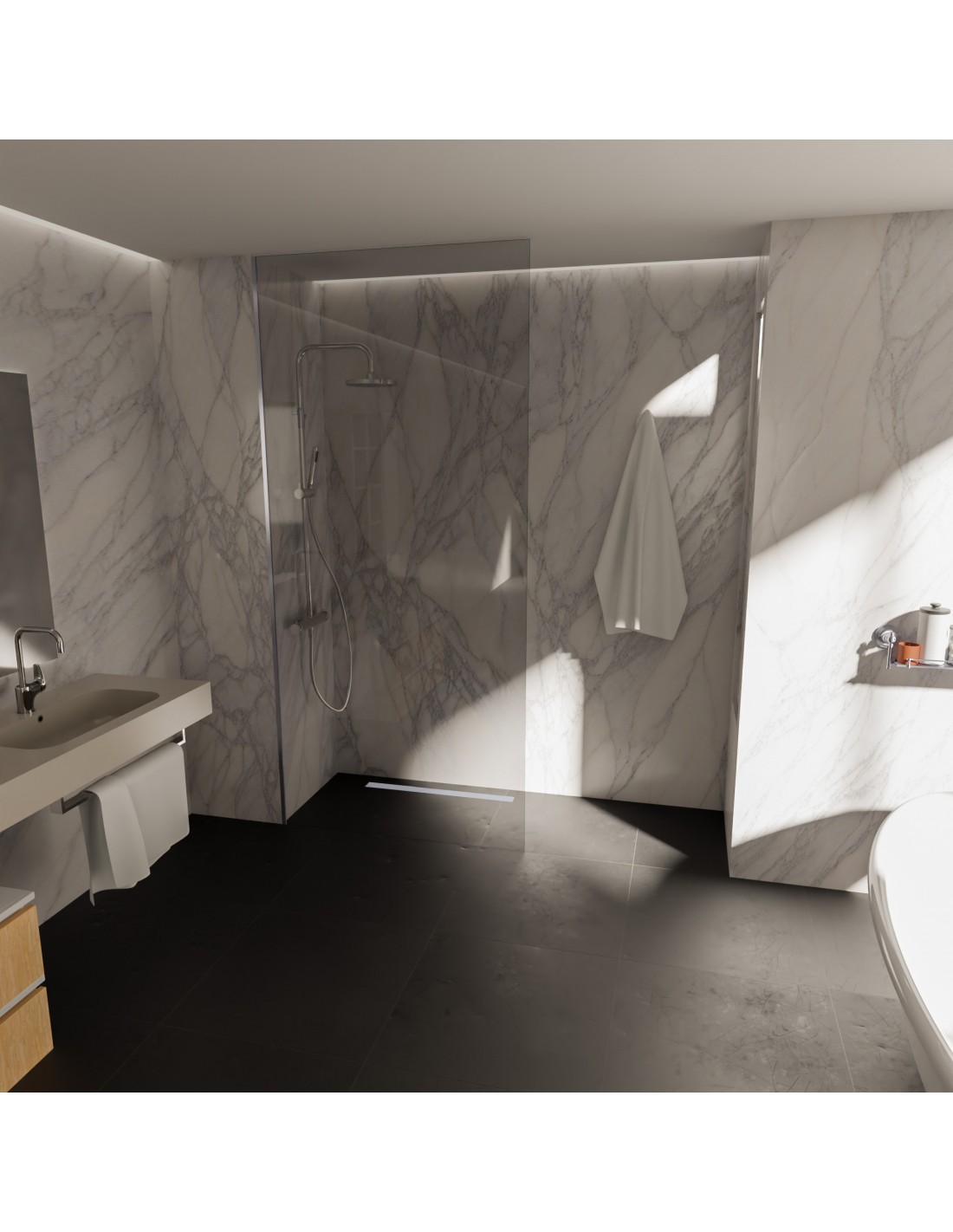

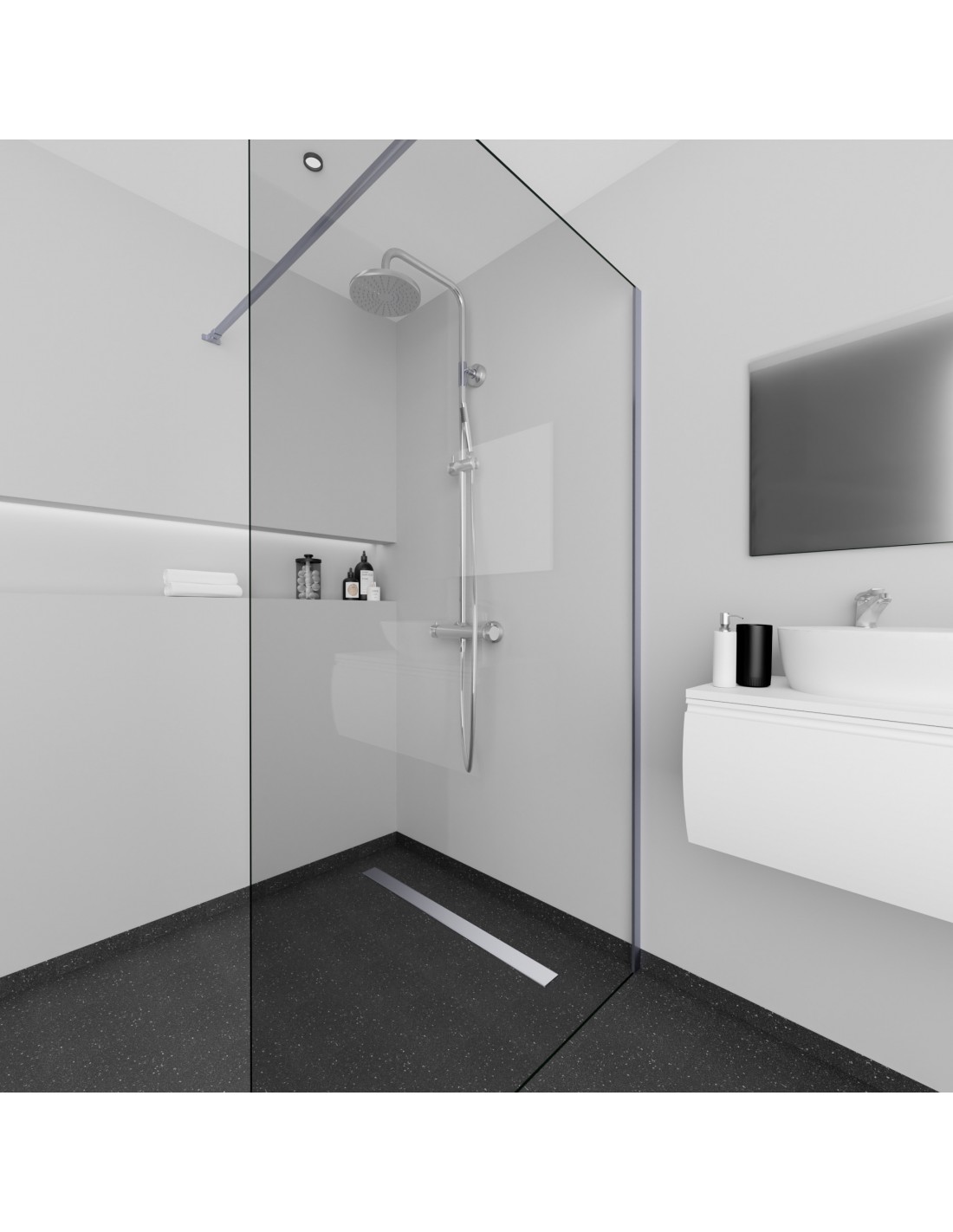

Example of a finished wet room shower in a private property with dark coloured vinyl flooring

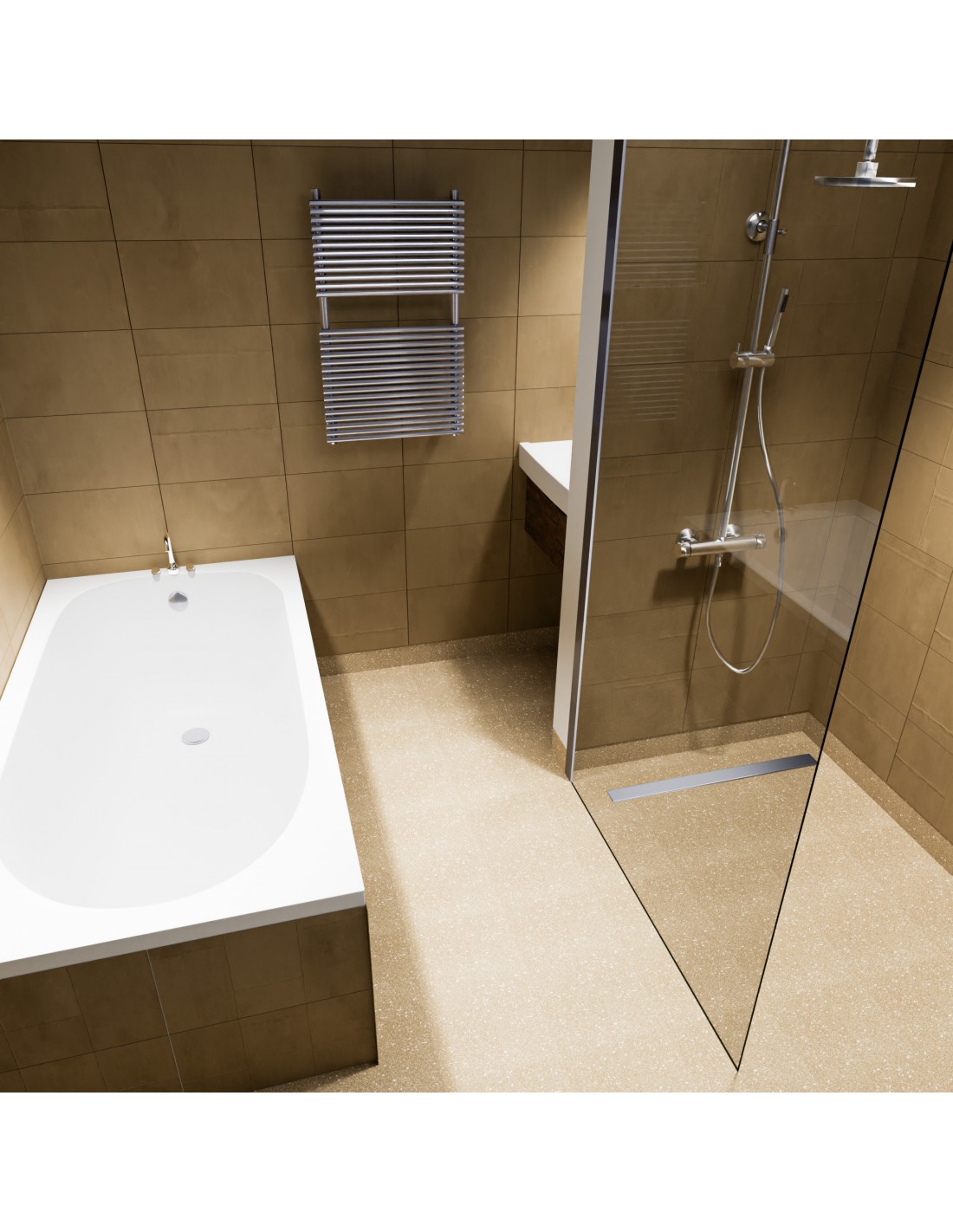

Example of a small-sized hotel shower with floor covered with beige-coloured vinyl

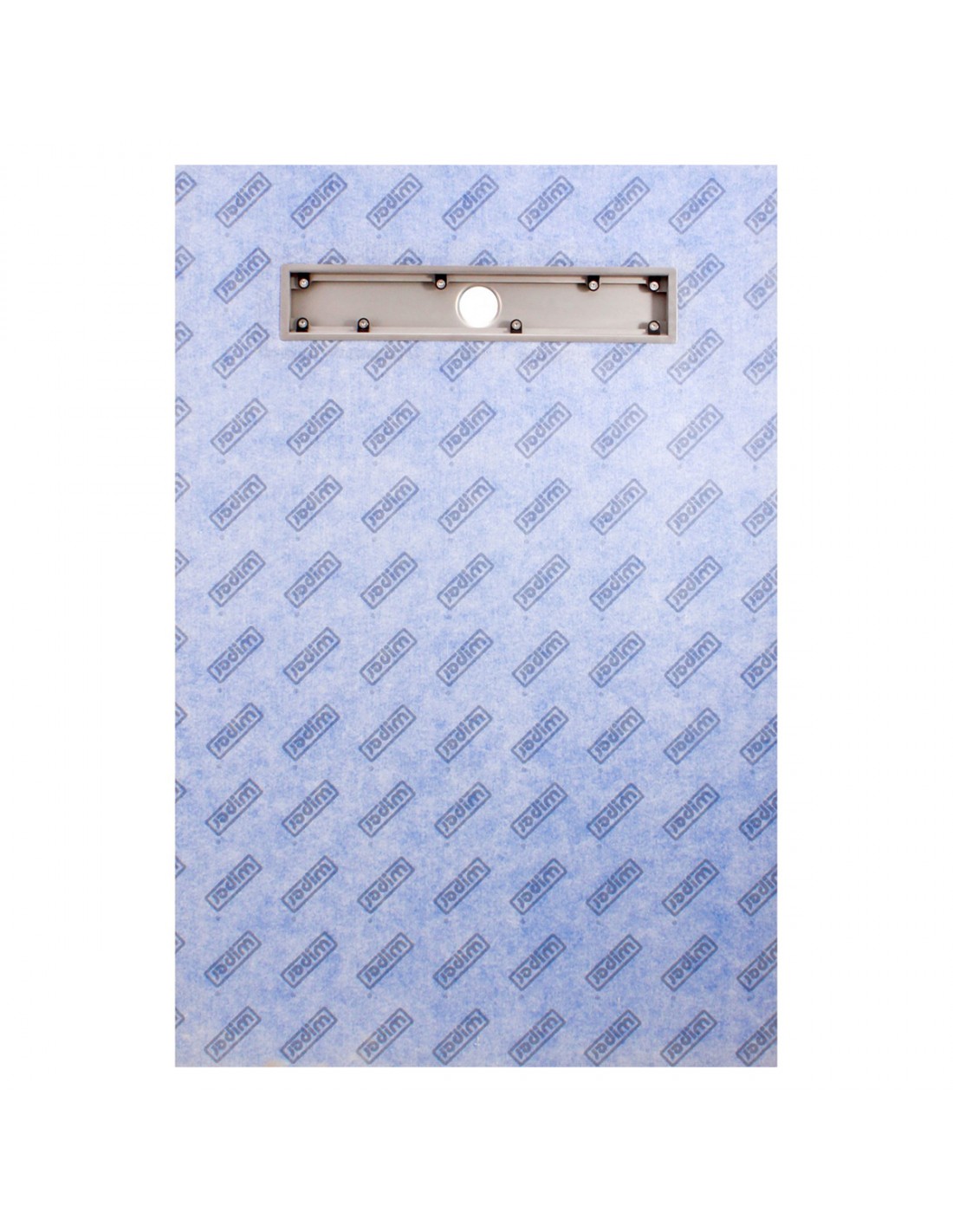

Wet Room Shower Tray shown without the drain cover

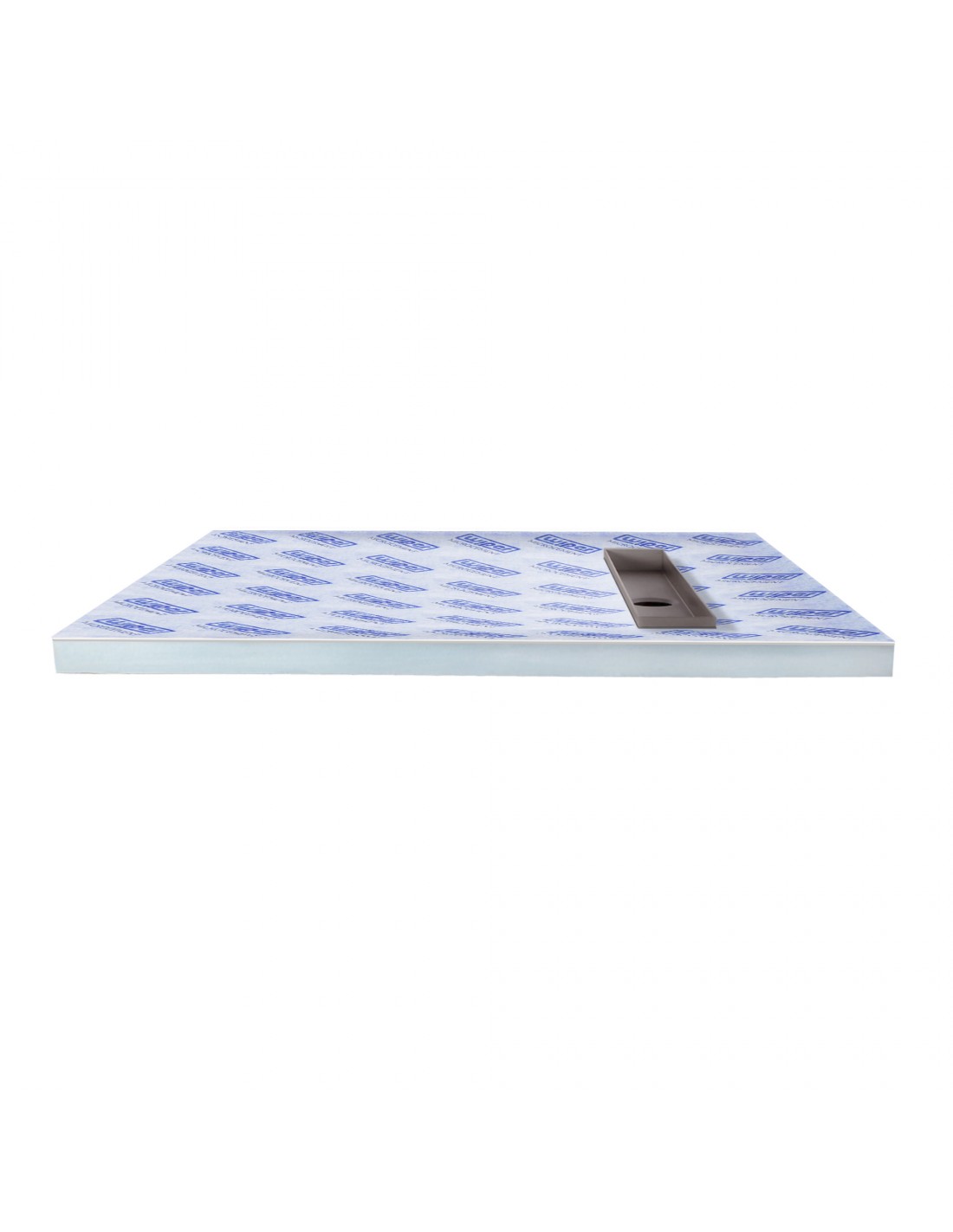

Wet Room Tray laying flat on the floor with visible 4-way slope towards the drain - real picture

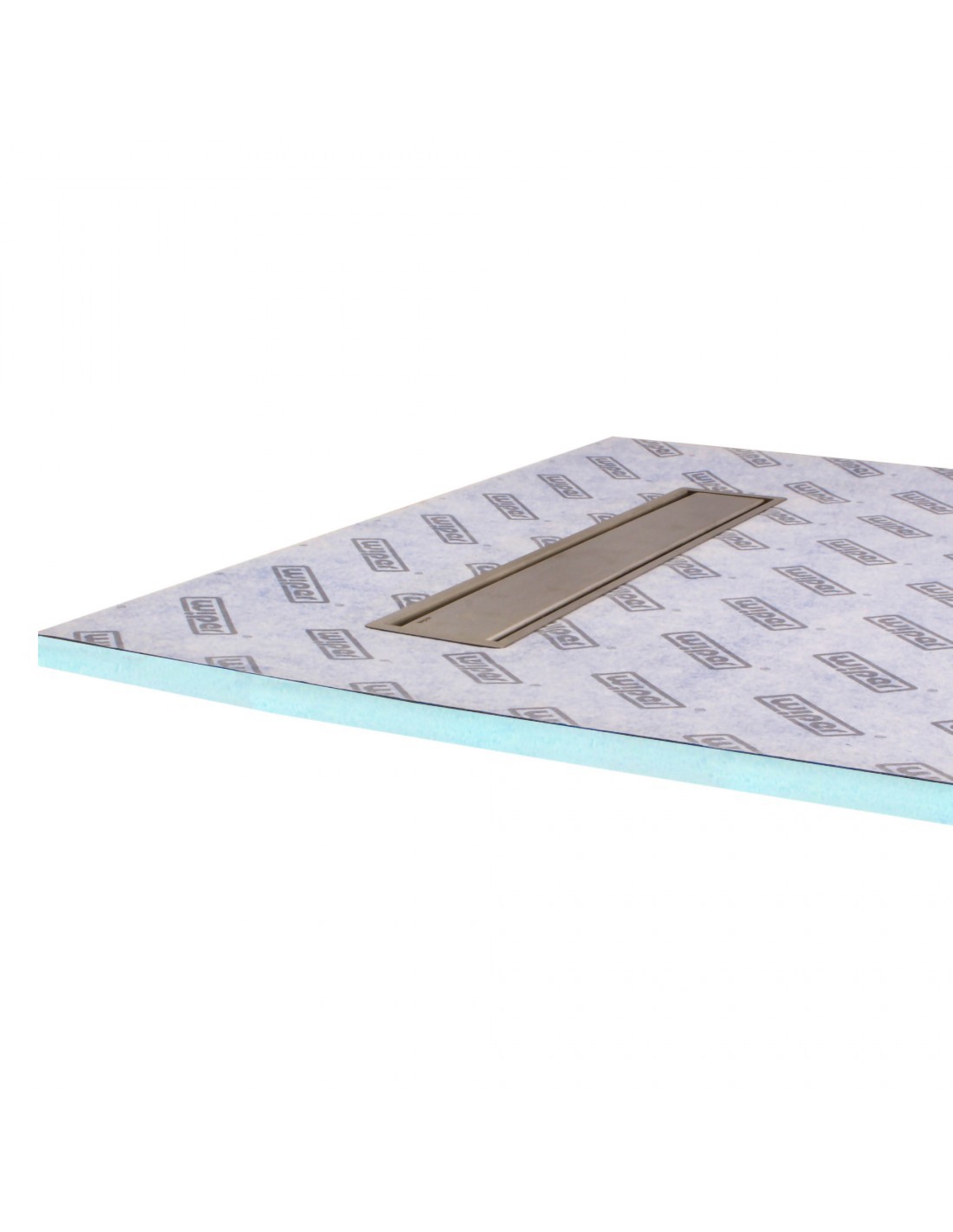

Another picture showing the tray, this time with drain cover in place

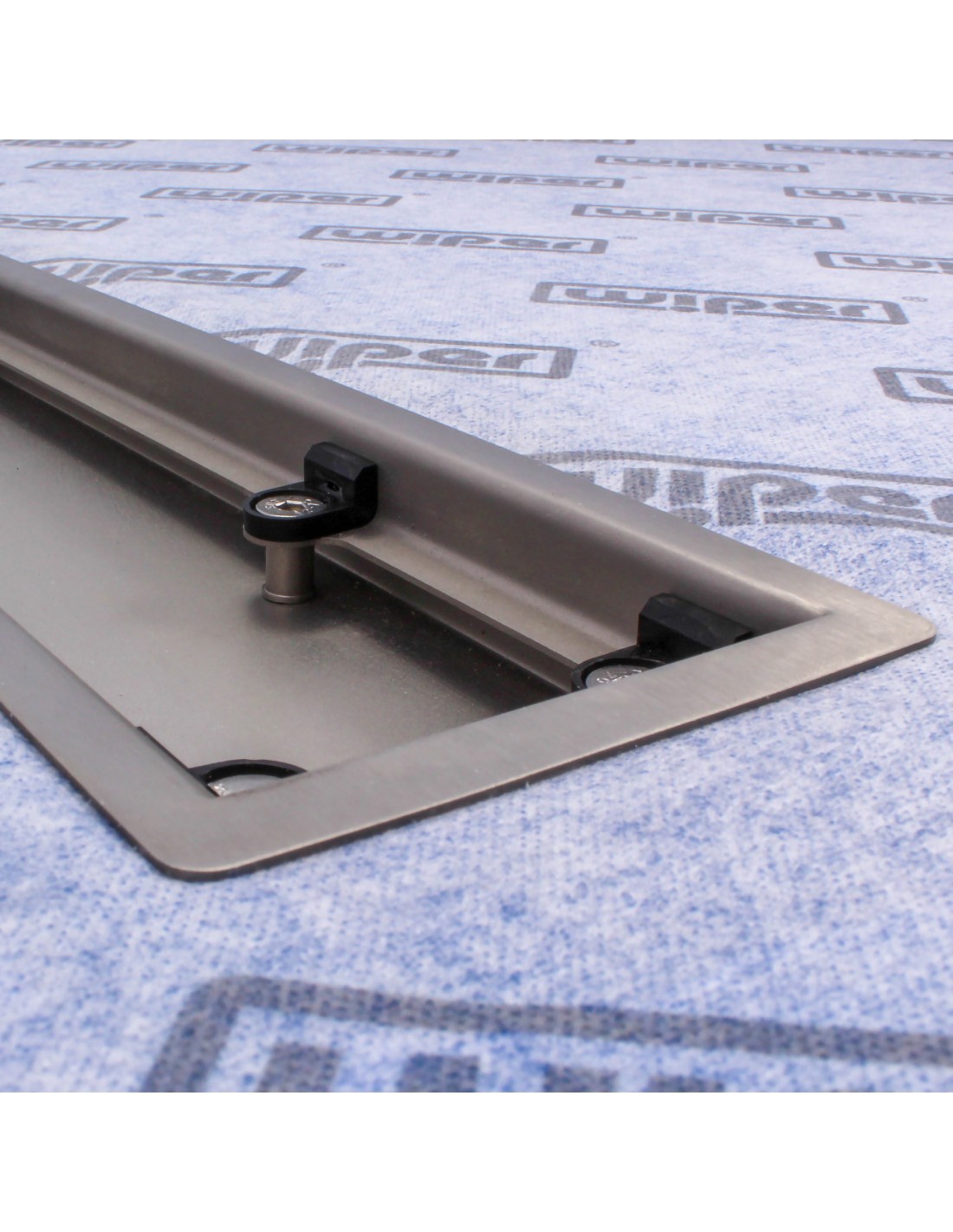

Close-up on a vinyl clamping mechanism - with frame inserted, without screws

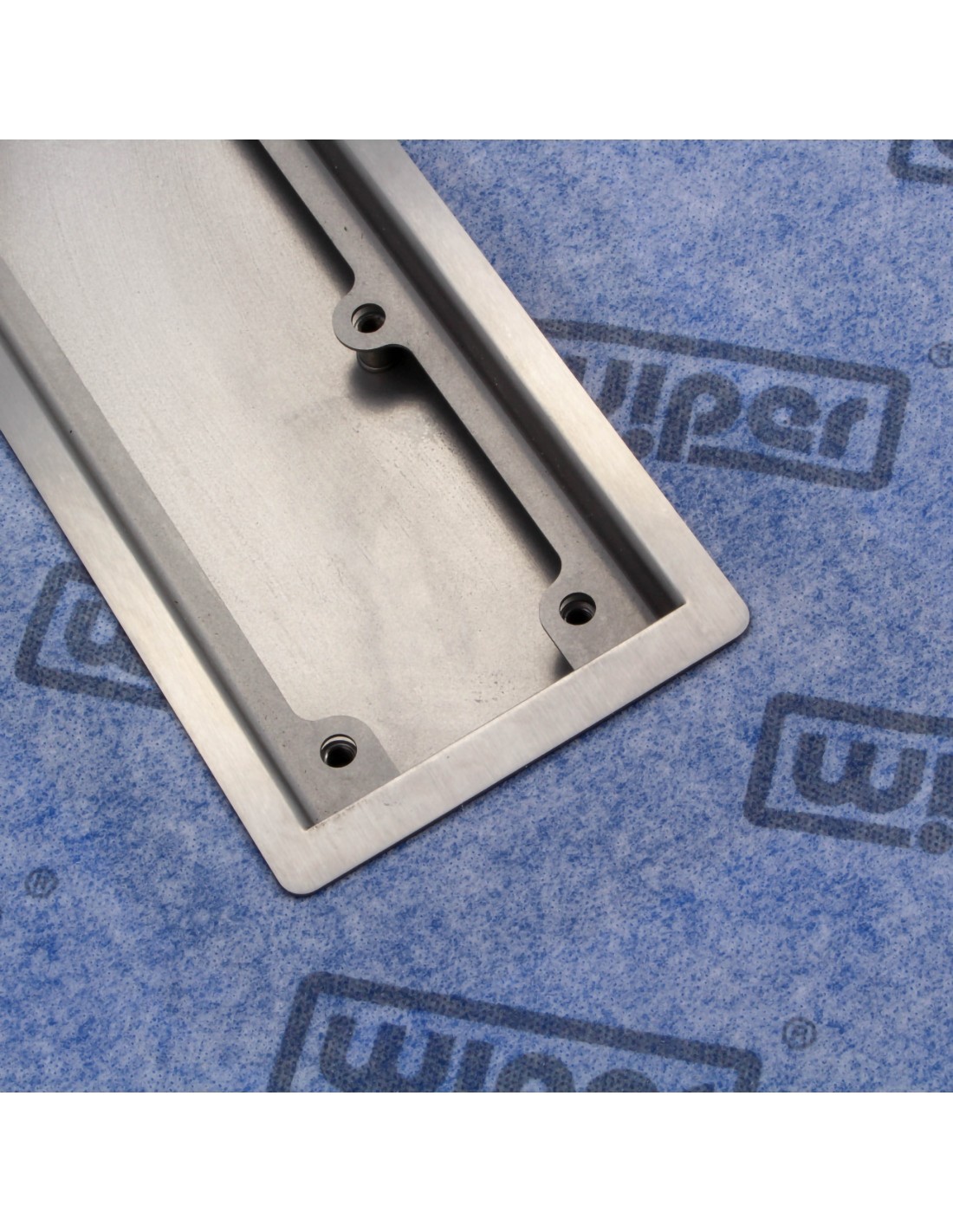

Clamping mechanism for vinyl screwed down to the drain body

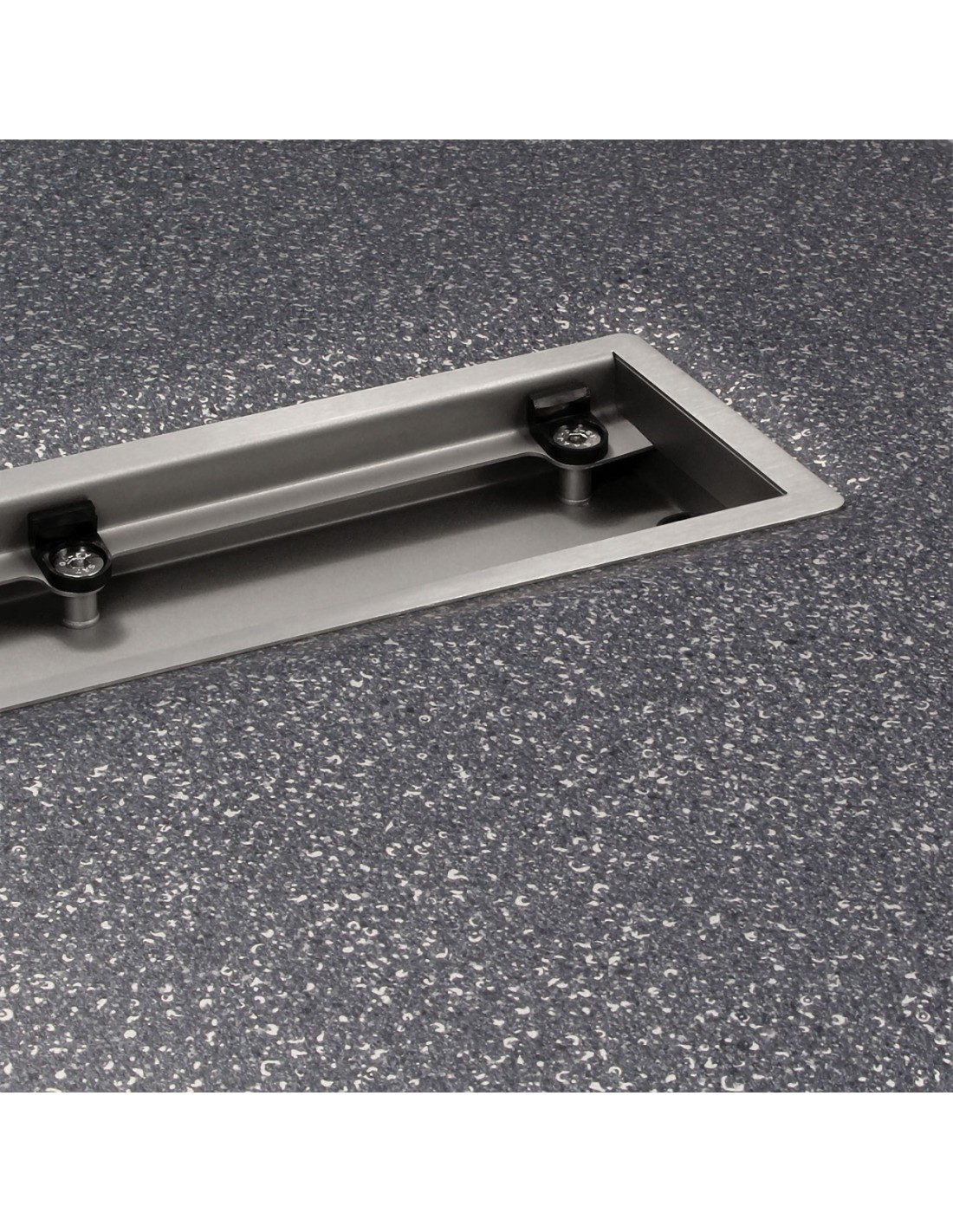

View of a installed wet room tray in dark gray coloured vinyl flooring, including Ponente cover
View of a installed wet room tray in dark gray coloured vinyl flooring, with cover removed for cleaning

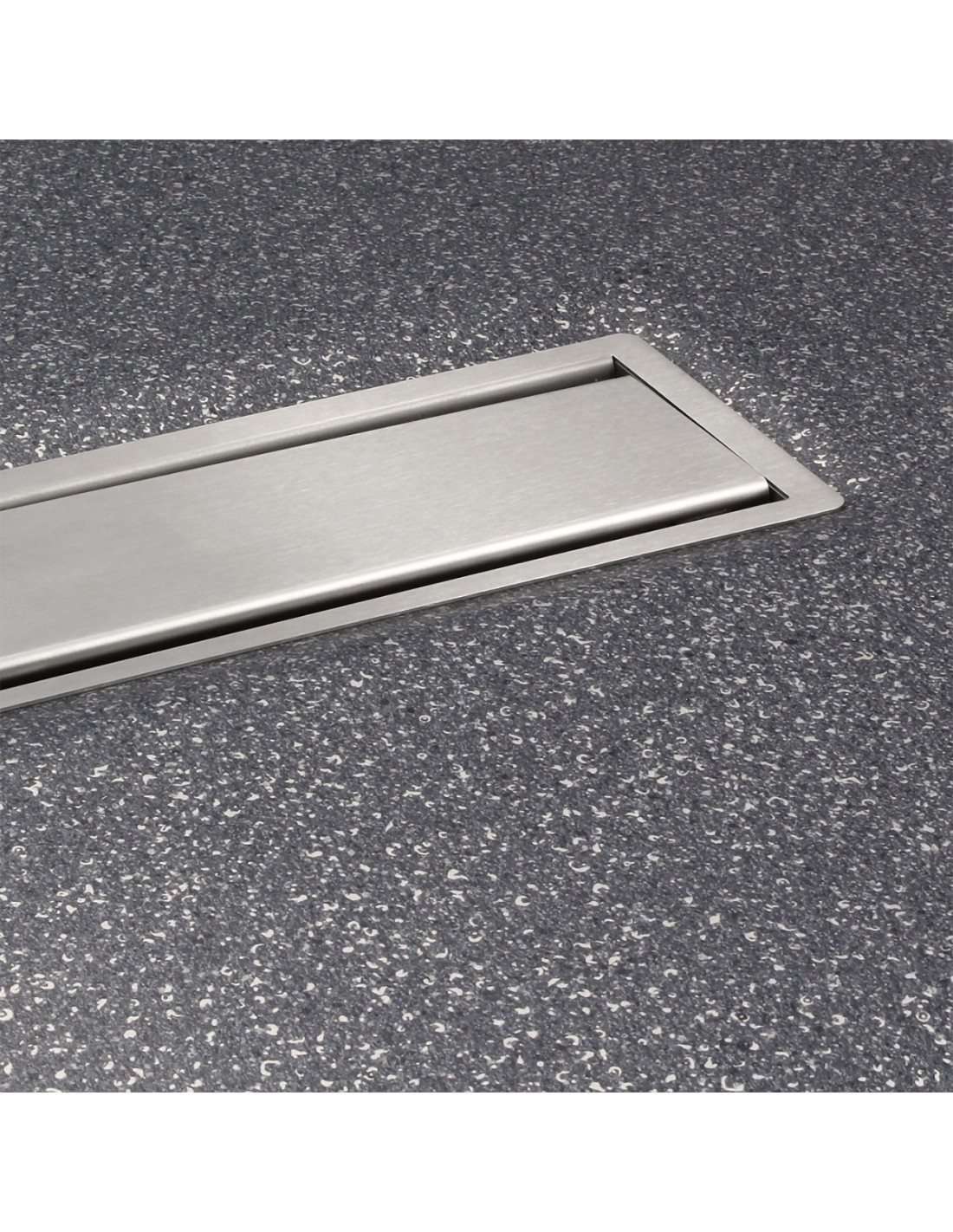

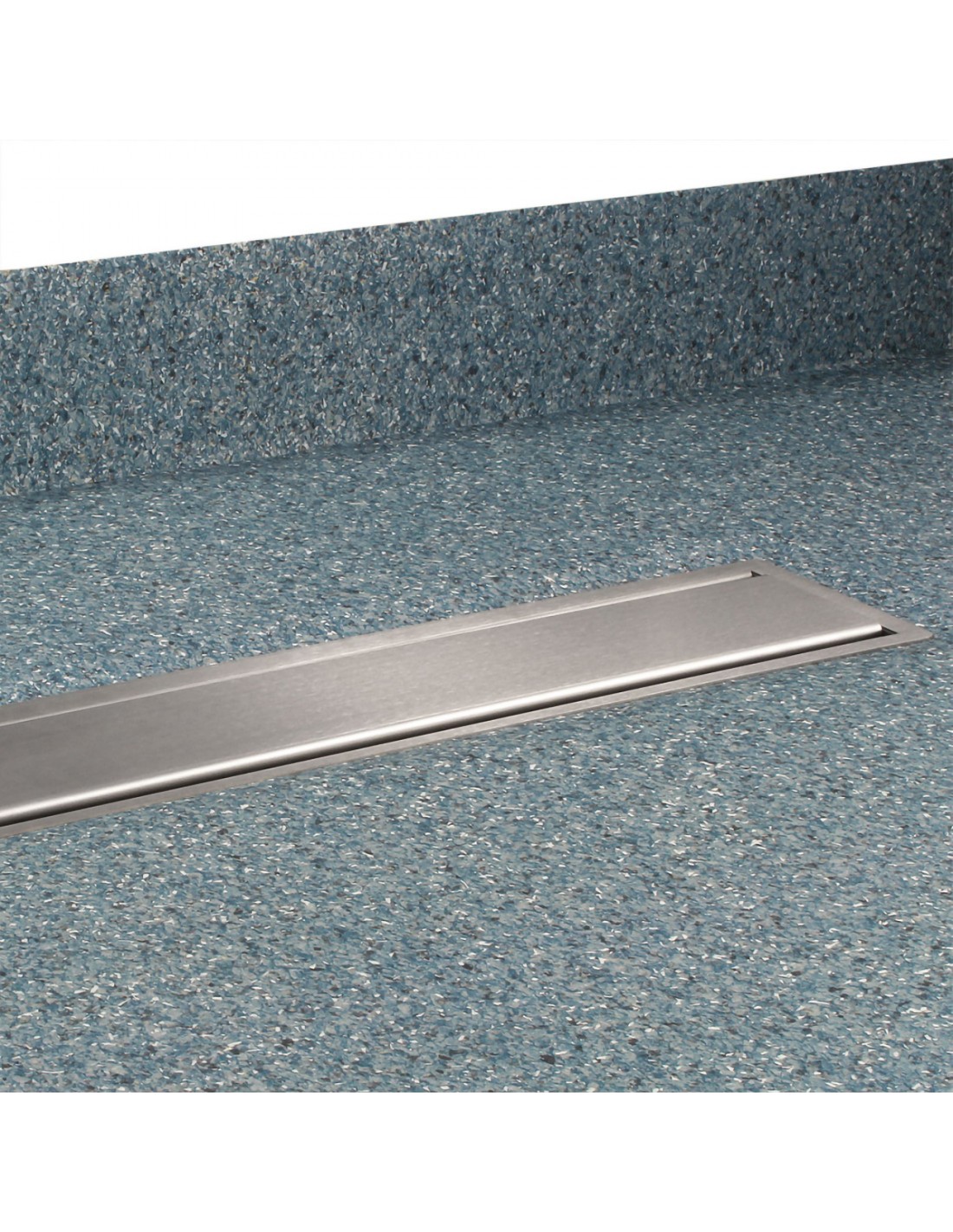

View of a installed wet room tray in blue coloured vinyl flooring with coving, including Ponente cover
View of a installed wet room tray in blue coloured vinyl flooring with coving, including Ponente - frontal view

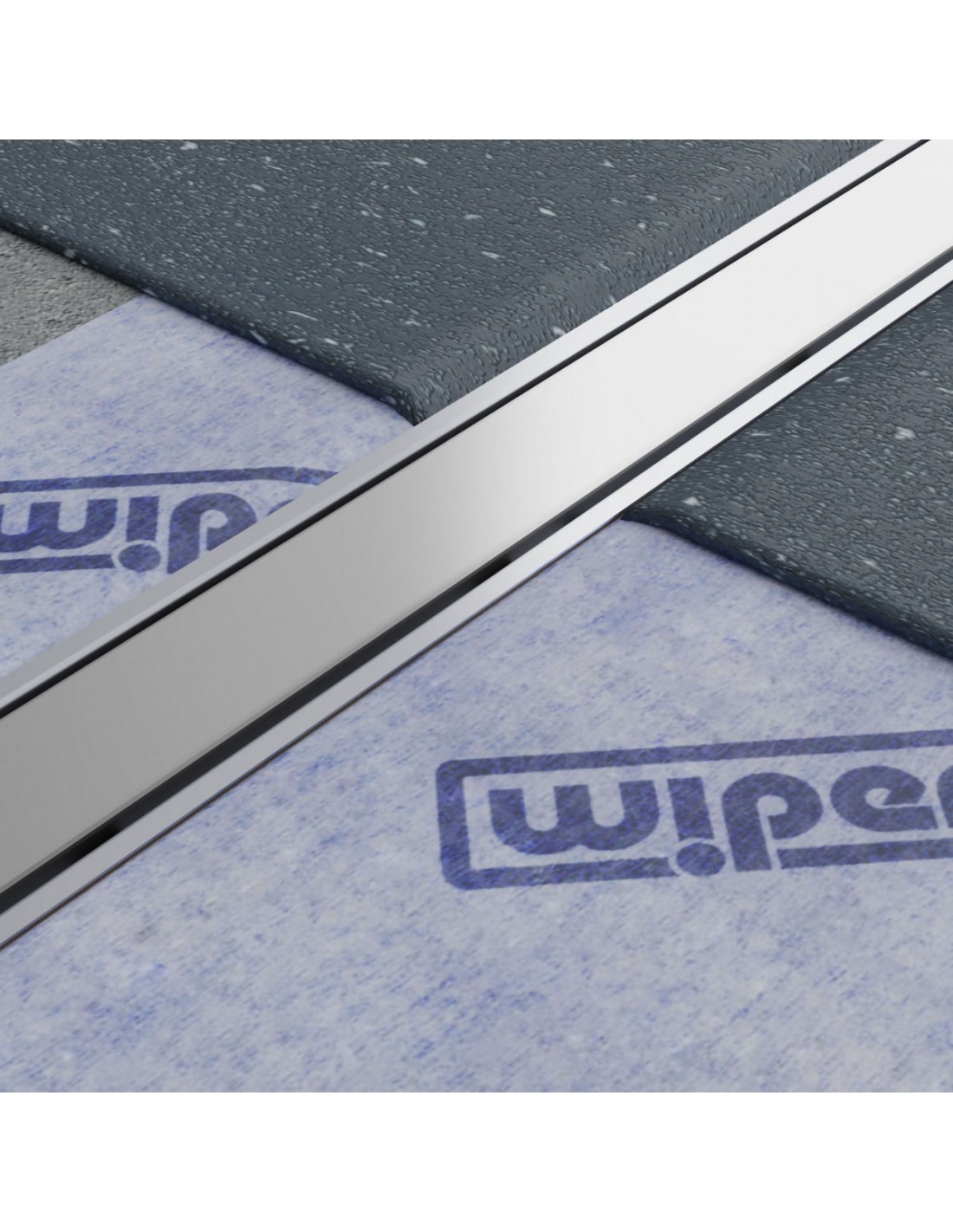

Visualisation of how the clamping mechanism works for vinyl floor

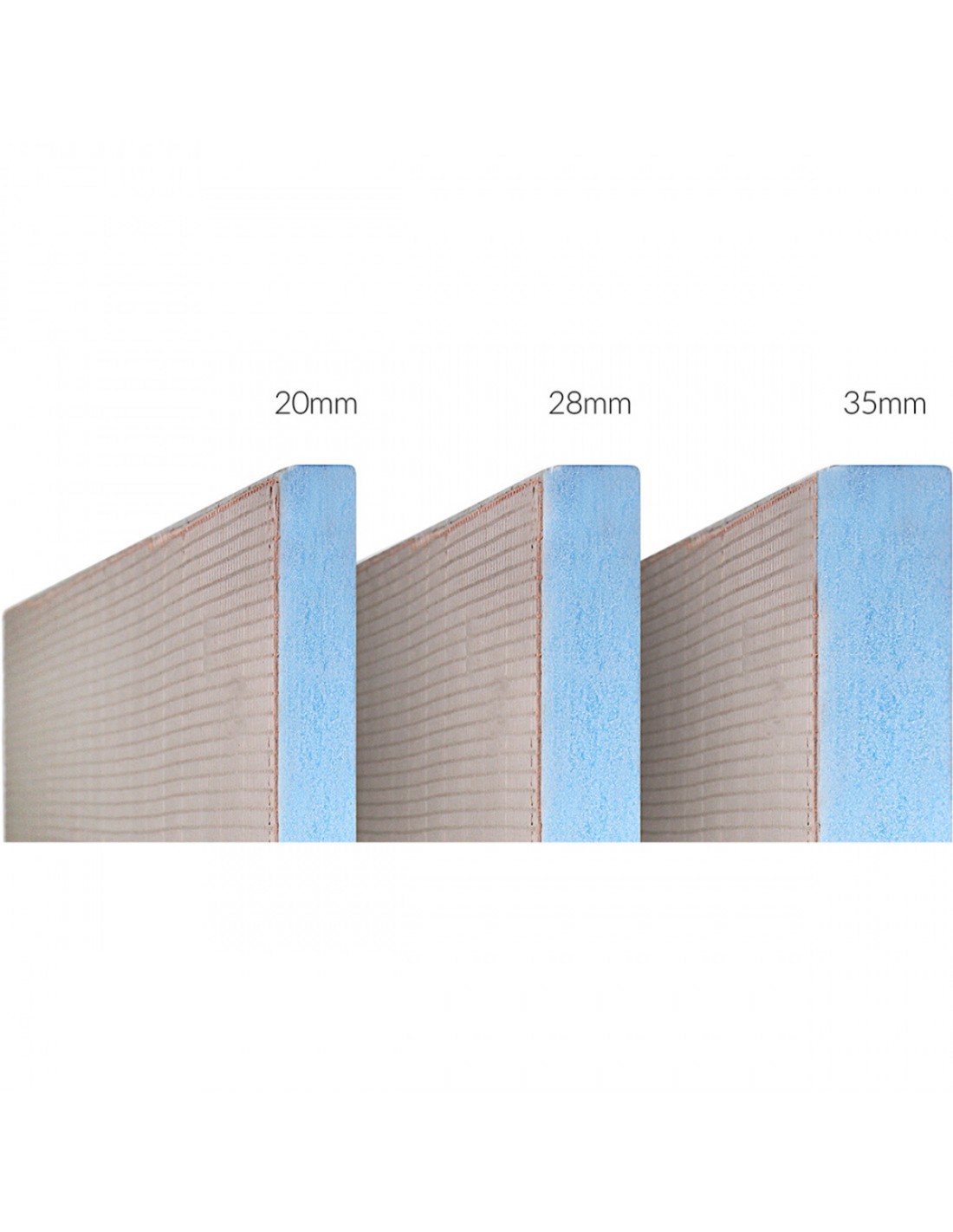

3 Standard Thicknesses Available - the thicker the tray, the better the slope and insulation (20, 28, 35 mm)

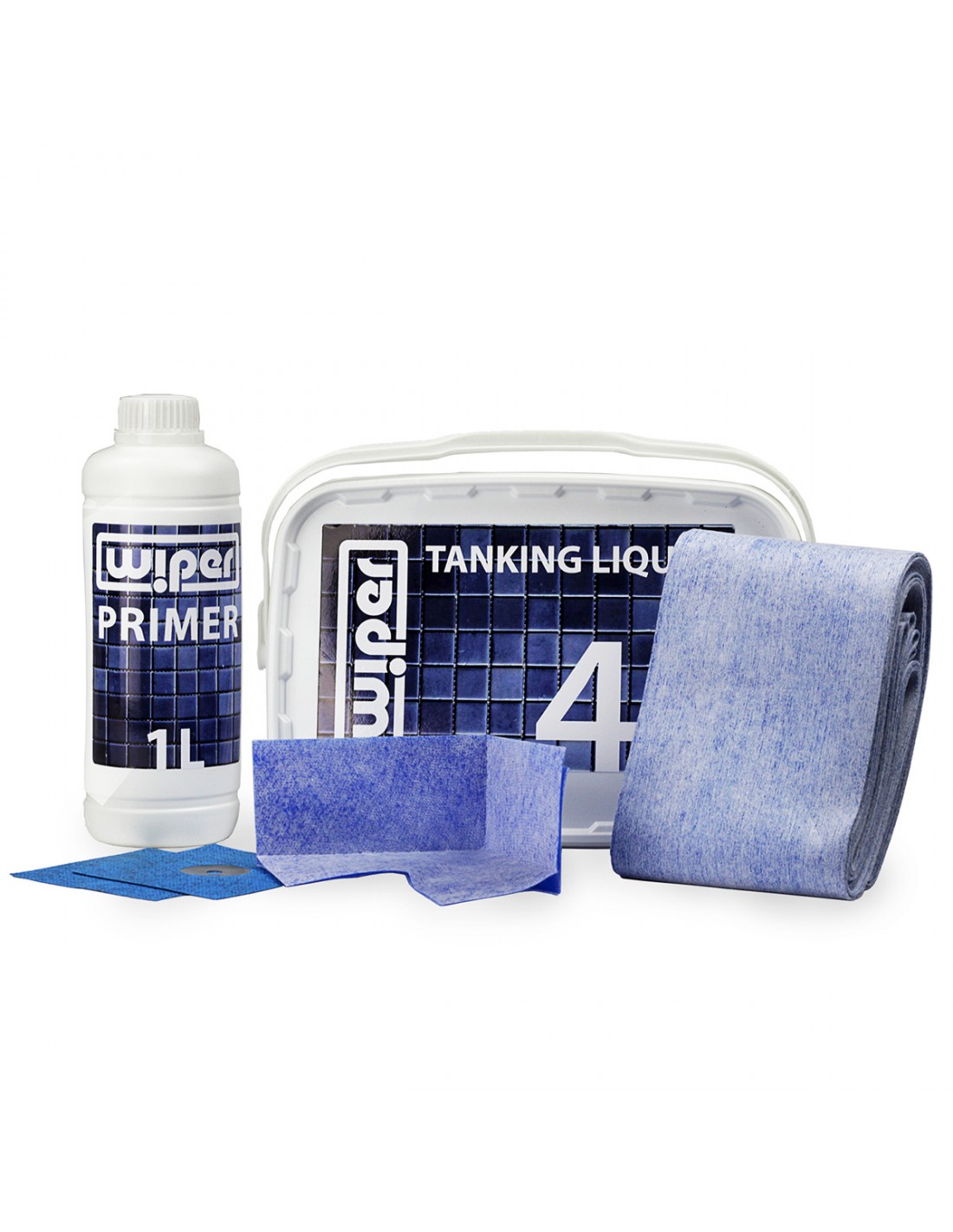

Wiper shower waterproofing kit incl. primer, tanking liquid, sealing tape, sealing corners and flexible pipe collar
Different syphons by choice (vertical or horizontal outlet), included in set
Vinyl floor Wet Room Kit: Shower Tray including Waste Trap and Drain Cover (Ponente)
Technical diagram: Showerlay Wiper 900 x 1200 mm Line VF Ponente
Example of a gym shower area with multiple encloures and bright vinyl flooring
Example of an accesible walk-in shower in a hospital with blue-coloured safety flooring
Example of a finished wet room in a shower with floor covered black with vinyl tiles
Example of a finished wet room shower in a private property with dark coloured vinyl flooring
Example of a small-sized hotel shower with floor covered with beige-coloured vinyl
Wet Room Shower Tray shown without the drain cover
Wet Room Tray laying flat on the floor with visible 4-way slope towards the drain - real picture
Another picture showing the tray, this time with drain cover in place
Close-up on a vinyl clamping mechanism - with frame inserted, without screws
Clamping mechanism for vinyl screwed down to the drain body
View of a installed wet room tray in dark gray coloured vinyl flooring, including Ponente cover
View of a installed wet room tray in dark gray coloured vinyl flooring, with cover removed for cleaning
View of a installed wet room tray in blue coloured vinyl flooring with coving, including Ponente cover
View of a installed wet room tray in blue coloured vinyl flooring with coving, including Ponente - frontal view
Visualisation of how the clamping mechanism works for vinyl floor
3 Standard Thicknesses Available - the thicker the tray, the better the slope and insulation (20, 28, 35 mm)
Wiper shower waterproofing kit incl. primer, tanking liquid, sealing tape, sealing corners and flexible pipe collar
Different syphons by choice (vertical or horizontal outlet), included in set

Showerlay Wiper 900 x 1200 mm Line VF Ponente

Wet room tray 90 x 120 cm with integrated 60 cm stainless steel linear clamping drain for vinyl floors, waste trap and plain steel cover Ponente

Showerlay VF 900 x 1200 is a wet room tray for vinyl floor. It comes with an integrated Wiper VF drain with clamping mechanism which allows to secure the edges of the vinyl sheet around the drain. The benefits of this tray are a 100% waterproof seal, prefabricated appropriate slope (1-2%), acoustic and thermal insulation and integrated innovative drain specified for vinyl.

The tray is built on a board made of XPS foam, which is lightweight but durable and offers insulation properties. It is reinforced with fiberglass mesh and cement based glue as well as waterproof membrane. It can also be trimmed down if required to fit a specific dimension.

Ponente plain stainless steel drain cover made of brushed stainless steel is included to the tray just as the McAlpine HC26-50 waste trap with 1.5’’ size outlet.

900 x 1200 wet room trays is the best selling size in our store. The length and width complement each other giving you a sufficient sized shower area that does not require a closed cabin as the sloped floor will catch any of the water that splashes away from the shower area.

Product Type
  • Showerlay VF

Consider your floor finish type — tiles, micro cement, or vinyl — choose a finish that complements your bathroom style. Evaluate dimensions and features to match your requirements.

Tray size

Showerlay VF is a wet room tray available in 14 standard sizes. The drain is located parallel to the shorter edge. A larger tray offers more space for greater comfort. Your tray size should be chosen to match room and enclosure size. Our trays can be trimmed down to size or to avoid obstacles.

Drain Cover
  • Ponente

There are 3 drain cover patterns available. The flow rate is the same for all of them. They are interchangeable and can be swapped even after installation. Each drain sent out is equipped with a lifting hook which makes cleaning easy.

Thickness

Thickness of the board on the edges. It has 2% gradient on the entire upper surface and is shallower near the drain. The benefit of thicker tray is steeper slope, although even the shallowest trays have sufficient slope for water to flow towards the drain, no matter where it drops.

Waterproofing kit

Waterproofing kit is used to seal shower tray as well as connections between walls and floor. It is recommended for concrete and mandatory for timber flooring. Each kit contains 4kg tanking liquid, 1l primer, 10m sealing tape, 2 corners, 2 pipe collars. One kit covers 3 m² with 2 coats. Waterproofing kit

Underfloor heating kit

Complete Sunfloor Underfloor heating set, including mat, Wi-Fi thermostat, floor sensor and fitting instructions. Fully suitable with our other products. Advanced thermostat with and iOS/Android app allows to set desired temperature of the floor from distance as well as create schedules.
Complete Sunfloor Underfloor heating set

Tile Backer boards

Tile backer boards are used to create the perfect substrate to tile onto in wet rooms and bathrooms. Superior to cement boards and plywood, due to its waterproof and thermal insulation properties. Tile backer boards

Shower screen

The Wiper Verre Shower Screen is one of Wiper's new shower enclosures. It is available in multiple standard sizes making it fit in small and large wet rooms. Black and silver options make it looks minimalistic and modern. Perfect choice for any wet room upgrade. Made of 8 mm toughened clear glass with Active Shield coating, 2000 mm high. Included fittings are made of stainless steel. The Verre Shower Screen from Wiper

VFLB91262P
Check stock live

Amount of products available off-the-shelf. If order is placed before 3pm, it will be shipped same day with free next business day delivery.

Quantity available in stock for next day delivery:

  • Thickness: 20 mm pieces x 4
  • Thickness: 28 mm pieces x 3
  • Thickness: 35 mm pieces x 4
Total available in stock: 11 (This variant: 4)
Same day shipping and delivery on Monday if you order in next 0 hours 00 minutes and 00 seconds
£530.37
Tax included
To get an extra 5% discount simply increase your cart value to £500.
Add to cart your current selections, and you will be eligible for 5% discount and need only £469.63 to get 10% discount.
Amount of product sales 12 Sold during the last 30 days
Amount of product views 557 Views during the last 24 hours
Based on current settings, if you Add to cart current set and then order, you will receive the following items:
Waterproofing kit

Size: not included

Underfloor heating kit

Size: not included

Shower screen

Size: not included


  • Dimensions as described on equivalent technical drawings,
  • If needed, the tray can be easily shortened in its length or width, using a handsaw,
  • It is best to cut equal bits from each opposite side.
  • The drain channel is located centrally, parallel to the shorter edge.
  • Designed especially for a range of Wiper VF clamp drains,
  • Drain is integrated into the tray during the manufacturing process,
  • The Showerlay VF range is based on a 20/28/35 mm XPS foam sheet
  • It is reinforced with flexible cementitious glue and reinforced with a fiberglass mesh,
  • In addition to that, it is covered with non-woven fabric, resistant to cracking of the substrate, ensuring the waterproofness of the entire tray.
  • The Showerlay is a CNC machine cut to give a perfect pre-formed fall from each corner to the drain. The board is much thinner around the drain than on the edges.
  • It is lightweight but very strong. Durable enough for a vinyl floor covering installation.
  • Perfect solution for British wooden floors but can also be used on concrete floors. When it is used on wooden floors, the floor must be underboarded after floor boards have been removed,
  • Standard and minimal underboarding ply should be 18 mm thick in case of installation in timber floor,
  • Ideal for a vinyl floor covering. Integrated Wiper VF drain is a clamp type, which features a mechanical locking system, allowing the edges of the vinyl being clamped and protected.
  • The tray can be easily trimmed on-site should you have any obstacles such as pipe boxings or uneven walls,
  • Compatible with underfloor heating systems, however due to insulation properties, the warming effect will be restricted if the heating is installed under the tray
  • Thin underfloor heating can be installed on top of the tray, bearing in mind limited allowance for the total thickness of material installed on top of the tray
  • One hundred percent, double waterproofing,
  • High acoustic and thermal insulation,
Product is suitable for:
Timber floor Concrete floor Vinyl Linoleum

Wet room kit advantages

Channel length
600 mm
Grate style
Ponente
Height
1200 mm
Width
900 mm
Thickness
20 · 28 · 35 mm
Trimming
Both sides: up to 50 mm.
Material
XPS foam sheet
Reinforcement
Cementous glue & waterproofing membrane fabric
Fall
4-way 2% towards the drain
Additionals
Tanking kit
Drain surface
brush
Cleaning
From above (Easy clean system)
Model
Line VF
Set consists
Wet room tray · integrated linear drain body · drain grating · siphon trap
Size
900 x 1200 mm
Sunfloor logo
UFH Mat
Complete Underfloor Heating Kit

It is possible to include a complete Underfloor Heating Kit to your order. All you need to do is to choose the required size. Additional package, with heating mat, appropriate thermostat, sensor and instructions will be dispatched together with the other goods.

To calculate required mat size you need to get square coverage of the floor and exclude any permanent / fixed fixtures from them. It is also recommended to buy slightly smaller mat than calculated size - you can shape it but cannot cut the cables, therefore too large mat could not be installed.

SUNFLOOR Underfloor Heating

The SUNFLOOR Electric Heating Mat is a unique type of floor heating mat. The system has been designed to be used on an existing tiled floor or an existing finished floor, so that floor heating can still be installed there. The mat is approximately 4 mm thick and can be included in a layer of adhesive without any demolishing or grinding. The mat fits virtually underneath the surface. This decreases the heating time of the floor, that also makes this system suitable for rooms that are not permanently occupied including bathrooms, studies, playrooms, etc.

Heating mat

Underfloor heating mat set consists of all necessary parts for installation. One Thermostat is needed for every 23 m² of heating mat. It is included as optional, to allow ordering mat for custom areas, for example if you need 13 m² of mat total, you should buy 10 m² with one of the thermostats set as include and 3 m² with thermostat not included. In case you require less mat coverage than possible to buy from our product pictures, for example 14.5 m² you should always round low with your purchase and buy 14 m² as the mat is impossible to cut. It can be shaped but not shortened to size.

    Details:
  • 2.5 meter 3-core supply cable
  • Fully encased in an aluminium earthed sheath
  • Unique blind connection between the heating and the connection cable
  • Chrome/Nickel resistance wire
  • PTFE (Teflon) insulation
  • PVC protective sheath
  • 10 -11 watt per meter resistance wire, 230 Volt
  • Cable diameter approximately 4 mm
  • Complies with current NEN standards for installation in completely wet rooms
Thermostat

The C16Wi-Fi is an intuitive programmable thermostat used to control the electrical floor heating system or water heating system. It will keep home comfortable temp whilst minimizing energy use. Install the app on your smartphone to control the heating system remotely with the WiFi thermostat.

    Specification:
  • Voltage: 230 Volt - 50/60 Hz
  • Maximum load: 16A / 3600W
  • Temperature range: +5 to +40°C
  • IP class: IP21
  • Testing: CE
  • Cable spec.: ≤ 2,5 mm²
  • Standby power: ~ 2W
  • Size: 85 x 85 mm
  • Integral room sensor and floor sensor
  • Colour: white or black
UFH Sunfloor Thermostat
Magnum X-treme control

This stylish, colourful and refined digital clock thermostat has been specially designed for electric heating systems. The MAGNUM X-treme Control is supplied with every MAGNUM floor heating set (Mat,Cable and Foil types), including external floor sensor, a built-in air sensor and three different frames that suit most brands of switching equipment. The MAGNUM X-treme Control is simple and intuitive to operate using touch sensitive buttons under the display. The new chameleon function is simple to adapt to the colour of your interior. The stylish screensaver shows the time, temperature and current mode without touching the thermostat. The MAGNUM X-treme Control has a new help function that appears after 10 seconds in the menu with a complete description of the setting in question. The MAGNUM X-treme Control also has a wooden floor function whereby the temperature is limited to 28°C. This makes the MAGNUM X-treme Control the idea and safe solution for every electric heating system.

    Specification:
  • Voltage: 230 Volt - 50/60 Hz
  • Maximum capacity: 16A - 3600 watt
  • Temperature range: +5 to +40°C
  • Frame: IP21
  • Color: Polar white (RAL 9010)
  • Testing: FI/CE
    Technical details:
  • Control via touch sensitive keys
  • Chameleon function (8 colour themes)
  • Screensaver night clock
  • Automatic start-up menu
  • Slow start-up function
  • Wooden floor function (28 °C limit)
  • Automatic summer and winter times
  • Multi-programme function (2 periods per day)
  • Programming multilingual
  • Including floor and air sensors
  • Multi-frame adapter system for: Gira, Jung, Elko, Merten, Busch Jager, etc.

In some situations the digital regulation is not required and so the preference is for a simple on/off operation. Specifically industrial applications where the heating must remain on at all times. Therefore MAGNUM has designed the Standard Control: a simple on/off thermostat with temperature regulation that is clearly easy to operate.

    Specification:
  • Voltage: 230 Volt - 50/60 Hz
  • Maximum load: 16A / 230 V
  • Temperature range: +5 to +40°C
  • Housing: IP21
  • Color: Polar white (RAL 9010)
  • Testing: CE
    Technical details:
  • On/off thermostat complete with temperature regulation
  • Including floor sensor
  • Integral room sensor and floor limit sensor
  • Multi frame adapter system for: Gira, Jung, Elko, Merten, Busch Jager, etc.
Magnum Manual Thermostat
Tanking kit

The tanking kit is a ready-mixed, under-tile tanking system to protect water sensitive substrates from exposure to water. Suitable for wet areas such as bathrooms, showers in residential buildings, hotels, old people's homes and hospitals. Should not be used in places exposed to pressurised water, for an instance swimming pools. Ready to use, no mixing required and easy to apply with a roller. The kit includes a high performance joint reinforcing tape to protect against movement in floor joins and corners etc. The contents are all INSIDE the bucket and the contents are protected in the bucket with polystyrene infill's to stop transit damage.The instructions are printed on the rear of the tanking kit.

For anti-moisture insulation systems in wet rooms and rooms intended for human residence. The tanking liquid is a ready-to-use singlecomponent, solvent-free sealant composed of polymer dispersion, fillers and modifying additives. When applied to the surface, upon binding it creates a flexible and water-insulating layer.

Tanking kit contains:
  • 4kg Tanking Liquid
  • 1l Primer
  • 10 Metres flexible Sealing Tape
  • 2 Flexible Pipe Collars
  • 2 Corners
Features:
  • Consumption to 1,2kg/m²
  • Solvent free
  • Drying time: 2h
Tanking liquid and primer
Tanking liquid
Tanking liquid

The tanking liquid is a ready to use, single component, solvent-free sealant mass, consisting of polymer dispersion, fillers and additives. When applied to a substrate and cured, it forms a flexible waterproofing coating. The product is intended for use inside places intended for human residence, especially in humid areas (such as bathrooms, kitchens, laundries), to perform insulation against moisture under linings and coverings, such as ceramic tiles, glazed tiles, terracotta, wooden floors and panels, and synthetic carpets.

The product is intended for priming absorbent and porous surfaces, inside and outside buildings. It is especially recommended for cement - limestone plaster, gas concrete, plaster-carton boards and cement plaster. The primer has a high penetration ability, is deeply absorbed into the substrate, thus strengthening it, while allowing for „breathing”. These benefits improve the structure of the substrates, which, due to the passage of time, have lost their appropriate parameters. The priming solution improves adhesion to the surface of other materials that will be used on the primed substrate. By reducing the absorbency of the substrate, the wear of the applied coating materials, emulsion paints, glues, mineral putties reduces as well. The solution, due to the content of the biocide and fungicide, protects the primed substrate against the formation of mold and bacteria in the product.

Primer

Wet room Kit shower tray installation instructions | Timber floor

This installation guide shows how to install wet room kit shower tray Showerlay Wiper on a wooden floor and how to tile it over.

  1. Preparation of floor and walls. Gather required materials and tools.
  2. Establish shower area by lying the shower tray in desired future shower position.
  3. Floor boards removal to expose the joists and avoid increasing total floor height.
  4. Support the drain using ply with hole cut the match the channel shape.
  5. Connect the siphon trap pipe to your waste system.
  6. Prepare even surface with marine plywood board.
  7. Fit the wet room kit using fixing adhesive.
  8. Assembly the drain with siphon trap.
  9. Fill remaining shower area with tile backer boards.
Wet Room Installation

This installation guide shows steps how to install wet room kit shower tray Showerlay Wiper into a concrete floor how to tile it over.

  1. Preparation of floor and walls. Gather required materials and tools.
  2. Establish shower area by lying the shower tray in desired future shower position.
  3. Grind the concrete to prepare a slot for shower tray.
  4. Cut a hole for siphon trap and pipework.
  5. Connect the siphon trap pipe to your waste system.
  6. Prepare even surface by cleaning and bedding the concrete.
  7. Fit the wet room kit using fixing adhesive.
  8. Assembly the drain with siphon trap.
  9. Fill remaining shower area with tile backer boards.
Wet Room Installation

This is a document from our Resource Centre, which you can find HERE
