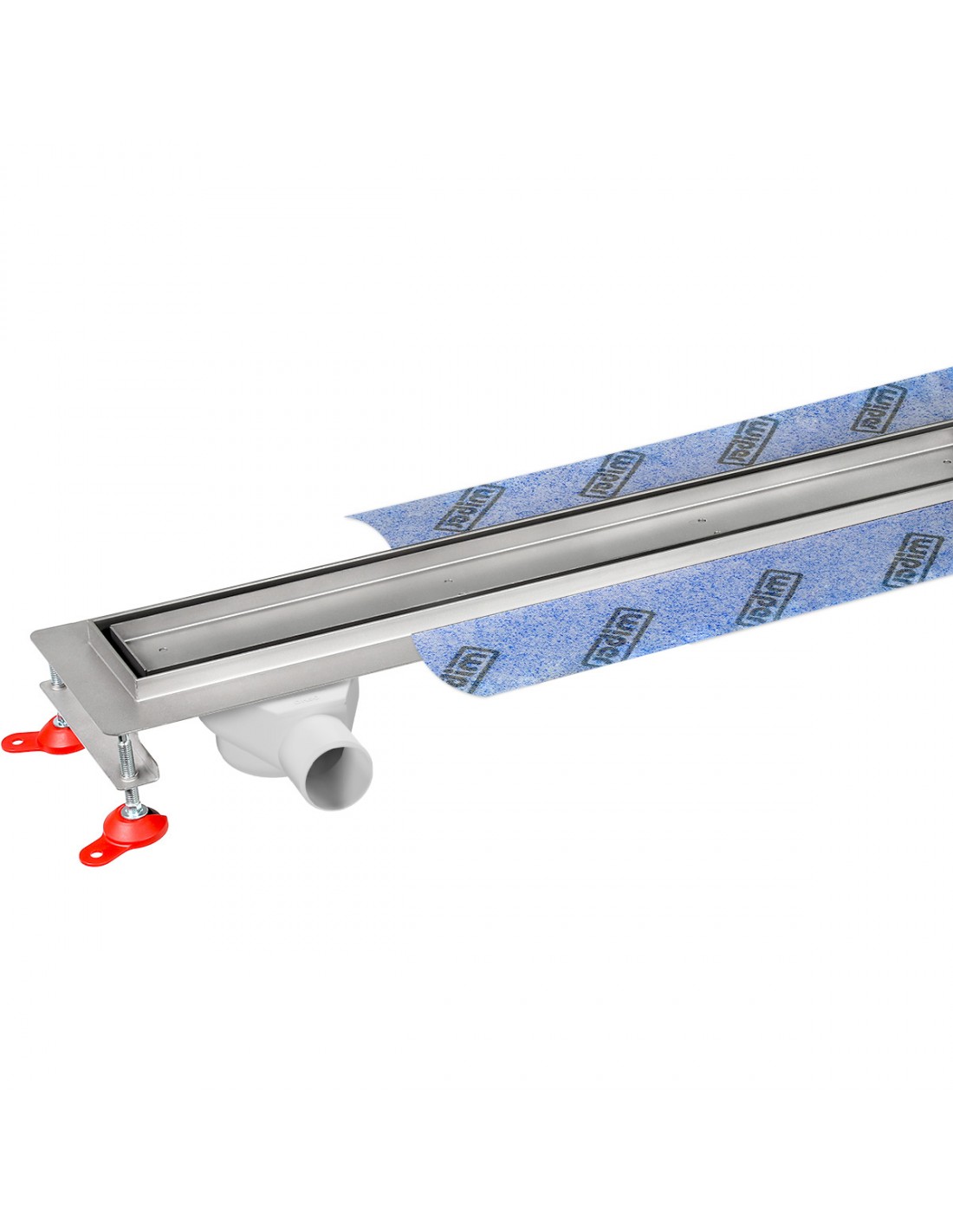

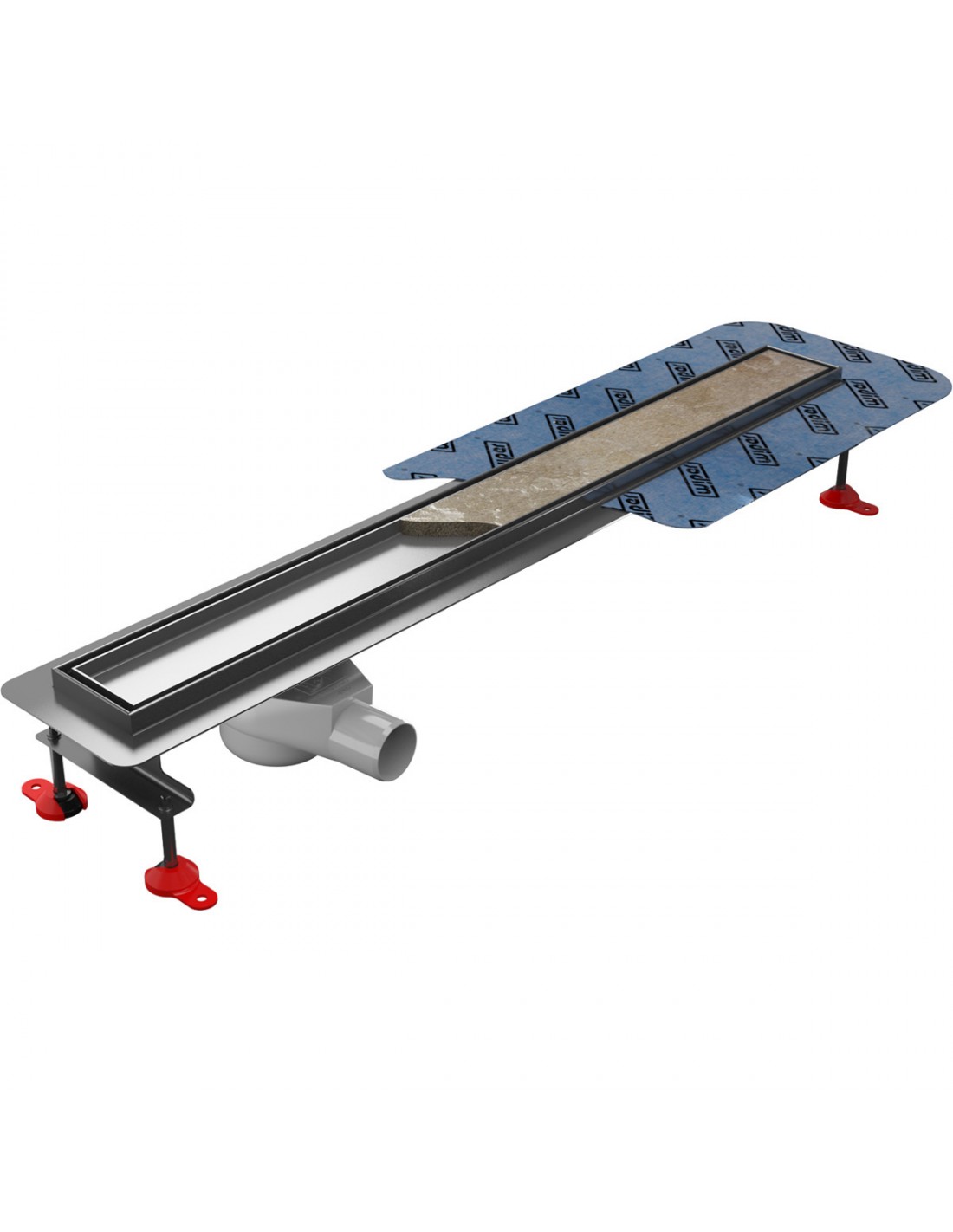

Linear drain kit: Linear Shower drain Premium with Pure cover and 125 mm offset waste trap hole

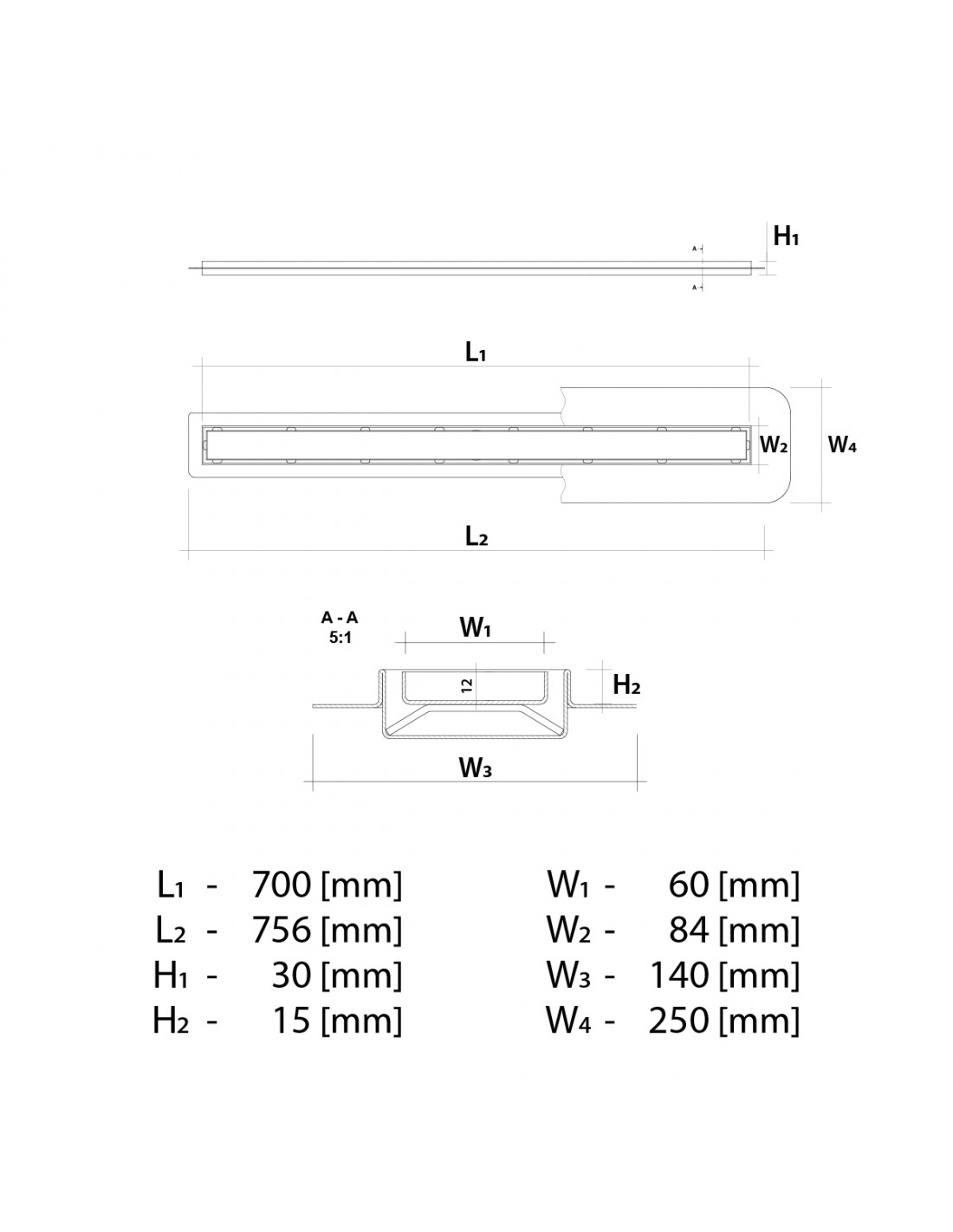

Technical drawing: Linear drain Wiper 700 Premium Offset  Pure

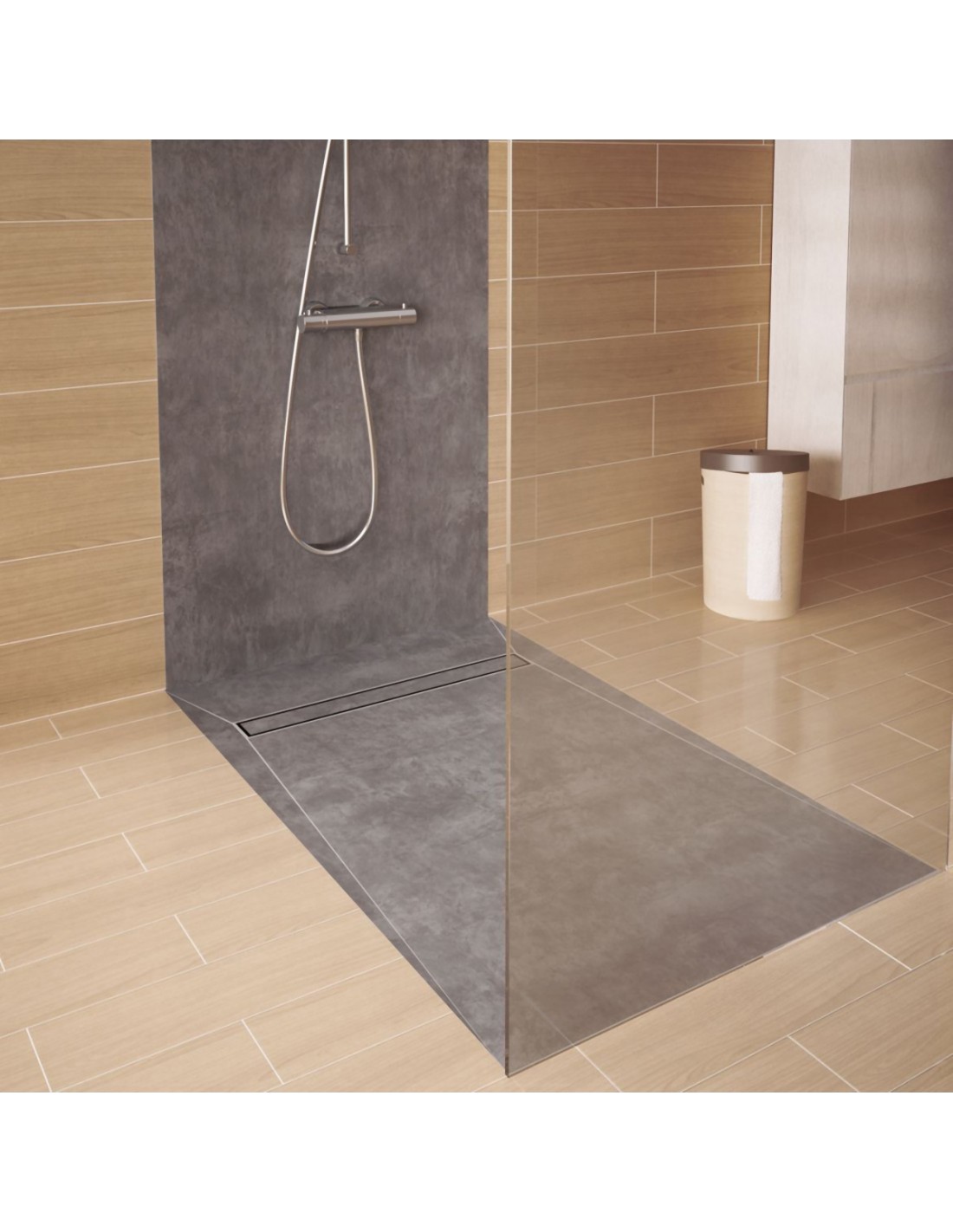

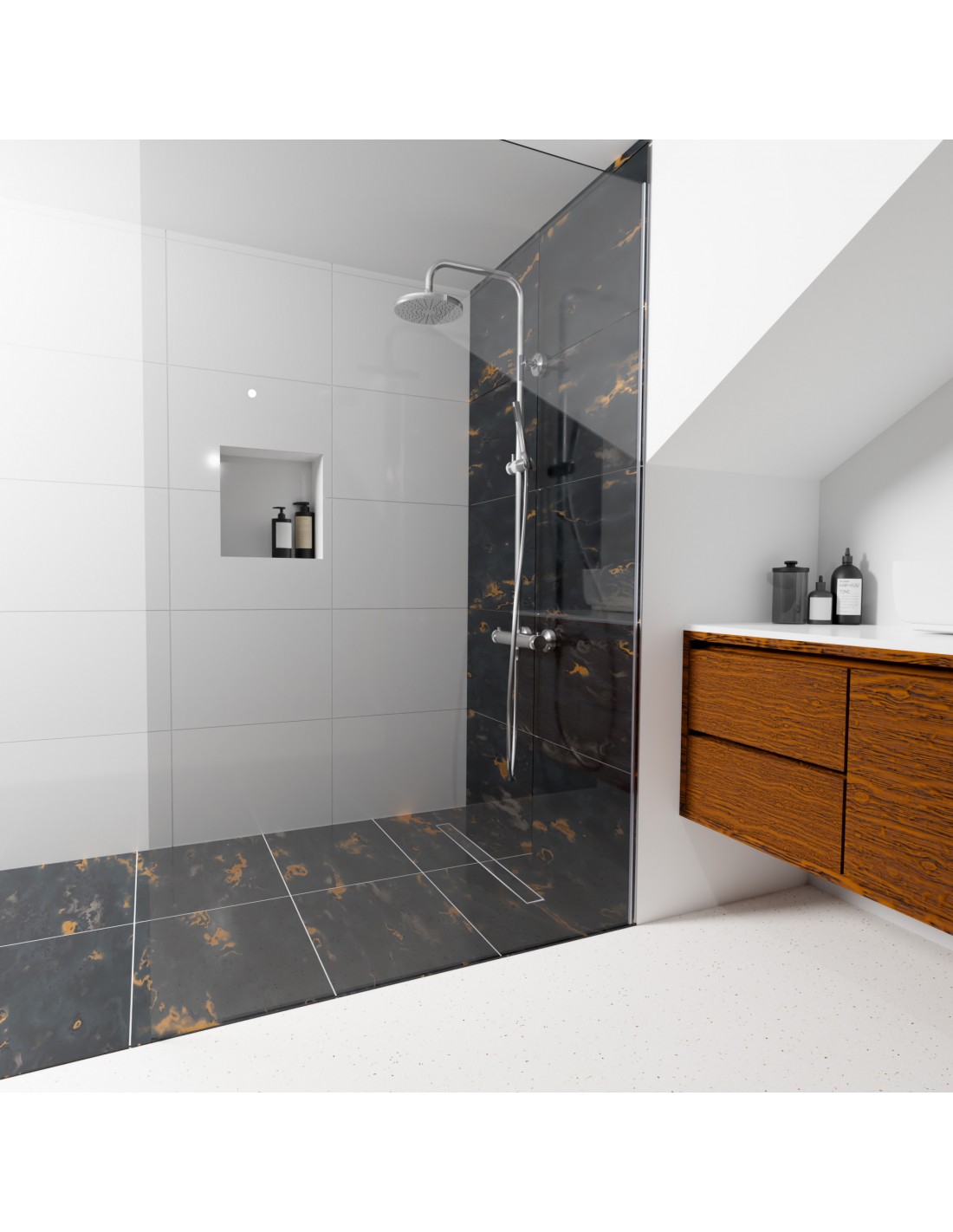

Example of timeless bathroom concept in gray and white with an open walk-in shower area and modern glass elements

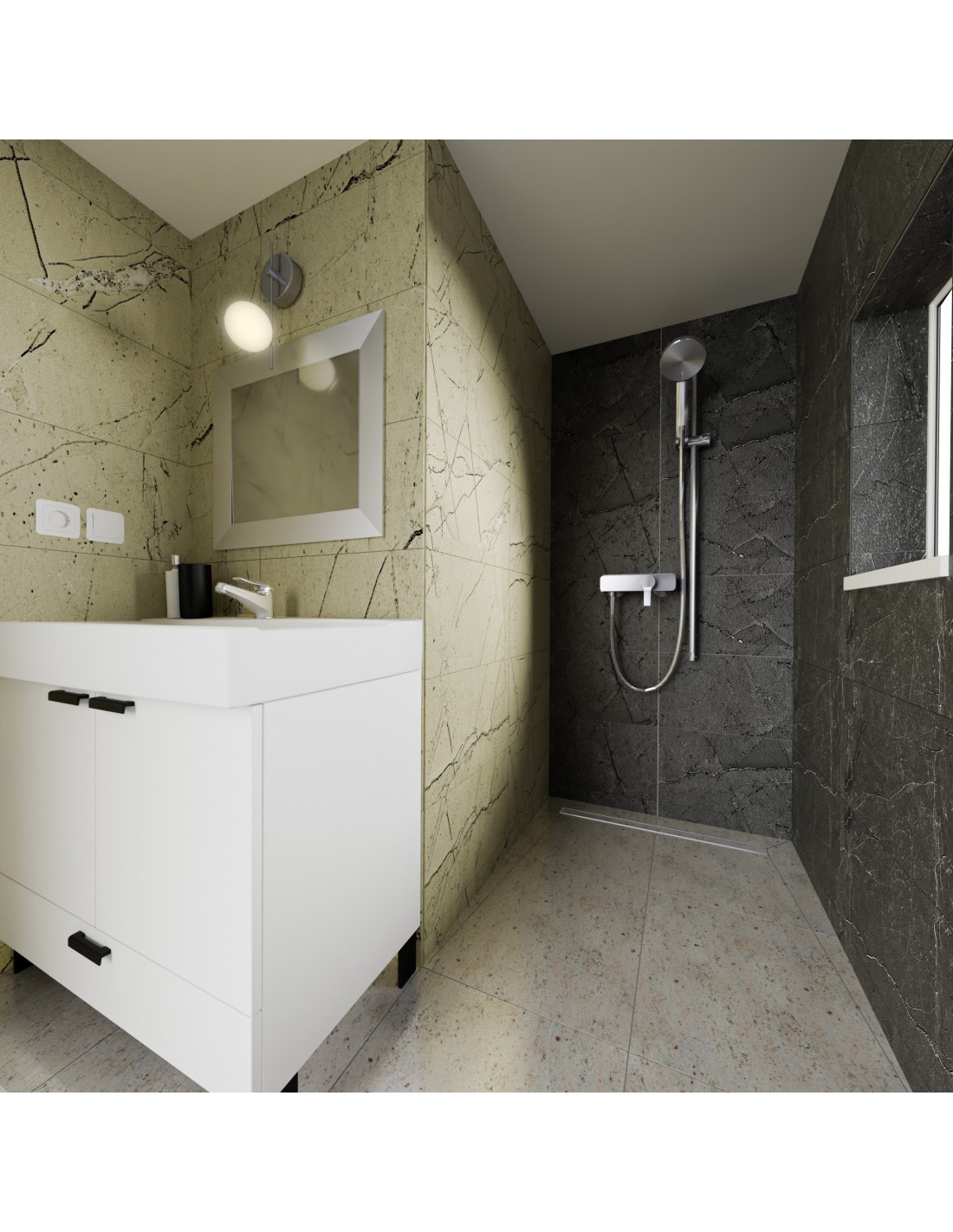

Example of bathroom concept in rustic look featuring a black-beige colour scheme and an open shower area

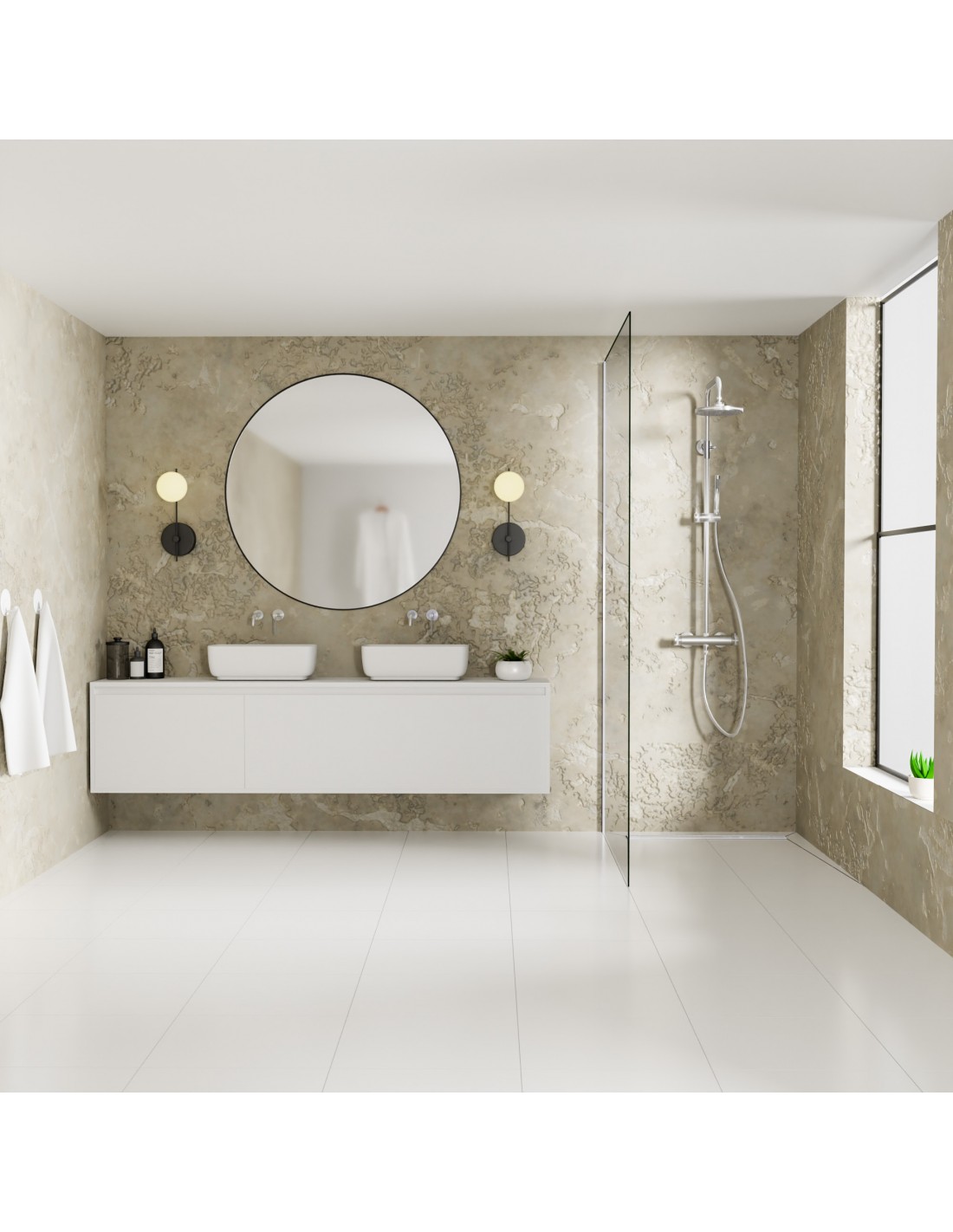

Application example of bright, friendly design with beige wall decor and glass wall to separate the room from the shower
Application example of an unique bathroom concept with white walls combined with black floor & bronze-colored accents

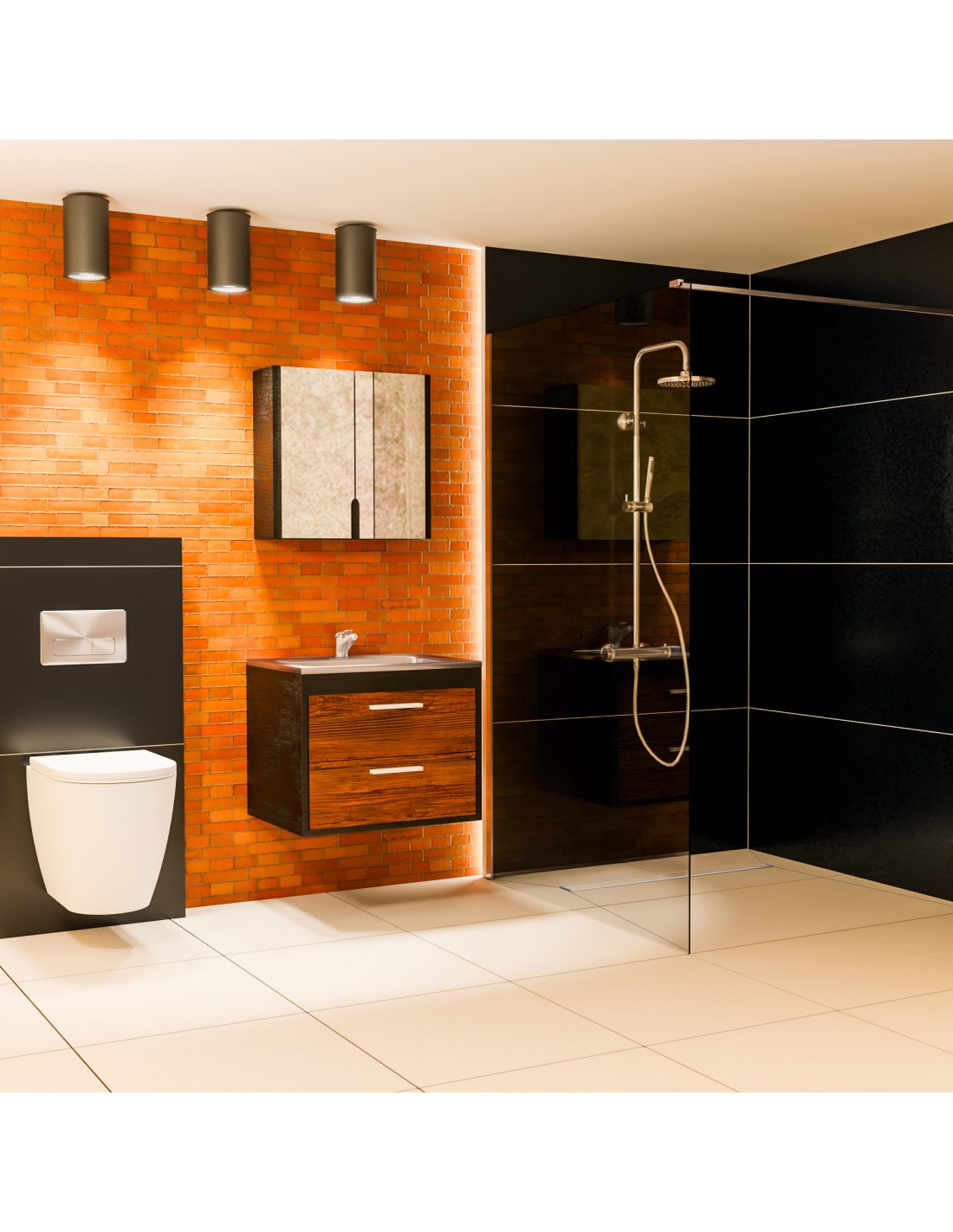

Application example of an industrial-look bathroom concept with red bricks and open shower area with black wall tiles
Example of finished Wet Room with the drain available here - screen parallel to the Wall (rectangle wet room size)

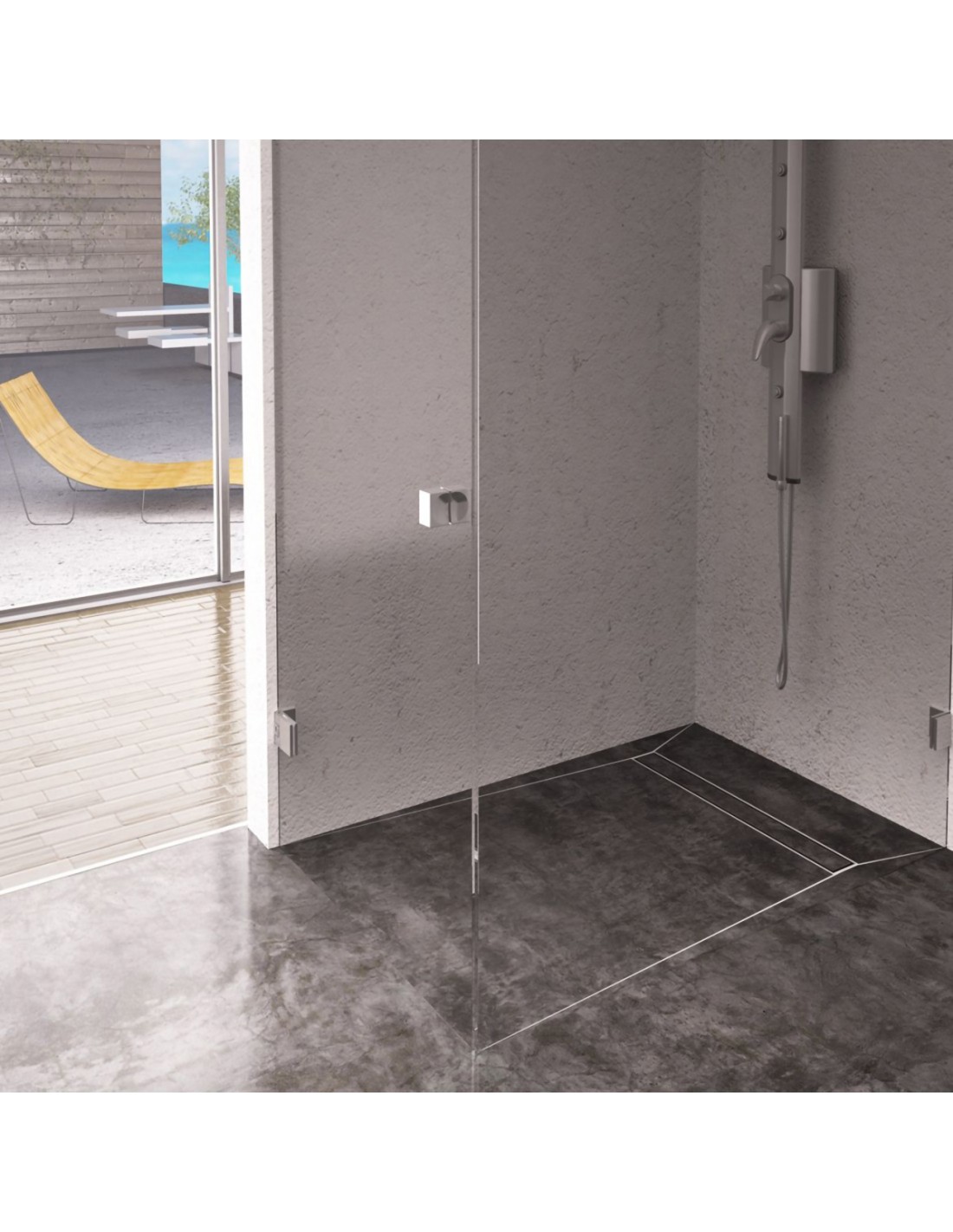

Example of finished Wet Room with the drain available here - classic corner Installation (square wet room size)
Real picture of linear channel with offset drain outlet, cover Pure and waste trap

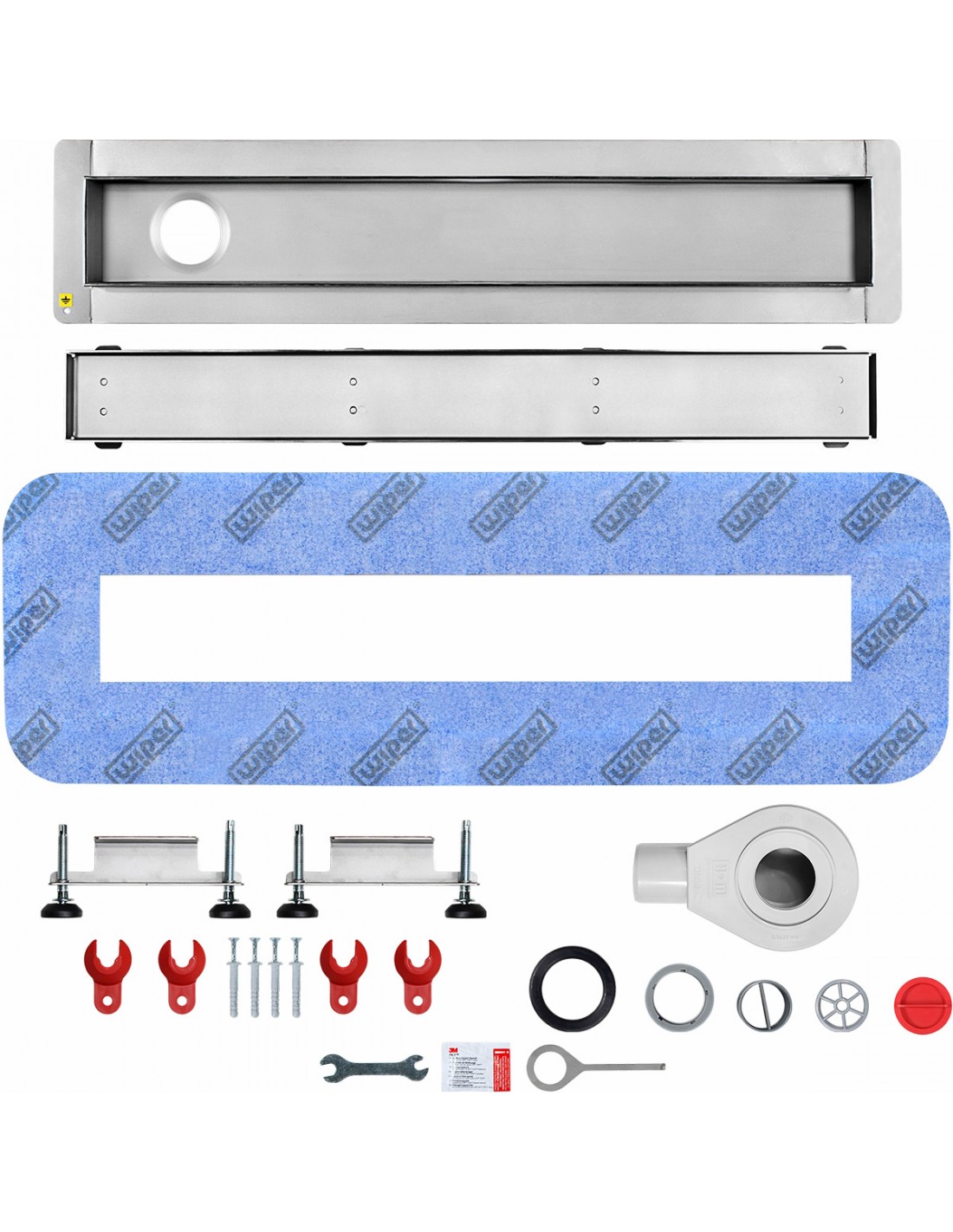

The whole set you get

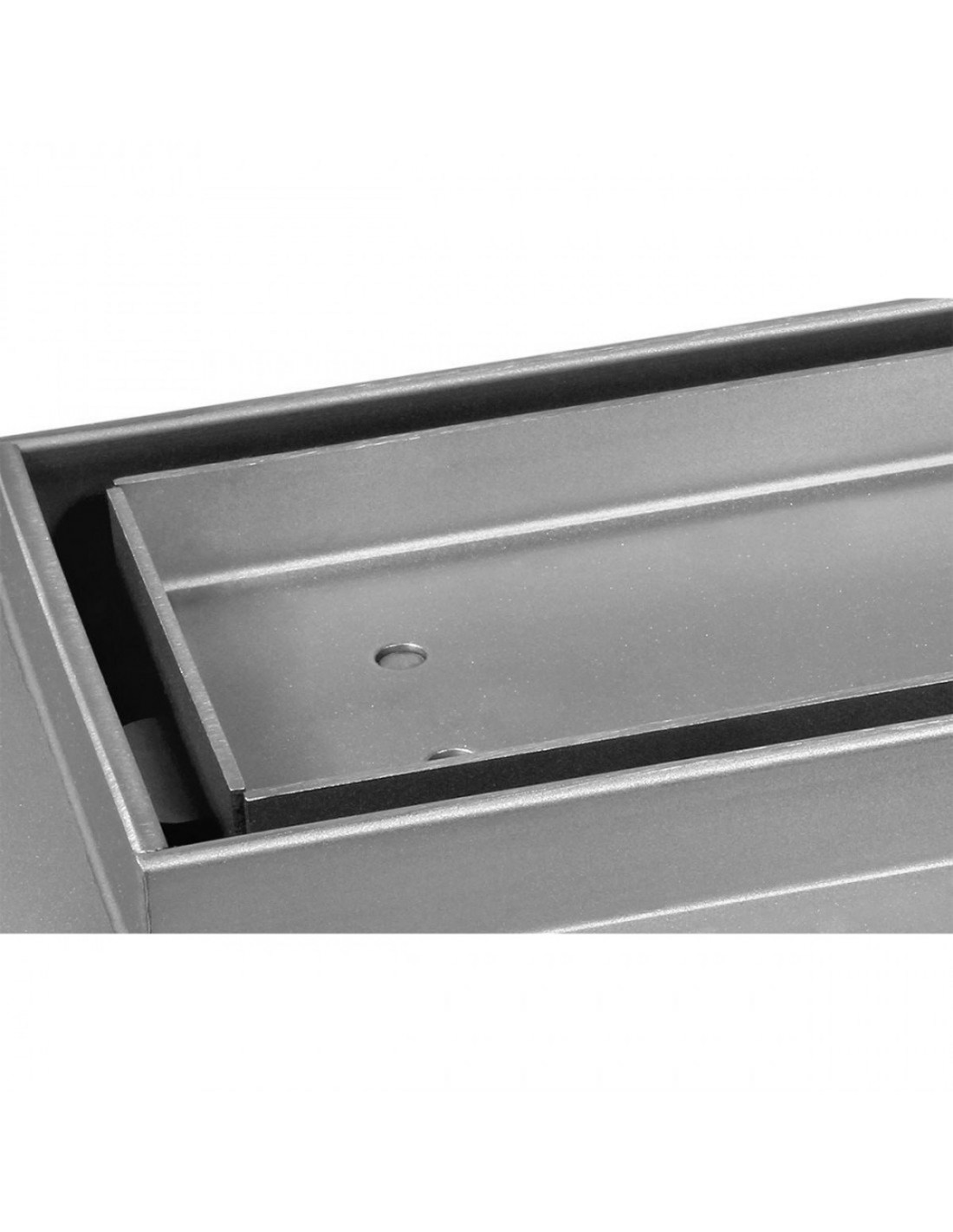

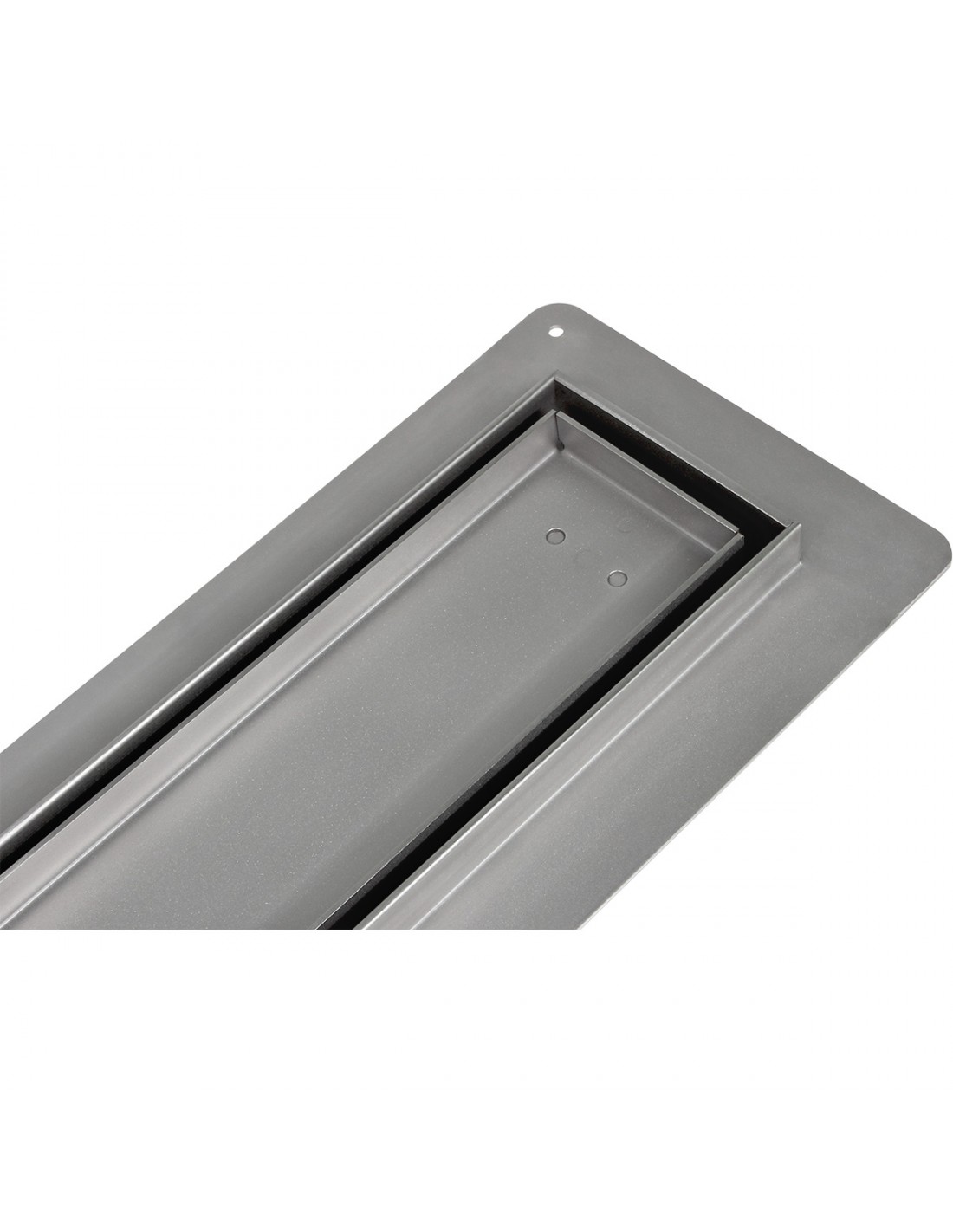

Close up on carefully made frame and Pure cover
Zoom at the Pure Cover

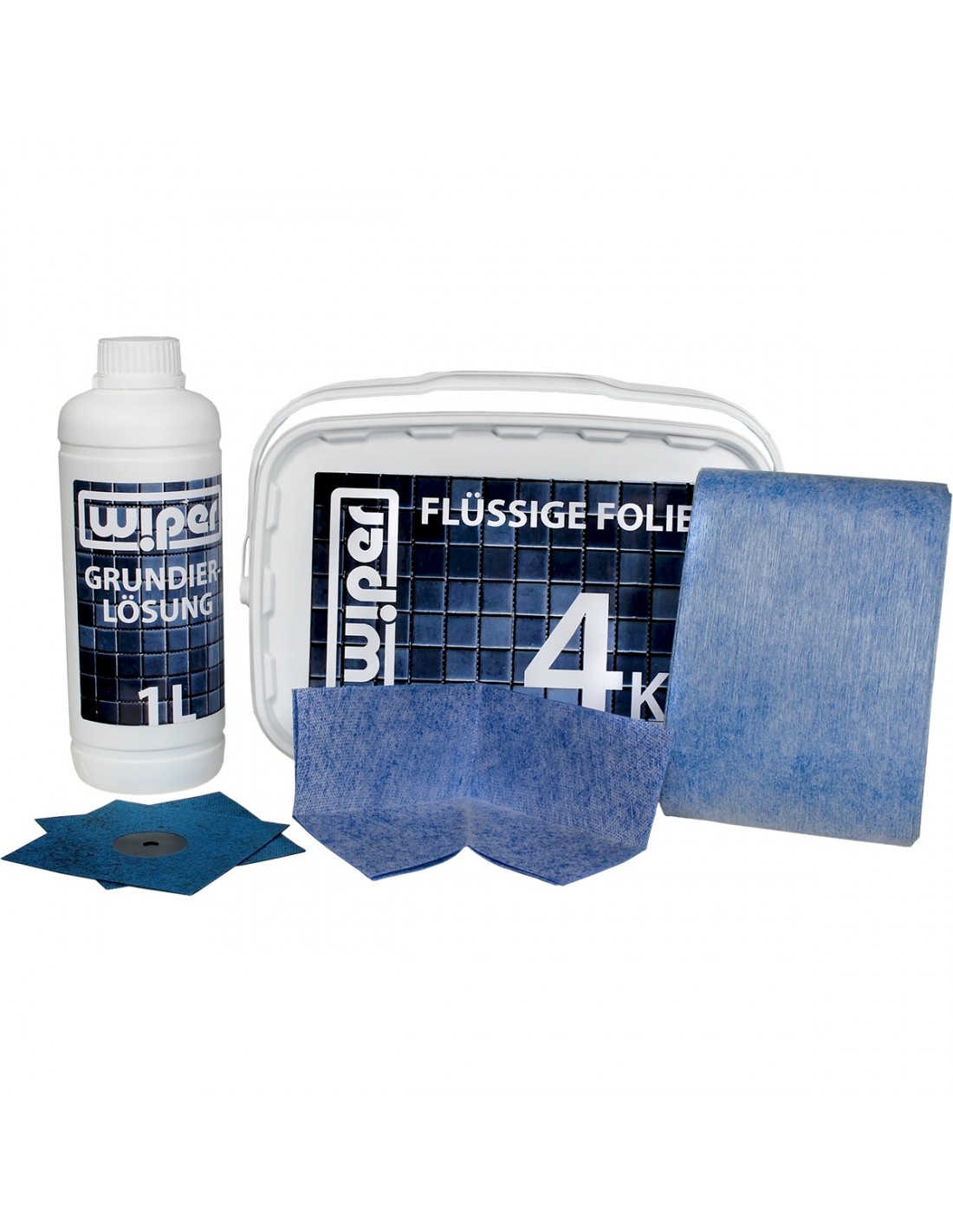

Wiper shower waterproofing kit incl. primer, tanking liquid, sealing tape, sealing corners and flexible pipe collar
Different syphons by choice (vertical or horizontal outlet), included in set
  • -20%
Linear drain kit: Linear Shower drain Premium with Pure cover and 125 mm offset waste trap hole
Technical drawing: Linear drain Wiper 700 Premium Offset  Pure
Example of timeless bathroom concept in gray and white with an open walk-in shower area and modern glass elements
Example of bathroom concept in rustic look featuring a black-beige colour scheme and an open shower area
Application example of bright, friendly design with beige wall decor and glass wall to separate the room from the shower
Application example of an unique bathroom concept with white walls combined with black floor & bronze-colored accents
Application example of an industrial-look bathroom concept with red bricks and open shower area with black wall tiles
Example of finished Wet Room with the drain available here - screen parallel to the Wall (rectangle wet room size)
Example of finished Wet Room with the drain available here - classic corner Installation (square wet room size)
Real picture of linear channel with offset drain outlet, cover Pure and waste trap
The whole set you get
Close up on carefully made frame and Pure cover
Zoom at the Pure Cover
Wiper shower waterproofing kit incl. primer, tanking liquid, sealing tape, sealing corners and flexible pipe collar
Different syphons by choice (vertical or horizontal outlet), included in set

Linear drain Wiper 700 mm Premium Offset Pure

Shower drain Wiper 700 mm Premium Offset Pure is new model in our offer. In response to customer demand we introduce our best selling Wiper Premium drain but with a 125 mm offset waste trap hole. Sometimes difficult pipe or joists situation won't let you install shower drain with a centered waste trap hole. Now you have even more flexibility with design and installation of your wet room.

As the regular Premium drain it is made of 304 stainless steel which offers good corrosion, chemicals and atmospheric exposure resistance. It is surrounded by 30 mm wide flange and sealing membrane which are mandatory for proper waterproofing especially in timber floors, although drain is also suitable for concrete flooring. This is perfect gully for tiled floors, as the lip height is 15 mm.

Drain channel is 84 mm wide, while it comes with included Pure tile able grate, which is 12 mm deep and 64 mm wide, grate is 694 mm long and total drain length with insulation flange is 760 mm. Slot drain should be filled with tiles, so at the end of the day only visible part of the drain should be the channel which water flows through. Sealing membrane is a blue non-woven fabric which bonds well with the glue and is resistant to cracking.

65 mm high McAlpine siphon trap with pipe is also included to drain. It features capacity of 26 l /min and water seal 20 mm high. Trap can be opened from above, even after the installation is completed, after lifting up the grate to allow easy cleaning. Standard 1.5'' pipe is in the same pack, allowing instant connection to your waste system.

Product Type
  • Linear Drain Premium Offset

Consider your floor finish type — tiles, micro cement, or vinyl — choose a finish that complements your bathroom style. Evaluate dimensions and features to match your requirements.

Drain Length

Drain is available in 8 standard lengths. Although they have same technical performance, length of the drain should be matched room requirements. For an instance 700 mm Drain length is recommended for 1000 mm wide shower.

Drain Cover
  • Pure (tileable)

There are 6 drain cover patterns available. The flow rate is the same for all of them. They are interchangeable and can be swapped even after installation. Each drain sent out is equipped with a lifting hook which makes cleaning easy.

Waterproofing kit

Waterproofing kit is used to seal shower tray as well as connections between walls and floor. It is recommended for concrete and mandatory for timber flooring. Each kit contains 4kg tanking liquid, 1l primer, 10m sealing tape, 2 corners, 2 pipe collars. One kit covers 3 m² with 2 coats. Waterproofing kit

Underfloor heating kit

Complete Sunfloor Underfloor heating set, including mat, Wi-Fi thermostat, floor sensor and fitting instructions. Fully suitable with our other products. Advanced thermostat with and iOS/Android app allows to set desired temperature of the floor from distance as well as create schedules.
Complete Sunfloor Underfloor heating set

Tile Backer boards

Tile backer boards are used to create the perfect substrate to tile onto in wet rooms and bathrooms. Superior to cement boards and plywood, due to its waterproof and thermal insulation properties. Tile backer boards

Shower screen

The Wiper Verre Shower Screen is one of Wiper's new shower enclosures. It is available in multiple standard sizes making it fit in small and large wet rooms. Black and silver options make it looks minimalistic and modern. Perfect choice for any wet room upgrade. Made of 8 mm toughened clear glass with Active Shield coating, 2000 mm high. Included fittings are made of stainless steel. The Verre Shower Screen from Wiper

LPO7PU
£309.11 £386.39 -20%
Tax included
To get an extra 5% discount simply increase your cart value to £500.
Add to cart your current selections, and you only need to add £190.89 more to unlock a 5% discount for the entire order.
Amount of product sales 19 Sold during the last 90 days
Amount of product views 6 Views during the last 24 hours
Based on current settings, if you Add to cart current set and then order, you will receive the following items:
Waterproofing kit

Size: not included

Underfloor heating kit

Size: not included

Shower screen

Size: not included


  • Length (X): 700 [mm]
  • Height of channel (C): 30 [mm]
  • Height to the centre of waste pipe (G): 68 [mm] (can be adjusted)
  • Total height (H): 98 [mm]
  • Width of channel (Y): 84 [mm]
  • Width of insulating flange (F): 140 [mm] (included)
  • Width of sealing membrane (M): 250 [mm] (included)
  • Flange to top edge of channel (T): 15 [mm]
  • Waste trap hole offset: 125 [mm]
  • Complete siphon, pipe diameter: 1.5" (British standard size),
  • Pipe height adjustable and rotatable at 360°,
  • Drain's cover included.

Pure drain cover is an internal container that you can insert the tiles into. This type of drain is 100% tile-able.

  • Tile channel depth (A): 12 [mm]
  • Tile channel width (D): 60 mm [mm]

Product is suitable for:
Timber floor Concrete floor Tiles Mosaic

Grating patterns available for this product:

Linear drain gratings

Linear shower drain advantages

Channel length
700 mm
Grate style
Pure (slot)
Channel height
30 mm
Total height
98 mm
Channel width
84 mm
Total width
140 mm
Material
304 S 15 grade stainless steel
Additionals
Tanking kit, Adjustable legs
Drain surface
mirror · brush · matt
Waste trap
Plastic (PCV)
Steel collar
Integrated
Cleaning
From above (Easy clean system)
Model
Premium Offset
Set consists
Linear drain body · stainless steel collar · sealing membrane · drain grating · siphon trap
Waste hole offset
125 mm
Sunfloor logo
UFH Mat
Complete Underfloor Heating Kit

It is possible to include a complete Underfloor Heating Kit to your order. All you need to do is to choose the required size. Additional package, with heating mat, appropriate thermostat, sensor and instructions will be dispatched together with the other goods.

To calculate required mat size you need to get square coverage of the floor and exclude any permanent / fixed fixtures from them. It is also recommended to buy slightly smaller mat than calculated size - you can shape it but cannot cut the cables, therefore too large mat could not be installed.

SUNFLOOR Underfloor Heating

The SUNFLOOR Electric Heating Mat is a unique type of floor heating mat. The system has been designed to be used on an existing tiled floor or an existing finished floor, so that floor heating can still be installed there. The mat is approximately 4 mm thick and can be included in a layer of adhesive without any demolishing or grinding. The mat fits virtually underneath the surface. This decreases the heating time of the floor, that also makes this system suitable for rooms that are not permanently occupied including bathrooms, studies, playrooms, etc.

Heating mat

Underfloor heating mat set consists of all necessary parts for installation. One Thermostat is needed for every 23 m² of heating mat. It is included as optional, to allow ordering mat for custom areas, for example if you need 13 m² of mat total, you should buy 10 m² with one of the thermostats set as include and 3 m² with thermostat not included. In case you require less mat coverage than possible to buy from our product pictures, for example 14.5 m² you should always round low with your purchase and buy 14 m² as the mat is impossible to cut. It can be shaped but not shortened to size.

    Details:
  • 2.5 meter 3-core supply cable
  • Fully encased in an aluminium earthed sheath
  • Unique blind connection between the heating and the connection cable
  • Chrome/Nickel resistance wire
  • PTFE (Teflon) insulation
  • PVC protective sheath
  • 10 -11 watt per meter resistance wire, 230 Volt
  • Cable diameter approximately 4 mm
  • Complies with current NEN standards for installation in completely wet rooms
Thermostat

The C16Wi-Fi is an intuitive programmable thermostat used to control the electrical floor heating system or water heating system. It will keep home comfortable temp whilst minimizing energy use. Install the app on your smartphone to control the heating system remotely with the WiFi thermostat.

    Specification:
  • Voltage: 230 Volt - 50/60 Hz
  • Maximum load: 16A / 3600W
  • Temperature range: +5 to +40°C
  • IP class: IP21
  • Testing: CE
  • Cable spec.: ≤ 2,5 mm²
  • Standby power: ~ 2W
  • Size: 85 x 85 mm
  • Integral room sensor and floor sensor
  • Colour: white or black
UFH Sunfloor Thermostat
Magnum X-treme control

This stylish, colourful and refined digital clock thermostat has been specially designed for electric heating systems. The MAGNUM X-treme Control is supplied with every MAGNUM floor heating set (Mat,Cable and Foil types), including external floor sensor, a built-in air sensor and three different frames that suit most brands of switching equipment. The MAGNUM X-treme Control is simple and intuitive to operate using touch sensitive buttons under the display. The new chameleon function is simple to adapt to the colour of your interior. The stylish screensaver shows the time, temperature and current mode without touching the thermostat. The MAGNUM X-treme Control has a new help function that appears after 10 seconds in the menu with a complete description of the setting in question. The MAGNUM X-treme Control also has a wooden floor function whereby the temperature is limited to 28°C. This makes the MAGNUM X-treme Control the idea and safe solution for every electric heating system.

    Specification:
  • Voltage: 230 Volt - 50/60 Hz
  • Maximum capacity: 16A - 3600 watt
  • Temperature range: +5 to +40°C
  • Frame: IP21
  • Color: Polar white (RAL 9010)
  • Testing: FI/CE
    Technical details:
  • Control via touch sensitive keys
  • Chameleon function (8 colour themes)
  • Screensaver night clock
  • Automatic start-up menu
  • Slow start-up function
  • Wooden floor function (28 °C limit)
  • Automatic summer and winter times
  • Multi-programme function (2 periods per day)
  • Programming multilingual
  • Including floor and air sensors
  • Multi-frame adapter system for: Gira, Jung, Elko, Merten, Busch Jager, etc.

In some situations the digital regulation is not required and so the preference is for a simple on/off operation. Specifically industrial applications where the heating must remain on at all times. Therefore MAGNUM has designed the Standard Control: a simple on/off thermostat with temperature regulation that is clearly easy to operate.

    Specification:
  • Voltage: 230 Volt - 50/60 Hz
  • Maximum load: 16A / 230 V
  • Temperature range: +5 to +40°C
  • Housing: IP21
  • Color: Polar white (RAL 9010)
  • Testing: CE
    Technical details:
  • On/off thermostat complete with temperature regulation
  • Including floor sensor
  • Integral room sensor and floor limit sensor
  • Multi frame adapter system for: Gira, Jung, Elko, Merten, Busch Jager, etc.
Magnum Manual Thermostat
Tanking kit

The tanking kit is a ready-mixed, under-tile tanking system to protect water sensitive substrates from exposure to water. Suitable for wet areas such as bathrooms, showers in residential buildings, hotels, old people's homes and hospitals. Should not be used in places exposed to pressurised water, for an instance swimming pools. Ready to use, no mixing required and easy to apply with a roller. The kit includes a high performance joint reinforcing tape to protect against movement in floor joins and corners etc. The contents are all INSIDE the bucket and the contents are protected in the bucket with polystyrene infill's to stop transit damage.The instructions are printed on the rear of the tanking kit.

For anti-moisture insulation systems in wet rooms and rooms intended for human residence. The tanking liquid is a ready-to-use singlecomponent, solvent-free sealant composed of polymer dispersion, fillers and modifying additives. When applied to the surface, upon binding it creates a flexible and water-insulating layer.

Tanking kit contains:
  • 4kg Tanking Liquid
  • 1l Primer
  • 10 Metres flexible Sealing Tape
  • 2 Flexible Pipe Collars
  • 2 Corners
Features:
  • Consumption to 1,2kg/m²
  • Solvent free
  • Drying time: 2h
Tanking liquid and primer
Tanking liquid
Tanking liquid

The tanking liquid is a ready to use, single component, solvent-free sealant mass, consisting of polymer dispersion, fillers and additives. When applied to a substrate and cured, it forms a flexible waterproofing coating. The product is intended for use inside places intended for human residence, especially in humid areas (such as bathrooms, kitchens, laundries), to perform insulation against moisture under linings and coverings, such as ceramic tiles, glazed tiles, terracotta, wooden floors and panels, and synthetic carpets.

The product is intended for priming absorbent and porous surfaces, inside and outside buildings. It is especially recommended for cement - limestone plaster, gas concrete, plaster-carton boards and cement plaster. The primer has a high penetration ability, is deeply absorbed into the substrate, thus strengthening it, while allowing for „breathing”. These benefits improve the structure of the substrates, which, due to the passage of time, have lost their appropriate parameters. The priming solution improves adhesion to the surface of other materials that will be used on the primed substrate. By reducing the absorbency of the substrate, the wear of the applied coating materials, emulsion paints, glues, mineral putties reduces as well. The solution, due to the content of the biocide and fungicide, protects the primed substrate against the formation of mold and bacteria in the product.

Primer
Sealing mat

ISOL-ONE Sealing collar
The ISOL-ONE sealing mat is made from a polyethylene film coated with a special non-woven fabric on both sides, so that it bonds with the glue layer. Its installation is recommended in all areas that require sealing. The mat is resistant to the cracking of the substrate, ensures the seal up of the entire surface, reduces installation time, allowing to lay the tiles immediately after gluing the mat.

Adjustable legs

Adjustable legs
Adjustable feet are two small metal parts that can be connected to each channel end. They allow you to precisely set the unit height and level. Thanks to the red caps you can anchor the drain to the floor. They are part of unit, included in price and always added to each drain.
