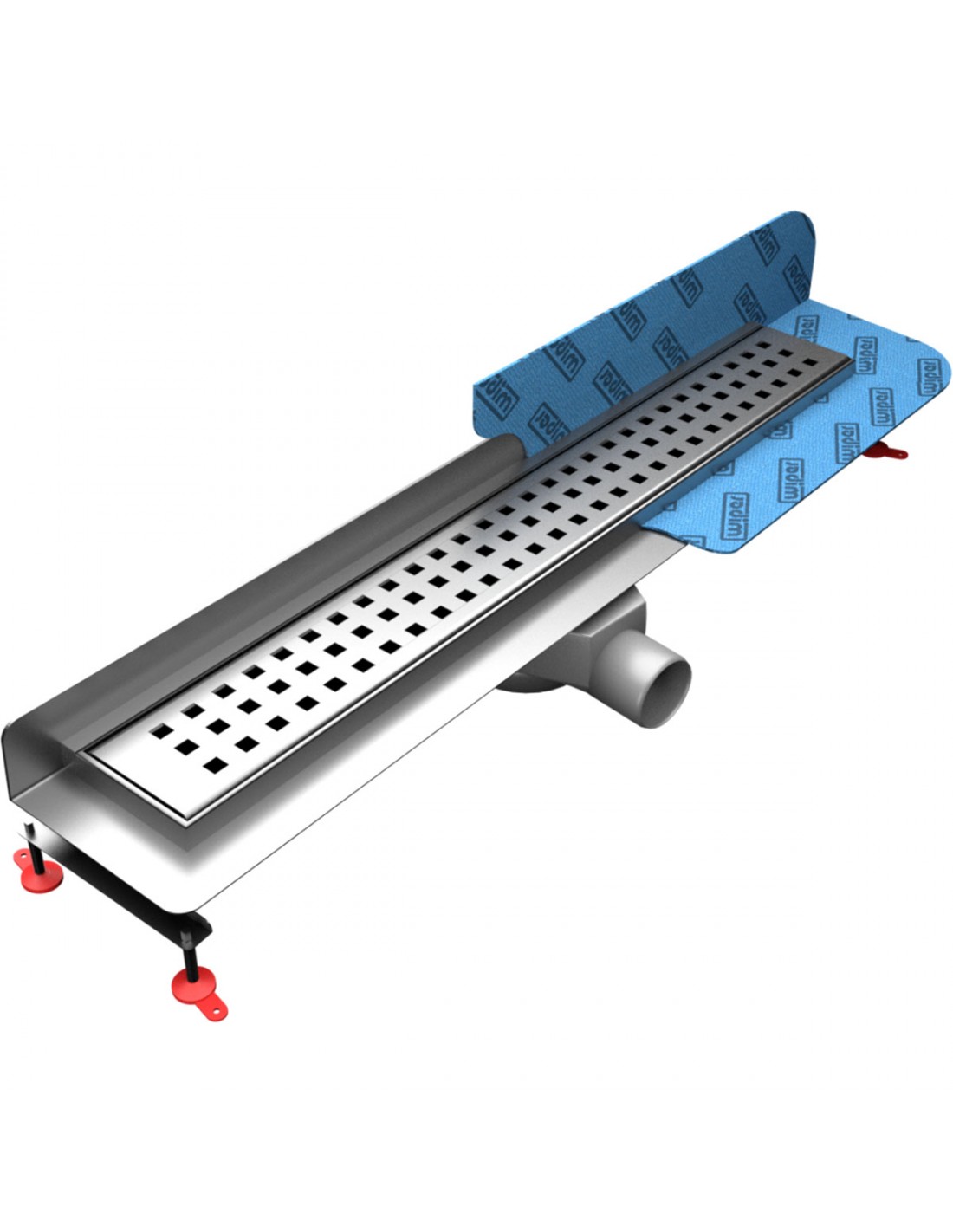

Wall Upstand linear drain kit: Linear Shower drain to install directly against the wall with Sirocco cover, incl. syphon

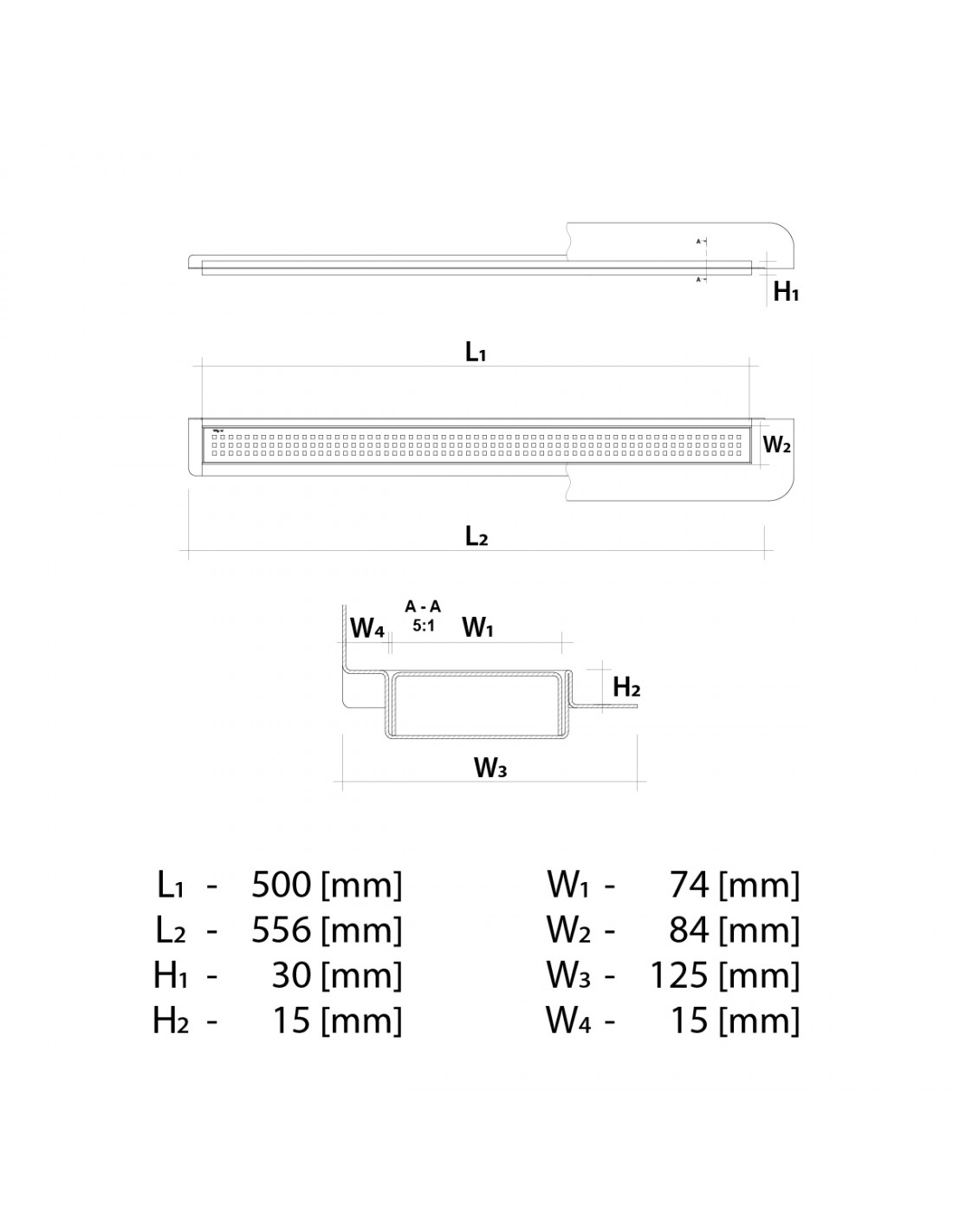

Technical drawing: Linear drain Wiper 500 Wall Upstand Sirocco

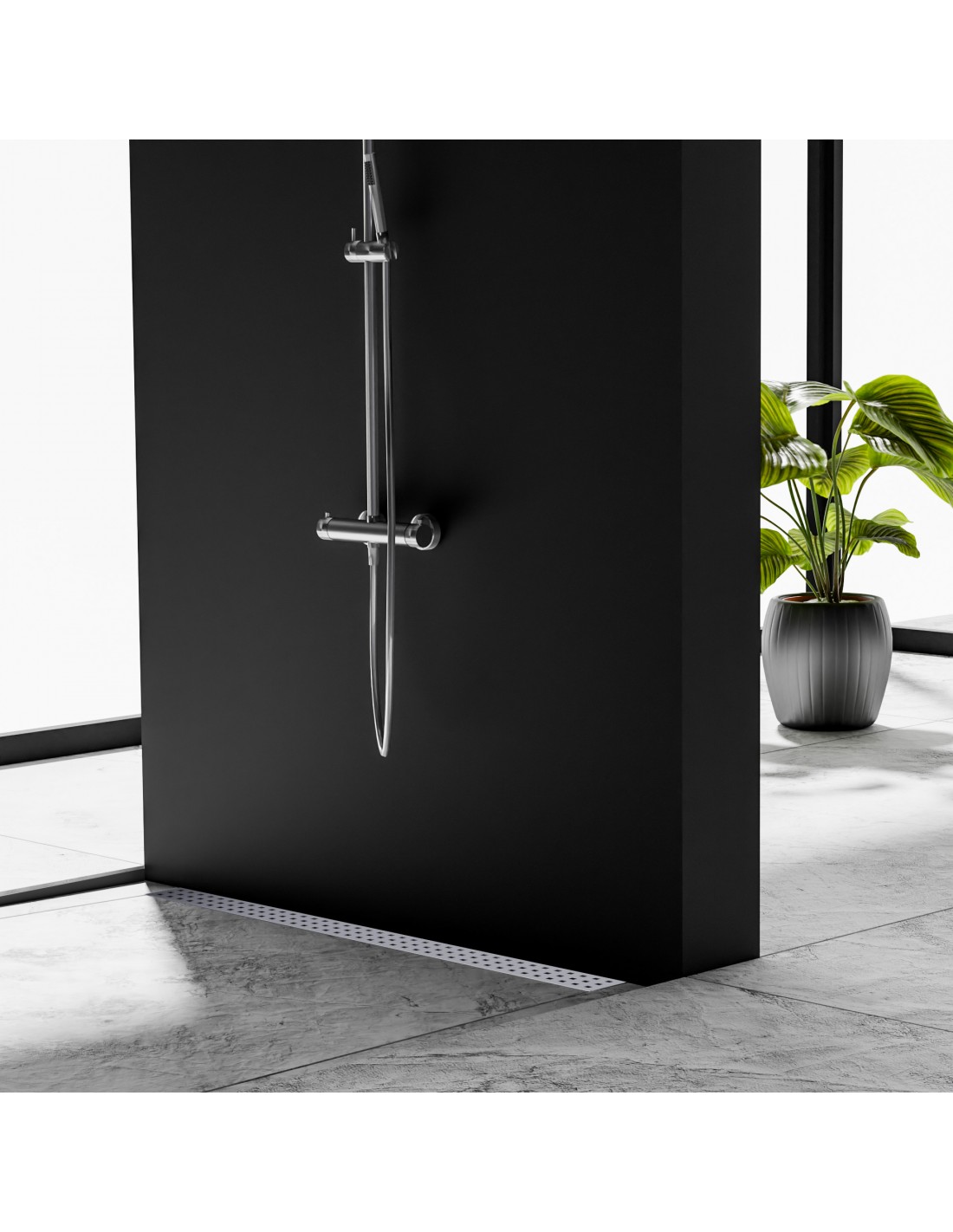

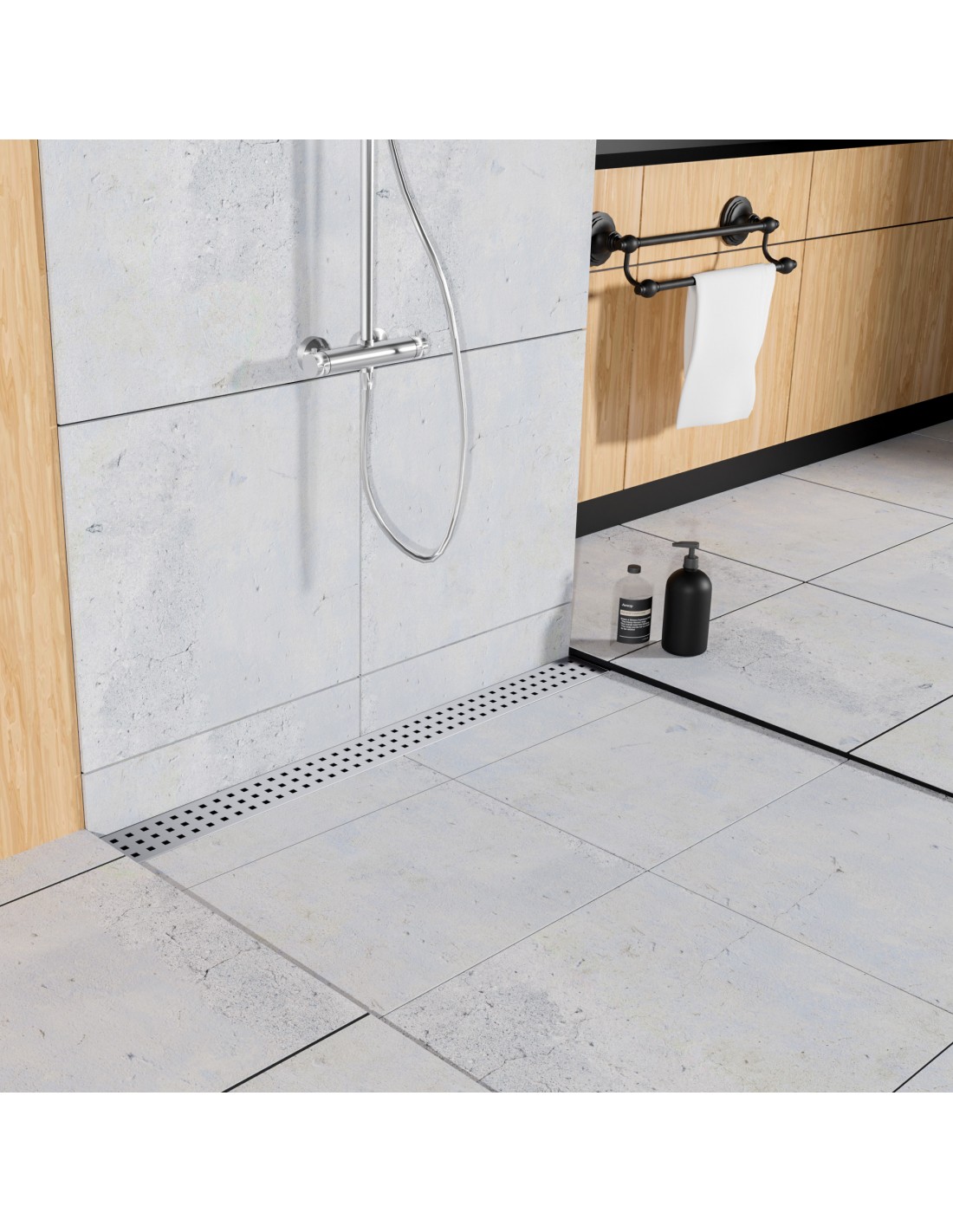

Example of open shower area on a cement-grey floor in marble-look with installed wall drain and with silver fittings
Example of classic shower area with wall-installed channel on large-format tiles with wooden elements in the bathroom

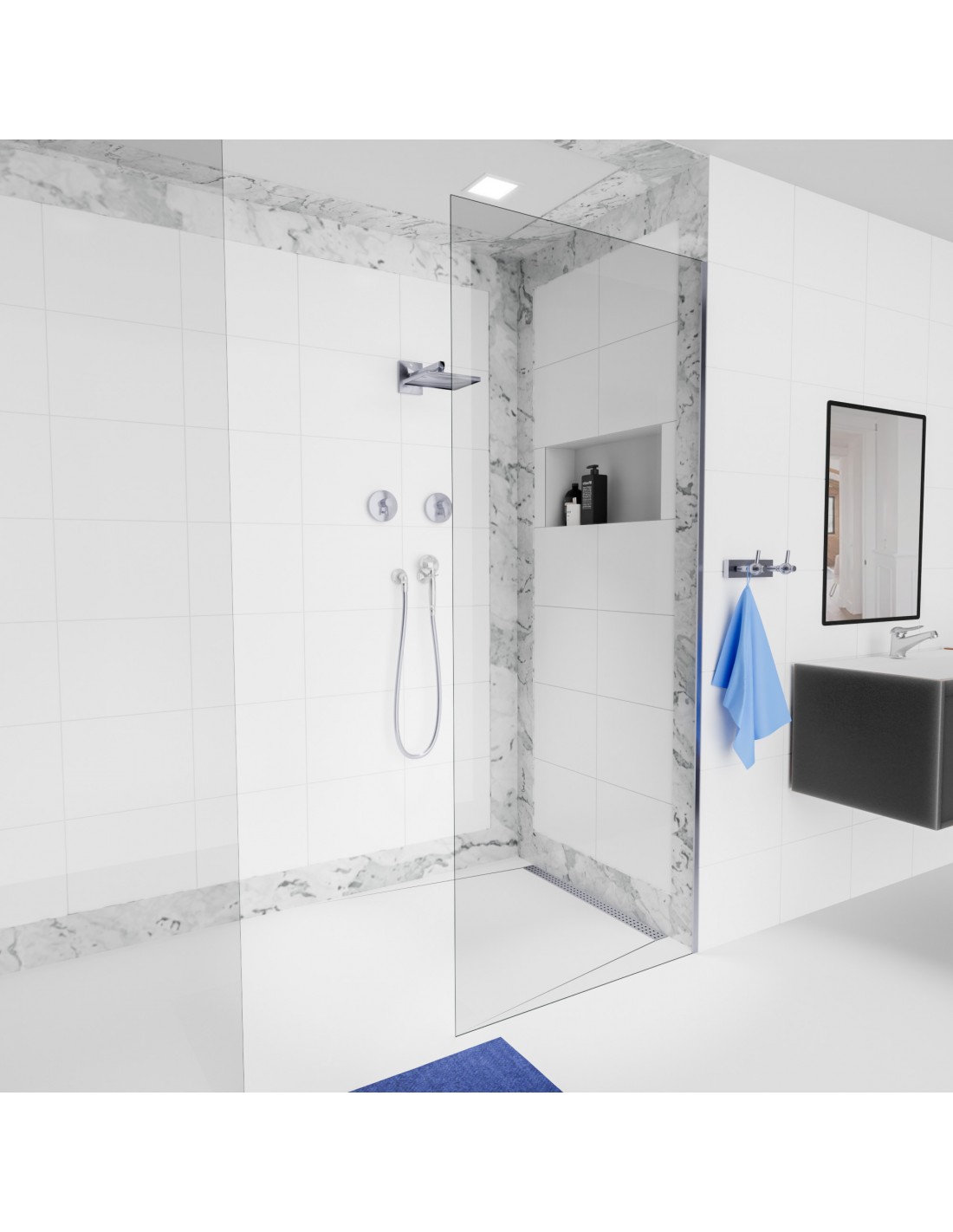

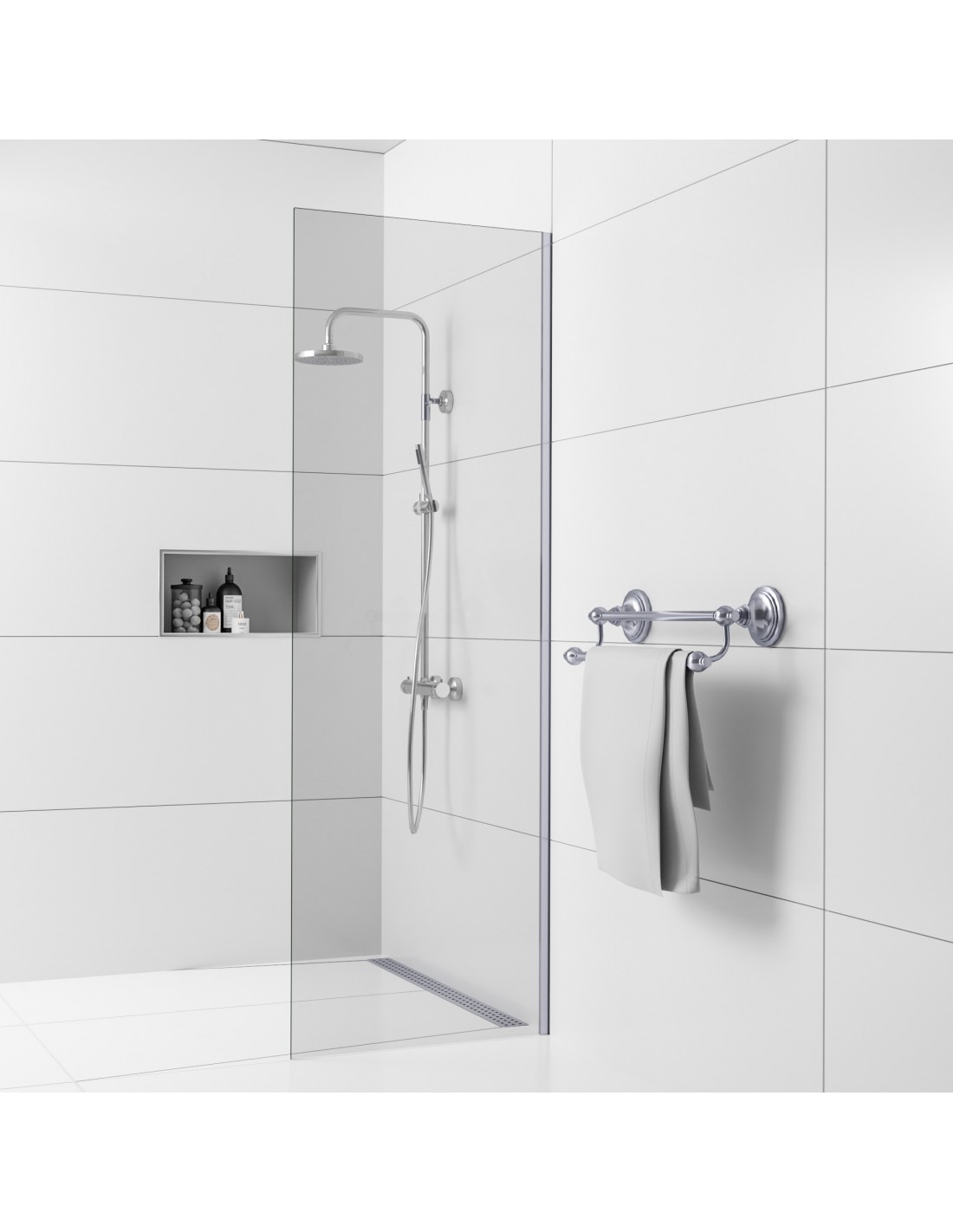

Example of elegant, light-colored shower area in marble look, combined with minimalistic linear drain on the wall

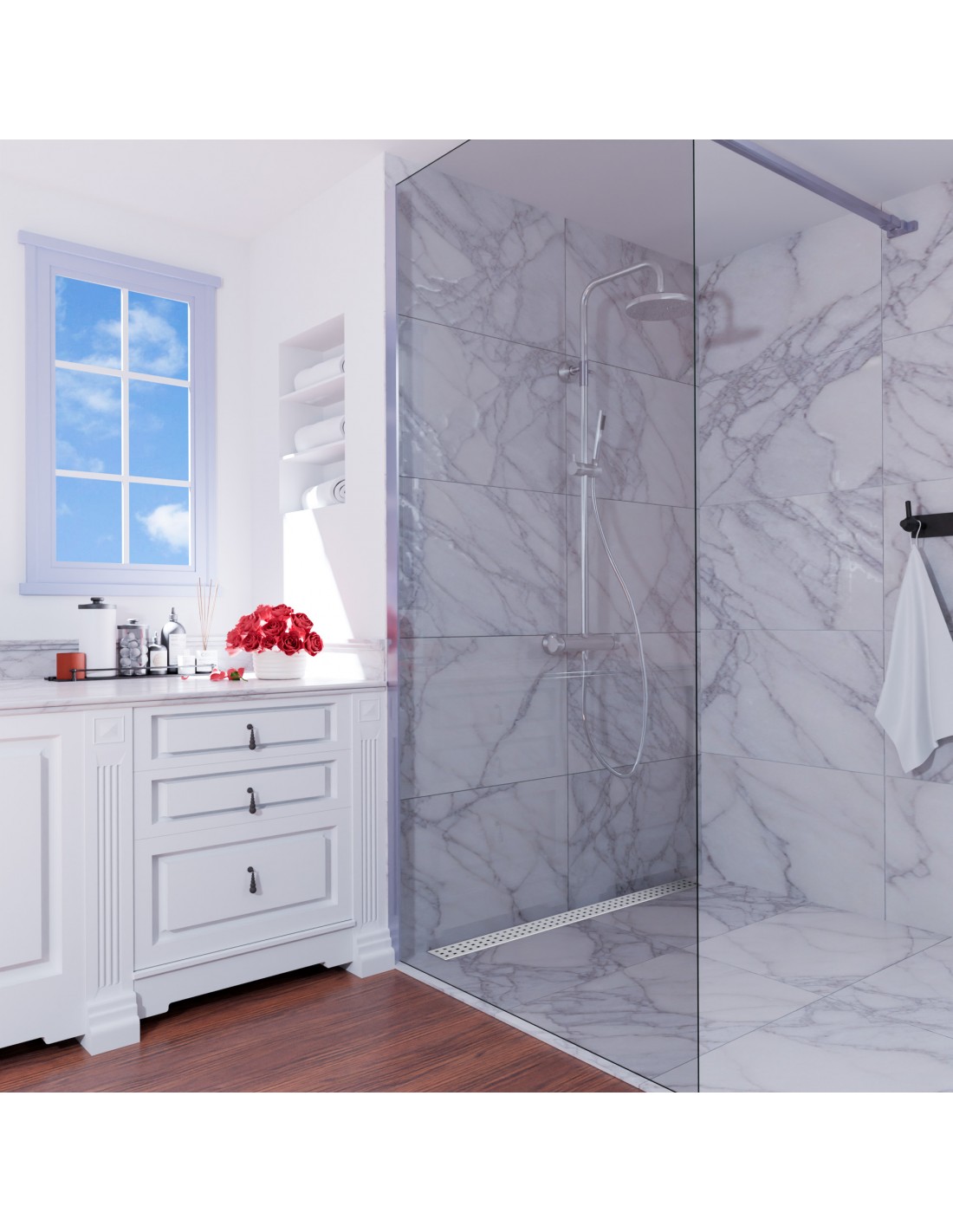

Example of traditional shower area with wall drain, finished with large white tiles and chrome-plated shower fittings
Example of bright bath concept with classic tiles featuring a shower area with 4-way slope and wall-installed drain

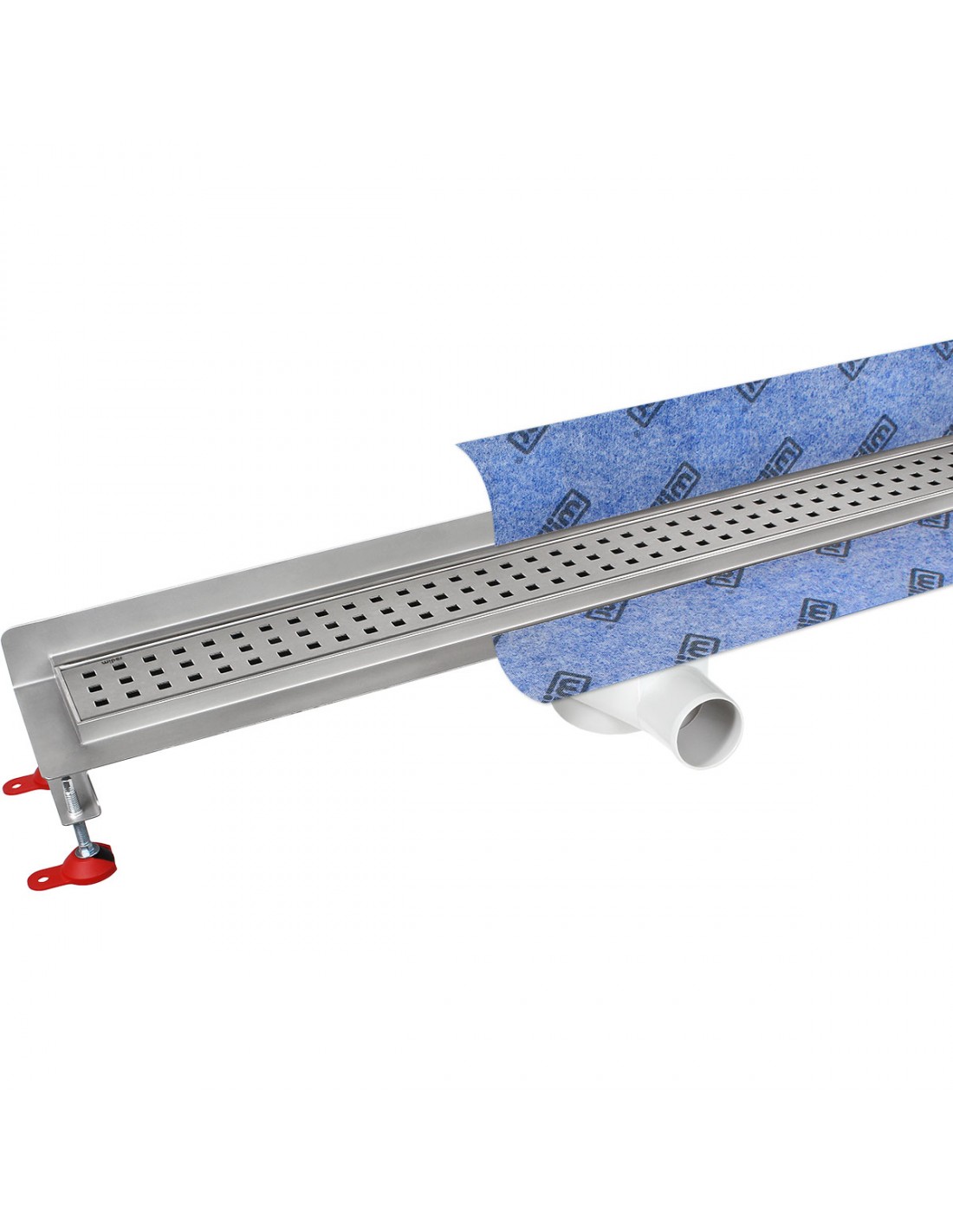

Real picture of Wall Upstand linear drain with Sirocco cover and waste trap

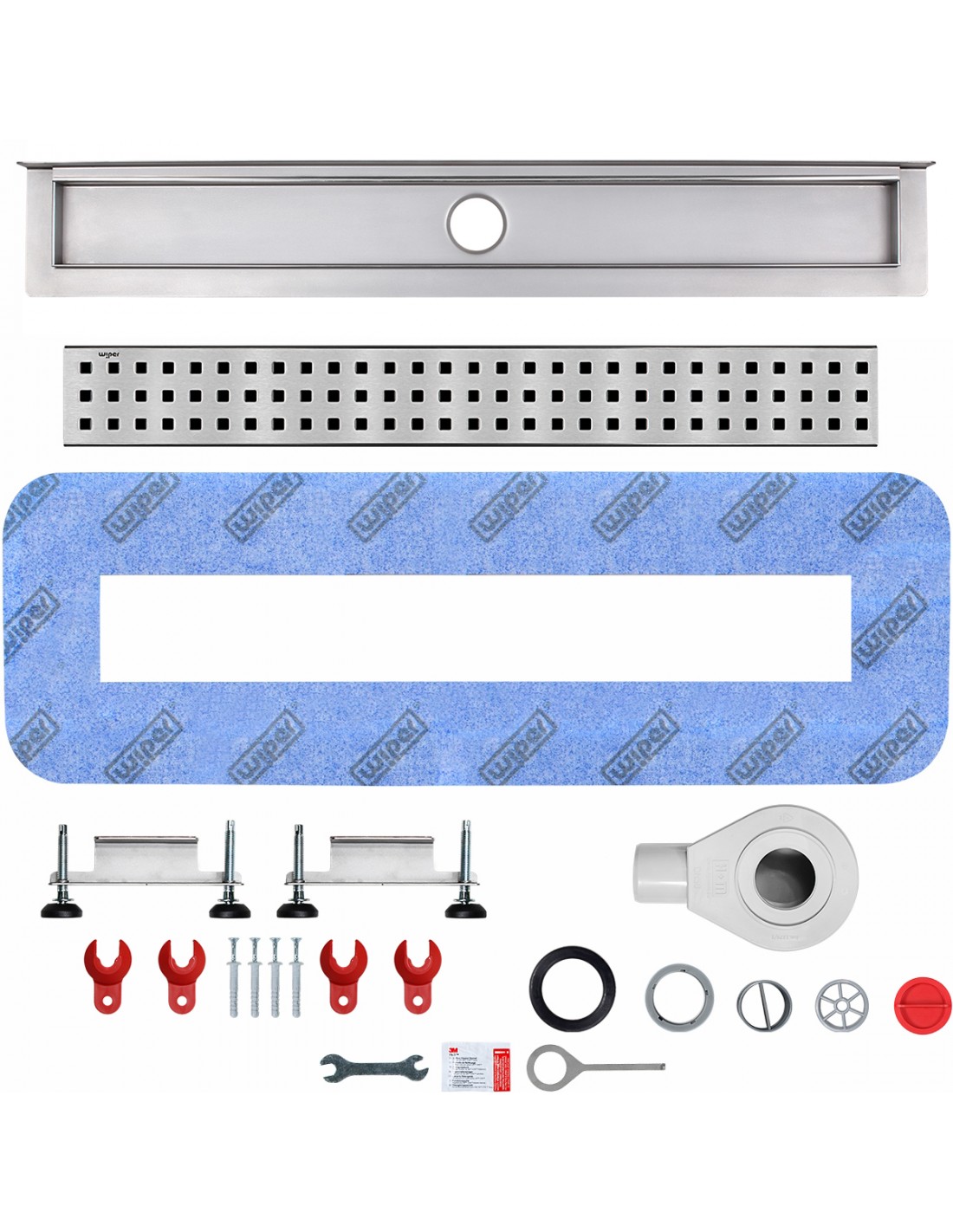

The whole set you get

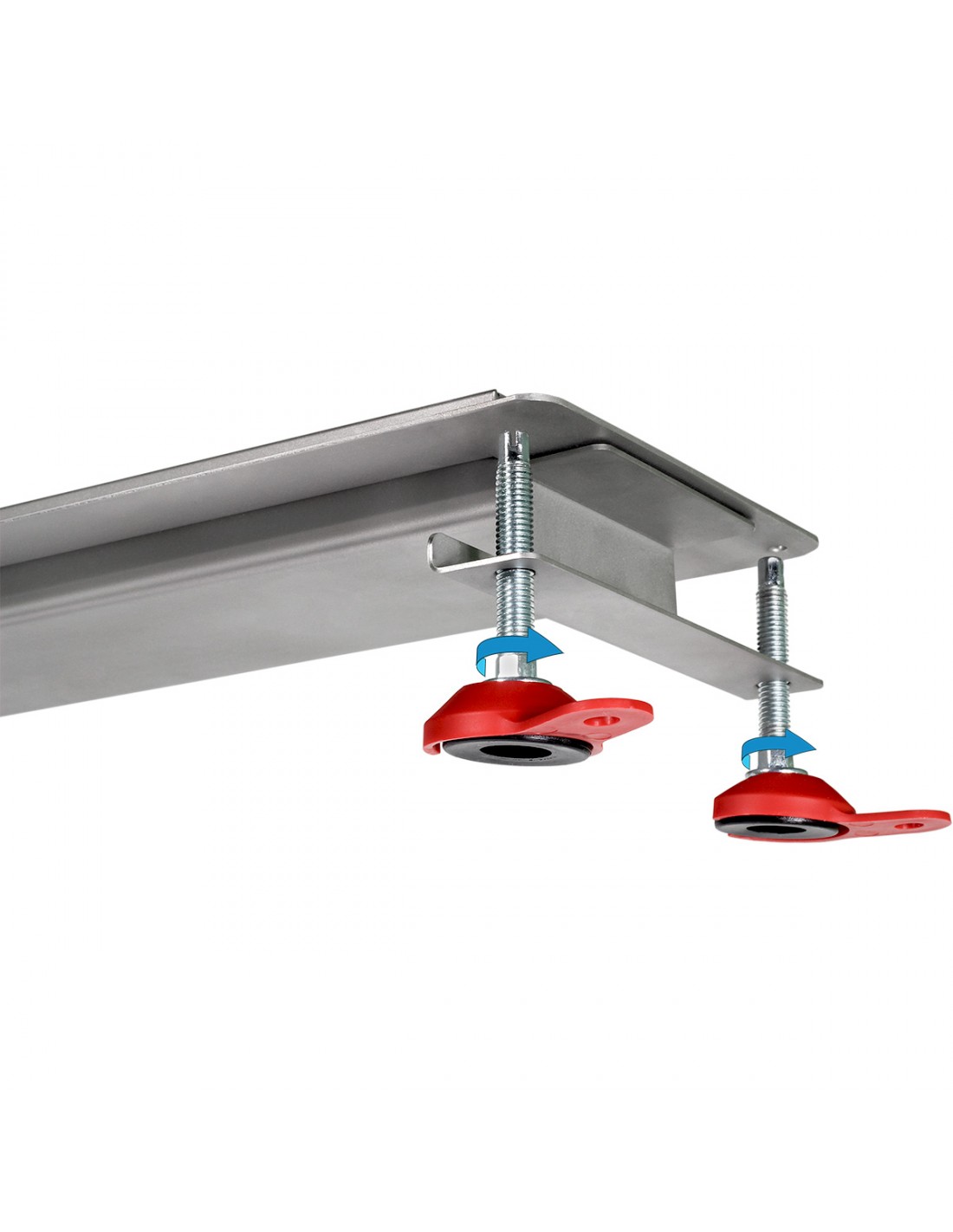

Close up on the bottom of the drain and its leg

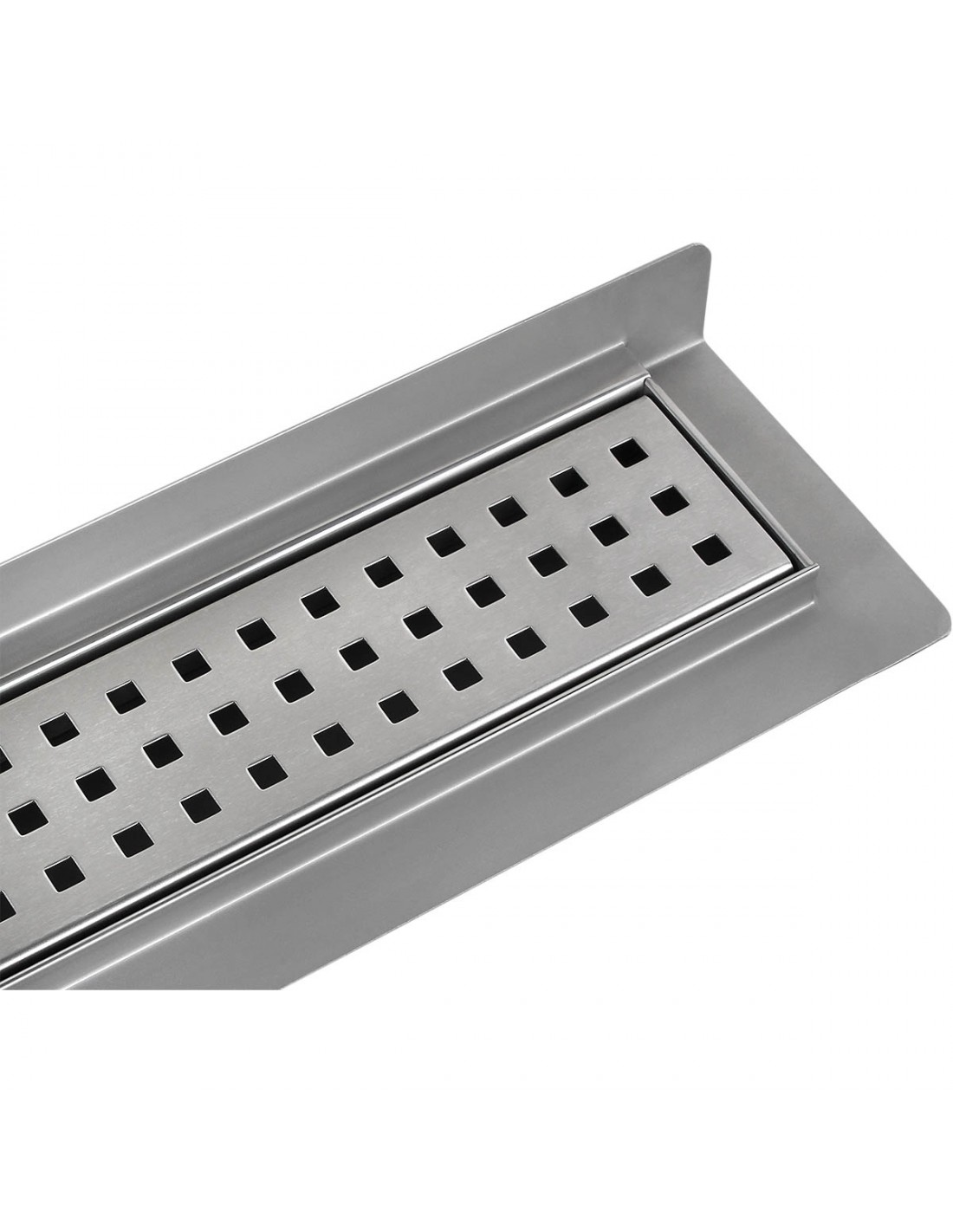

Close up on carefully made frame and Sirocco cover

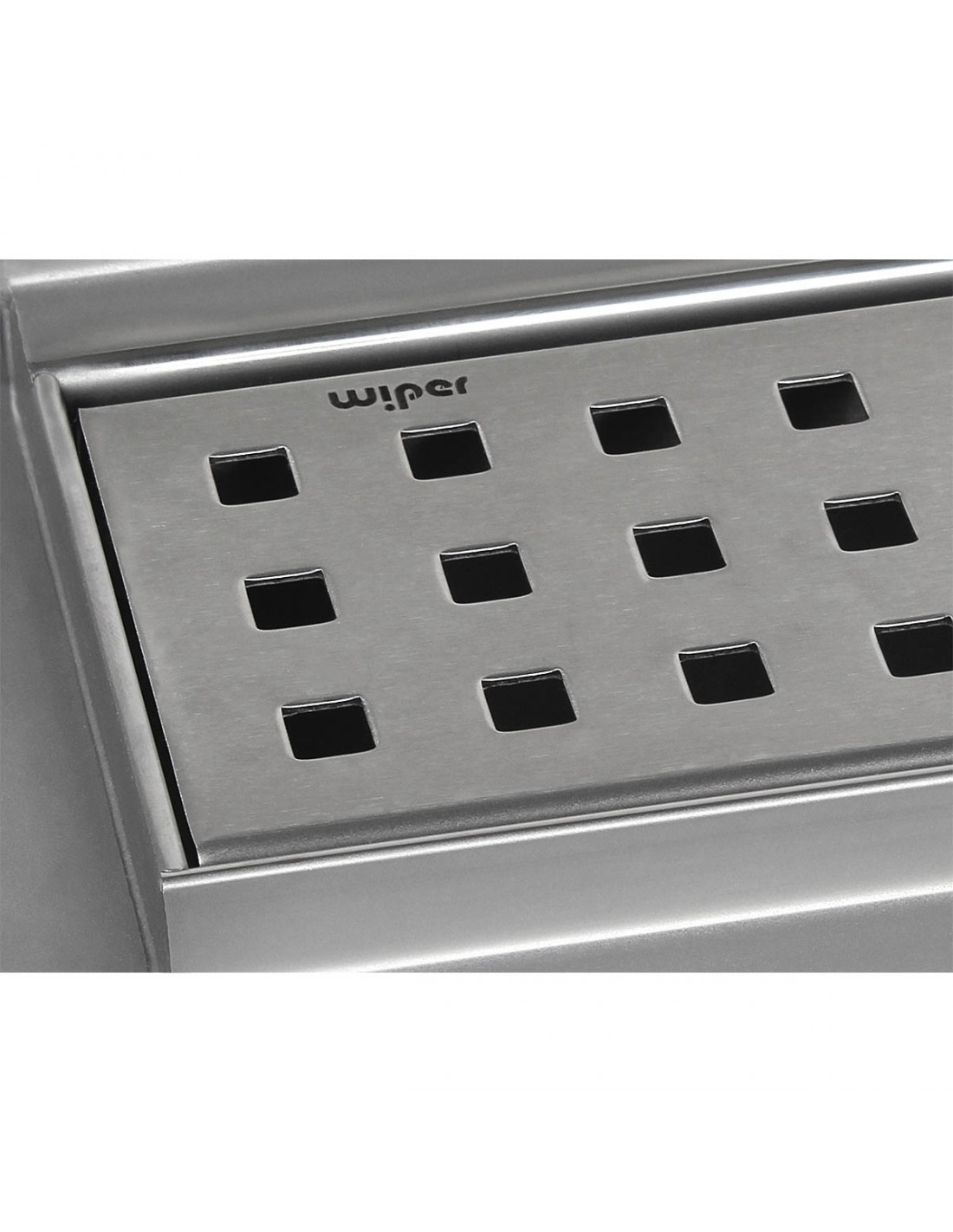

Zoom at the Sirocco Cover

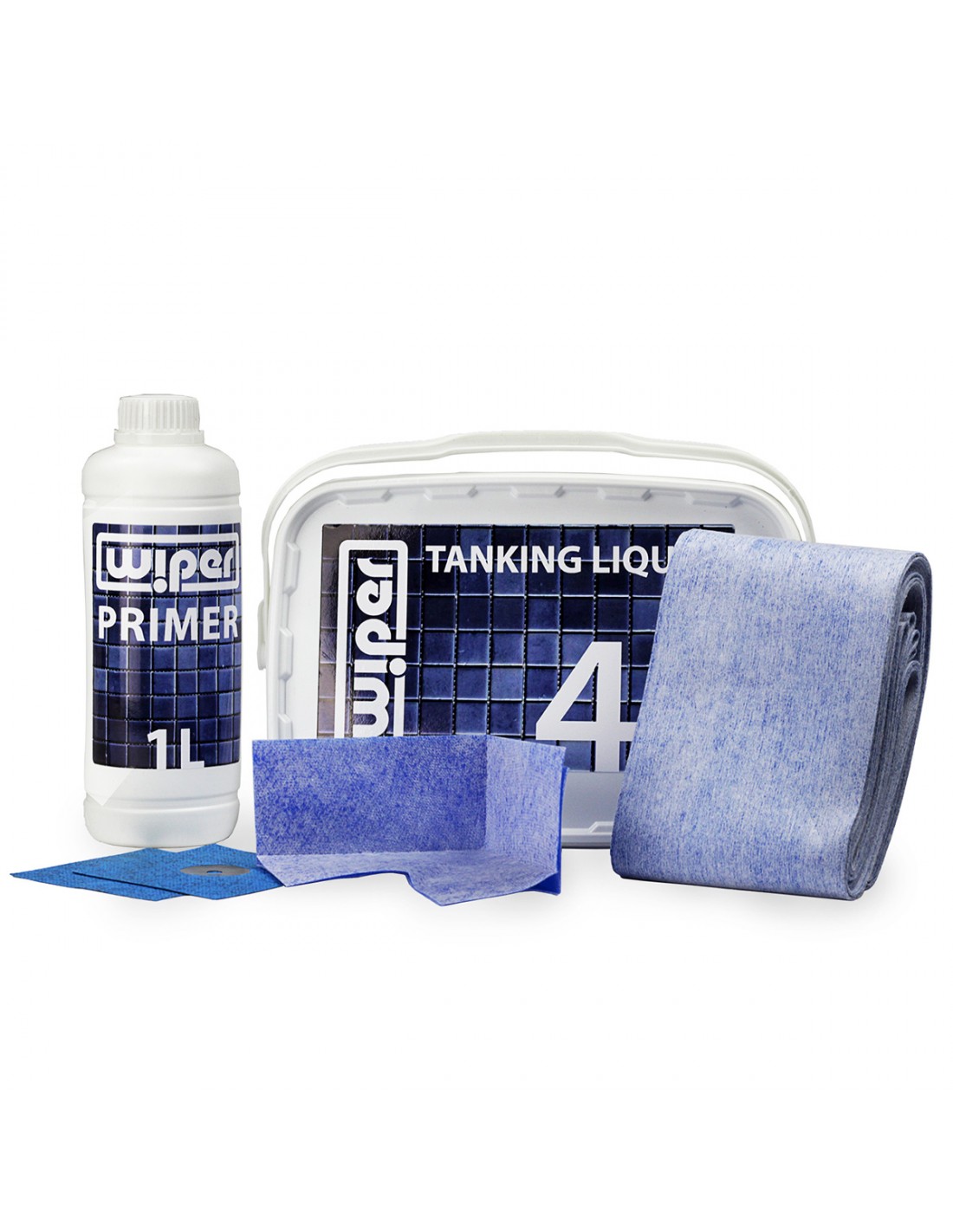

Optional waterproofing kit including primer and liquid foil for sealing the whole shower area
Wiper shower waterproofing kit incl. primer, tanking liquid, sealing tape, sealing corners and flexible pipe collar

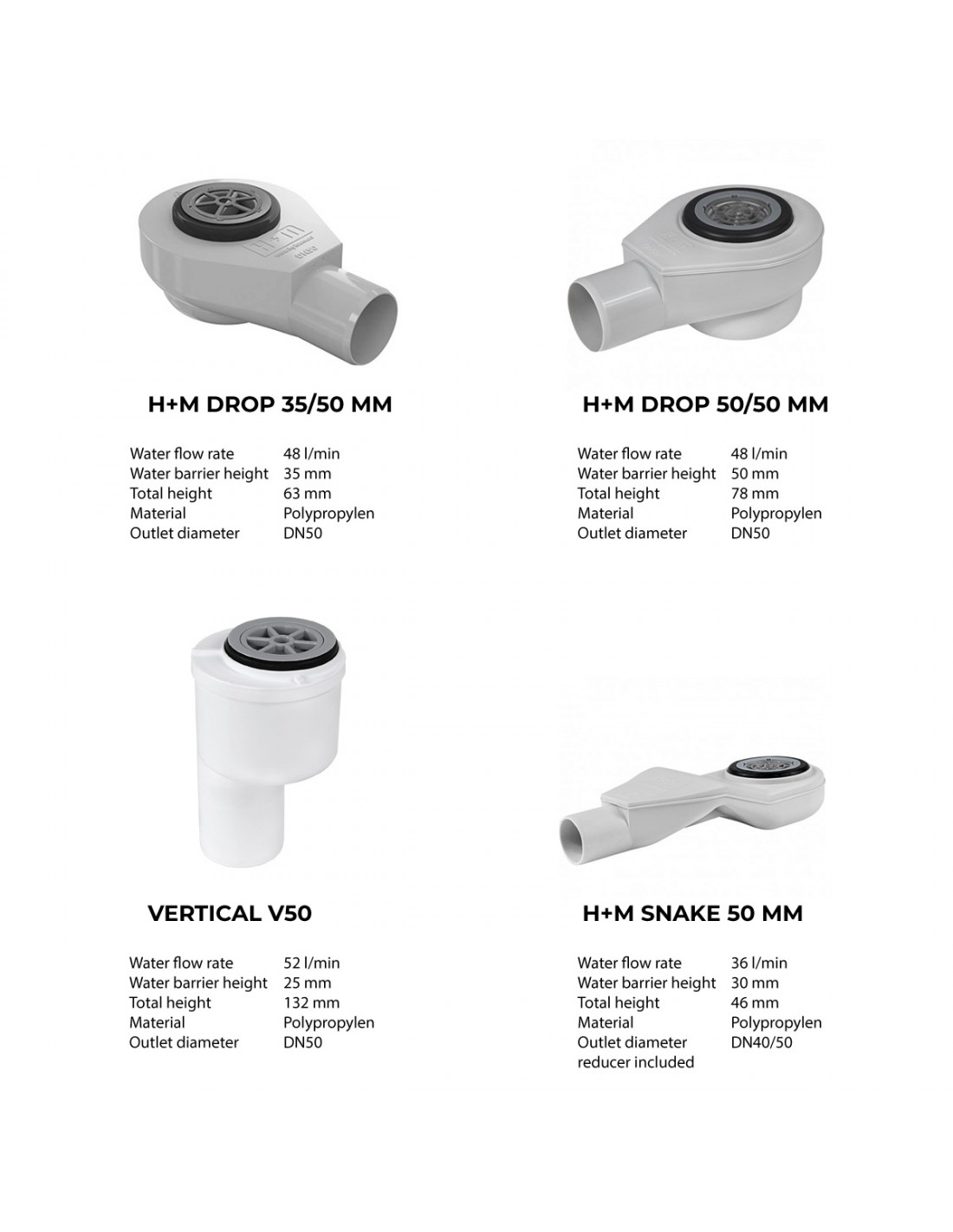

Different syphons by choice (vertical or horizontal outlet), included in set
  • -20%
Wall Upstand linear drain kit: Linear Shower drain to install directly against the wall with Sirocco cover, incl. syphon
Technical drawing: Linear drain Wiper 500 Wall Upstand Sirocco
Example of open shower area on a cement-grey floor in marble-look with installed wall drain and with silver fittings
Example of classic shower area with wall-installed channel on large-format tiles with wooden elements in the bathroom
Example of elegant, light-colored shower area in marble look, combined with minimalistic linear drain on the wall
Example of traditional shower area with wall drain, finished with large white tiles and chrome-plated shower fittings
Example of bright bath concept with classic tiles featuring a shower area with 4-way slope and wall-installed drain
Real picture of Wall Upstand linear drain with Sirocco cover and waste trap
The whole set you get
Close up on the bottom of the drain and its leg
Close up on carefully made frame and Sirocco cover
Zoom at the Sirocco Cover
Optional waterproofing kit including primer and liquid foil for sealing the whole shower area
Wiper shower waterproofing kit incl. primer, tanking liquid, sealing tape, sealing corners and flexible pipe collar
Different syphons by choice (vertical or horizontal outlet), included in set

Linear drain Wiper 500 mm Wall Upstand Sirocco

Linear shower drain 50 cm model Sirocco for tiled floor with horizontal and back vertical flange, sealing membrane, waste trap, detachable adjustable feet and cover

See parts included
Bespoke Linear Drains
Check stock live

Amount of products available off-the-shelf. If order is placed before 3pm, it will be shipped same day with free next business day delivery.

Quantity available in stock for next day delivery:

  • Linear drain Wiper 500 mm Wall Upstand Sirocco x 7
Total available in stock: 7

Shower drain Wiper 500 mm Wall Upstand Sirocco is a special stainless steel shower floor drain. Water channel is surrounded by steel flange with one side bended vertically. Upstand flange helps with installation directly against the wall. It helps with proper waterproofing and maintaining right distance between tile surface and drain grate. It comes in different lengths which starts at 500 mm and goes all the way till 1200 mm every 100 mm. Although custom size is possible. It is made of 304 stainless steel which offers good corrosion resistance to both chemical and atmospheric exposures, with a high resistance to oxidation. Flange surrounding the channel is 30 mm wide which in combination with sealing membrane (included) ensures good watertightness.
Wall Upstand drain channel is 84 mm wide and it comes with included Sirocco stainless steel grate. Sirocco pattern which is considered to be the most practical pattern, features 3 rows of square shaped holes running parallelly to cover edge, which is 64 mm wide and 494 mm long and total drain length with insulation flange is 560 mm. Sealing membrane is a blue non-woven fabric which bonds well in the glue and is resistant to cracking.
We also include 65 mm high McAlpine siphon trap with 95° Multifit connector. It features capacity of 26 l /min, 20 mm high water seal and Easy Access cleaning from above after lifting up the drain grating.

Product Type
  • Linear Drain ZK

Consider your floor finish type — tiles, micro cement, or vinyl — choose a finish that complements your bathroom style. Evaluate dimensions and features to match your requirements.

Drain Length

Drain is available in 8 standard lengths. Although they have same technical performance, length of the drain should be matched room requirements. For an instance 700 mm Drain length is recommended for 1000 mm wide shower.

Drain Cover
  • Sirocco

There are 6 drain cover patterns available. The flow rate is the same for all of them. They are interchangeable and can be swapped even after installation. Each drain sent out is equipped with a lifting hook which makes cleaning easy.

Waterproofing kit

Waterproofing kit is used to seal shower tray as well as connections between walls and floor. It is recommended for concrete and mandatory for timber flooring. Each kit contains 4kg tanking liquid, 1l primer, 10m sealing tape, 2 corners, 2 pipe collars. One kit covers 3 m² with 2 coats. Waterproofing kit

More
Calculate coverage

Shower head

Thermostatic Shower Column is a luxury product available in silver, black, or brass. Painted with a more advanced technique than a simple shower head, it offers exceptional durability and aesthetic appeal. This shower column features both a rainhead and a handheld shower wand, providing versatility and convenience. It also includes an on-top-of-the-tiles option for easy installation. This shower column complements our drain range perfectly, adding a touch of elegance to your bathroom. Shower column

Underfloor heating kit

Complete Sunfloor Underfloor heating set, including mat, Wi-Fi thermostat, floor sensor and fitting instructions. Fully suitable with our other products. Advanced thermostat with and iOS/Android app allows to set desired temperature of the floor from distance as well as create schedules.
Complete Sunfloor Underfloor heating set

More
Calculate coverage

Tile Backer boards

Tile backer boards are used to create the perfect substrate to tile onto in wet rooms and bathrooms. Superior to cement boards and plywood, due to its waterproof and thermal insulation properties. Tile backer boards

More
Calculate coverage

Shower screen

The Wiper Verre Shower Screen is one of Wiper's new shower enclosures. It is available in multiple standard sizes making it fit in small and large wet rooms. Black and silver options make it looks minimalistic and modern. Perfect choice for any wet room upgrade. Made of 8 mm toughened clear glass with Active Shield coating, 2000 mm high. Included fittings are made of stainless steel. The Verre Shower Screen from Wiper

More
Choose best size

LPU5S
Check stock live

Amount of products available off-the-shelf. If order is placed before 3pm, it will be shipped same day with free next business day delivery.

Quantity available in stock for next day delivery:

  • Linear drain Wiper 500 mm Wall Upstand Sirocco x 7
Total available in stock: 7
Same day shipping and delivery on Monday if you order in next 0 hours 00 minutes and 00 seconds
£270.86 £338.58 -20%
Tax included
To get an extra 5% discount simply increase your cart value to £500.
Read more
Trade discounts are available for both wholesalers and loyal customers. To receive a discount, your cart total value, overall purchase value, or overall account purchases must cross the required threshold. Trade discount policy

Threshold Discount
£500 5%
£1000 10%
£2000 15%
£5000 20%
£10000 25%
£25000 30%

or for further details explore our trade discounts.
Add to cart your current selections, and you only need to add £229.14 more to unlock a 5% discount for the entire order.
Pay with PayPal

In order to place 1-click PayPal order with your PayPal account or card.
1. Add the products you want to buy to your shopping cart.
2. Use the button below to proceed to checkout.
3. During checkout press 1-click Pay with PayPal button.

Pay with PayPal

Pay with Amazon

In order to place 1-click Amazon order with your Amazon account.
1. Add the products you want to buy to your shopping cart.
2. Use the button below to proceed to checkout.
3. During checkout press 1-click Pay with Amazon button.

Pay with Amazon

Amount of product sales 3 Sold during the last 90 days
Amount of product views 5 Views during the last 24 hours
Based on current settings, if you Add to cart current set and then order, you will receive the following items:
Wall upstand drain channel
Wall upstand drain channel

Main drainage part, stainless steel channel drain, 30 mm high, 84 mm wide. Upstand on the back allows this drain to be installed right against the wall. Best option if you do not want to have any space between the wall and the drain. Surrounded by steel flange on other three sides, 30 mm wide, important for insulation. Overall height required for installation with default trap is 98 mm.

1.5 mm thick steel

Square patterned linear drain cover
Drain grating

Brushed stainless steel drain grating, perforated with 3 rows of squares pattern. To clean the drain, you can lift it up. It is equipped with lifting hook which makes it easier. All covers available share technical properties, but are the only visible part of the drain visible after installation is over so it should be chosen by appearance.

Sirocco (squares)

Waste trap
Waste trap

As a standard to every order we include a compression fitting McAlpine waste trap with 26 l/min throughput, 20 mm water seal and 1.5 inch pipe diameter. Requires only 65 mm of space underneath the drain. Fully rotatable and adjustable.

If our default waste trap does not fulfil your requirements, we have various other waste traps available which are compatible with our products. We can supply them at the same cost and speed as the default trap. Drop 50 is an interesting choice, with a 48 l/min flow rate and 50 mm deep water seal, making it compliant with building regulations, whilst being only 10 mm higher than a standard trap. To alter your choice of waste trap send us an email or leave a note during your order. Please see the document below for more details.

Available waste traps

Flow rate: 26 l/min

Linear drain accessories
Accessories & Guarantee

Product is supplied as complete set. Sealing membrane, detachable adjustable feet and appropriate fitting instructions come together with the goods to make sure it's installed correctly. Lifting hook for drain grating and other fitting parts also in the package.

In addition to our 30 days unconditional return right, there is 10 years guarantee on the product given by the manufacturer. Guarantee is extended to 25 years if the product is purchased together with waterproofing kit.

For fitting and using

Waterproofing kit
Waterproofing kit

Easy to use set of ready-mixed sealing materials suitable for the waterproofing of floor and walls. Contains 4kg of PCI Lastogum tanking paint, 1l of primer, 10m sealing tape, 2 corners and 2 pipe collars per every 3.5 m² purchased. Should be used to seal the joints between the floor and walls and to waterproof the drainage. Can be used for your entire bathroom insulation. Not required if you have your own waterproofing materials, otherwise very useful and recommended.

Size: not included

Underfloor heating kit
Underfloor heating kit

Complete electric underfloor heating set, including mat, optional thermostat (WiFi available), floor sensor and fitting instructions. Fully suitable for use with our other products. Advanced thermostat with and iOS/Android app allows you to set your desired temperature of the floor remotely, as well as create schedules.

Size: not included

Thermostat
Thermostat

Thermostat is a control device for the mat. SUNFLOOR Smart WiFi Digital Thermostat is a wireless controller including the sensor for adjustment of temperature remotely. Allows you to set the floor temperature away from the thermostat, as well as create periods throughout the day with specific temperatures. For example 26° when you may usually have a shower in the morning.

Size: not included

Shower screen
Shower screen

The Verre Shower Screen is one of Wiper's new shower enclosures. It is available in multiple standard sizes making it fit in small and large wet rooms. Black and silver options make it looks minimalistic and modern. Perfect choice for any wet room upgrade. Made of 8 mm toughened clear glass with Active Shield coating, 2000 mm high. Included fittings are made of stainless steel.

Size: not included


  • Length (X): 500 [mm]
  • Height of channel (C): 30 [mm]
  • Total height (H): 84 [mm]
  • Width of channel (Y): 84 [mm]
  • Width of insulating flange (F): 125 [mm] (included)
  • Width of flange before vertical upstand (M): 15 [mm]
  • Flange to top edge of channel (T): 15 [mm]
  • Complete siphon, pipe diameter: 1.5" (British standard size),
  • Pipe height adjustable and rotatable at 360°,
  • Drain's cover included.

Vertical - Grates

Product is suitable for:
Timber floor Concrete floor Tiles Mosaic

Grating patterns available for this product:

Linear drain gratings

Linear shower drain advantages

Channel length
500 mm
Grate style
Sirocco
Channel height
30 mm
Channel width
84 mm
Material
304 S 15 grade stainless steel
Waste trap
Plastic (PCV)
Steel collar
Integrated
Cleaning
From above (Easy clean system)

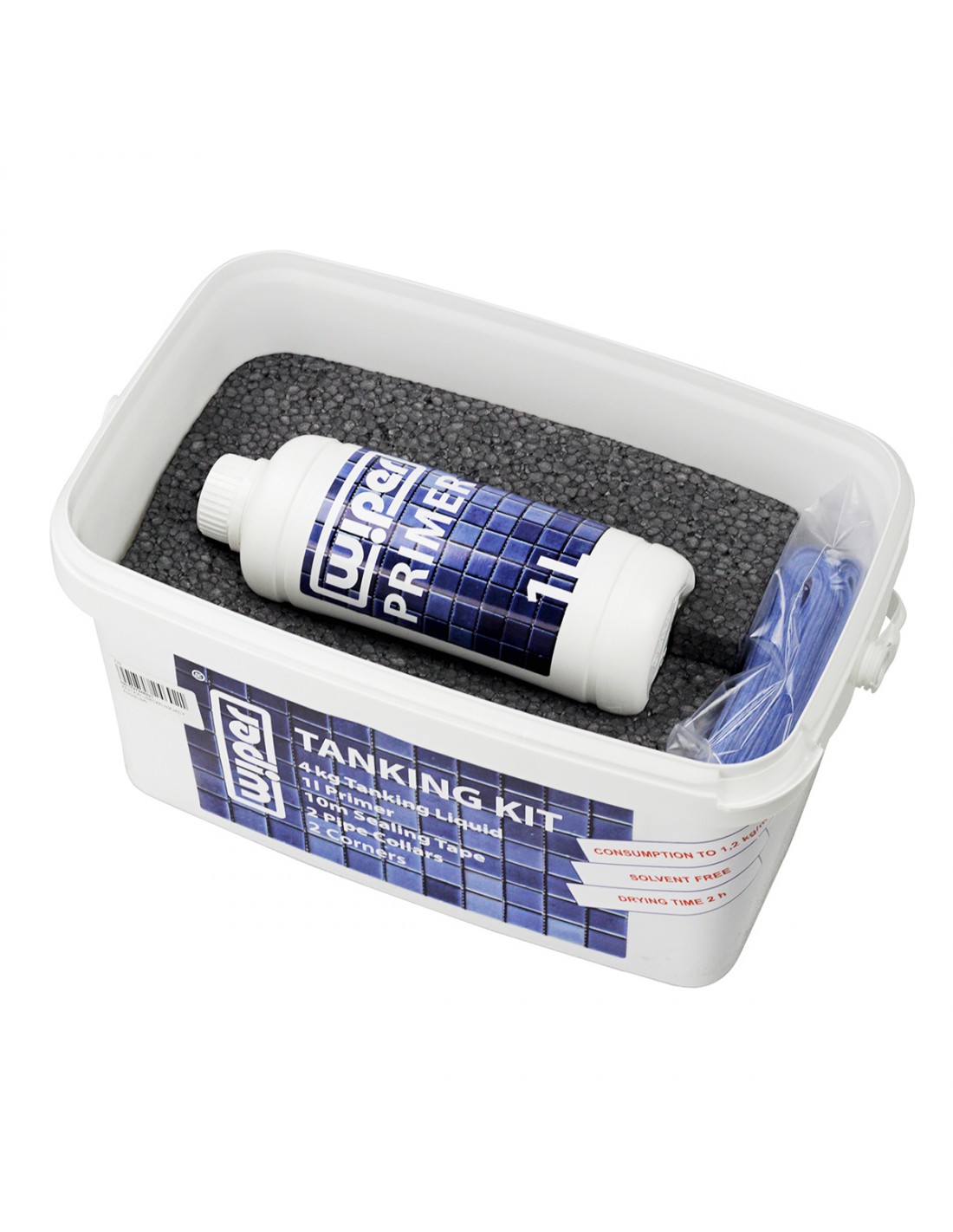

Tanking kit

The tanking kit is a ready-mixed, under-tile tanking system to protect water sensitive substrates from exposure to water. Suitable for wet areas such as bathrooms, showers in residential buildings, hotels, old people's homes and hospitals. Should not be used in places exposed to pressurised water, for an instance swimming pools. Ready to use, no mixing required and easy to apply with a roller. The kit includes a high performance joint reinforcing tape to protect against movement in floor joins and corners etc. The contents are all INSIDE the bucket and the contents are protected in the bucket with polystyrene infill's to stop transit damage.The instructions are printed on the rear of the tanking kit.

For anti-moisture insulation systems in wet rooms and rooms intended for human residence. The tanking liquid is a ready-to-use singlecomponent, solvent-free sealant composed of polymer dispersion, fillers and modifying additives. When applied to the surface, upon binding it creates a flexible and water-insulating layer.

Tanking kit contains:
  • 4kg Tanking Liquid
  • 1l Primer
  • 10 Metres flexible Sealing Tape
  • 2 Flexible Pipe Collars
  • 2 Corners
Features:
  • Consumption to 1,2kg/m²
  • Solvent free
  • Drying time: 2h
Tanking liquid and primer
Tanking liquid
Tanking liquid

The tanking liquid is a ready to use, single component, solvent-free sealant mass, consisting of polymer dispersion, fillers and additives. When applied to a substrate and cured, it forms a flexible waterproofing coating. The product is intended for use inside places intended for human residence, especially in humid areas (such as bathrooms, kitchens, laundries), to perform insulation against moisture under linings and coverings, such as ceramic tiles, glazed tiles, terracotta, wooden floors and panels, and synthetic carpets.

The product is intended for priming absorbent and porous surfaces, inside and outside buildings. It is especially recommended for cement - limestone plaster, gas concrete, plaster-carton boards and cement plaster. The primer has a high penetration ability, is deeply absorbed into the substrate, thus strengthening it, while allowing for „breathing”. These benefits improve the structure of the substrates, which, due to the passage of time, have lost their appropriate parameters. The priming solution improves adhesion to the surface of other materials that will be used on the primed substrate. By reducing the absorbency of the substrate, the wear of the applied coating materials, emulsion paints, glues, mineral putties reduces as well. The solution, due to the content of the biocide and fungicide, protects the primed substrate against the formation of mold and bacteria in the product.

Primer
Waterproofing Calculator

Waterproofing Calculator

Optimize Your Waterproofing with Our Calculator – Accurate, Customizable, and Easy to Use. Get your waterproofing needs sorted with our advanced waterproofing calculator, designed for accuracy and ease of use. Whether you’re waterproofing a bathroom, kitchen, or any other room, our tool allows you to calculate your requirements in three different ways: by room dimensions, simple room coverage, or exact square meter needs. Additionally, you can exclude specific areas like doors and windows, or even calculate for multiple rooms at once. Our calculator provides a tailored list of necessary products, ensuring you get only what you need. Download your estimate as a PDF or add the items directly to your cart for a streamlined ordering experience.

Calculate Needed Waterproofing
Tanking kit

The tanking kit is a ready-mixed, under-tile tanking system to protect water sensitive substrates from exposure to water. Suitable for wet areas such as bathrooms, showers in residential buildings, hotels, old people's homes and hospitals. Should not be used in places exposed to pressurised water, for an instance swimming pools. Ready to use, no mixing required and easy to apply with a roller. The kit includes a high performance joint reinforcing tape to protect against movement in floor joins and corners etc. The contents are all INSIDE the bucket and the contents are protected in the bucket with polystyrene infill's to stop transit damage.The instructions are printed on the rear of the tanking kit.

For anti-moisture insulation systems in wet rooms and rooms intended for human residence. The tanking liquid is a ready-to-use singlecomponent, solvent-free sealant composed of polymer dispersion, fillers and modifying additives. When applied to the surface, upon binding it creates a flexible and water-insulating layer.

Tanking kit contains:
  • 4kg Tanking Liquid
  • 1l Primer
  • 10 Metres flexible Sealing Tape
  • 2 Flexible Pipe Collars
  • 2 Corners
Features:
  • Consumption to 1,2kg/m²
  • Solvent free
  • Drying time: 2h
Tanking liquid and primer
Tanking liquid
Tanking liquid

The tanking liquid is a ready to use, single component, solvent-free sealant mass, consisting of polymer dispersion, fillers and additives. When applied to a substrate and cured, it forms a flexible waterproofing coating. The product is intended for use inside places intended for human residence, especially in humid areas (such as bathrooms, kitchens, laundries), to perform insulation against moisture under linings and coverings, such as ceramic tiles, glazed tiles, terracotta, wooden floors and panels, and synthetic carpets.

The product is intended for priming absorbent and porous surfaces, inside and outside buildings. It is especially recommended for cement - limestone plaster, gas concrete, plaster-carton boards and cement plaster. The primer has a high penetration ability, is deeply absorbed into the substrate, thus strengthening it, while allowing for „breathing”. These benefits improve the structure of the substrates, which, due to the passage of time, have lost their appropriate parameters. The priming solution improves adhesion to the surface of other materials that will be used on the primed substrate. By reducing the absorbency of the substrate, the wear of the applied coating materials, emulsion paints, glues, mineral putties reduces as well. The solution, due to the content of the biocide and fungicide, protects the primed substrate against the formation of mold and bacteria in the product.

Primer
Waterproofing Calculator

Waterproofing Calculator

Optimize Your Waterproofing with Our Calculator – Accurate, Customizable, and Easy to Use. Get your waterproofing needs sorted with our advanced waterproofing calculator, designed for accuracy and ease of use. Whether you’re waterproofing a bathroom, kitchen, or any other room, our tool allows you to calculate your requirements in three different ways: by room dimensions, simple room coverage, or exact square meter needs. Additionally, you can exclude specific areas like doors and windows, or even calculate for multiple rooms at once. Our calculator provides a tailored list of necessary products, ensuring you get only what you need. Download your estimate as a PDF or add the items directly to your cart for a streamlined ordering experience.

Calculate Needed Waterproofing
Sealing mat

ISOL-ONE Sealing collar
The ISOL-ONE sealing mat is made from a polyethylene film coated with a special non-woven fabric on both sides, so that it bonds with the glue layer. Its installation is recommended in all areas that require sealing. The mat is resistant to the cracking of the substrate, ensures the seal up of the entire surface, reduces installation time, allowing to lay the tiles immediately after gluing the mat.

Adjustable legs

Adjustable legs
Adjustable feet are two small metal parts that can be connected to each channel end. They allow you to precisely set the unit height and level. Thanks to the red caps you can anchor the drain to the floor. They are part of unit, included in price and always added to each drain.
