Showerlay Wiper 900 x 1500 mm Line Sirocco
Wet room Kit Showerlay Wiper 900 x 1500 mm Line Sirocco

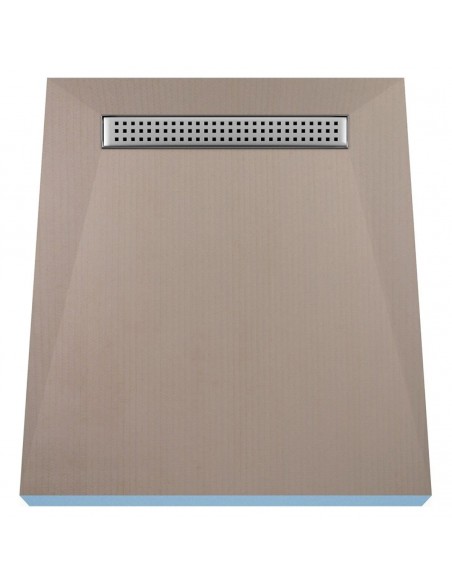

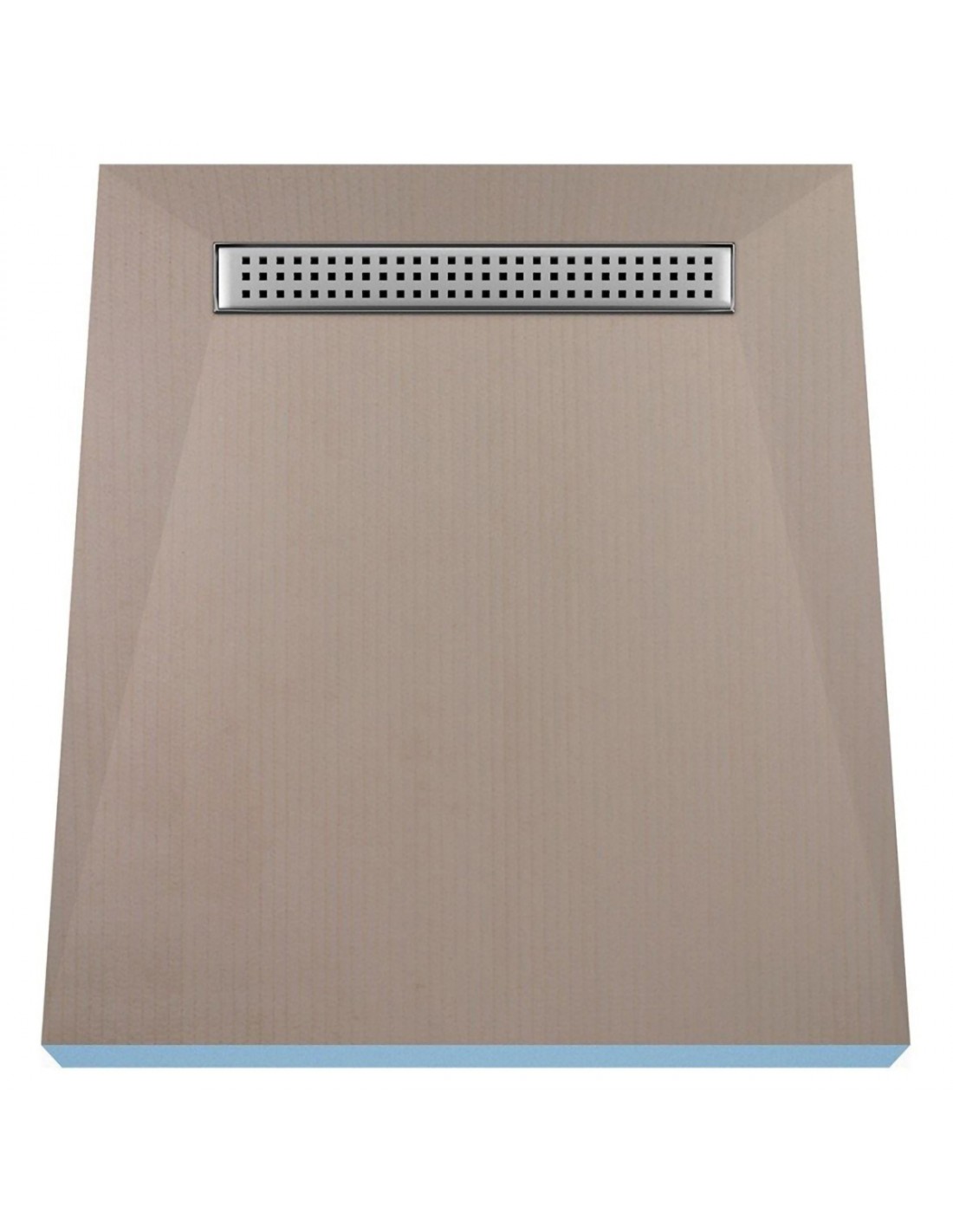

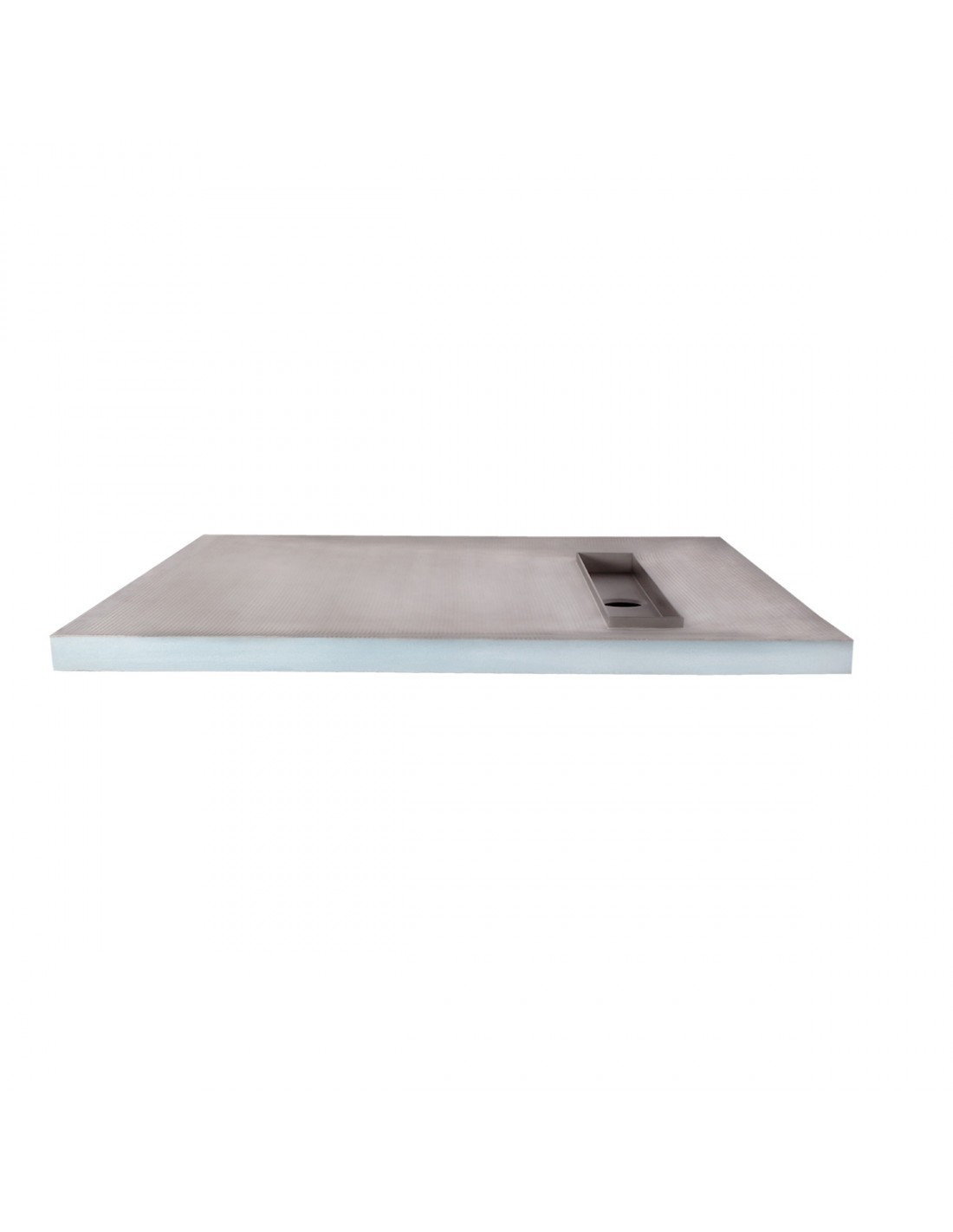

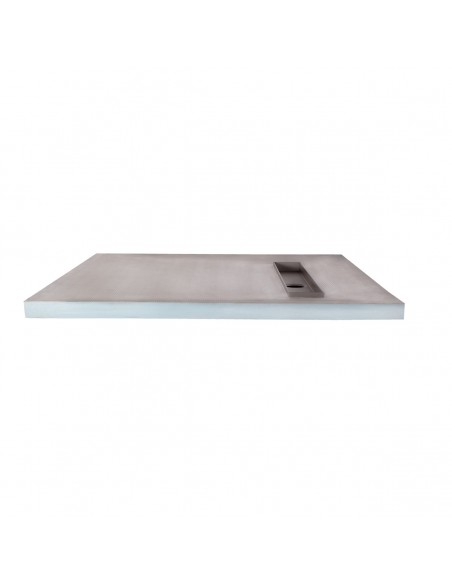

is a walk in shower tray with end linear drain. Former is available in three thicknesses, has 2% fall towards the drain, provides great acoustic insulation and is also lightweight while very strong.

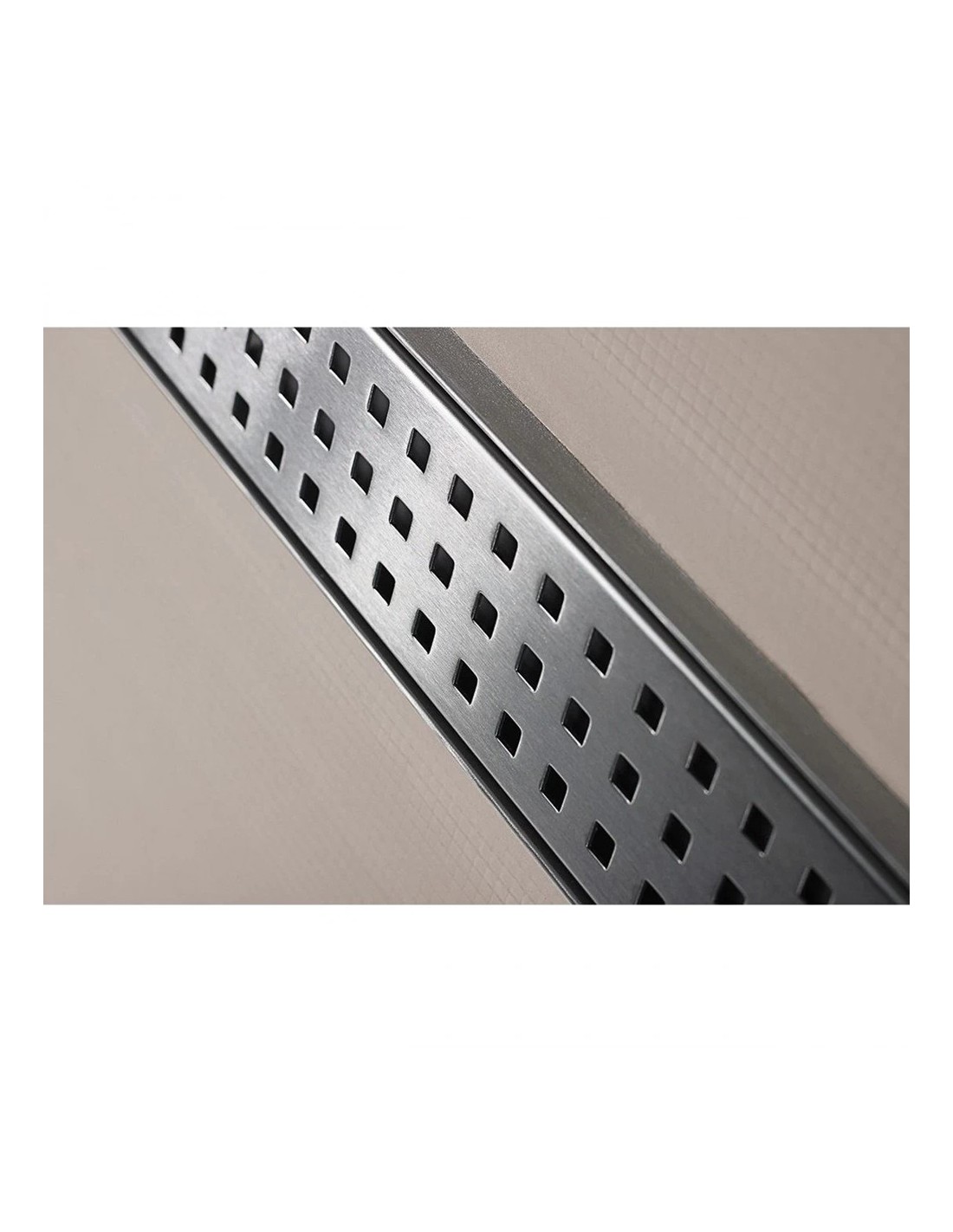

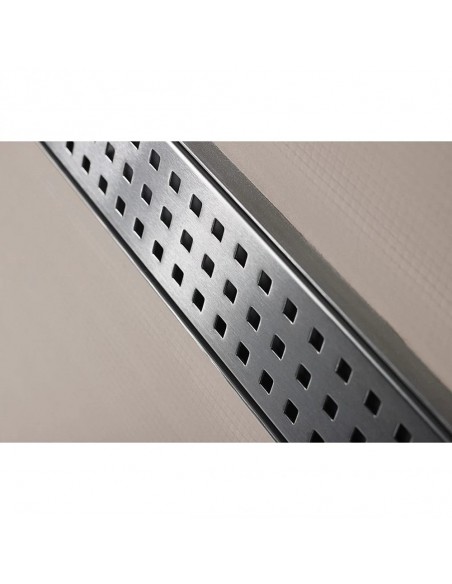

Suitable shower drainage is included to former, it comes with 600 mm long steel linear end drain. It also comes with grating which is 64 mm wide, leaving 8 mm wide channel for water to flow. Sirocco cover holes pattern consists 3 rows of squares, parallel to drain edge. Height from the shower tray surface to the top edge of vertical upstand is 15 mm, it also goes below the tray for approximately 5 mm. McAlpine siphon trap with capacity of 26 l/min and 20 mm high water seal is also included. Showerlay is complete unit with everything you need.

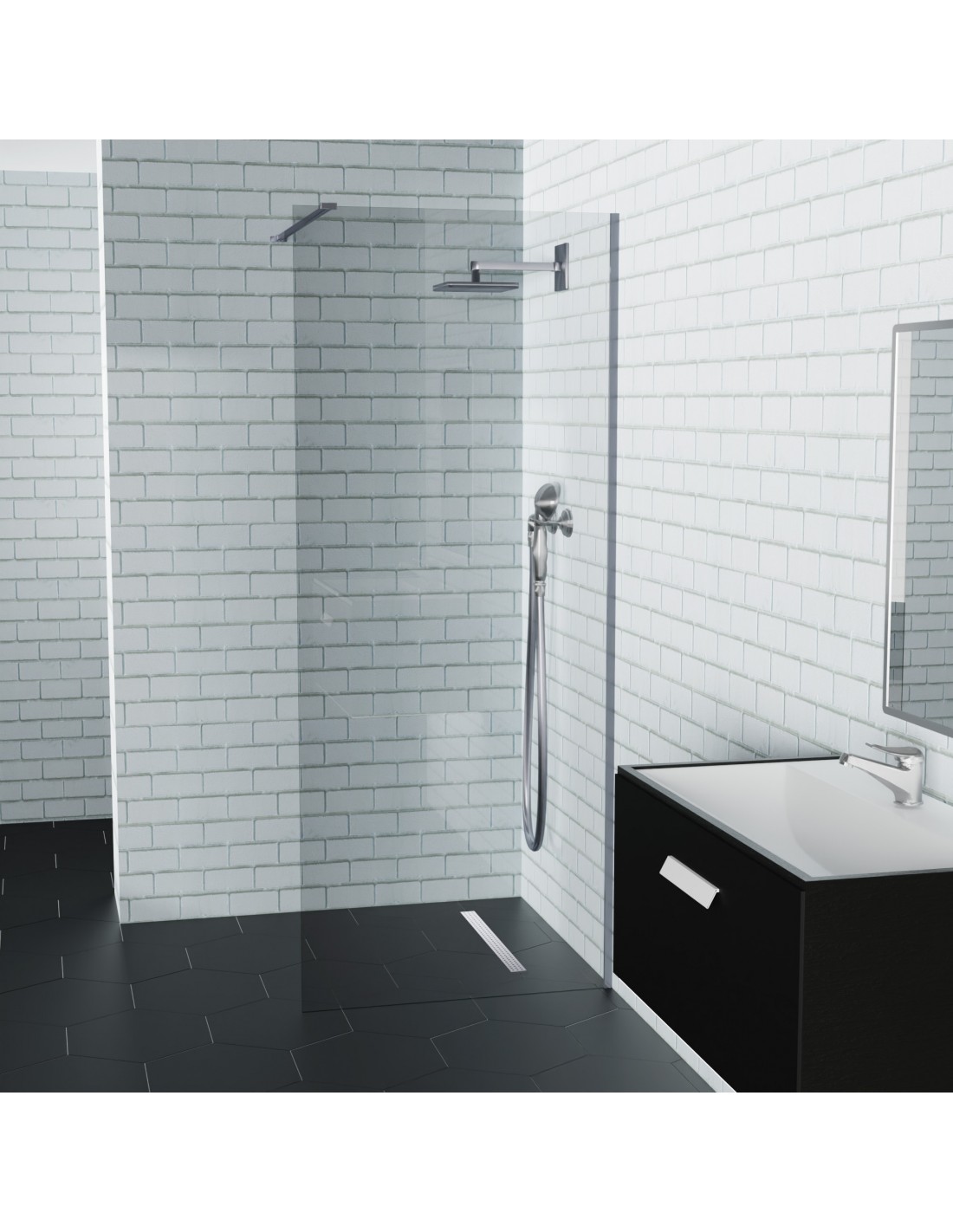

Wet room shower tray 900 x 1500 mm for tiled floor is a popular size for spacious bathroom. Large format tiles can be used to create more seamless, elegant look. Refurbish your old bathroom into inspirational and practical shower room no matter if you have timer or concrete floor.
If you buy this product you will receive (parts included):
Tray & integrated channel
Thickness: 20 mm
Drain grating
Sirocco (squares)
Waste trap
Flow rate: 26 l/min
Waterproofing kit
Size: not included
| Size | 900 x 1500 mm |
| Channel length | 600 mm |
| Grate style | Sirocco |
| Height | 1500 mm |
| Width | 900 mm |
| Thickness | 20 · 30 · 40 mm |
| Trimming | Shorter side: up to 50 mm · Longer: up to 100 mm. |
| Material | XPS foam sheet |
| Reinforcement | Fibre glass mesh & cementous glue. |
| Fall | 4-way 2% towards the drain |
| Additionals | Tanking kit |
| Drain surface | brush |
| Cleaning | From above (Easy clean system) |
| Model | Line |
| Set consists | Wet room tray · integrated linear drain body · drain grating · siphon trap |

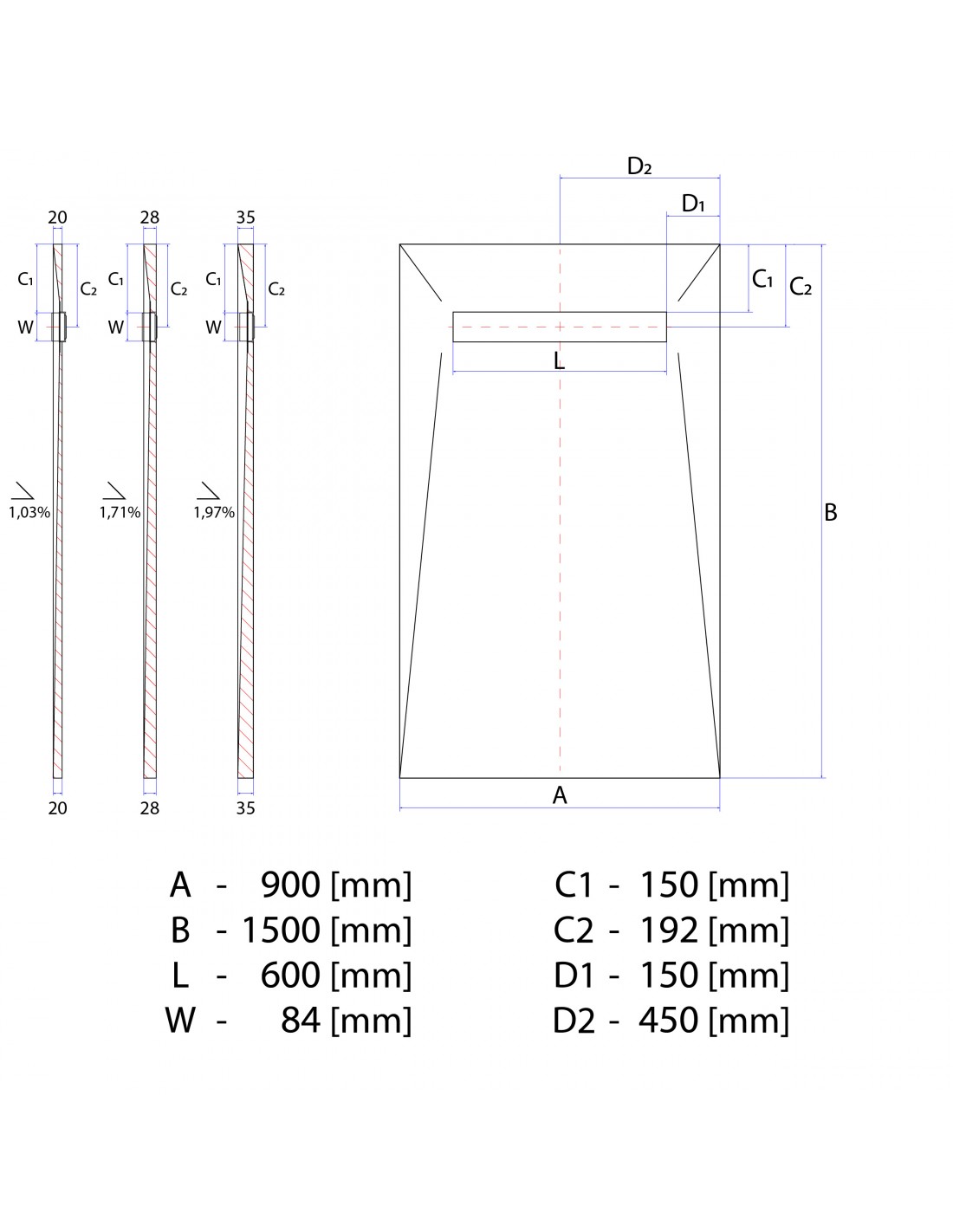

- Dimensions as described on equivalent technical drawings,
- Both sides can be trimmed without any harm, using regular handsaw,
- Make sure you cut it for equal distances from both sides to preserve pre-made fall to the drain,
- Drain channel is located centrally, across the shorter edge.
- Designed especially for range of Wiper Premium drains,

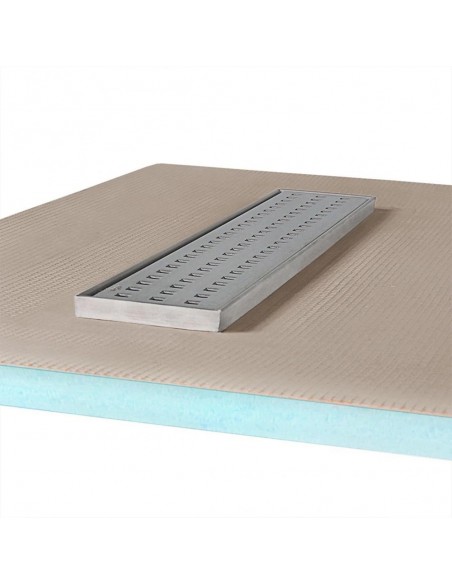

- Drain is built into the tray during the manufacturing process,

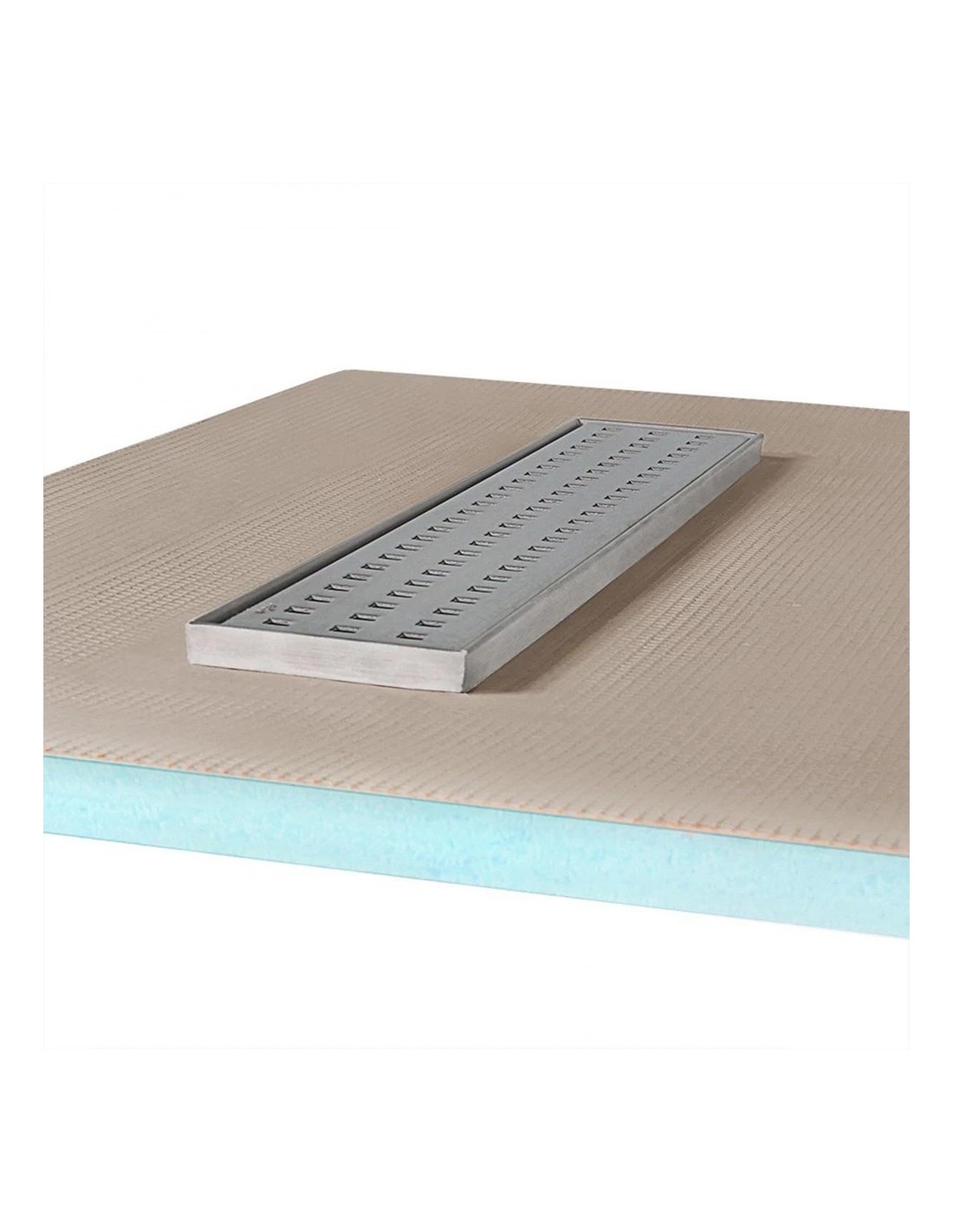

- Our showerlay is a 20/28/35 mm XPS foam sheet covered on both sides with a flexible cementous glue and reinforced with a fibre glass mesh,
- The showerlay is CNC machine cut to give a perfect pre-formed fall from each corner to the drain,
- It is lightweight but very strong,
- Perfect solution for British wooden floors but can also be used on concrete floors. When it is used on wooden floors,the floor must be underboarded after floor boards have been removed,
- Standard and minimal underboarding should be 20 mm thick,
- Ideal for tiled floors. Because of the high compressive strength of the XPS foam, it can even be used with small mosaic tiles. This is not suitable for vinyl floor coverings,
- The shower lay can be easily cut on site should you have any obstacles such as pipe boxings,
- Easy to use with under floor heating systems (should be installed on top of the shower tray)
- One hundred per cent, double waterproofing,
- Hardness of the surface layer allows to cement even very small mosaics,
- High acoustic and thermal insulation,
- After installation, the plates should be supported beneath entire surface.
Product is suitable for:
Timber floor Concrete floor Tiles Mosaic
We supply McAlpine CD-HC26-65 PCV (polypropylen) waste trap with our drains. To clean them you can simply dismantle it from above when installed, and waterflow will remove any dirt. If not you can use chemicals.
The waste trap provides Water Seal that prevents any bad smells to get back to your shower.
- Colour: white,
- Total height: 61,50 mm,
- Waste pipe diameter: 1.5" (british standard size)
- Water seal: 20mm
- Flow rate [l/min]: 26/50 (for a 15mm/120mm liquid column)
- Ready to be connected to waste system
- Additional info: Waste Grid and Dip Tube removable from top to facilitate easy cleaning. All McAlpine Shower Traps with top access surpass the minimum required flow rate of 24 litres per minute when tested in accordance with clause 5 of BS EN 274-2:2002

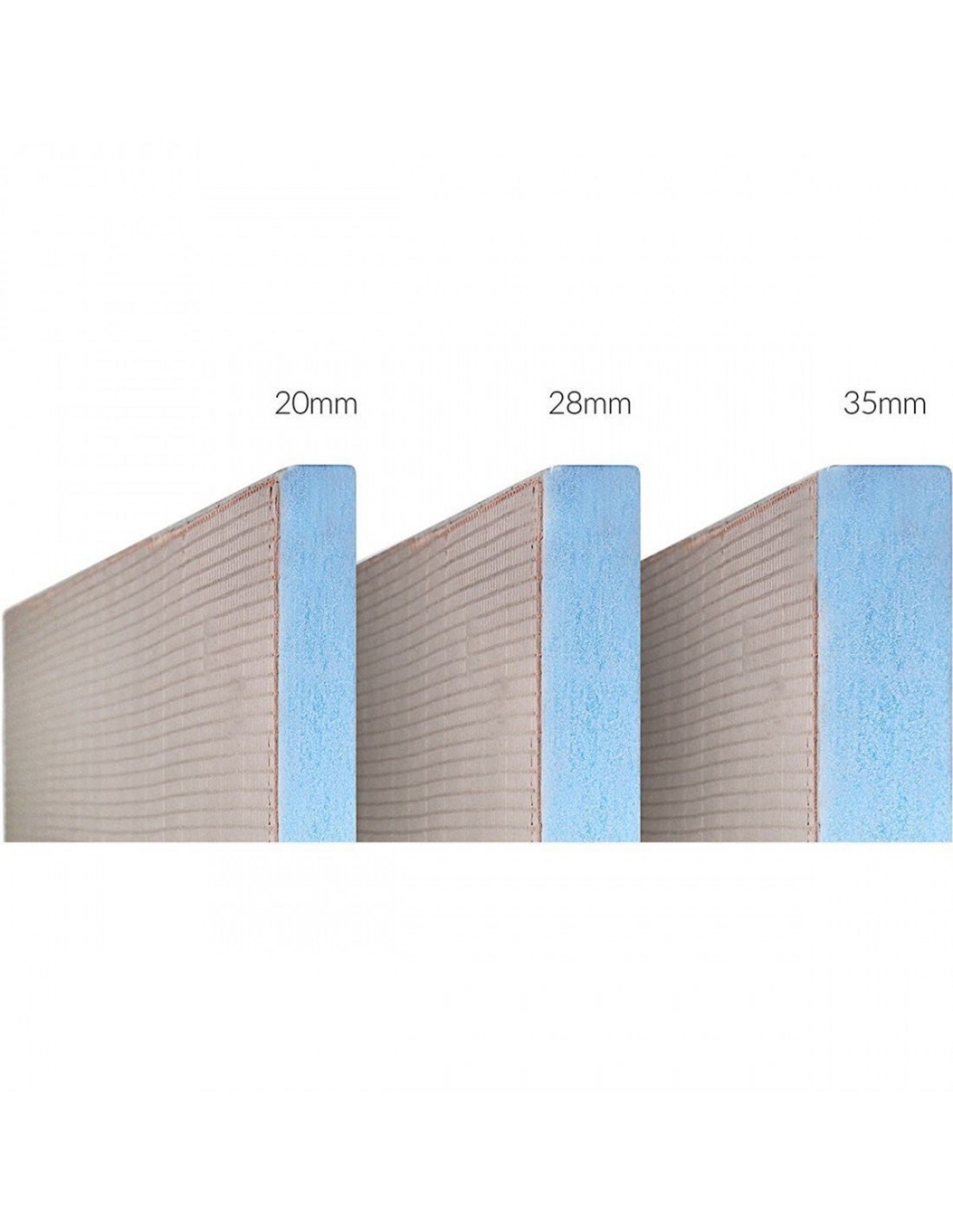

Our wet room kits are available in three thicknesses: 20, 28 and 35 mm. Depending on space, floor type, and desired gradient you can choose best option for you.
If you have timber floor - existing floor board thickness. Usually they are 20 or 28 mm thick, in that case you should go for adequate thick wet room kit, to avoid floor height increase and step ups. If you want to achieve stepped up floor, 35 mm thickness might also be a good choice. Wet room kit timber floor fitting instructions
In case of concrete floor, every thickness is suitable, if you're going to screed the floor you need to shutter the future shower area off and leave proper space for tray to be inserted in the future. If screed has already been done, you will need to use jackhammer or similar tool to groove exact tray thickness and shape when the shower is going to be created. Wet room kit concrete floor fitting instructions
In case of both floor types, every shower tray thickness is enough to bear human weight, as it needs to be underboarded beneath entire surface either with ply or solid concrete. The biggest difference between thicknesses is the slope's angle achieved after installation is completed and shower tray tiled.
Shower trays incorporate linear drain built-into the tray during the manufacturing process. Wiper Premium range linear shower drains are made from one peice of 304 grade stainless steel. Only the ends are welded. This means that the flange and drain body are made from the same peice of steel ensuring complete security from water penetration. Our flange is on all four sides of the drain. You will not find a better linear drain on the market.
- Length (X): 600 [mm]
- Height of channel (C): 30 [mm]
- Height to the centre of waste pipe (G): 68 [mm] (can be adjusted)
- Total height (H): 98 [mm]
- Width of channel (Y): 84 [mm]
- Width of insulating flange (F): 140 [mm] (included)
- Width of sealing membrane (M): 250 [mm] (included)
- Flange to top edge of channel (T): 15 [mm]
- Type of surface finish: mirror, matt, brushed
- High quality Mcalpine poly propylene syphon trap included
- Easy clean system (cleanable from above)
- Complete siphon, waste pipe diamter british standard size,
- Pipe height adjustable and rotatable at 360°,
- Drain's cover is included, please select desired design.
Grating patterns available for this product:
Shower trays incorporate linear drain built-into the tray during the manufacturing process. Wiper Premium range linear shower drains are made from one peice of 304 grade stainless steel. Only the ends are welded. This means that the flange and drain body are made from the same peice of steel ensuring complete security from water penetration. Our flange is on all four sides of the drain. You will not find a better linear drain on the market.
- Length (X): 600 [mm]
- Height of channel (C): 30 [mm]
- Height to the centre of waste pipe (G): 68 [mm] (can be adjusted)
- Total height (H): 98 [mm]
- Width of channel (Y): 84 [mm]
- Width of insulating flange (F): 140 [mm] (included)
- Width of sealing membrane (M): 250 [mm] (included)
- Flange to top edge of channel (T): 15 [mm]
- Type of surface finish: mirror, matt, brushed
- High quality Mcalpine poly propylene syphon trap included
- Easy clean system (cleanable from above)
- Complete siphon, waste pipe diamter british standard size,
- Pipe height adjustable and rotatable at 360°,
- Drain's cover is included, please select desired design.
Grating patterns available for this product:

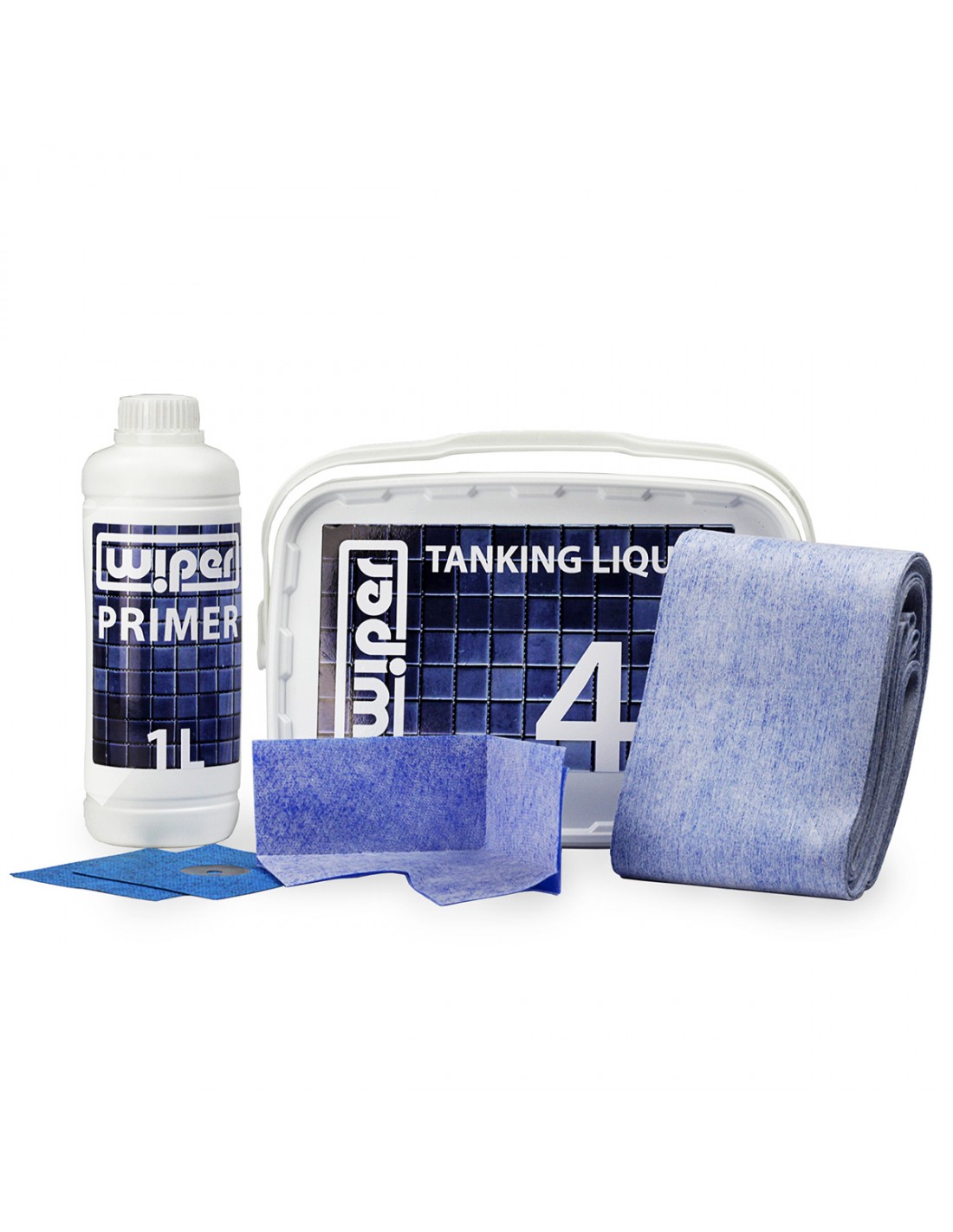

The tanking kit is a ready-mixed, under-tile tanking system to protect water sensitive substrates from exposure to water. Suitable for wet areas not exposed to pressurised water, such as bathrooms, showers in residential buildings, hotels, old people's homes and hospitals. Ready to use, no mixing required and easy to apply with a roller. The kit includes a high performance joint reinforcing tape to protect against movement in floor joins and corners etc. The contents are all INSIDE the bucket and the contents are protected in the bucket with polystyrene infill's to stop transit damage.The instructions are printed on the rear of the tanking kit.
For anti-moisture insulation systems in wet rooms and rooms intended for human residence. The tanking liquid is a ready-to-use singlecomponent, solvent-free sealant composed of polymer dispersion, fillers and modifying additives. When applied to the surface, upon binding it creates a flexible and water-insulating layer.
Tanking kit contains:
- 4kg Tanking Liquid
- 1l Primer
- 10 Metres flexible Sealing Tape
- 2 Flexible Pipe Collars
- 2 Corners
Features:
- Consumption to 1,2kg/m²
- Solvent free
- Drying time: 2h
Tanking liquid
The tanking liquid is a ready to use, single component, solvent-free sealant mass, consisting of polymer dispersion, fillers and additives. When applied to a substrate and cured, it forms a flexible waterproofing coating. The product is intended for use inside places intended for human residence, especially in humid areas (such as bathrooms, kitchens, laundries), to perform insulation against moisture under linings and coverings, such as ceramic tiles, glazed tiles, terracotta, wooden floors and panels, and synthetic carpets.
Primer
The product is intended for priming absorbent and porous surfaces, inside and outside buildings. It is especially recommended for cement - limestone plaster, gas concrete, plaster-carton boards and cement plaster. The primer has a high penetration ability, is deeply absorbed into the substrate, thus strengthening it, while allowing for „breathing”. These benefits improve the structure of the substrates, which, due to the passage of time, have lost their appropriate parameters. The priming solution improves adhesion to the surface of other materials that will be used on the primed substrate. By reducing the absorbency of the substrate, the wear of the applied coating materials, emulsion paints, glues, mineral putties reduces as well. The solution, due to the content of the biocide and fungicide, protects the primed substrate against the formation of mold and bacteria in the product.
10m sealing tape · 2x flexible pipe collars · 2x corners
Documents available below are available to everybody for free to download. They can be open in high quality on your computer and be printed for further use.
Showerlay installation 20 mm technical drawing 30 mm technical drawing 40 mm technical drawing Long term guaranteeSiphon technical drawing
