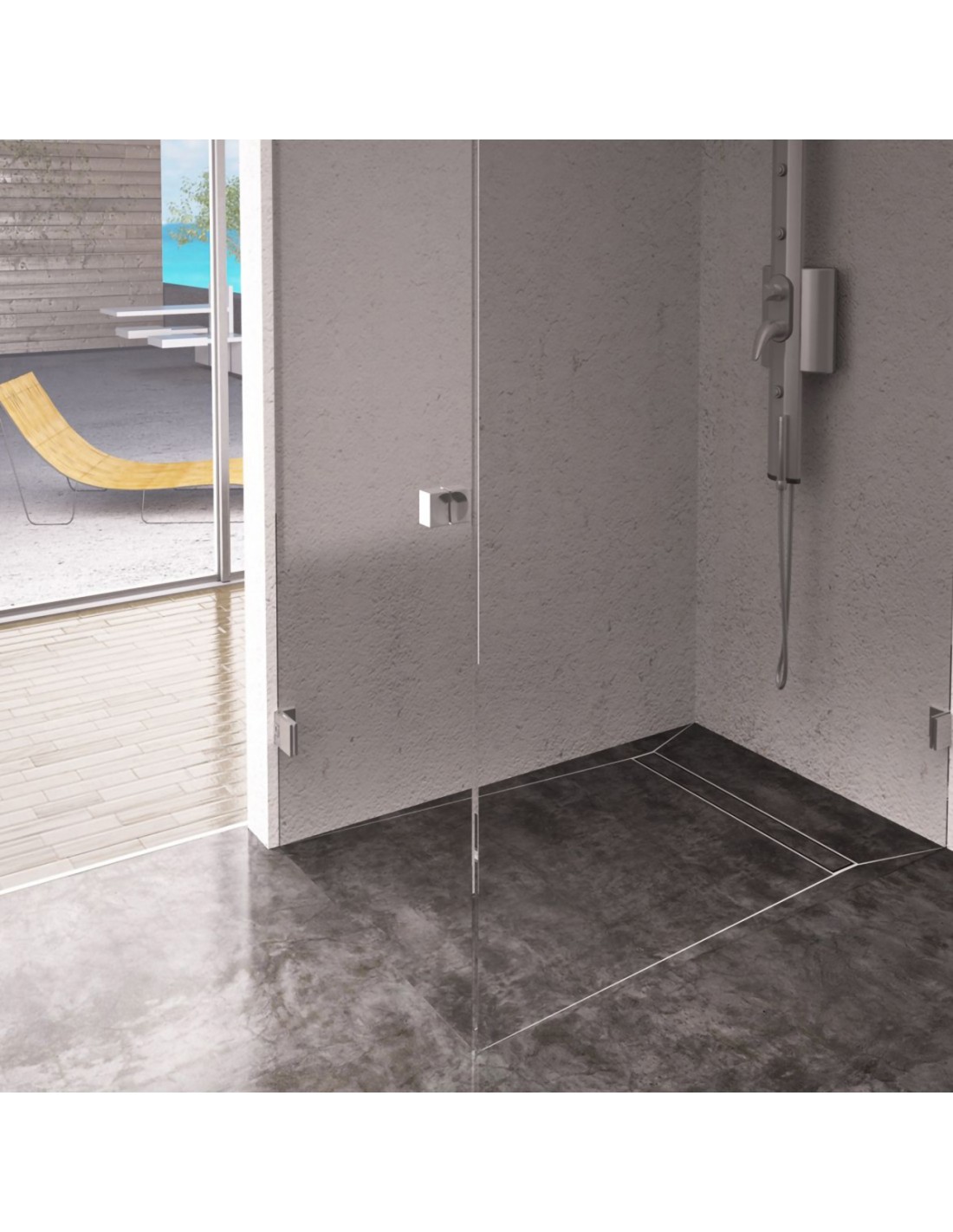

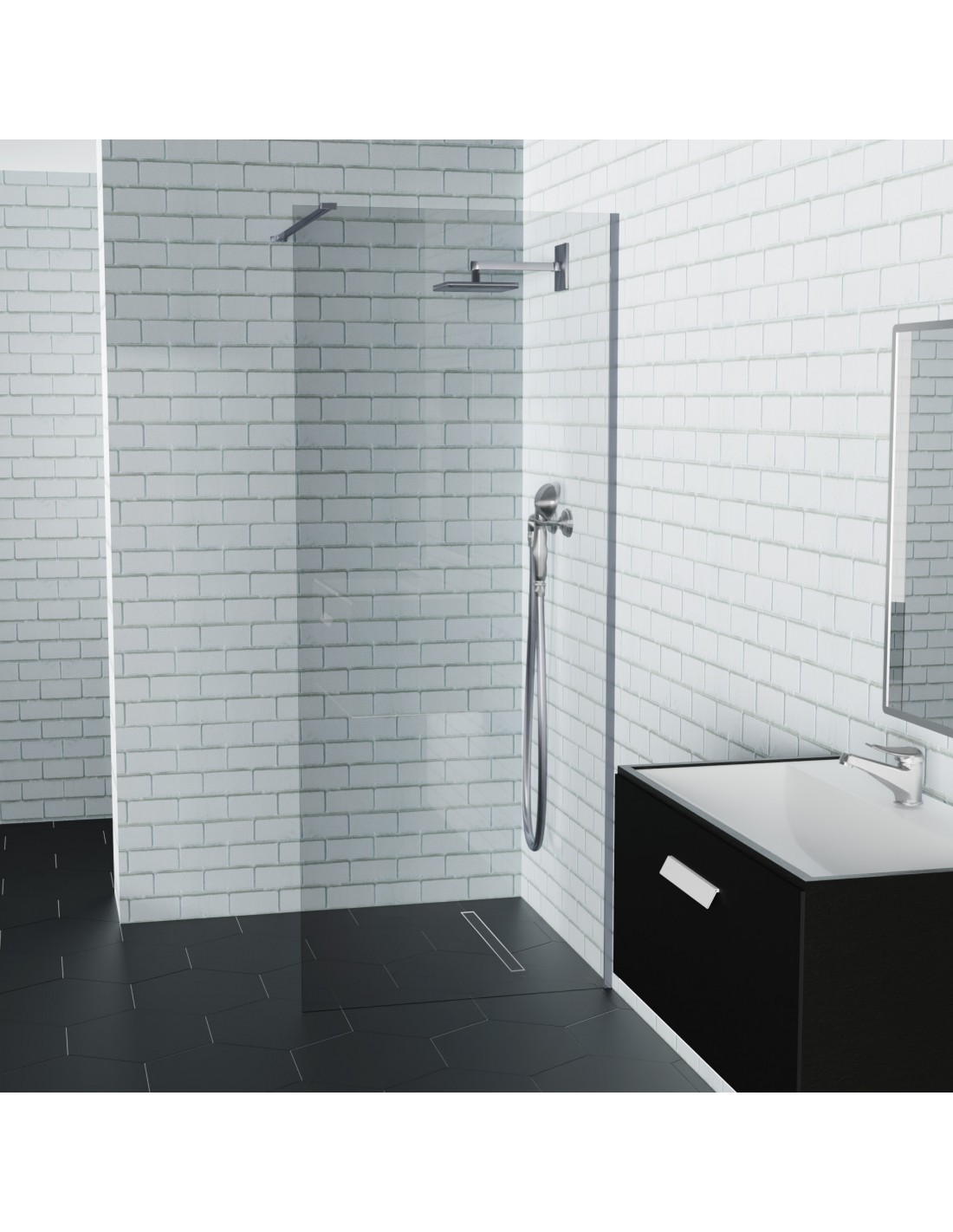

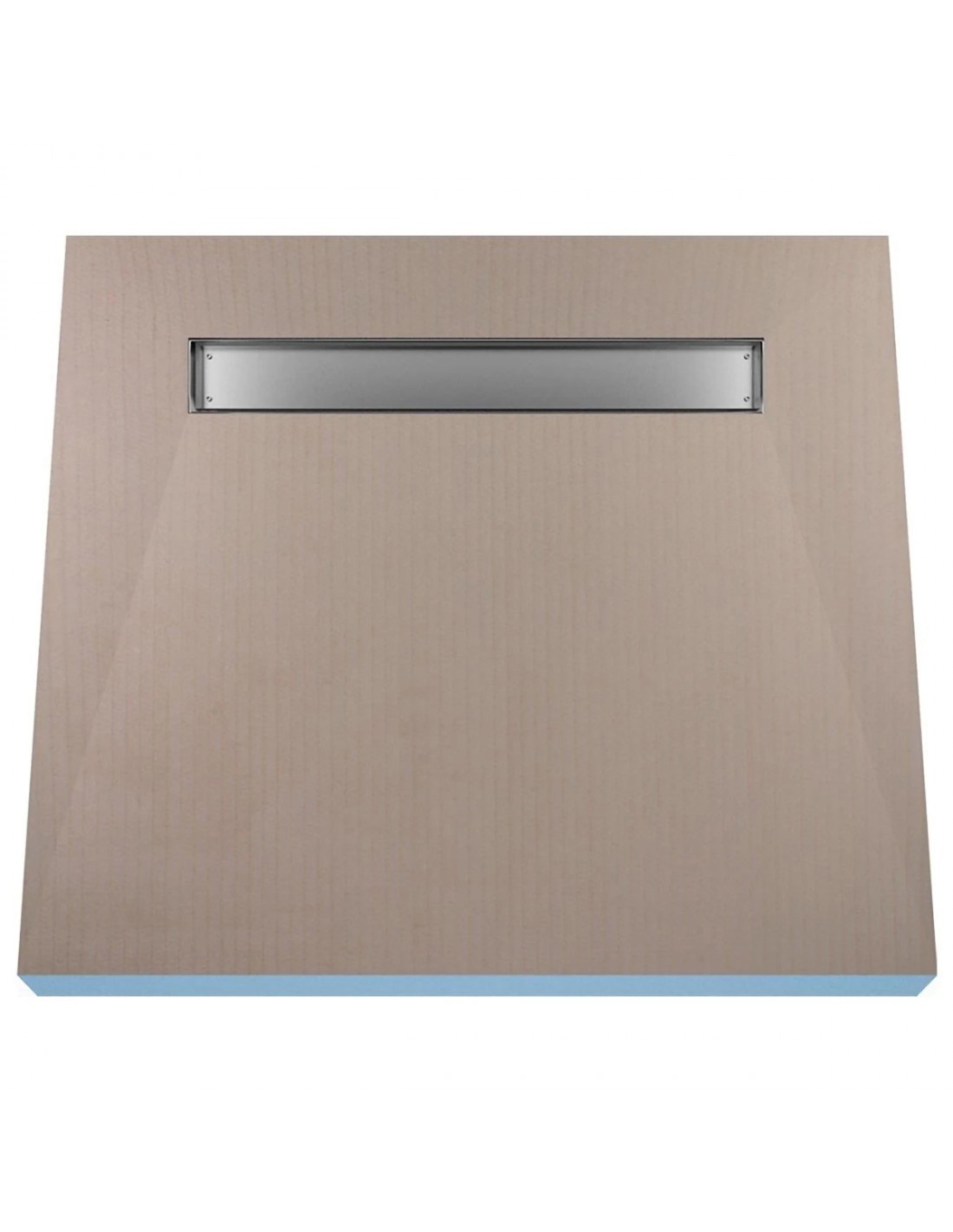

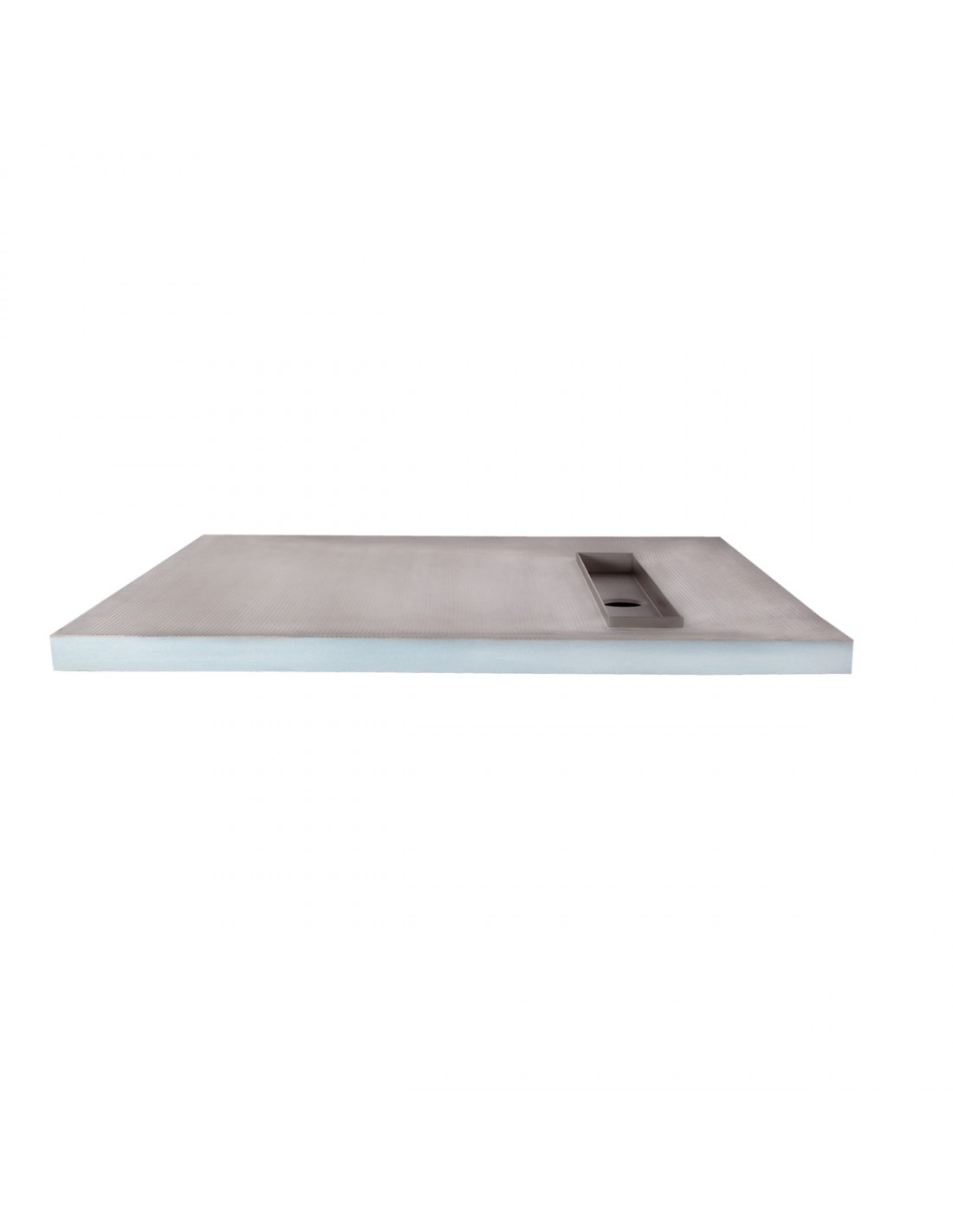

is a walk in shower tray with end linear drain. Former is available in three thicknesses, has 2% fall towards the drain, provides great acoustic insulation and is also lightweight while very strong.
We include the longest linear shower channel to this walk in shower flooring - 1200 mm long stainless steel channel. It is integrated with the tray during the production process and comes with watertight seal. 64 mm wide stylish grate cover and comlpete siphon trap with capacity of 26 l/min and 20 mm high water seal arrive with the former. Pure is a slot cover, should be filled with tiles so after the installation only visible part of the tray would be the channel. It's the longest linear gully we include to our wet room kits so it can be considered most luxurious.

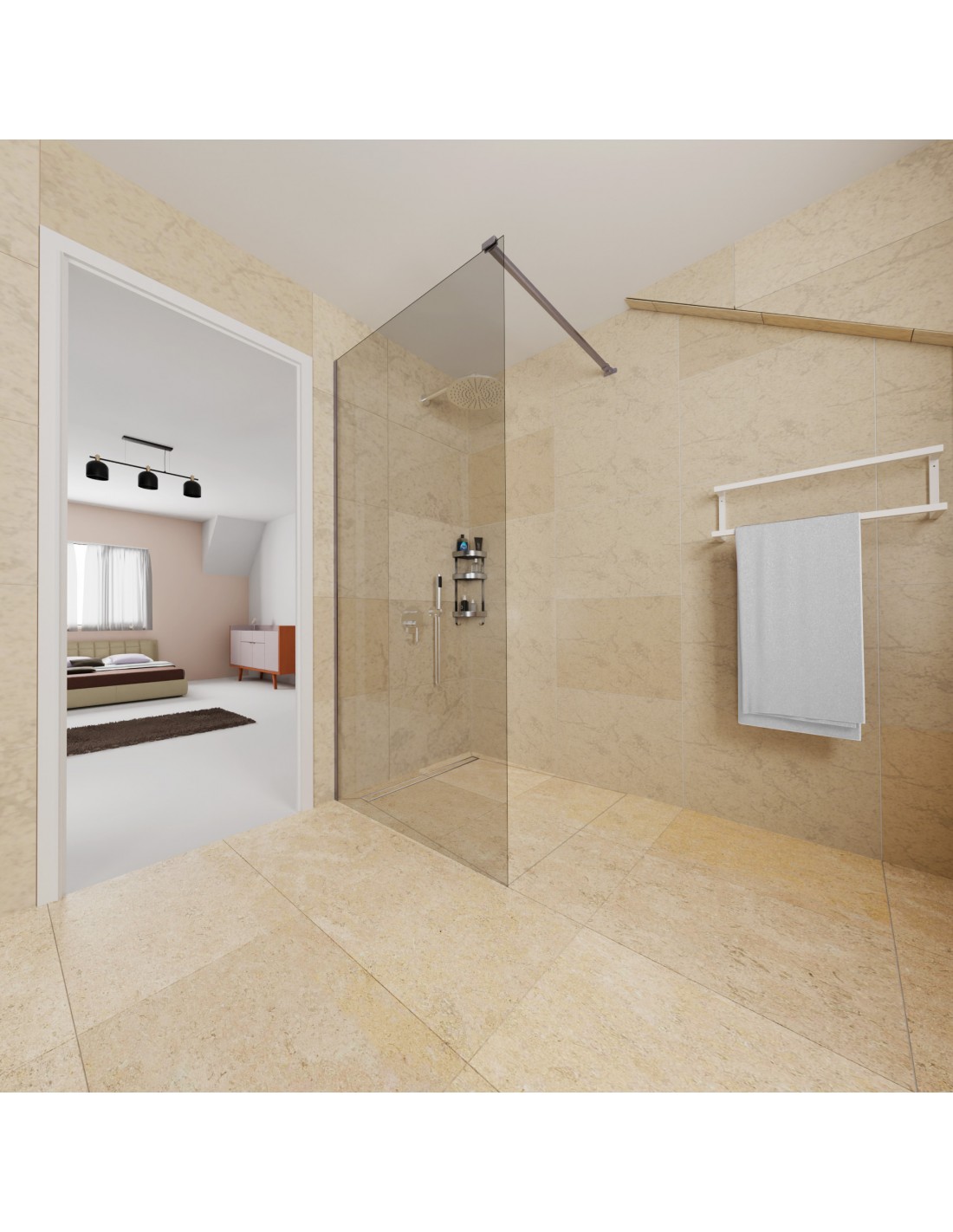

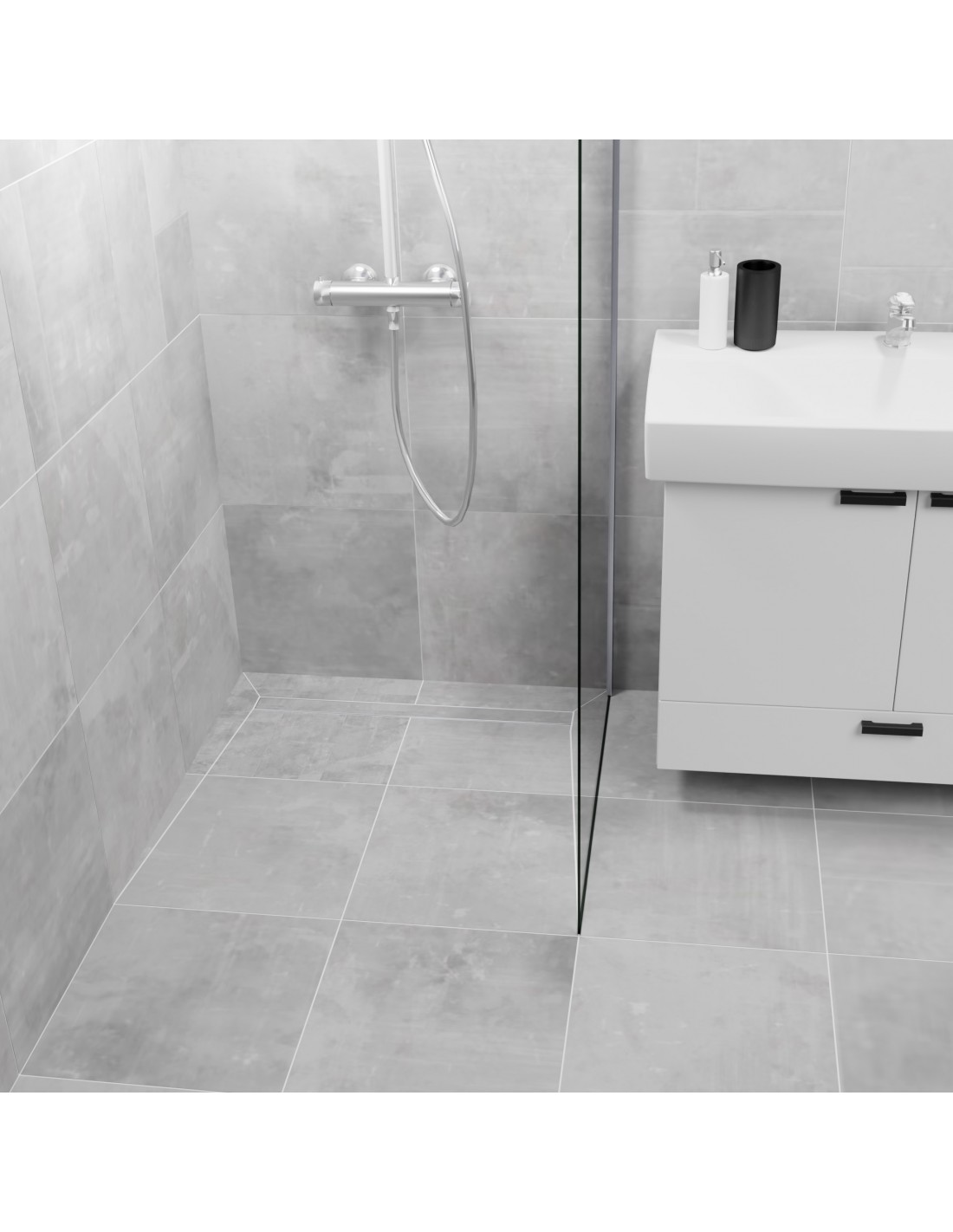

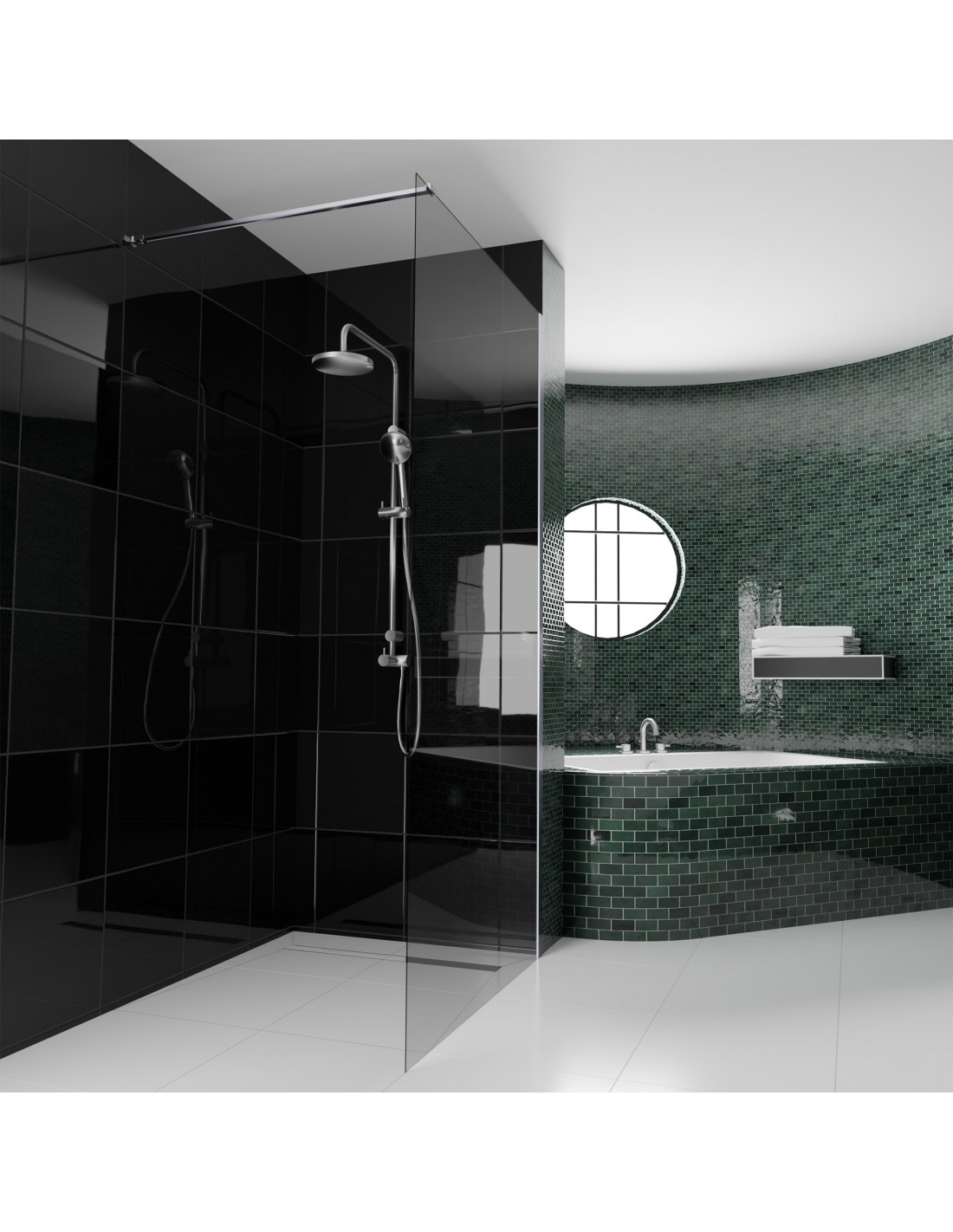

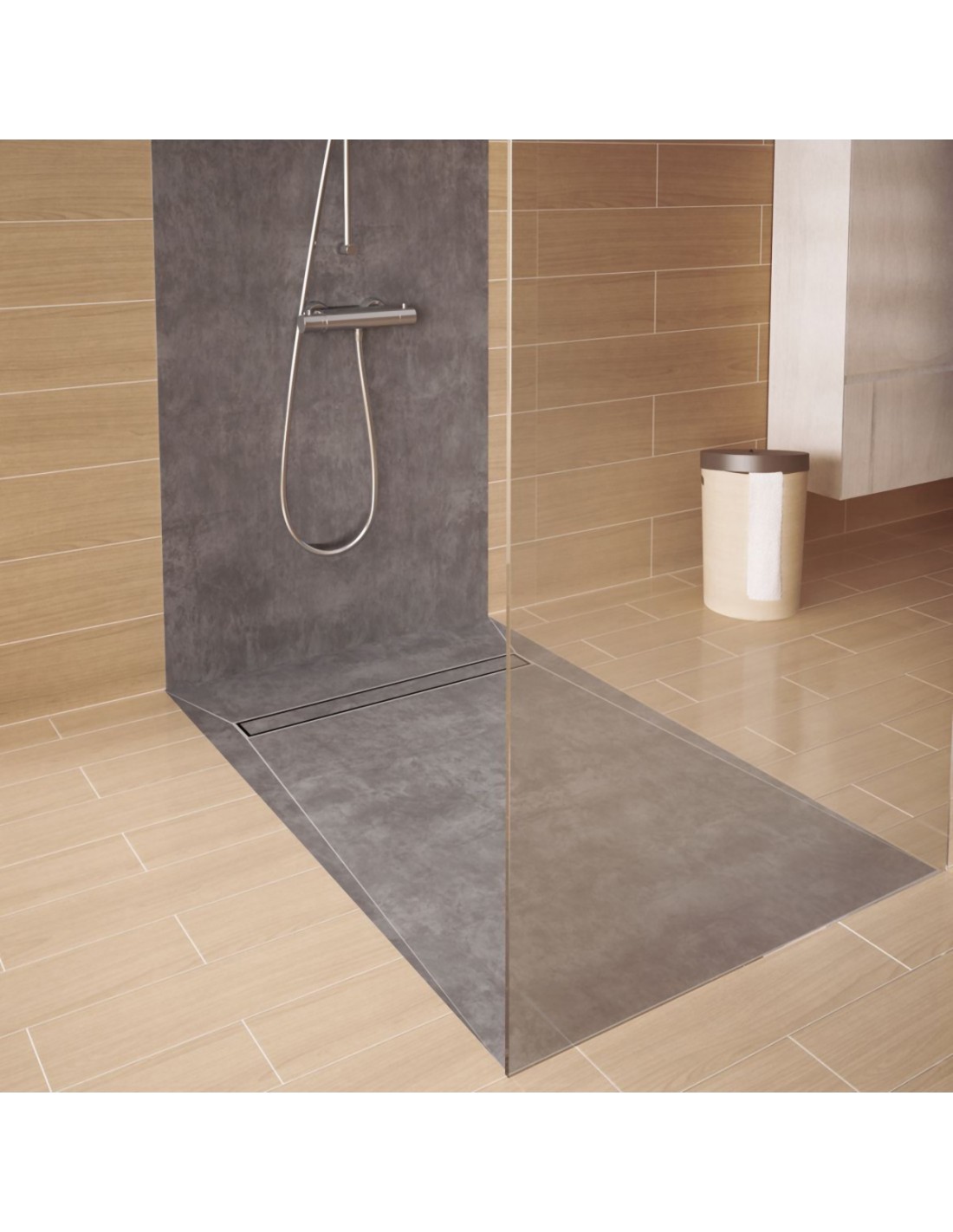

Largest square shower tray 1200 x 1200 mm can accomodate bigger shower areas and create comfortable and easily accesible shower. This size kit isn't for smallest bathrooms, but has the longest drain integrated providing modern look. The floor is then a single expanse, with only a drainage hole visible, giving a space-enhancing seamless look.
Warning: Last items in stock!
Tray & integrated channel
Thickness: 20 mm
Flow rate: 26 l/min
Size: not included

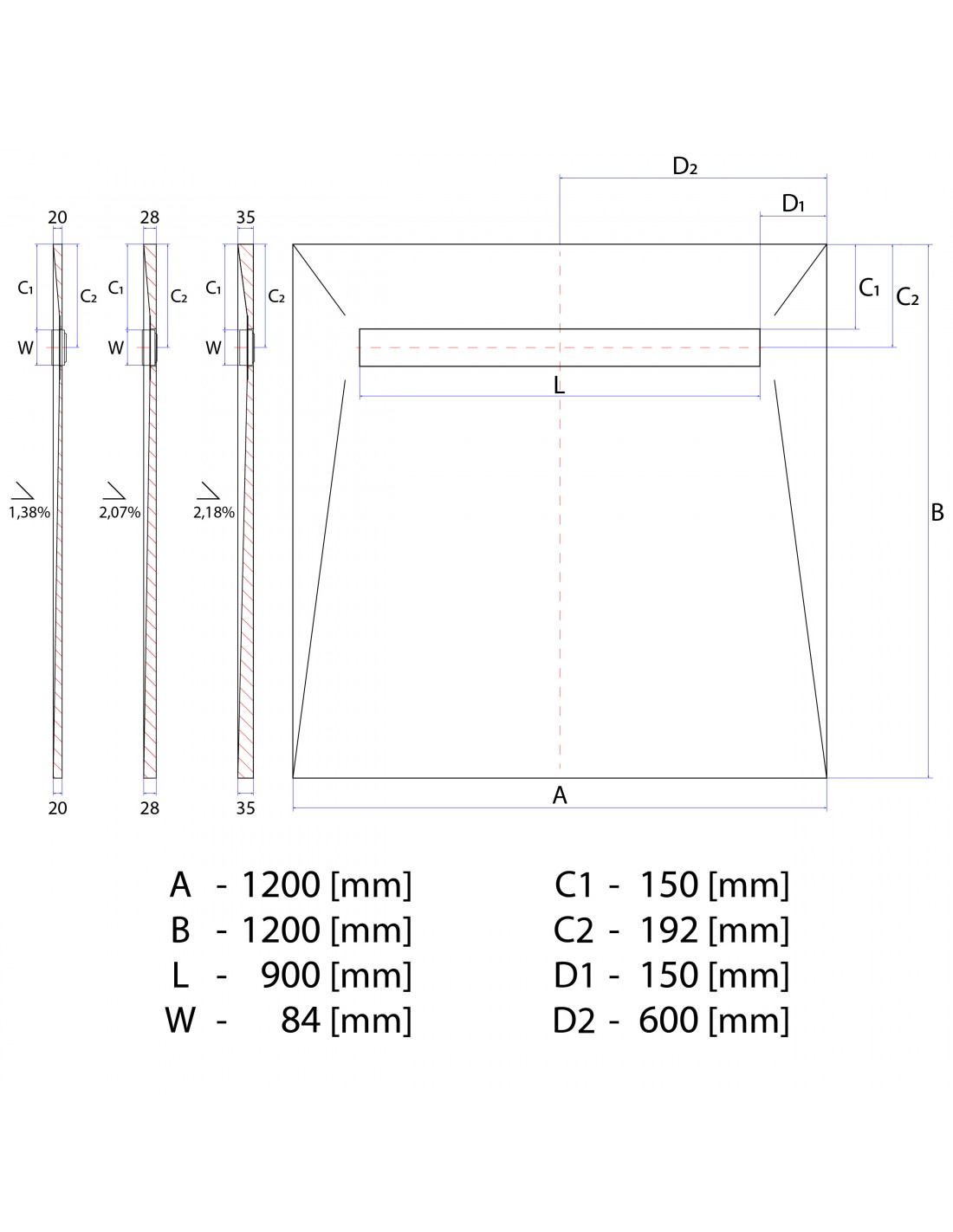

|Size||1200 x 1200 mm|
|Channel length||900 mm|
|Grate style||Pure (slot)|
|Thickness||20 · 30 · 40 mm|
|Trimming||Both sides: up to 50 mm.|
|Material||XPS foam sheet|
|Reinforcement||Fibre glass mesh & cementous glue.|
|Fall||4-way 2% towards the drain|
|Cleaning||From above (Easy clean system)|
|Set consists||Wet room tray · integrated linear drain body · drain grating · siphon trap|

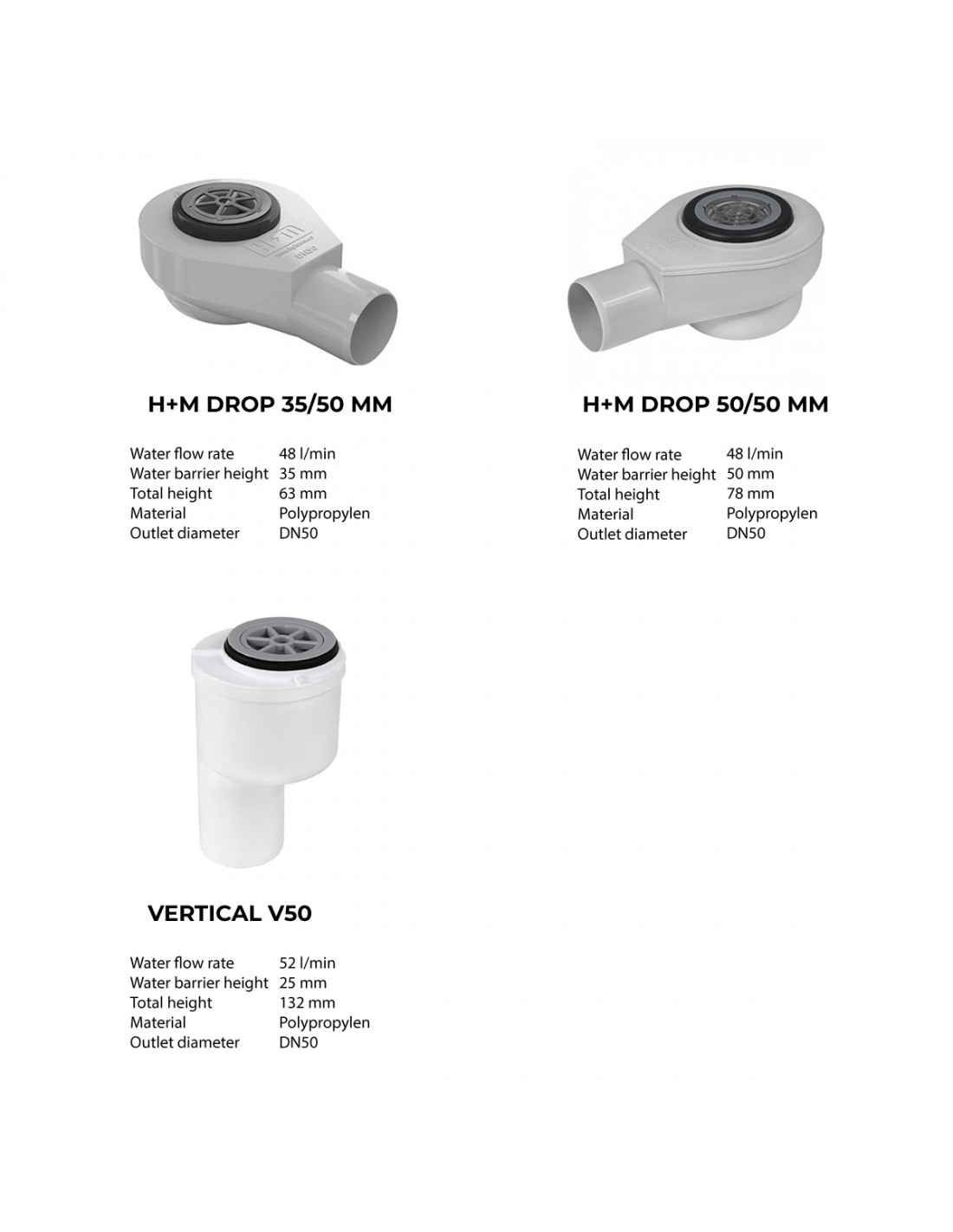

We supply McAlpine CD-HC26-65 PCV (polypropylen) waste trap with our drains. To clean them you can simply dismantle it from above when installed, and waterflow will remove any dirt. If not you can use chemicals.
The waste trap provides Water Seal that prevents any bad smells to get back to your shower.

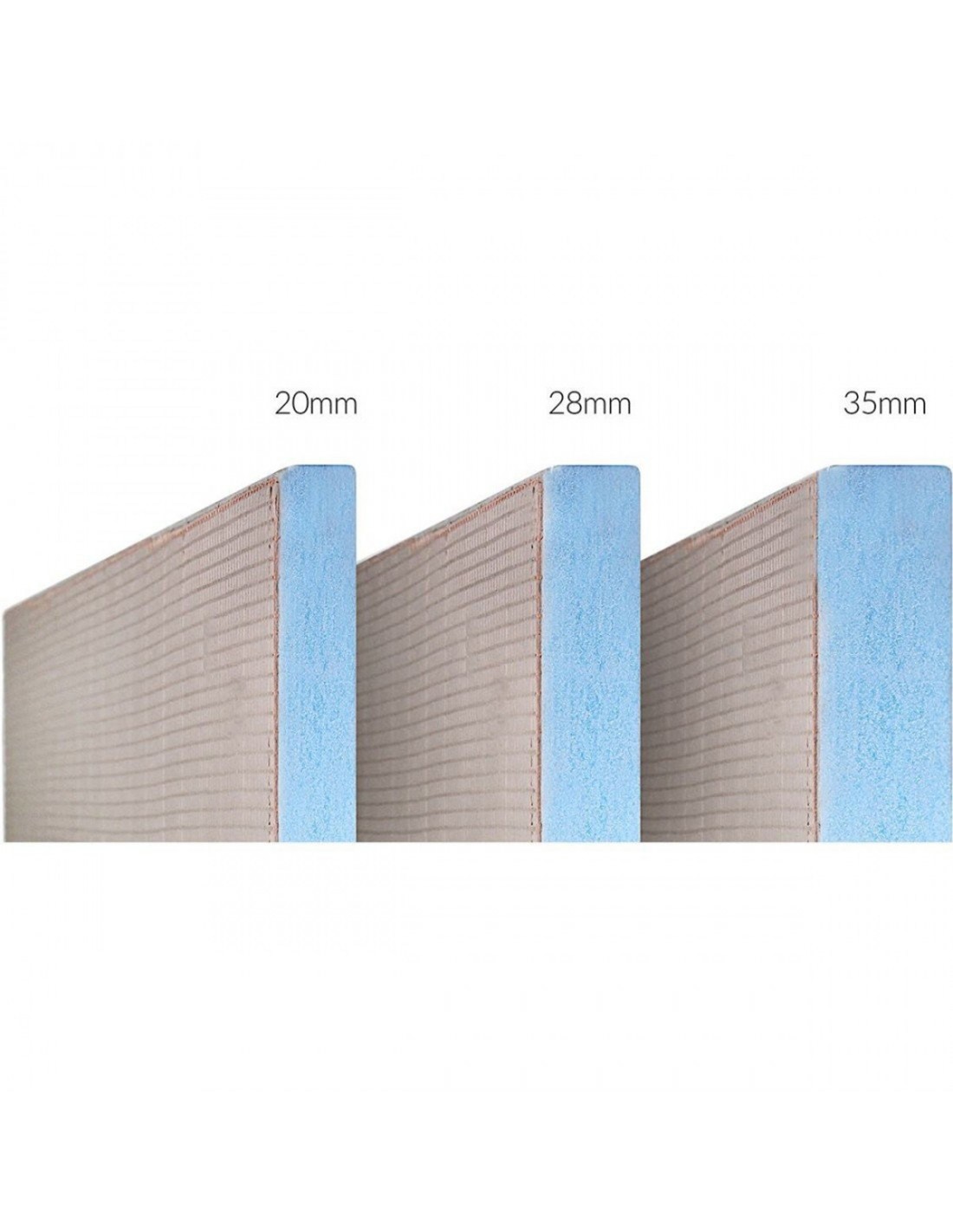

If you have timber floor - existing floor board thickness. Usually they are 20 or 28 mm thick, in that case you should go for adequate thick wet room kit, to avoid floor height increase and step ups. If you want to achieve stepped up floor, 35 mm thickness might also be a good choice. Wet room kit timber floor fitting instructions
In case of concrete floor, every thickness is suitable, if you're going to screed the floor you need to shutter the future shower area off and leave proper space for tray to be inserted in the future. If screed has already been done, you will need to use jackhammer or similar tool to groove exact tray thickness and shape when the shower is going to be created. Wet room kit concrete floor fitting instructions
In case of both floor types, every shower tray thickness is enough to bear human weight, as it needs to be underboarded beneath entire surface either with ply or solid concrete. The biggest difference between thicknesses is the slope's angle achieved after installation is completed and shower tray tiled.

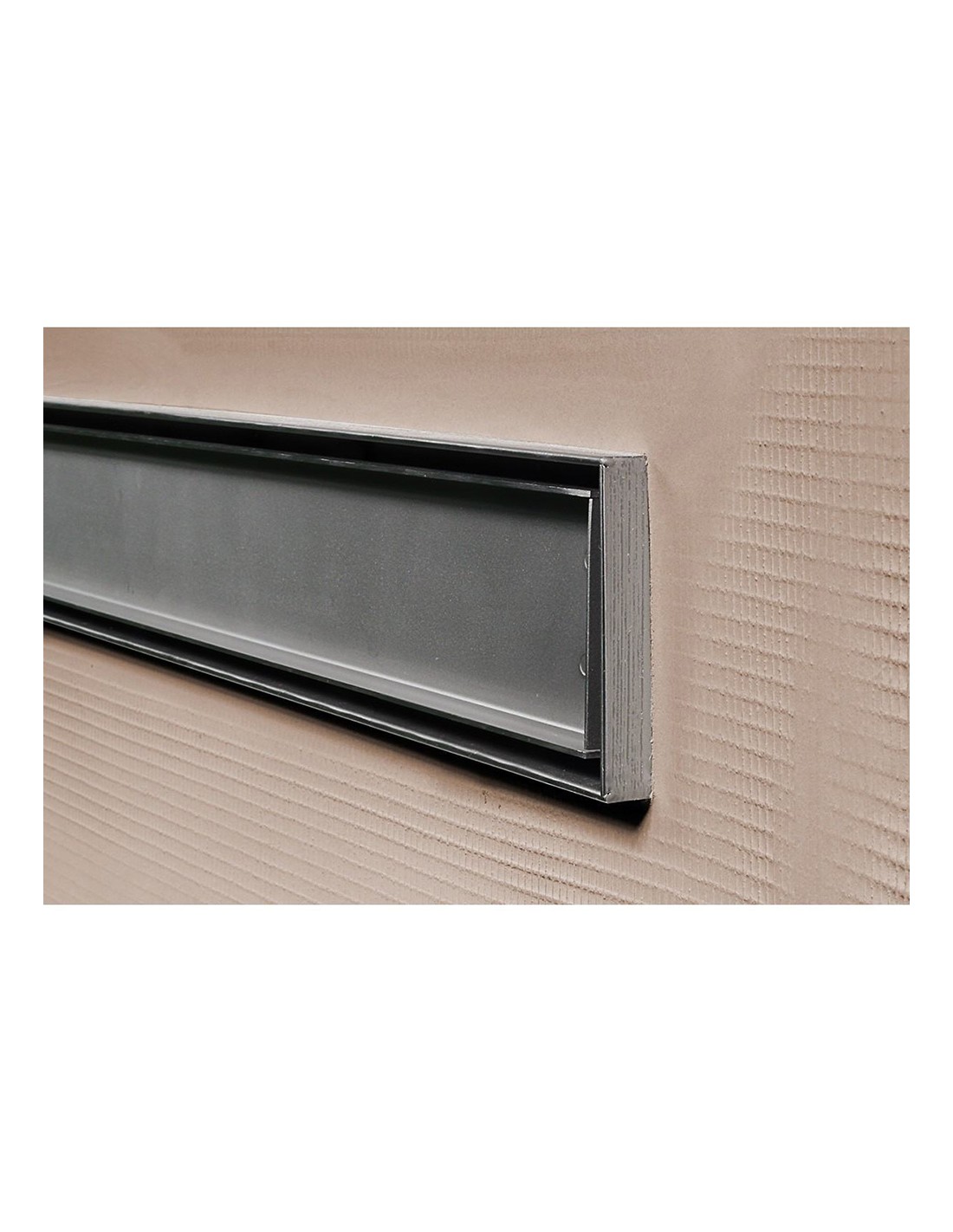

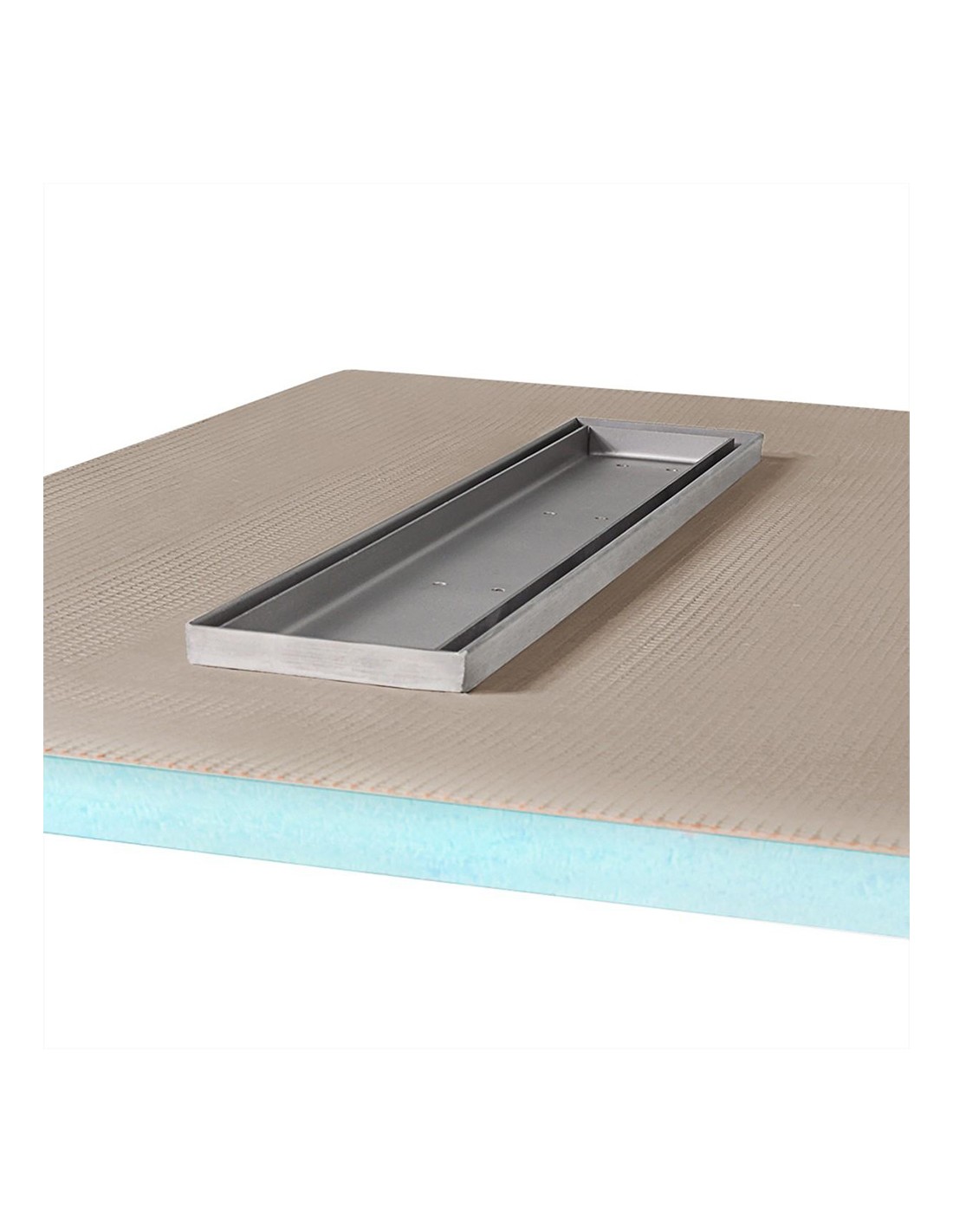

Pure drain cover is an internal container that you can insert the tiles into. This type of drain is 100% tile-able.

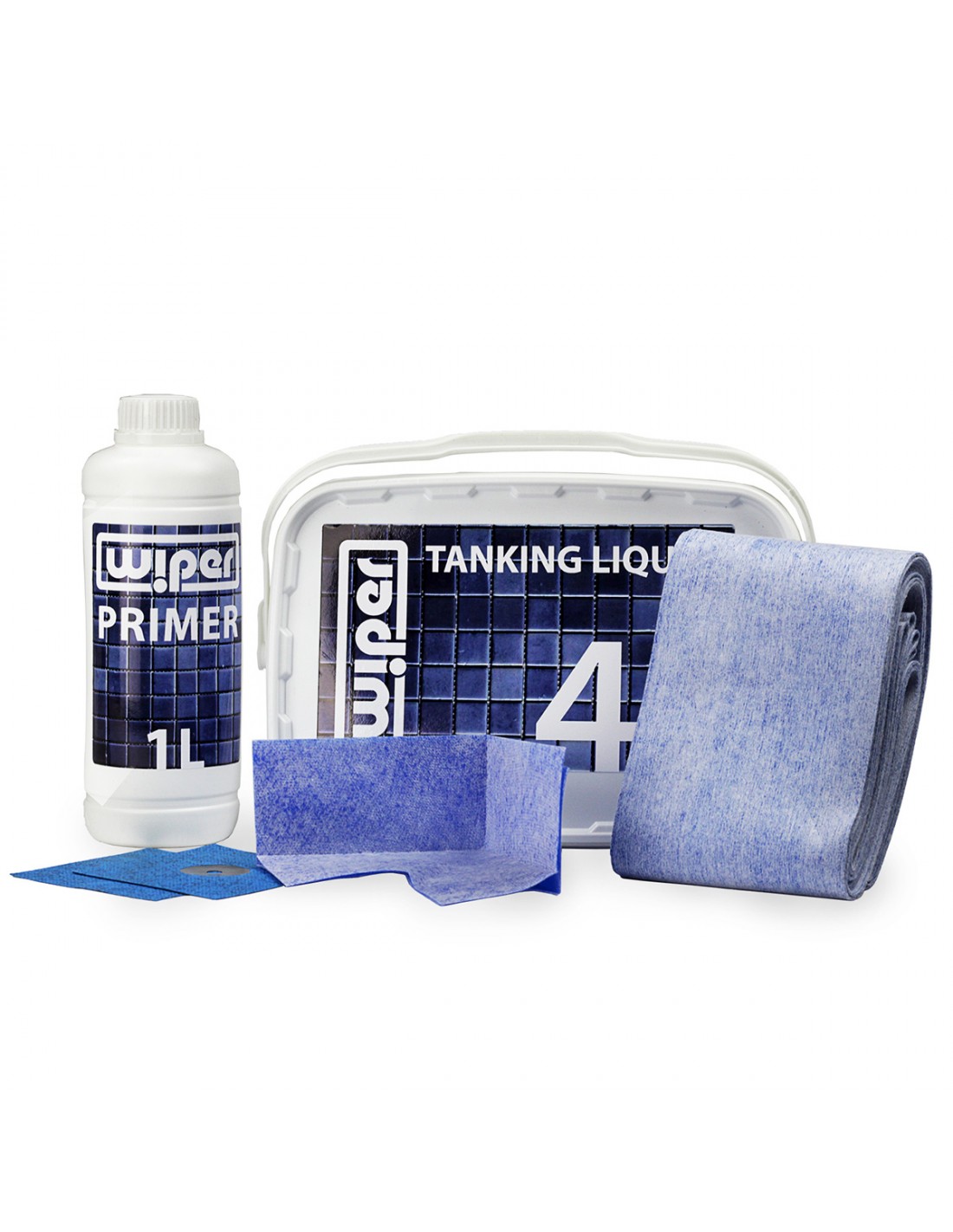

The tanking kit is a ready-mixed, under-tile tanking system to protect water sensitive substrates from exposure to water. Suitable for wet areas such as bathrooms, showers in residential buildings, hotels, old people's homes and hospitals. Should not be used in places exposed to pressurised water, for an instance swimming pools. Ready to use, no mixing required and easy to apply with a roller. The kit includes a high performance joint reinforcing tape to protect against movement in floor joins and corners etc. The contents are all INSIDE the bucket and the contents are protected in the bucket with polystyrene infill's to stop transit damage.The instructions are printed on the rear of the tanking kit.
For anti-moisture insulation systems in wet rooms and rooms intended for human residence. The tanking liquid is a ready-to-use singlecomponent, solvent-free sealant composed of polymer dispersion, fillers and modifying additives. When applied to the surface, upon binding it creates a flexible and water-insulating layer.
The tanking liquid is a ready to use, single component, solvent-free sealant mass, consisting of polymer dispersion, fillers and additives. When applied to a substrate and cured, it forms a flexible waterproofing coating. The product is intended for use inside places intended for human residence, especially in humid areas (such as bathrooms, kitchens, laundries), to perform insulation against moisture under linings and coverings, such as ceramic tiles, glazed tiles, terracotta, wooden floors and panels, and synthetic carpets.
The product is intended for priming absorbent and porous surfaces, inside and outside buildings. It is especially recommended for cement - limestone plaster, gas concrete, plaster-carton boards and cement plaster. The primer has a high penetration ability, is deeply absorbed into the substrate, thus strengthening it, while allowing for „breathing”. These benefits improve the structure of the substrates, which, due to the passage of time, have lost their appropriate parameters. The priming solution improves adhesion to the surface of other materials that will be used on the primed substrate. By reducing the absorbency of the substrate, the wear of the applied coating materials, emulsion paints, glues, mineral putties reduces as well. The solution, due to the content of the biocide and fungicide, protects the primed substrate against the formation of mold and bacteria in the product.
