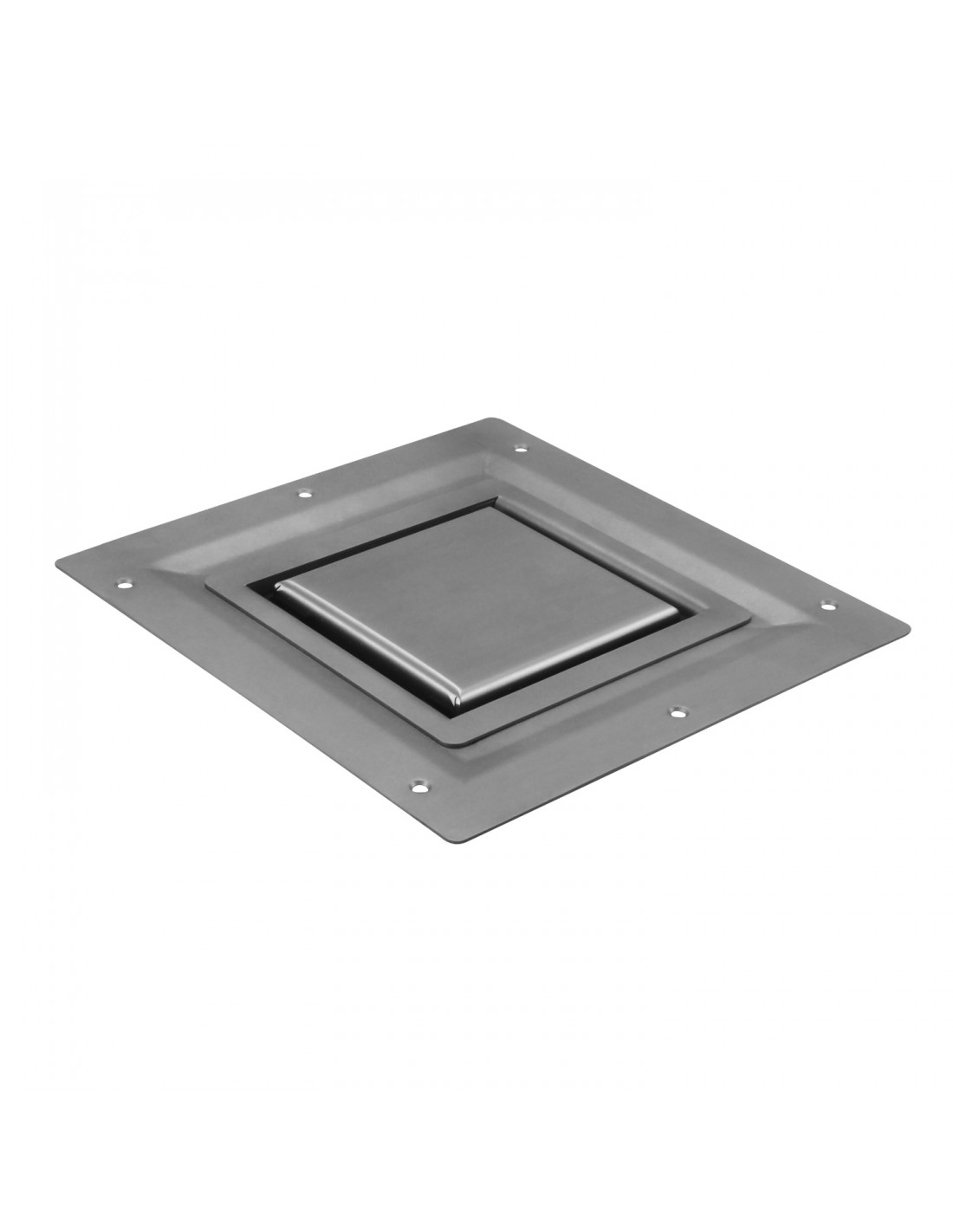

Our Wiper VF square shower drain is a modern solution designed exclusively for vinyl and vinyl-like floor finishes, offering both function and elegance to your bathroom. Available in three compact sizes—100 x 100 mm, 120 x 120 mm, and 150 x 150 mm (measured at the frame)—this drain is perfect for any shower area, regardless of space constraints. The drain cover itself is slightly smaller than the frame, creating a sleek and refined aesthetic without compromising on flow rate or overall performance.
This innovative drain features a robust clamping mechanism that securely locks your vinyl flooring in place. By fitting the vinyl between the drain flange and the frame, which is fastened with screws, the drain ensures a precise and reliable seal. Its adjustable design accommodates vinyl thicknesses from 0.5 mm to 5 mm, making it compatible with nearly all popular vinyl floor finishes on the market. This thoughtful engineering provides a clean, professional finish that prevents the vinyl from lifting, even in high-traffic areas.
Choose from three stylish cover designs to complement your bathroom's aesthetic. The Ponente cover boasts a minimalist stainless steel design with side channels for water flow. The Sirocco features a squared grid pattern, offering a touch of geometric elegance. For a more dynamic look, the Mistral cover includes an arrangement of variously-sized circular perforations. These cover styles are primarily aesthetic, allowing you to personalize your drain without impacting its efficiency or performance.
Each drain comes with as a comprehensive full set of components: the drain body, frame locking mechanism, drain cover, and waste trap. Four waste trap options are available to suit your needs: the McAlpine Horizontal, Drop 50, Drop 35, and another McAlpine design, each offering different flow rates and water seal heights. Additionally, a wide range of add-on products can be found below, allowing you to further customize your drain system to fit your specific requirements.
This Square Vinyl Shower Channel Drain combines practicality, adaptability, and modern design to create the perfect solution for bathrooms requiring a sleek, reliable drainage system.
-
Versatile Usage:
- Perfect for residential bathrooms as well as high-traffic commercial settings, such as gyms, hospitals, hotels, and other demanding environments.
Sizes Available:
- Offered in three compact sizes: 100 x 100 mm, 120 x 120 mm, and 150 x 150 mm (measured at the frame).

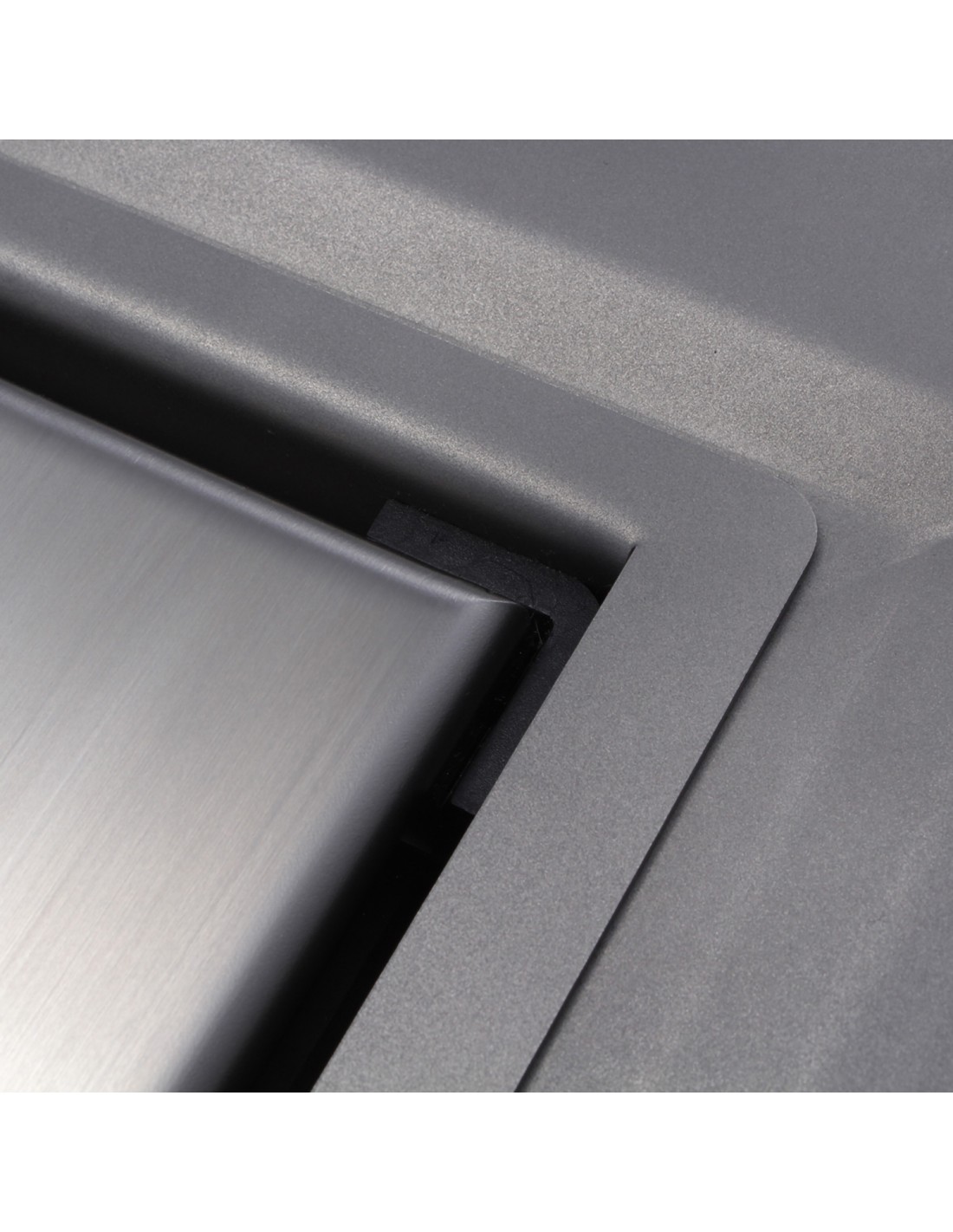

- Drain cover dimensions are slightly smaller on each side, providing a clean and refined appearance without affecting flow rate or performance.
Floor Compatibility:
- Compatible with both timber and concrete floor bases, ensuring flexibility for different installation environments.
Innovative Clamping Mechanism:
- Designed exclusively for vinyl and vinyl-like floor finishes.

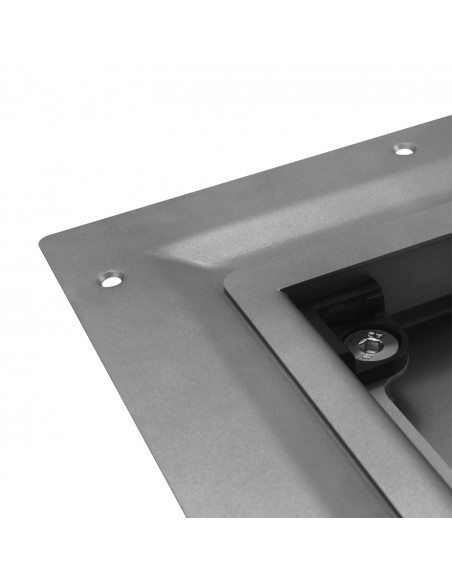

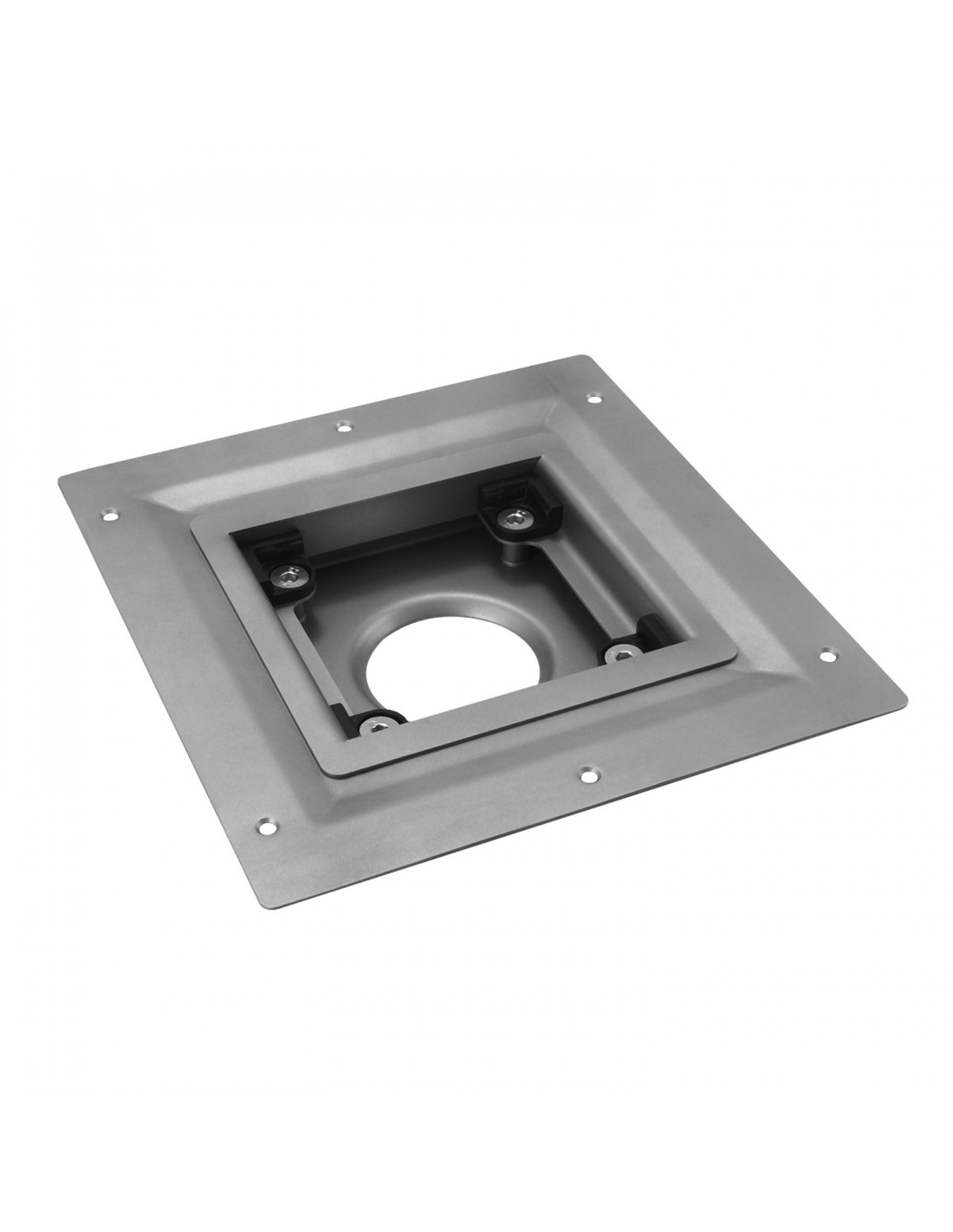

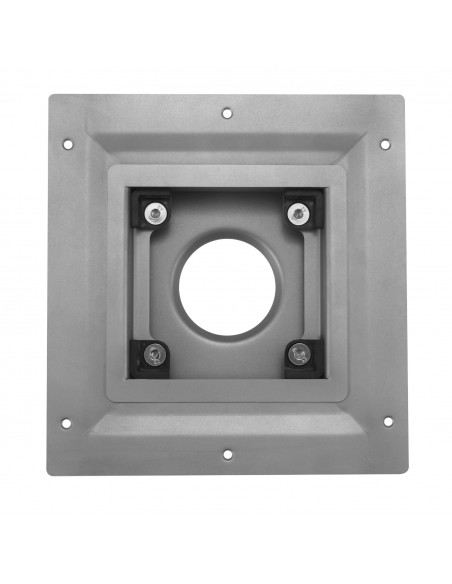

- Features a clamping mechanism that securely locks the vinyl between the drain flange and the frame, which is fastened with screws.
- Adjustable to accommodate vinyl thicknesses from 0.5 mm to 5 mm, making it compatible with most popular vinyl flooring options.
Liftable Drain Cover:
- The drain cover is easily liftable, simplifying cleaning and maintenance, even in busy environments.
Stylish Drain Cover Options:
- Ponente: Sleek stainless steel cover with side channels for efficient water flow.
- Sirocco: Modern square grid design for a geometric aesthetic.
- Mistral: Stylish perforations with a mix of differently-sized circles for a dynamic look.
- All cover designs prioritize aesthetics while maintaining excellent functionality.
Included Components:

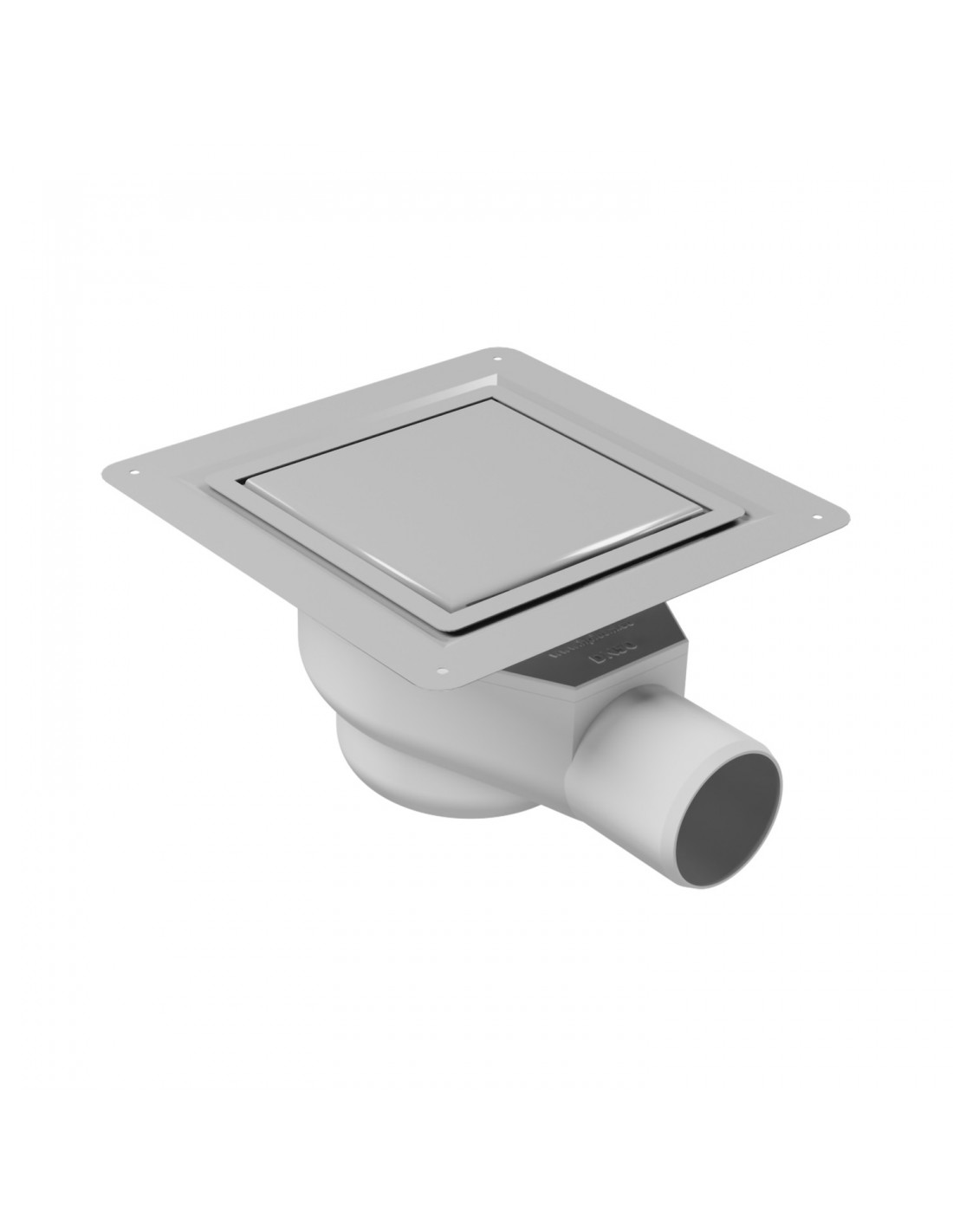

- Each drain includes a drain body, frame locking mechanism, drain cover, and a waste trap.
- Four waste trap options available:
- McAlpine Horizontal
- Drop 50
- Drop 35
- McAlpine Vertical
- Waste traps offer varying flow rates and water seal heights to suit specific installation needs.
Add-On Products:
- A wide selection of additional products and accessories is available, enabling further customization and enhanced functionality.
- Cover size
- 80 x 80 mm
- Collar size
- 170 x 170 mm
- Grate style
- Ponente
- Total height
- 88 mm
- Material
- 304 S 15 grade stainless steel
- Additionals
- Tanking kit, Adjustable legs
- Drain surface
- mirror · brush · matt
- Waste trap
- Plastic (PCV)
- Steel collar
- Integrated
- Cleaning
- From above (Easy clean system)
- Model
- Clamp Drain - VF
- Set consists
- Square drain body · stainless steel collar · sealing membrane · drain grating · siphon trap
- Size
- 100 x 100 mm
- Colour
- Silver

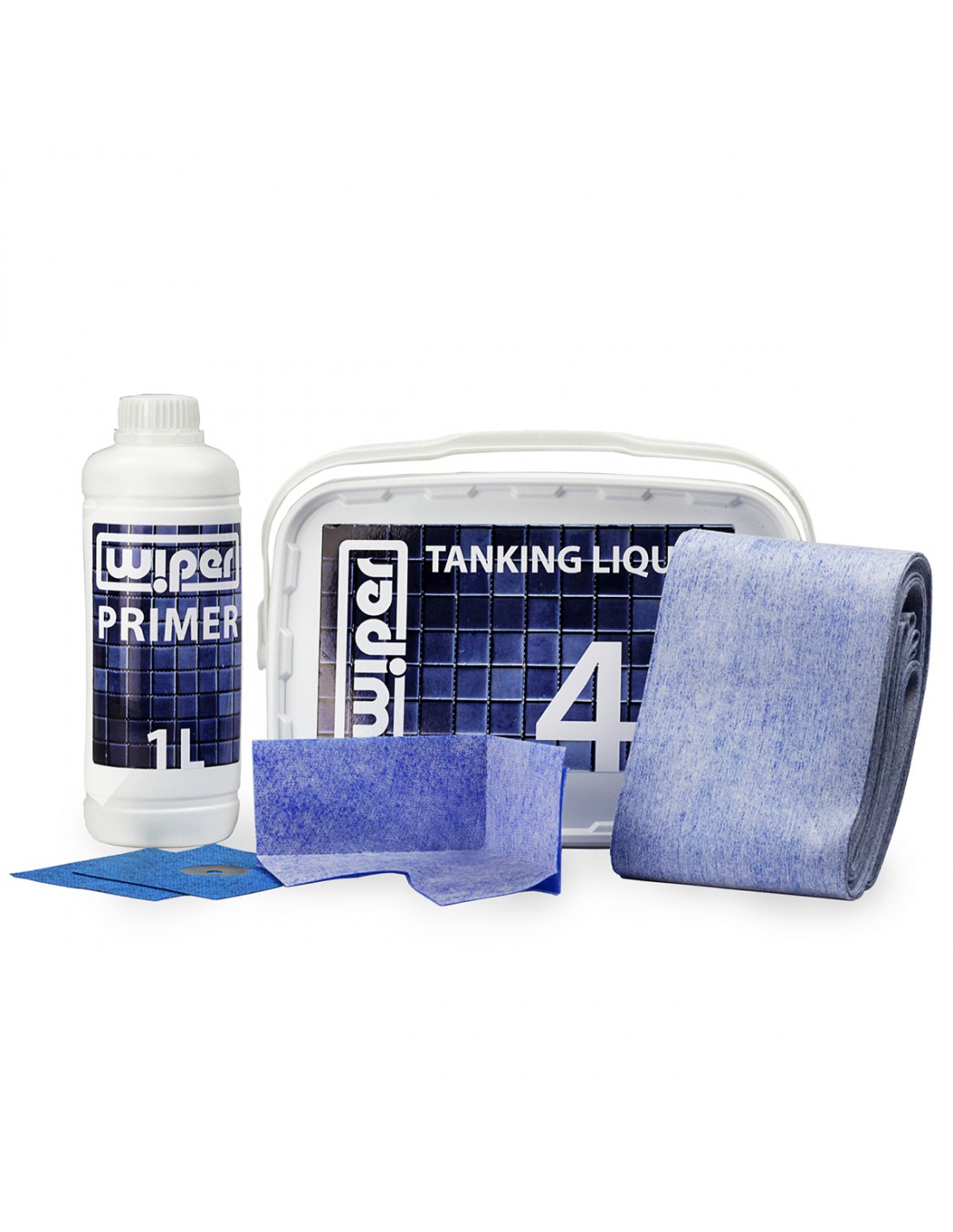

The tanking kit is a ready-mixed, under-tile tanking system to protect water sensitive substrates from exposure to water. Suitable for wet areas such as bathrooms, showers in residential buildings, hotels, old people's homes and hospitals. Should not be used in places exposed to pressurised water, for an instance swimming pools. Ready to use, no mixing required and easy to apply with a roller. The kit includes a high performance joint reinforcing tape to protect against movement in floor joins and corners etc. The contents are all INSIDE the bucket and the contents are protected in the bucket with polystyrene infill's to stop transit damage.The instructions are printed on the rear of the tanking kit.
For anti-moisture insulation systems in wet rooms and rooms intended for human residence. The tanking liquid is a ready-to-use singlecomponent, solvent-free sealant composed of polymer dispersion, fillers and modifying additives. When applied to the surface, upon binding it creates a flexible and water-insulating layer.
- 4kg Tanking Liquid
- 1l Primer
- 10 Metres flexible Sealing Tape
- 2 Flexible Pipe Collars
- 2 Corners
- Consumption to 1,2kg/m²
- Solvent free
- Drying time: 2h


The tanking liquid is a ready to use, single component, solvent-free sealant mass, consisting of polymer dispersion, fillers and additives. When applied to a substrate and cured, it forms a flexible waterproofing coating. The product is intended for use inside places intended for human residence, especially in humid areas (such as bathrooms, kitchens, laundries), to perform insulation against moisture under linings and coverings, such as ceramic tiles, glazed tiles, terracotta, wooden floors and panels, and synthetic carpets.
The product is intended for priming absorbent and porous surfaces, inside and outside buildings. It is especially recommended for cement - limestone plaster, gas concrete, plaster-carton boards and cement plaster. The primer has a high penetration ability, is deeply absorbed into the substrate, thus strengthening it, while allowing for „breathing”. These benefits improve the structure of the substrates, which, due to the passage of time, have lost their appropriate parameters. The priming solution improves adhesion to the surface of other materials that will be used on the primed substrate. By reducing the absorbency of the substrate, the wear of the applied coating materials, emulsion paints, glues, mineral putties reduces as well. The solution, due to the content of the biocide and fungicide, protects the primed substrate against the formation of mold and bacteria in the product.


Waterproofing Calculator
Optimize Your Waterproofing with Our Calculator – Accurate, Customizable, and Easy to Use. Get your waterproofing needs sorted with our advanced waterproofing calculator, designed for accuracy and ease of use. Whether you’re waterproofing a bathroom, kitchen, or any other room, our tool allows you to calculate your requirements in three different ways: by room dimensions, simple room coverage, or exact square meter needs. Additionally, you can exclude specific areas like doors and windows, or even calculate for multiple rooms at once. Our calculator provides a tailored list of necessary products, ensuring you get only what you need. Download your estimate as a PDF or add the items directly to your cart for a streamlined ordering experience.
Calculate Needed Waterproofing
The tanking kit is a ready-mixed, under-tile tanking system to protect water sensitive substrates from exposure to water. Suitable for wet areas such as bathrooms, showers in residential buildings, hotels, old people's homes and hospitals. Should not be used in places exposed to pressurised water, for an instance swimming pools. Ready to use, no mixing required and easy to apply with a roller. The kit includes a high performance joint reinforcing tape to protect against movement in floor joins and corners etc. The contents are all INSIDE the bucket and the contents are protected in the bucket with polystyrene infill's to stop transit damage.The instructions are printed on the rear of the tanking kit.
For anti-moisture insulation systems in wet rooms and rooms intended for human residence. The tanking liquid is a ready-to-use singlecomponent, solvent-free sealant composed of polymer dispersion, fillers and modifying additives. When applied to the surface, upon binding it creates a flexible and water-insulating layer.
- 4kg Tanking Liquid
- 1l Primer
- 10 Metres flexible Sealing Tape
- 2 Flexible Pipe Collars
- 2 Corners
- Consumption to 1,2kg/m²
- Solvent free
- Drying time: 2h


The tanking liquid is a ready to use, single component, solvent-free sealant mass, consisting of polymer dispersion, fillers and additives. When applied to a substrate and cured, it forms a flexible waterproofing coating. The product is intended for use inside places intended for human residence, especially in humid areas (such as bathrooms, kitchens, laundries), to perform insulation against moisture under linings and coverings, such as ceramic tiles, glazed tiles, terracotta, wooden floors and panels, and synthetic carpets.
The product is intended for priming absorbent and porous surfaces, inside and outside buildings. It is especially recommended for cement - limestone plaster, gas concrete, plaster-carton boards and cement plaster. The primer has a high penetration ability, is deeply absorbed into the substrate, thus strengthening it, while allowing for „breathing”. These benefits improve the structure of the substrates, which, due to the passage of time, have lost their appropriate parameters. The priming solution improves adhesion to the surface of other materials that will be used on the primed substrate. By reducing the absorbency of the substrate, the wear of the applied coating materials, emulsion paints, glues, mineral putties reduces as well. The solution, due to the content of the biocide and fungicide, protects the primed substrate against the formation of mold and bacteria in the product.


Waterproofing Calculator
Optimize Your Waterproofing with Our Calculator – Accurate, Customizable, and Easy to Use. Get your waterproofing needs sorted with our advanced waterproofing calculator, designed for accuracy and ease of use. Whether you’re waterproofing a bathroom, kitchen, or any other room, our tool allows you to calculate your requirements in three different ways: by room dimensions, simple room coverage, or exact square meter needs. Additionally, you can exclude specific areas like doors and windows, or even calculate for multiple rooms at once. Our calculator provides a tailored list of necessary products, ensuring you get only what you need. Download your estimate as a PDF or add the items directly to your cart for a streamlined ordering experience.
Calculate Needed Waterproofing
