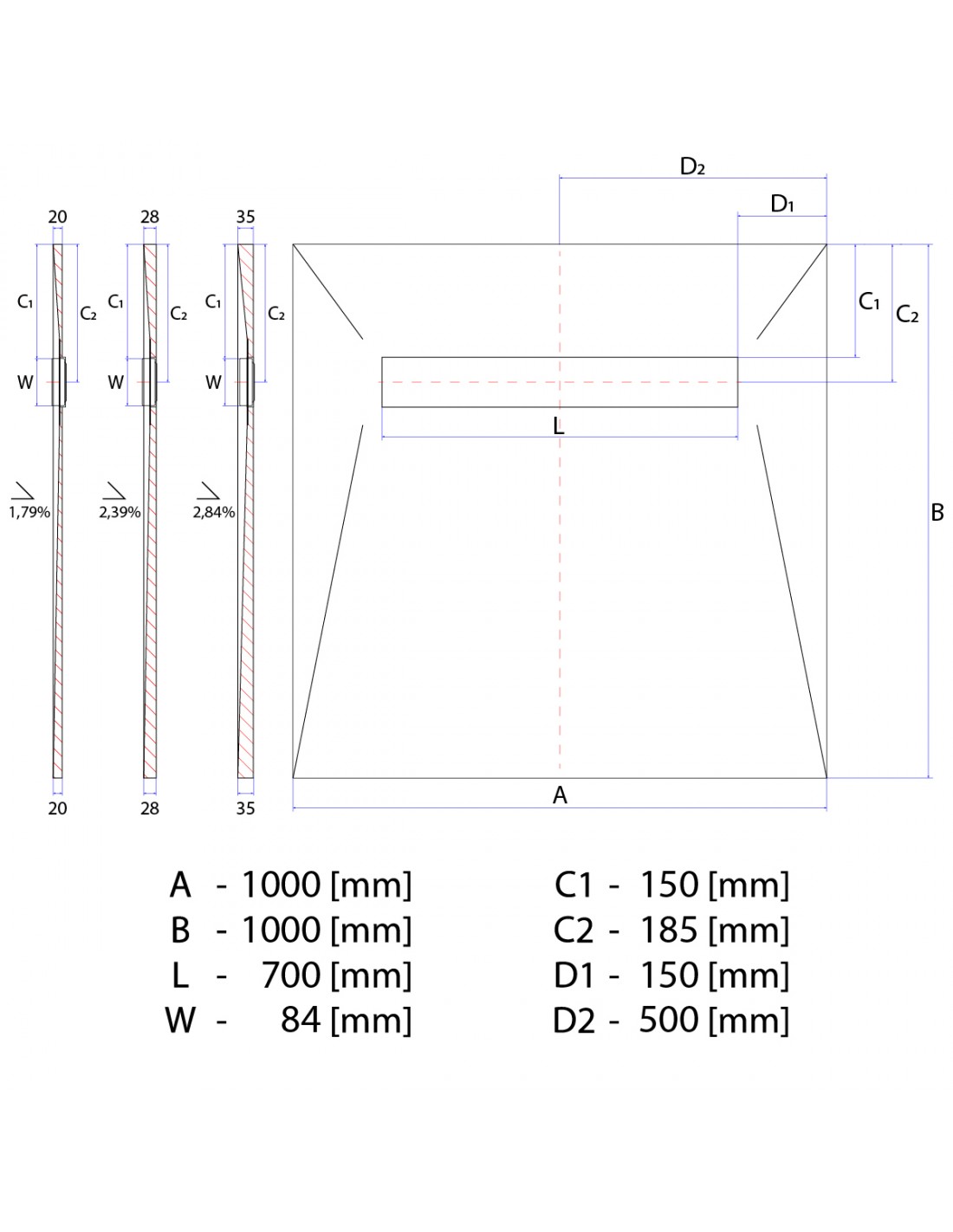

Technical diagram: Showerlay Wiper 1000 x 1000 mm Elite PVD Sirocco Brass

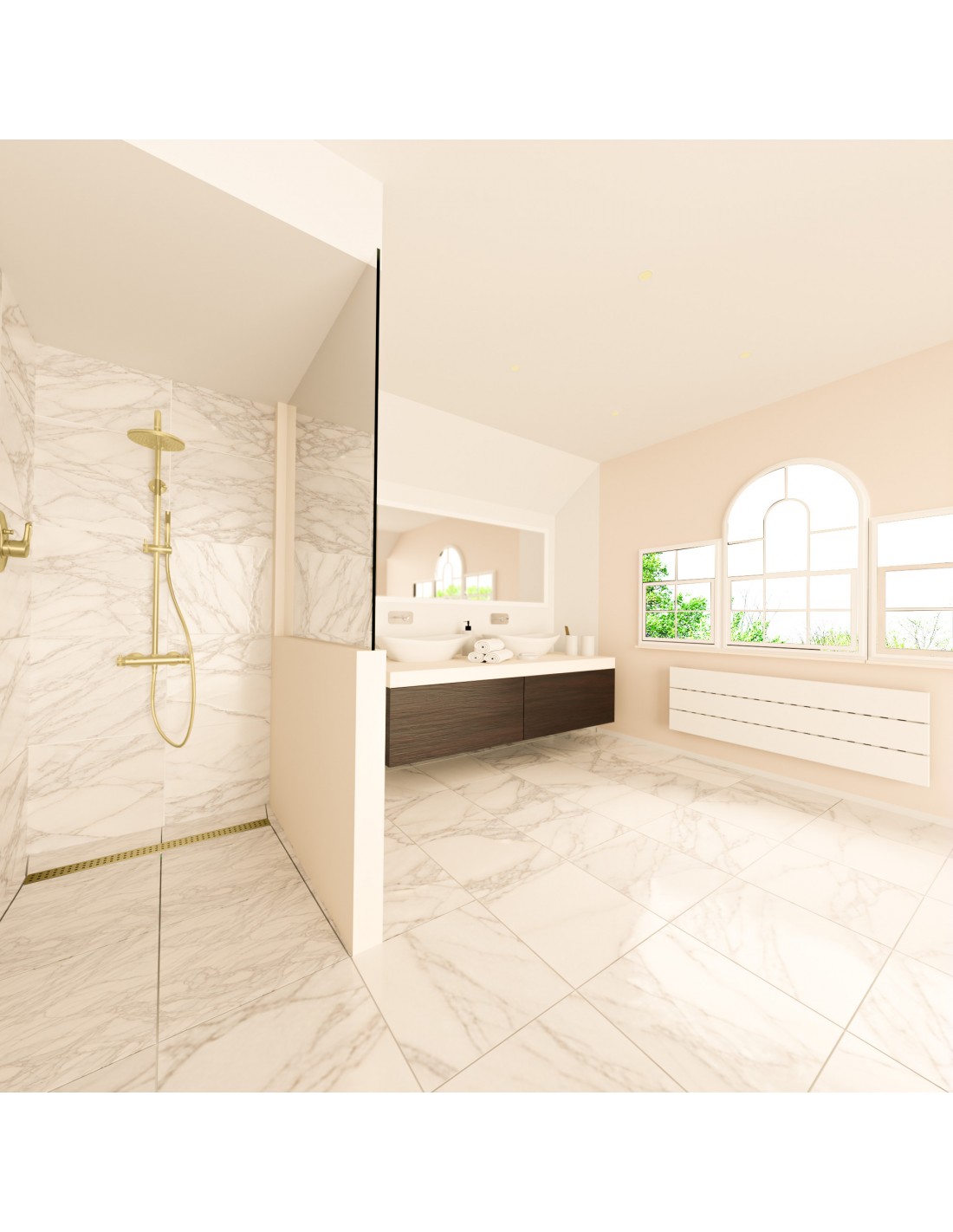

Bright bathroom concept with open shower area, finished with large-format tiles accessories in Brass

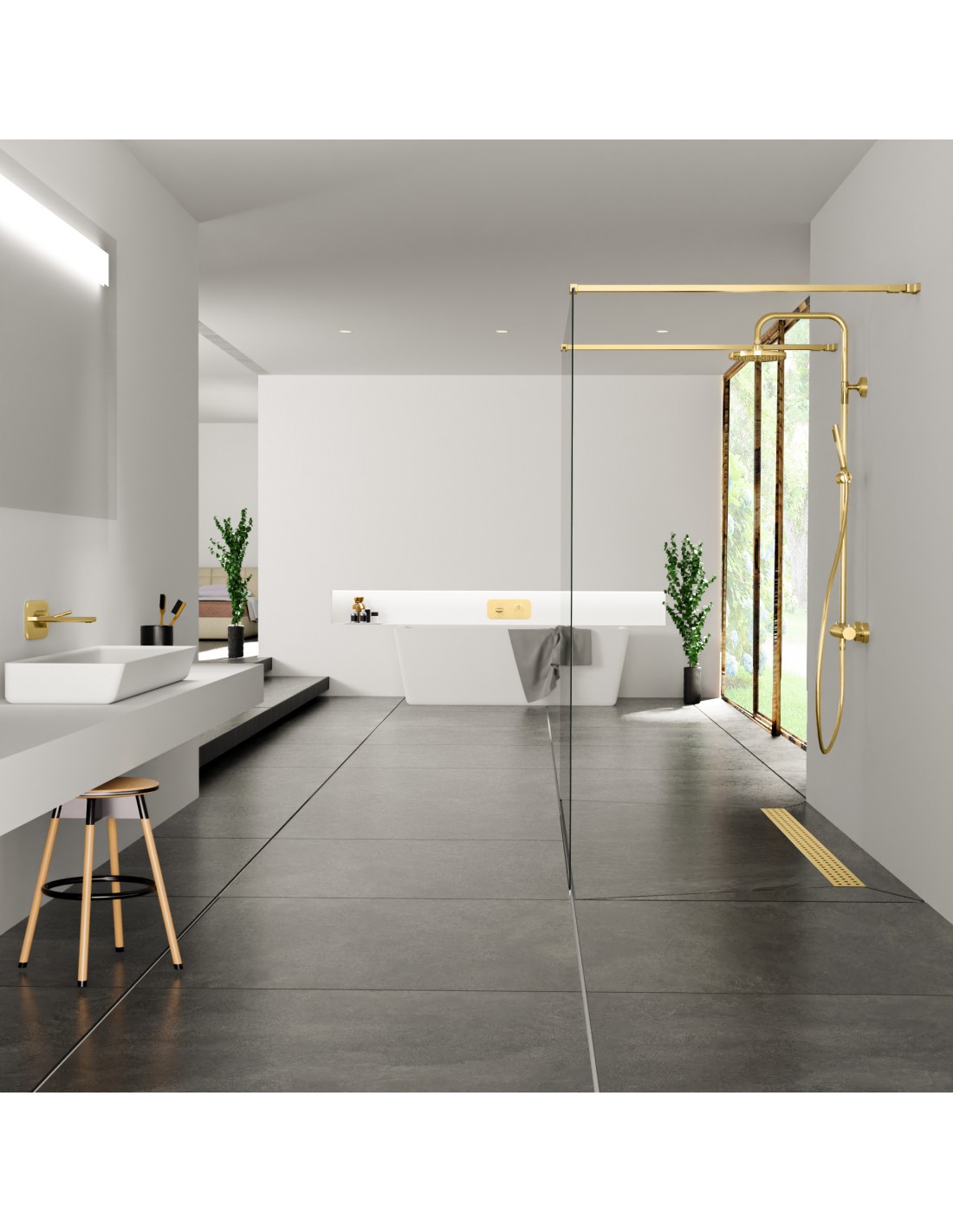

Luxurious bathroom in black and white color scheme including a walk-in shower in the middle of the room
Aesthetic bathroom in blue-grey with a spacious double shower and fittings in Brass

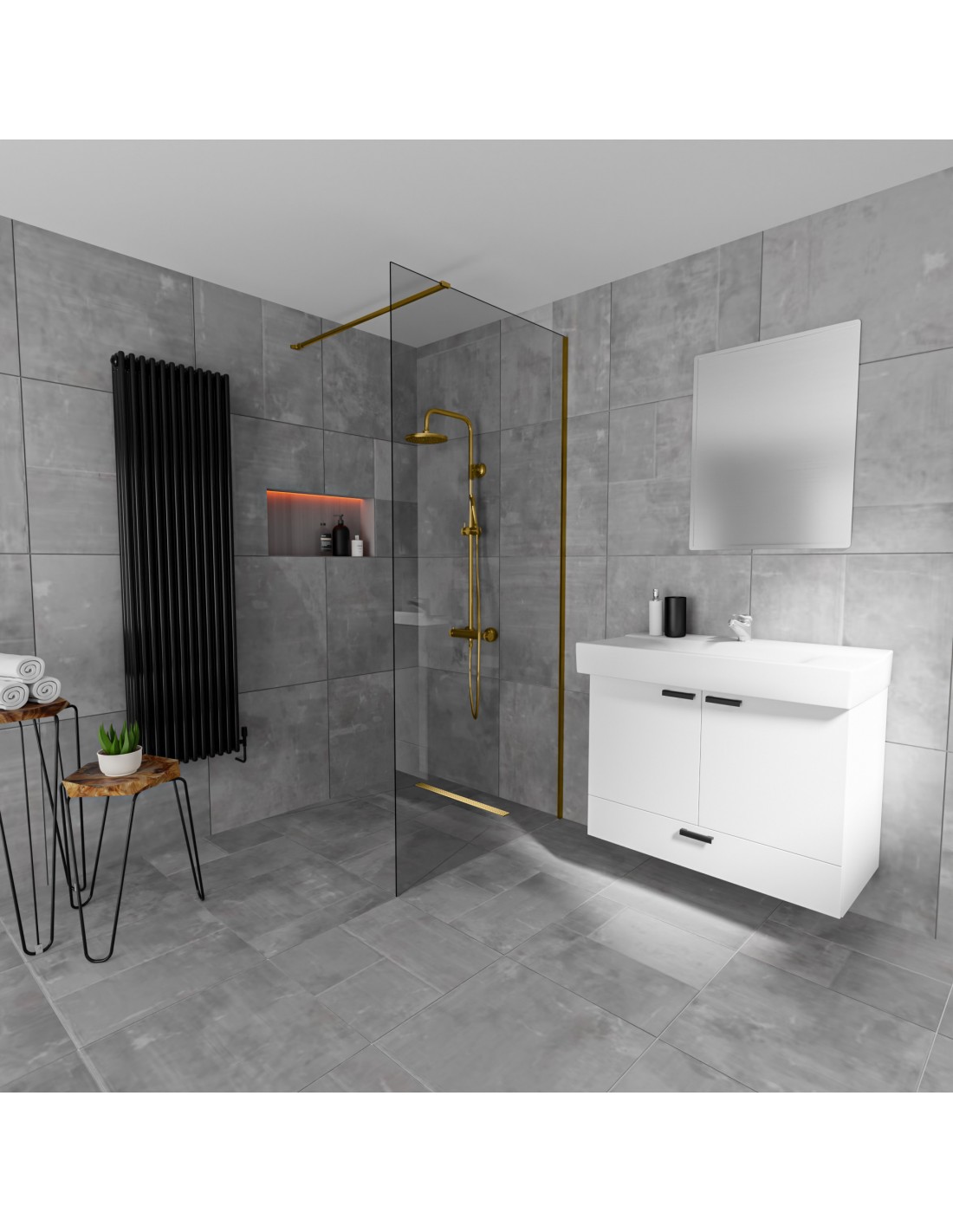

Timeless bathroom in washed-out gray and a walk-in shower area with linear drain in Brass

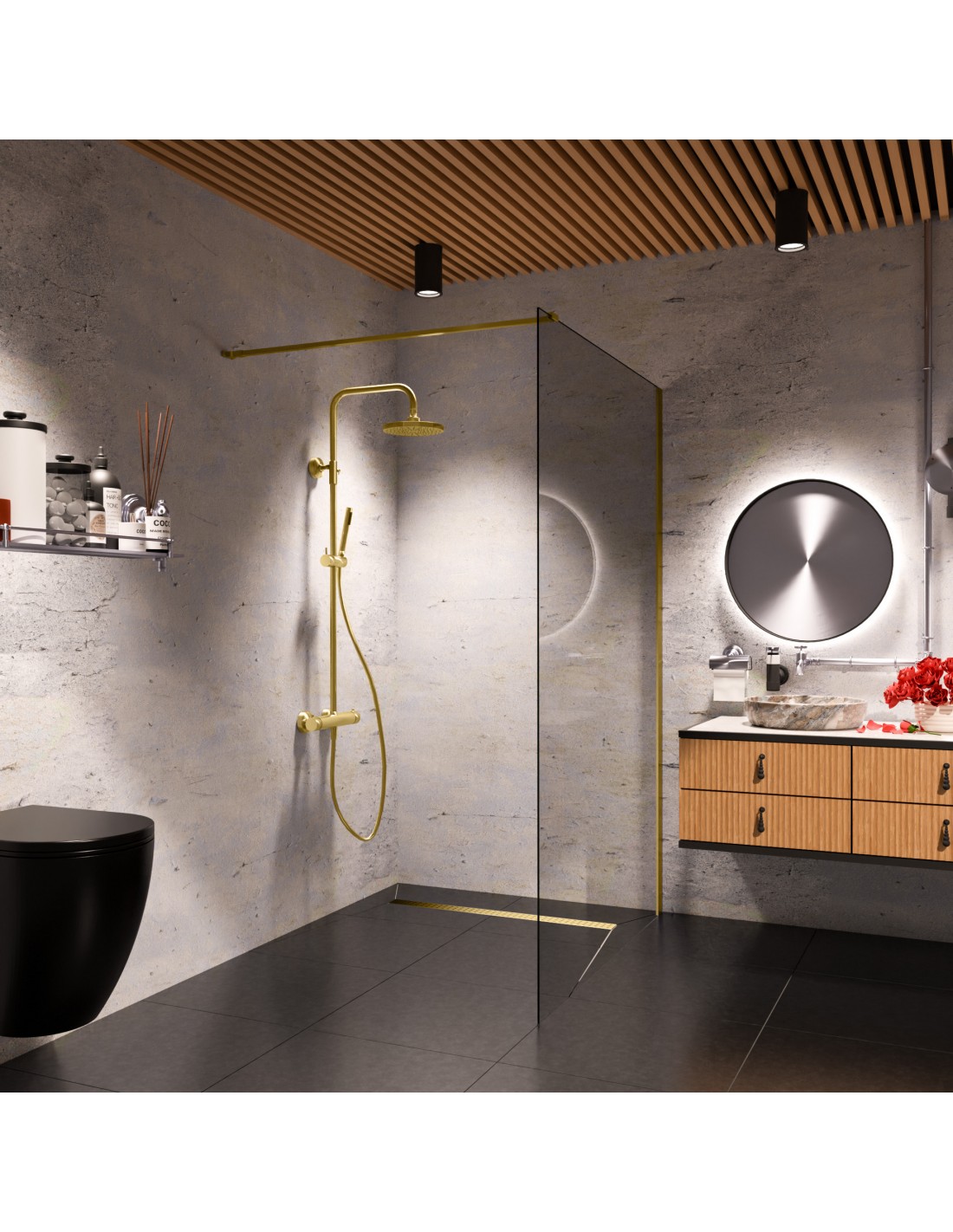

Bathroom inspiration in a dark colour concept combined with warm wooden elements and fittings in Brass

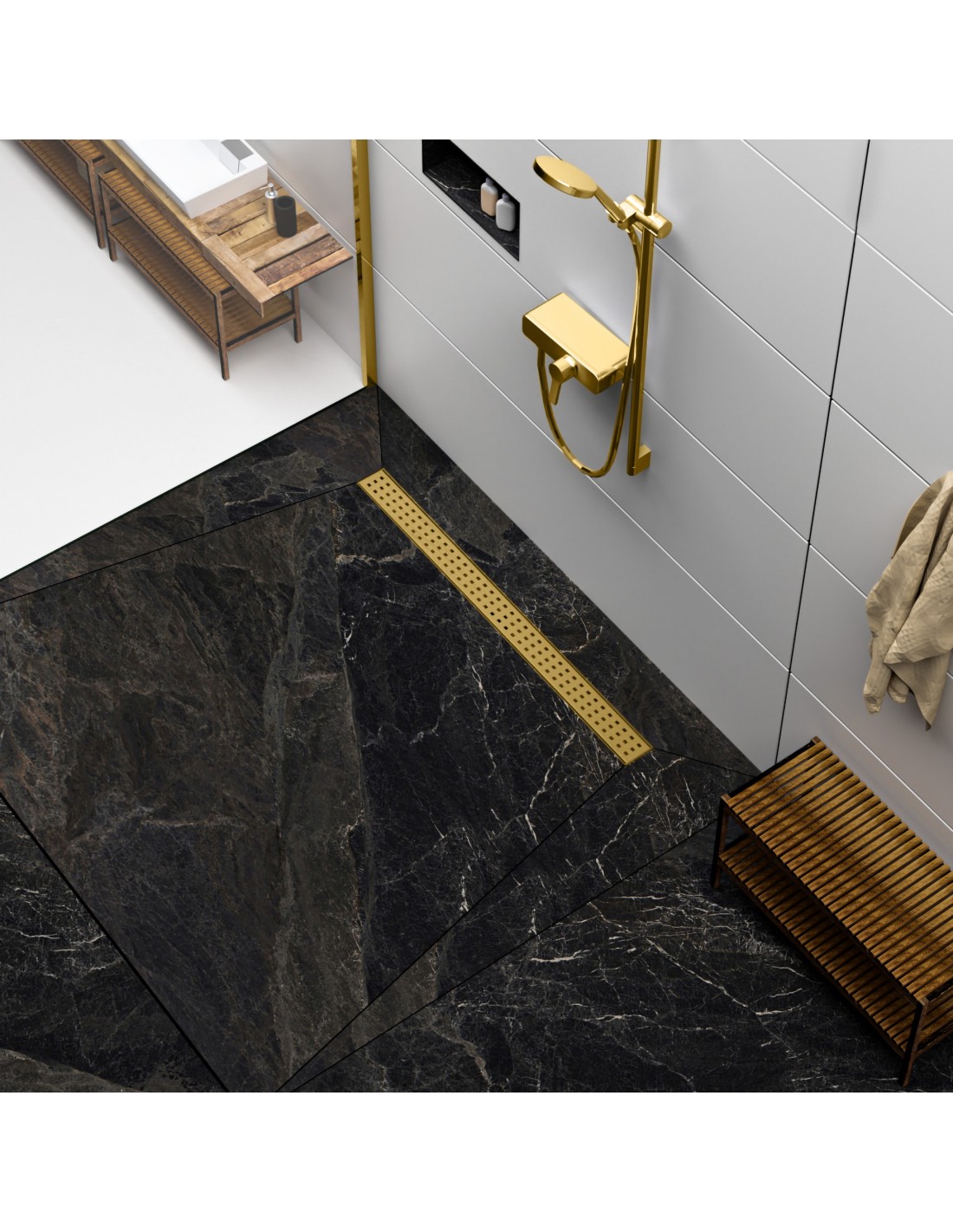

Modern shower area with black marble-look tiles and shower channel and fittings in Brass
Modern Minimalist Wet Room with Showerlay Elite PVD Sirocco Brass, showing installation layers

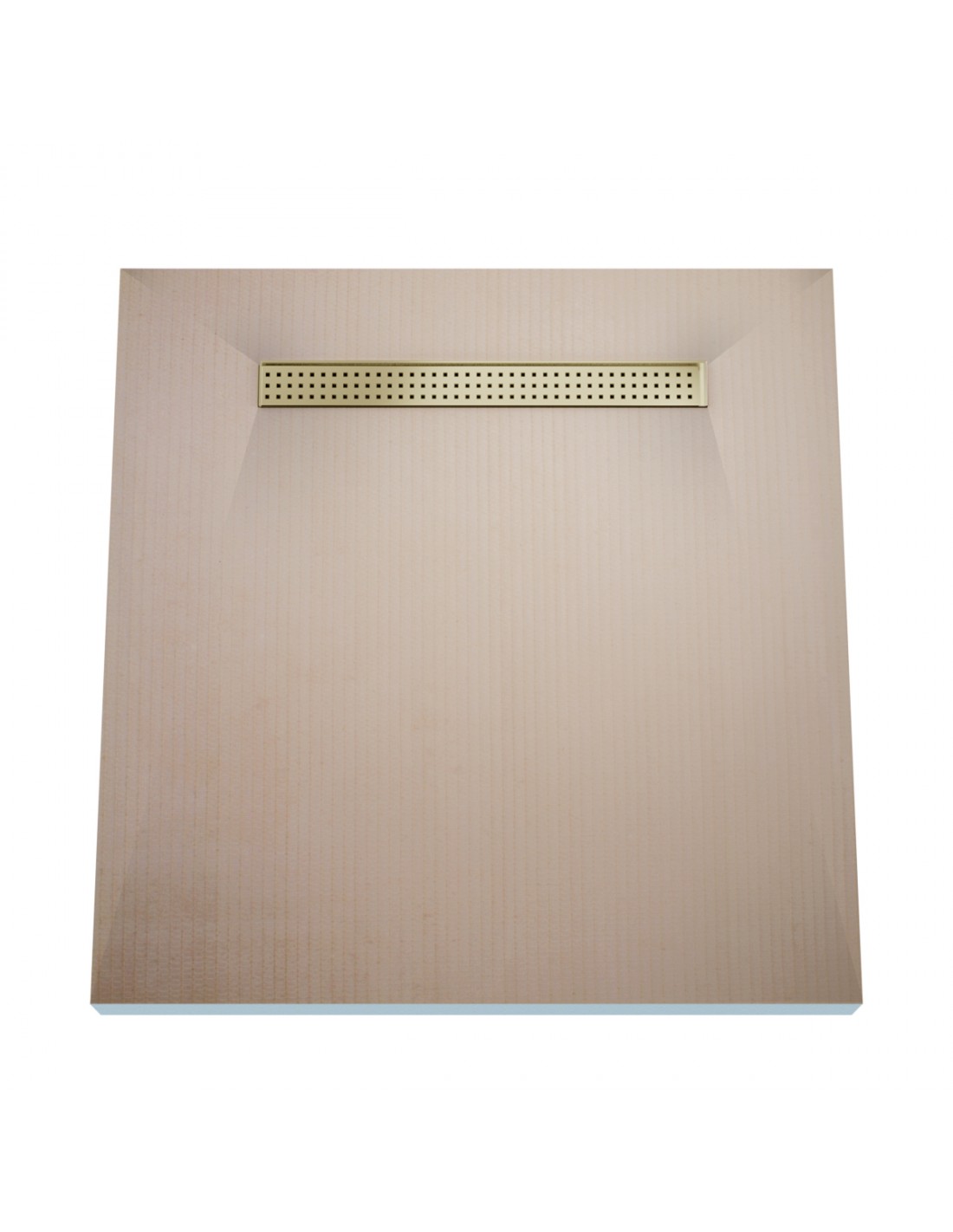

Ready-for-installation wet room tray with integrated linear drain and efficient 4-way slope

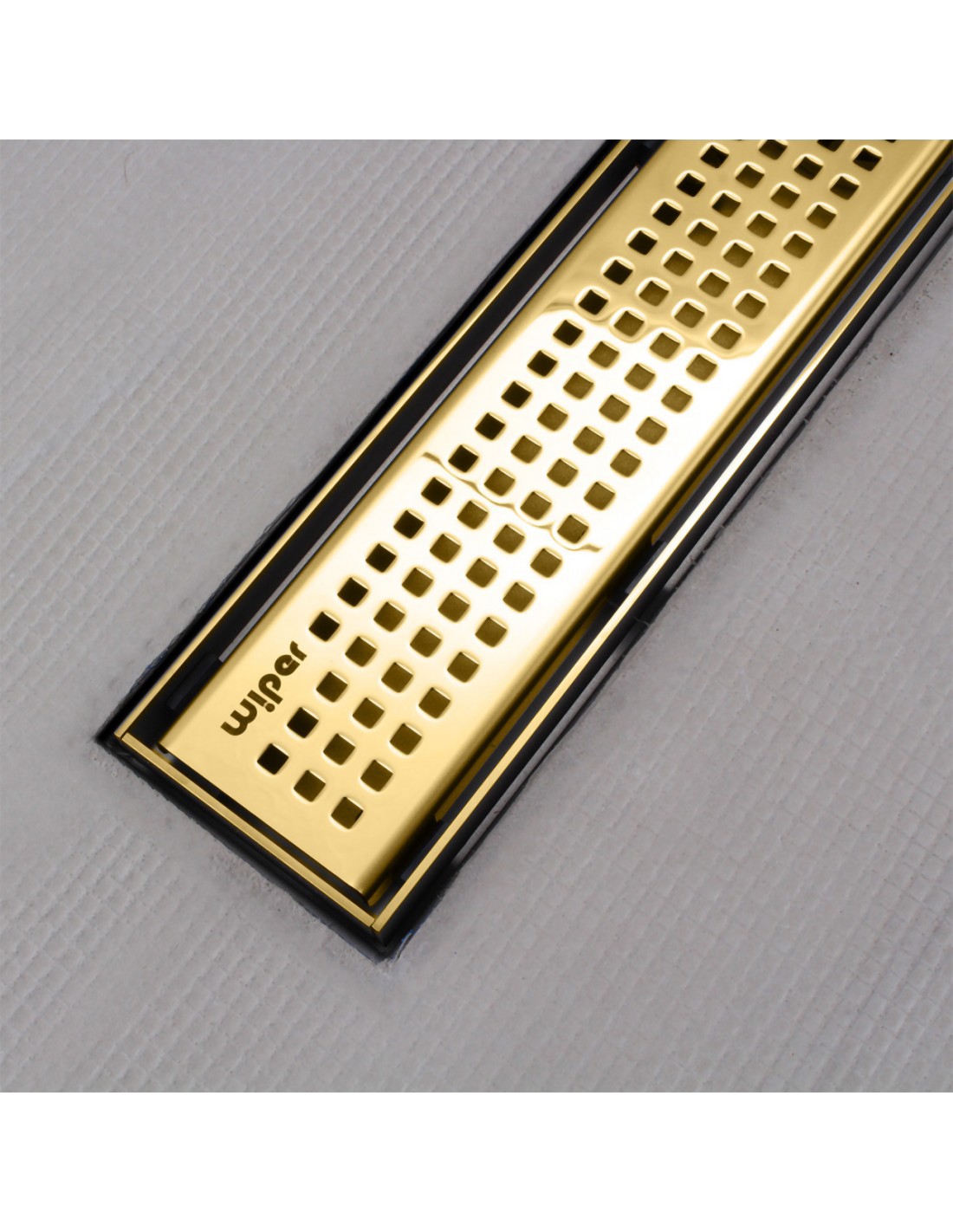

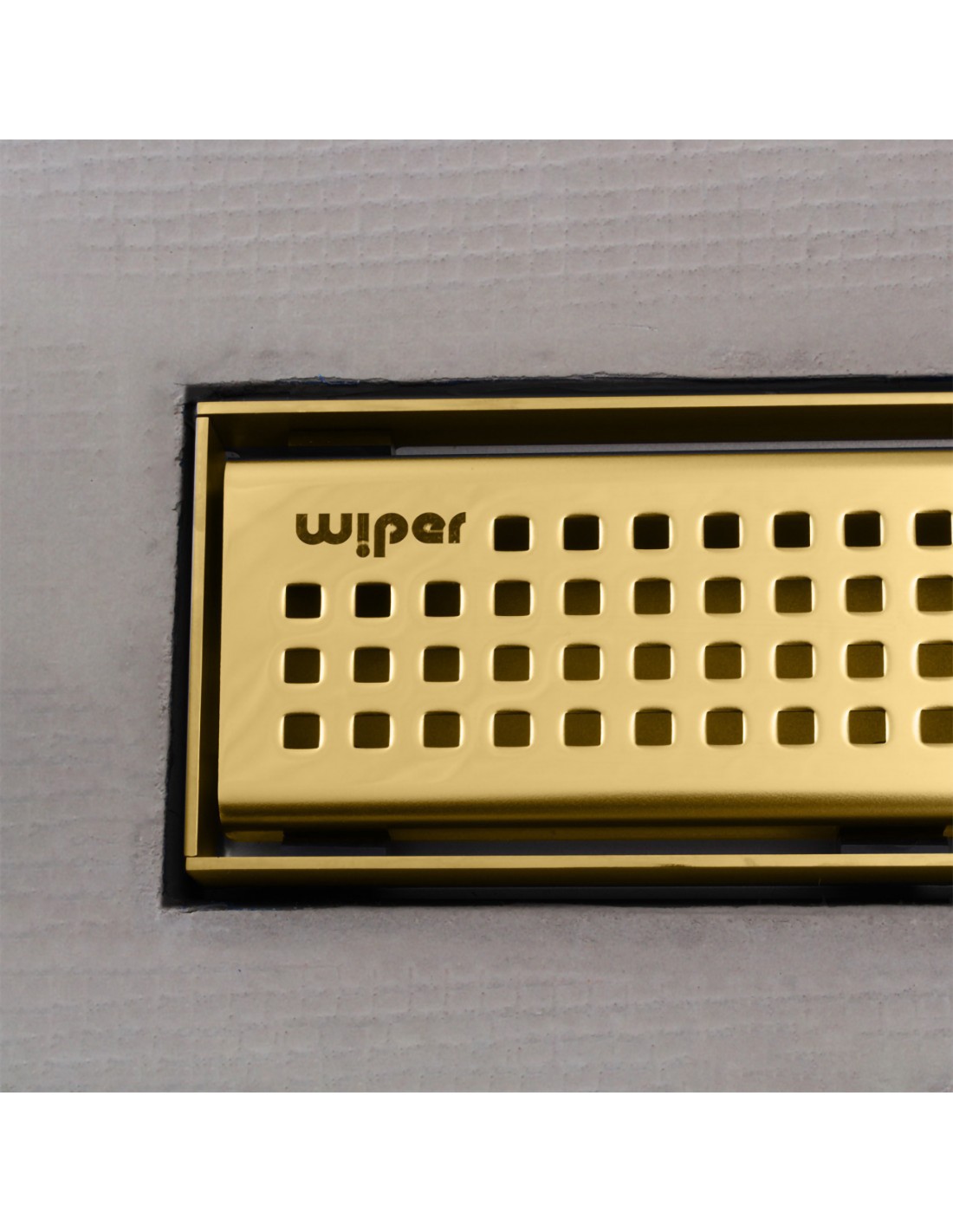

Close up on integrated Brass linear drain with matching Sirocco cover

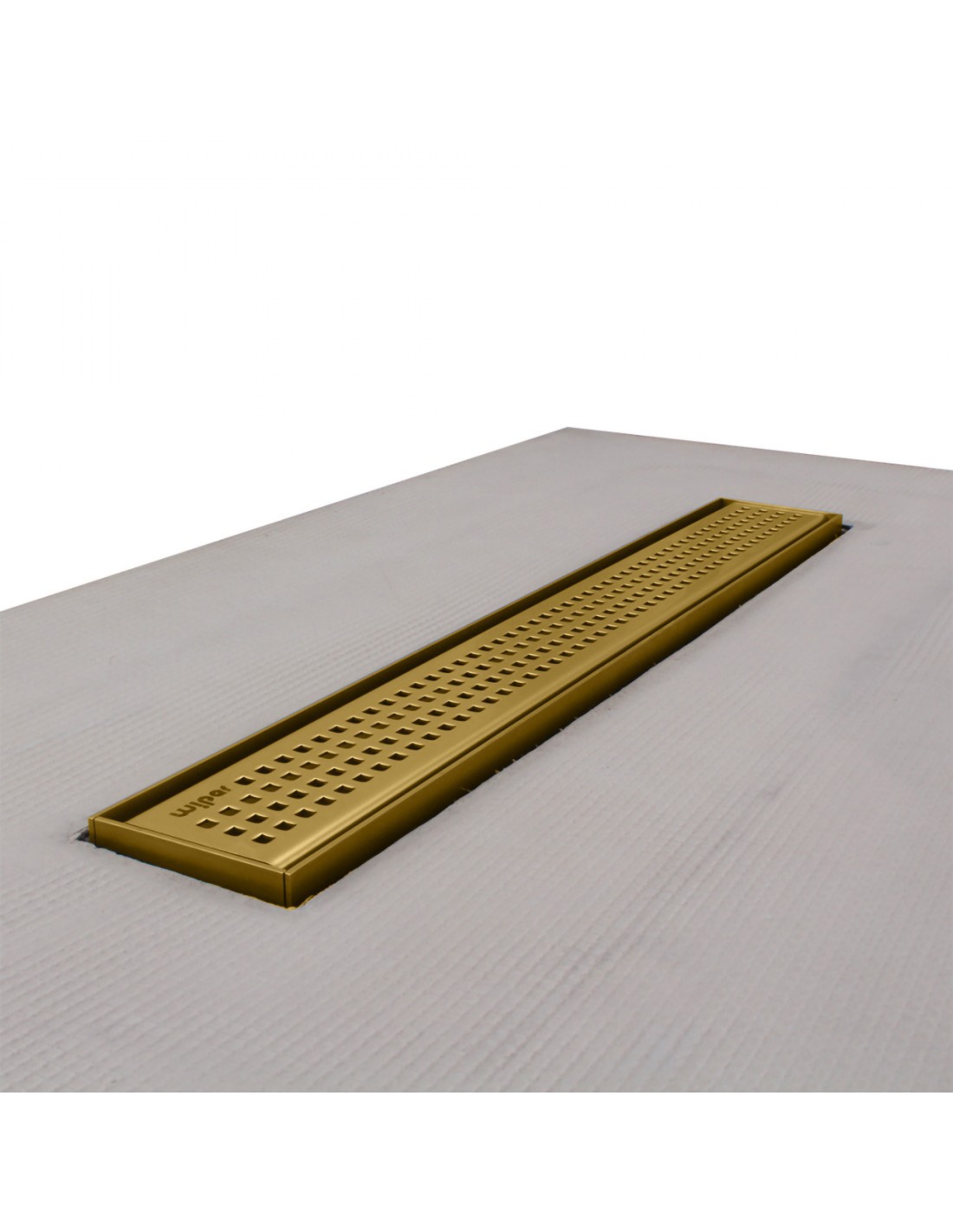

Shower tray with integrated Brass linear drain and matching elegant cover Sirocco
Highly precised integrated linear channel with non-visible flushed steel flange for maximalized sealing

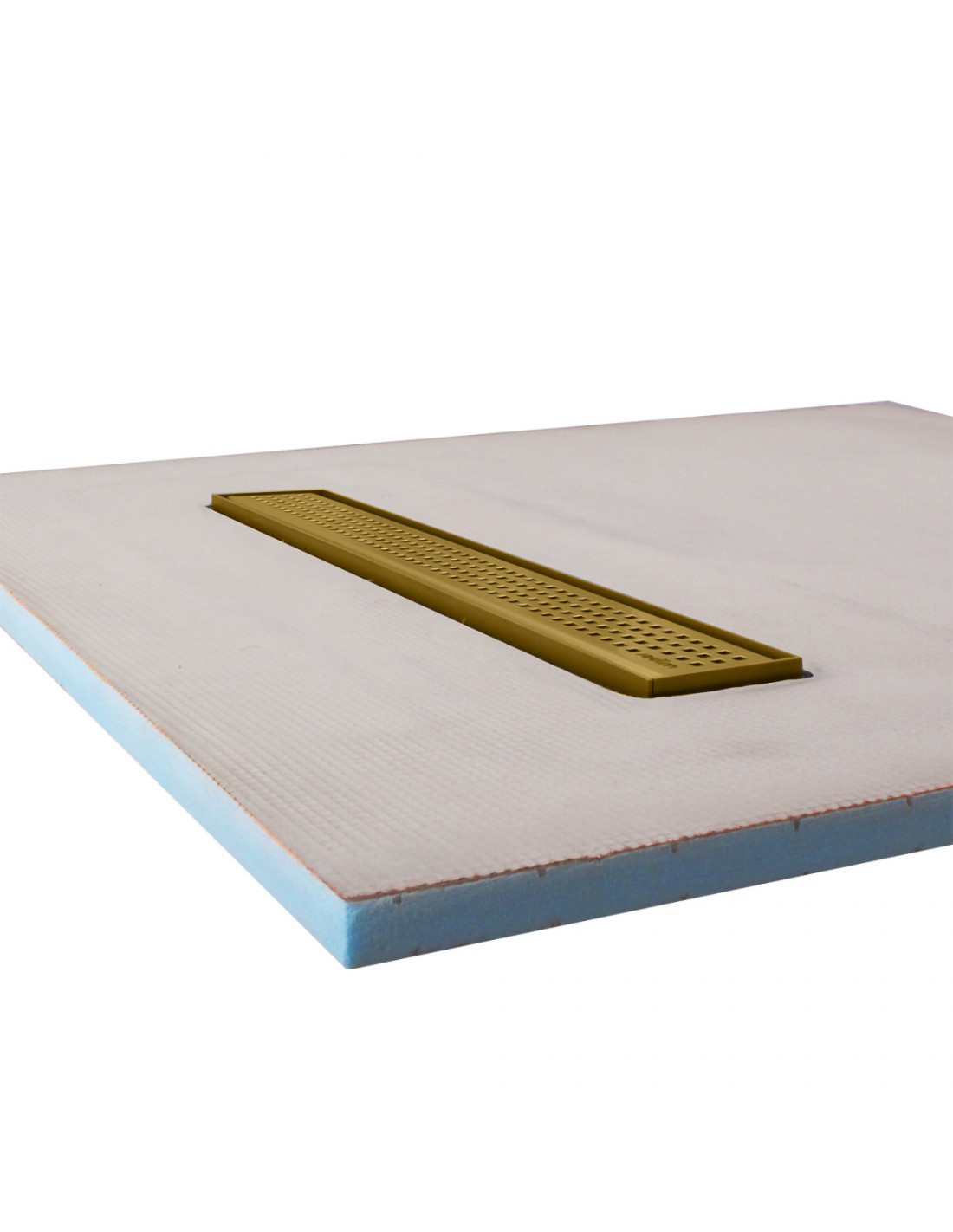

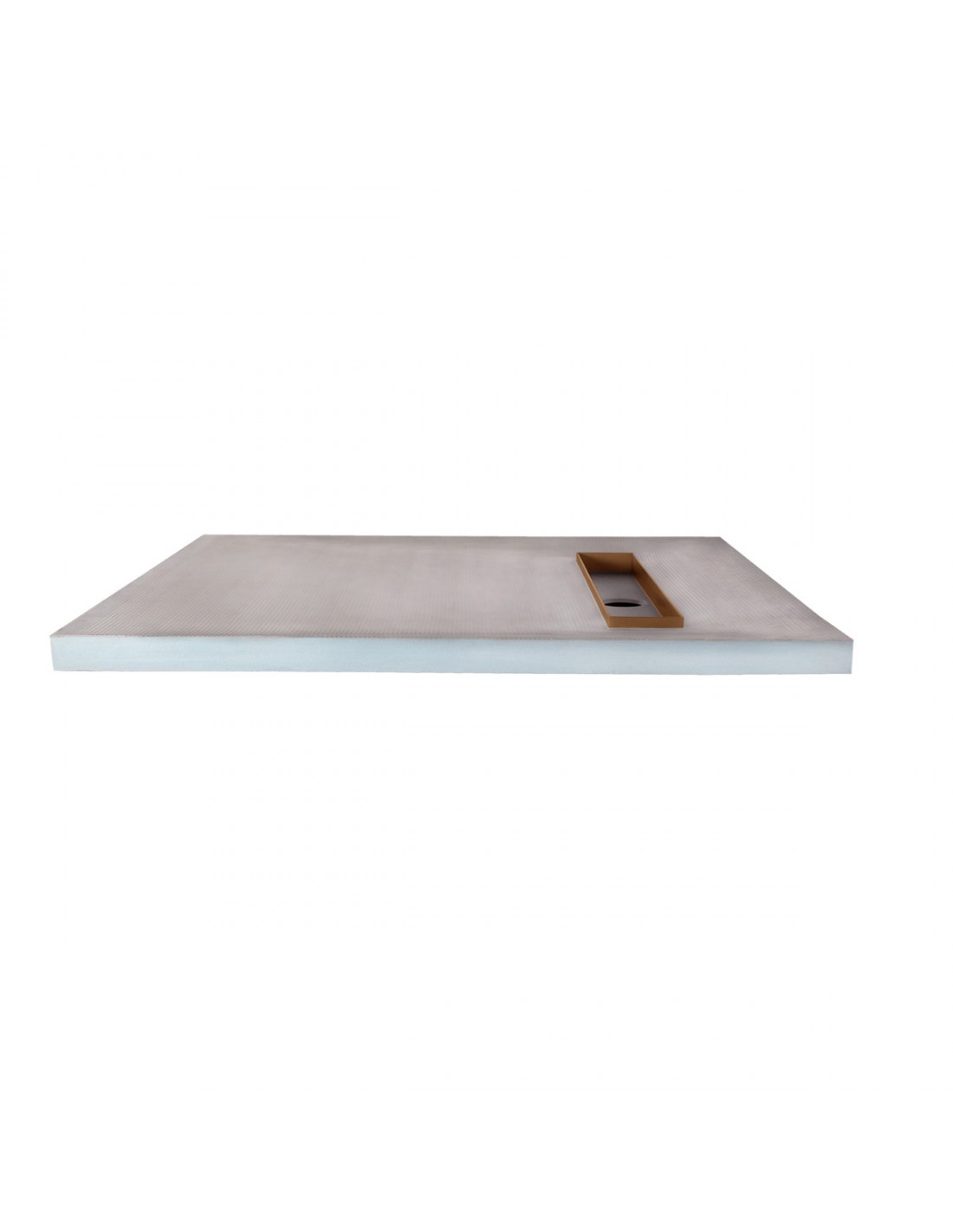

Side view of shower tray with integrated 700 mm Brass linear drain and Sirocco cover

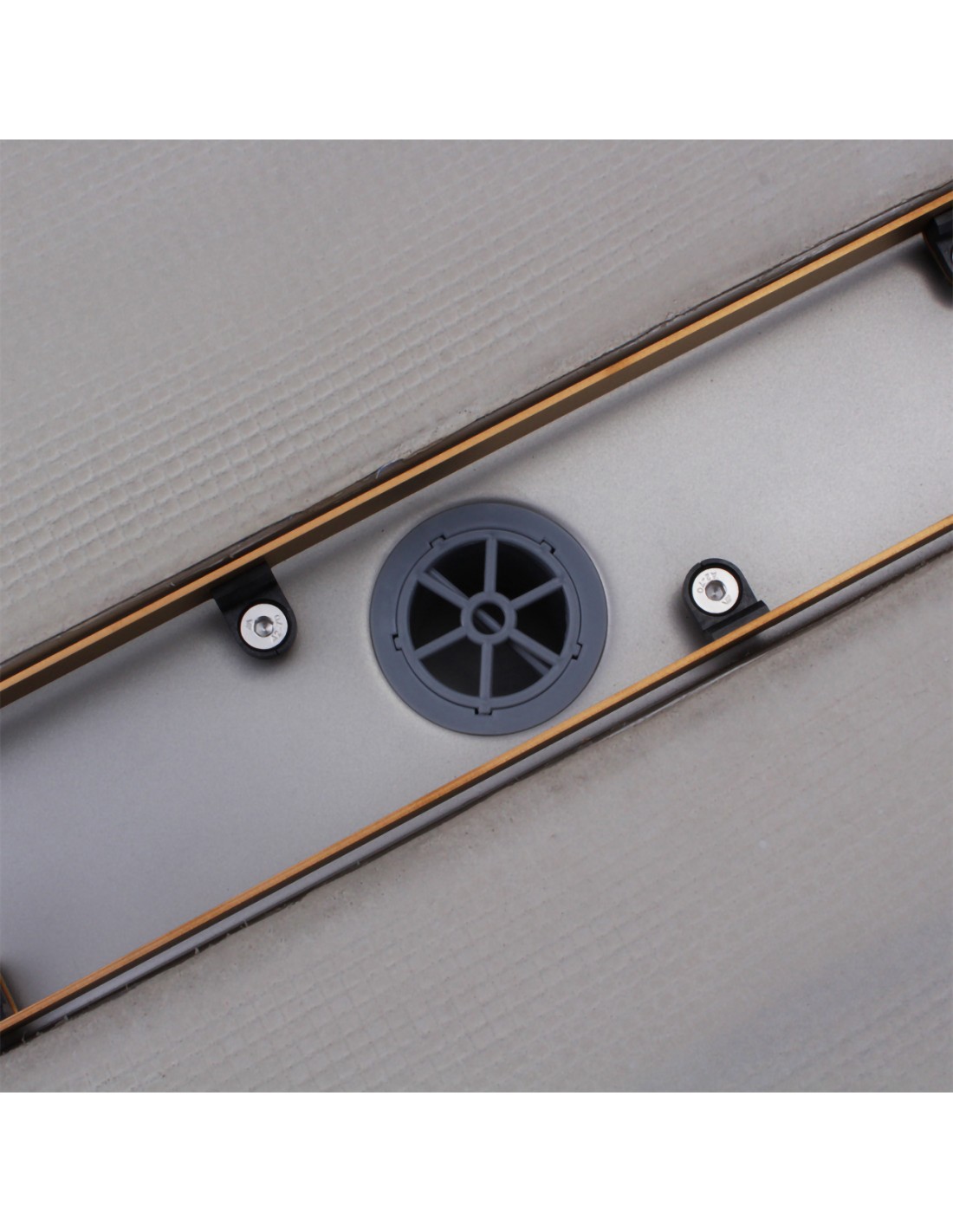

Stainless steel drain body without cover, revealing a centered outlet and adjustable frame for different tile thicknesses
Close up on the drain channel with secondary drainage system and adjustable frame for different tile thicknesses

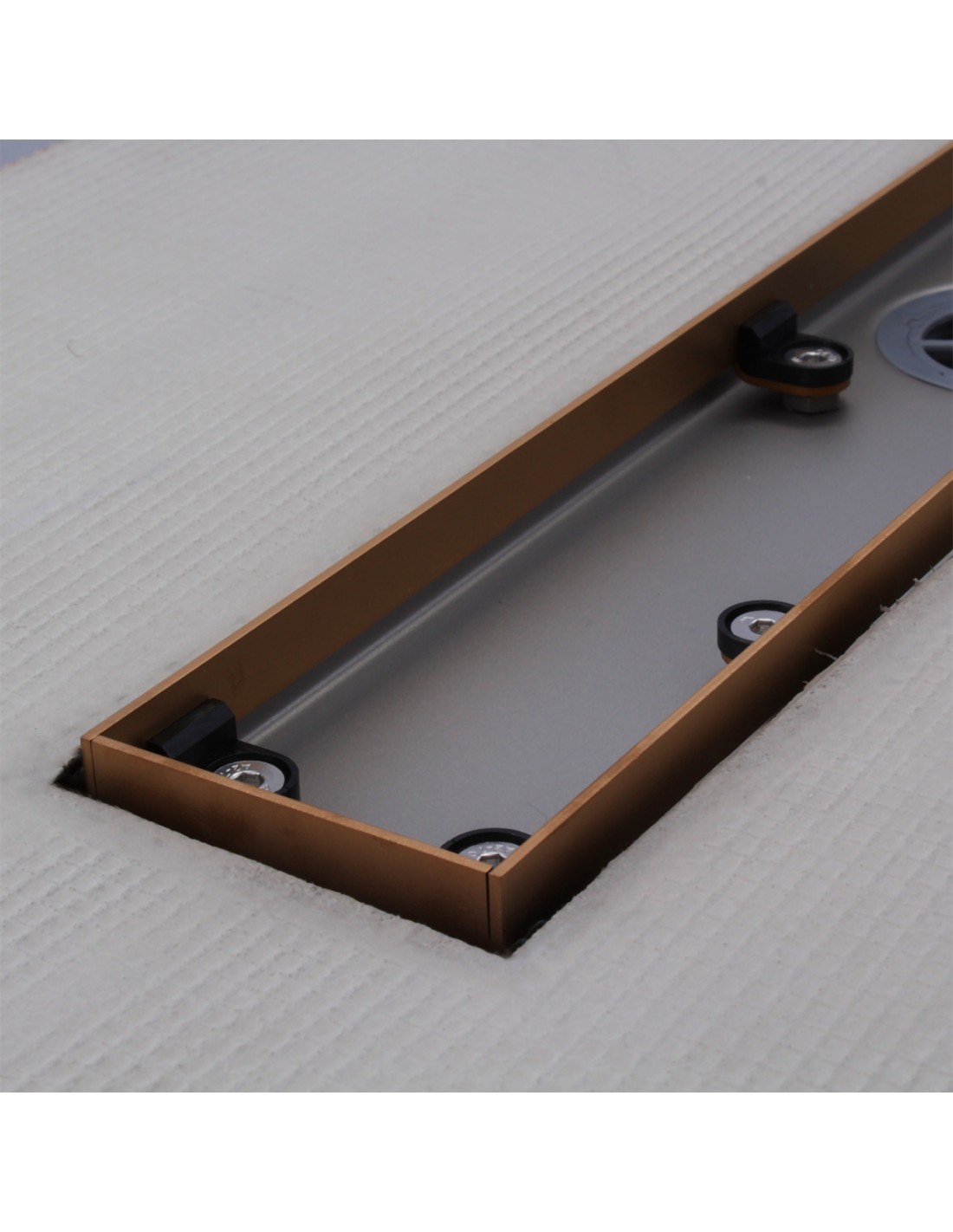

View of carefully installed 700 mm Brass linear channel without cover
3 Standard Thicknesses Available - the thicker the tray, the better the slope and insulation (20, 28, 35 mm)

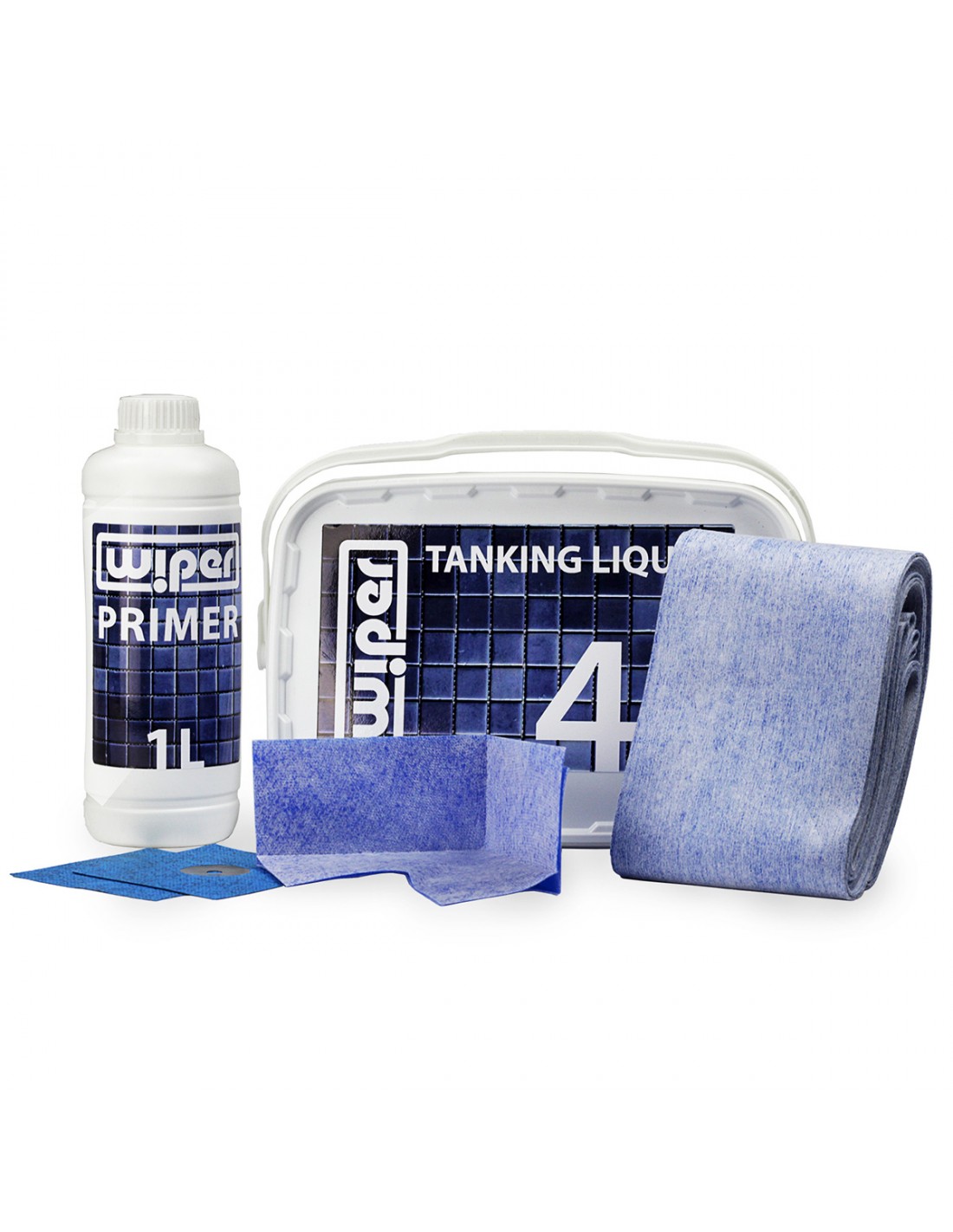

Wiper shower waterproofing kit incl. primer, tanking liquid, sealing tape, sealing corners and flexible pipe collar

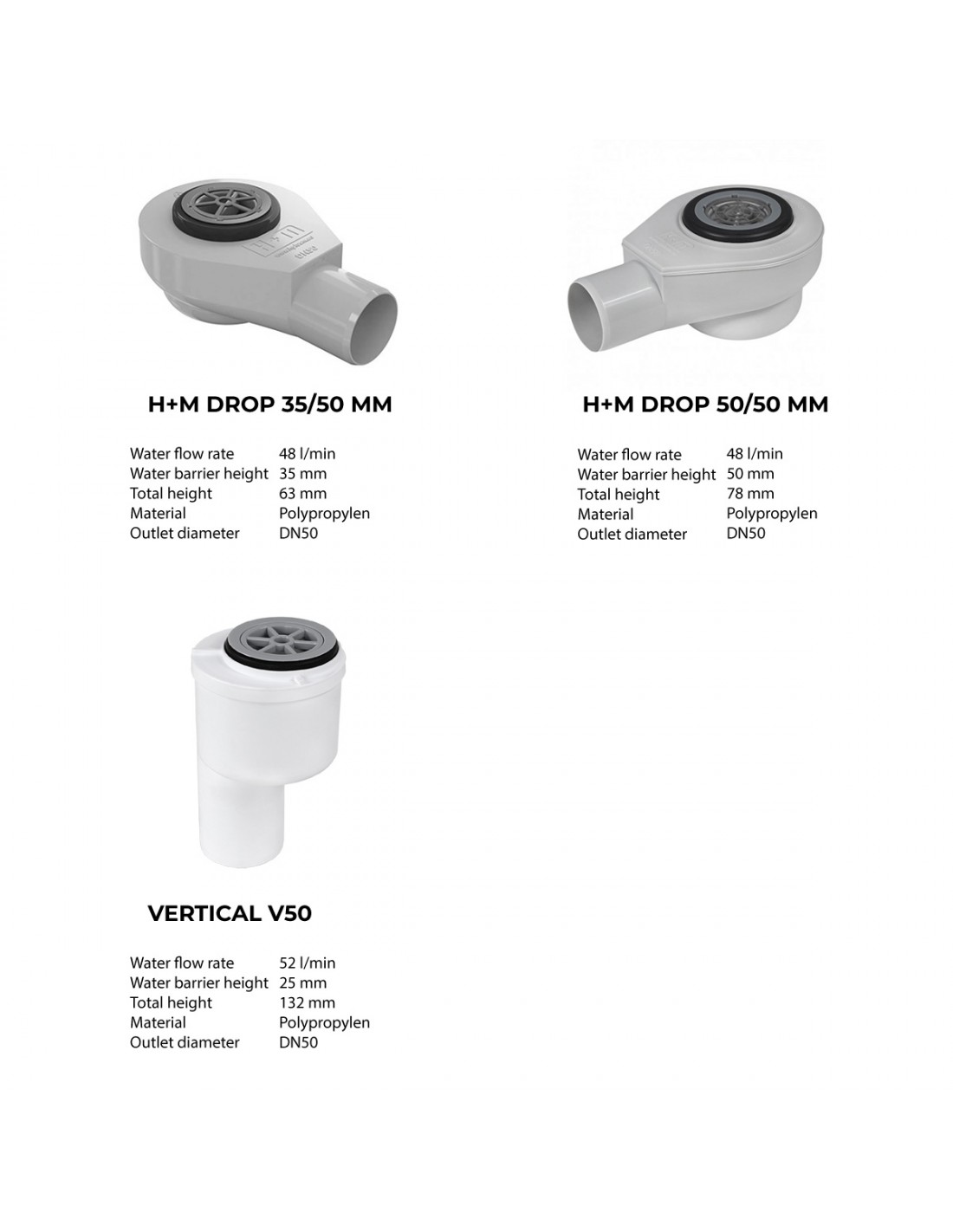

Different syphons by choice (vertical or horizontal outlet), included in set
Wet Room Kit: Shower Tray with 4-way slope towards the drain, Drain Cover Sirocco Brass, including Waste Trap
Technical diagram: Showerlay Wiper 1000 x 1000 mm Elite PVD Sirocco Brass
Bright bathroom concept with open shower area, finished with large-format tiles accessories in Brass
Luxurious bathroom in black and white color scheme including a walk-in shower in the middle of the room
Aesthetic bathroom in blue-grey with a spacious double shower and fittings in Brass
Timeless bathroom in washed-out gray and a walk-in shower area with linear drain in Brass
Bathroom inspiration in a dark colour concept combined with warm wooden elements and fittings in Brass
Modern shower area with black marble-look tiles and shower channel and fittings in Brass
Modern Minimalist Wet Room with Showerlay Elite PVD Sirocco Brass, showing installation layers
Ready-for-installation wet room tray with integrated linear drain and efficient 4-way slope
Close up on integrated Brass linear drain with matching Sirocco cover
Shower tray with integrated Brass linear drain and matching elegant cover Sirocco
Highly precised integrated linear channel with non-visible flushed steel flange for maximalized sealing
Side view of shower tray with integrated 700 mm Brass linear drain and Sirocco cover
Stainless steel drain body without cover, revealing a centered outlet and adjustable frame for different tile thicknesses
Close up on the drain channel with secondary drainage system and adjustable frame for different tile thicknesses
View of carefully installed 700 mm Brass linear channel without cover
3 Standard Thicknesses Available - the thicker the tray, the better the slope and insulation (20, 28, 35 mm)
Wiper shower waterproofing kit incl. primer, tanking liquid, sealing tape, sealing corners and flexible pipe collar
Different syphons by choice (vertical or horizontal outlet), included in set

Showerlay Wiper 1000 x 1000 mm Elite PVD Sirocco Brass

Wet Room Tray Kit 100 x 100 cm for tiled floor with integrated Brass Linear Shower Drain in brushed, polished or matt finish, including waste trap and square pattern drain cover Sirocco

The wet room Kit Showerlay Wiper 1000 x 1000 Elite Sirocco Brass is a walk in shower tray with a linear drain. Designed to be suitable for various thicknesses of tile finishes and gives your wet room a stylish elegant look. This tray comes in multiple sizes, three different thicknesses, and can be trimmed to size if needed.

This tray has amazing acoustic and insulation properties, whilst being lightweight and also very strong. Depending on the size of the tray means you can have an estimated 1%-2% gradient fall. The advanced grating in this tray comes in four different colours and has seven different grating options. A selection of three waste traps are also available with this tray, each with different dimensions and flow rate capacity.

The integrated advanced 700 mm Elite Sirocco Brass linear drain system for this tray is unique because it has a secondary drainage channel, meaning if any water were to pass under the tiles, this drain is capable of collecting it. It also allows this integrated system to have the height set from 8 mm up to 50 mm to accommodate the thickness of your tile floor finish. The channel is 700 mm in length and 82 mm in width. It also has a slot grate 12 mm deep that allows tiles no thicker than 10 mm thick to be used in the grill cover. If your tile is thicker, you could possibly reduce the thickness by grinding.

Product Type
  • Showerlay Line Elite

Consider your floor finish type — tiles, micro cement, or vinyl — choose a finish that complements your bathroom style. Evaluate dimensions and features to match your requirements.

Tray size

Showerlay is a wet room tray available in 14 standard sizes. The drain is located parallel to the shorter edge. A larger tray offers more space for greater comfort. Your tray size should be chosen to match room and enclosure size. Our trays can be trimmed down to size or to avoid obstacles.

Drain Cover
  • Sirocco

There are 7 drain cover patterns available. The flow rate is the same for all of them. They are interchangeable and can be swapped even after installation. Each drain sent out is equipped with a lifting hook which makes cleaning easy.

Drain Colour
  • Brass

The visible parts of the drain after installation, the frame and cover,can be supplied in different colours. Thanks to PVD coating, which offers high durability and resistance to discolouration, fading or braking down, you can get a drain that will match the rest of your fixtures.

Surface Finish
  • Brushed

There are 3 steel surface finishes available. The Matt finish is a uniform, slightly rough dull finish. The Brushed is a grind steel-smooth finish with visible , one directional brush stroke across the finished surface. The Polished finish is a high gloss, No. 8 mirror finish.

Thickness
  • 20 mm

The trays thickness is measured at the outer perimeter. The slope is cut into the tray from the outside toward the drain. The thicker the tray the more noticeable the slope becomes. Also the thicker the XPS foam, the better acoustic and thermal insulation it provides.

Waste Trap
  • McAlpine HC26-50

Before choosing, you should measure your available installation height. Especially in old flats or builds, where the space is limited, a lower height waste is recommended. As long as you have the space, you could choose one of the higher traps, which also offer high flow rate and better water seal. The following applies to the sealing water: 1 cm of sealing water recedes after approx. one week. Thus, for example, if you choose the "Drop 50", unpleasant odours remain sealed for about 5 weeks.

Thickness

Thickness of the board on the edges. It has 2% gradient on the entire upper surface and is shallower near the drain. The benefit of thicker tray is steeper slope, although even the shallowest trays have sufficient slope for water to flow towards the drain, no matter where it drops.

Waste trap
Drain finish
Waterproofing kit

Waterproofing kit is used to seal shower tray as well as connections between walls and floor. It is recommended for concrete and mandatory for timber flooring. Each kit contains 4kg tanking liquid, 1l primer, 10m sealing tape, 2 corners, 2 pipe collars. One kit covers 3 m² with 2 coats. Waterproofing kit

Underfloor heating kit

Complete Sunfloor Underfloor heating set, including mat, Wi-Fi thermostat, floor sensor and fitting instructions. Fully suitable with our other products. Advanced thermostat with and iOS/Android app allows to set desired temperature of the floor from distance as well as create schedules.
Complete Sunfloor Underfloor heating set

Tile Backer boards

Tile backer boards are used to create the perfect substrate to tile onto in wet rooms and bathrooms. Superior to cement boards and plywood, due to its waterproof and thermal insulation properties. Tile backer boards

Shower screen

The Wiper Verre Shower Screen is one of Wiper's new shower enclosures. It is available in multiple standard sizes making it fit in small and large wet rooms. Black and silver options make it looks minimalistic and modern. Perfect choice for any wet room upgrade. Made of 8 mm toughened clear glass with Active Shield coating, 2000 mm high. Included fittings are made of stainless steel. The Verre Shower Screen from Wiper

Height adjustment kit

Height adjustment kit allows you to install your linear frame and chosen drain cover to the same height of your floor finish material. The total build up space from the top of the tray to the top of your chosen finish is the total build. This typically includes tile adhesive and tiles, but could also be underfloor heating. Waterproofing kit

TLE1010SBRBWMH952
£641.36
Tax included
To get an extra 5% discount simply increase your cart value to £500.
Add to cart your current selections, and you will be eligible for 5% discount and need only £358.64 to get 10% discount.
Amount of product sales 4 Sold during the last 90 days
Amount of product views 6 Views during the last 24 hours
Based on current settings, if you Add to cart current set and then order, you will receive the following items:
Waste trap

For fitting and using

Waterproofing kit

Size: not included

Underfloor heating kit

Size: not included

Shower screen

Size: not included



Showerlay Wiper wet room shower tray featuring an integrated Elite Linear drain
The Crown Jewel of our product range.

Indulge in the ultimate bathroom experience with our Showerlay Wiper trays boasting integrated Elite Linear drains. Our range of bathroom solutions boasts a plethora of color and finish options with cover designs that exude unparalleled luxury. Experience the utmost sophistication as you choose the perfect design that fits your unique taste.

Our cutting-edge 3 piece drain design not only offers secondary drainage, but also allows for height adjustment to perfectly match the thickness of your floor covering. Say goodbye to the hassle of installation as this feature makes regulating the height quick and effortless.

At our store, we pride ourselves on offering only the most exceptional bathroom solutions. Our team is always ready to provide assistance, so if you require guidance in selecting the ideal tray for your needs, do not hesitate to contact us via phone, email or chat. Let us help you elevate your bathroom to the next level of opulence.

Neadjustable Frame Elite@3x
NeBest Quality Elite@3x
Nemodern System Elite@3x

More information:

Dimensions of tray can be found on associated technical drawings.

If necessary, the tray can easily be trimmed by hand from both length or width. Alternatively we can create bespoke trays to your exact specifications.

We recommend trimming the tray from both sides to ensure the symmetry and cut-lines for tile remain equal.

The showerlay elite tray can also be easily cut on site should you have any obstacles such as pipe boxings, awkward angles or corners to avoid.

Drain channel is centred across the shorter edge of the tray.

Designed specially to integrate the range of Wiper Elite drains into wetroom trays.

The drain is factory installed into the tray during the manufacturing process to ensure a proper seal and provide a complete product ready to install.

The elite drain features include height adjustability, secondary drainage, and the option of a multitude of colours and finishes.

Our showerlay elite tray is a 20/28/35 mm XPS foam sheet that is re-enforced on both sides with a fibre glass mesh and covered with a flexible cement coating.

The showerlay elite tray has a 4 way slope CNC machine cut into it, giving a perfect pre-formed fall from each corner to the drain.

It is lightweight but very durable.

Perfect solution for British wooden floors but must be under-boarded if installed directly onto joists. It can also be used on concrete floors with any issues.

Standard and minimal under-boarding should be 20 mm thick.

Designed for a wide selection of tiles. Due to the high compressive strength of the XPS foam, it can even be used with small mosaic tiles. This is not suitable for vinyl floor coverings.

Compatible with electric under floor heating systems that can be installed directly on top of the shower tray.

High acoustic and thermal insulation.

Double flow system

Our Showerlay Elite trays have a unique double flow system. The trays linear drain frame and cover are the only visible parts of this system and is the primary drainage of any waste water. However, this raised section allows any water that manages to escape between any tiles or grout that are cracked to flow across the tray to its secondary drainage area, which is the trays embedded linear channel. This system working in concert with your waterproofing materials gives a combination of protection to your wet room that guarantees you will have no problems with water damage for a lifetime.

Double - Flow - 4

Adjustable frame height

The Showerlay Elite has a linear frame and cover that is adjustable from 8 mm to 50 mm in height. This allows for the total build up space you are working with that is required, including the tile thickness, adhesive and any additional materials used such as underfloor heating. We have a supply of multiple kits consisting of block spacers and the appropriate length screws to achieve various heights, all of which can be selected during the checkout process. If you decide to change your choice of tile or find the tiles you're using are a different thickness, we can supply the appropriate kit needed.

Adjustable - Height - 4

PVD coating

Physical Vapour Disposition (PVD) is a process carried out on a solid material to change its surface properties. This process not only improves the value and quality of the material, but also adds to its durability and overall protection. Unlike the powder coating process, which will fade and show signs of wear and tear, though chips and tarnishing, PVD coating is far superior to other coating methods used today and is also a certified environmentally friendly process. Our PVD coated drains have improved resistance to wear, corrosion and cleaning chemicals. Also, the coating is so thin, you will be able to see the chosen metal finish of your drain. Finally, you have the added benefit of a brilliant decorative colour and metal finish that will be easy to maintain for a lifetime.

Pvd - Coating - 5

Available colours

All of our Showerlay Elite drains are grade 304 stainless steel and PVD coated to give them an increased level of durability and resilience to corrosion, wear and tear, as well as a spectacular chosen colour. The linear drain frame and chosen cover will be the only parts visible after installation and will be the only parts that are PVD coated. We have a selection of four colours to choose from, all of which we have found to be the most requested when speaking to customers. The colours available are Brass, which is rising in popularity, Black, a new modern alternative to conventional bathroom decor, Gold, a timeless and prestigious decor that will never lose its style and Silver, the modern day use of this colour for fixtures means more choice when it comes to the style of each fixture.

Available - Colors - Combined

Surface finishes

Each Showerlay Elite linear drain has an option of three different surface finishes. This means you can match your linear drain to all your bathroom fixtures not only by colour, but also by material finish.  All four of our colour options have a choice of Brushed, Polished or a Matt finish.  Brushed, is our standard option and comes at no added cost. It is also the most practical choice for its resistance to scratching. Polished, is a glossy finish, with a smooth and shiny surface, free of imperfection and reduces the risk of bacterial retention. Finally, Matt, is a non reflective and smooth finish. Its dull, smooth finished surface is a new trend that is growing in bathroom decor projects. Once installed, the only visible parts will be the linear drain frame and cover in your chosen colour and metal finish.

Surface - Finish - Polished
Intensi - Piktograms3
Negratings - For - Elite
Channel length
700 mm
Grate style
Sirocco
Height
1000 mm
Width
1000 mm
Thickness
20 · 28 · 35 mm
Trimming
Both sides: up to 50 mm.
Material
XPS foam sheet
Reinforcement
Cementous glue & waterproofing membrane fabric
Fall
4-way 2% towards the drain
Additionals
Tanking kit
Drain surface
mirror · brush · matt
Cleaning
Easy Clean System
Model
Elite
Set consists
Wet room tray · integrated linear drain body · drain grating · siphon trap
Size
1000 x 1000 mm
Sunfloor logo
UFH Mat
Complete Underfloor Heating Kit

It is possible to include a complete Underfloor Heating Kit to your order. All you need to do is to choose the required size. Additional package, with heating mat, appropriate thermostat, sensor and instructions will be dispatched together with the other goods.

To calculate required mat size you need to get square coverage of the floor and exclude any permanent / fixed fixtures from them. It is also recommended to buy slightly smaller mat than calculated size - you can shape it but cannot cut the cables, therefore too large mat could not be installed.

SUNFLOOR Underfloor Heating

The SUNFLOOR Electric Heating Mat is a unique type of floor heating mat. The system has been designed to be used on an existing tiled floor or an existing finished floor, so that floor heating can still be installed there. The mat is approximately 4 mm thick and can be included in a layer of adhesive without any demolishing or grinding. The mat fits virtually underneath the surface. This decreases the heating time of the floor, that also makes this system suitable for rooms that are not permanently occupied including bathrooms, studies, playrooms, etc.

Heating mat

Underfloor heating mat set consists of all necessary parts for installation. One Thermostat is needed for every 23 m² of heating mat. It is included as optional, to allow ordering mat for custom areas, for example if you need 13 m² of mat total, you should buy 10 m² with one of the thermostats set as include and 3 m² with thermostat not included. In case you require less mat coverage than possible to buy from our product pictures, for example 14.5 m² you should always round low with your purchase and buy 14 m² as the mat is impossible to cut. It can be shaped but not shortened to size.

    Details:
  • 2.5 meter 3-core supply cable
  • Fully encased in an aluminium earthed sheath
  • Unique blind connection between the heating and the connection cable
  • Chrome/Nickel resistance wire
  • PTFE (Teflon) insulation
  • PVC protective sheath
  • 10 -11 watt per meter resistance wire, 230 Volt
  • Cable diameter approximately 4 mm
  • Complies with current NEN standards for installation in completely wet rooms
Thermostat

The C16Wi-Fi is an intuitive programmable thermostat used to control the electrical floor heating system or water heating system. It will keep home comfortable temp whilst minimizing energy use. Install the app on your smartphone to control the heating system remotely with the WiFi thermostat.

    Specification:
  • Voltage: 230 Volt - 50/60 Hz
  • Maximum load: 16A / 3600W
  • Temperature range: +5 to +40°C
  • IP class: IP21
  • Testing: CE
  • Cable spec.: ≤ 2,5 mm²
  • Standby power: ~ 2W
  • Size: 85 x 85 mm
  • Integral room sensor and floor sensor
  • Colour: white or black
UFH Sunfloor Thermostat
Magnum X-treme control

This stylish, colourful and refined digital clock thermostat has been specially designed for electric heating systems. The MAGNUM X-treme Control is supplied with every MAGNUM floor heating set (Mat,Cable and Foil types), including external floor sensor, a built-in air sensor and three different frames that suit most brands of switching equipment. The MAGNUM X-treme Control is simple and intuitive to operate using touch sensitive buttons under the display. The new chameleon function is simple to adapt to the colour of your interior. The stylish screensaver shows the time, temperature and current mode without touching the thermostat. The MAGNUM X-treme Control has a new help function that appears after 10 seconds in the menu with a complete description of the setting in question. The MAGNUM X-treme Control also has a wooden floor function whereby the temperature is limited to 28°C. This makes the MAGNUM X-treme Control the idea and safe solution for every electric heating system.

    Specification:
  • Voltage: 230 Volt - 50/60 Hz
  • Maximum capacity: 16A - 3600 watt
  • Temperature range: +5 to +40°C
  • Frame: IP21
  • Color: Polar white (RAL 9010)
  • Testing: FI/CE
    Technical details:
  • Control via touch sensitive keys
  • Chameleon function (8 colour themes)
  • Screensaver night clock
  • Automatic start-up menu
  • Slow start-up function
  • Wooden floor function (28 °C limit)
  • Automatic summer and winter times
  • Multi-programme function (2 periods per day)
  • Programming multilingual
  • Including floor and air sensors
  • Multi-frame adapter system for: Gira, Jung, Elko, Merten, Busch Jager, etc.

In some situations the digital regulation is not required and so the preference is for a simple on/off operation. Specifically industrial applications where the heating must remain on at all times. Therefore MAGNUM has designed the Standard Control: a simple on/off thermostat with temperature regulation that is clearly easy to operate.

    Specification:
  • Voltage: 230 Volt - 50/60 Hz
  • Maximum load: 16A / 230 V
  • Temperature range: +5 to +40°C
  • Housing: IP21
  • Color: Polar white (RAL 9010)
  • Testing: CE
    Technical details:
  • On/off thermostat complete with temperature regulation
  • Including floor sensor
  • Integral room sensor and floor limit sensor
  • Multi frame adapter system for: Gira, Jung, Elko, Merten, Busch Jager, etc.
Magnum Manual Thermostat
Tanking kit

The tanking kit is a ready-mixed, under-tile tanking system to protect water sensitive substrates from exposure to water. Suitable for wet areas such as bathrooms, showers in residential buildings, hotels, old people's homes and hospitals. Should not be used in places exposed to pressurised water, for an instance swimming pools. Ready to use, no mixing required and easy to apply with a roller. The kit includes a high performance joint reinforcing tape to protect against movement in floor joins and corners etc. The contents are all INSIDE the bucket and the contents are protected in the bucket with polystyrene infill's to stop transit damage.The instructions are printed on the rear of the tanking kit.

For anti-moisture insulation systems in wet rooms and rooms intended for human residence. The tanking liquid is a ready-to-use singlecomponent, solvent-free sealant composed of polymer dispersion, fillers and modifying additives. When applied to the surface, upon binding it creates a flexible and water-insulating layer.

Tanking kit contains:
  • 4kg Tanking Liquid
  • 1l Primer
  • 10 Metres flexible Sealing Tape
  • 2 Flexible Pipe Collars
  • 2 Corners
Features:
  • Consumption to 1,2kg/m²
  • Solvent free
  • Drying time: 2h
Tanking liquid and primer
Tanking liquid
Tanking liquid

The tanking liquid is a ready to use, single component, solvent-free sealant mass, consisting of polymer dispersion, fillers and additives. When applied to a substrate and cured, it forms a flexible waterproofing coating. The product is intended for use inside places intended for human residence, especially in humid areas (such as bathrooms, kitchens, laundries), to perform insulation against moisture under linings and coverings, such as ceramic tiles, glazed tiles, terracotta, wooden floors and panels, and synthetic carpets.

The product is intended for priming absorbent and porous surfaces, inside and outside buildings. It is especially recommended for cement - limestone plaster, gas concrete, plaster-carton boards and cement plaster. The primer has a high penetration ability, is deeply absorbed into the substrate, thus strengthening it, while allowing for „breathing”. These benefits improve the structure of the substrates, which, due to the passage of time, have lost their appropriate parameters. The priming solution improves adhesion to the surface of other materials that will be used on the primed substrate. By reducing the absorbency of the substrate, the wear of the applied coating materials, emulsion paints, glues, mineral putties reduces as well. The solution, due to the content of the biocide and fungicide, protects the primed substrate against the formation of mold and bacteria in the product.

Primer
PVD Coating

PVD stands for Physical Vapor Deposition. The PVD coating process creates a thin film coating over a solid material which is vaporized in a vacuum chamber and deposited onto a target material. It is used to change the surface properties of the object to be coated, where new mechanical, chemical, electrical or optical characteristics are needed.

There are many benefits of PVD coating. It can provide a lifetime of protection from daily cleaning, which adds durability and value to our products. Traditional powder coating of stainless steel degrades with time and can easily tarnish or chip. PVD requires no clear top coats that fade or dull. It is four times harder than chrome which makes it corrosion and scratch resistant.

PVD Coating

Benefits of PVD technology are Superior Wear Resistance, Superior Corrosion Resistance, Superior Chemical Resistance, Low Coefficient of Friction, Excellent Adhesion, Brilliant Decorative Finish, High Hardness (2nd to Diamond), Uniform Coating, Will not Chip, Tarnish or Fade, Low Maintenance and to top it all off, it is an Environmentally Friendly Process.

Extensive tests have been carried out to make sure that the normal usage of a shower will not effect the look and longevity of these drains and that they will remain in the same state as the day they were installed, for years to come. Additionally the Drains can be PVD coated after the steel is finished. so there is a range of finishes available in every colour.

h+m drop 35
McAlpine HC26-50

A McAlpine brand PVC siphon. With 20 mm water seal and a 40 mm connection. It only needs 68 mm height below the product and can be rotated 360°. Significant height reduction in relation to standard waste traps reduces the installation depth. Rotatable elbow connector makes installation simple in any conditions. Comfortable use thanks to Easy Clean System. Each set contains special key, which helps with installation.

  • Low profile perfect for wetroom shower trays, linear and square drains
  • Durable material
  • Easy Clean System
  • Mounting spanner and hair trap included
  • Simple and tight construction
  • 95° connector included
H+M Drop 50

High flow Shower Waste Trap Efficient shower trap made of durable Hostalen PP. Innovative solution adapted to the most rigorous standards of use. It has a high level of water seal (35 mm) with a very small overall height (63 mm). Dedicated mainly to linear shower drains for wet-rooms. Small dimensions makes installation in both concrete and wooden floors a lot easier. High flow rate (48 l/min) guarantees trouble-free use even when heavily loaded with water (eg. with a rainhead shower). The set includes a dedicated spanner that simplifies the installation of a waste trap to the drain, and a strainer made of stainless steel.

  • High 35 mm water seal
  • Low overall height (63 mm)
  • Included: strainer, spanner
  • Made durable polypropylene
  • Very high flow rate (48 l/min)
  • Easy Clean System
h+m drop 50
h+m drop 35
H+M Drop 35

Slim Shower Waste Trap High-quality low-profile siphon made of durable polypropylene plastic. The special slim shape of the waste allows maximum reduction of installation depth. Perfect product for walk-in type shower. It makes wet-room installation significantly easier. Sometimes shower waste with such a low profile may be the only possible choice. Equipped with a special wide Evoprene seal for maximum tightness. For ease of installation, the appropriate spanner is included. High flow rate (36 l/min) guarantees trouble-free use.

  • Extra slim low profile
  • High flow rate up to 36 l/min
  • Included: strainer, spanner, 40/50 mm pipe reducer
  • Durable polypropylene
  • Easy Clean System
H+M Vertical

Vertical ACO V50 waste trap supplied with EU to UK 50mm adapter. High drainage capacity, but low water seal level. The siphon can be rotated 360° and offers the best solution for bypassing beams and pipes.

  • Durable polypropylene
  • Height: 132 mm
  • Flow rate: 52 l/min.
  • Water seal: 25 mm
  • Rotatable 360°
vertical
Available Colour

Brass
This bathroom colour is rising in popularity again and is quickly becoming our most demanded option. It is historically tradition with its timeless elegant finished look. Brass is slightly less vibrant and dominant in colour, which makes it perfect for blending your bathroom decor colours.

Available Colour

Black
Black is becoming the new modern alternative to conventional bathroom decor. Complete your wet room with bold, sleek fixtures and our drain to match. Black bathroom fixtures need a little extra care when it comes to maintenance. To keep its stunning look, you will need to simply wipe down your fixtures after use. A small price to pay for an amazing finish.

Available Colour

Gold
Gold will always speak volumes. A bathroom finished with gold fixtures is breath taking and prestigious in its own right. Gold is a very vibrant colour and will allow all your fixtures stand out in any wet room giving it a luxurious feeling.

Available Colour

Silver
Silver is a modern traditional colour for bathrooms. Not only will it be easy to match with other fixtures, but it will give any wet room a crisp, clean and refreshing feeling. It's common use means you will have a lot more options with available fixtures in multiple different designs.

All of our drains are made from high quality grade 304 stainless steel. The colour of each drain is due to the PVD coating process. PVD coating of metals has proven to be better than powder coating. It will be more durable and resistant to fading, scratch marks and overall wear and tear. Unlike the powder coating process, PVD coating, also has the added benefit of the metal finish being visible. Ultimately, your drain will look amazing and last for a lifetime.

If you wish to have your entire bathroom colour coordinated, from the tiles, to your bathroom fixtures, our PVD coated drains are sure to help you. We have taken the most popular colours our customers have been requesting and now have a selection of four PVD coated linear drain colours to choose from to compliment all of your bathroom fixtures.

Wet room Kit shower tray installation instructions | Timber floor

This installation guide shows how to install wet room kit shower tray Showerlay Wiper on a wooden floor and how to tile it over.

  1. Preparation of floor and walls. Gather required materials and tools.
  2. Establish shower area by lying the shower tray in desired future shower position.
  3. Floor boards removal to expose the joists and avoid increasing total floor height.
  4. Support the drain using ply with hole cut the match the channel shape.
  5. Connect the siphon trap pipe to your waste system.
  6. Prepare even surface with marine plywood board.
  7. Fit the wet room kit using fixing adhesive.
  8. Assembly the drain with siphon trap.
  9. Fill remaining shower area with tile backer boards.
Wet Room Installation

This installation guide shows steps how to install wet room kit shower tray Showerlay Wiper into a concrete floor how to tile it over.

  1. Preparation of floor and walls. Gather required materials and tools.
  2. Establish shower area by lying the shower tray in desired future shower position.
  3. Grind the concrete to prepare a slot for shower tray.
  4. Cut a hole for siphon trap and pipework.
  5. Connect the siphon trap pipe to your waste system.
  6. Prepare even surface by cleaning and bedding the concrete.
  7. Fit the wet room kit using fixing adhesive.
  8. Assembly the drain with siphon trap.
  9. Fill remaining shower area with tile backer boards.
Wet Room Installation

This is a document from our Resource Centre, which you can find HERE

Our wet room kits are available in three thicknesses: 20, 28 and 35 mm. Depending on space, floor type, and desired gradient you can choose best option for you.

If you have timber floor - existing floor board thickness. Usually they are 20 or 28 mm thick, in that case you should go for adequate thick wet room kit, to avoid floor height increase and step ups. If you want to achieve stepped up floor, 35 mm thickness might also be a good choice. If case of concrete floor, every thickness is suitable, if you're going to screed the floor you need to shutter the future shower area off and leave proper space for tray to be inserted in the future. If screed has already been done, you will need to use jackhammer or similar tool to groove exact tray thickness and shape when the shower is going to be created. In case of both floor types, every shower tray thickness is enough to bear human weight, as it needs to be underboarded beneath entire surface either with ply or solid concrete. The biggest difference between thicknesses is the slope's angle achieved after installation is completed and shower tray tiled.

A - 1000 [mm]

B - 1000 [mm]

L - 700 [mm]

C1 - 210 [mm]

C2 - 150 [mm]

D - 150 [mm]

Showerlay Elite Technical Drawing
Showerlay Elite Technical Drawing
adjustable_height-1

Our Elite range has many options to choose from. However, the Elite linear drain has a unique feature that sets it apart from all others. It has been tested and thoughtfully designed with the ability to adjust its height during the installation process to match the build up space you require.

Its specialised frame and drain cover has been manufactured to be used in conjunction with an adjustment kit, that will allow you to match the thickness of your floor finish. Having this key integrated feature, the Elite linear drain allows you the freedom to install this tray and select from a wider range of thicker or thinner tiles available on the market today.

adjustable_height-3

With our standard supplied adjustment kits, this Elite drain is able to accommodate between 8 mm to 50 mm for your tile and any other materials such as electric underfloor heating or Ditra mats. However, upon request, an adjustment kit to raise it higher than 50 mm is possibly available.

The parts included in each adjustment kit comprise of a set of specially designed spacers to raise and support the linear drain frame and chosen cover, along with six screws to lock everything into place. Each kit is designed for your chosen height and comes with the set number of spacers required, accompanied with the six appropriate length screws needed.

If you're undecided about the tile finish for your wet room, but have a schedule to keep, you can install the tray and waterproof the room whilst you decide. Your order will have a standard default kit supplied, but additional adjustment kits to match your tile thickness can be ordered separately at a later date after you have found the tile you want.

Double flow

One of the key features that sets the Showerlay Elite trays apart from the rest is that it offers an innovative secondary drainage system. The benefit of this feature is that if any water finds its way underneath the floor covering, it will have a way of draining into the channel and not pooling on top of the tray.

This is accomplished by having the integrated drain comprised of three pieces. The drain body which is factory imbedded into the tray, provides the channel for the primary and secondary drainage. The adjustable frame, which can be raised to the exact height of the finished floor, while also allowing for secondary drainage to find its way into the channel. Finally, the cover which is supported on the frame, providing an elegant finish while allowing access for quick and easy maintenance.

Double flow

This secondary drainage feature has no impact on the way the finished shower tray will look. Only the cover and top edge of the frame will be visible after installation just as if it was an ordinary drain. However the ability to adjust the frame around the channel significantly makes installation easier as you can adjust the height of the frame. All while giving you the added peace of mind that there is an added level of security to ensure water flows down the drain.

The secondary drainage feature, combined with proper waterproofing of the shower tray prior to laying down the floor covering will ensure that the area is dually secured and any moisture that gets below the surface will not cause any damage below. When it comes to the Showerlay Elite tray with this integrated Elite drain you really get a quality product that not only will do what is expected of it, and have the water drain away as quickly and efficiently as possible, but also look great in your new shower or wet room area.

The Showerlay Elite is available in three different surface finishes. Polished, Brushed and Matt. This is great if you are looking for a specific finish to match the rest of your fixtures. The three finishes are available for all available colour options, However the Brushed finish is the standard option that comes at no extra charge. The visible parts of the drain (the cover and frame) will come in the desired finish.

Surface Finish

Polished is a glossy finish. It has a smooth and shiny look that catches the eye. Characterized by a high degree of development, it's free from imperfections. There are numerous functional considerations, in addition to the visual appearance of polished stainless steel. Properly polished stainless steel looks good and helps to reduce the risk of bacteria being retained by the material when it is utilized in sanitary applications.

Surface Finish

Brushed finish is a semi gloss finish. The key difference between brushed and polished stainless steel is that brushed stainless steel has a rough surface, whereas polished stainless steel has a smooth surface. Brushed stainless steel is a type of metal having a dull polish that is made through friction. It is the the most practical of the three as it is the most scratch resistant.

Surface Finish

Matt is a dull finish. This is a very common stainless steel finish that is non-reflective and smooth in nature. The stainless steel is rolled through a special roller for a smooth, less pitted surface, before being descaled in an acid solution and polished for greater smoothness. It is commonly used for chemical and pharmaceutical equipment.

5 Jahre Trusted Badge

Certified Trust and Exceptional Service
Since obtaining our Trustmark on 18 May 2015, wetroomsdesign.co.uk has consistently demonstrated its commitment to being a trustworthy online retailer. Our excellent customer reviews are a testament to our focus on rapid delivery, facilitated by our UK-based warehouse. Stocking thousands of products available for next-day delivery ensures that you receive your purchases promptly. Additionally, our dedicated customer service team is always ready to assist you during and after your order, enhancing your shopping experience. With Trusted Shops Buyer Protection up to £2,500, every purchase is securely backed, ensuring peace of mind with every transaction.

Product Reviews This tab features detailed reviews of the product you are viewing, offering firsthand insights from customers who have experienced its benefits. While the product available on this page may have similar features to other items in our range, each review specifically addresses this particular model, which is available in various sizes to suit diverse needs and preferences. These reviews provide valuable information to help you make an informed decision, highlighting the distinct characteristics and quality of each product uniquely available here.

No reviews
Product added to wishlist
×

We use cookies to enhance your experience. By continuing to visit this site you agree to our use of cookies. For more information, please visit our Privacy Policy.

Close Customise Accept All
