Resinbase Wiper 800 X 1200 Mm MCR PVD. . .
Resinbase Wiper 800 x 1200 mm MCR PVD...

Resinbase Wiper 800 x 1200 mm MCR PVD Pure Brass

Wet Room Tray Kit 80 x 120 cm for Microcement, Polished Concrete or Resin floor finish, with integrated PVD Brass Linear Shower Drain in matt, brushed or polished surface finish, including waste trap and fillable drain cover Pure

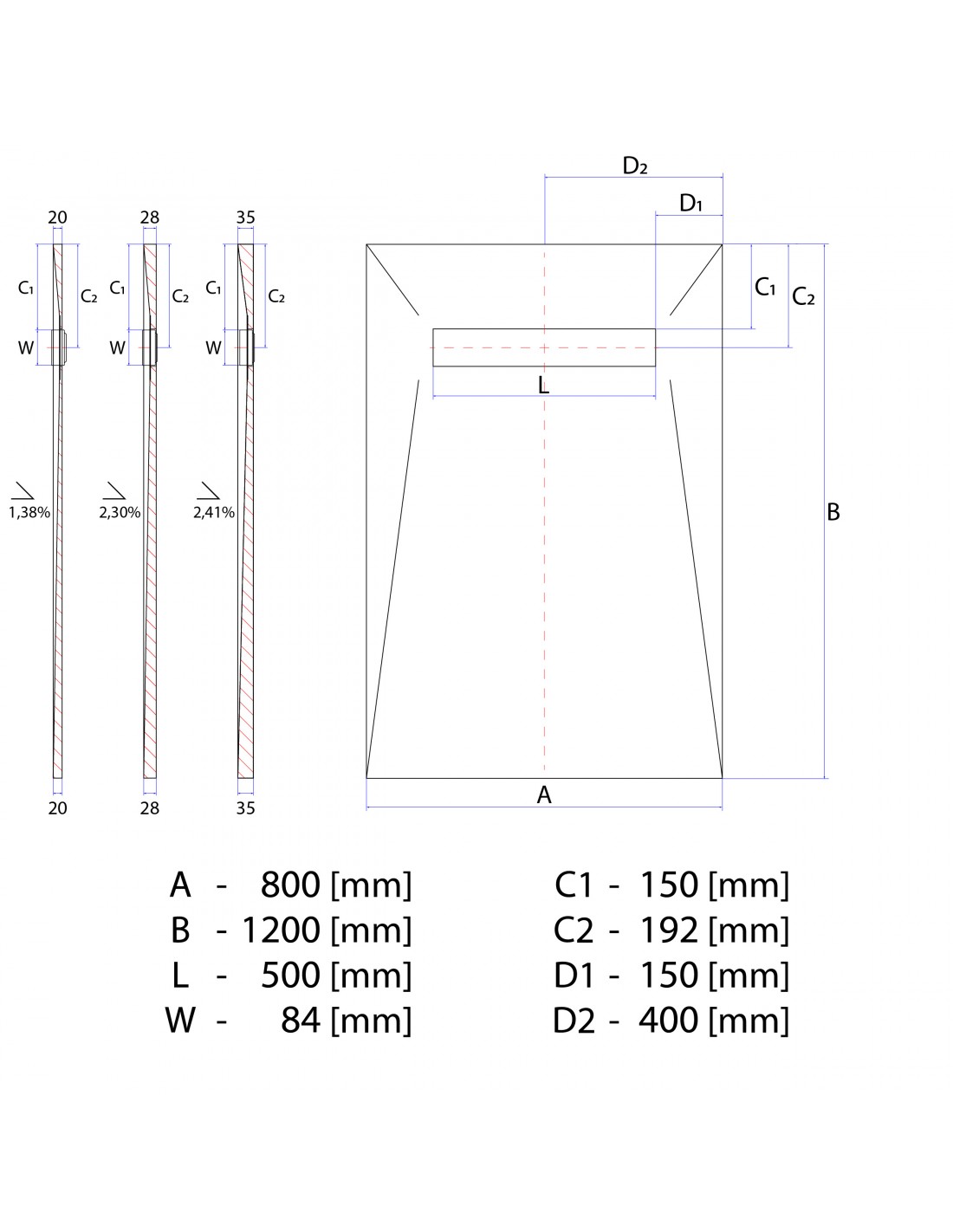

See parts included Technical specification Bespoke Wet Room Trays

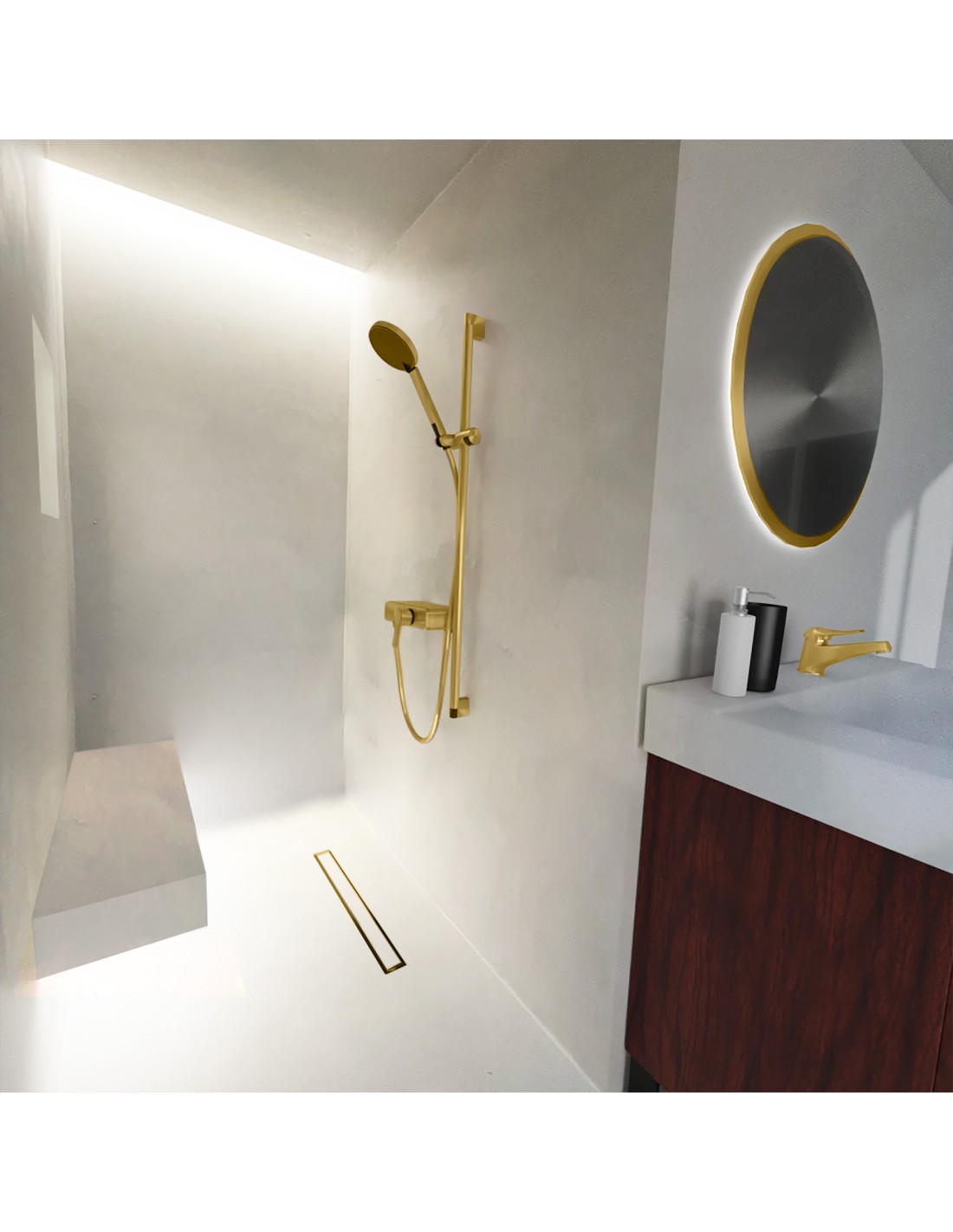

The Resinbase Wiper 800 x 1200 MCR PVD Pure Brass presents a pioneering wet room tray tailored for microcement applications, featuring an integrated, specialised linear drain. This innovation not only boasts a robust and sturdy construction but also allows for unmatched height adjustability from 3 mm to 12 mm to seamlessly align with microcement thickness, essentially providing limitless customization. The tray is also compatible with resin and other similar floor surface finishes. It's uniquely compatible with underfloor heating systems, enhancing its versatility.

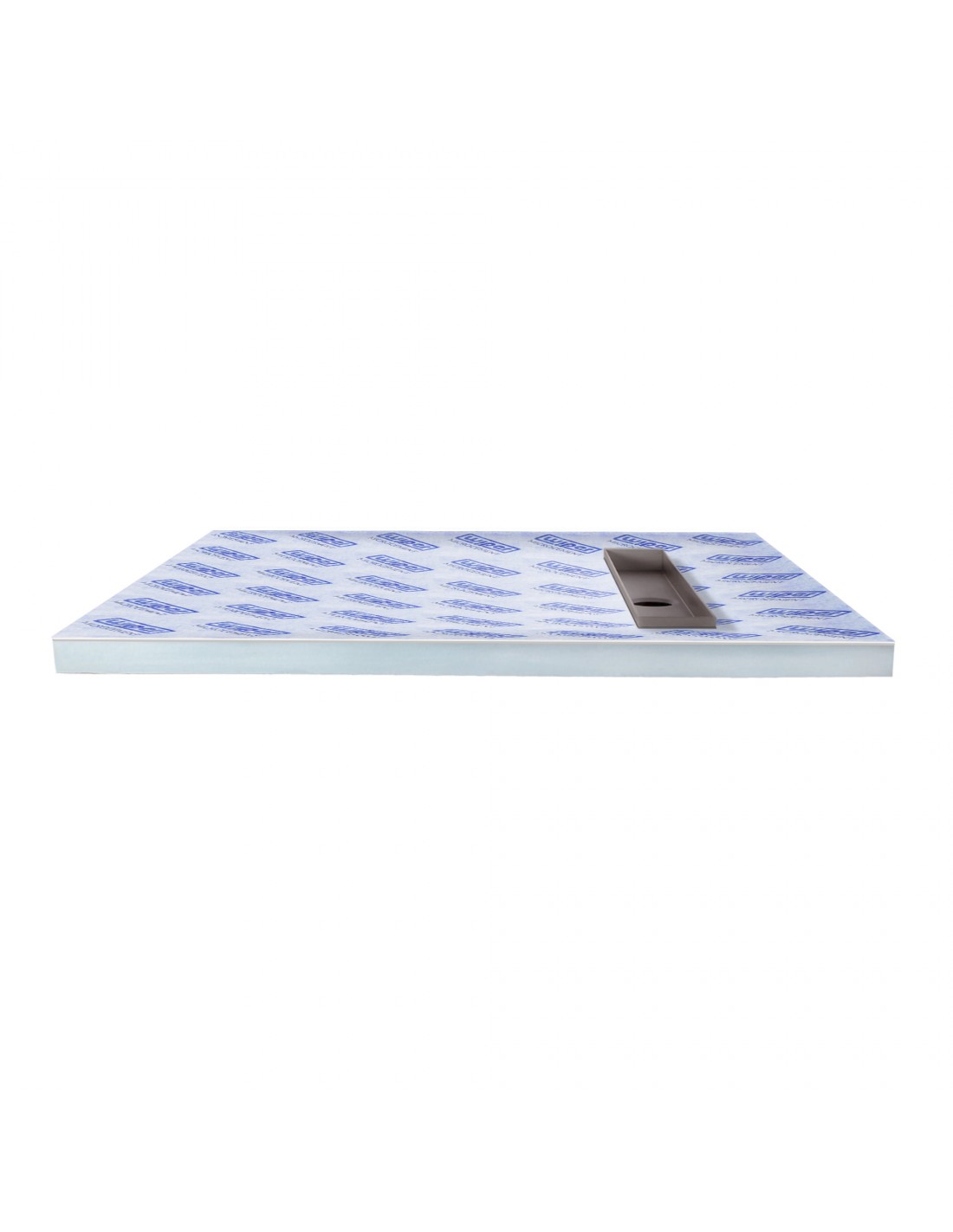

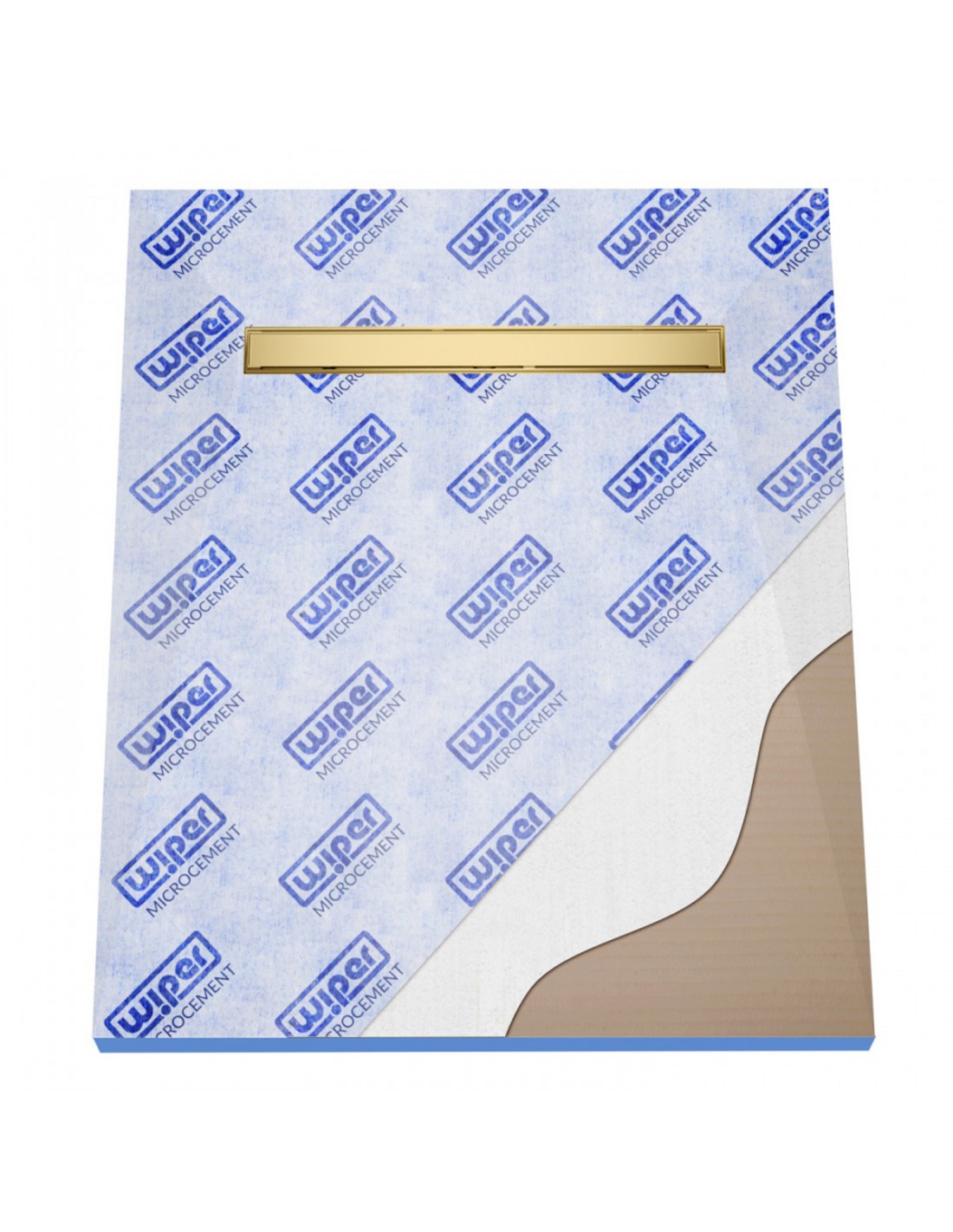

Constructed from XPS foam, the tray ensures excellent thermal and acoustic insulation, coupled with absolute waterproofing. The integration of the drain with the tray, further sealed and reinforced with a non-woven waterproof fabric and a resin layer, guarantees durability and a solid base. The design facilitates a consistent slope towards the drain from all angles, creating an efficient 1%-2% gradient for optimal water flow.

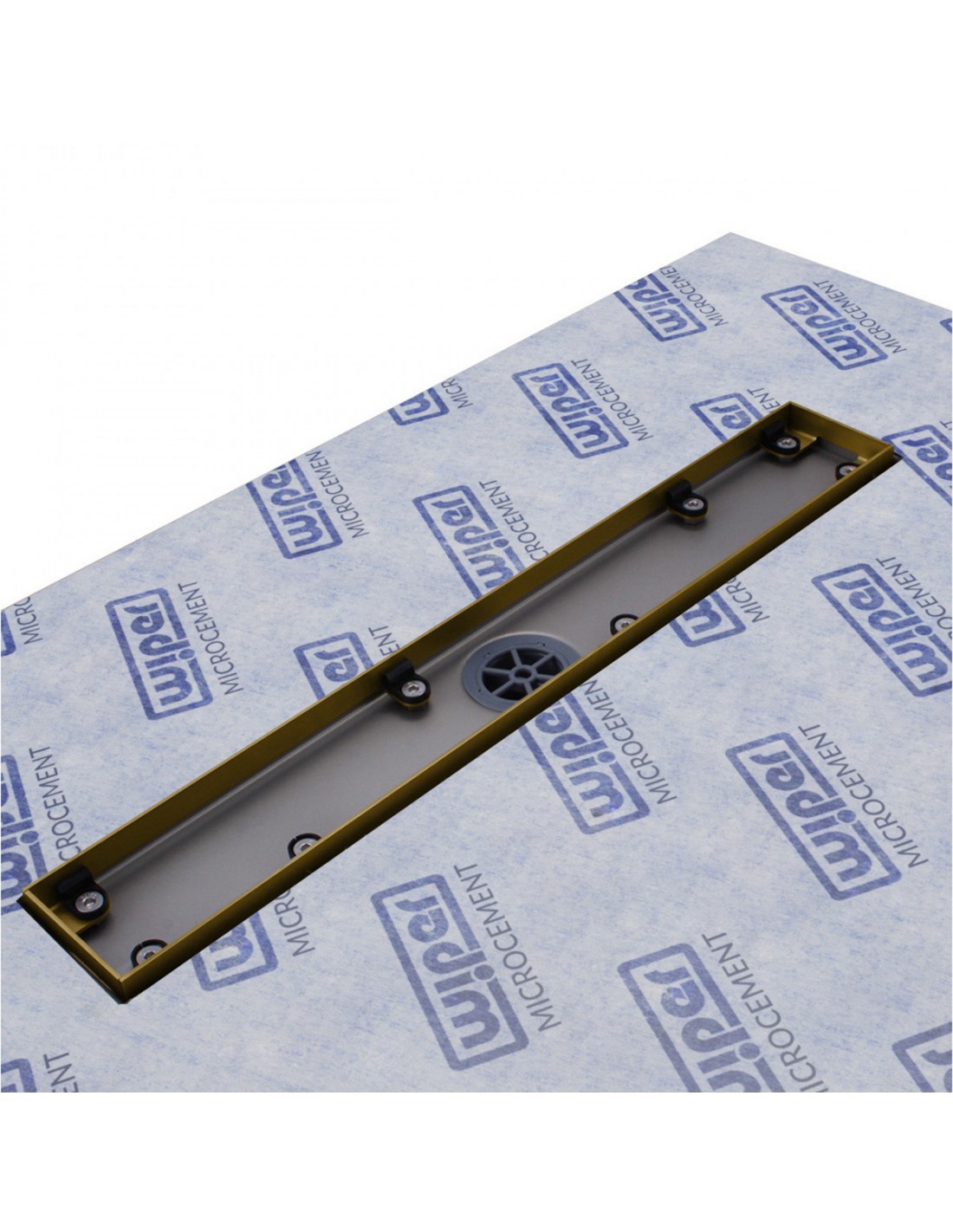

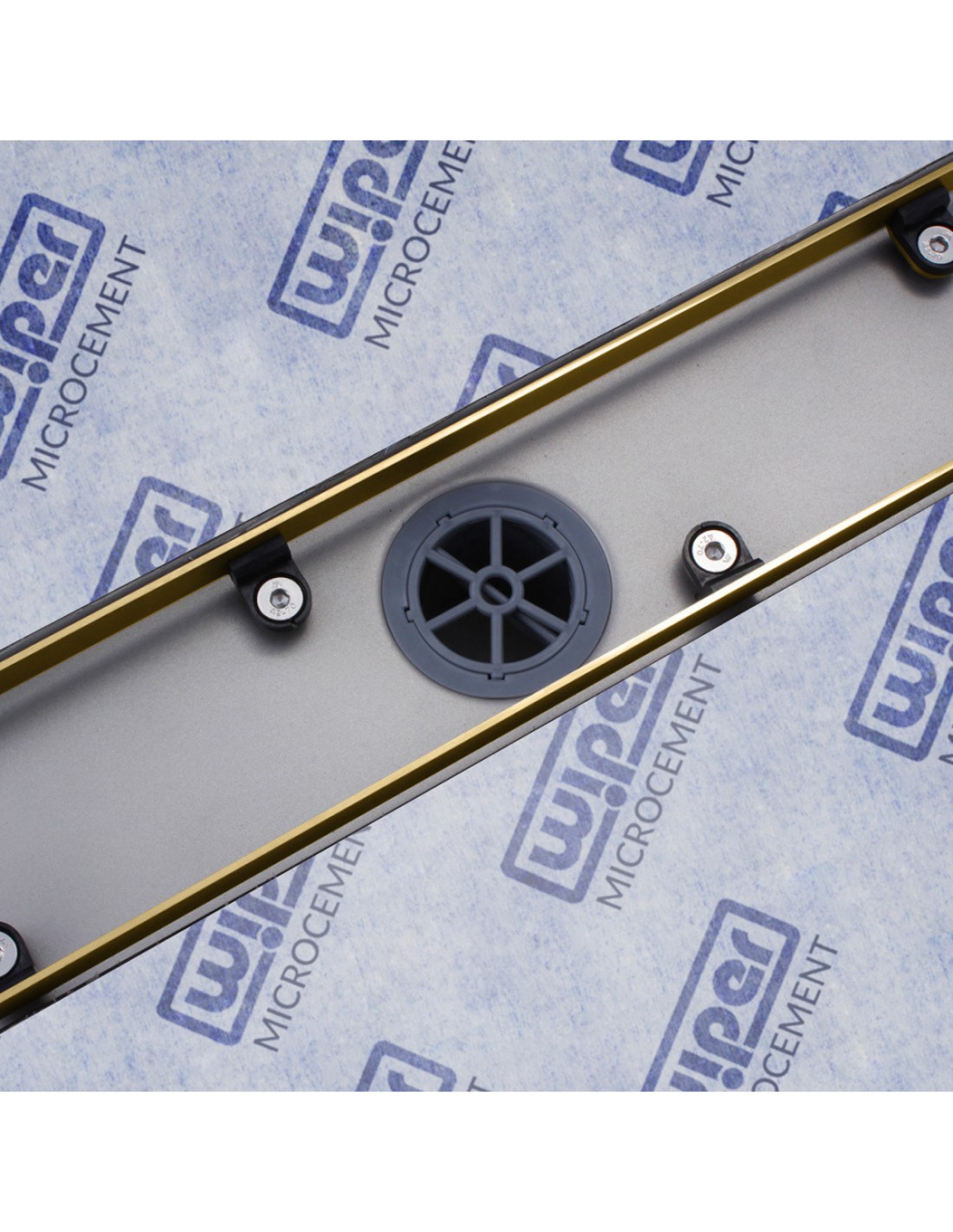

The highlight of this system is its advanced 500 mm PVD Pure Brass linear drain, equipped with a novel secondary drainage channel. This feature is crucial for capturing any water that might seep beneath the surface, ensuring complete drainage. The drainage is made of stainless steel, finished in black with advanced process of physical vapour coating, which is a high quality finish resistant to wear and tear. The drain is also available in brushed, polished or matt surface finishes to maximise match with other shower appliances.

Available in 14 standard sizes, the Resinbase trays are stocked for quick delivery to ensure possibility of installation across a multitude of wet room configurations. The model described here represents a popular, mid-range size, offering both practicality and elegance. We are also able to create a custom sized product on request.

Tray size

Showerlay is a wet room tray available in 14 standard sizes. The drain is located parallel to the shorter edge. A larger tray offers more space for greater comfort. Your tray size should be chosen to match room and enclosure size. Our trays can be trimmed down to size or to avoid obstacles.

Drain Cover
  • Pure (fillable)

There are 7 drain cover patterns available. The flow rate is the same for all of them. They are interchangeable and can be swapped even after installation. Each drain sent out is equipped with a lifting hook which makes cleaning easy.

Drain Colour
  • Brass

The visible parts of the drain after installation, the frame and cover,can be supplied in different colours. Thanks to PVD coating, which offers high durability and resistance to discolouration, fading or braking down, you can get a drain that will match the rest of your fixtures.

Surface Finish
  • Brushed

There are 3 steel surface finishes available. The Matt finish is a uniform, slightly rough dull finish. The Brushed is a grind steel-smooth finish with visible , one directional brush stroke across the finished surface. The Polished finish is a high gloss, No. 8 mirror finish.

Thickness
  • 20 mm

The trays thickness is measured at the outer perimeter. The slope is cut into the tray from the outside toward the drain. The thicker the tray the more noticeable the slope becomes. Also the thicker the XPS foam, the better acoustic and thermal insulation it provides.

Waste Trap
  • McAlpine HC26-50

Before choosing, you should measure your available installation height. Especially in old flats or builds, where the space is limited, a lower height waste is recommended. As long as you have the space, you could choose one of the higher traps, which also offer high flow rate and better water seal. The following applies to the sealing water: 1 cm of sealing water recedes after approx. one week. Thus, for example, if you choose the "Drop 50", unpleasant odours remain sealed for about 5 weeks.

Thickness

Thickness of the board on the edges. It has 2% gradient on the entire upper surface and is shallower near the drain. The benefit of thicker tray is steeper slope, although even the shallowest trays have sufficient slope for water to flow towards the drain, no matter where it drops.

Waste trap
Drain finish
Waterproofing kit

Waterproofing kit is used to seal shower tray as well as connections between walls and floor. It is recommended for concrete and mandatory for timber flooring. Each kit contains 4kg tanking liquid, 1l primer, 10m sealing tape, 2 corners, 2 pipe collars. One kit covers 3 m² with 2 coats. Waterproofing kit

Underfloor heating kit

Complete Sunfloor Underfloor heating set, including mat, Wi-Fi thermostat, floor sensor and fitting instructions. Fully suitable with our other products. Advanced thermostat with and iOS/Android app allows to set desired temperature of the floor from distance as well as create schedules.
Complete Sunfloor Underfloor heating set

Tile Backer boards

Tile backer boards are used to create the perfect substrate to tile onto in wet rooms and bathrooms. Superior to cement boards and plywood, due to its waterproof and thermal insulation properties. Tile backer boards

Shower screen

The Wiper Verre Shower Screen is one of Wiper's new shower enclosures. It is available in multiple standard sizes making it fit in small and large wet rooms. Black and silver options make it looks minimalistic and modern. Perfect choice for any wet room upgrade. Made of 8 mm toughened clear glass with Active Shield coating, 2000 mm high. Included fittings are made of stainless steel. The Verre Shower Screen from Wiper

TLM8125PUBRBWMH952
£703.62
Tax included
Amount Of Product Views 2 Views during the last 24 hours
Based on current settings, if you Add to cart current set and then order, you will receive the following items:
Waste Trap

For fitting and using

Waterproofing Kit

Size: not included

Underfloor Heating Kit

Size: not included

Shower Screen

Size: not included



Double flow system

Get rid of water under your tiles!

Wet room tray with Elite linear drain is the best quality stainless steel gully in our store. It features flange connection drainage which allows water trapped under tiles to be taken out of shower. This product provides full waterproofing, a contoured slope towards the drainage gutter, excellent adhesion of the adhesive to the top layer of the board, hardness of the top layer allowing even very fine mosaics to be glued, high sound insulation.

Double - Flow - Water

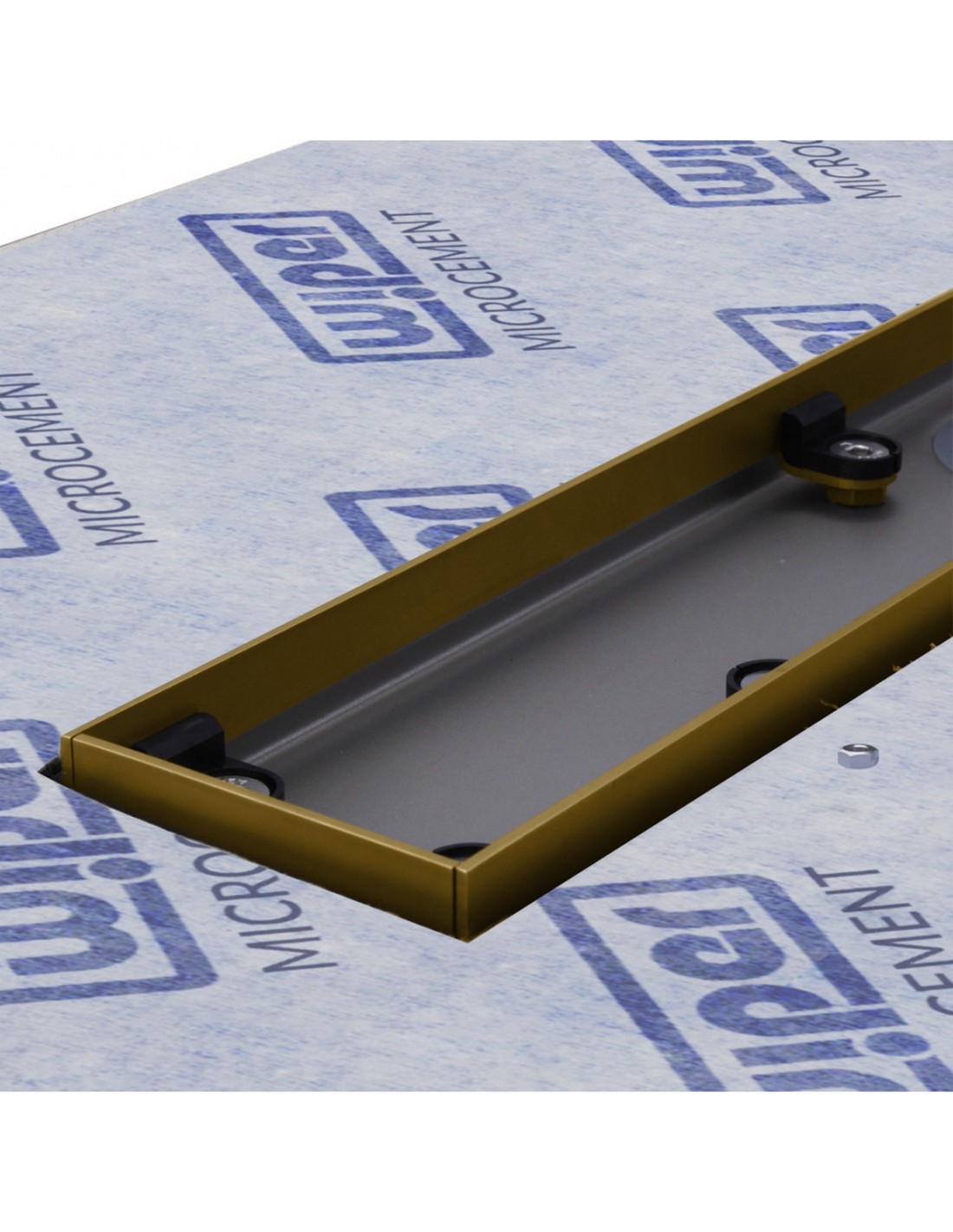

Adjustable frame height

Bigger tiles? No problem!

Grating is also advanced, it has integrated system which allows to set up height from 8 mm up to 50 mm. Floor level Elite Slim drain has low installation height, modern beautiful design and good technical properties makes it a luxury product.

Adjustable Height

More informations

Various Colours and Finishes Available - PVD coating won't chip or fade

The Elite linear drain is available in a variety of colours. Each one as stunning as the next, you’ll be sure to find one that matches your design needs. The drais are PVD Coated so they are highly resistant to any staining or fading from cleaning agents, ensuring that they will keep their appearance for years to come.

  • Sliver - Classic, Elegant and neutral in nature
  • Gold - Rich,  conventional, adds a taste of luxury
  • Brass - Delicate unique alternative
  • Graphite Black - sophisticated modern solution
Various Colors And Finishes

Quality made in the EU - 316 grade stainless steel

The most important feature of the linear drain is: excellent quality of the stainless steel, high abrasion and corrosion resistance, high thermal stability and chemical inertness. Linear drain Elite is available in 3 different finishes. The drain body, cover and end caps are all finished in the same way so that the end result is a uniform look across the entire visible portion of the drain.

  • Polished - glossy mirrored finish
  • Matt - flat matt, opposite alternative to the glossy finish.
  • Brushed - brushed stainless steel finish is a compromise of the first to its a semi gloss finish with a textured look.

Finishes Intensi2

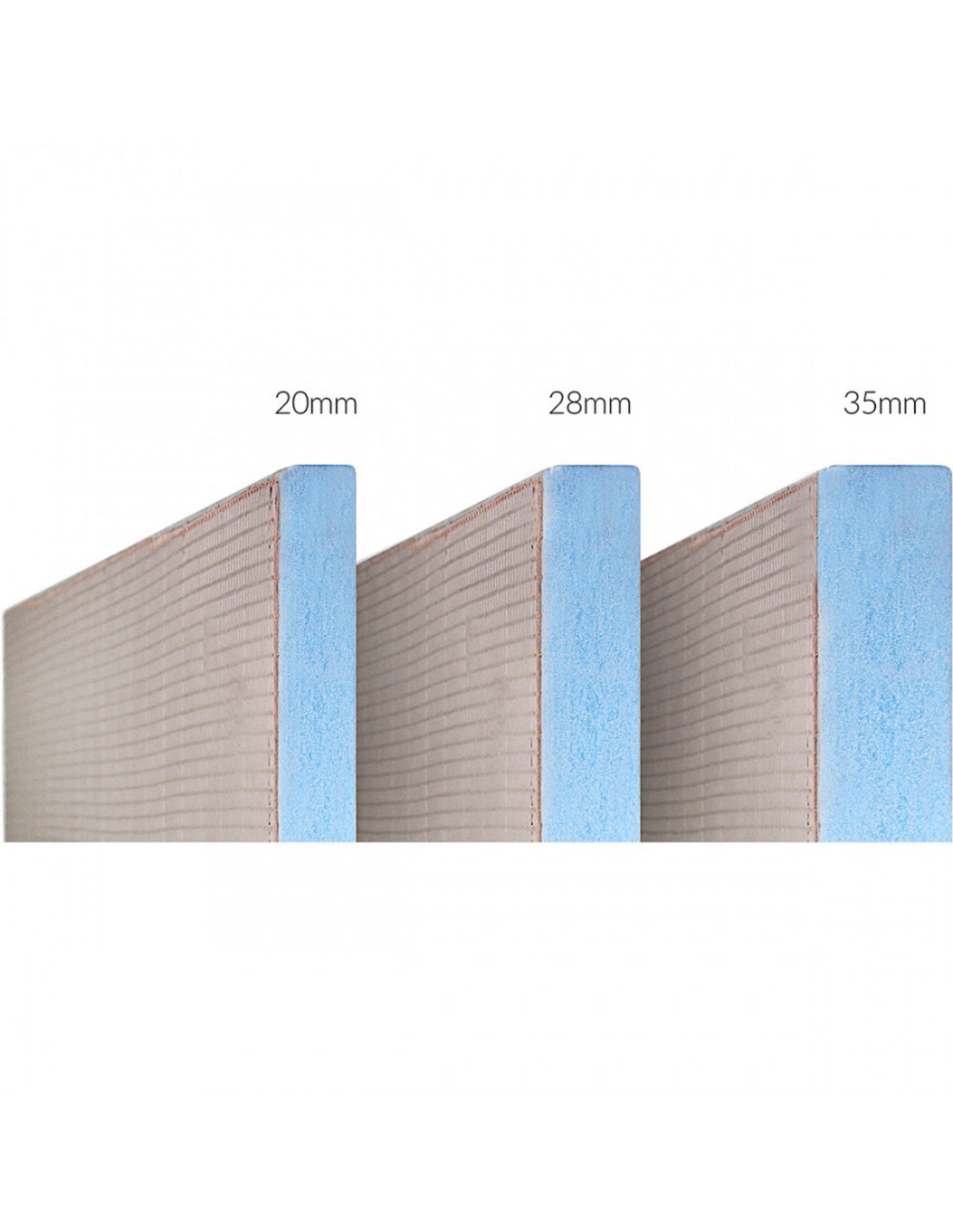

Thickness

The 20 mm, is our thinnest and most popular tray available. The slope is very subtle to the naked eye, but just as effective as our thicker trays at carrying water to the drain. This tray is idea for projects that have limited build up space, such as loft conversions or ground floor renovation.

The 28 mm, is a tray that has a more visible gradient slope and can suit projects that have more allowance for build up height. A very popular all round suitable tray.

The 35 mm, is the thickest 4way tray available in our store. This tray has a very visible gradient slope and is perfect for projects that have no build up restriction.

Thickness Of The Tray
Intensi - Piktograms3
Negratings - For - Elite
Channel length
500 mm
Grate style
Reversible
Height
1200 mm
Width
800 mm
Thickness
20 · 28 · 35 mm
Trimming
Both sides: up to 50 mm.
Material
XPS foam sheet
Reinforcement
Reinforcement: XPS + Non-woven Sealing mat + Resin Glue
Fall
4-way 2% towards the drain
Additionals
Tanking kit
Drain surface
mirror · brush · matt
Cleaning
Easy Clean System
Model
Resinbase Wiper MCR
Set consists
Wet room tray · integrated linear drain body · drain grating · siphon trap
Size
800 x 1200 mm
Ufh Mat
Complete Underfloor Heating Kit
It is possible to include a complete Underfloor Heating Kit to your order. All you need to do is to choose the required size. Additional package, with heating mat, appropriate thermostat, sensor and instructions will be dispatched together with the other goods.

To calculate required mat size you need to get square coverage of the floor and exclude any permanent / fixed fixtures from them. It is also recommended to buy slightly smaller mat than calculated size - you can shape it but cannot cut the cables, therefore too large mat could not be installed.

SUNFLOOR Underfloor Heating
The SUNFLOOR Electric Heating Mat is a unique type of floor heating mat. The system has been designed to be used on an existing tiled floor or an existing finished floor, so that floor heating can still be installed there. The mat is approximately 4 mm thick and can be included in a layer of adhesive without any demolishing or grinding. The mat fits virtually underneath the surface. This decreases the heating time of the floor, that also makes this system suitable for rooms that are not permanently occupied including bathrooms, studies, playrooms, etc.

Heating mat
Underfloor heating mat set consists of all necessary parts for installation. One Thermostat is needed for every 23 m² of heating mat. It is included as optional, to allow ordering mat for custom areas, for example if you need 13 m² of mat total, you should buy 10 m² with one of the thermostats set as include and 3 m² with thermostat not included. In case you require less mat coverage than possible to buy from our product pictures, for example 14.5 m² you should always round low with your purchase and buy 14 m² as the mat is impossible to cut. It can be shaped but not shortened to size.

  • 2.5 meter 3-core supply cable
  • Fully encased in an aluminium earthed sheath
  • Unique blind connection between the heating and the connection cable
  • Chrome/Nickel resistance wire
  • PTFE (Teflon) insulation
  • PVC protective sheath
  • 10 -11 watt per meter resistance wire, 230 Volt
  • Cable diameter approximately 4 mm
  • Complies with current NEN standards for installation in completely wet rooms
UFH Sunfloor Thermostat
Thermostat

The C16Wi-Fi is an intuitive programmable thermostat used to control the electrical floor heating system or water heating system. It will keep home comfortable temp whilst minimizing energy use. Install the app on your smartphone to control the heating system remotely with the WiFi thermostat.

Specification:

  • Voltage: 230 Volt - 50/60 Hz
  • Maximum load: 16A / 3600W
  • Temperature range: +5 to +40°C
  • IP class: IP21
  • Testing: CE
  • Cable spec.: ≤ 2,5 mm²
  • Standby power: ~ 2W
  • Size: 85 x 85 mm
  • Integral room sensor and floor sensor
  • Colour: white or black
Magnum X - Treme Control
This stylish, colourful and refined digital clock thermostat has been specially designed for electric heating systems. The MAGNUM X-treme Control is supplied with every MAGNUM floor heating set (Mat,Cable and Foil types), including external floor sensor, a built-in air sensor and three different frames that suit most brands of switching equipment. The MAGNUM X-treme Control is simple and intuitive to operate using touch sensitive buttons under the display. The new chameleon function is simple to adapt to the colour of your interior. The stylish screensaver shows the time, temperature and current mode without touching the thermostat. The MAGNUM X-treme Control has a new help function that appears after 10 seconds in the menu with a complete description of the setting in question. The MAGNUM X-treme Control also has a wooden floor function whereby the temperature is limited to 28°C. This makes the MAGNUM X-treme Control the idea and safe solution for every electric heating system.

Specification:
  • Voltage: 230 Volt - 50/60 Hz
  • Maximum capacity: 16A - 3600 watt
  • Temperature range: +5 to +40°C
  • Frame: IP21
  • Color: Polar white (RAL 9010)
  • Testing: FI/CE
Technical details:
  • Control via touch sensitive keys
  • Chameleon function (8 colour themes)
  • Screensaver night clock
  • Automatic start-up menu
  • Slow start-up function
  • Wooden floor function (28 °C limit)
  • Automatic summer and winter times
  • Multi-programme function (2 periods per day)
  • Programming multilingual
  • Including floor and air sensors
  • Multi-frame adapter system for: Gira, Jung, Elko, Merten, Busch Jager, etc.
Magnum Manual Thermostat
In some situations the digital regulation is not required and so the preference is for a simple on/off operation. Specifically industrial applications where the heating must remain on at all times. Therefore MAGNUM has designed the Standard Control: a simple on/off thermostat with temperature regulation that is clearly easy to operate.

Specification:
  • Voltage: 230 Volt - 50/60 Hz
  • Maximum load: 16A / 230 V
  • Temperature range: +5 to +40°C
  • Housing: IP21
  • Color: Polar white (RAL 9010)
  • Testing: CE
Technical details:
  • On/off thermostat complete with temperature regulation
  • Including floor sensor
  • Integral room sensor and floor limit sensor
  • Multi frame adapter system for: Gira, Jung, Elko, Merten, Busch Jager, etc.

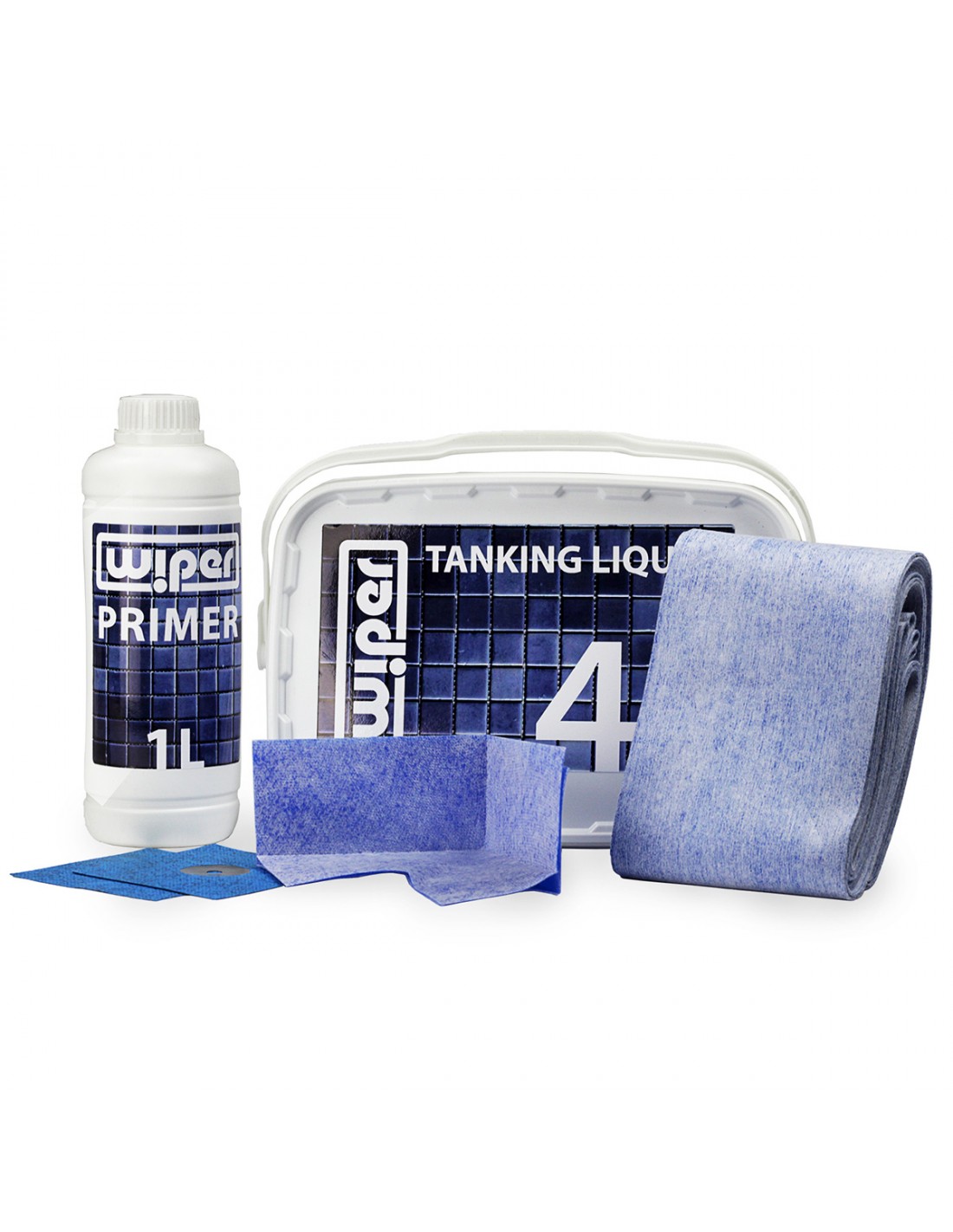

Tanking Liquid

The tanking kit is a ready-mixed, under-tile tanking system to protect water sensitive substrates from exposure to water. Suitable for wet areas such as bathrooms, showers in residential buildings, hotels, old people's homes and hospitals. Should not be used in places exposed to pressurised water, for an instance swimming pools. Ready to use, no mixing required and easy to apply with a roller. The kit includes a high performance joint reinforcing tape to protect against movement in floor joins and corners etc. The contents are all INSIDE the bucket and the contents are protected in the bucket with polystyrene infill's to stop transit damage.The instructions are printed on the rear of the tanking kit.

For anti-moisture insulation systems in wet rooms and rooms intended for human residence. The tanking liquid is a ready-to-use singlecomponent, solvent-free sealant composed of polymer dispersion, fillers and modifying additives. When applied to the surface, upon binding it creates a flexible and water-insulating layer.

Tanking Liquid
Tanking kit contains:
  • 4kg Tanking Liquid
  • 1l Primer
  • 10 Metres flexible Sealing Tape
  • 2 Flexible Pipe Collars
  • 2 Corners

Features:
  • Consumption to 1,2kg/m²
  • Solvent free
  • Drying time: 2h
Tanking Liquid

Tanking liquid
The tanking liquid is a ready to use, single component, solvent-free sealant mass, consisting of polymer dispersion, fillers and additives. When applied to a substrate and cured, it forms a flexible waterproofing coating. The product is intended for use inside places intended for human residence, especially in humid areas (such as bathrooms, kitchens, laundries), to perform insulation against moisture under linings and coverings, such as ceramic tiles, glazed tiles, terracotta, wooden floors and panels, and synthetic carpets.

Primer

The product is intended for priming absorbent and porous surfaces, inside and outside buildings. It is especially recommended for cement - limestone plaster, gas concrete, plaster-carton boards and cement plaster. The primer has a high penetration ability, is deeply absorbed into the substrate, thus strengthening it, while allowing for „breathing”. These benefits improve the structure of the substrates, which, due to the passage of time, have lost their appropriate parameters. The priming solution improves adhesion to the surface of other materials that will be used on the primed substrate. By reducing the absorbency of the substrate, the wear of the applied coating materials, emulsion paints, glues, mineral putties reduces as well. The solution, due to the content of the biocide and fungicide, protects the primed substrate against the formation of mold and bacteria in the product.

H+m Drop 35
McAlpine HC26-50

A McAlpine brand PVC siphon. With 20 mm water seal and a 40 mm connection. It only needs 68 mm height below the product and can be rotated 360°. Significant height reduction in relation to standard waste traps reduces the installation depth. Rotatable elbow connector makes installation simple in any conditions. Comfortable use thanks to Easy Clean System. Each set contains special key, which helps with installation.
  • Low profile perfect for wetroom shower trays, linear and square drains
  • Durable material
  • Easy Clean System
  • Mounting spanner and hair trap included
  • Simple and tight construction
  • 95° connector included

McAlpine HC26-50 Technical diagram

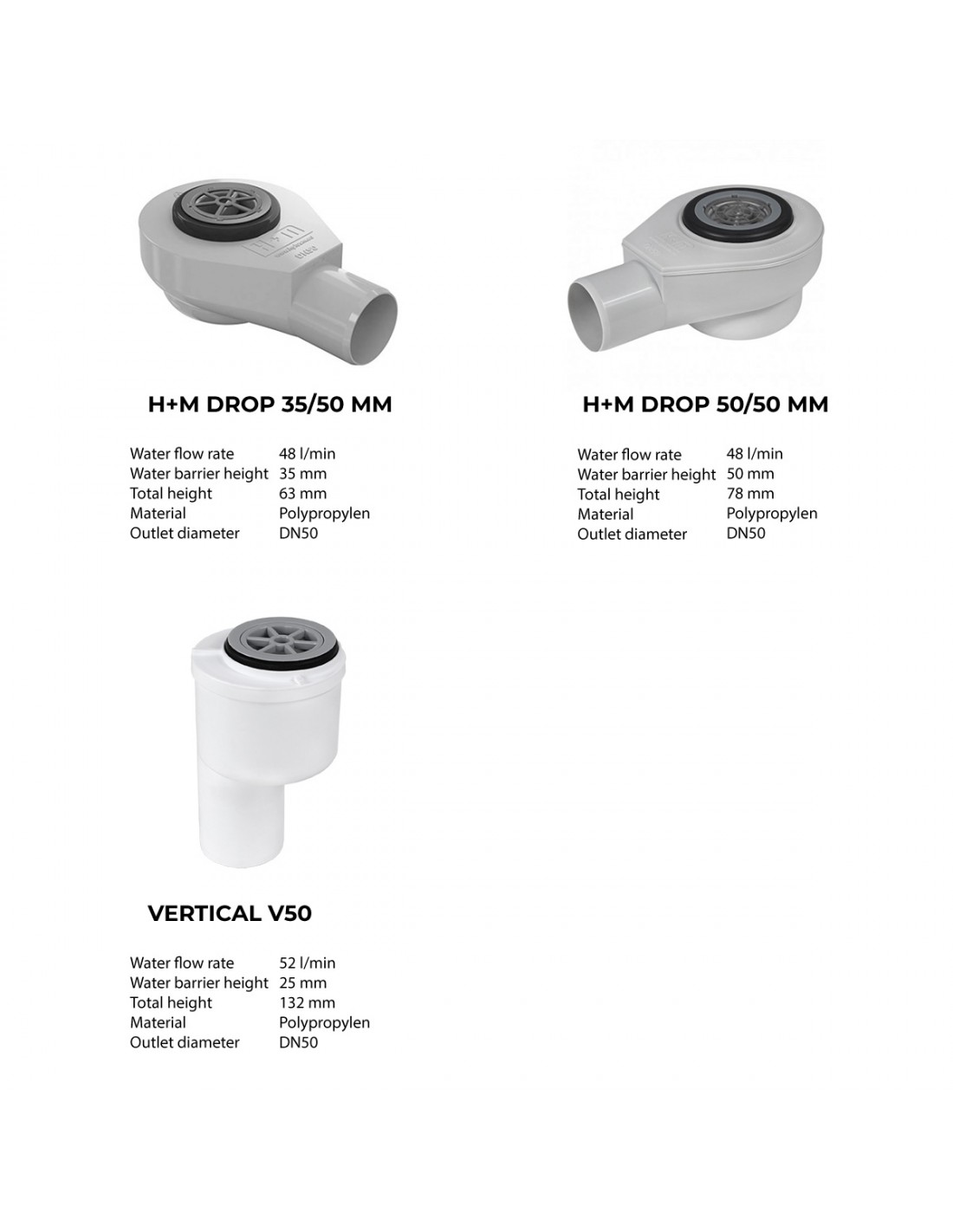

H+m Drop 50
H+M Drop 50

High flow Shower Waste Trap Efficient shower trap made of durable Hostalen PP. Innovative solution adapted to the most rigorous standards of use. It has a high level of water seal (35 mm) with a very small overall height (63 mm). Dedicated mainly to linear shower drains for wet-rooms. Small dimensions makes installation in both concrete and wooden floors a lot easier. High flow rate (48 l/min) guarantees trouble-free use even when heavily loaded with water (eg. with a rainhead shower). The set includes a dedicated spanner that simplifies the installation of a waste trap to the drain, and a strainer made of stainless steel.
  • High 35 mm water seal
  • Low overall height (63 mm)
  • Included: strainer, spanner
  • Made durable polypropylene
  • Very high flow rate (48 l/min)
  • Easy Clean System

H+M Drop 50 Technical diagram




H+m Drop 35
H+M Drop 35

Slim Shower Waste Trap High-quality low-profile siphon made of durable polypropylene plastic. The special slim shape of the waste allows maximum reduction of installation depth. Perfect product for walk-in type shower. It makes wet-room installation significantly easier. Sometimes shower waste with such a low profile may be the only possible choice. Equipped with a special wide Evoprene seal for maximum tightness. For ease of installation, the appropriate spanner is included. High flow rate (36 l/min) guarantees trouble-free use.
  • Extra slim low profile
  • High flow rate up to 36 l/min
  • Included: strainer, spanner, 40/50 mm pipe reducer
  • Durable polypropylene
  • Easy Clean System

H+M Drop 35 Technical diagram




Vertical
H+M Vertical

Vertical ACO V50 waste trap supplied with EU to UK 50mm adapter. High drainage capacity, but low water seal level. The siphon can be rotated 360° and offers the best solution for bypassing beams and pipes.
  • Durable polypropylene
  • Height: 132 mm
  • Flow rate: 52 l/min.
  • Water seal: 25 mm
  • Rotatable 360°

McAlpine Vertical V50 Technical diagram




Available Colour

Brass
This bathroom colour is rising in popularity again and is quickly becoming our most demanded option. It is historically tradition with its timeless elegant finished look. Brass is slightly less vibrant and dominant in colour, which makes it perfect for blending your bathroom decor colours.

Available Colour

Black
Black is becoming the new modern alternative to conventional bathroom decor. Complete your wet room with bold, sleek fixtures and our drain to match. Black bathroom fixtures need a little extra care when it comes to maintenance. To keep its stunning look, you will need to simply wipe down your fixtures after use. A small price to pay for an amazing finish.

Available Colour

Gold
Gold will always speak volumes. A bathroom finished with gold fixtures is breath taking and prestigious in its own right. Gold is a very vibrant colour and will allow all your fixtures stand out in any wet room giving it a luxurious feeling.

Available Colour

Silver
Silver is a modern traditional colour for bathrooms. Not only will it be easy to match with other fixtures, but it will give any wet room a crisp, clean and refreshing feeling. It's common use means you will have a lot more options with available fixtures in multiple different designs.

All of our drains are made from high quality grade 304 stainless steel. The colour of each drain is due to the PVD coating process. PVD coating of metals has proven to be better than powder coating. It will be more durable and resistant to fading, scratch marks and overall wear and tear. Unlike the powder coating process, PVD coating, also has the added benefit of the metal finish being visible. Ultimately, your drain will look amazing and last for a lifetime.

If you wish to have your entire bathroom colour coordinated, from the tiles, to your bathroom fixtures, our PVD coated drains are sure to help you. We have taken the most popular colours our customers have been requesting and now have a selection of four PVD coated linear drain colours to choose from to compliment all of your bathroom fixtures.

The Wiper MCR is available in three different surface finishes. Polished, Brushed and Matt. This is great if you are looking for a specific finish to match the rest of your fixtures. The three finishes are available for all available colour options, However the Brushed finish is the standard option that comes at no extra charge. The visible parts of the drain (the cover and frame) will come in the desired finish.

Surface Finish

Polished is a glossy finish. It has a smooth and shiny look that catches the eye. Characterized by a high degree of development, it's free from imperfections. There are numerous functional considerations, in addition to the visual appearance of polished stainless steel. Properly polished stainless steel looks good and helps to reduce the risk of bacteria being retained by the material when it is utilized in sanitary applications.

Surface Finish

Brushed finish is a semi gloss finish. The key difference between brushed and polished stainless steel is that brushed stainless steel has a rough surface, whereas polished stainless steel has a smooth surface. Brushed stainless steel is a type of metal having a dull polish that is made through friction. It is the the most practical of the three as it is the most scratch resistant.

Surface Finish

Matt is a dull finish. This is a very common stainless steel finish that is non-reflective and smooth in nature. The stainless steel is rolled through a special roller for a smooth, less pitted surface, before being descaled in an acid solution and polished for greater smoothness. It is commonly used for chemical and pharmaceutical equipment.

No reviews
Hello, could you please tell me, how long for delivery showerlay linear 800x1000  £ 299.99 to London NW6. I would need it for Tuesday/Wednesday next week. Is it difficult to tile it? Thank you. Kind regards Katie ...

Dear Katie,

Unfortunately 800 x 1000 is not one of our standard size, we could manufacture custom  shower tray, it would be slightly more expensive and we would need few more days to produce and deliver.

Alternatively you might want to buy Showerlay 1000 x 1000 mm Line and then trim it. That's very easily and can be done with regular handsaw, doesn't do any harm to the tray. Only requirement is to trim equal bits off each side to make sure that pre-machined tray is preserved.

As it's one of our standard sizes, it is available off-the-shelf, so if you order it today before noon you will probably receive it tomorrow. Shipping confirmation will be sent just after it's in transit, with tracking details so you will be able to predict it's arrival on your own.

In case you need anything I will be happy to help.

Kind regards,

David

020 7193 0953


shower tray invisable can i remove drain cover for cleaning if it is not suitable can i return it

Dear Marion,

Showerlay Invisible drain grating can be removed even after installation is complete for cleaning purposes. After lifting the grate you will have access to siphon trap which can be simply opened and cleaned.

Regarding right for return - you can purchase the product and you have 30 days to send the product back in order to receive a full refund. Please notice that complete product needs to be returned, you cannot install the tray and return only the drain grate. Additionally, Invisible is the only drain type without exchangeable cover, you won't be able to swap it with different pattern.

If you have any other questions I will be happy to answer them.

David

020 7193 0953


Is the siphon trap and drain included with the wet-room-kit-800-x-1200-line-sirocco?

Dear Jim,

I would like to confirm that suitable McAlpine siphon trap with pipe is included to this wet room kit. It is completely rotatable and it's pipe height can be adjusted so it gives flexibility to avoid the joists. It features flow rate of 26 l/min and water seal of 20 mm which prevents the air from getting back into the shower.

For the price visible on the product page you receive:

- XPS foam base with pre-machined fall from every corner of the tray to every corner of the drain, reinforced with fibre glass mesh and cement based glue,

- integrated and waterproofed stainless steel channel,

- grating pattern (6 available) - no impact on price nor on performance,

- McAlpine siphon trap with pipe,

Optionally you can include the waterproofing kit to your order, which is very useful especially for timber floor but also recommended for concrete floor.

If you have any questions I am here to help,

David 020 7193 0953


Can you confirm 1500x800mm line sirocco is currently in stock for dispatch this week?

Dear Robert,

I can confirm that we have 20 and 28 mm thick versions of this shower tray available for next day delivery, so if you place an order today before 2 o'clock you will receive it tomorrow. As 35 mm thick bases are not that popular, they are available within 3 business days.

Please let me know if you need any further assistance.

Adam

017 0927 3601


Hi guys, I am interested in 1200x800 tray, do you guys ship to France? Thanks

Dear Customer,

I can confirm that we can ship to any country within the European Union. Delivery fee may vary for other countries, but for France standard free delivery applies.

You can place the order online, there should be an option to choose France as country for delivery. If you find it troublesome please call me and I will try to help to place the order over the phone.

David

020 7193 0953


What is the estimated delivery time on this product.

Dear Customer,

I would like to confirm that this product is available in our Rotherham warehouse so if you place the order before 3 o'clock you will receive it next business day. There's also Morning delivery available for additional cost, please contact us if you're interested.

In case of any questions I am here to help.

Regards Peter

020 7193 5485


Can the linear drain be lift up for cleaning the hair etc?

Dear Customer,

I can confirm that the grating can be lifted up after installation is over, to access the siphon trap from above for cleaning. It can be simply opened and standard bathroom cleaning detergents can be used.

Linear drain channel is already integrated and waterproofed so it cannot be moved, however grating is removable part.

If you have any questions I am here to help.

David 020 7193 0953


Is this shower suitable for concrete floors?

Dear Customer,

I can confirm that this product is suitable for both concrete and timber flooring. There's only requirement that it needs to be underboarded beneath entire surface. You can see fitting instructions here:

Fitting instructions

If you have any questions I am here to assist.

David 020 7193 0953


Does the wetroom trays come with siphon trap waste etc ready to connect.

Dear Customer,

We include suitable McAlpine siphon trap with pipe to every drain we sell. It features 26 l/min capacity, which is slightly more than standard, 20 mm water seal and pipe diameter of 1.5''. It is completely rotatable and adjustable, which gives flexibility with fitting. Product has everything needed to be installed, so yes, it is ready to be connected to your waste system straight after unpacking.

David 020 7193 0953


I purchased your pure linear drain shower tray last year and I am only getting round to installing it now. I will have to bring the level up with backer board to get the tile up to the drain. What is best practice for applying the backer boards over ...

Dear Customer,

Tile backer boards need to have proper thickness. Distance from the shower tray surface to the top edge of the vertical frame of integrated drain is fixed, 15 mm, so is the maximum thickness for all your material that is going to be fitted on top of it. If your tiles are for example 8 mm, then 6 mm tile backer board should be used and 1 mm layer of tile adhesive.

Boards need to be cut diagonally, to match the angle of the premachined slopes on top of the shower tray. Backer boards can be stuck to the shower tray with tile adhesive, as the tray is covered with material that connects to tile adhesive well on both sides.

Hope that helps, if you have any questions I will be happy to assist.

David 020 7193 0953


Can shower tray be made measure?

Dear Customer,

I can confirm that we can create custom shower tray made to size, it would cost more and we would need more time to deliver (6 business days) but yes, we can basically create any shower tray which is smaller than 2000 mm x 1200 mm. It will probably cost more approximately £50 more than standard shower tray of similar specification.

Please send us dimensions, thickness, drain position, it's style and if you require any waterproofing kit to our email: shop@wetroomsdesign.co.uk. I will prepare proper technical diagram, quote and will reply with all the necessary details.

I am happy to help in case of any questions.

David 020 7193 0953


Hi mum is now disabled I have to install a wet room ...her bathroom now is a 1700 £ —900 bath shower a toilet and basin total room size 5m2 on a concrete floor could you please advise me on what I will need for this job Thanks Graham Dewey ...

Dear Graham,

I am sorry to hear about your mom, we've got an article that you might find interesting: 3 More Benefits of a Walk In Shower When You Have Mobility Issues.

Regarding your query, 900 x 1700 is one of our standard wet room kit size. They are available in versions with Linear or Square drain. Basically after buying them you will receive everything you need: 900 x 1700 premachined board (falls from every corner of the tray to every corner of the drain) integrated stainless steel channel, grating pattern (6 available) and suitable McAlpine waste siphon trap.

In addition, you can choose to include the waterproofing kit. Each kit increases the price by £59, so if you went for 6m2˛, it would cost additional £118 total. With the waterproofing kit, you have everything you need to fit the wet room kit and seal it, after doing this it's ready for tiling.

If you have any questions I will be happy to help.

Adam 017 0927 3601


Are your Showerlay Wiper shower trays suitable for a Vinyl Floor finish?

Dear Customer,

Only Showerlay Wiper Invisible are suitable for vinyl floor covering. Other shower trays have vertical frame of 15 mm, so you would need to accomodate that space (best with tile backer boards) to bring it to the frame level, so vinyl sheet is flushed with the drain. If you are able to do this, then you can use any Showerlay, if not, only Showerlays with Invisible drain will be suitable for you.

Peter 020 7193 5485


Is it necessary use tanking kit to install this tray?

Dear Simon,

The Showerlay comes with already integrated and waterproofed 500 mm long stainless steel channel drain. Shower tray itself doesn't require additional waterproofing, however we always recommend to do this, especially for timber flooring. Floor/wall joints as well as the splash area should be protected against water and that's where the tanking kit comes really handy.

Waterproofing kit which can be included to this product, is very efficient, one kit covers 3.2 square metres, contains 4kg tanking liquid, 1l primer, 10m sealing tape, 2 corners and 2 pipe collars. It can be purchased for £59 each, while normal price is £99.

If you have any questions I will be happy to help.

Adam 017 0927 3601


What shower tray thickness should I choose for my timber floor wet room? Do I also need tile backer boards to level up rest of the floor? Can I buy them in your store? Thanks

Dear Ryan,

There are 3 thicknesses available: 20, 28 and 35 mm and they state how thick shower tray is on the edges. They are much shallower near the drain, which is a result of having premachined diagonal slopes towards the drain.

Floor boards are usually 20 mm thick and to install the shower tray you need to remove them to expose the joists, create battons, fix them to the joists and then mount at least 18 mm thick marine ply between the joists. This will create solid even support for wet room kit, which requires to be underboarded beneath entire surface.

By doing this, you will actually replace the floor board with tile backer board and this will allow to avoid total floor height increase.

Alternatively you can lay the shower tray straight on top of the floor boards but you will need to use tile backer boards to bring up rest of the floor height to the shower tray level.

You can find range of tile backer boards here.

Peter 020 7193 5485


Hi, can I trim this tray to the smaller size? I require 1120 mm x 820 mm in my wet room.

Dear Customer,

Our wet room kits are based on XPS material, which is flexible and can be safely trimmed. This can be done with a regular handsaw, is very easy and does not do any damage to the shower tray.

There's one recommendation from us, if you want to cut for example 100 mm off each dimension, you would need to take equal bits off each side 50 mm from the top and 50 from the bottom as it has premachined slopes towards the drain which need to be preserved.

800 x 1200 shower tray can be shortened down to a minimum size of 600 x 1000 mm.

If you have any questions I will be happy to help.

Adam 017 0927 3601
