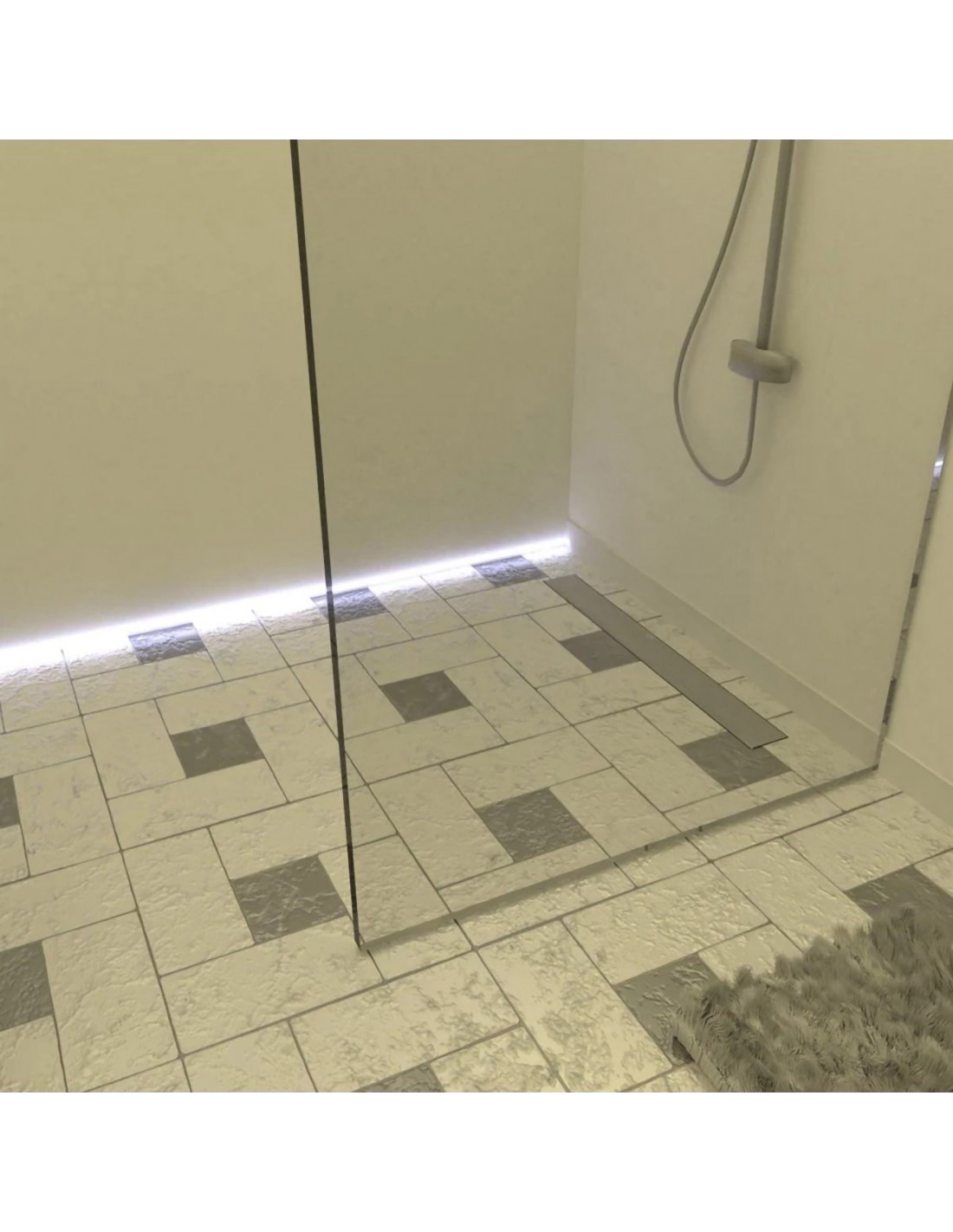

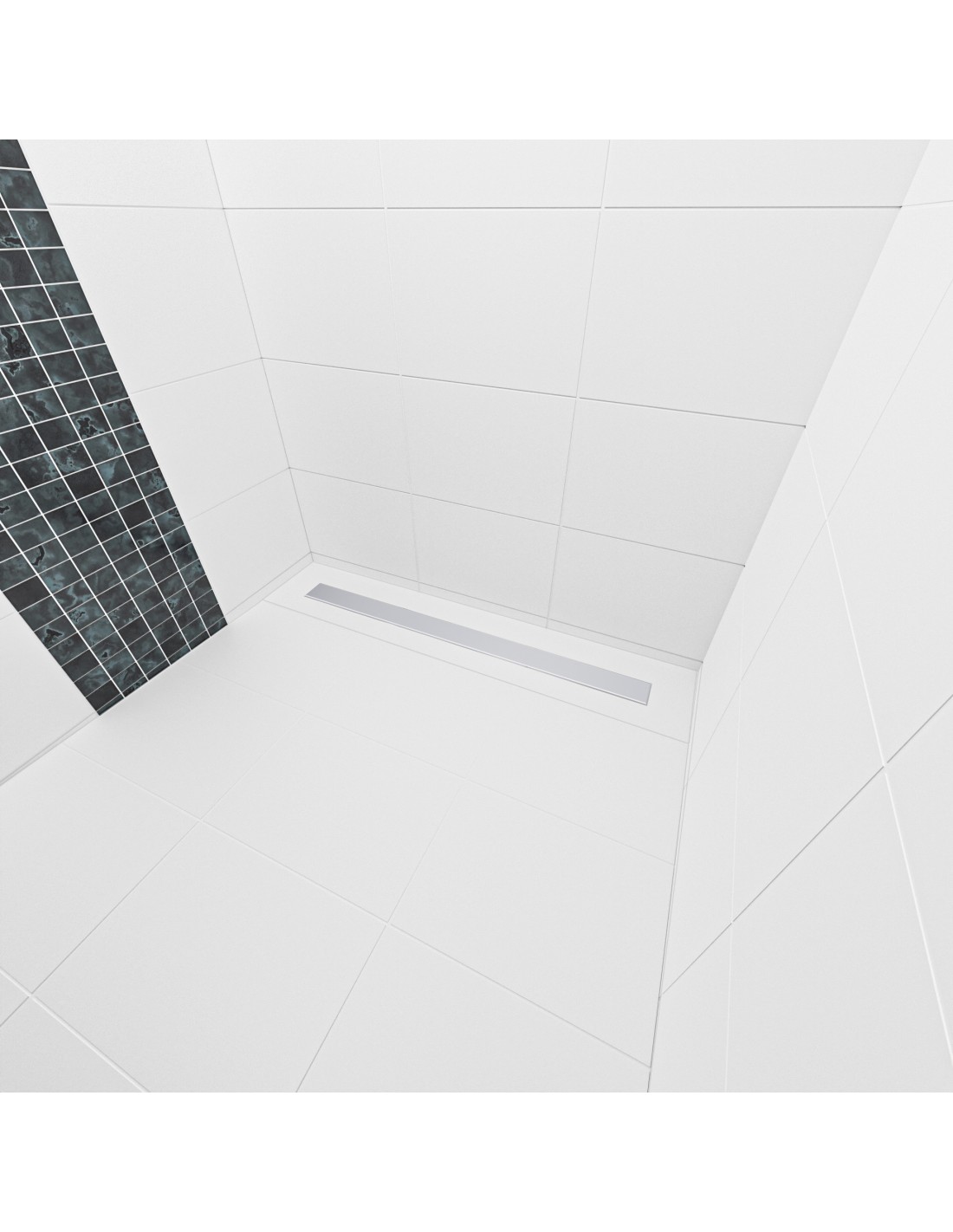

Example Of Finished Wet Room With The Tray Available Here - Classic Corner Installation

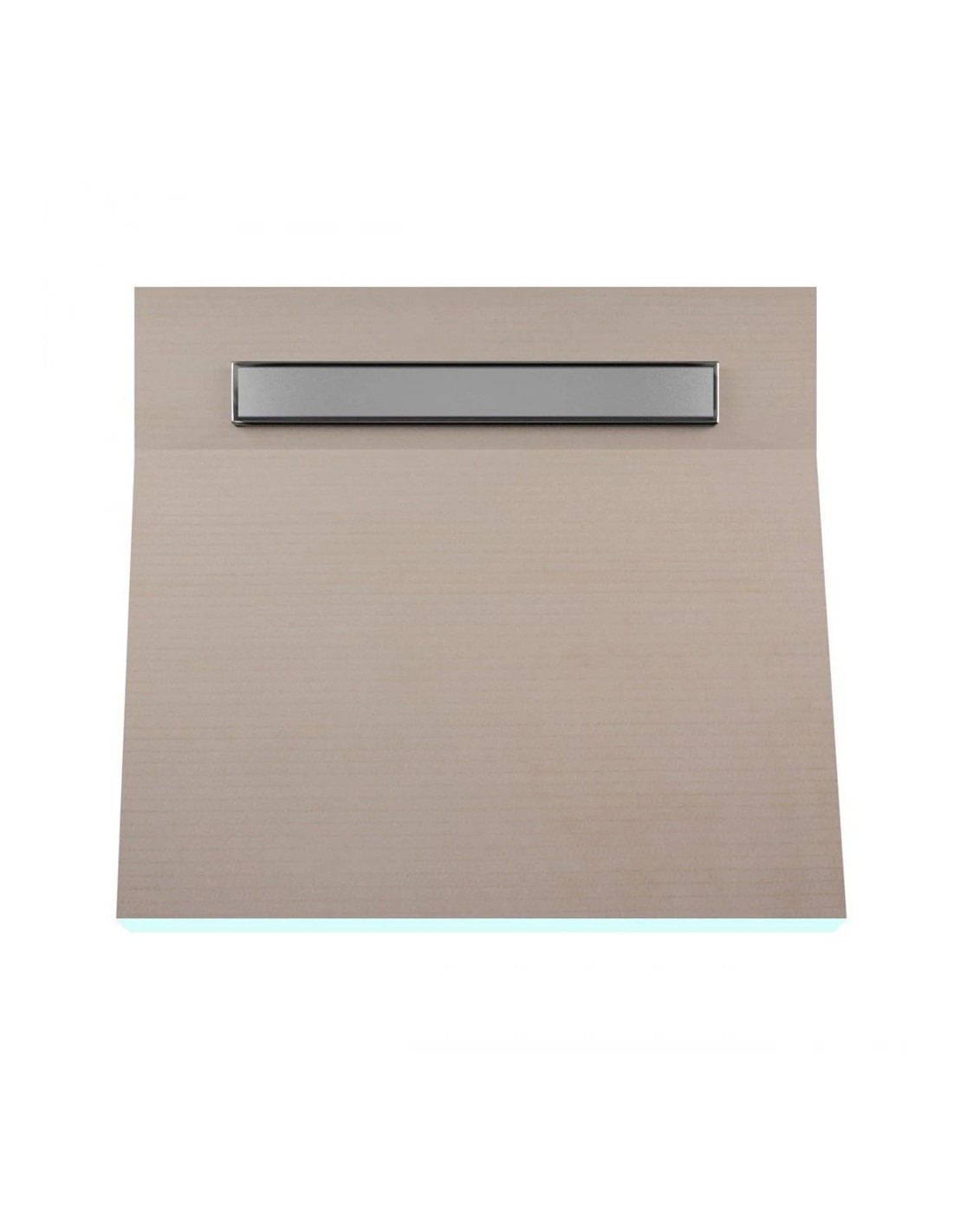

OneWay Wet Room Kit: Shower Tray With Single Slope Towards The Drain, Including Waste Trap And Drain Cover (Ponente)
OneWay Fall Showerlay Wiper 800 x 800...

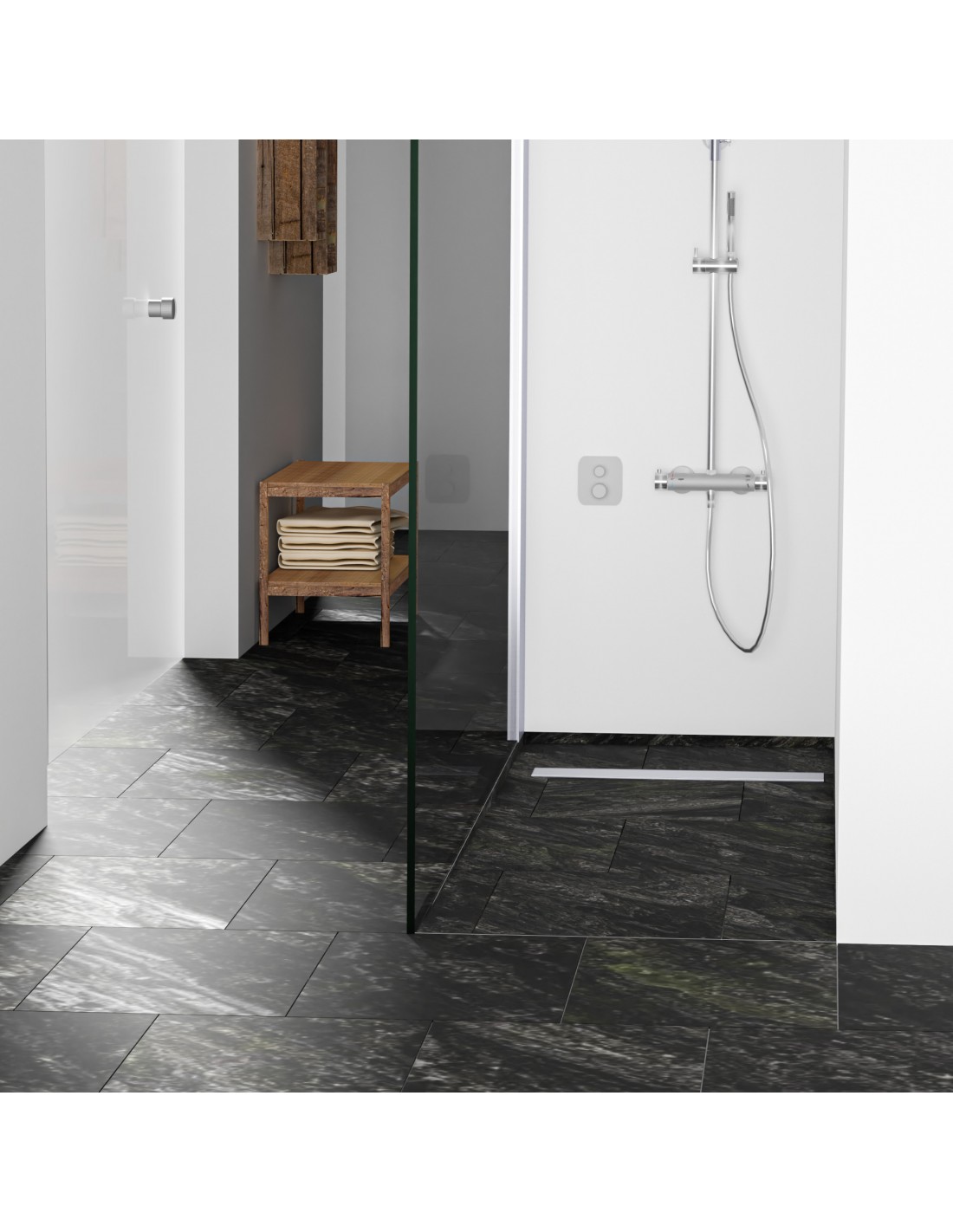

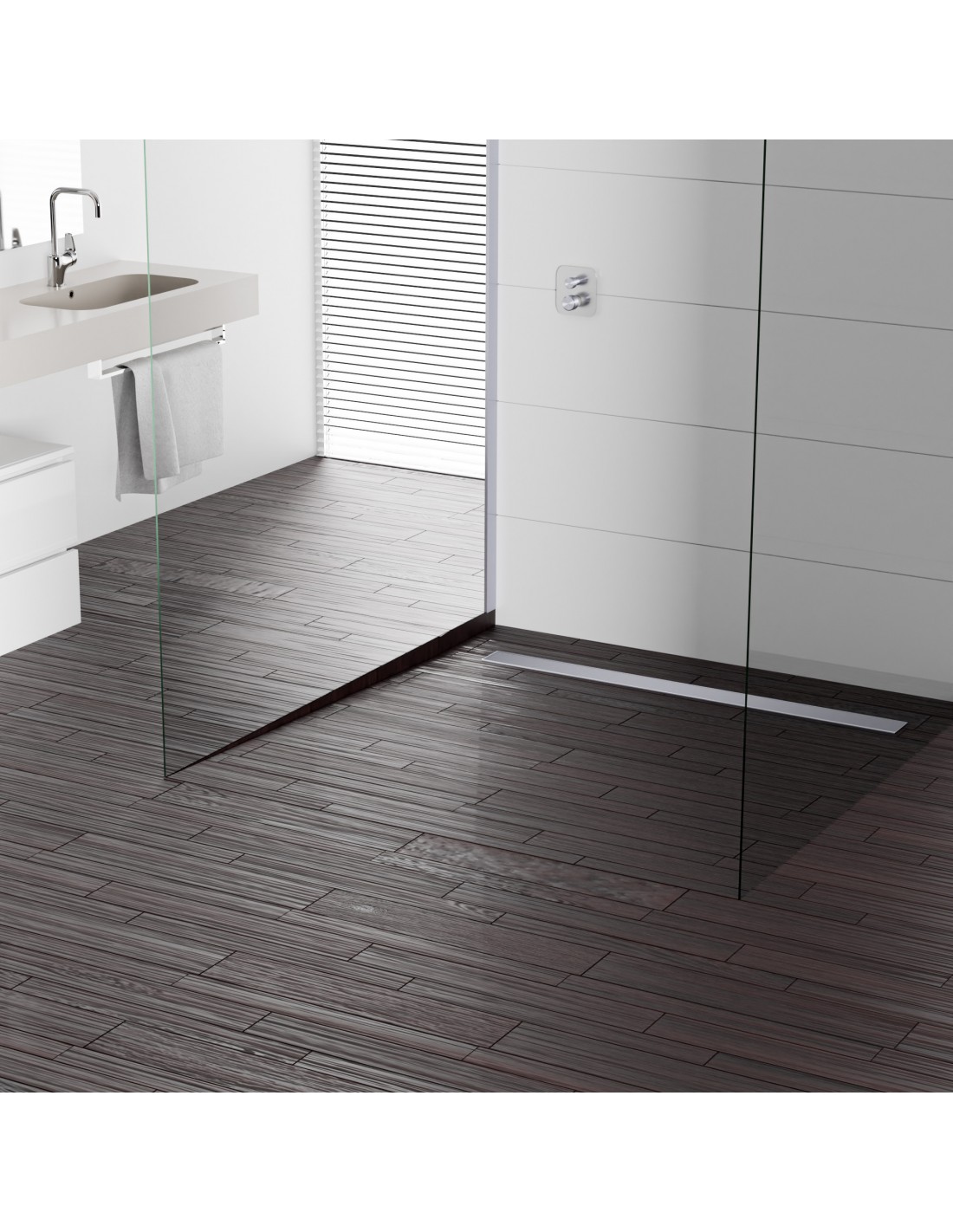

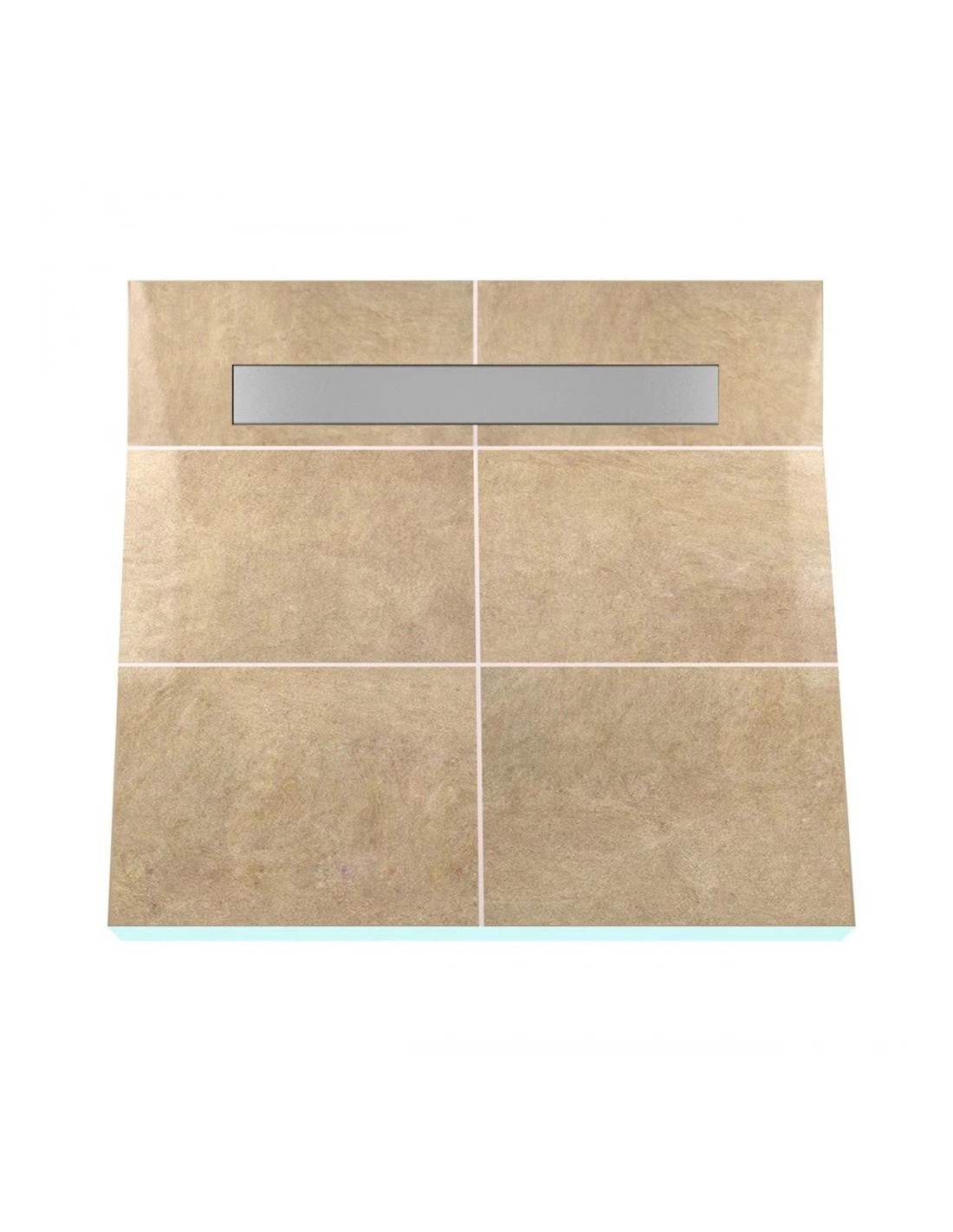

Example of a shower tray tiled with large tiles

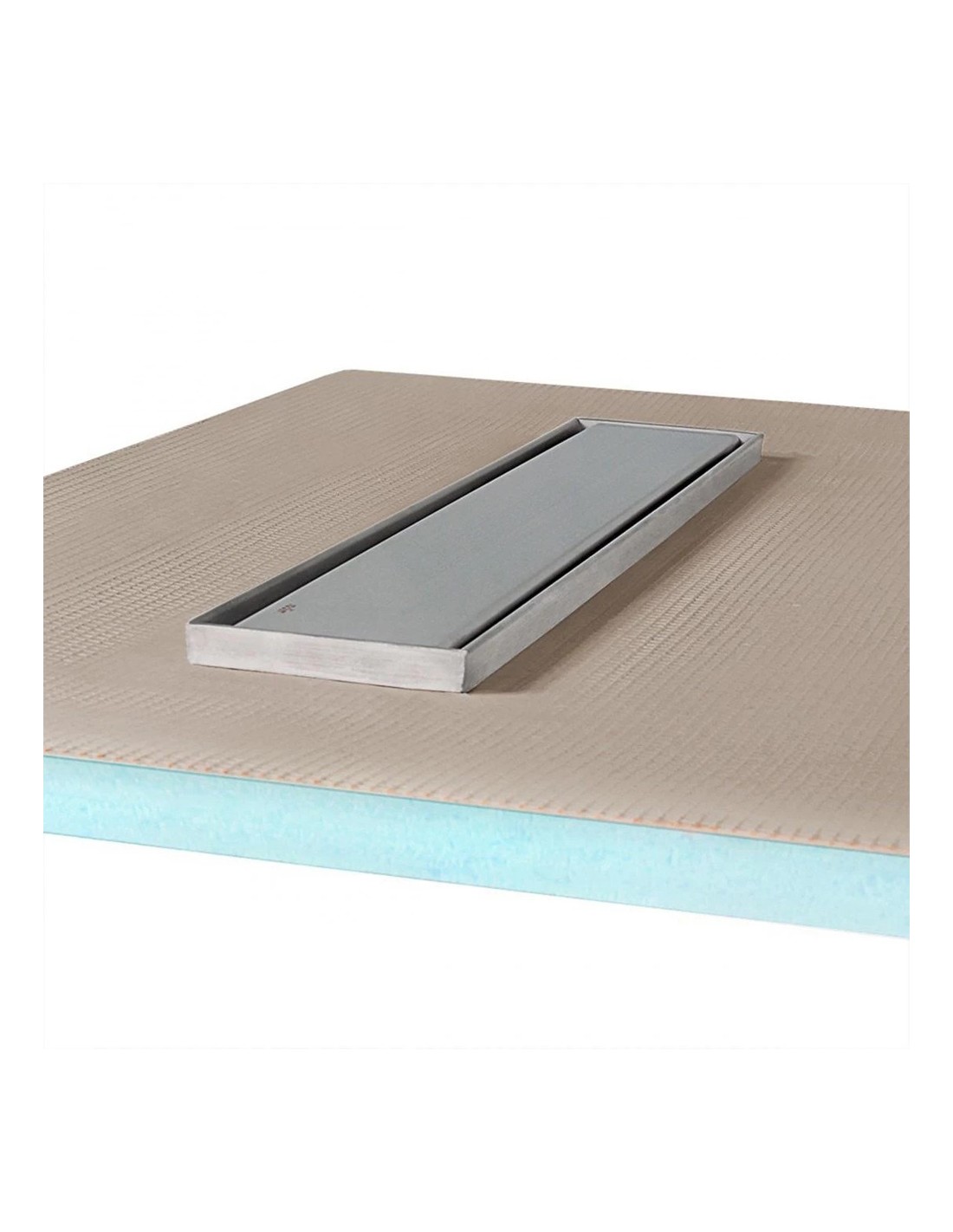

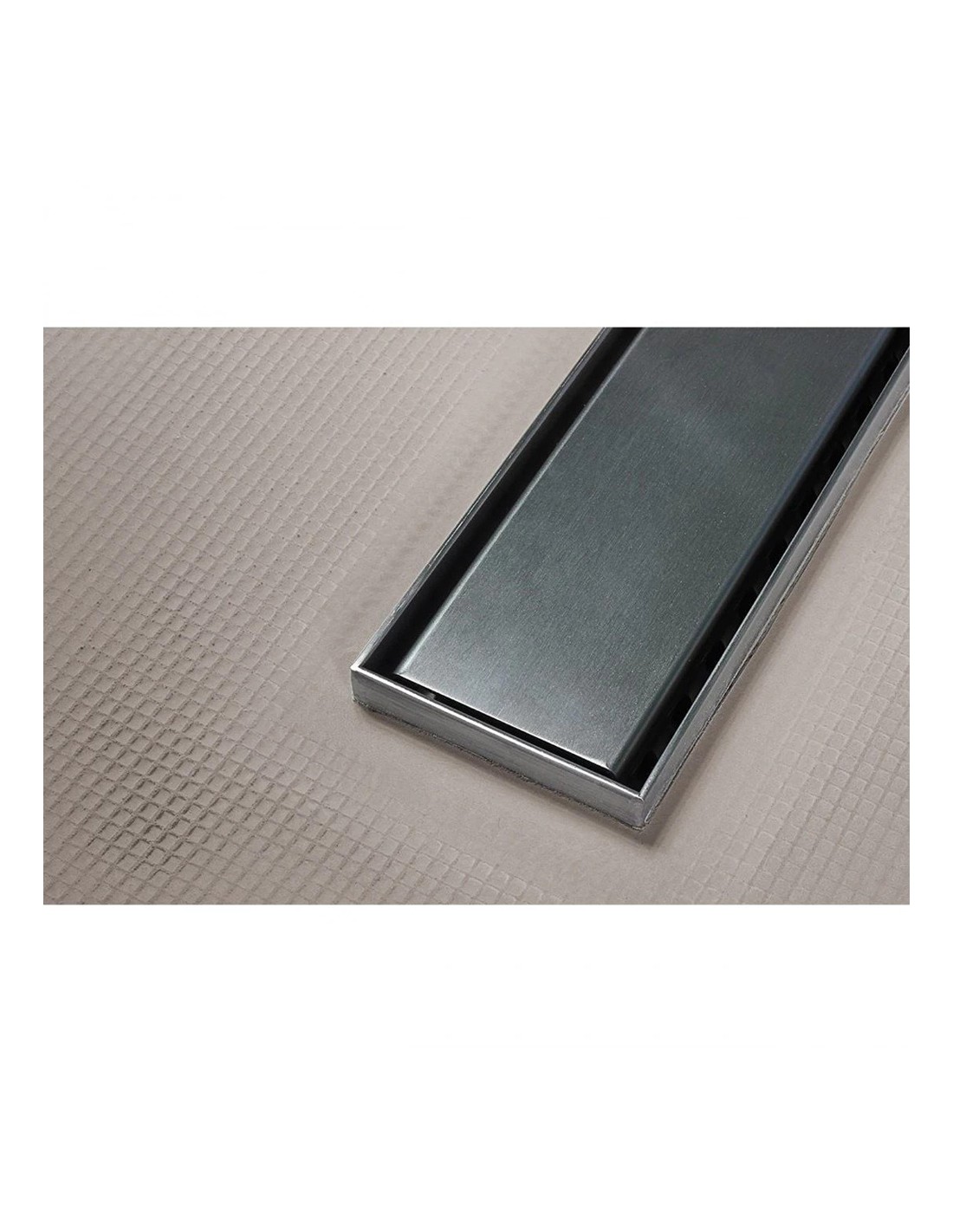

Close up on the carefully finished edge of the frame and cover
Back side of the tray, showing the waste connection outlet
Close up on the carefully finished drain with a detailed look at the cover
Included Waste Trap McAlpine HC26-50, 26 l/min of flow rate
Waste Trap split into parts

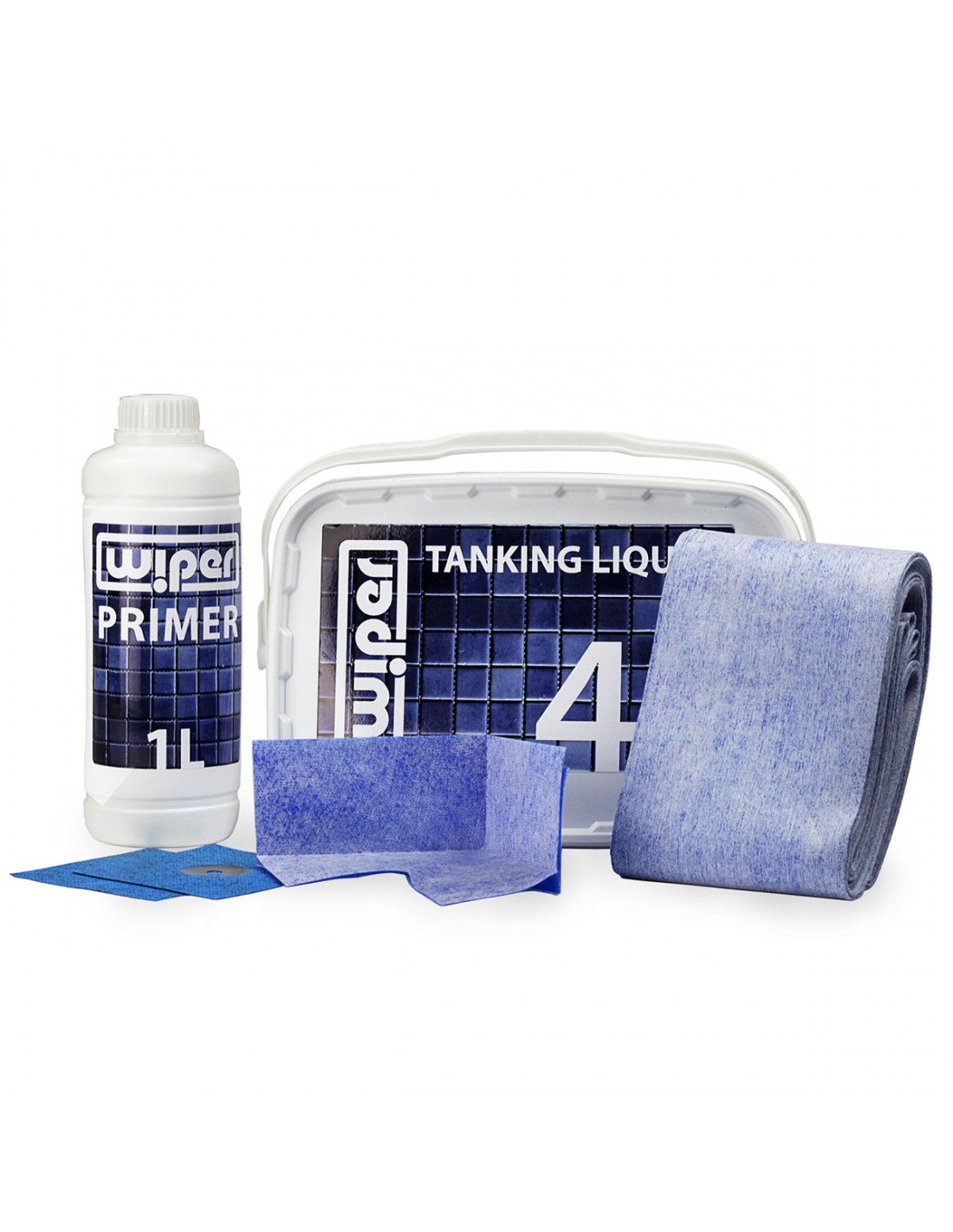

Additional Waterproofing Kit

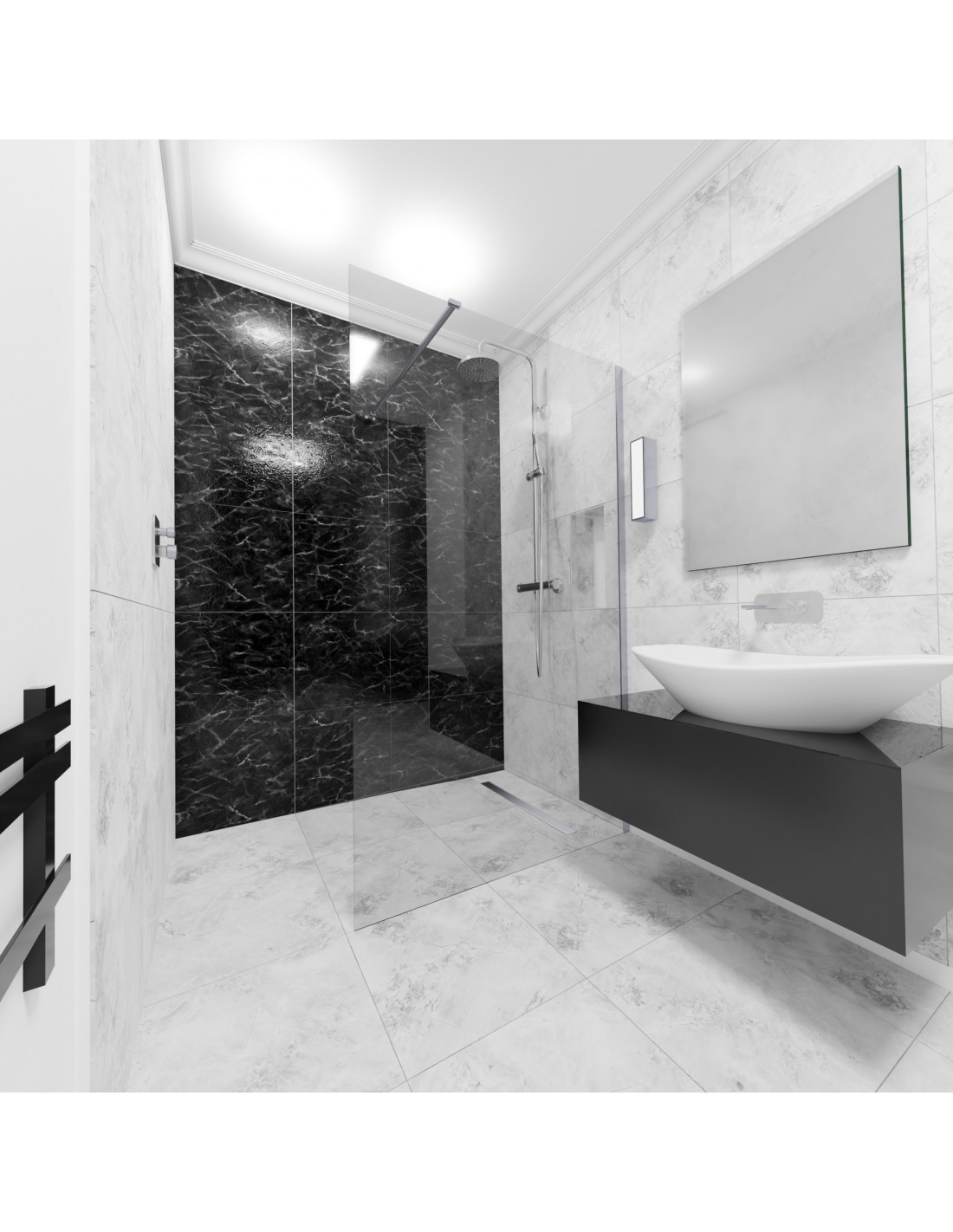

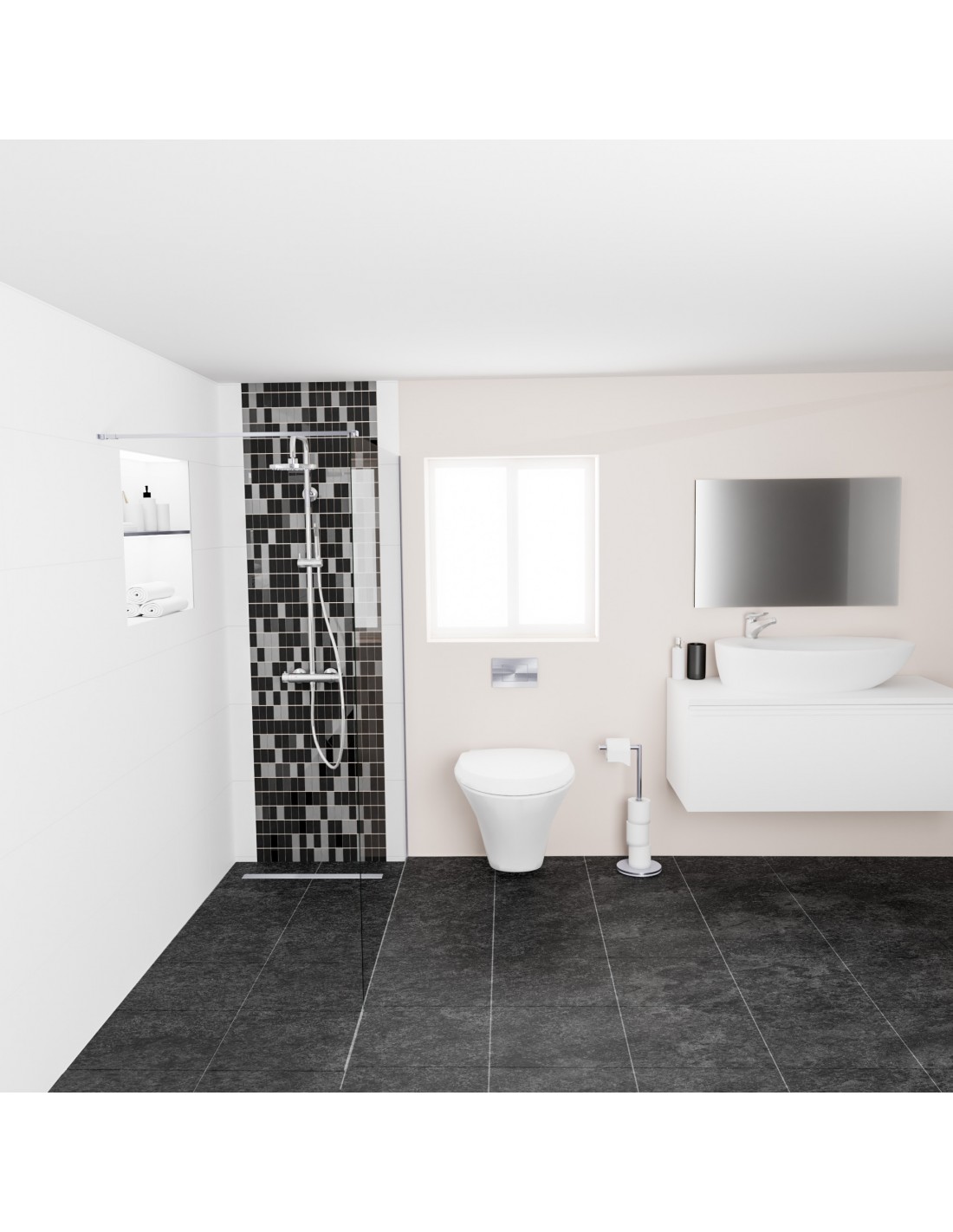

Example of finished Wet Room with the tray available here - classic corner installation

OneWay Fall Showerlay Wiper 800 x 800 mm Line Ponente

Single slope wet room tray 80 x 80 cm model Ponente for tiled floor with integrated stainless steel linear end drain, waste trap and cover

See parts included Technical specification Bespoke Wet Room Trays

OneWay Fall Showerlay Wiper 800 x 800 mm Line Ponente is a walk-in tray with linear drain. The shower tray is characterised by a one-way single slope contoured towards drain channel. In case of type of floor and the size of slope we want there are two thickness available: 30mm or 40mm. OneWay Showerlay provides excellent adhesion to shower board and 100% hydroisolation. The OneWay shower tray is a response to the needs of our clients.  The set consists of a OneWay ShowerLay with integrated and waterproofing linear drain. Dimensions of drain channel: 500mm long and 80mm wide. This set comes also with siphon trap with flow rate 26 l/mm and waste pipe diameter: 1,5". Invisible is a specific drain type without vertical frame, making it suitable for range of finish materials, from vinyl to marble and stone. Grate is flushed with the frame, so there is no requirement for finish material height, although channel protrudes below the bottom shower tray surface for 10 mm. Special degreasing cloth is included to clean the steel surfaces before gluing the finished floor surface. Steel is finished with brush, which is practical and particularly suitable for most architectural applications. 800x800 tray is one of the smallest size of shower tray that we provide. It requires little space, making it suitable for most showers even in small bathrooms. OneWay Fall Showerlay Wiper 800 x 800 Line Ponente is a must-have for modern bathroom design.

Tray size

OneWay Fall Showerlay is single sloped wet room tray available in 14 standard sizes. The drain is located parallel to the shorter edge. A larger tray offers more space for greater comfort. Your tray size should be chosen to match room and enclosure size. Our trays can be trimmed down to size or to avoid obstacles.

Drain Cover
  • Ponente

There are 7 drain cover patterns available. The flow rate is the same for all of them. They are interchangeable and can be swapped even after installation. Each drain sent out is equipped with a lifting hook which makes cleaning easy.

Thickness

Thickness of the board on the edges. It has 2% gradient on the entire upper surface and is shallower near the drain. The benefit of thicker tray is steeper slope, although even the shallowest trays have sufficient slope for water to flow towards the drain, no matter where it drops.

Waterproofing kit

Waterproofing kit is used to seal shower tray as well as connections between walls and floor. It is recommended for concrete and mandatory for timber flooring. Each kit contains 4kg tanking liquid, 1l primer, 10m sealing tape, 2 corners, 2 pipe collars. One kit covers 3 m² with 2 coats. Waterproofing Kit

Underfloor heating kit

Complete Sunfloor Underfloor heating set, including mat, Wi-Fi thermostat, floor sensor and fitting instructions. Fully suitable with our other products. Advanced thermostat with and iOS/Android app allows to set desired temperature of the floor from distance as well as create schedules.
Complete Sunfloor Underfloor Heating Set

Tile Backer boards

Tile backer boards are used to create the perfect substrate to tile onto in wet rooms and bathrooms. Superior to cement boards and plywood, due to its waterproof and thermal insulation properties. Tile Backer Boards

Shower screen

The Wiper Verre Shower Screen is one of Wiper's new shower enclosures. It is available in multiple standard sizes making it fit in small and large wet rooms. Black and silver options make it looks minimalistic and modern. Perfect choice for any wet room upgrade. Made of 8 mm toughened clear glass with Active Shield coating, 2000 mm high. Included fittings are made of stainless steel. The Verre Shower Screen From Wiper

TLOB8853P
Check stock live

Amount of products available off-the-shelf. If order is placed before 3pm, it will be shipped same day with free next business day delivery.

Quantity available in stock for next day delivery:

  • Thickness: 30 mm pieces x 4
  • Thickness: 40 mm pieces x 1
Total available in stock: 5 (This variant: 4)
Same day shipping and delivery on Monday if you order in next 0 hours 00 minutes and 00 seconds
£312.93
Tax included
Amount Of Product Sales 4 Sold during the last 90 days
Amount Of Product Views 8 Views during the last 24 hours
Based on current settings, if you Add to cart current set and then order, you will receive the following items:
Waterproofing Kit

Size: not included

Underfloor Heating Kit

Size: not included

Shower Screen

Size: not included


  • Single slope contoured towards the drain channel,
  • OneWay Fall Showerlay is best solution to avoid diagonally cuts in your tray,
  • OneWay in a new product which is response to our customer needs,
  • Dimensions as described on equivalent technical drawings,
  • High-quality material use creates an extraordinary showering experience,
  • If needed, the tray can be easily shortened in its length or width, using a handsaw,
  • Designed especially for range of Wiper WP120 Premium drains,
  • Our showerlay is a 30/40 mm XPS foam sheet covered on both sides with a flexible cementous glue and reinforced with a fibre glass mesh,
  • The showerlay is CNC machine cut to give a perfect pre-formed fall from each corner to the drain,
  • It is lightweight but very strong,
  • Perfect solution for British wooden floors but can also be used on concrete floors. When it is used on wooden floors,the floor must be underboarded after floor boards have been removed,
  • Standard and minimal underboarding should be 20 mm thick,
  • Ideal for tiled floors. Because of the high compressive strength of the XPS foam, it can even be used with small mosaic tiles. This is not suitable for vinyl floor coverings,
  • The shower lay can be easily cut on site should you have any obstacles such as pipe boxings,
  • Easy to use with underfloor heating systems (should be installed on top of the shower tray)
  • One hundred per cent, double waterproofing,
  • Hardness of the surface layer allows to cement even very small mosaics,
  • High acoustic and thermal insulation,
  • After installation, the plates should be supported over the entire surface.

Trays - Footer

Channel length
600 mm
Grate style
Ponente
Height
800 mm
Width
800 mm
Thickness
30 · 40 mm
Trimming
Both sides: up to 50 mm.
Material
XPS foam sheet
Reinforcement
Fibre glass mesh & cementous glue.
Fall
1-way 2% towards the drain
Additionals
Tanking kit
Drain surface
brush
Cleaning
From above (Easy clean system)
Model
Line
Set consists
Wet room tray · integrated linear drain body · drain grating · siphon trap
Size
800 x 800 mm
5901797290214
Ufh Mat
Complete Underfloor Heating Kit
It is possible to include a complete Underfloor Heating Kit to your order. All you need to do is to choose the required size. Additional package, with heating mat, appropriate thermostat, sensor and instructions will be dispatched together with the other goods.

To calculate required mat size you need to get square coverage of the floor and exclude any permanent / fixed fixtures from them. It is also recommended to buy slightly smaller mat than calculated size - you can shape it but cannot cut the cables, therefore too large mat could not be installed.

SUNFLOOR Underfloor Heating
The SUNFLOOR Electric Heating Mat is a unique type of floor heating mat. The system has been designed to be used on an existing tiled floor or an existing finished floor, so that floor heating can still be installed there. The mat is approximately 4 mm thick and can be included in a layer of adhesive without any demolishing or grinding. The mat fits virtually underneath the surface. This decreases the heating time of the floor, that also makes this system suitable for rooms that are not permanently occupied including bathrooms, studies, playrooms, etc.

Heating mat
Underfloor heating mat set consists of all necessary parts for installation. One Thermostat is needed for every 23 m² of heating mat. It is included as optional, to allow ordering mat for custom areas, for example if you need 13 m² of mat total, you should buy 10 m² with one of the thermostats set as include and 3 m² with thermostat not included. In case you require less mat coverage than possible to buy from our product pictures, for example 14.5 m² you should always round low with your purchase and buy 14 m² as the mat is impossible to cut. It can be shaped but not shortened to size.

  • 2.5 meter 3-core supply cable
  • Fully encased in an aluminium earthed sheath
  • Unique blind connection between the heating and the connection cable
  • Chrome/Nickel resistance wire
  • PTFE (Teflon) insulation
  • PVC protective sheath
  • 10 -11 watt per meter resistance wire, 230 Volt
  • Cable diameter approximately 4 mm
  • Complies with current NEN standards for installation in completely wet rooms
UFH Sunfloor Thermostat
Thermostat

The C16Wi-Fi is an intuitive programmable thermostat used to control the electrical floor heating system or water heating system. It will keep home comfortable temp whilst minimizing energy use. Install the app on your smartphone to control the heating system remotely with the WiFi thermostat.

Specification:

  • Voltage: 230 Volt - 50/60 Hz
  • Maximum load: 16A / 3600W
  • Temperature range: +5 to +40°C
  • IP class: IP21
  • Testing: CE
  • Cable spec.: ≤ 2,5 mm²
  • Standby power: ~ 2W
  • Size: 85 x 85 mm
  • Integral room sensor and floor sensor
  • Colour: white or black
Magnum X - Treme Control
This stylish, colourful and refined digital clock thermostat has been specially designed for electric heating systems. The MAGNUM X-treme Control is supplied with every MAGNUM floor heating set (Mat,Cable and Foil types), including external floor sensor, a built-in air sensor and three different frames that suit most brands of switching equipment. The MAGNUM X-treme Control is simple and intuitive to operate using touch sensitive buttons under the display. The new chameleon function is simple to adapt to the colour of your interior. The stylish screensaver shows the time, temperature and current mode without touching the thermostat. The MAGNUM X-treme Control has a new help function that appears after 10 seconds in the menu with a complete description of the setting in question. The MAGNUM X-treme Control also has a wooden floor function whereby the temperature is limited to 28°C. This makes the MAGNUM X-treme Control the idea and safe solution for every electric heating system.

Specification:
  • Voltage: 230 Volt - 50/60 Hz
  • Maximum capacity: 16A - 3600 watt
  • Temperature range: +5 to +40°C
  • Frame: IP21
  • Color: Polar white (RAL 9010)
  • Testing: FI/CE
Technical details:
  • Control via touch sensitive keys
  • Chameleon function (8 colour themes)
  • Screensaver night clock
  • Automatic start-up menu
  • Slow start-up function
  • Wooden floor function (28 °C limit)
  • Automatic summer and winter times
  • Multi-programme function (2 periods per day)
  • Programming multilingual
  • Including floor and air sensors
  • Multi-frame adapter system for: Gira, Jung, Elko, Merten, Busch Jager, etc.
Magnum Manual Thermostat
In some situations the digital regulation is not required and so the preference is for a simple on/off operation. Specifically industrial applications where the heating must remain on at all times. Therefore MAGNUM has designed the Standard Control: a simple on/off thermostat with temperature regulation that is clearly easy to operate.

Specification:
  • Voltage: 230 Volt - 50/60 Hz
  • Maximum load: 16A / 230 V
  • Temperature range: +5 to +40°C
  • Housing: IP21
  • Color: Polar white (RAL 9010)
  • Testing: CE
Technical details:
  • On/off thermostat complete with temperature regulation
  • Including floor sensor
  • Integral room sensor and floor limit sensor
  • Multi frame adapter system for: Gira, Jung, Elko, Merten, Busch Jager, etc.
Tanking Liquid

The tanking kit is a ready-mixed, under-tile tanking system to protect water sensitive substrates from exposure to water. Suitable for wet areas such as bathrooms, showers in residential buildings, hotels, old people's homes and hospitals. Should not be used in places exposed to pressurised water, for an instance swimming pools. Ready to use, no mixing required and easy to apply with a roller. The kit includes a high performance joint reinforcing tape to protect against movement in floor joins and corners etc. The contents are all INSIDE the bucket and the contents are protected in the bucket with polystyrene infill's to stop transit damage.The instructions are printed on the rear of the tanking kit.

For anti-moisture insulation systems in wet rooms and rooms intended for human residence. The tanking liquid is a ready-to-use singlecomponent, solvent-free sealant composed of polymer dispersion, fillers and modifying additives. When applied to the surface, upon binding it creates a flexible and water-insulating layer.

Tanking Liquid
Tanking kit contains:
  • 4kg Tanking Liquid
  • 1l Primer
  • 10 Metres flexible Sealing Tape
  • 2 Flexible Pipe Collars
  • 2 Corners

Features:
  • Consumption to 1,2kg/m²
  • Solvent free
  • Drying time: 2h
Tanking Liquid

Tanking liquid
The tanking liquid is a ready to use, single component, solvent-free sealant mass, consisting of polymer dispersion, fillers and additives. When applied to a substrate and cured, it forms a flexible waterproofing coating. The product is intended for use inside places intended for human residence, especially in humid areas (such as bathrooms, kitchens, laundries), to perform insulation against moisture under linings and coverings, such as ceramic tiles, glazed tiles, terracotta, wooden floors and panels, and synthetic carpets.

Primer

The product is intended for priming absorbent and porous surfaces, inside and outside buildings. It is especially recommended for cement - limestone plaster, gas concrete, plaster-carton boards and cement plaster. The primer has a high penetration ability, is deeply absorbed into the substrate, thus strengthening it, while allowing for „breathing”. These benefits improve the structure of the substrates, which, due to the passage of time, have lost their appropriate parameters. The priming solution improves adhesion to the surface of other materials that will be used on the primed substrate. By reducing the absorbency of the substrate, the wear of the applied coating materials, emulsion paints, glues, mineral putties reduces as well. The solution, due to the content of the biocide and fungicide, protects the primed substrate against the formation of mold and bacteria in the product.

Premium Drain

Integrated drain
Shower trays incorporate linear drain built-into the tray during the manufacturing process. Wiper Premium range linear shower drains are made from one piece of 304 grade stainless steel. Only the ends are welded. This means that the flange and drain body are made from the same piece of steel ensuring complete security from water penetration. Our flange is on all four sides of the drain. You will not find a better linear drain on the market.

Premium Drain Tech Drawing

  • Length (X): 500 [mm]
  • Height of channel (C): 30 [mm]
  • Height to the centre of waste pipe (G): 68 [mm] (can be adjusted)
  • Total height (H): 98 [mm]
  • Width of channel (Y): 84 [mm]
  • Width of insulating flange (F): 140 [mm] (included)
  • Flange to top edge of channel (T): 15 [mm]
  • High quality Mcalpine poly propylene syphon trap included
  • Easy clean system (cleanable from above)
  • Complete siphon, waste pipe diamter british standard size
  • Pipe height adjustable and rotatable at 360°
  • Drain's cover is included, please select desired design

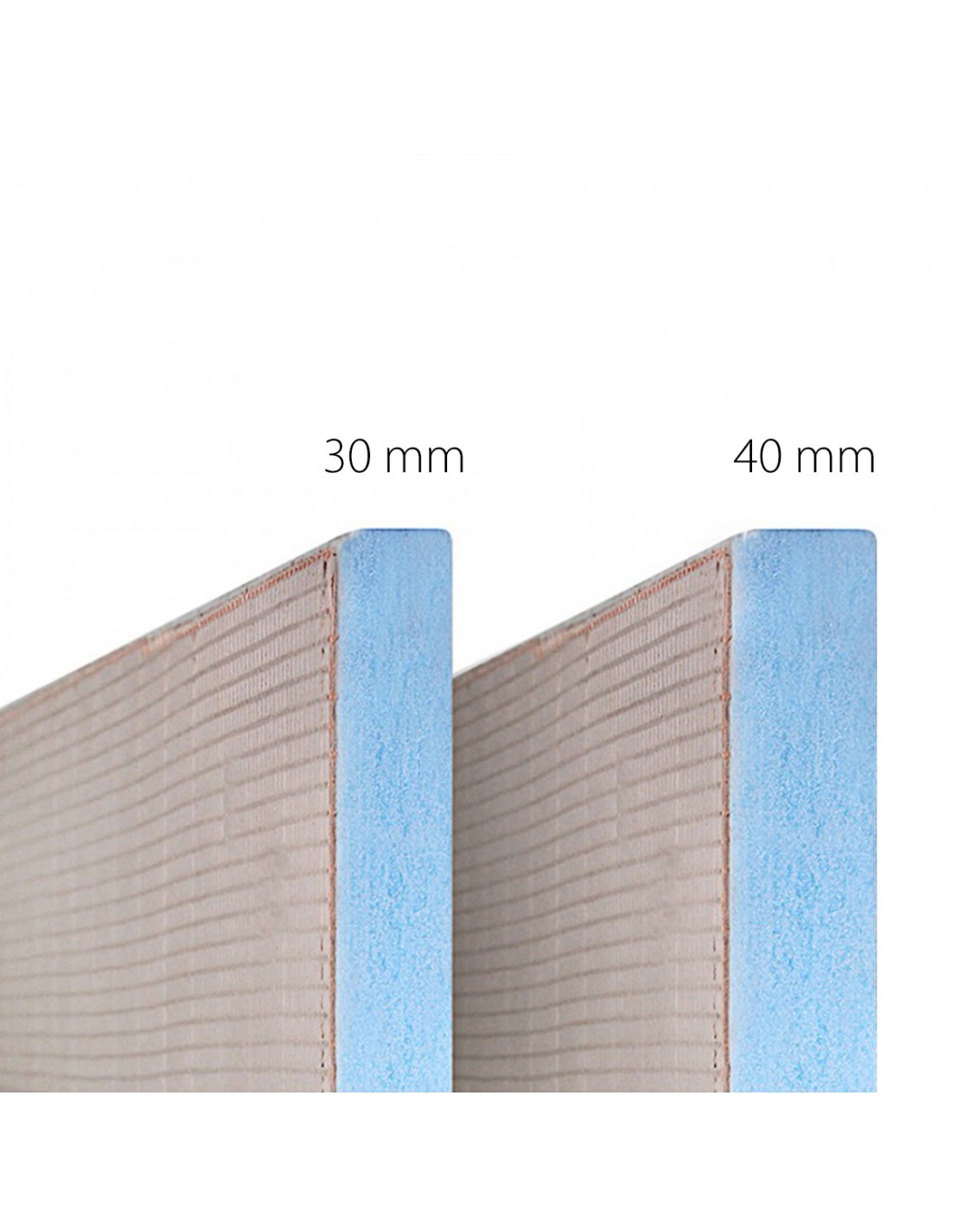

Our OneWay wet room kits are available in two thicknesses: 30mm and 40mm. Depending on space, floor type, and desired gradient you can choose best option for you.

If you have timber floor - existing floor board thickness. Usually they are 30mm thick, in that case you should go for adequate thick wet room kit, to avoid floor height increase and step ups. If you want to achieve stepped up floor, 40 mm thickness might also be a good choice. In case of concrete floor, every thickness is suitable, if you're going to screed the floor you need to shutter the future shower area off and leave proper space for tray to be inserted in the future. If screed has already been done, you will need to use jackhammer or similar tool to groove exact tray thickness and shape when the shower is going to be created. In case of both floor types, every shower tray thickness is enough to bear human weight, as it needs to be underboarded beneath entire surface either with ply or solid concrete. The biggest difference between thicknesses is the slope's angle achieved after installation is completed and shower tray tiled.

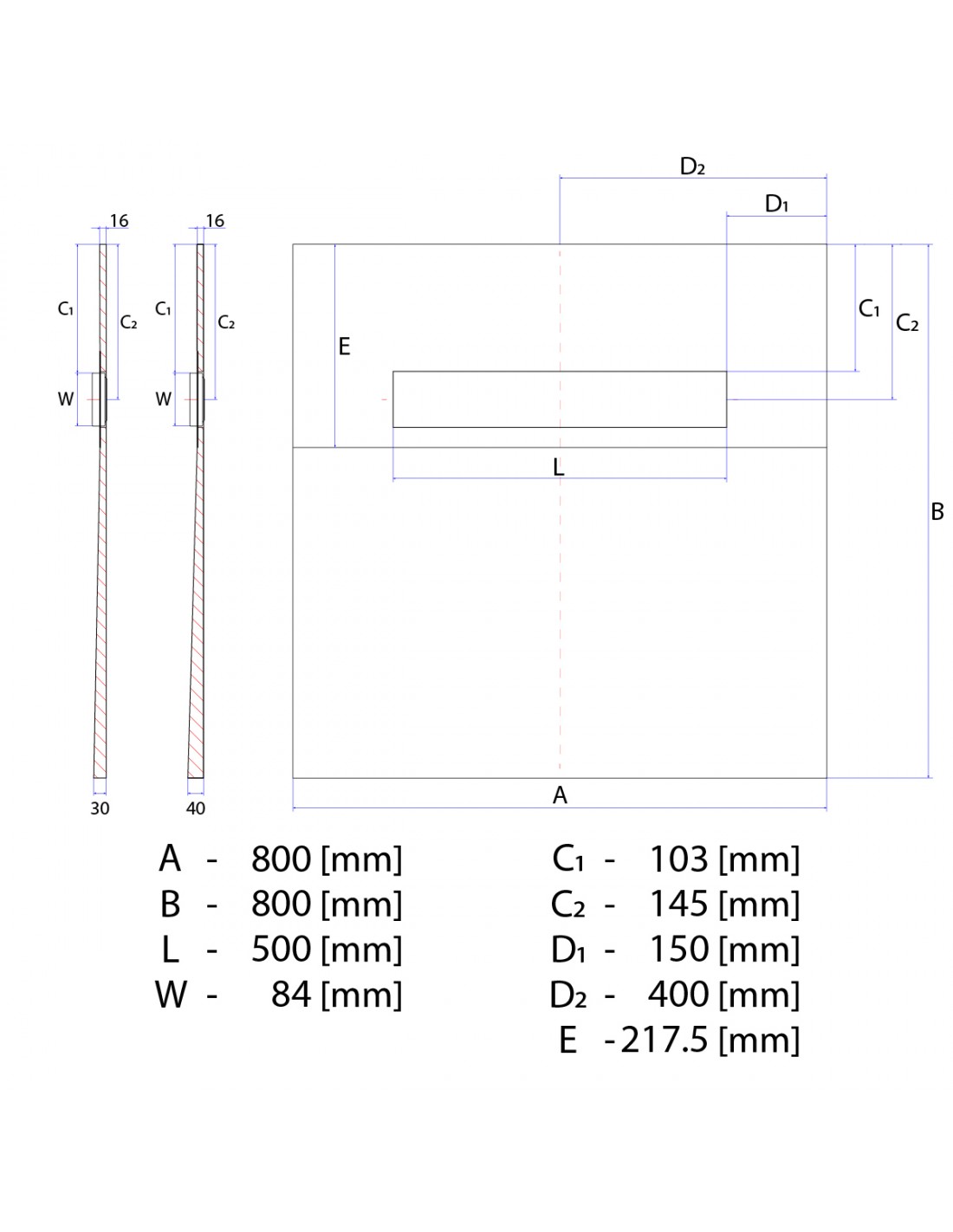

Technical Drawing OneWay Fall Showerlay Wetrooms Design

Documents available below are available to everybody for free to download. They can be open in high quality on your computer and be printed for further use.

Showerlay Timber Fitting InstructionsShowerlay timber floor installation Showerlay Concrete Fitting InstructionsShowerlay concrete floor installation 30 Mm Technical Drawing30 mm technical drawing 40 Mm Technical Drawing40 mm technical drawing Long Term Warranty ConditionsLong term guarantee

Smartrap TechSiphon technical drawing
No reviews
Is the siphon trap and drain included with the wet-room-kit-800-x-1200-line-sirocco?

Dear Jim,

I would like to confirm that suitable McAlpine siphon trap with pipe is included to this wet room kit. It is completely rotatable and it's pipe height can be adjusted so it gives flexibility to avoid the joists. It features flow rate of 26 l/min and water seal of 20 mm which prevents the air from getting back into the shower.

For the price visible on the product page you receive:

- XPS foam base with pre-machined fall from every corner of the tray to every corner of the drain, reinforced with fibre glass mesh and cement based glue,

- integrated and waterproofed stainless steel channel,

- grating pattern (6 available) - no impact on price nor on performance,

- McAlpine siphon trap with pipe,

Optionally you can include the waterproofing kit to your order, which is very useful especially for timber floor but also recommended for concrete floor.

If you have any questions I am here to help,

David 020 7193 0953


Can you confirm 1500x800mm line sirocco is currently in stock for dispatch this week?

Dear Robert,

I can confirm that we have 20 and 28 mm thick versions of this shower tray available for next day delivery, so if you place an order today before 2 o'clock you will receive it tomorrow. As 35 mm thick bases are not that popular, they are available within 3 business days.

Please let me know if you need any further assistance.

Adam

017 0927 3601


Hi guys, I am interested in 1200x800 tray, do you guys ship to France? Thanks

Dear Customer,

I can confirm that we can ship to any country within the European Union. Delivery fee may vary for other countries, but for France standard free delivery applies.

You can place the order online, there should be an option to choose France as country for delivery. If you find it troublesome please call me and I will try to help to place the order over the phone.

David

020 7193 0953


What is the estimated delivery time on this product.

Dear Customer,

I would like to confirm that this product is available in our Rotherham warehouse so if you place the order before 3 o'clock you will receive it next business day. There's also Morning delivery available for additional cost, please contact us if you're interested.

In case of any questions I am here to help.

Regards Peter

020 7193 5485


Can the linear drain be lift up for cleaning the hair etc?

Dear Customer,

I can confirm that the grating can be lifted up after installation is over, to access the siphon trap from above for cleaning. It can be simply opened and standard bathroom cleaning detergents can be used.

Linear drain channel is already integrated and waterproofed so it cannot be moved, however grating is removable part.

If you have any questions I am here to help.

David 020 7193 0953


Is this shower suitable for concrete floors?

Dear Customer,

I can confirm that this product is suitable for both concrete and timber flooring. There's only requirement that it needs to be underboarded beneath entire surface. You can see fitting instructions here:

Fitting instructions

If you have any questions I am here to assist.

David 020 7193 0953


Does the wetroom trays come with siphon trap waste etc ready to connect.

Dear Customer,

We include suitable McAlpine siphon trap with pipe to every drain we sell. It features 26 l/min capacity, which is slightly more than standard, 20 mm water seal and pipe diameter of 1.5''. It is completely rotatable and adjustable, which gives flexibility with fitting. Product has everything needed to be installed, so yes, it is ready to be connected to your waste system straight after unpacking.

David 020 7193 0953


I purchased your pure linear drain shower tray last year and I am only getting round to installing it now. I will have to bring the level up with backer board to get the tile up to the drain. What is best practice for applying the backer boards over ...

Dear Customer,

Tile backer boards need to have proper thickness. Distance from the shower tray surface to the top edge of the vertical frame of integrated drain is fixed, 15 mm, so is the maximum thickness for all your material that is going to be fitted on top of it. If your tiles are for example 8 mm, then 6 mm tile backer board should be used and 1 mm layer of tile adhesive.

Boards need to be cut diagonally, to match the angle of the premachined slopes on top of the shower tray. Backer boards can be stuck to the shower tray with tile adhesive, as the tray is covered with material that connects to tile adhesive well on both sides.

Hope that helps, if you have any questions I will be happy to assist.

David 020 7193 0953


Can shower tray be made measure?

Dear Customer,

I can confirm that we can create custom shower tray made to size, it would cost more and we would need more time to deliver (6 business days) but yes, we can basically create any shower tray which is smaller than 2000 mm x 1200 mm. It will probably cost more approximately £50 more than standard shower tray of similar specification.

Please send us dimensions, thickness, drain position, it's style and if you require any waterproofing kit to our email: shop@wetroomsdesign.co.uk. I will prepare proper technical diagram, quote and will reply with all the necessary details.

I am happy to help in case of any questions.

David 020 7193 0953


Hi mum is now disabled I have to install a wet room ...her bathroom now is a 1700 £ —900 bath shower a toilet and basin total room size 5m2 on a concrete floor could you please advise me on what I will need for this job Thanks Graham Dewey ...

Dear Graham,

I am sorry to hear about your mom, we've got an article that you might find interesting: 3 More Benefits of a Walk In Shower When You Have Mobility Issues.

Regarding your query, 900 x 1700 is one of our standard wet room kit size. They are available in versions with Linear or Square drain. Basically after buying them you will receive everything you need: 900 x 1700 premachined board (falls from every corner of the tray to every corner of the drain) integrated stainless steel channel, grating pattern (6 available) and suitable McAlpine waste siphon trap.

In addition, you can choose to include the waterproofing kit. Each kit increases the price by £59, so if you went for 6m2˛, it would cost additional £118 total. With the waterproofing kit, you have everything you need to fit the wet room kit and seal it, after doing this it's ready for tiling.

If you have any questions I will be happy to help.

Adam 017 0927 3601


Are your Showerlay Wiper shower trays suitable for a Vinyl Floor finish?

Dear Customer,

Only Showerlay Wiper Invisible are suitable for vinyl floor covering. Other shower trays have vertical frame of 15 mm, so you would need to accomodate that space (best with tile backer boards) to bring it to the frame level, so vinyl sheet is flushed with the drain. If you are able to do this, then you can use any Showerlay, if not, only Showerlays with Invisible drain will be suitable for you.

Peter 020 7193 5485


Is it necessary use tanking kit to install this tray?

Dear Simon,

The Showerlay comes with already integrated and waterproofed 500 mm long stainless steel channel drain. Shower tray itself doesn't require additional waterproofing, however we always recommend to do this, especially for timber flooring. Floor/wall joints as well as the splash area should be protected against water and that's where the tanking kit comes really handy.

Waterproofing kit which can be included to this product, is very efficient, one kit covers 3.2 square metres, contains 4kg tanking liquid, 1l primer, 10m sealing tape, 2 corners and 2 pipe collars. It can be purchased for £59 each, while normal price is £99.

If you have any questions I will be happy to help.

Adam 017 0927 3601


What shower tray thickness should I choose for my timber floor wet room? Do I also need tile backer boards to level up rest of the floor? Can I buy them in your store? Thanks

Dear Ryan,

There are 3 thicknesses available: 20, 28 and 35 mm and they state how thick shower tray is on the edges. They are much shallower near the drain, which is a result of having premachined diagonal slopes towards the drain.

Floor boards are usually 20 mm thick and to install the shower tray you need to remove them to expose the joists, create battons, fix them to the joists and then mount at least 18 mm thick marine ply between the joists. This will create solid even support for wet room kit, which requires to be underboarded beneath entire surface.

By doing this, you will actually replace the floor board with tile backer board and this will allow to avoid total floor height increase.

Alternatively you can lay the shower tray straight on top of the floor boards but you will need to use tile backer boards to bring up rest of the floor height to the shower tray level.

You can find range of tile backer boards here.

Peter 020 7193 5485


Hi, can I trim this tray to the smaller size? I require 1120 mm x 820 mm in my wet room.

Dear Customer,

Our wet room kits are based on XPS material, which is flexible and can be safely trimmed. This can be done with a regular handsaw, is very easy and does not do any damage to the shower tray.

There's one recommendation from us, if you want to cut for example 100 mm off each dimension, you would need to take equal bits off each side 50 mm from the top and 50 from the bottom as it has premachined slopes towards the drain which need to be preserved.

800 x 1200 shower tray can be shortened down to a minimum size of 600 x 1000 mm.

If you have any questions I will be happy to help.

Adam 017 0927 3601


What is delivery time for concealed shower tray?

Hello,

Showerlay wet room kit former is available for next day delivery and same day dispatch if order is placed before 3 o'clock. Our courier, TNT delivers from 9am - 6pm. Tracking number with shipping confirmation is sent just after goods are in transit. There's no additional delivery cost.

If you have any questions I will be happy to help.

Peter 017 0927 3601


Hi Do you need a utube in the gulley waste pipe

Dear Customer,

Do you mean u-bend tube?

No, you don't need to buy anything separately, we include McAlpine waste trap with water seal of 20 or 50 mm height and that' enough to prevent the smells from getting back to the shower.

If you have any questions I will be happy to help.

David 020 7193 0953


what size tanking kit would I need for tongue and groove flooring for a 1200X800 tray and which thicknes tray?

Dear Customer,

It depends on your total shower area. Is 800 x 1200 total size of the floor in your shower or is it extended by drying area? If not, one waterproofing kit will be more than enough. Each waterproofing kit covers 3.2 square metres with 2 layers.

Wet room kit comes with drain already integrated and waterproofed so main points of concern are floor/wall joints. The kit is the best for this as it contains 10m sealing tape, 2 corners and 2 pipe collars. If you can spare the tanking liquid, extra waterproofing is always good and should be used to protect the shower area and splash area (extends the shower area by 500 mm off each edge).

We have 30 days unconditional returns right policy so you might want to buy additional kit and if you don't use it you can send it back to us for a full refund.

If you have any questions I will be happy to help.

David 020 7193 0953


hello can we purchase just the the infill piece of the kit?

Dear Customer,

While the grates themselves are not available on our website to purchase, we can supply and sell them. There's 500 mm long linear drain integrated with this shower tray and the grates are interchangeable, so you can purchase any of 6 available grates for this shower tray.

Please call us 020 7193 0953 Mon-Fri 8am-5pm to arrange payment and place the order.

DavidÂ


Is the inset drain able to be tiled?

Dear Customer,

Pure grating pattern is designed to be filled with tiles indeed. It features of 12 mm deep channel, so if you're tiles are not thicker than that, this product will be suitable for you. At the end of the day there's only grap between the grating and rest of the floor visible, so that's very minimalistic design.

If you're tiles are thicker than 12 mm you should go for Showerlay Wiper 800 x 1200 mm Line Invisible. It doesn't have any vertical frame, so there's no requirement for finish material thickness. You will need to aesthetically cut the tiles probably with water jet to avoid sharp edges.

Adam 020 7193 0953


What clearance is needed from the end to the floor joist? I see 150mm on the plan but is more needed due to the trap?

Dear Customer,

Distance from the shower tray's top edge to the top edge of the drain is 150 mm and 192 mm to the centre of the waste trap.

You will need approximately 65 mm of height below the shower tray, it's diameter is approximately 8 cm. It is completely rotatable and it's pipe can be adjusted.

If you have any questions I will be happy to help.

David 020 7193 0953


what determines thickness selected 20,28 or 35 mm?

Dear Customer,

Biggest difference between thicknesses of the board is the slope the shower tray provides. Thicker shower tray provides sharper slope. This might prevent water from pooling if plenty of water will be going through the shower, although even 20 mm thick tray provides sufficient gradient to make water flow towards the drain. As the bottleneck of the flow rate is the waste siphon trap and we include exactly the same to any thickness it does not determine maximum capacity of the shower tray which is always 26 l/min.

For timber flooring 20 mm thick tray is recommended, because floor boards usually are 18 mm thick and by proper installation you can avoid increasing rest of the floor height. If you have much space you can go for thicker tray if you prefer to have steeper shower.

20 mm thick trays are the most popular one, therefore we carry largest amount of them in our warehouse for next day delivery. Some of 35 mm thick trays might be available within 3 business days.

If you have any questions I will be happy to help.

David 020 7193 0953


What are the dimensions of the cutout for drain on the Showerlay Wiper 800 x 1500 mm Line Pure?

Dear Customer,

800 x 1500 shower tray can be trimmed to a minimum size of 640 x 1300 mm.

There's a recommendation though - it would be the best if you could cut equal bits from each side to make sure to keep premachined slope. For example, if you want to shorten 1500 dimension to 1400 it would be the best if you took 50 mm from the top and 50 mm from the bottom of the shower tray.

If you have any questions I will be happy to help.

Adam 017 0927 3601


can the 20mm board be used to replace floorboards in a bathroom with standard 400mm joist centres thanks

Dear Customer,

20 mm thick shower tray is the best for timber floor type. Because floorboards usually are 20 mm thick, 20 mm thick shower tray should be a good solution. According to our fitting recommendations, you need to:

1. Remove floor boards to expose the joists,

2. Prepare and fix battons to the joists, approximately 20 mm from their, upper level.

3. Mount at least 18 mm thick marine ply between the joists, on top of the battons.

4. By doing this, marine ply should be the same level the joists are and this should be a solid support for the shower tray.

5. Shower tray can be fixed using tile adhesive.

If you have any questions I will be happy to help.

Kind regards,

David 020 7193 0953


Can we trim the tray Cut to size?

Dear Customer,

I can confirm that our shower trays can be cut to avoid obstacles and trim the shower tray down to size. How much it can be trimmed it depends on the size of the shower tray and shape of the integrated drainage.

Please let me know what's the size of your shower area and I will confirm which is the best shower tray that would fit your space.

I am happy to assist if you have any questions.

Regards 017 0927 3601


what colour is wetroom tray?

Dear Customer,

Colour of wet room kit is between grey and brown, because it's reinforced with cement. Please notice that shower tray needs to be covered with floor finish material like tiles or mosaic, so you only part of the unit visible after installation is done is the stainless steel drain part. It's not a ceramic shower tray, it's floor level walk in shower tray.

If you have any questions I will be happy to assist.

David 020 7193 0953


I ordered a linear grating wiper 70mm premium ponente , order ref ( xvdnvrvjp ) which has been misplaced I would like to purchase another

Dear Customer,

We are able to supply grates replacement for our drains, though they are not available on our website as a separate products. Please call us 020 7193 0953 Mon-Fri 8am-5pm and we will place the order for you over the phone. For your information they are interchangeable so you can choose any of the 6 available patterns.

Looking forward to hearing from you.

David 020 7193 0953


Can this tray be cut? Need 1200x700 tray

Dear Customer,

I can confirm that this product can be shortened to size or cut to avoid obstacles. 800 x 1200 mm shower tray can be shortened to a minimum size of 660 x 1000 mm.

I am happy to assist if you have any questions.

Peter 020 7193 5485


We'd like to use this slot drain in a 1100 wide x 800 deep alcove, with 600 x 600 tiles. I assume we need to make tiles to either side slope slightly? what do you recommend. thanks Jeremy

Dear Jeremy,

If you have 800 x 1100 mm of space, it might be better to go for 800 x 1200 wet room tray with drain already integrated and slope premachined from every corner of the board to every corner of the drain. It's a very delicate slope yet sufficient for effective water flow.

Shower trays can be cut to avoid obstacles or trimmed down to size, 1200 mm side can be easily cut to 1100 mm with a standard handsaw.

In case you prefer to use a linear drain - that's also possible, however you would need to put an effort to prepare the slope on your own.

If you have any questions I will be happy to help.

Adam 017 0927 3601


https://wetroomsdesign.co.uk/wet-room-kit-800-x-1500-line-zonda Can you let me know if I order this when I can expect it too arrive?

Dear Customer,

I can confirm that we've got this shower tray available in our warehouse with next day delivery and it will be delivered tomorrow if you order it before 3 o'clock.

If you have any questions I will be happy to assist.

Kind regards

Peter 020 7193 0953


I intend to order a Showerlay Wiper 1000 x 1000 mm Line Pure (plus kit) next Tuesday. I am awaiting the plumber's decision as to the thickness required. If I order the tray by midday on Tuesday, will you be able to get it to me on Wednesday?

Dear Customer,

I can confirm that this product is available with next day delivery, therefore if you order it on Tuesday before 3 o'clock, we will ship it same day and it will be delivered on Wednesday.

Regarding thicknesses - basically biggest difference between each thickness is the slope - thicker shower tray is steeper. For timber flooring, we recommend 20 mm thick board, as the floor boards usually are 20 mm thick, and by fitting shower tray of the same thickness you can avoid increasing total height of the rest of the floor.

I am happy to assist if you have any questions.

Kind regards

David 020 7193 0953


Can you tell me if you have ref. 38706 in stock please? Not sure of thickness yet so please can you tell me if all thicknesses in stock?

Dear Customer,

I can confirm that Showerlay Wiper 1200 x 1200 mm Line Pure is available for tomorrow delivery (if you order it today before 3 o'clock) in 20 and 28 mm thick versions. 35 mm thick shower tray would be delivered on Monday because all shower trays of that specification have been sold out.

If you have any questions I will be happy to help.

Kind regards

David 017 0927 3601


Hi I am Trying to order wet room kit and would like the Tivano pattern for the grate but system won't give the option thanks stuart

Dear Stuart,

You need to add proper product to your shopping basket, you will find Showerlay Wiper 900 x 1700 mm Line Tivano here. Alternatively we can just manually alter your order later, there's an option to add your custom comment to your order.

For your information they are interchangeable so you can swap them later even if installation is done.

Kind regards,

David


done this include the gully and waste?

Dear Customer,

Yes it does.

It consists of the 800 x 1500 mm board, integrated 500 mm long stainless steel channel, Pure grating and McAlpine waste trap. There's option to include the waterproofing kit if you don't have your own waterproofing materials.

We sell complete products with everything included, waterproofing kit is very useful for this shower tray.

Kind regards,

Peter 017 0927 3601


Can the former sit on the joists or does it sit on the flooring

Dear Customer,

Our Showerlay must be fully underboarded, but by proper installation you can achieve the same way as if it was sitting on the floor boards. Basically you need to remove existing floor boards to expose the joists. Then you need to prepare battens and fix them to the sides of the joists. After it's done, you would need to mount at least 18 mm thick marine ply between the joists, on top of the battens. By doing this you will be able to replace former floor boards with the shower tray.

Please see our fitting instructions for more details.

I am happy to help if you have any questions.

Kind regards

Agnes D, 020 7193 0953


do you do other sizes?

Dear Customer,

This shower tray is available in 11 sizes, 4 square and 7 rectangular shapes. You can find them all here:

https://wetroomsdesign.co.uk/wet-room-shower-trays

We can also supply custom sized shower tray, please contact us to receive individual quote. These formers can be cut to avoid obstacles or shorten down to size with a standard handsaw.

Let me know if you have any questions.

Kind regards


I recently bought 3 Shower tray formers from you. The picture on you web-site show the Drain channel standing proud of the surface to allow for tiling. The drainage chanel in the trays you have sent me are flush with the top surface of the former, H ...

Dear John,

I can see that you ordered 2x Showerlay Wiper 900 x 1500 mm Point Tivano, and 1x Showerlay 900 x 1850 mm Line Invisible shower tray. In case of the formers with Square Tivano drainage, drain should go above the shower tray level for 15 mm.

Situation is different for Showerlay 900 x 1850 mm Line Invisible, this shower tray comes with drainage which is completely leveled with the board and there's no vertical frame at all as you noticed. They do not have restriction for floor finish material thickness, but there's other restriction - there's only one grating available - tileable one. Grating needs to be covered with tiles as well, so after the installation is over, you could see only the channel which allows the water to flow.

You will need to aesthetically finish your tiles, to be sure they are not sharp (this can be achieved for example with water jet cutting). Alternatively you might want to take a look at similar shower tray but also vertical frame - Showerlay 900 x 1850 mm Line Pure.

Let me know if you have any questions.

Kind regards

David M 020 7193 0953


My client's wet room area is only 680 wide. Could we trim the 800 tray down to that size without effecting the drainage fall

Dear Customer,

Yes, our showerlay can be trimmed to size using regular handsaw. It is very easy and doesn't do any harm to the tray. When trimming, make sure you cut it for equal distances from both sides to preserve premade fall the drain.

We can also supply custom sized shower tray, please contact us to receive individual quote if you are interested.

If you have any questions I will be happy to help.

Kind regards

Agnes


Hi I am after a 900 x 1400 tray, is it ok to cut 100mm off the 1500 tray and if so I imagine it is taken off the end opposite the waste?

Dear Customer,

I can confirm that the wet room kits we supply are trimmable, you can cut them down to size or to avoid obstacles with a standard handsaw. We recommend to take equal bits from each side to make sure that premachined slope is preserved, for example if you want to take 100 mm from one dimension you should take 50 mm from the top and 50 mm from the bottom.

If you have any questions I will be happy to help.

Kind regards,

David 020 7193 0953


Is this shower tray ok to sit just on the 400mm spaced floor joists or will it need ply under it?

Hello,

It has be underboarded, but by proper installation you can effective make it sit on the joists. Please see our fitting instructions, they describe it well:

https://wetroomsdesign.co.uk/wet-room-kit-shower-tray-installation-instructions-timber-floor

I am happy to help if you have any questions.

Kind regards

David M.

020 7193 0953


Please advise the availability of 2 x Showerlay Wiper 800 x 1500 mm Line Pure at 20mm thick.

Dear Customer,

These shower trays are available with next day delivery. We currently have over a dozen of them in our warehouse. There's a deadline of 3 o'clock to have them shipped same day. Waterproofing kit has no impact on delivery time, we do have plenty of them, no matter if you order them or not order will not be delayed.

Let me know if you have any additional questions, I will be happy to help.

Kind regards

David 020 7193 0953


Does the tray come with drain cover and trap? Or do I have to buy this separate

Dear Customer,

Product is complete, so you don't need to buy anything separately. Drainage channel is integrated with the board and it also comes with grate (6 patterns available) and McAlpine waste trap.

There's option to include the waterproofing kit to your order, which I would especially recommend for timber flooring. It is very cost efficient, only £59 / 3m2˛ (2 coats).

I am happy to help if you have any questions.

Kind regards

Peter 020 7193 0953


Delivery tomorrow or Thursday?

Dear Customer,

If you purchased the shower tray yesterday before 3 o'clock it would be shipped and out for delivery today. We ship all the goods same day if the order is placed before 3 pm with next day delivery service.

For example if you order this tray today (Wednesday) at 2 o'clock you will get it tomorrow (Thursday).

Let me know if I can assist in any other way.

Kind regards

Peter T 020 7193 0953


Is it possible for me to purchase just the trap and if so how do I place an order?

Dear Customer,

We can supply just the trap suitable for that drain, it would cost 20 + 10 for delivery. They are currently unavailable on our website, to place the order please call me and I will arrange your order & payment over the phone.

Kind regards

David M 020 7193 0953


Hi, can you confirm the waste, trap and drain cover over are provided? Which drain pattern is provided? Thanks Tyler

Dear Tyler,

I can confirm that for the price which is visible on the product page you would receive:

- bloard with premachined slopes

- integrated stainless steel channel drain

- grate, in this particular case it would be tileable Pure grate that would be included

- McAlpine waste trap

You can also include a waterproofing kit to your order, but that's optional.

Let me know if you have any questions.

Peter T

020 7193 0953


Is there any further discount for buying two shower formers?

Hello,

Have you placed any order with us before? What's the full specification of the shower trays you'd like to purchase? According to our trade and wholesale discount policy, we can grant you a first discount if your cart is above £720 or if you placed an order before let me know your email address, I will check how much your account has already in total purchases.

Please contact me for further assistance.

Kind regards

020 7193 0953

David M


Hi, can you please tell me if I order today when can it be delivered to Kent Paul

Dear Paul,

This product is available off-the-shelf, so if you order it before 3 o'clock it will be shipped same day with next day delivery.

I am happy to help if you have any other questions.

Kind regards

Matt

020 7193 0953


Hi Guys, I want to purchase the 800 x 1500 line pure tray with 3m tanking. Im currently working in Hong Kong. This is the first of several shower rooms to be done out here and I am looking for a supplier who would be happy to send to Hong Kong. Is t ...

Hello,

We're going to check whether we can deliver to Hong Kong and send the quote to your email address, however it will be very expensive, probably much more expensive than the shower tray itself.

If possible, it would be much better for us to deliver to UK for free and then you could arrange a pickup to your final delivery
