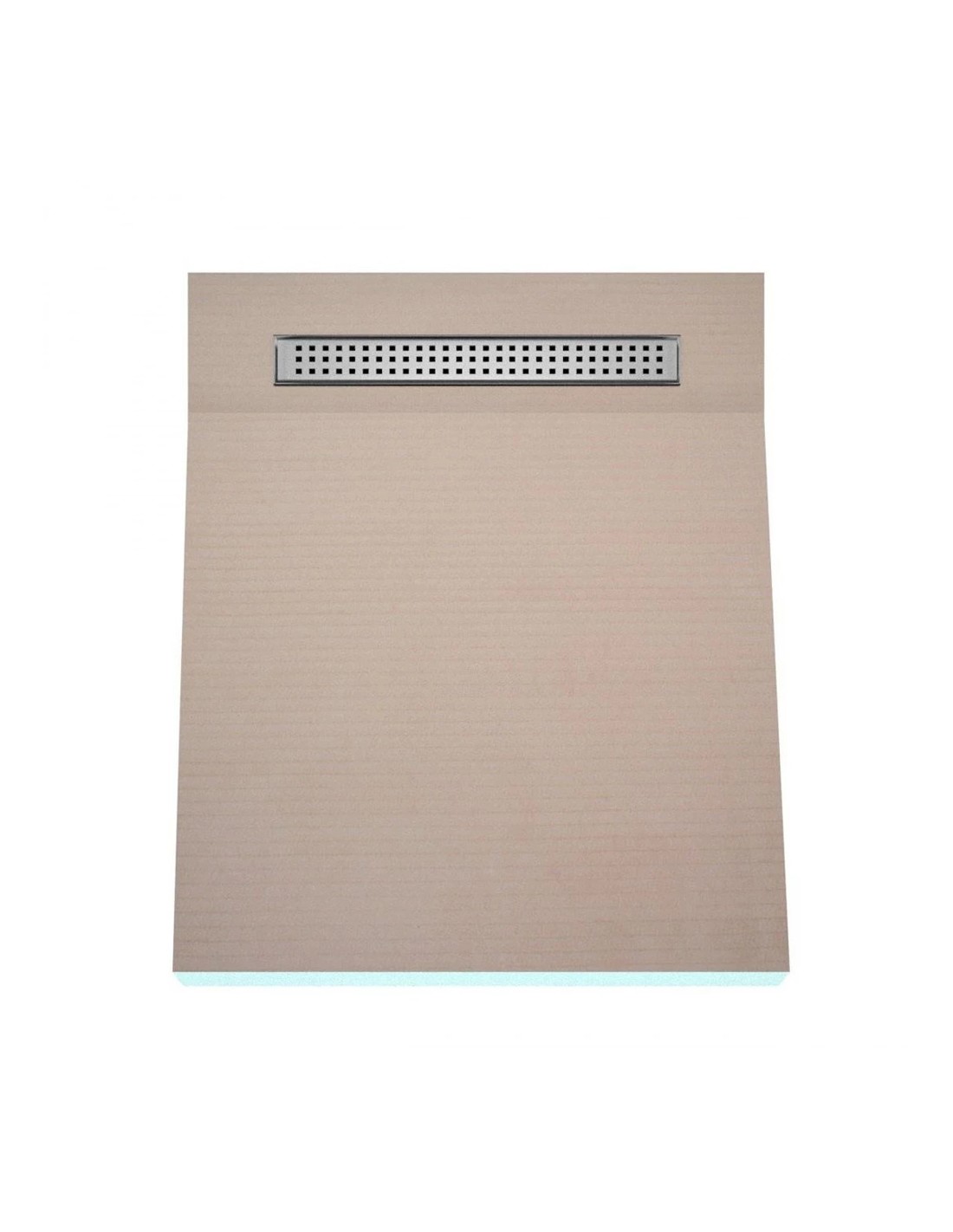

OneWay Wet Room Kit: Shower Tray with single slope towards the drain, including Waste Trap and Drain Cover (Sirocco)
Technical Diagram of OneWay Fall Showerlay Wiper 1000 x 1500 mm Line Sirocco

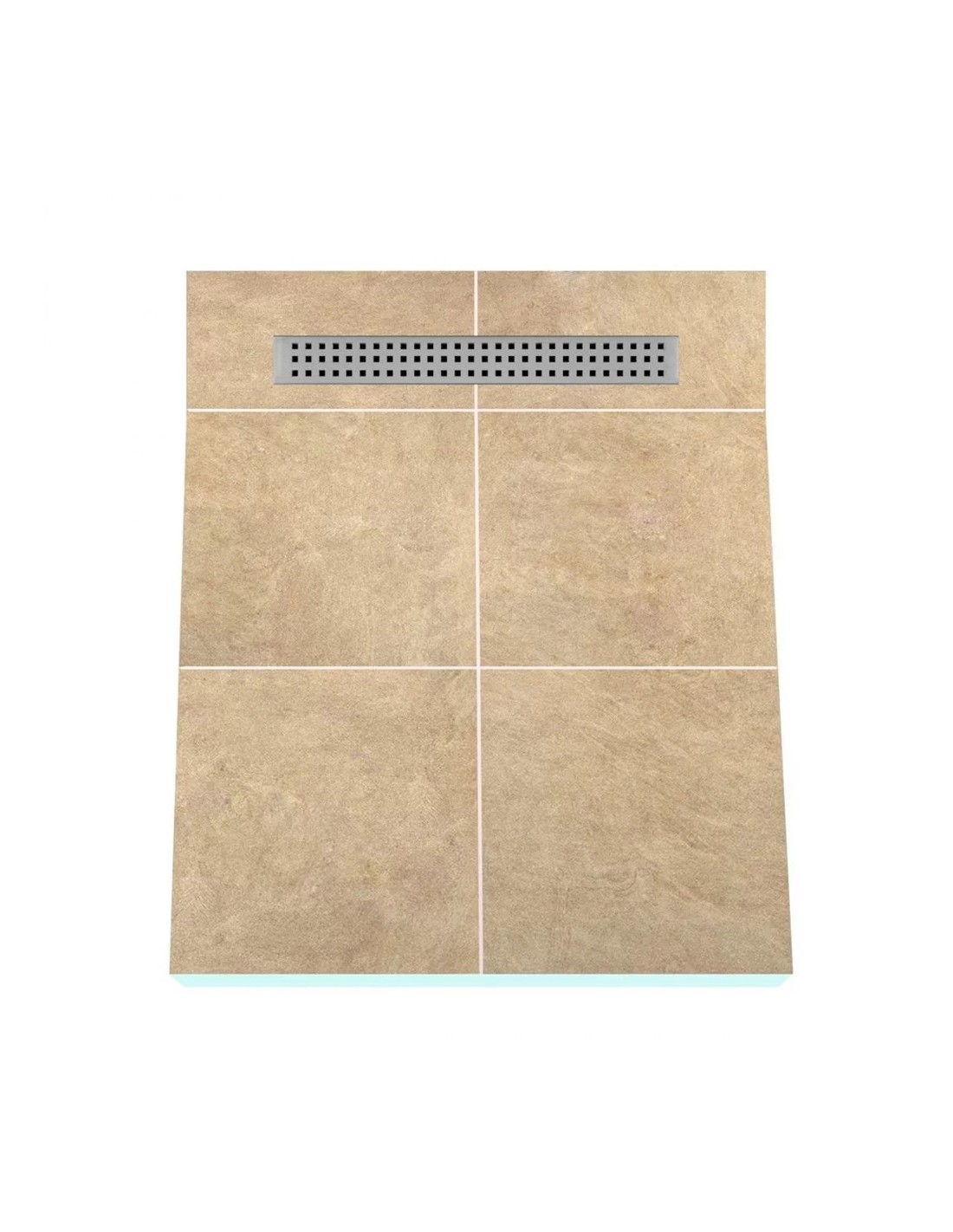

Example of a shower tray tiled with large tiles

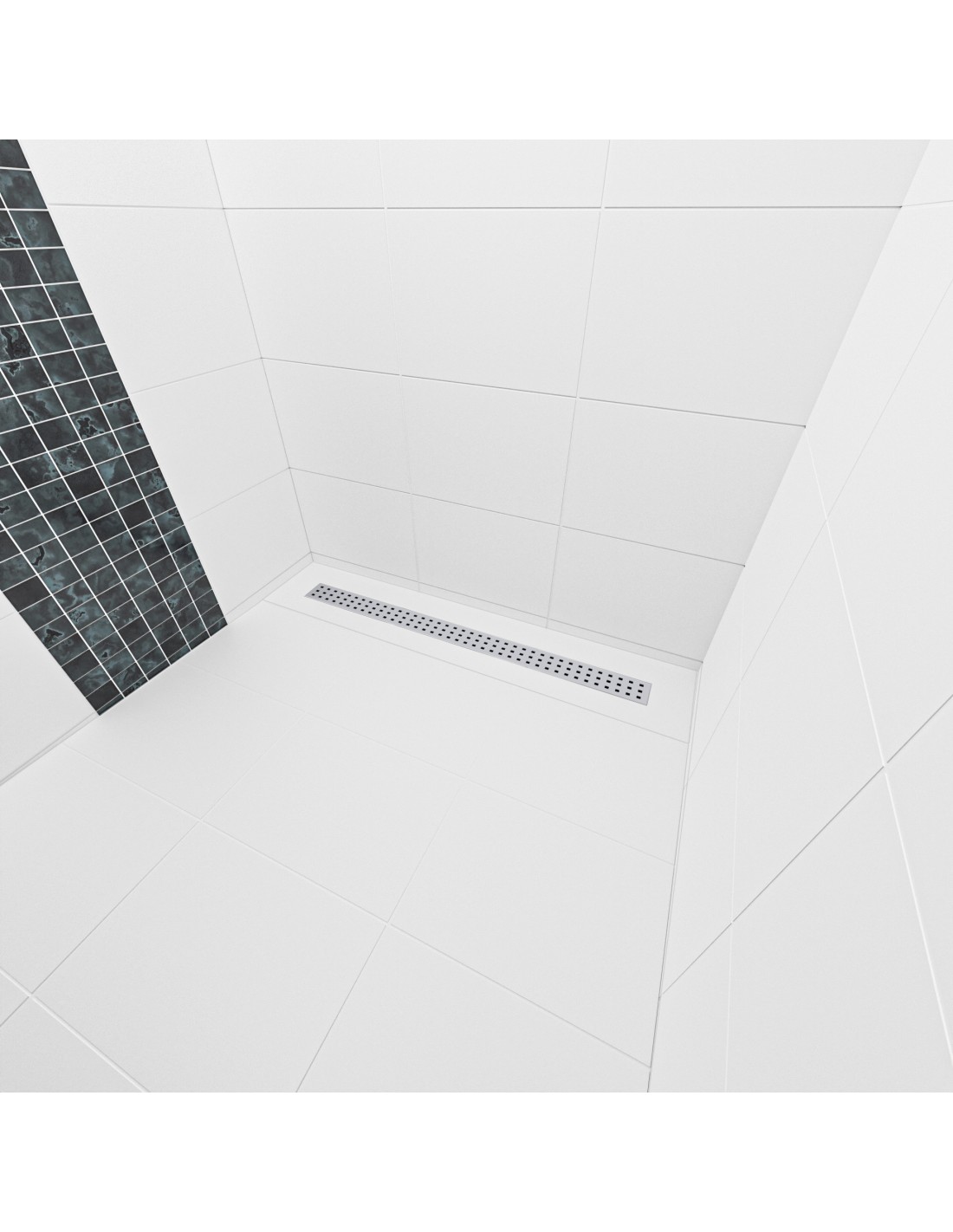

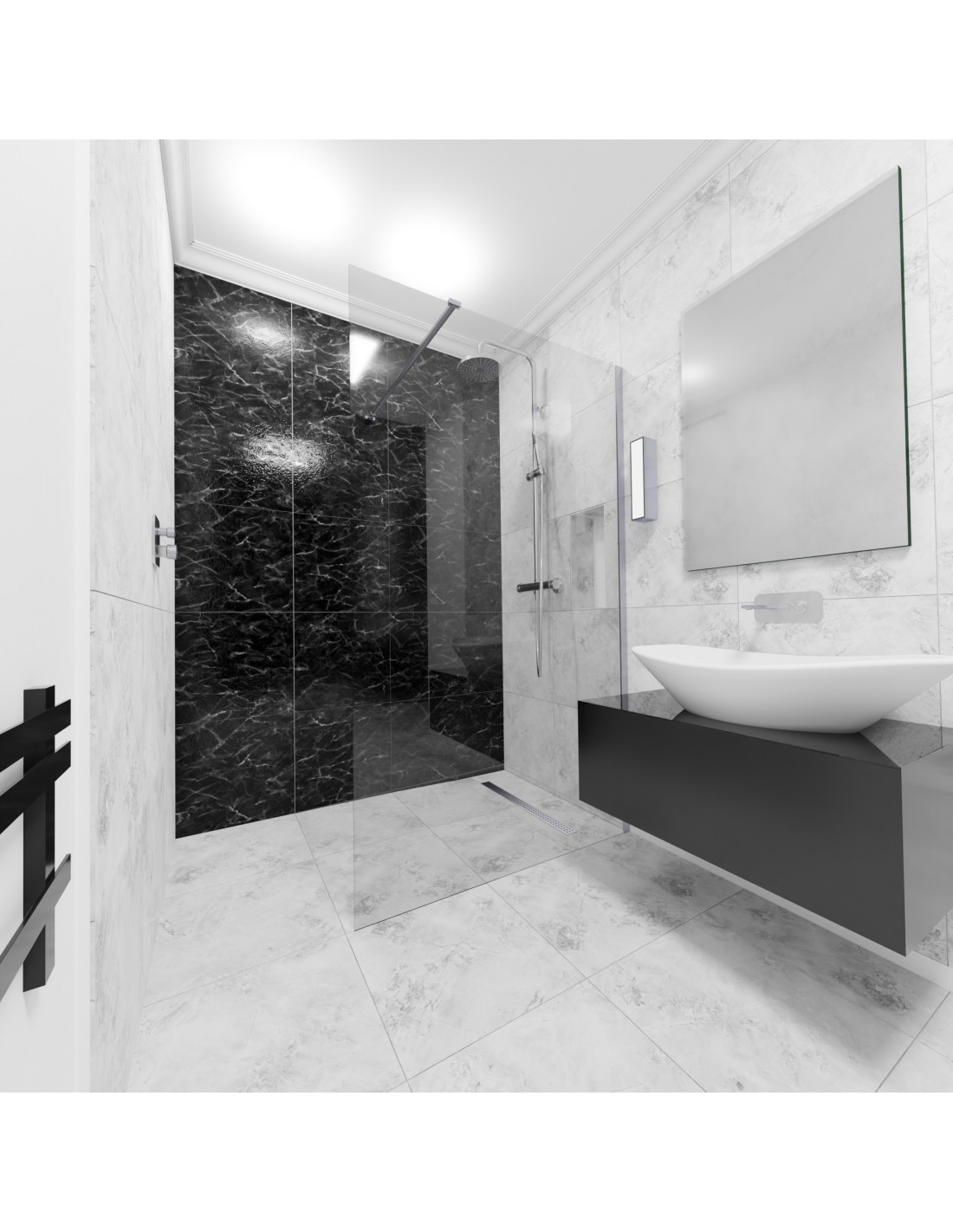

Example of finished Wet Room with the tray available here - classic corner installation

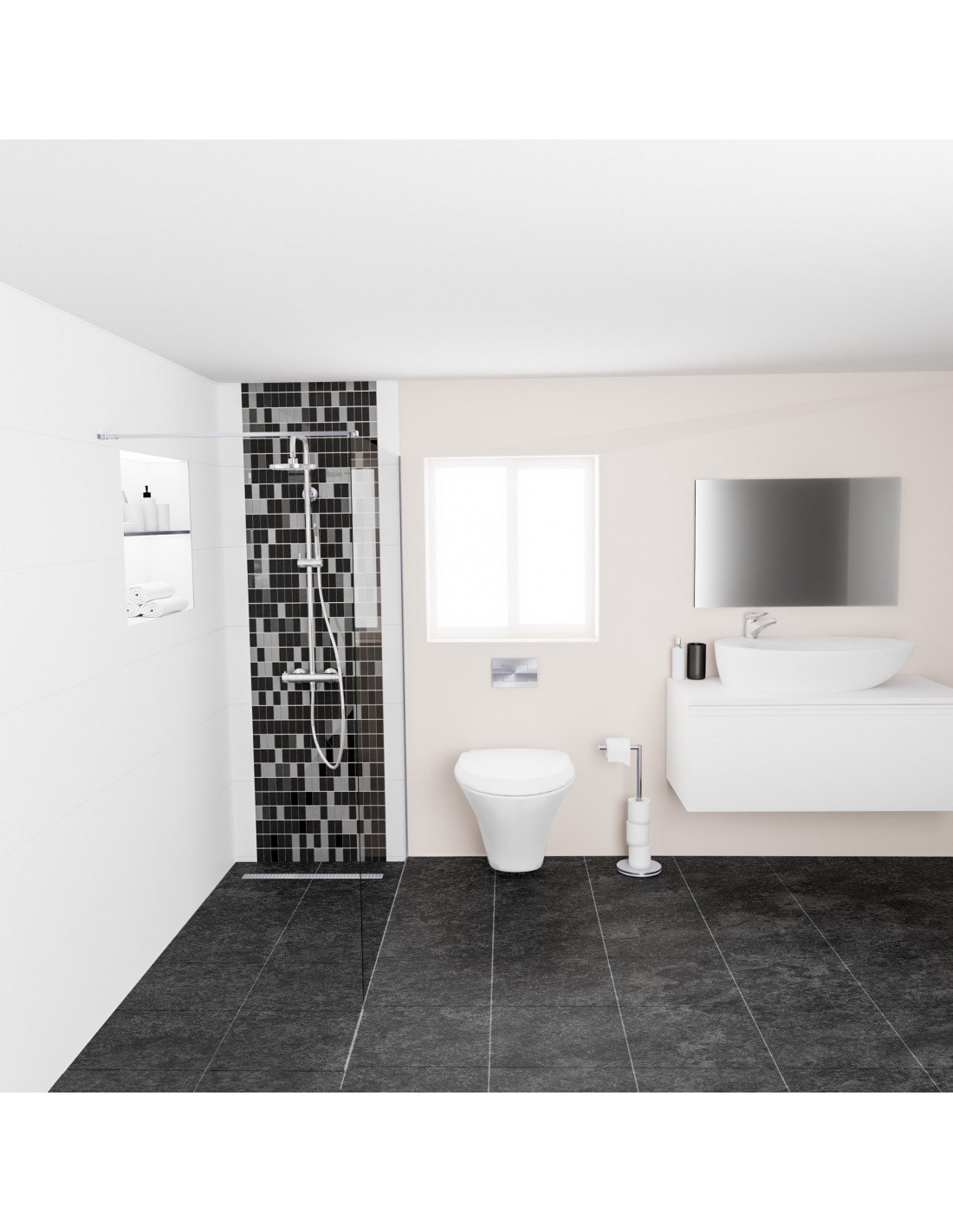

Example of finished Wet Room with bright large tiles combined with a wall highlight made of black mosaic tiles
Example of compact bathroom with open corner shower in contrast color scheme black and white

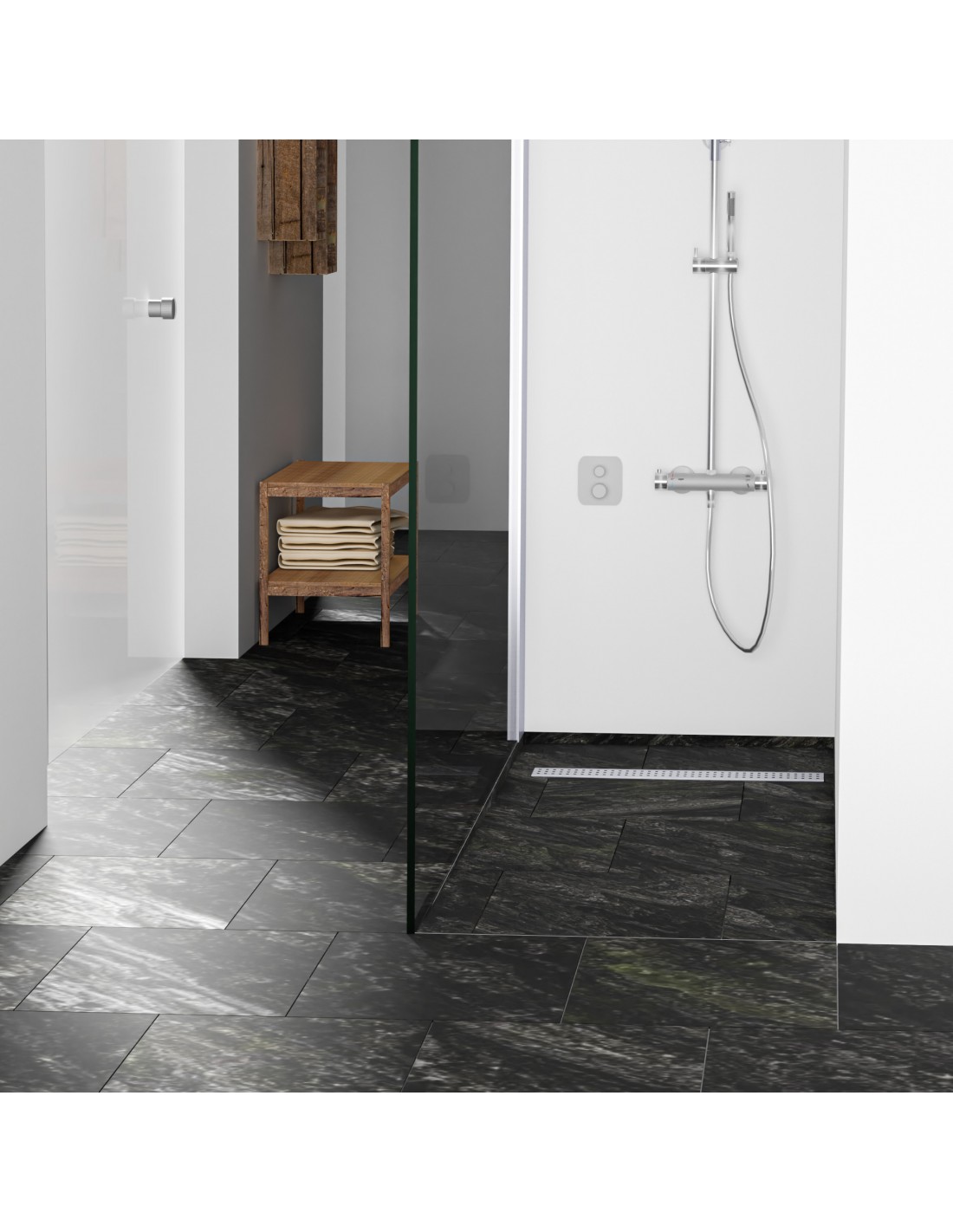

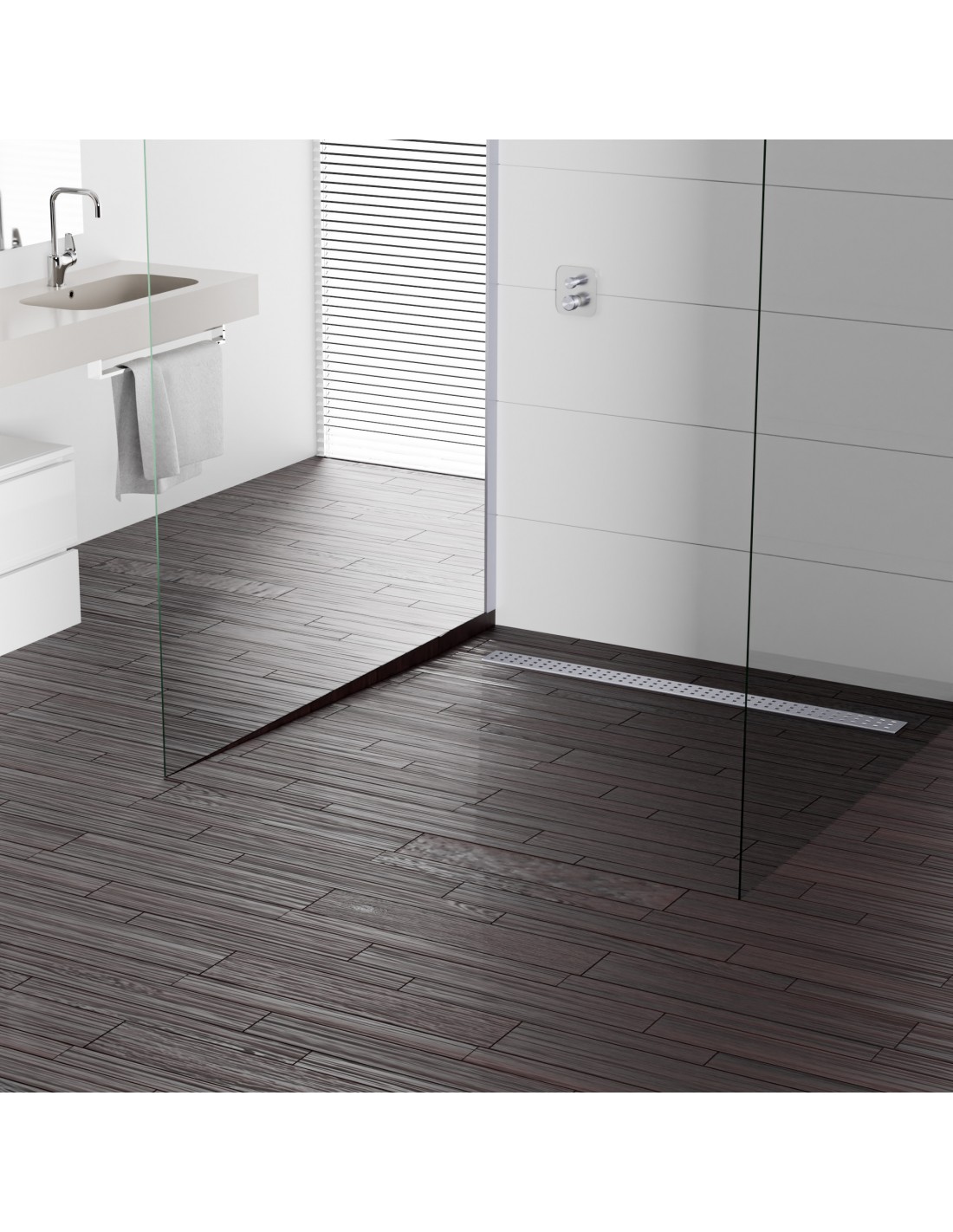

Example of an accessible walk-in shower built on a dark wooden floor and combined with modern shower glass
Example of a modern bathroom with open shower finished with offset placed tiles in black marble look

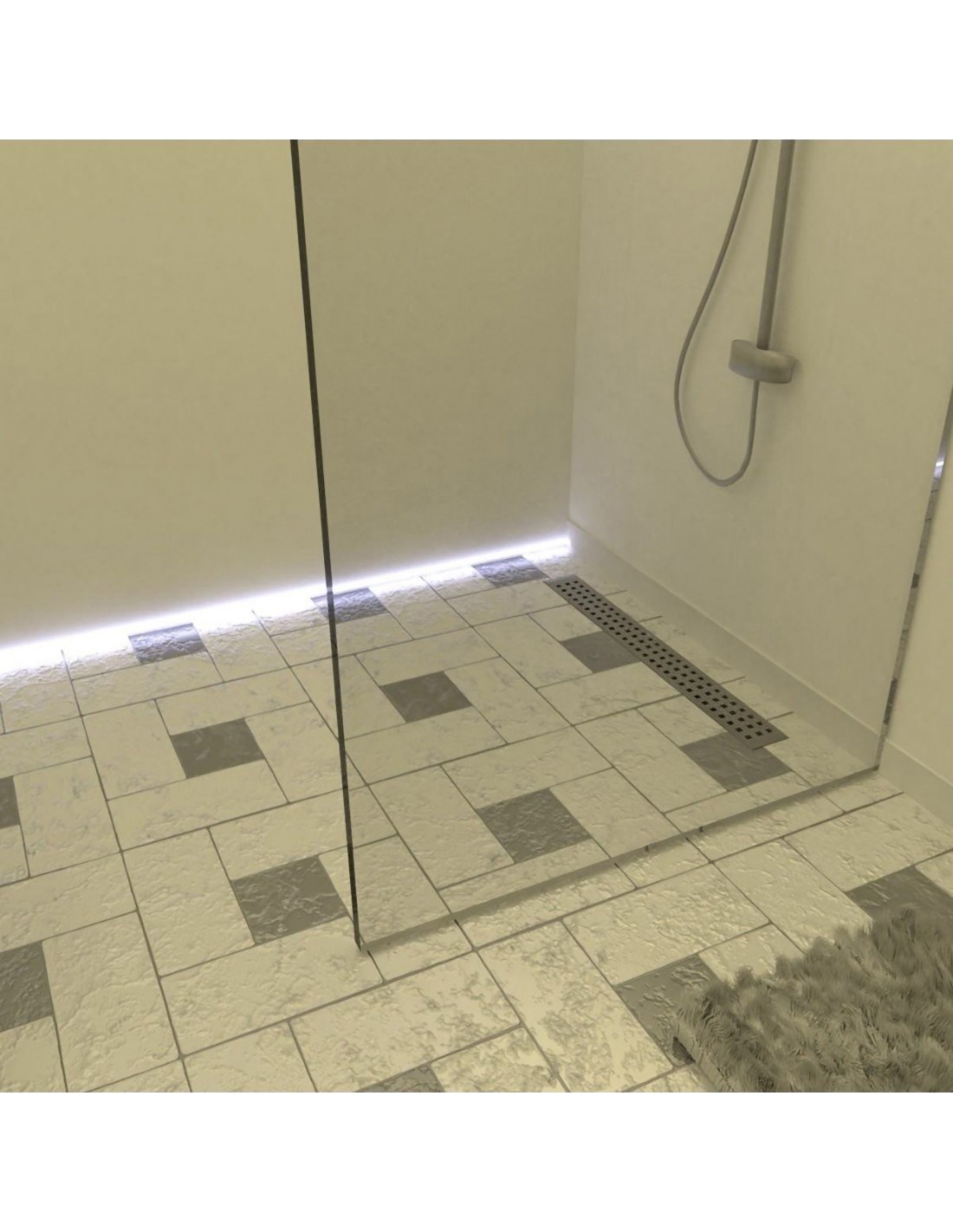

Example of traditional walk-in shower area with glass wall finished with light-colored tiles in white and grey

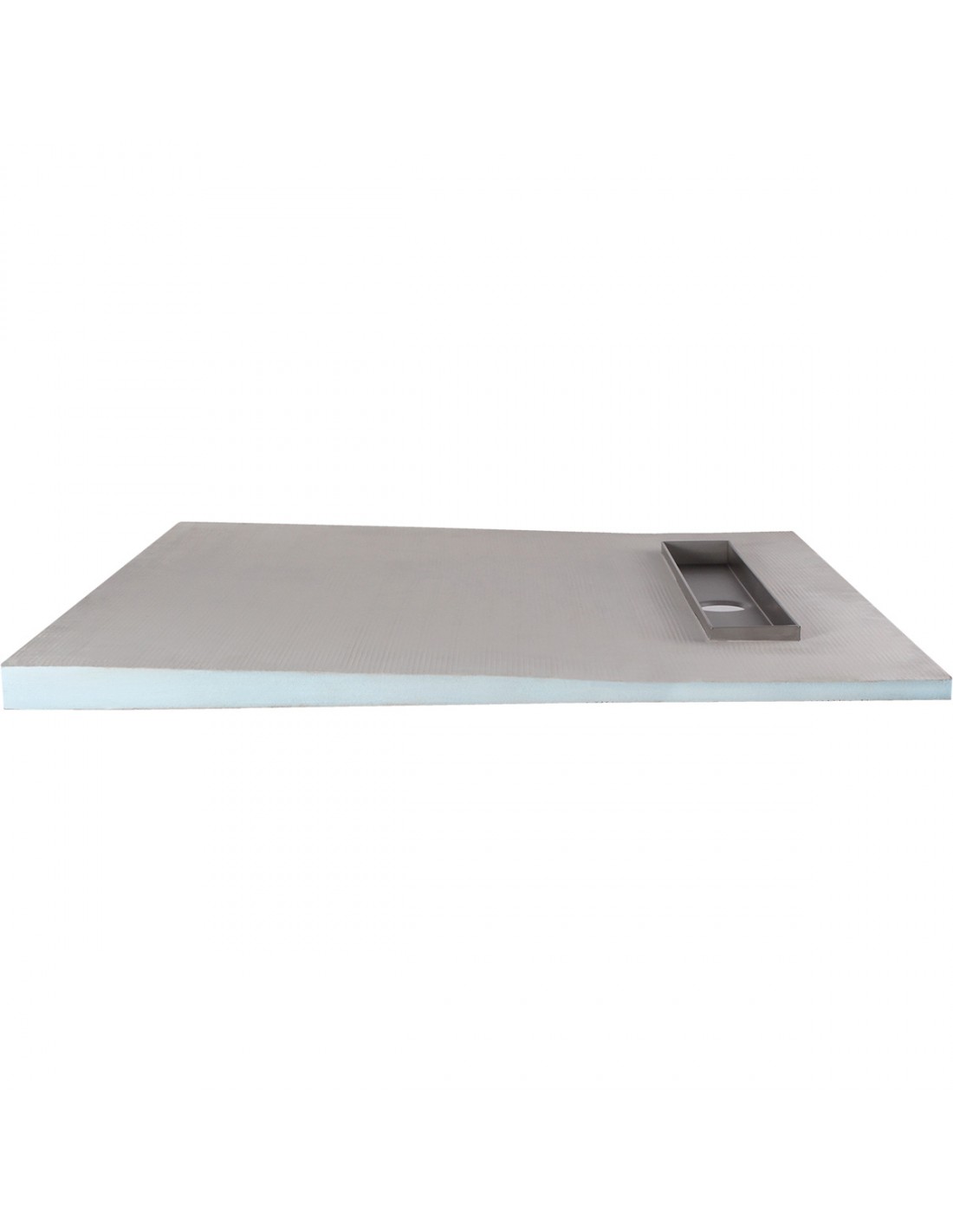

Ready-for-installation wet room tray with integrated linear drain and efficient 1-way slope

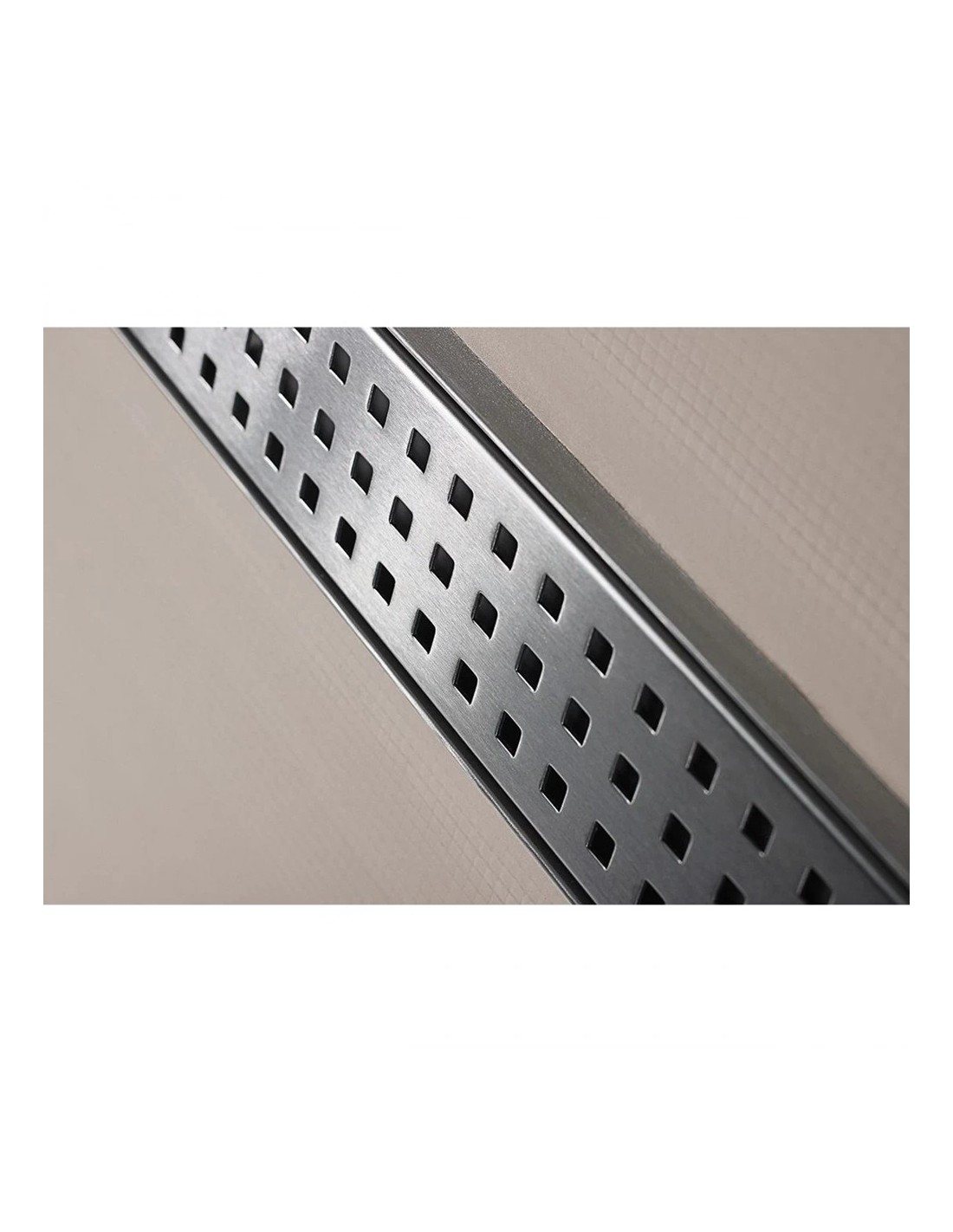

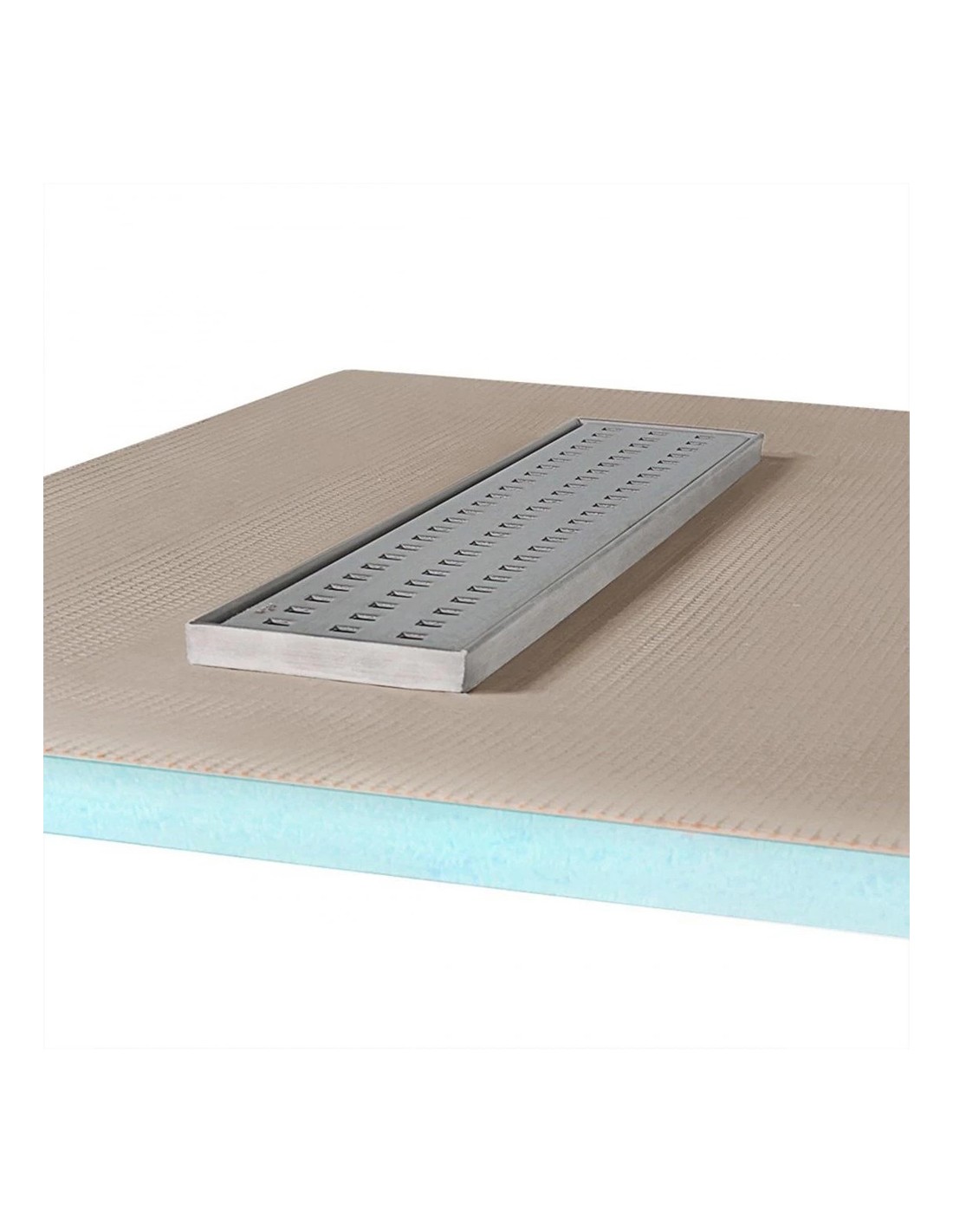

Close up on the carefully finished edge of the drain frame which is 15 mm on top of the surface
Another look on the frame and drain cover Sirocco

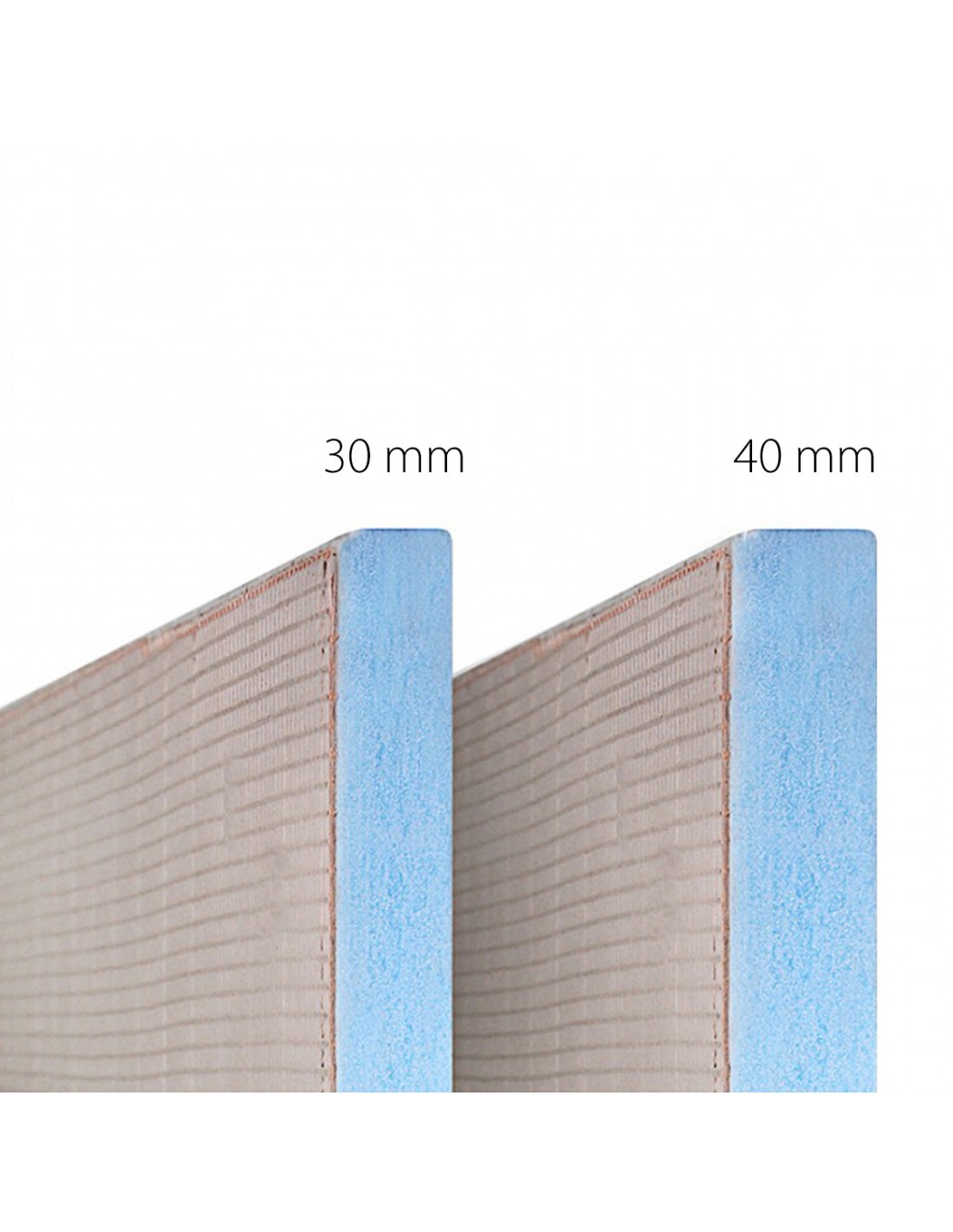

3 Standard Thicknesses Available - the thicker the tray, the better the slope and insulation (30, 40 mm)
A popular complementary product: Wiper shower waterproofing kit (tanking liquid, tape, primer, corners)

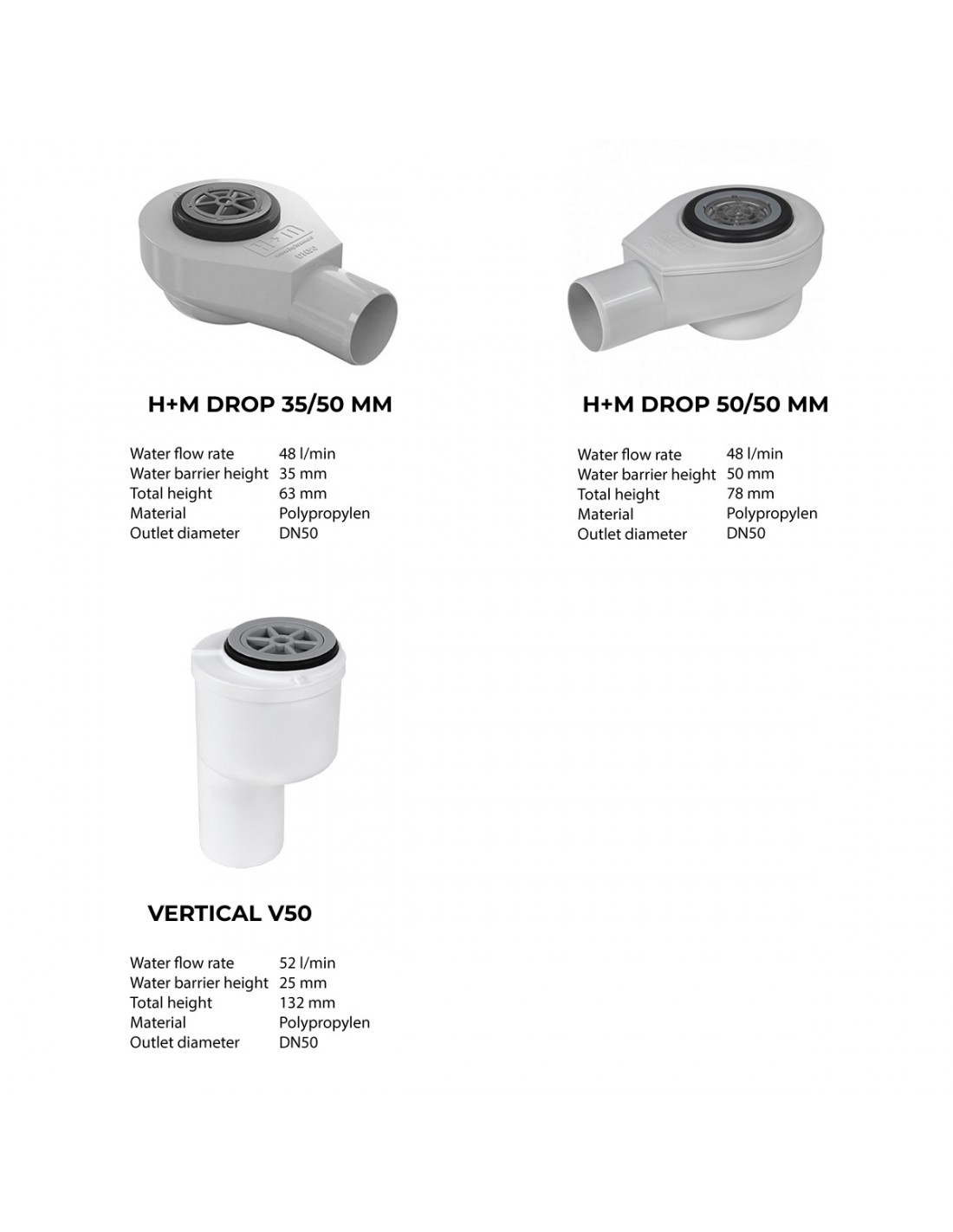

Different syphons by choice (vertical or horizontal outlet), included in set
  • -15%
OneWay Wet Room Kit: Shower Tray with single slope towards the drain, including Waste Trap and Drain Cover (Sirocco)
Technical Diagram of OneWay Fall Showerlay Wiper 1000 x 1500 mm Line Sirocco
Example of a shower tray tiled with large tiles
Example of finished Wet Room with the tray available here - classic corner installation
Example of finished Wet Room with bright large tiles combined with a wall highlight made of black mosaic tiles
Example of compact bathroom with open corner shower in contrast color scheme black and white
Example of an accessible walk-in shower built on a dark wooden floor and combined with modern shower glass
Example of a modern bathroom with open shower finished with offset placed tiles in black marble look
Example of traditional walk-in shower area with glass wall finished with light-colored tiles in white and grey
Ready-for-installation wet room tray with integrated linear drain and efficient 1-way slope
Close up on the carefully finished edge of the drain frame which is 15 mm on top of the surface
Another look on the frame and drain cover Sirocco
3 Standard Thicknesses Available - the thicker the tray, the better the slope and insulation (30, 40 mm)
A popular complementary product: Wiper shower waterproofing kit (tanking liquid, tape, primer, corners)
Different syphons by choice (vertical or horizontal outlet), included in set

OneWay Fall Showerlay Wiper 1000 x 1500 mm Line Sirocco is a walk-in tray with linear drain. The shower tray is characterised by a one-way single slope contoured towards drain channel. In case of type of floor and the size of slope we want there are two thickness available: 30mm and 40mm. OneWay Showerlay provides excellent adhesion to shower board and 100% hydroisolation. The OneWay shower tray is a response to the needs of our clients.  Suitable shower drainage is included to former, it comes with 700 mm long steel linear end drain. It also comes with grating which is 64 mm wide, leaving 8 mm wide channel for water to flow. Sirocco cover holes pattern consists 3 rows of squares, parallel to drain edge. Height from the shower tray surface to the top edge of vertical upstand is 15 mm, it also goes below the tray for approximately 5 mm. McAlpine siphon trap with capacity of 26 l/min and 20 mm high water seal is also included. Showerlay is complete unit with everything you need.  Wet room shower tray 1000x1500 mm for tiled floor is a popular size for spacious bathroom. Large format tiles can be used to create more seamless, elegant look. Refurbish your old bathroom into inspirational and practical shower room no matter if you have timer or concrete floor.  By avoiding diagonally cuts tiling showerlay will be a lot easier.

Product Type
  • Oneway Line Premium

Consider your floor finish type — tiles, micro cement, or vinyl — choose a finish that complements your bathroom style. Evaluate dimensions and features to match your requirements.

Tray size

OneWay Fall Showerlay is single sloped wet room tray available in 14 standard sizes. The drain is located parallel to the shorter edge. A larger tray offers more space for greater comfort. Your tray size should be chosen to match room and enclosure size. Our trays can be trimmed down to size or to avoid obstacles.

Drain Cover
  • Sirocco

There are 7 drain cover patterns available. The flow rate is the same for all of them. They are interchangeable and can be swapped even after installation. Each drain sent out is equipped with a lifting hook which makes cleaning easy.

Thickness

Thickness of the board on the edges. It has 2% gradient on the entire upper surface and is shallower near the drain. The benefit of thicker tray is steeper slope, although even the shallowest trays have sufficient slope for water to flow towards the drain, no matter where it drops.

Waterproofing kit

Waterproofing kit is used to seal shower tray as well as connections between walls and floor. It is recommended for concrete and mandatory for timber flooring. Each kit contains 4kg tanking liquid, 1l primer, 10m sealing tape, 2 corners, 2 pipe collars. One kit covers 3 m² with 2 coats. Waterproofing kit

More
Calculate coverage

Underfloor heating kit

Complete Sunfloor Underfloor heating set, including mat, Wi-Fi thermostat, floor sensor and fitting instructions. Fully suitable with our other products. Advanced thermostat with and iOS/Android app allows to set desired temperature of the floor from distance as well as create schedules.
Complete Sunfloor Underfloor heating set

More
Calculate coverage

Tile Backer boards

Tile backer boards are used to create the perfect substrate to tile onto in wet rooms and bathrooms. Superior to cement boards and plywood, due to its waterproof and thermal insulation properties. Tile backer boards

More
Calculate coverage

Shower screen

The Wiper Verre Shower Screen is one of Wiper's new shower enclosures. It is available in multiple standard sizes making it fit in small and large wet rooms. Black and silver options make it looks minimalistic and modern. Perfect choice for any wet room upgrade. Made of 8 mm toughened clear glass with Active Shield coating, 2000 mm high. Included fittings are made of stainless steel. The Verre Shower Screen from Wiper

More
Choose best size

To get an extra 5% discount simply increase your cart value to £500.
Add to cart your current selections, and you only need to add £91.37 more to unlock a 5% discount for the entire order.
Amount of product views 1 Views during the last 24 hours
Based on current settings, if you Add to cart current set and then order, you will receive the following items:
Waterproofing kit

Size: not included

Underfloor heating kit

Size: not included

Shower screen

Size: not included


  • Single slope contoured towards the drain channel,
  • OneWay Fall Showerlay is best solution to avoid diagonally cuts in your tray,
  • OneWay in a new product which is response to our customer needs,
  • Dimensions as described on equivalent technical drawings,
  • High-quality material use creates an extraordinary showering experience,
  • Both sides can be trimmed without any harm, using regular handsaw,
  • Designed especially for range of Wiper WP120 Premium drains,
  • Our showerlay is a 30/40 mm XPS foam sheet covered on both sides with a flexible cementous glue and reinforced with a fibre glass mesh,
  • The showerlay is CNC machine cut to give a perfect pre-formed fall from each corner to the drain,
  • It is lightweight but very strong,
  • Perfect solution for British wooden floors but can also be used on concrete floors. When it is used on wooden floors,the floor must be underboarded after floor boards have been removed,
  • Standard and minimal underboarding should be 20 mm thick,
  • Ideal for tiled floors. Because of the high compressive strength of the XPS foam, it can even be used with small mosaic tiles. This is not suitable for vinyl floor coverings,
  • The shower lay can be easily cut on site should you have any obstacles such as pipe boxings,
  • Easy to use with underfloor heating systems (should be installed on top of the shower tray)
  • One hundred per cent, double waterproofing,
  • Hardness of the surface layer allows to cement even very small mosaics,
  • High acoustic and thermal insulation,
  • After installation, the plates should be supported over the entire surface.

Trays - Footer

Channel length
700 mm
Grate style
Sirocco
Height
1500 mm
Width
1000 mm
Thickness
30 · 40 mm
Trimming
Both sides: up to 50 mm.
Material
XPS foam sheet
Reinforcement
Fibre glass mesh & cementous glue.
Fall
1-way 2% towards the drain
Additionals
Tanking kit
Drain surface
brush
Cleaning
From above (Easy clean system)
Model
Line
Set consists
Wet room tray · integrated linear drain body · drain grating · siphon trap
Size
1000 x 1500 mm

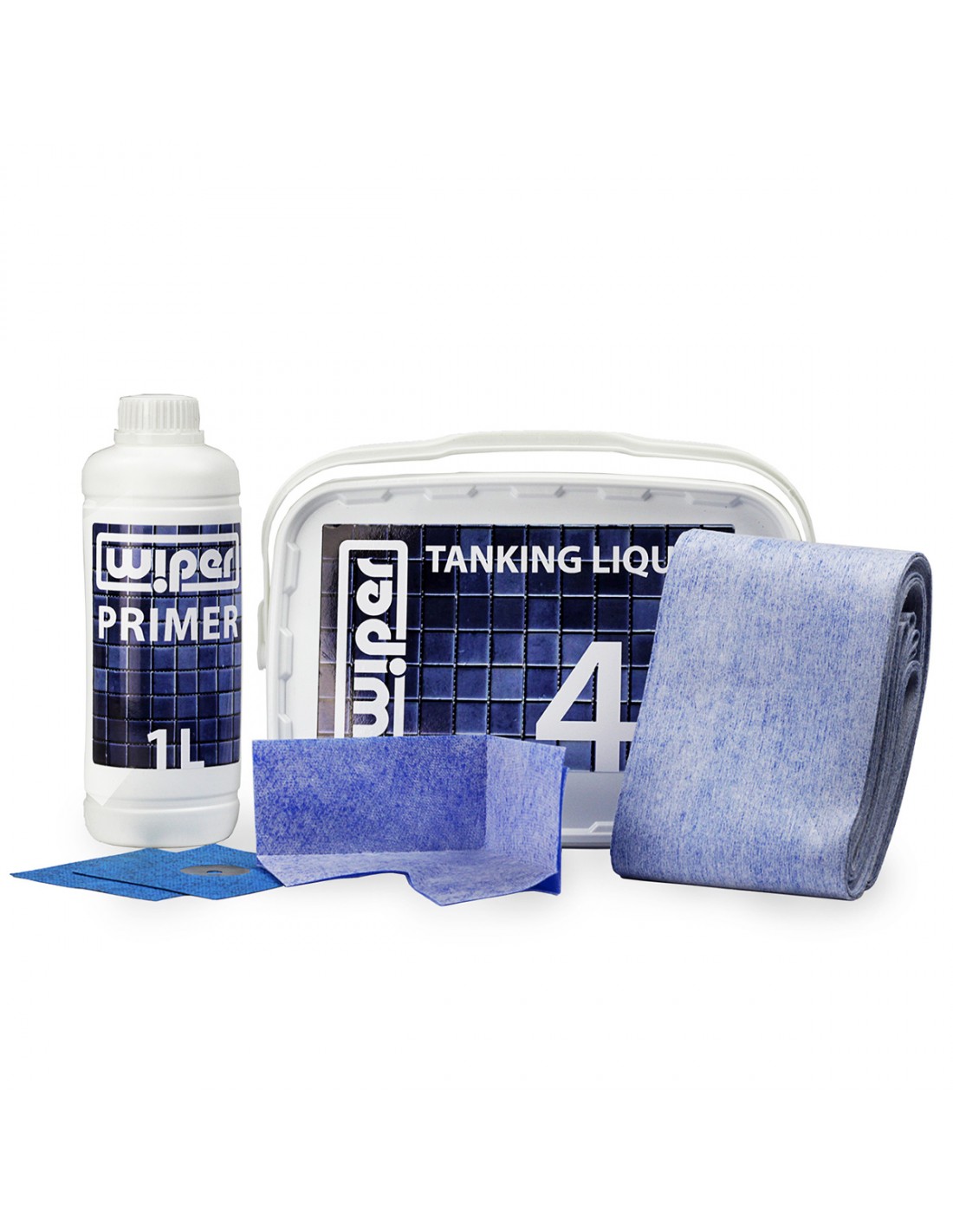

Tanking kit

The tanking kit is a ready-mixed, under-tile tanking system to protect water sensitive substrates from exposure to water. Suitable for wet areas such as bathrooms, showers in residential buildings, hotels, old people's homes and hospitals. Should not be used in places exposed to pressurised water, for an instance swimming pools. Ready to use, no mixing required and easy to apply with a roller. The kit includes a high performance joint reinforcing tape to protect against movement in floor joins and corners etc. The contents are all INSIDE the bucket and the contents are protected in the bucket with polystyrene infill's to stop transit damage.The instructions are printed on the rear of the tanking kit.

For anti-moisture insulation systems in wet rooms and rooms intended for human residence. The tanking liquid is a ready-to-use singlecomponent, solvent-free sealant composed of polymer dispersion, fillers and modifying additives. When applied to the surface, upon binding it creates a flexible and water-insulating layer.

Tanking kit contains:
  • 4kg Tanking Liquid
  • 1l Primer
  • 10 Metres flexible Sealing Tape
  • 2 Flexible Pipe Collars
  • 2 Corners
Features:
  • Consumption to 1,2kg/m²
  • Solvent free
  • Drying time: 2h
Tanking liquid and primer
Tanking liquid
Tanking liquid

The tanking liquid is a ready to use, single component, solvent-free sealant mass, consisting of polymer dispersion, fillers and additives. When applied to a substrate and cured, it forms a flexible waterproofing coating. The product is intended for use inside places intended for human residence, especially in humid areas (such as bathrooms, kitchens, laundries), to perform insulation against moisture under linings and coverings, such as ceramic tiles, glazed tiles, terracotta, wooden floors and panels, and synthetic carpets.

The product is intended for priming absorbent and porous surfaces, inside and outside buildings. It is especially recommended for cement - limestone plaster, gas concrete, plaster-carton boards and cement plaster. The primer has a high penetration ability, is deeply absorbed into the substrate, thus strengthening it, while allowing for „breathing”. These benefits improve the structure of the substrates, which, due to the passage of time, have lost their appropriate parameters. The priming solution improves adhesion to the surface of other materials that will be used on the primed substrate. By reducing the absorbency of the substrate, the wear of the applied coating materials, emulsion paints, glues, mineral putties reduces as well. The solution, due to the content of the biocide and fungicide, protects the primed substrate against the formation of mold and bacteria in the product.

Primer
Waterproofing Calculator

Waterproofing Calculator

Optimize Your Waterproofing with Our Calculator – Accurate, Customizable, and Easy to Use. Get your waterproofing needs sorted with our advanced waterproofing calculator, designed for accuracy and ease of use. Whether you’re waterproofing a bathroom, kitchen, or any other room, our tool allows you to calculate your requirements in three different ways: by room dimensions, simple room coverage, or exact square meter needs. Additionally, you can exclude specific areas like doors and windows, or even calculate for multiple rooms at once. Our calculator provides a tailored list of necessary products, ensuring you get only what you need. Download your estimate as a PDF or add the items directly to your cart for a streamlined ordering experience.

Calculate Needed Waterproofing
Tanking kit

The tanking kit is a ready-mixed, under-tile tanking system to protect water sensitive substrates from exposure to water. Suitable for wet areas such as bathrooms, showers in residential buildings, hotels, old people's homes and hospitals. Should not be used in places exposed to pressurised water, for an instance swimming pools. Ready to use, no mixing required and easy to apply with a roller. The kit includes a high performance joint reinforcing tape to protect against movement in floor joins and corners etc. The contents are all INSIDE the bucket and the contents are protected in the bucket with polystyrene infill's to stop transit damage.The instructions are printed on the rear of the tanking kit.

For anti-moisture insulation systems in wet rooms and rooms intended for human residence. The tanking liquid is a ready-to-use singlecomponent, solvent-free sealant composed of polymer dispersion, fillers and modifying additives. When applied to the surface, upon binding it creates a flexible and water-insulating layer.

Tanking kit contains:
  • 4kg Tanking Liquid
  • 1l Primer
  • 10 Metres flexible Sealing Tape
  • 2 Flexible Pipe Collars
  • 2 Corners
Features:
  • Consumption to 1,2kg/m²
  • Solvent free
  • Drying time: 2h
Tanking liquid and primer
Tanking liquid
Tanking liquid

The tanking liquid is a ready to use, single component, solvent-free sealant mass, consisting of polymer dispersion, fillers and additives. When applied to a substrate and cured, it forms a flexible waterproofing coating. The product is intended for use inside places intended for human residence, especially in humid areas (such as bathrooms, kitchens, laundries), to perform insulation against moisture under linings and coverings, such as ceramic tiles, glazed tiles, terracotta, wooden floors and panels, and synthetic carpets.

The product is intended for priming absorbent and porous surfaces, inside and outside buildings. It is especially recommended for cement - limestone plaster, gas concrete, plaster-carton boards and cement plaster. The primer has a high penetration ability, is deeply absorbed into the substrate, thus strengthening it, while allowing for „breathing”. These benefits improve the structure of the substrates, which, due to the passage of time, have lost their appropriate parameters. The priming solution improves adhesion to the surface of other materials that will be used on the primed substrate. By reducing the absorbency of the substrate, the wear of the applied coating materials, emulsion paints, glues, mineral putties reduces as well. The solution, due to the content of the biocide and fungicide, protects the primed substrate against the formation of mold and bacteria in the product.

Primer
Waterproofing Calculator

Waterproofing Calculator

Optimize Your Waterproofing with Our Calculator – Accurate, Customizable, and Easy to Use. Get your waterproofing needs sorted with our advanced waterproofing calculator, designed for accuracy and ease of use. Whether you’re waterproofing a bathroom, kitchen, or any other room, our tool allows you to calculate your requirements in three different ways: by room dimensions, simple room coverage, or exact square meter needs. Additionally, you can exclude specific areas like doors and windows, or even calculate for multiple rooms at once. Our calculator provides a tailored list of necessary products, ensuring you get only what you need. Download your estimate as a PDF or add the items directly to your cart for a streamlined ordering experience.

Calculate Needed Waterproofing

Wet room Kit shower tray installation instructions | Timber floor

This installation guide shows how to install wet room kit shower tray Showerlay Wiper on a wooden floor and how to tile it over.

  1. Preparation of floor and walls. Gather required materials and tools.
  2. Establish shower area by lying the shower tray in desired future shower position.
  3. Floor boards removal to expose the joists and avoid increasing total floor height.
  4. Support the drain using ply with hole cut the match the channel shape.
  5. Connect the siphon trap pipe to your waste system.
  6. Prepare even surface with marine plywood board.
  7. Fit the wet room kit using fixing adhesive.
  8. Assembly the drain with siphon trap.
  9. Fill remaining shower area with tile backer boards.
Wet Room Installation

This installation guide shows steps how to install wet room kit shower tray Showerlay Wiper into a concrete floor how to tile it over.

  1. Preparation of floor and walls. Gather required materials and tools.
  2. Establish shower area by lying the shower tray in desired future shower position.
  3. Grind the concrete to prepare a slot for shower tray.
  4. Cut a hole for siphon trap and pipework.
  5. Connect the siphon trap pipe to your waste system.
  6. Prepare even surface by cleaning and bedding the concrete.
  7. Fit the wet room kit using fixing adhesive.
  8. Assembly the drain with siphon trap.
  9. Fill remaining shower area with tile backer boards.
Wet Room Installation

This is a document from our Resource Centre, which you can find HERE

Integrated drain

Shower trays incorporate linear drain built-into the tray during the manufacturing process. Wiper Premium range linear shower drains are made from one piece of 304 grade stainless steel. Only the ends are welded. This means that the flange and drain body are made from the same piece of steel ensuring complete security from water penetration. Our flange is on all four sides of the drain. You will not find a better linear drain on the market.

Premium drain
Premium drain tech drawing
  • Length (X): 700 [mm]
  • Width of channel (Y): 84 [mm]
  • Height of channel: 30 [mm]
  • Height to the centre of waste pipe: 68 [mm] (can be adjusted)
  • Total height: 98 [mm]
  • Width of insulating flange: 140 [mm] (included)
  • Flange to top edge of channel: 15 [mm]
  • High quality Mcalpine poly propylene syphon trap included
  • Easy clean system (cleanable from above)
  • Complete siphon, waste pipe diamter british standard size
  • Pipe height adjustable and rotatable at 360°
  • Drain's cover is included, please select desired design
  • Pure drain cover is an internal container that you can insert the tiles into. This type of drain is 100% tile-able.
  • Tile channel depth: 12 [mm]
  • Tile channel width: 60 mm [mm]

Our OneWay wet room kits are available in two thicknesses: 30mm and 40mm. Depending on space, floor type, and desired gradient you can choose best option for you.

If you have timber floor - existing floor board thickness. Usually they are 30mm thick, in that case you should go for adequate thick wet room kit, to avoid floor height increase and step ups. If you want to achieve stepped up floor, 40 mm thickness might also be a good choice. In case of concrete floor, every thickness is suitable, if you're going to screed the floor you need to shutter the future shower area off and leave proper space for tray to be inserted in the future. If screed has already been done, you will need to use jackhammer or similar tool to groove exact tray thickness and shape when the shower is going to be created. In case of both floor types, every shower tray thickness is enough to bear human weight, as it needs to be underboarded beneath entire surface either with ply or solid concrete. The biggest difference between thicknesses is the slope's angle achieved after installation is completed and shower tray tiled.

A - 1000 [mm]

B - 1500 [mm]

L - 700 [mm]

Technical Drawing OneWay Fall Showerlay Wetrooms Design
Technical Drawing OneWay Fall Showerlay Wetrooms Design
