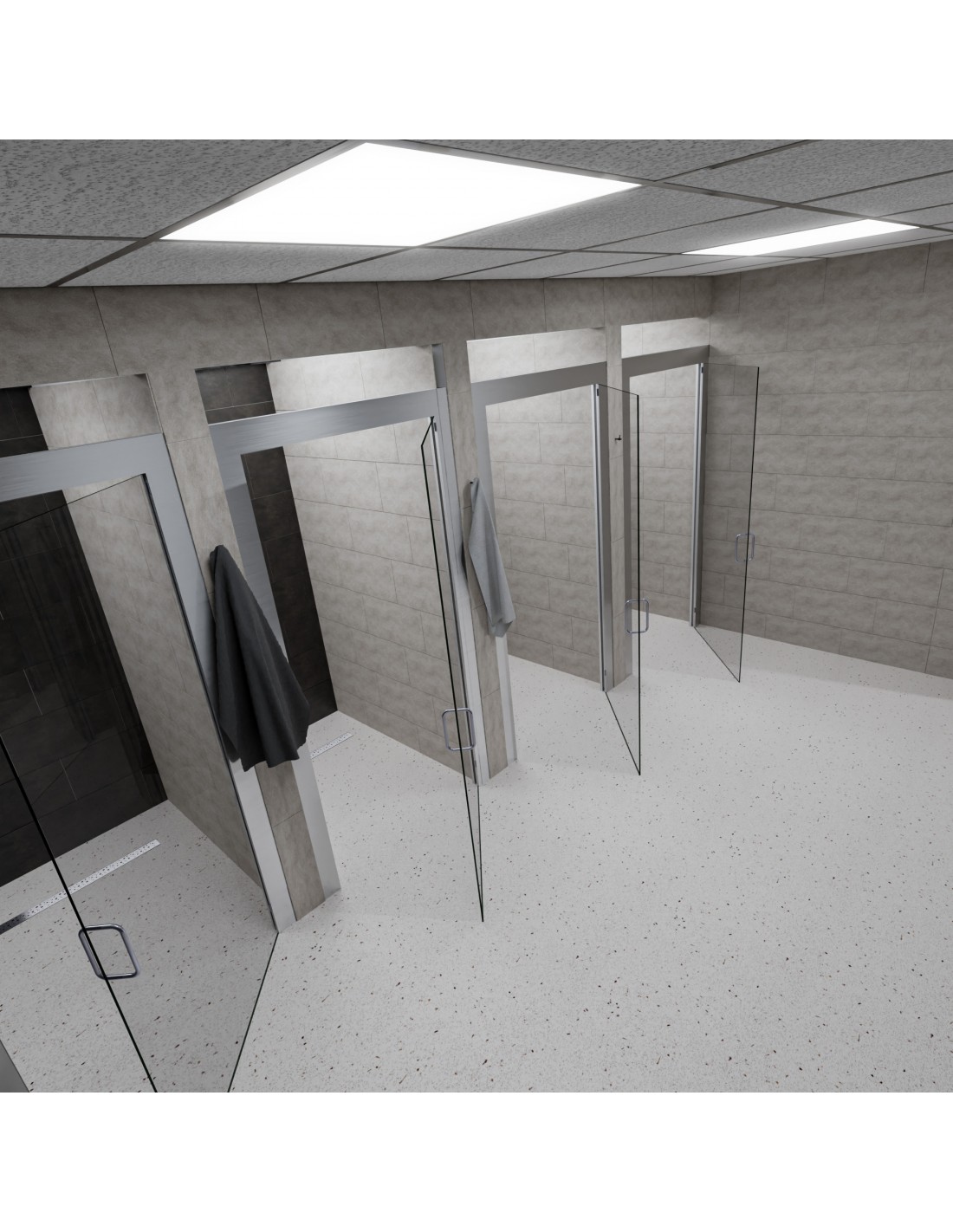

Example of a gym shower area with multiple encloures and bright vinyl flooring

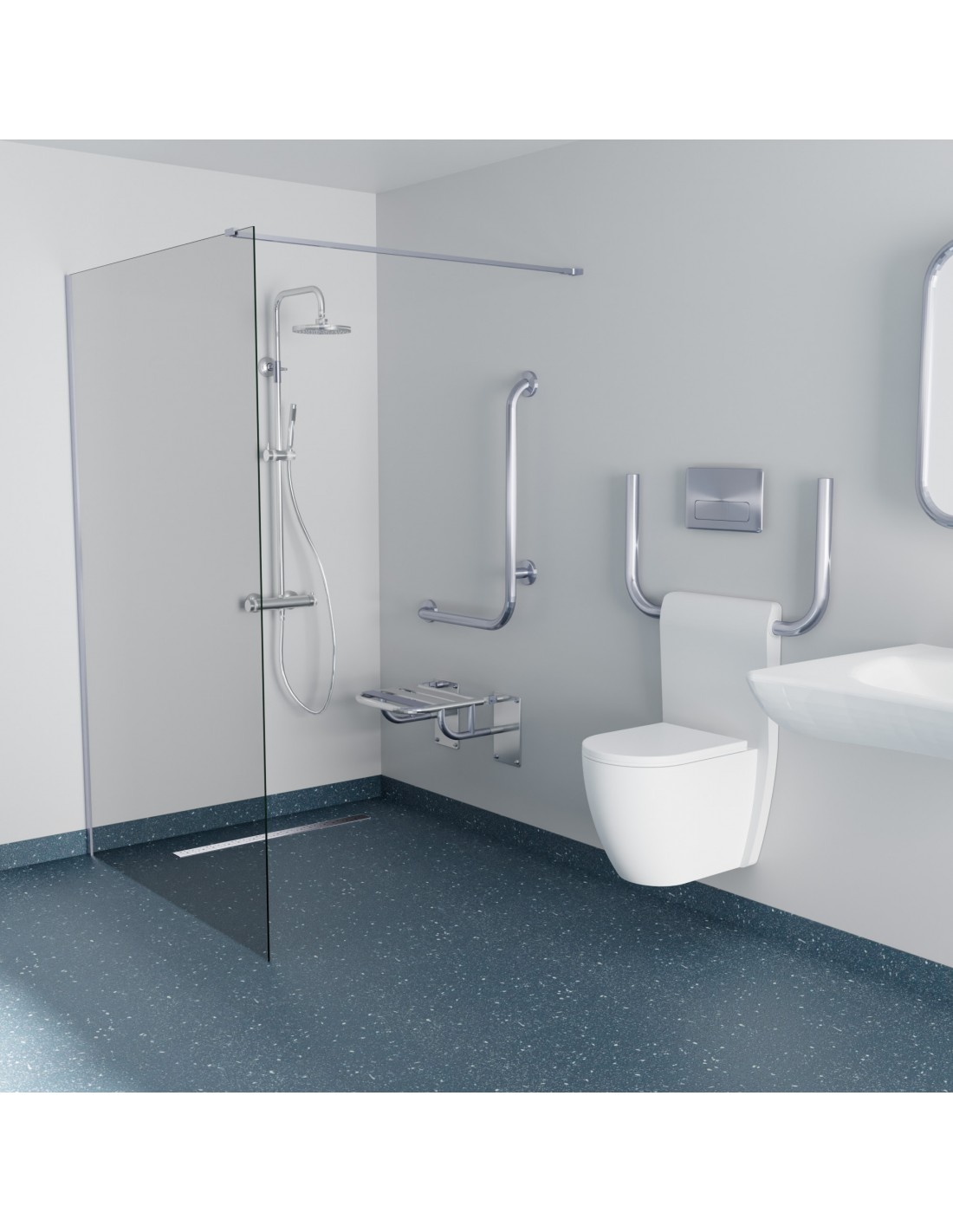

Example of an accesible walk-in shower in a hospital with blue-coloured safety flooring

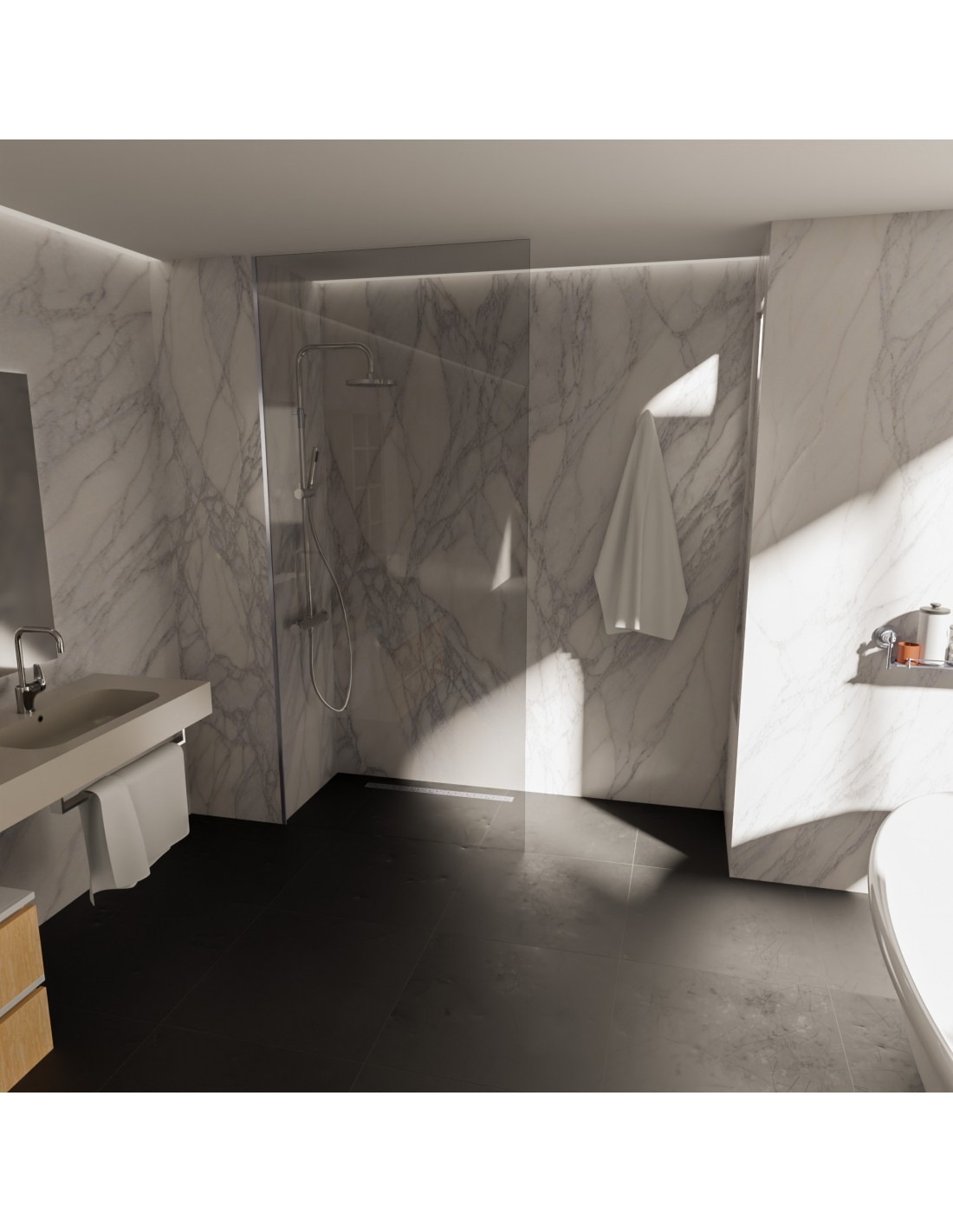

Example of a finished wet room in a shower with floor covered black with vinyl tiles

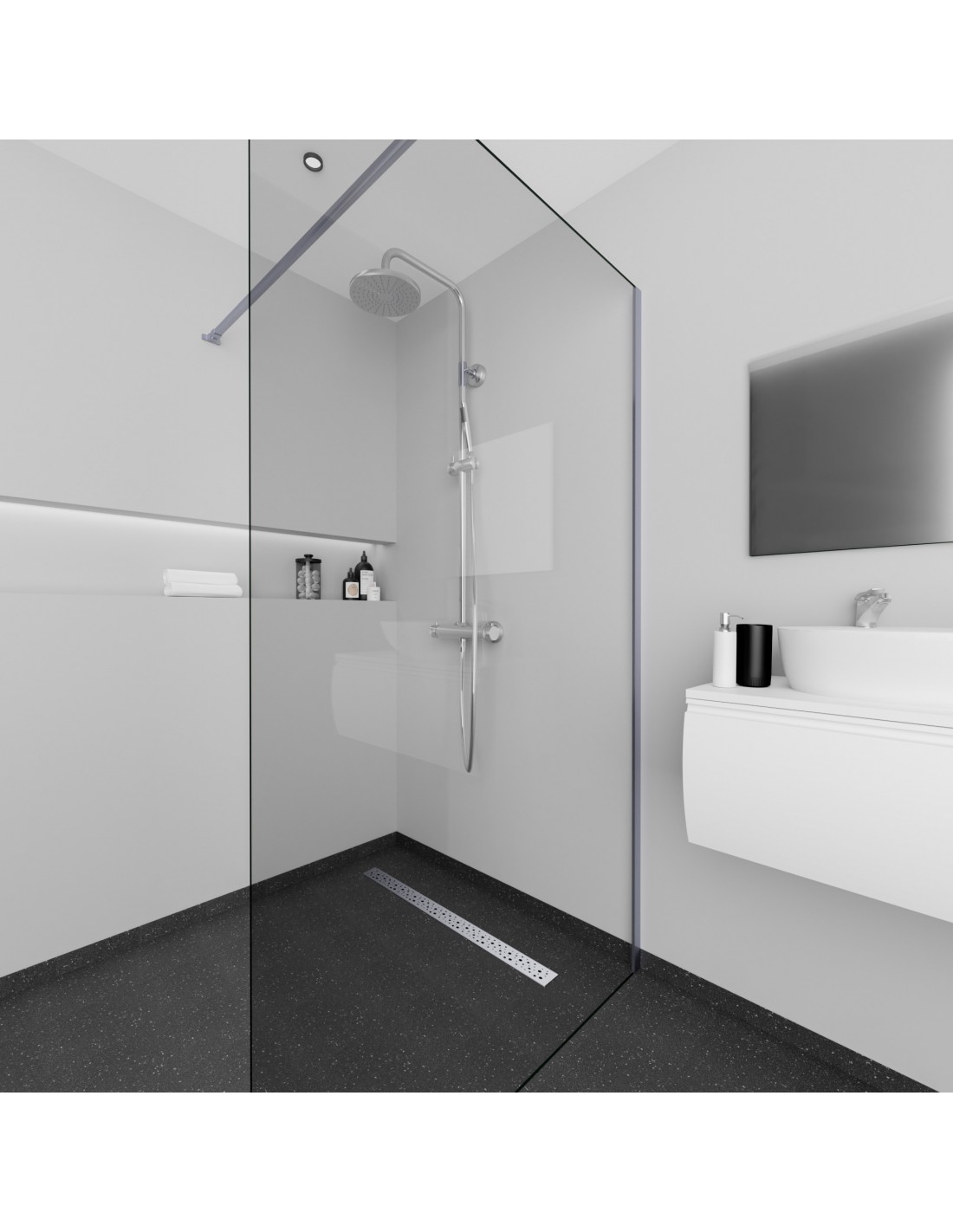

Example of a finished wet room shower in a private property with dark coloured vinyl flooring

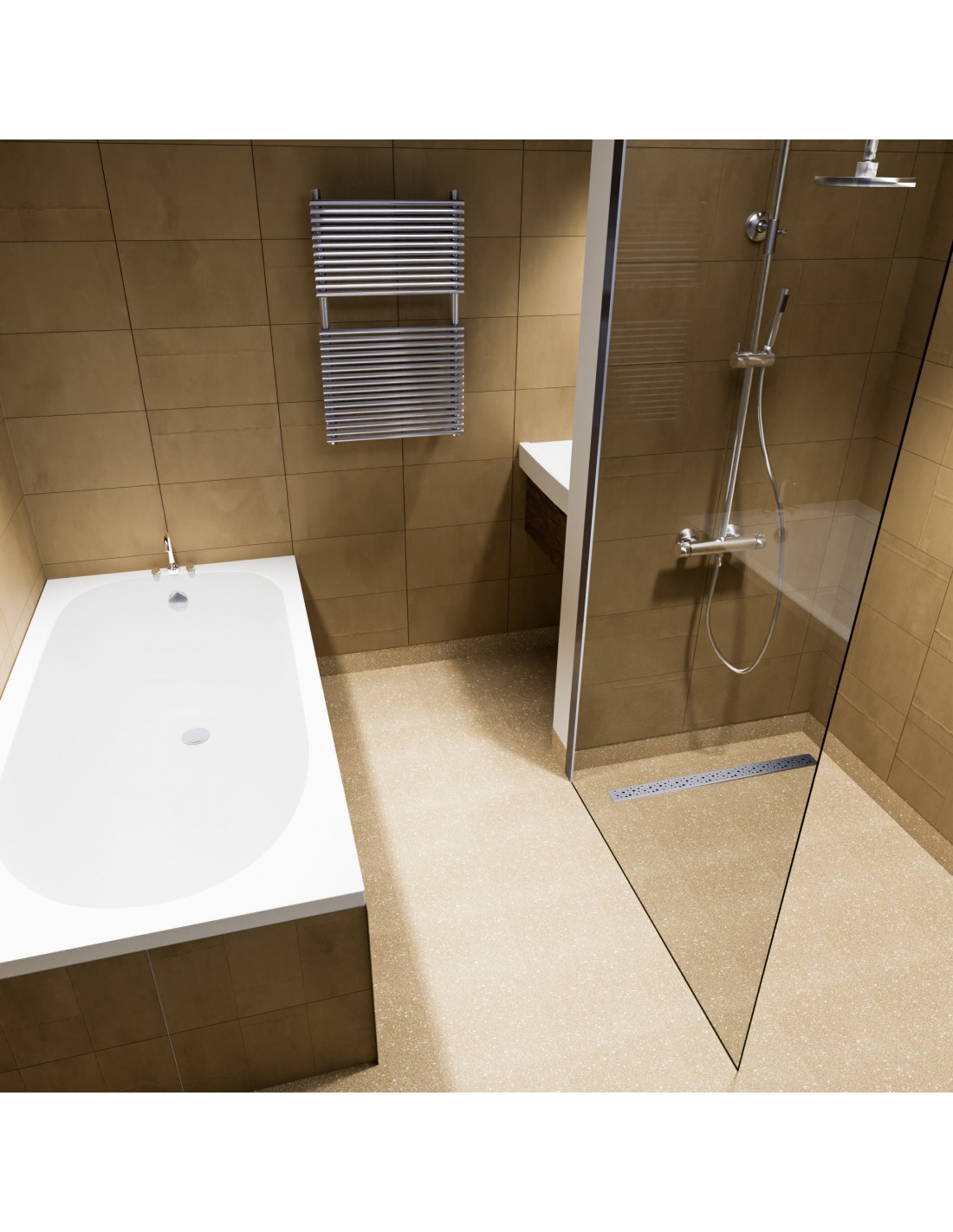

Example of a small-sized hotel shower with floor covered with beige-coloured vinyl

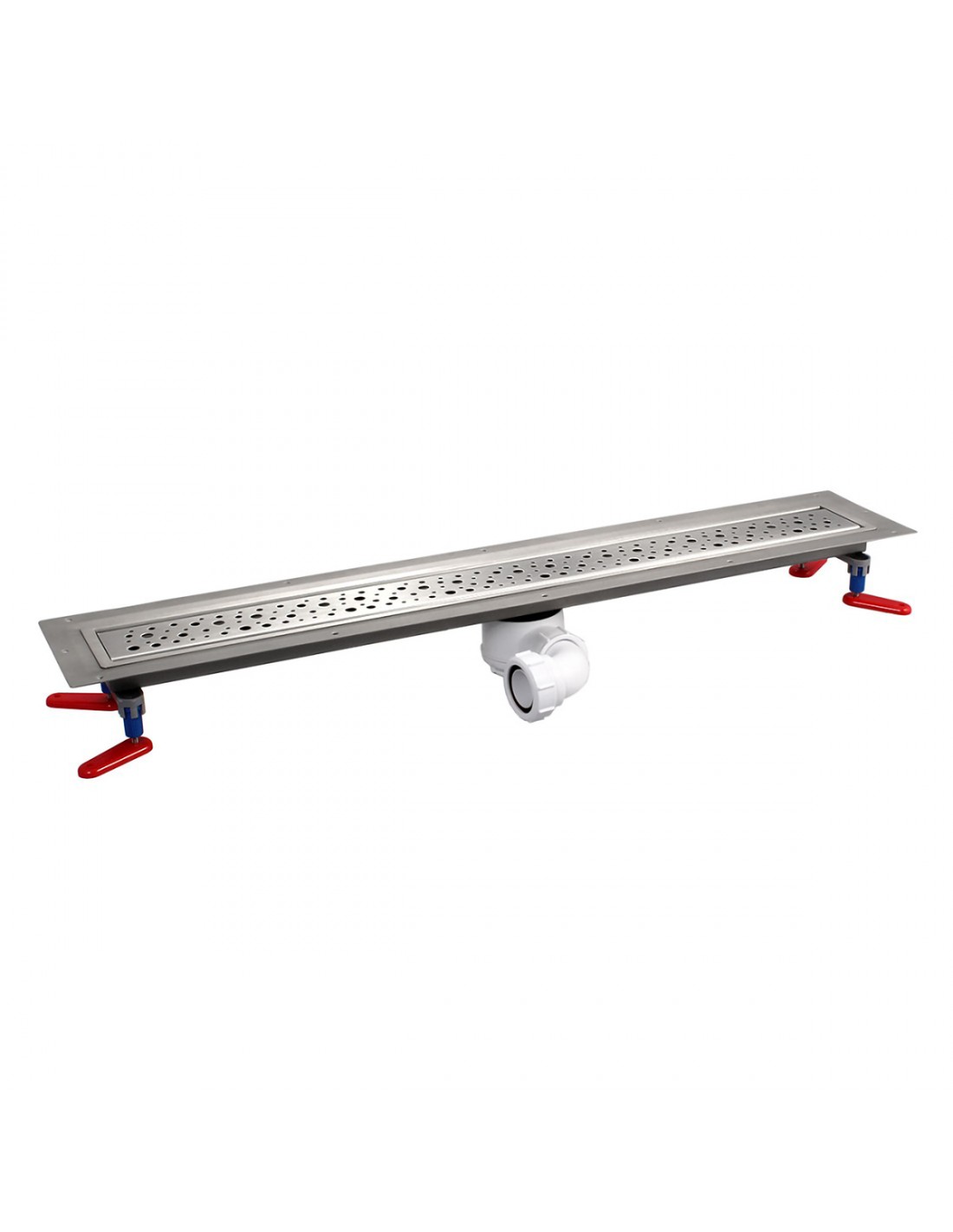

Close up on Linear drain with Mistral cover

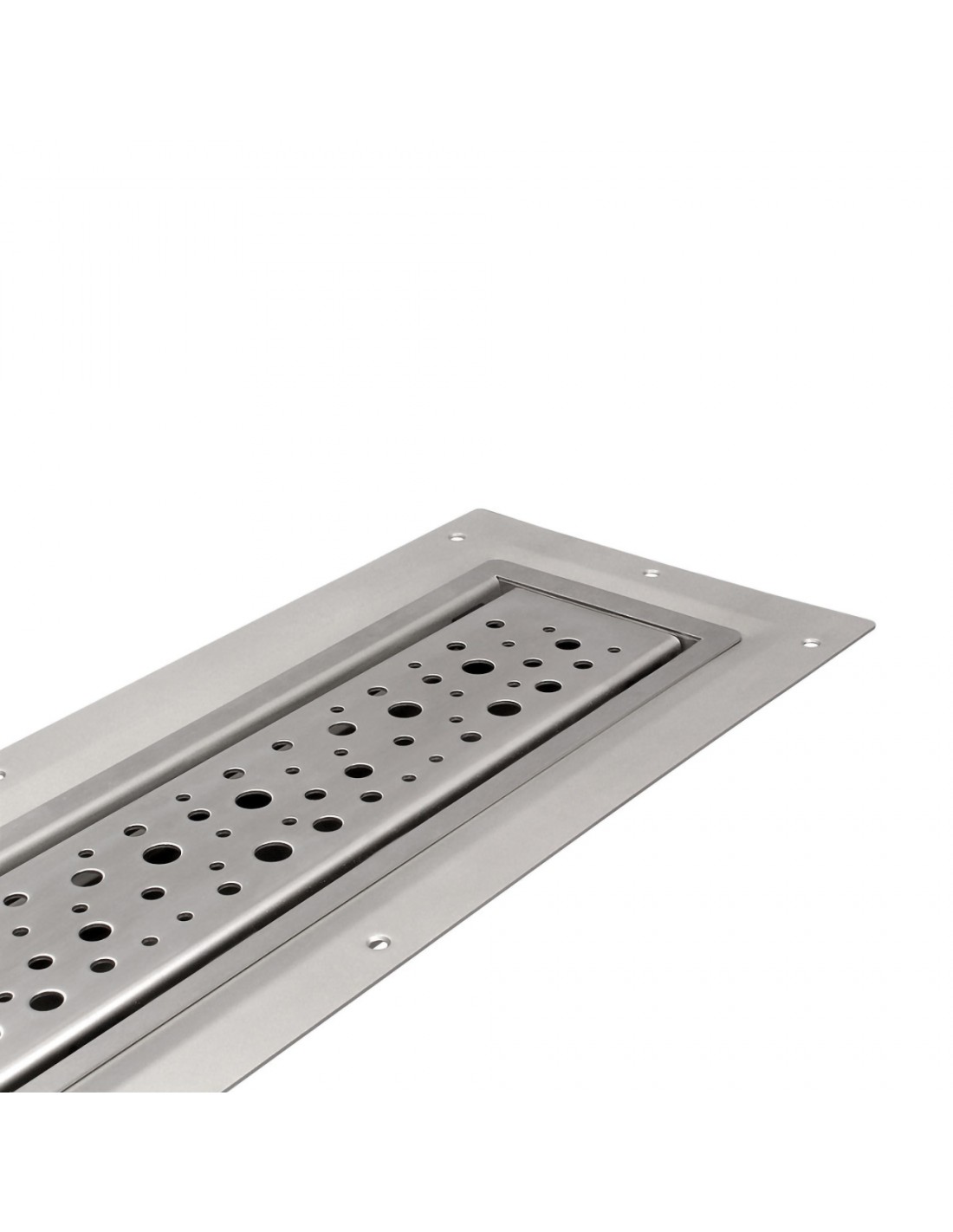

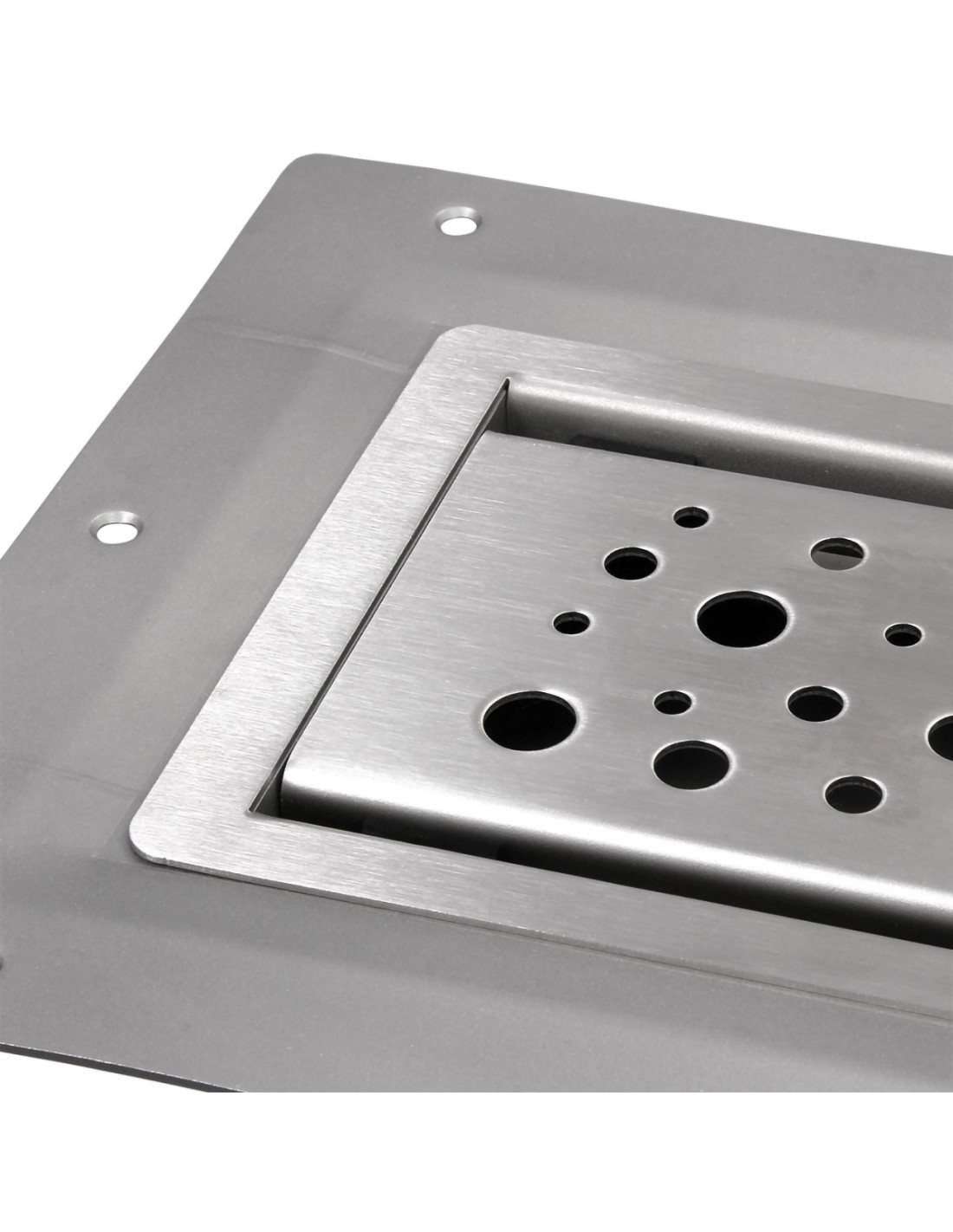

Close up on the Mistral cover

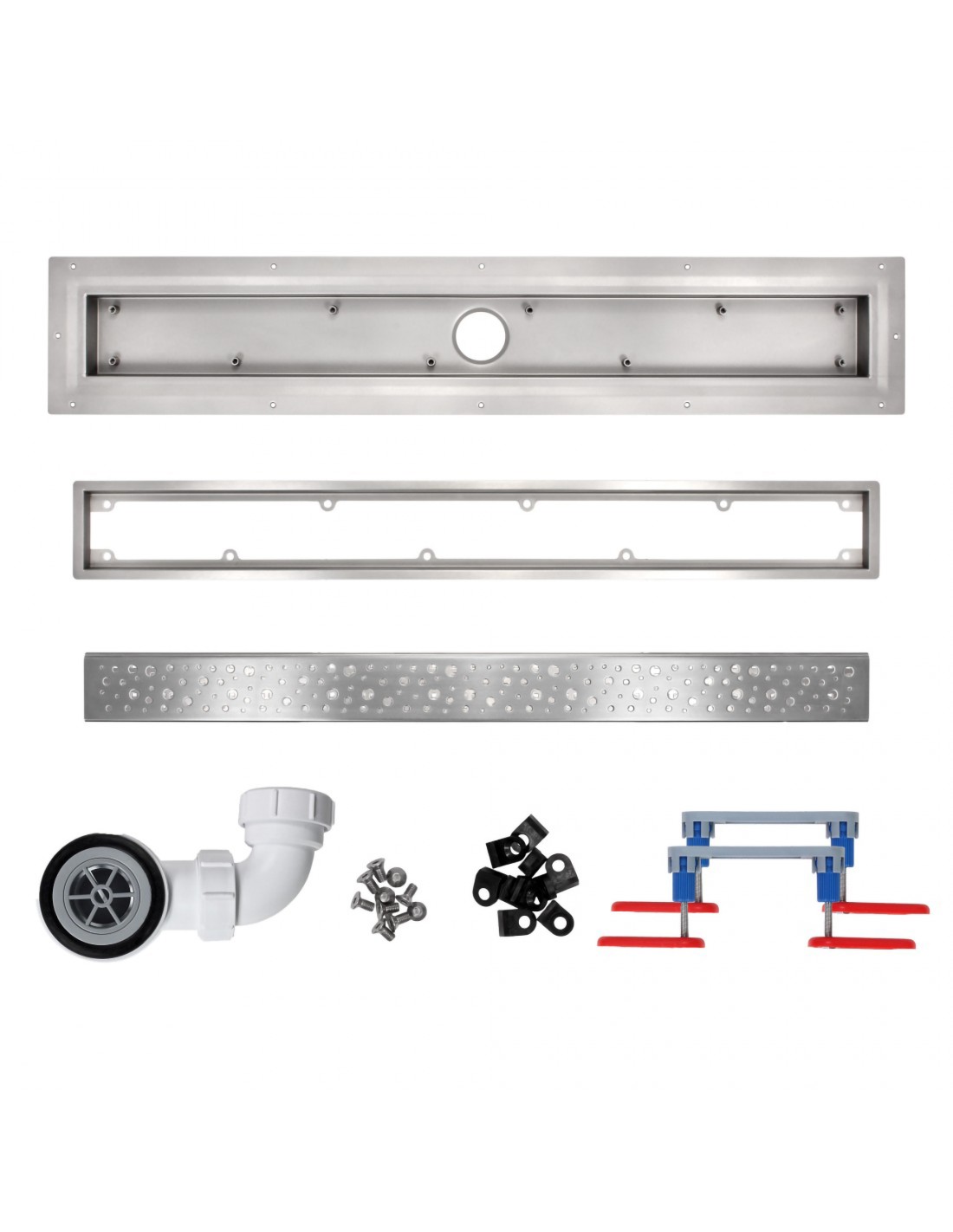

Parts included: The whole set you get, always included in price, no matter which options you choose

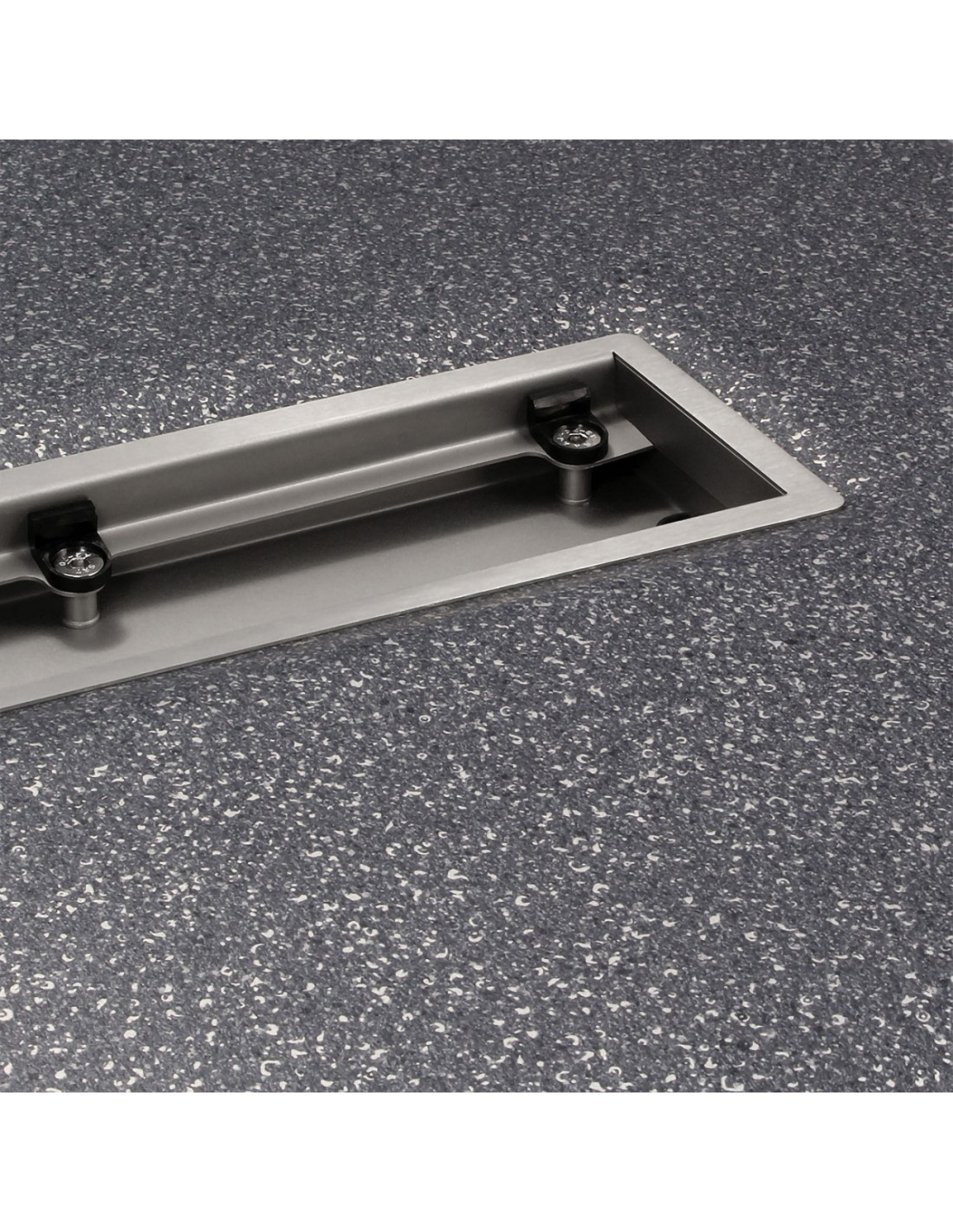

Installed shower drain in dark gray vinyl floor with focus of internal drain body without cover

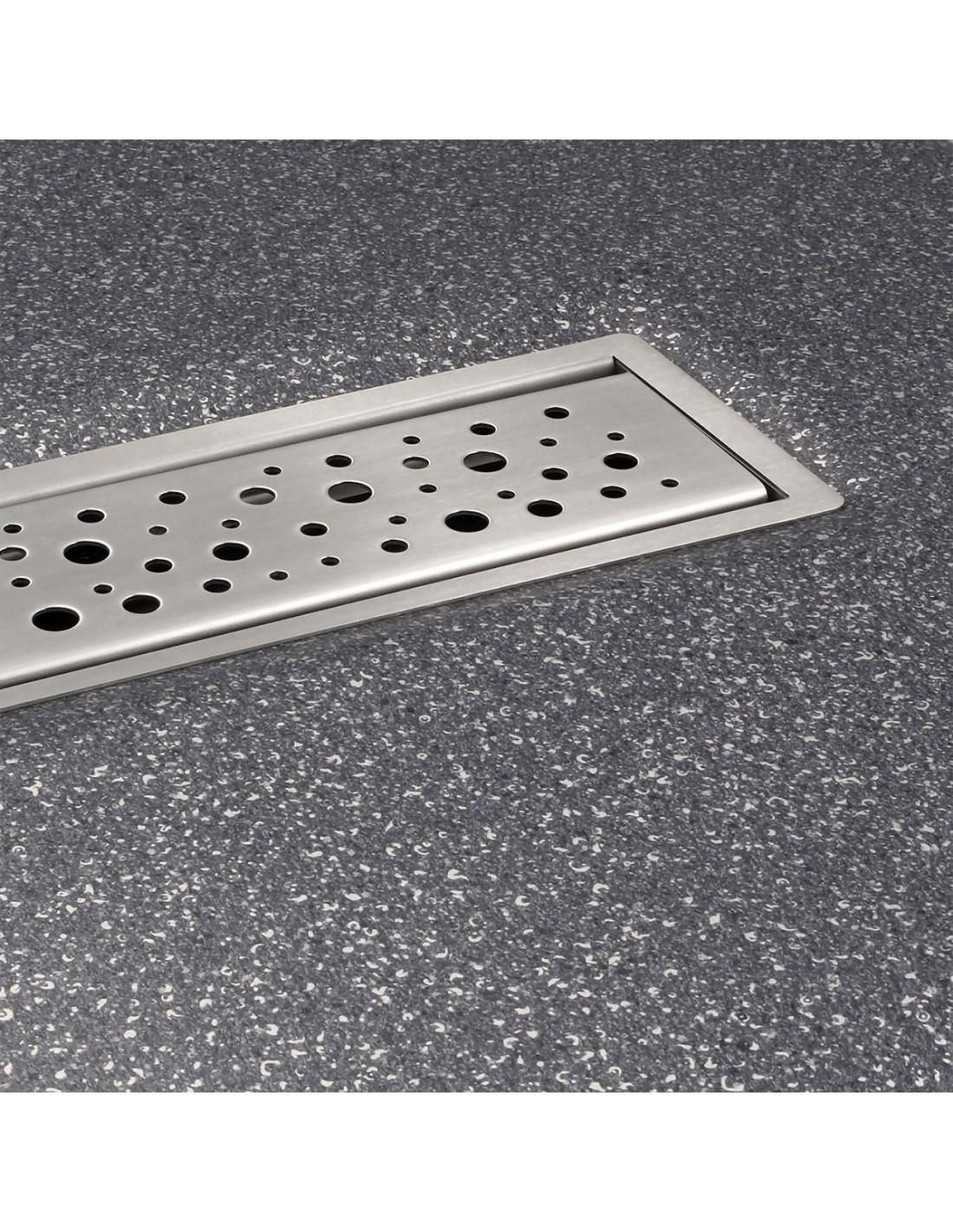

Installed shower drain in dark gray vinyl floor focussed on the visible cover Mistral

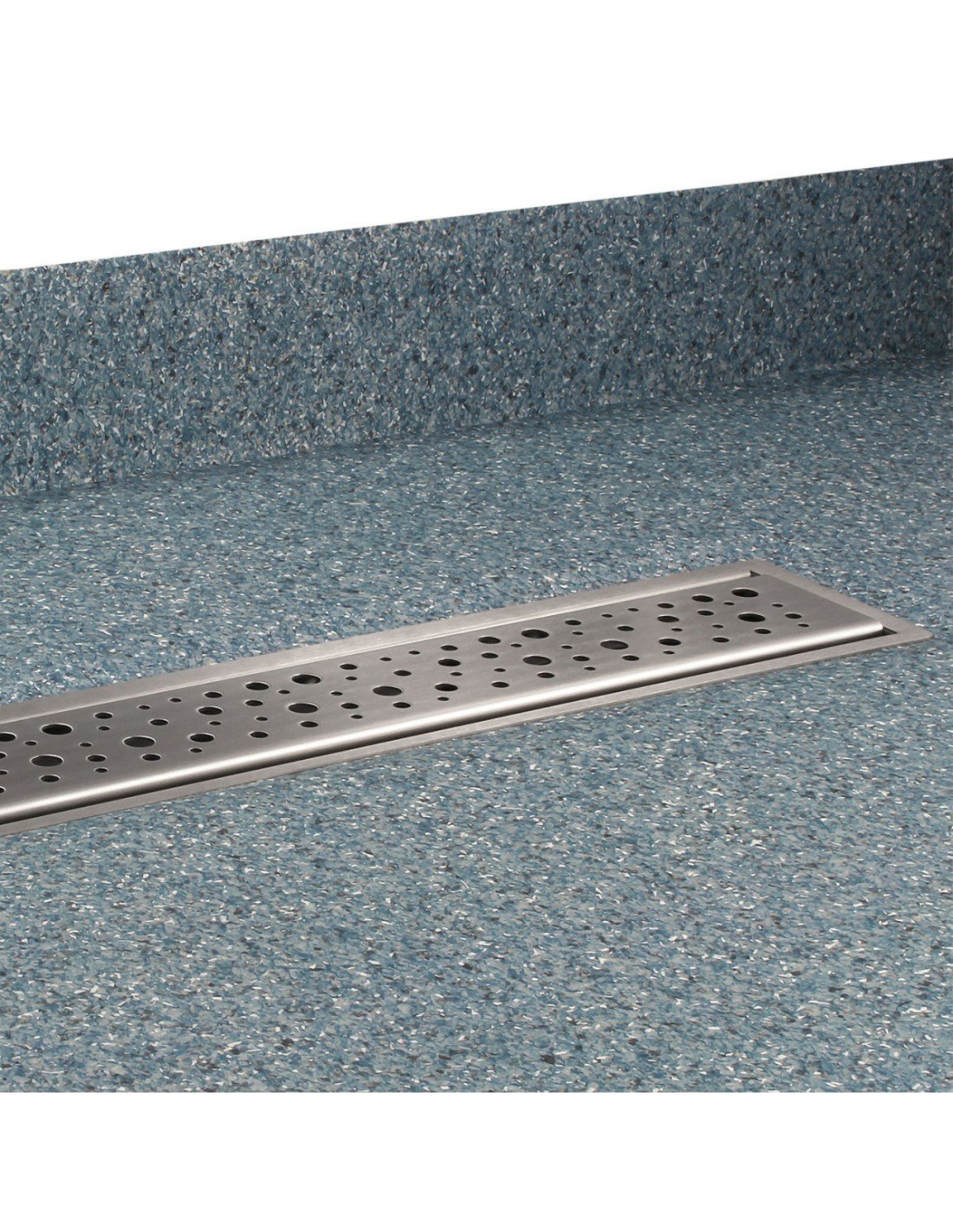

Side view of installed shower drain with design cover Mistral, combined with green-blue vinyl flooring

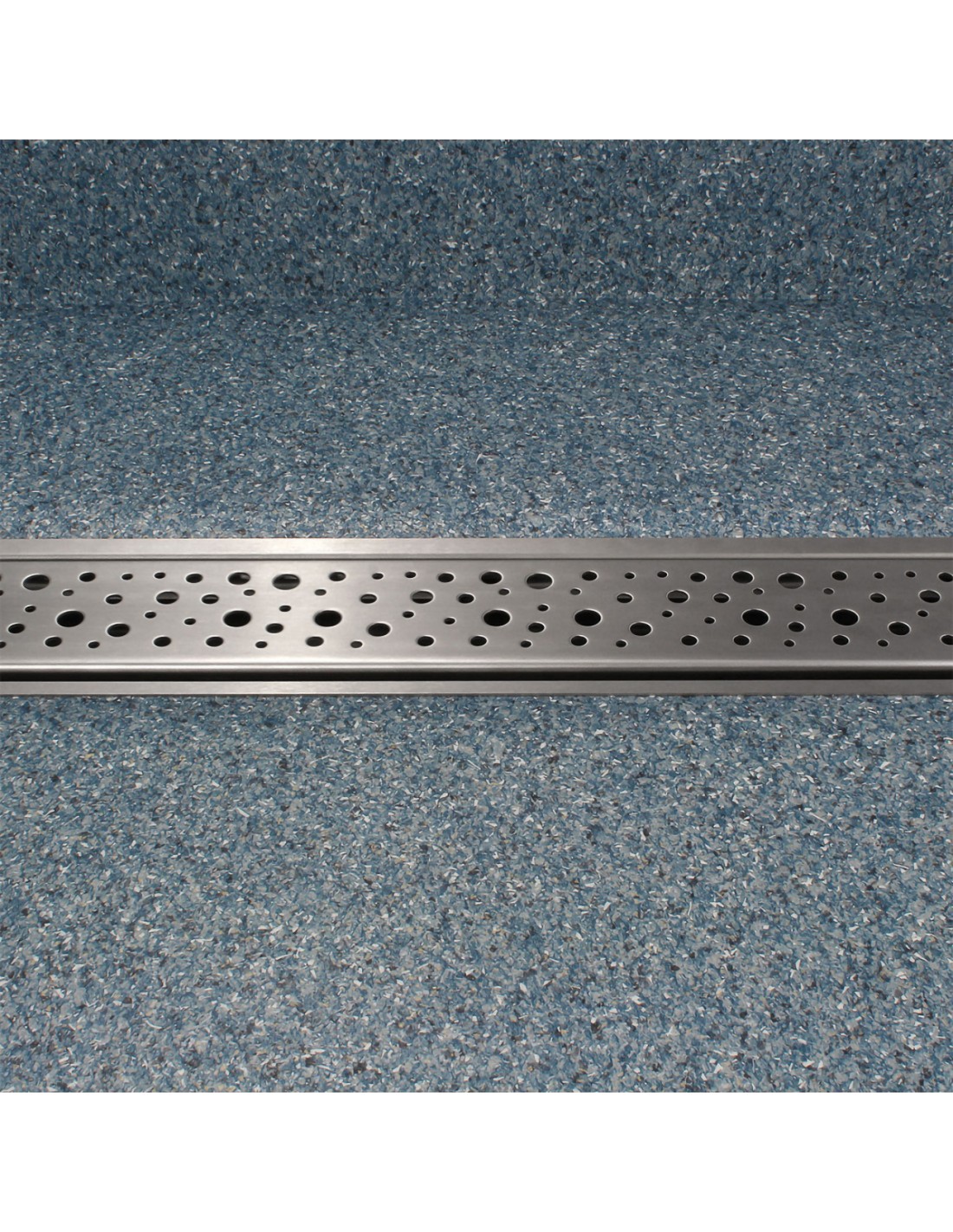

View from above of installed shower drain with design cover Mistral, combined with green-blue vinyl flooring

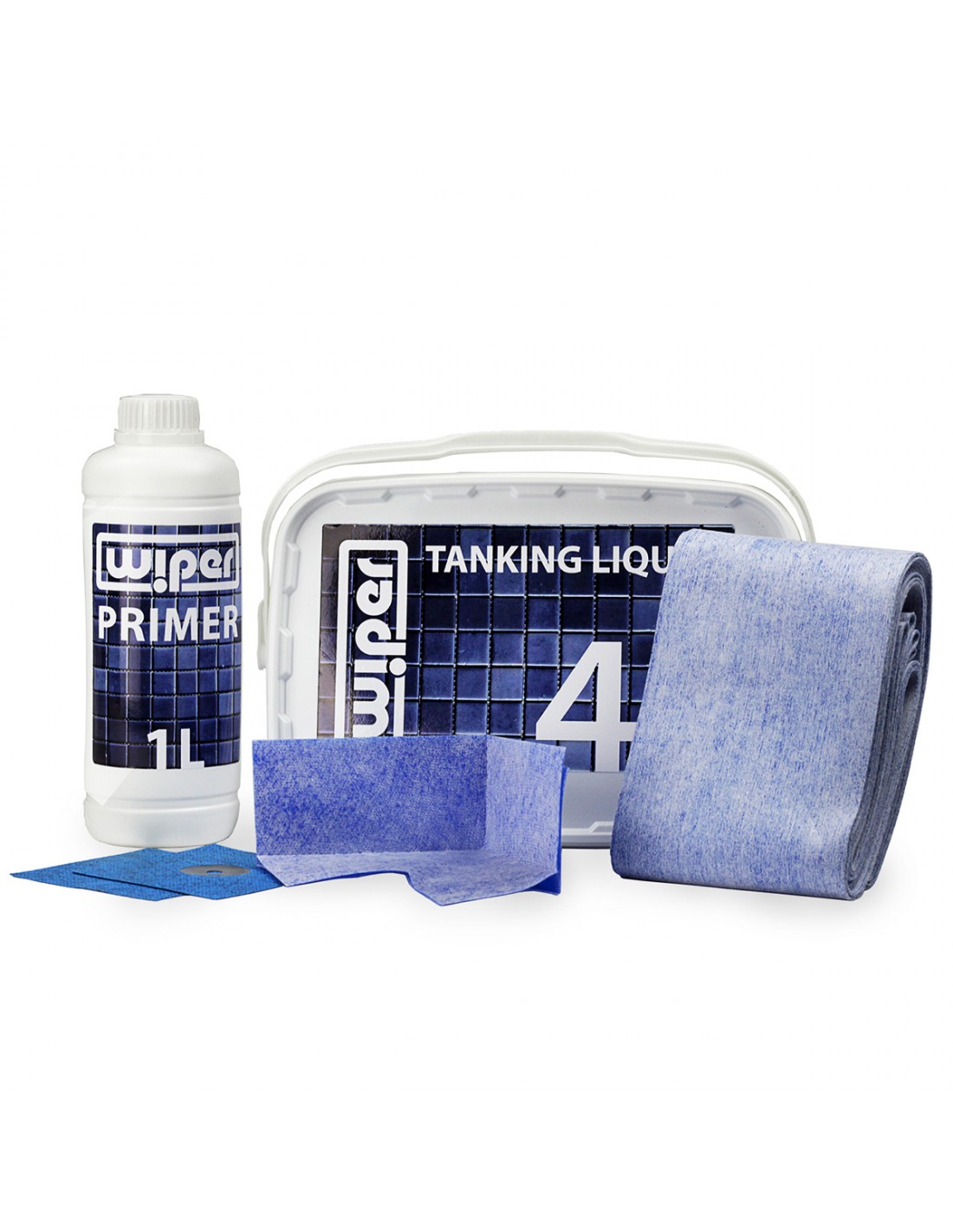

Wiper shower waterproofing kit incl. primer, tanking liquid, sealing tape, sealing corners and flexible pipe collar
Different syphons by choice (vertical or horizontal outlet), included in set
Vinyl floor Wet room kit: Linear drain with Mistral cover and waste trap
Example of a gym shower area with multiple encloures and bright vinyl flooring
Example of an accesible walk-in shower in a hospital with blue-coloured safety flooring
Example of a finished wet room in a shower with floor covered black with vinyl tiles
Example of a finished wet room shower in a private property with dark coloured vinyl flooring
Example of a small-sized hotel shower with floor covered with beige-coloured vinyl
Close up on Linear drain with Mistral cover
Close up on the Mistral cover
Parts included: The whole set you get, always included in price, no matter which options you choose
Installed shower drain in dark gray vinyl floor with focus of internal drain body without cover
Installed shower drain in dark gray vinyl floor focussed on the visible cover Mistral
Side view of installed shower drain with design cover Mistral, combined with green-blue vinyl flooring
View from above of installed shower drain with design cover Mistral, combined with green-blue vinyl flooring
Wiper shower waterproofing kit incl. primer, tanking liquid, sealing tape, sealing corners and flexible pipe collar
Different syphons by choice (vertical or horizontal outlet), included in set

Linear drain 1100 mm Wiper VF Mistral

Linear shower drain 110 cm for vinyl floor with clamp system, waste trap, Mistral circle patterned cover and optional adjustable feet

The 1100mm Vinyl Drain is the second largest gully in our collection. It’s length makes it ideal for a grand spacious shower room and gives your bathroom that magnificent modern minimalist clean look. It’s stainless steel brushed frame, industrial strength together with the right vinyl also makes it outstanding in durability for hospitals, gyms and hotel enviroments where there would be more wear and tear of a shower area.

Our improved Vinyl Drain Series. We took our Invisible Drain Range and looked at how to improve the seamless bond between a drain and a vinyl floor finish. This Series is set a part from our other drains because it has a clamp feature that locks the vinyl in place and creates a sealed bridge which prevents your vinyl finish lifting. This drain is compatible with a wide range of vinyl of various thickness.

Product Type
  • Linear Drain VF

Consider your floor finish type — tiles, micro cement, or vinyl — choose a finish that complements your bathroom style. Evaluate dimensions and features to match your requirements.

Drain Length

Drain is available in 8 standard lengths. Although they have same technical performance, length of the drain should be matched room requirements. For an instance 700 mm Drain length is recommended for 1000 mm wide shower.

Drain Cover
  • Mistral

There are 3 drain cover patterns available. The flow rate is the same for all of them. They are interchangeable and can be swapped even after installation. Each drain sent out is equipped with a lifting hook which makes cleaning easy.

Waterproofing kit

Waterproofing kit is used to seal shower tray as well as connections between walls and floor. It is recommended for concrete and mandatory for timber flooring. Each kit contains 4kg tanking liquid, 1l primer, 10m sealing tape, 2 corners, 2 pipe collars. One kit covers 3 m² with 2 coats. Waterproofing kit

Underfloor heating kit

Complete Sunfloor Underfloor heating set, including mat, Wi-Fi thermostat, floor sensor and fitting instructions. Fully suitable with our other products. Advanced thermostat with and iOS/Android app allows to set desired temperature of the floor from distance as well as create schedules.
Complete Sunfloor Underfloor heating set

Tile Backer boards

Tile backer boards are used to create the perfect substrate to tile onto in wet rooms and bathrooms. Superior to cement boards and plywood, due to its waterproof and thermal insulation properties. Tile backer boards

Shower screen

The Wiper Verre Shower Screen is one of Wiper's new shower enclosures. It is available in multiple standard sizes making it fit in small and large wet rooms. Black and silver options make it looks minimalistic and modern. Perfect choice for any wet room upgrade. Made of 8 mm toughened clear glass with Active Shield coating, 2000 mm high. Included fittings are made of stainless steel. The Verre Shower Screen from Wiper

LVF11M
Check stock live

Amount of products available off-the-shelf. If order is placed before 3pm, it will be shipped same day with free next business day delivery.

Quantity available in stock for next day delivery:

  • Linear drain 1100 mm Wiper VF Mistral x 7
Total available in stock: 7
Same day shipping and delivery on Monday if you order in next 0 hours 00 minutes and 00 seconds
£417.36
Tax included
To get an extra 5% discount simply increase your cart value to £500.
Add to cart your current selections, and you only need to add £82.64 more to unlock a 5% discount for the entire order.
Amount of product sales 3 Sold during the last 90 days
Amount of product views 8 Views during the last 24 hours
Based on current settings, if you Add to cart current set and then order, you will receive the following items:
Waterproofing kit

Size: not included

Underfloor heating kit

Size: not included

Shower screen

Size: not included


  • Length (L): 1100 [mm]
  • Height of channel (C): 29,7 [mm]
  • Width of channel (Y): 77,6 [mm]
  • Width of insulating flange (F): 160 [mm] (included)
  • Complete siphon, pipe diameter: 1.5" (british standard size),
  • Pipe height adjustable and rotatable at 360°,
  • Drain's cover included.

Features include:

  • Vinyl clamp lock
  • High standard brushed stainless steel frame
  • Adjustable legs for stabalization and anchoring feet
  • Lifting hook key for drain cover allowing easy access for cleaning

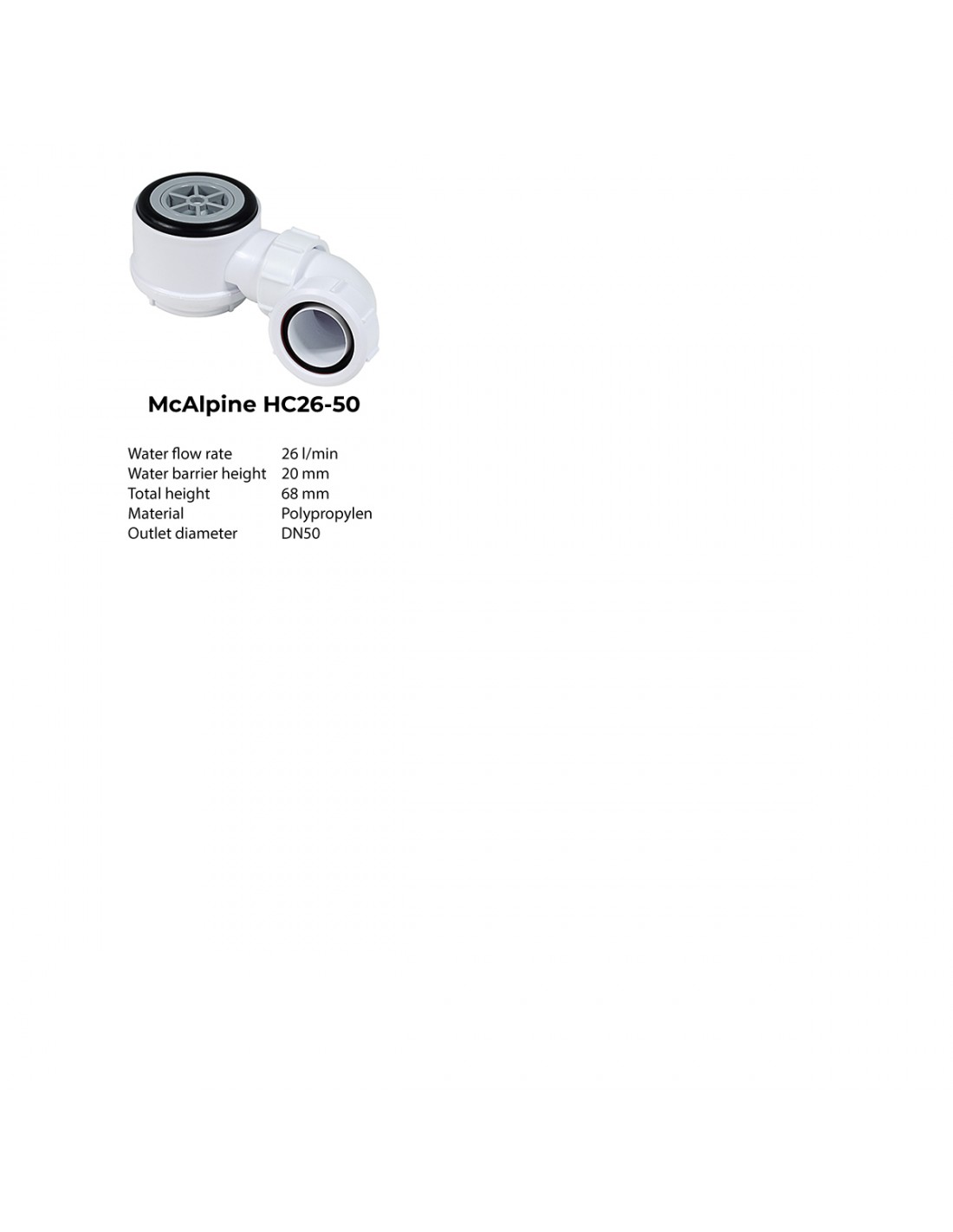

  • McAlpine HC26 50mm waste trap

Clamp - Drain - Vf - Technical - Drawing

Product is suitable for:

Vinyl Floor

Grating patterns available for this product:

Linear drain gratings

Linear shower drain advantages

Channel length
1100 mm
Grate style
Mistral
Channel height
29,8 mm
Channel width
77,6 mm
Total width
160 mm
Material
304 S 15 grade stainless steel
Additionals
Tanking kit, Adjustable legs
Drain surface
brush
Waste trap
Plastic (PCV)
Cleaning
From above (Easy clean system)
Model
Clamp Drain - VF
Set consists
Linear drain body · drain grating · siphon trap
Sunfloor logo
UFH Mat
Complete Underfloor Heating Kit

It is possible to include a complete Underfloor Heating Kit to your order. All you need to do is to choose the required size. Additional package, with heating mat, appropriate thermostat, sensor and instructions will be dispatched together with the other goods.

To calculate required mat size you need to get square coverage of the floor and exclude any permanent / fixed fixtures from them. It is also recommended to buy slightly smaller mat than calculated size - you can shape it but cannot cut the cables, therefore too large mat could not be installed.

SUNFLOOR Underfloor Heating

The SUNFLOOR Electric Heating Mat is a unique type of floor heating mat. The system has been designed to be used on an existing tiled floor or an existing finished floor, so that floor heating can still be installed there. The mat is approximately 4 mm thick and can be included in a layer of adhesive without any demolishing or grinding. The mat fits virtually underneath the surface. This decreases the heating time of the floor, that also makes this system suitable for rooms that are not permanently occupied including bathrooms, studies, playrooms, etc.

Heating mat

Underfloor heating mat set consists of all necessary parts for installation. One Thermostat is needed for every 23 m² of heating mat. It is included as optional, to allow ordering mat for custom areas, for example if you need 13 m² of mat total, you should buy 10 m² with one of the thermostats set as include and 3 m² with thermostat not included. In case you require less mat coverage than possible to buy from our product pictures, for example 14.5 m² you should always round low with your purchase and buy 14 m² as the mat is impossible to cut. It can be shaped but not shortened to size.

    Details:
  • 2.5 meter 3-core supply cable
  • Fully encased in an aluminium earthed sheath
  • Unique blind connection between the heating and the connection cable
  • Chrome/Nickel resistance wire
  • PTFE (Teflon) insulation
  • PVC protective sheath
  • 10 -11 watt per meter resistance wire, 230 Volt
  • Cable diameter approximately 4 mm
  • Complies with current NEN standards for installation in completely wet rooms
Thermostat

The C16Wi-Fi is an intuitive programmable thermostat used to control the electrical floor heating system or water heating system. It will keep home comfortable temp whilst minimizing energy use. Install the app on your smartphone to control the heating system remotely with the WiFi thermostat.

    Specification:
  • Voltage: 230 Volt - 50/60 Hz
  • Maximum load: 16A / 3600W
  • Temperature range: +5 to +40°C
  • IP class: IP21
  • Testing: CE
  • Cable spec.: ≤ 2,5 mm²
  • Standby power: ~ 2W
  • Size: 85 x 85 mm
  • Integral room sensor and floor sensor
  • Colour: white or black
UFH Sunfloor Thermostat
Magnum X-treme control

This stylish, colourful and refined digital clock thermostat has been specially designed for electric heating systems. The MAGNUM X-treme Control is supplied with every MAGNUM floor heating set (Mat,Cable and Foil types), including external floor sensor, a built-in air sensor and three different frames that suit most brands of switching equipment. The MAGNUM X-treme Control is simple and intuitive to operate using touch sensitive buttons under the display. The new chameleon function is simple to adapt to the colour of your interior. The stylish screensaver shows the time, temperature and current mode without touching the thermostat. The MAGNUM X-treme Control has a new help function that appears after 10 seconds in the menu with a complete description of the setting in question. The MAGNUM X-treme Control also has a wooden floor function whereby the temperature is limited to 28°C. This makes the MAGNUM X-treme Control the idea and safe solution for every electric heating system.

    Specification:
  • Voltage: 230 Volt - 50/60 Hz
  • Maximum capacity: 16A - 3600 watt
  • Temperature range: +5 to +40°C
  • Frame: IP21
  • Color: Polar white (RAL 9010)
  • Testing: FI/CE
    Technical details:
  • Control via touch sensitive keys
  • Chameleon function (8 colour themes)
  • Screensaver night clock
  • Automatic start-up menu
  • Slow start-up function
  • Wooden floor function (28 °C limit)
  • Automatic summer and winter times
  • Multi-programme function (2 periods per day)
  • Programming multilingual
  • Including floor and air sensors
  • Multi-frame adapter system for: Gira, Jung, Elko, Merten, Busch Jager, etc.

In some situations the digital regulation is not required and so the preference is for a simple on/off operation. Specifically industrial applications where the heating must remain on at all times. Therefore MAGNUM has designed the Standard Control: a simple on/off thermostat with temperature regulation that is clearly easy to operate.

    Specification:
  • Voltage: 230 Volt - 50/60 Hz
  • Maximum load: 16A / 230 V
  • Temperature range: +5 to +40°C
  • Housing: IP21
  • Color: Polar white (RAL 9010)
  • Testing: CE
    Technical details:
  • On/off thermostat complete with temperature regulation
  • Including floor sensor
  • Integral room sensor and floor limit sensor
  • Multi frame adapter system for: Gira, Jung, Elko, Merten, Busch Jager, etc.
Magnum Manual Thermostat
Tanking kit

The tanking kit is a ready-mixed, under-tile tanking system to protect water sensitive substrates from exposure to water. Suitable for wet areas such as bathrooms, showers in residential buildings, hotels, old people's homes and hospitals. Should not be used in places exposed to pressurised water, for an instance swimming pools. Ready to use, no mixing required and easy to apply with a roller. The kit includes a high performance joint reinforcing tape to protect against movement in floor joins and corners etc. The contents are all INSIDE the bucket and the contents are protected in the bucket with polystyrene infill's to stop transit damage.The instructions are printed on the rear of the tanking kit.

For anti-moisture insulation systems in wet rooms and rooms intended for human residence. The tanking liquid is a ready-to-use singlecomponent, solvent-free sealant composed of polymer dispersion, fillers and modifying additives. When applied to the surface, upon binding it creates a flexible and water-insulating layer.

Tanking kit contains:
  • 4kg Tanking Liquid
  • 1l Primer
  • 10 Metres flexible Sealing Tape
  • 2 Flexible Pipe Collars
  • 2 Corners
Features:
  • Consumption to 1,2kg/m²
  • Solvent free
  • Drying time: 2h
Tanking liquid and primer
Tanking liquid
Tanking liquid

The tanking liquid is a ready to use, single component, solvent-free sealant mass, consisting of polymer dispersion, fillers and additives. When applied to a substrate and cured, it forms a flexible waterproofing coating. The product is intended for use inside places intended for human residence, especially in humid areas (such as bathrooms, kitchens, laundries), to perform insulation against moisture under linings and coverings, such as ceramic tiles, glazed tiles, terracotta, wooden floors and panels, and synthetic carpets.

The product is intended for priming absorbent and porous surfaces, inside and outside buildings. It is especially recommended for cement - limestone plaster, gas concrete, plaster-carton boards and cement plaster. The primer has a high penetration ability, is deeply absorbed into the substrate, thus strengthening it, while allowing for „breathing”. These benefits improve the structure of the substrates, which, due to the passage of time, have lost their appropriate parameters. The priming solution improves adhesion to the surface of other materials that will be used on the primed substrate. By reducing the absorbency of the substrate, the wear of the applied coating materials, emulsion paints, glues, mineral putties reduces as well. The solution, due to the content of the biocide and fungicide, protects the primed substrate against the formation of mold and bacteria in the product.

Primer
