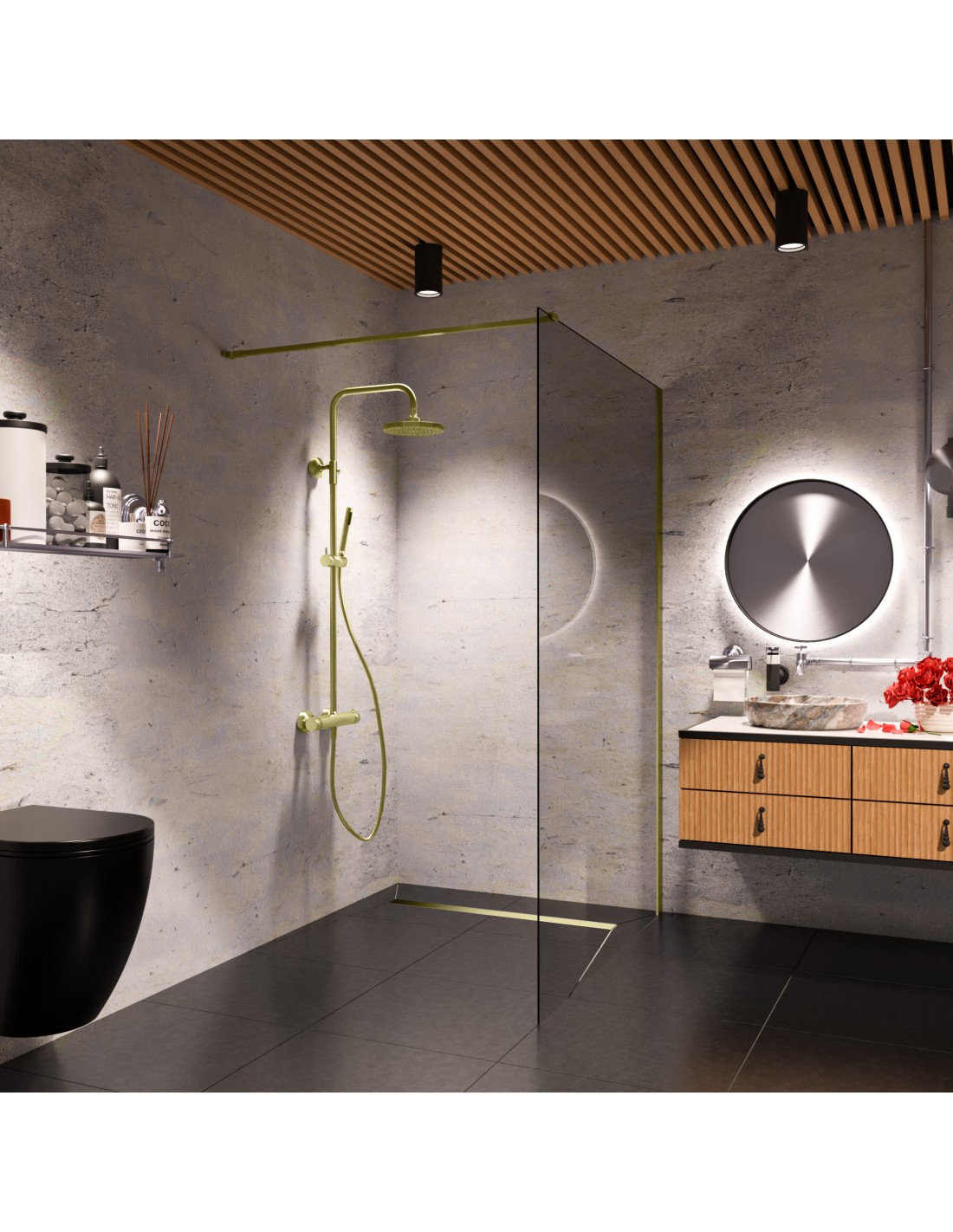

Tiled floor Shower drain kit: Linear drain and cover Ponente Gold, waste included

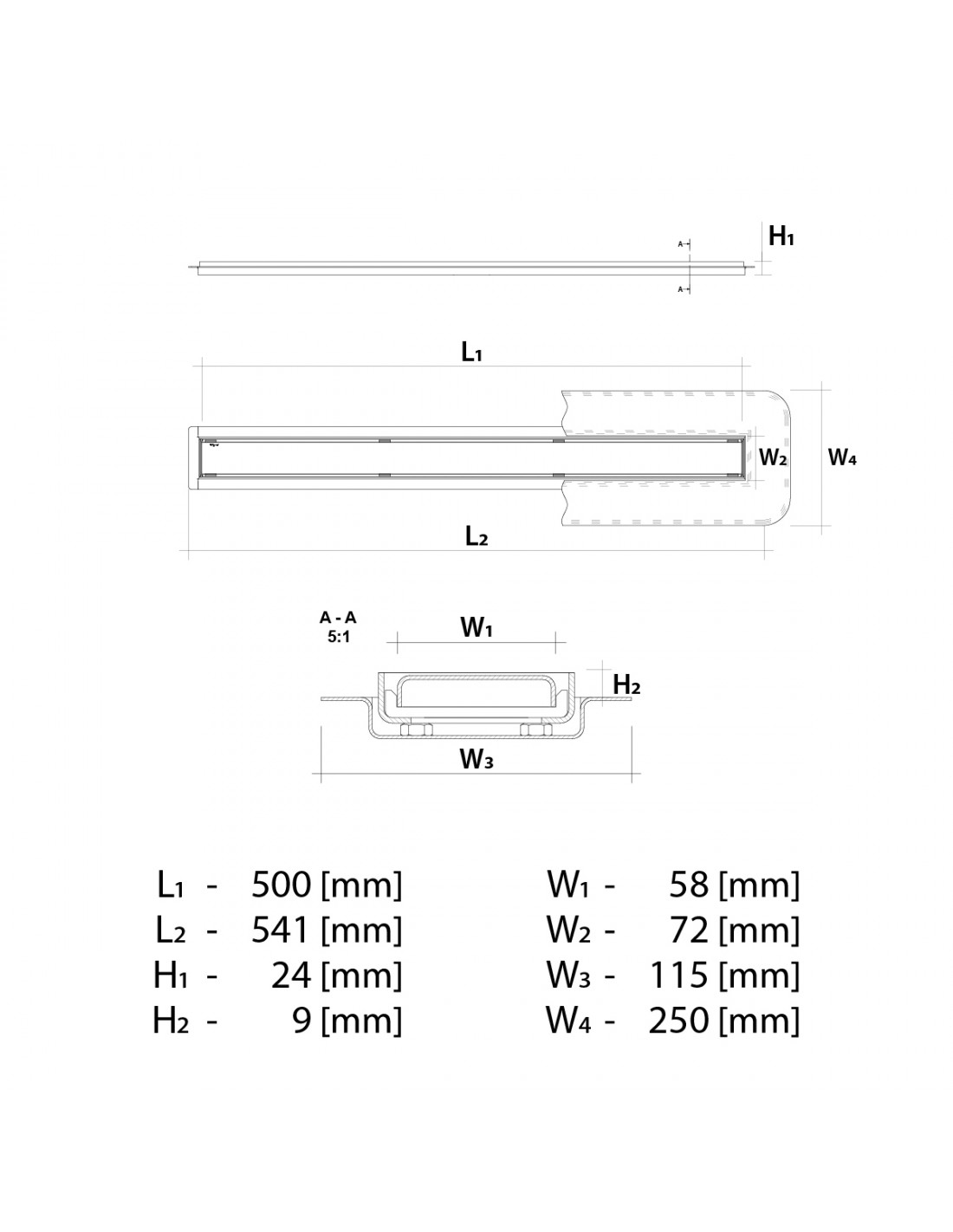

Technical diagram: Linear drain Wiper 500 mm Elite PVD Ponente Gold

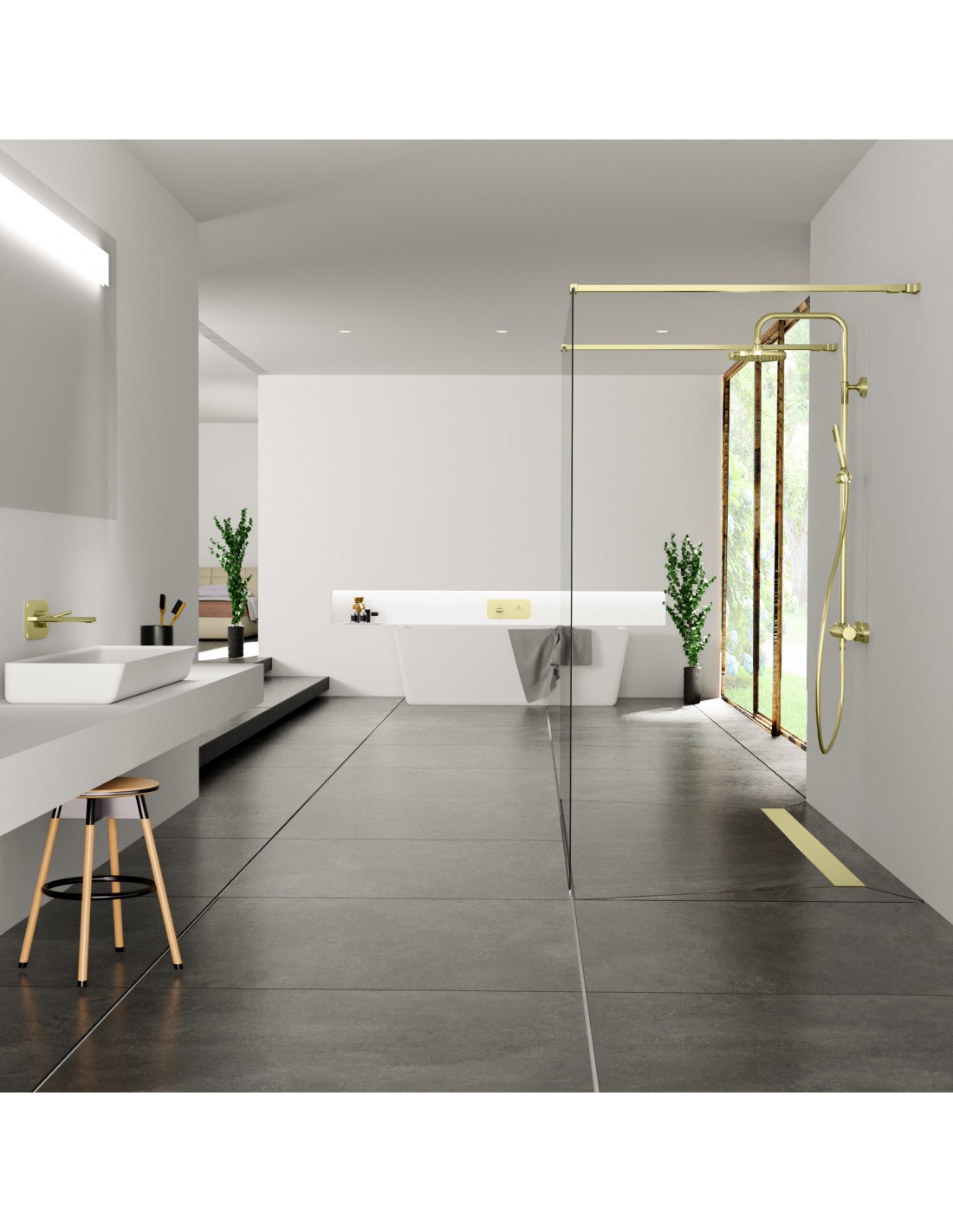

Bright bathroom concept with open shower area, finished with large-format tiles accessories in Gold
Luxurious bathroom in black and white color scheme including a walk-in shower in the middle of the room

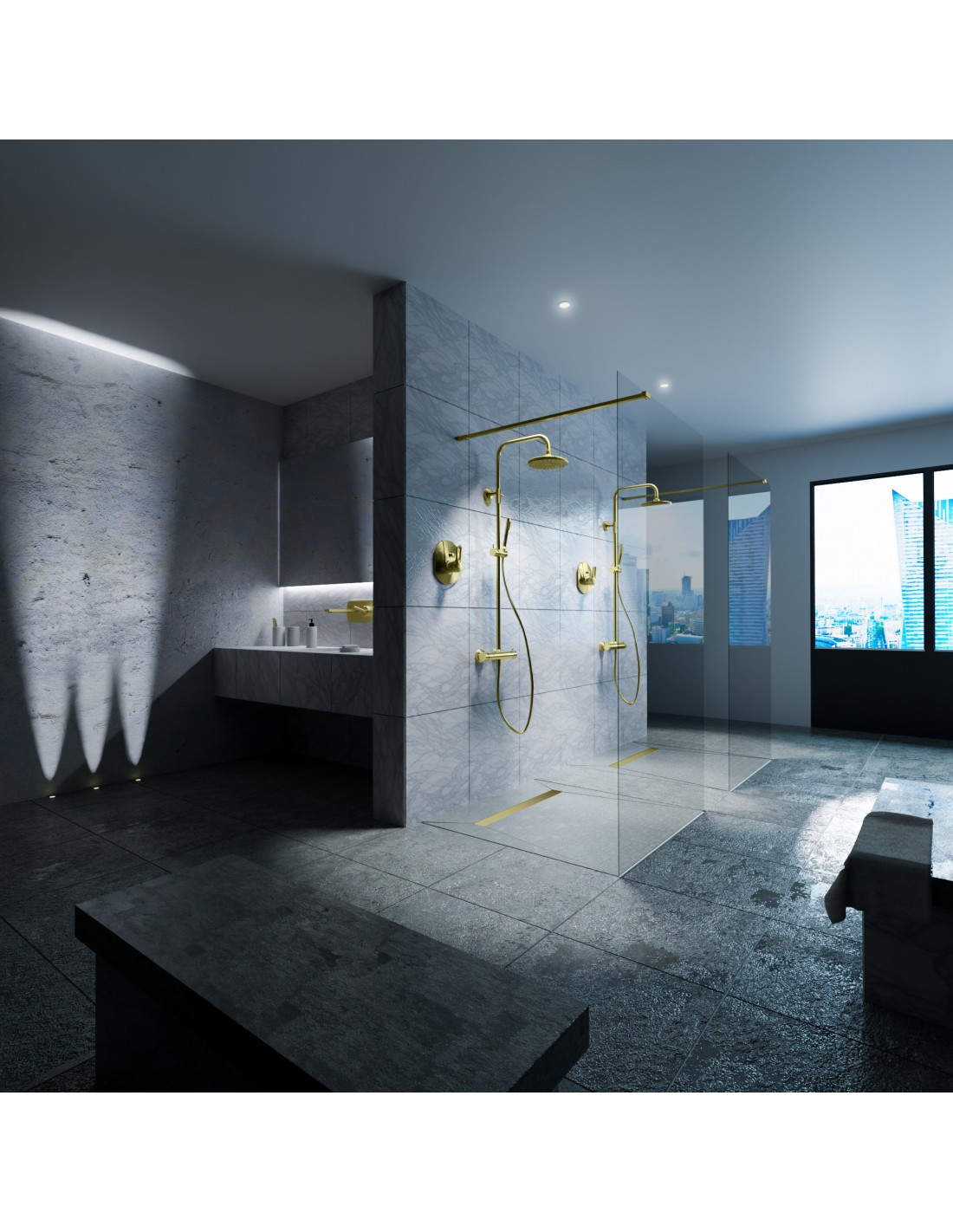

Aesthetic bathroom in blue-grey with a spacious double shower and fittings in Gold
Timeless bathroom in washed-out gray and a walk-in shower area with linear drain in Gold
Bathroom inspiration in a dark colour concept combined with warm wooden elements and fittings in Gold

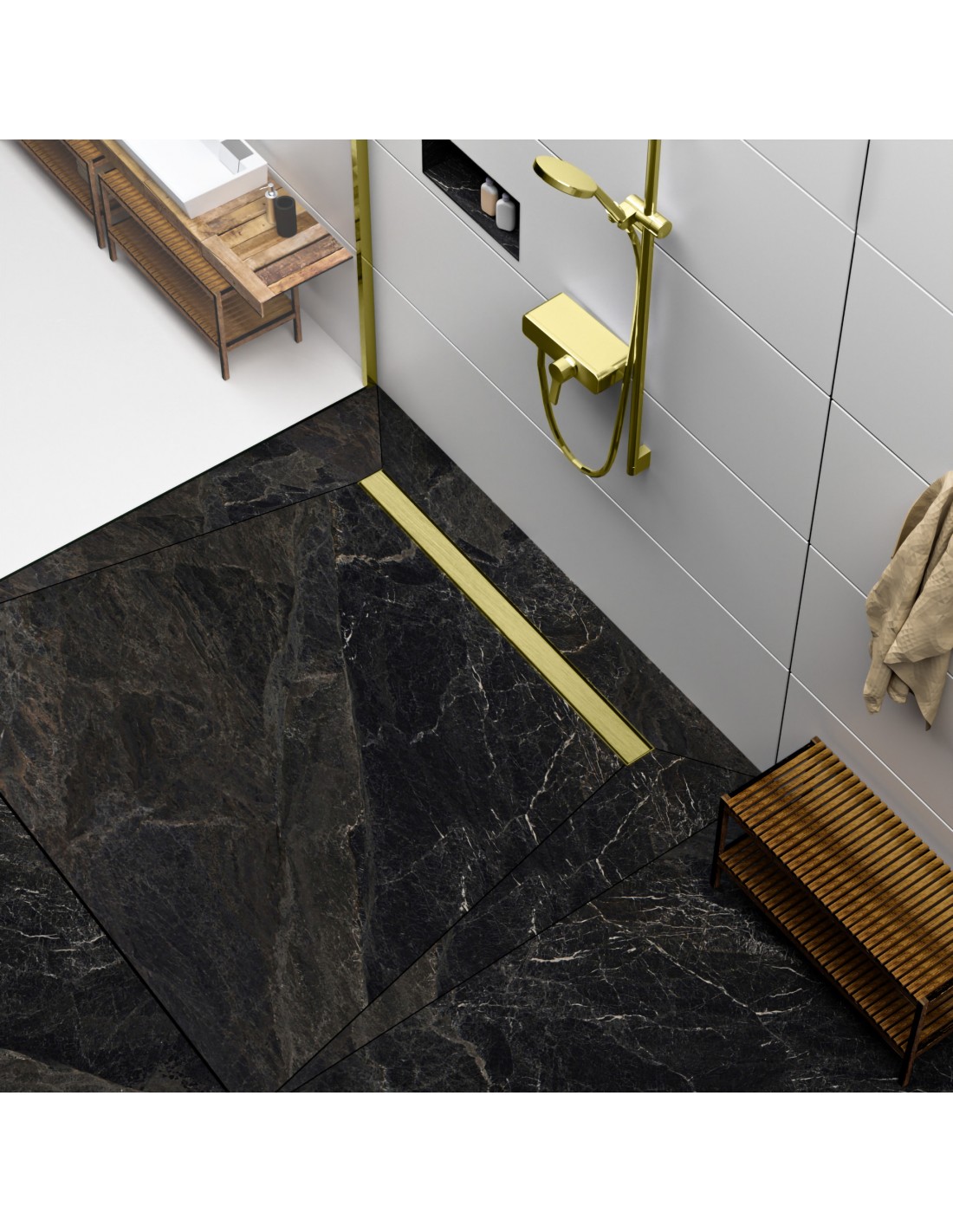

Modern shower area with black marble-look tiles and shower channel and fittings in Gold

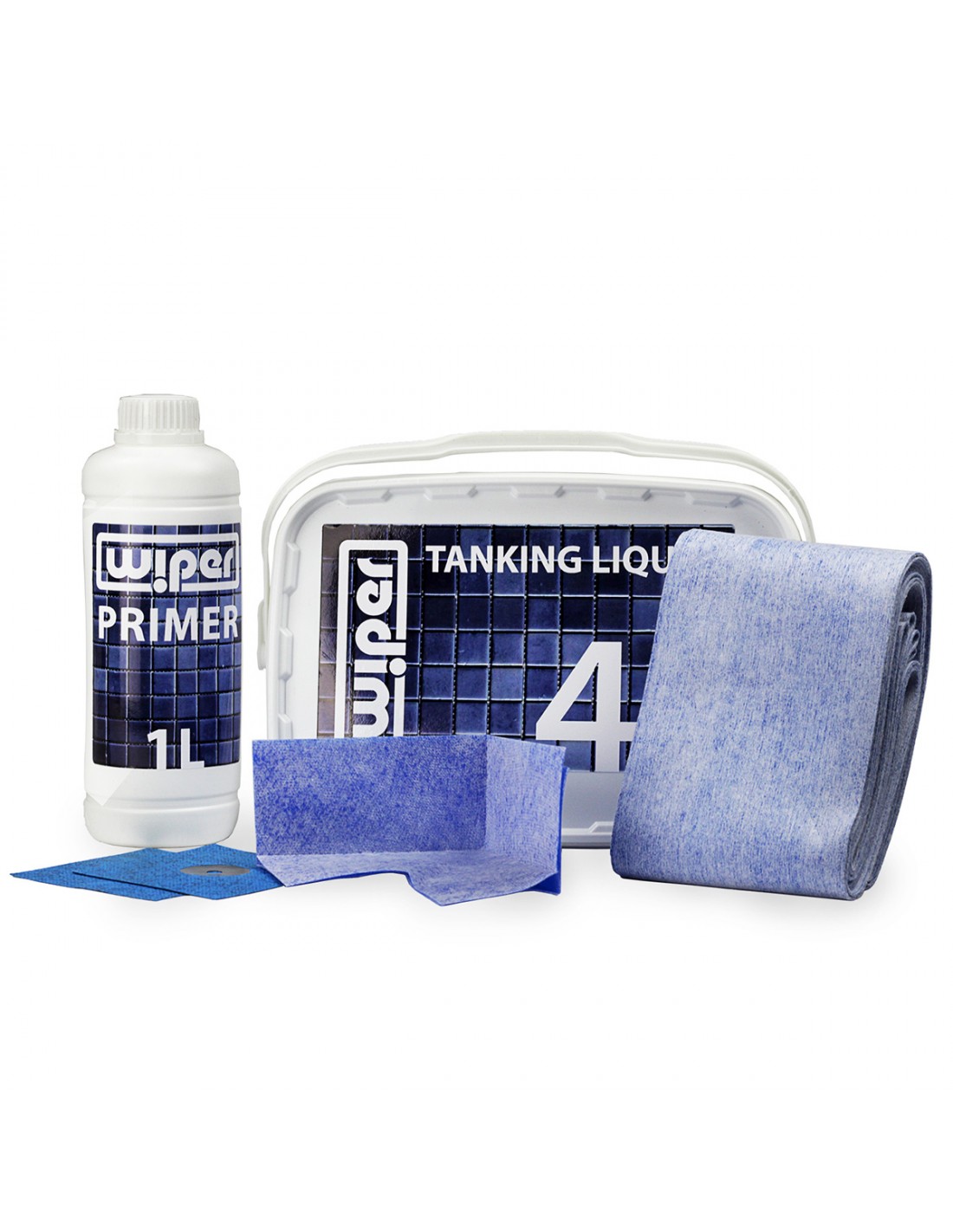

Wiper shower waterproofing kit incl. primer, tanking liquid, sealing tape, sealing corners and flexible pipe collar

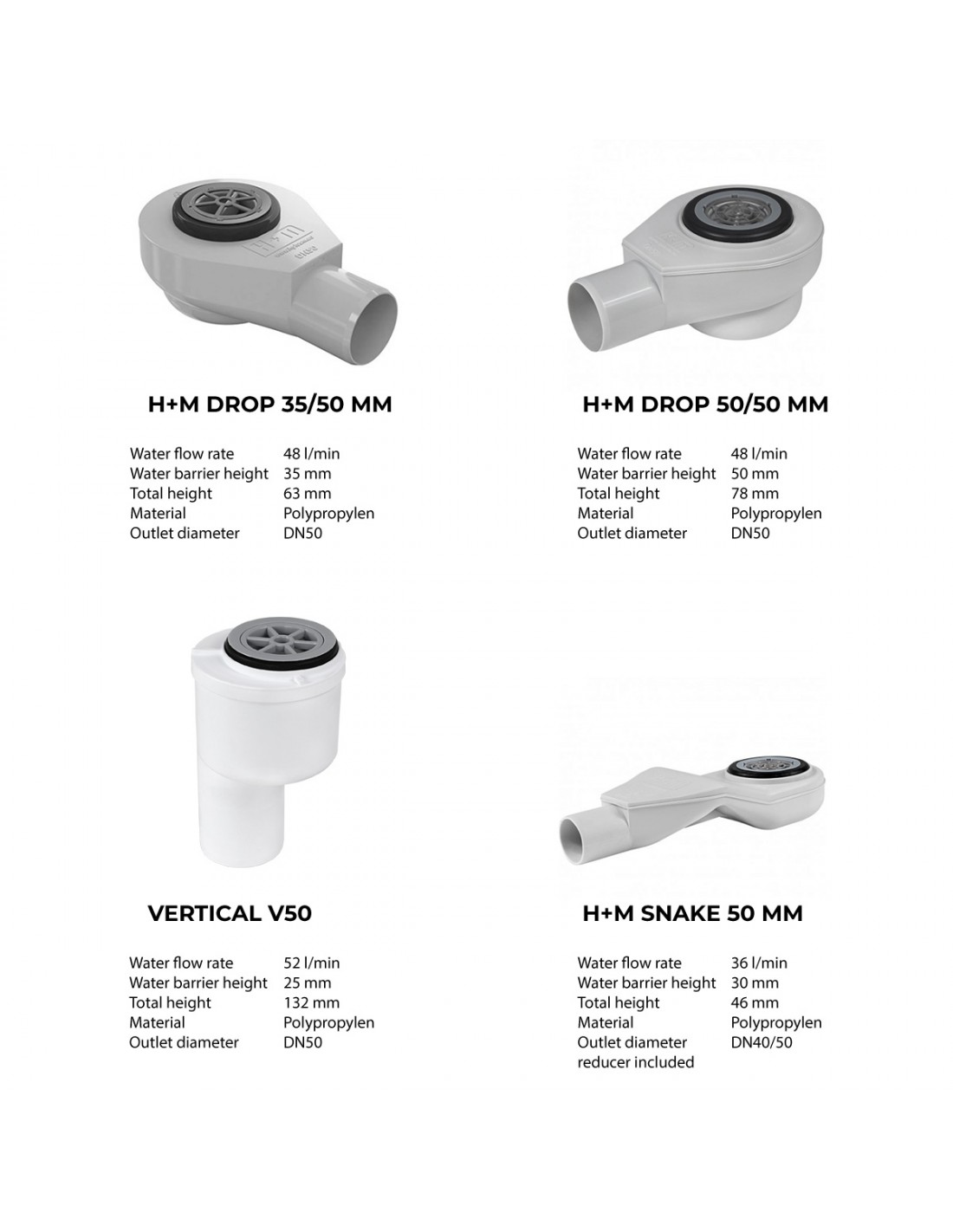

Different syphons by choice (vertical or horizontal outlet), included in set
  • New
Tiled floor Shower drain kit: Linear drain and cover Ponente Gold, waste included
Technical diagram: Linear drain Wiper 500 mm Elite PVD Ponente Gold

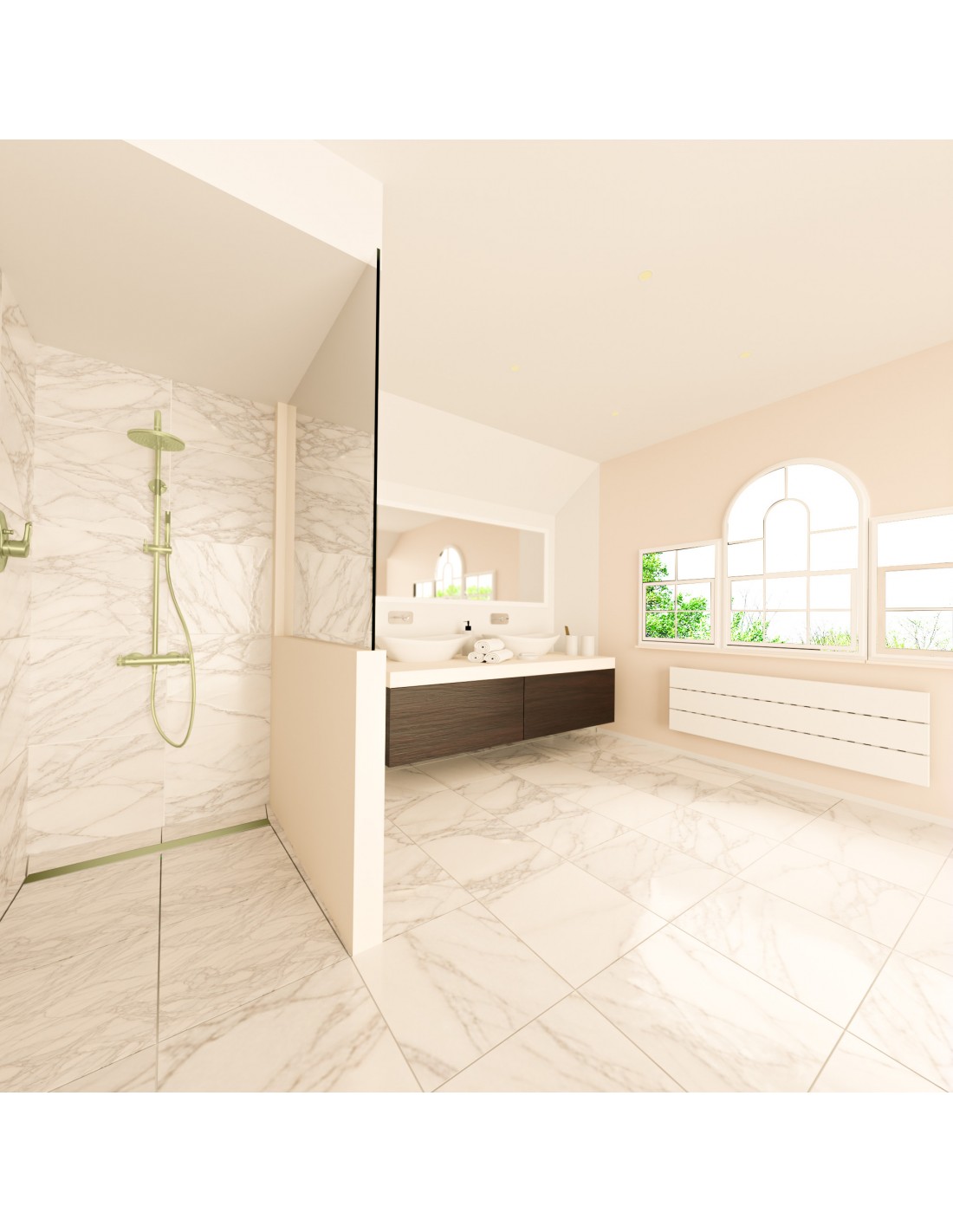

Bright bathroom concept with open shower area, finished with large-format tiles accessories in Gold
Luxurious bathroom in black and white color scheme including a walk-in shower in the middle of the room
Aesthetic bathroom in blue-grey with a spacious double shower and fittings in Gold
Timeless bathroom in washed-out gray and a walk-in shower area with linear drain in Gold
Bathroom inspiration in a dark colour concept combined with warm wooden elements and fittings in Gold
Modern shower area with black marble-look tiles and shower channel and fittings in Gold
Wiper shower waterproofing kit incl. primer, tanking liquid, sealing tape, sealing corners and flexible pipe collar
Different syphons by choice (vertical or horizontal outlet), included in set

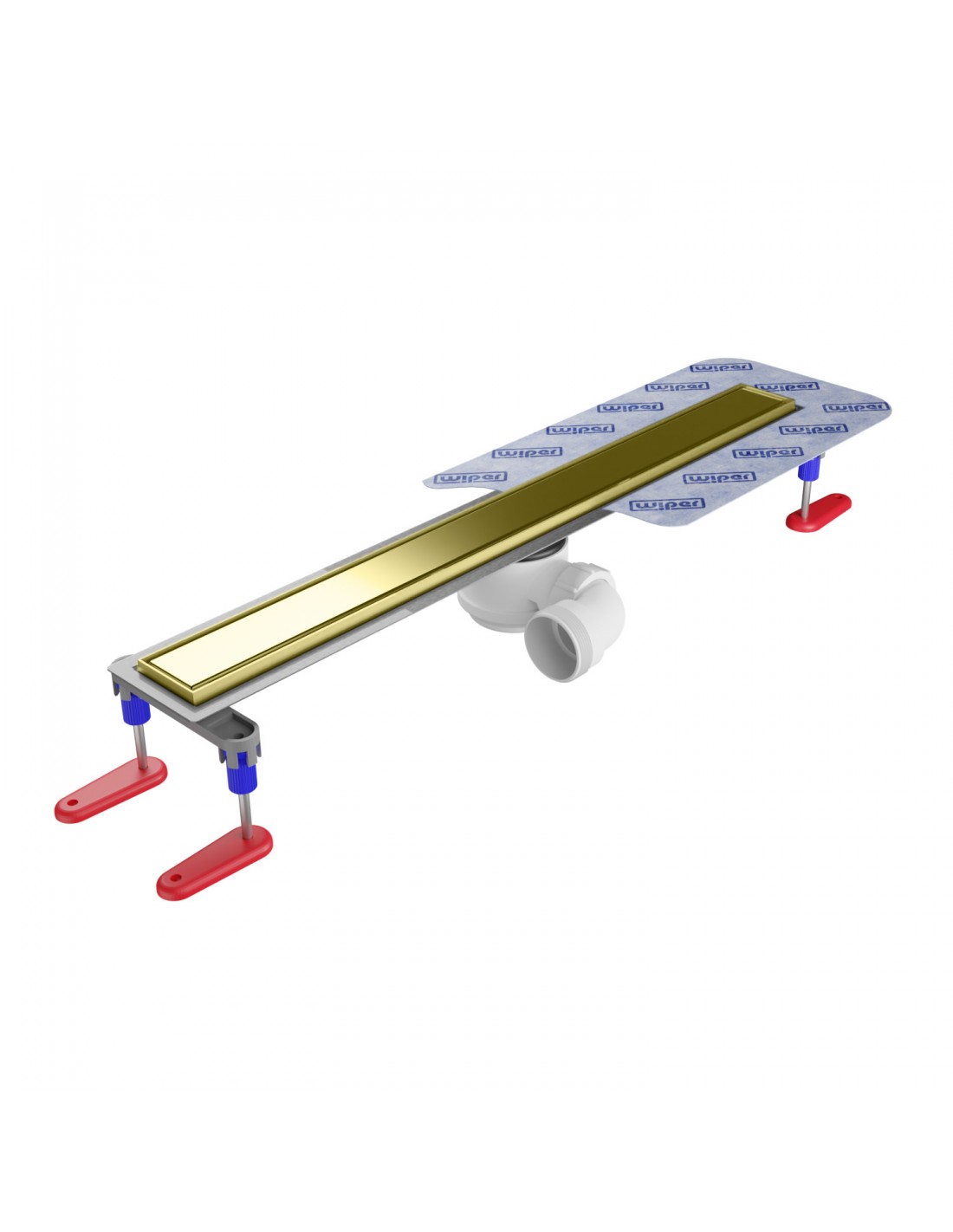

Linear drain Wiper 500 mm Elite PVD Ponente Gold

Gold linear shower drain 50 cm in matt, brushed or polished finish including flange, sealing membrane, waste trap, detachable adjustable feet, frame and plain steel pattern drain cover Ponente

The 500 mm Linear drains is the shortest size available. Equipped with necessary parts to fit our linear shower drains are also easy to clean and can be fitted almost anywhere in the shower: in the middle of the floor, against the wall or at the entrance. Great for small shower areas.

The Elite range of linear shower drains is our most versatile drain yet. Firstly, It features an adjustable frame that can accommodate any size of floor finishing from the thinnest of tiles to the thickest of stones. The frame height can be adjusted from 8mm all the way up to 50mm, with height spacers sold separately available to be bought as an addon. Secondly, the drain offers secondary drainage, which allows from any water that may find its way under the floor covering to drain away as well, and not pool under the floor covering.

But most impressive is the amount of choice you get when it comes to the cover. Not only can you choose the length (8 standard lengths available) that works best for your application, you also get to choose the design of the cover (7 styles available). Each style is available in 4 different colours. The drain covers are PVD coated, so they resistant to chipping or fading over time and will remain in pristine condition for years to come. Furthermore each colour is available in 3 different finishes(Polished Brushed or Matt) so you can really customize the drain and find exactly what you are looking for.

Lastly you also have a choice of waste traps to go with the drain. Depending on the water flow rate or pipe you are connecting to, or the amount of space you have to  work with in the floor. You can choose the trap that works best for your application.

Product Type
  • Linear Drain Elite

Consider your floor finish type — tiles, micro cement, or vinyl — choose a finish that complements your bathroom style. Evaluate dimensions and features to match your requirements.

Drain Length

Drain is available in 8 standard lengths. Although they have same technical performance, length of the drain should be matched room requirements. For an instance 700 mm Drain length is recommended for 1000 mm wide shower.

Drain Cover
  • Ponente

There are 7 drain cover patterns available. The flow rate is the same for all of them. They are interchangeable and can be swapped even after installation. Each drain sent out is equipped with a lifting hook which makes cleaning easy.

Drain Colour
  • Gold

The visible parts of the drain after installation, the frame and cover,can be supplied in different colours. Thanks to PVD coating, which offers high durability and resistance to discolouration, fading or braking down, you can get a drain that will match the rest of your fixtures.

Surface Finish
  • Brushed

There are 3 steel surface finishes available. The Matt finish is a uniform, slightly rough dull finish. The Brushed is a grind steel-smooth finish with visible , one directional brush stroke across the finished surface. The Polished finish is a high gloss, No. 8 mirror finish.

Waste Trap
  • McAlpine HC26-50

Before choosing, you should measure your available installation height. Especially in old flats or builds, where the space is limited, a lower height waste is recommended. As long as you have the space, you could choose one of the higher traps, which also offer high flow rate and better water seal. The following applies to the sealing water: 1 cm of sealing water recedes after approx. one week. Thus, for example, if you choose the "Drop 50", unpleasant odours remain sealed for about 5 weeks.

Waste trap
Drain finish
Waterproofing kit

Waterproofing kit is used to seal shower tray as well as connections between walls and floor. It is recommended for concrete and mandatory for timber flooring. Each kit contains 4kg tanking liquid, 1l primer, 10m sealing tape, 2 corners, 2 pipe collars. One kit covers 3 m² with 2 coats. Waterproofing kit

Underfloor heating kit

Complete Sunfloor Underfloor heating set, including mat, Wi-Fi thermostat, floor sensor and fitting instructions. Fully suitable with our other products. Advanced thermostat with and iOS/Android app allows to set desired temperature of the floor from distance as well as create schedules.
Complete Sunfloor Underfloor heating set

Tile Backer boards

Tile backer boards are used to create the perfect substrate to tile onto in wet rooms and bathrooms. Superior to cement boards and plywood, due to its waterproof and thermal insulation properties. Tile backer boards

Shower screen

The Wiper Verre Shower Screen is one of Wiper's new shower enclosures. It is available in multiple standard sizes making it fit in small and large wet rooms. Black and silver options make it looks minimalistic and modern. Perfect choice for any wet room upgrade. Made of 8 mm toughened clear glass with Active Shield coating, 2000 mm high. Included fittings are made of stainless steel. The Verre Shower Screen from Wiper

Height adjustment kit

Height adjustment kit allows you to install your linear frame and chosen drain cover to the same height of your floor finish material. The total build up space from the top of the tray to the top of your chosen finish is the total build. This typically includes tile adhesive and tiles, but could also be underfloor heating. Waterproofing kit

Amount of product sales 3 Sold during the last 90 days
Amount of product views 3 Views during the last 24 hours
Based on current settings, if you Add to cart current set and then order, you will receive the following items:
Waterproofing kit

Size: not included

Underfloor heating kit

Size: not included

Shower screen

Size: not included


Linear Drain Elite
The Crown Jewel of our product range.

Indulge in the ultimate bathroom experience with our Wiper Elite Linear drains. Our range of Elite linear drains boasts a plethora of color and finish options, with a multitude of cover designs to choose from that exude unparalleled luxury. Experience the utmost sophistication as you use the perfect design that fits your unique taste.

Our cutting-edge three piece drain design not only offers secondary drainage, but also allows for height adjustment to perfectly match the thickness of your floor finish. Say goodbye to the hassles of installation as this feature makes adjusting the height effortless.

This Elite linear drain can be installed easily in concrete or over timber joists in your chosen position for your dream shower space. Having this drain integrated into a tray allows you to install hassle free, but installation without a tray gives you complete freedom to position your drain where you see fit.

In our store, we pride ourselves on offering only the most exceptional bathroom solutions. Our team is always ready to provide assistance, so if you require guidance in selecting the ideal drain for your needs, do not hesitate to contact us via phone, email or chat. Let us help you elevate your bathroom to the next level of opulence.

  • Dimensions of the drain can be found on associated technical drawings.
  • Drain outlet is always central in the channel.Alternatively we can produce a bespoke linear drain with the outlet position to your specifications.
  • The Elite linear drain feature includes height adjustability to match the thickness of your chosen finish.
  • The advantage of a secondary drainage system guarantees no leakage.
  • Option of a multitude of colours to choose from and metal finishes.
  • Can be installed in concrete or over timber joists.
  • Designed for a wide selection of tile thickness 8 mm to 50 mm.
  • Due to the adjustable height of the linear frame, it can even be used with small mosaic tiles. This is not suitable for vinyl floor coverings.
  • Compatible with electric underfloor heating systems and any other material finishes needed below the tile.
  • Standard lengths 500 mm to 1200 mm. Alternatively we can produce a bespoke length linear drain to your exact specifications.

Neadjustable Frame Elite@3x
NeBest Quality Elite@3x
Nemodern System Elite@3x

Adjustable frame height

The Elite linear drain has a linear frame that is adjustable from 8 mm to 50 mm in height. This allows for the total build up space you are working with that is required, including the tile thickness, adhesive and any additional materials used such as underfloor heating. We have a supply of height adjustment kits consisting of block spacers and the appropriate length screws to achieve various heights, all of which can be selected during the checkout process. If you decide to change your choice of tile or find the tiles you're using are a different thickness, we can supply the appropriate kit needed.

Adjustable - Height - 4

Double flow system

Our Elite linear drains have a unique double flow system. The linear drain frame and cover are the only visible parts of this system and is the primary drainage of any waste water. However, this raised section allows any water that manages to escape between any tiles or grout that is cracked to flow across the waterproofed subfloor to its secondary drainage area, the embedded subfloor linear channel. This system working in concert with your waterproofing materials gives a combination of protection to your wet room that guarantees you will have no problems with water damage for a lifetime.

Double - Flow - 4

PVD coating

Physical Vapour Deposition (PVD) is a process carried out on a solid material to change its surface properties. This process not only improves the value and quality of the material, but also adds to its durability and overall protection. Unlike the powder coating process, which will fade and show signs of wear and tear, though chips and tarnishing, PVD coating is far superior to other coating methods used today and is also a certified environmentally friendly process. Our PVD coated drains have improved resistance to wear, corrosion and cleaning chemicals. Also, the coating is so thin, you will be able to see the chosen metal finish of your drain. Finally, you have the added benefit of a brilliant decorative colour and metal finish that will be easy to maintain for a lifetime.

Pvd - Coating - 5

Available colours

All of our Elite linear drains are grade 304 stainless steel and PVD coated to give them an increased level of durability and resilience to corrosion, wear and tear, as well as a spectacular chosen colour. The linear drain frame and chosen cover will be the only parts visible after installation and will be the only parts that are PVD coated. We have a selection of four colours to choose from, all of which we have found to be the most requested when speaking to customers. The colours available are Brass, which is rising in popularity, Black, a new modern alternative to conventional bathroom decor, Gold, a timeless and prestigious decor that will never lose its style and Silver, the modern day use of this colour for fixtures means more choice when it comes to the style of each fixture.

Available - Colors - Combined

Surface finishes

Each Elite linear drain has an option of three different surface finishes. This means you can match your linear drain to all your bathroom fixtures not only by colour, but also by material finish.  All four of our colour options have a choice of Brushed, Polished or a Matt finish.  Brushed is our standard option and comes at no added cost. It is also the most practical choice for its resistance to scratching. Polished, is a glossy finish, with a smooth and shiny surface, free of imperfection and reduces the risk of bacterial retention. Finally, Matt, is a non reflective and smooth finish. Its dull, smooth finished surface is a new trend that is growing in bathroom decor projects. Once installed, the only visible parts will be the linear drain frame and cover in your chosen colour and metal finish.

Surface - Finish - Polished
Intensi - Piktograms3
Negratings - For - Elite
Channel length
500 mm
Grate style
Channel height
25 mm
Channel width
82 mm
Total width
115 mm
304 S 15 grade stainless steel
Tanking kit, Adjustable legs
Drain surface
mirror · brush · matt
Waste trap
Plastic (PCV)
From above (Easy clean system)
Elite PVD
Set consists
Linear drain body · stainless steel collar · sealing membrane · drain grating · Adjustable legs · siphon trap
ufh mat
Complete Underfloor Heating Kit
It is possible to include a complete Underfloor Heating Kit to your order. All you need to do is to choose the required size. Additional package, with heating mat, appropriate thermostat, sensor and instructions will be dispatched together with the other goods.

To calculate required mat size you need to get square coverage of the floor and exclude any permanent / fixed fixtures from them. It is also recommended to buy slightly smaller mat than calculated size - you can shape it but cannot cut the cables, therefore too large mat could not be installed.

SUNFLOOR Underfloor Heating
The SUNFLOOR Electric Heating Mat is a unique type of floor heating mat. The system has been designed to be used on an existing tiled floor or an existing finished floor, so that floor heating can still be installed there. The mat is approximately 4 mm thick and can be included in a layer of adhesive without any demolishing or grinding. The mat fits virtually underneath the surface. This decreases the heating time of the floor, that also makes this system suitable for rooms that are not permanently occupied including bathrooms, studies, playrooms, etc.

Heating mat
Underfloor heating mat set consists of all necessary parts for installation. One Thermostat is needed for every 23 m² of heating mat. It is included as optional, to allow ordering mat for custom areas, for example if you need 13 m² of mat total, you should buy 10 m² with one of the thermostats set as include and 3 m² with thermostat not included. In case you require less mat coverage than possible to buy from our product pictures, for example 14.5 m² you should always round low with your purchase and buy 14 m² as the mat is impossible to cut. It can be shaped but not shortened to size.

  • 2.5 meter 3-core supply cable
  • Fully encased in an aluminium earthed sheath
  • Unique blind connection between the heating and the connection cable
  • Chrome/Nickel resistance wire
  • PTFE (Teflon) insulation
  • PVC protective sheath
  • 10 -11 watt per meter resistance wire, 230 Volt
  • Cable diameter approximately 4 mm
  • Complies with current NEN standards for installation in completely wet rooms
UFH Sunfloor Thermostat

The C16Wi-Fi is an intuitive programmable thermostat used to control the electrical floor heating system or water heating system. It will keep home comfortable temp whilst minimizing energy use. Install the app on your smartphone to control the heating system remotely with the WiFi thermostat.


  • Voltage: 230 Volt - 50/60 Hz
  • Maximum load: 16A / 3600W
  • Temperature range: +5 to +40°C
  • IP class: IP21
  • Testing: CE
  • Cable spec.: ≤ 2,5 mm²
  • Standby power: ~ 2W
  • Size: 85 x 85 mm
  • Integral room sensor and floor sensor
  • Colour: white or black
Magnum X-treme control
This stylish, colourful and refined digital clock thermostat has been specially designed for electric heating systems. The MAGNUM X-treme Control is supplied with every MAGNUM floor heating set (Mat,Cable and Foil types), including external floor sensor, a built-in air sensor and three different frames that suit most brands of switching equipment. The MAGNUM X-treme Control is simple and intuitive to operate using touch sensitive buttons under the display. The new chameleon function is simple to adapt to the colour of your interior. The stylish screensaver shows the time, temperature and current mode without touching the thermostat. The MAGNUM X-treme Control has a new help function that appears after 10 seconds in the menu with a complete description of the setting in question. The MAGNUM X-treme Control also has a wooden floor function whereby the temperature is limited to 28°C. This makes the MAGNUM X-treme Control the idea and safe solution for every electric heating system.

  • Voltage: 230 Volt - 50/60 Hz
  • Maximum capacity: 16A - 3600 watt
  • Temperature range: +5 to +40°C
  • Frame: IP21
  • Color: Polar white (RAL 9010)
  • Testing: FI/CE
Technical details:
  • Control via touch sensitive keys
  • Chameleon function (8 colour themes)
  • Screensaver night clock
  • Automatic start-up menu
  • Slow start-up function
  • Wooden floor function (28 °C limit)
  • Automatic summer and winter times
  • Multi-programme function (2 periods per day)
  • Programming multilingual
  • Including floor and air sensors
  • Multi-frame adapter system for: Gira, Jung, Elko, Merten, Busch Jager, etc.
Magnum Manual Thermostat
In some situations the digital regulation is not required and so the preference is for a simple on/off operation. Specifically industrial applications where the heating must remain on at all times. Therefore MAGNUM has designed the Standard Control: a simple on/off thermostat with temperature regulation that is clearly easy to operate.

  • Voltage: 230 Volt - 50/60 Hz
  • Maximum load: 16A / 230 V
  • Temperature range: +5 to +40°C
  • Housing: IP21
  • Color: Polar white (RAL 9010)
  • Testing: CE
Technical details:
  • On/off thermostat complete with temperature regulation
  • Including floor sensor
  • Integral room sensor and floor limit sensor
  • Multi frame adapter system for: Gira, Jung, Elko, Merten, Busch Jager, etc.
PVD Coating

PVD stands for Physical Vapor Deposition. The PVD coating process creates a thin film coating over a solid material which is vaporized in a vacuum chamber and deposited onto a target material. It is used to change the surface properties of the object to be coated, where new mechanical, chemical, electrical or optical characteristics are needed.

There are many benefits of PVD coating. It can provide a lifetime of protection from daily cleaning, which adds durability and value to our products. Traditional powder coating of stainless steel degrades with time and can easily tarnish or chip. PVD requires no clear top coats that fade or dull. It is four times harder than chrome which makes it corrosion and scratch resistant.

PVD Coating

Benefits of PVD technology are Superior Wear Resistance, Superior Corrosion Resistance, Superior Chemical Resistance, Low Coefficient of Friction, Excellent Adhesion, Brilliant Decorative Finish, High Hardness (2nd to Diamond), Uniform Coating, Will not Chip, Tarnish or Fade, Low Maintenance and to top it all off, it is an Environmentally Friendly Process.

Extensive tests have been carried out to make sure that the normal usage of a shower will not effect the look and longevity of these drains and that they will remain in the same state as the day they were installed, for years to come. Additionally the Drains can be PVD coated after the steel is finished. so there is a range of finishes available in every colour.

h+m drop 35
McAlpine HC26-50

A McAlpine brand PVC siphon. With 20 mm water seal and a 40 mm connection. It only needs 68 mm height below the product and can be rotated 360°. Significant height reduction in relation to standard waste traps reduces the installation depth. Rotatable elbow connector makes installation simple in any conditions. Comfortable use thanks to Easy Clean System. Each set contains special key, which helps with installation.
  • Low profile perfect for wetroom shower trays, linear and square drains
  • Durable material
  • Easy Clean System
  • Mounting spanner and hair trap included
  • Simple and tight construction
  • 95° connector included

McAlpine HC26-50 Technical diagram

h+m drop 50
H+M Drop 50

High flow Shower Waste Trap Efficient shower trap made of durable Hostalen PP. Innovative solution adapted to the most rigorous standards of use. It has a high level of water seal (35 mm) with a very small overall height (63 mm). Dedicated mainly to linear shower drains for wet-rooms. Small dimensions makes installation in both concrete and wooden floors a lot easier. High flow rate (48 l/min) guarantees trouble-free use even when heavily loaded with water (eg. with a rainhead shower). The set includes a dedicated spanner that simplifies the installation of a waste trap to the drain, and a strainer made of stainless steel.
  • High 35 mm water seal
  • Low overall height (63 mm)
  • Included: strainer, spanner
  • Made durable polypropylene
  • Very high flow rate (48 l/min)
  • Easy Clean System

H+M Drop 50 Technical diagram

h+m drop 35
H+M Drop 35

Slim Shower Waste Trap High-quality low-profile siphon made of durable polypropylene plastic. The special slim shape of the waste allows maximum reduction of installation depth. Perfect product for walk-in type shower. It makes wet-room installation significantly easier. Sometimes shower waste with such a low profile may be the only possible choice. Equipped with a special wide Evoprene seal for maximum tightness. For ease of installation, the appropriate spanner is included. High flow rate (36 l/min) guarantees trouble-free use.
  • Extra slim low profile
  • High flow rate up to 36 l/min
  • Included: strainer, spanner, 40/50 mm pipe reducer
  • Durable polypropylene
  • Easy Clean System

H+M Drop 35 Technical diagram

H+M Vertical

Vertical ACO V50 waste trap supplied with EU to UK 50mm adapter. High drainage capacity, but low water seal level. The siphon can be rotated 360° and offers the best solution for bypassing beams and pipes.
  • Durable polypropylene
  • Height: 132 mm
  • Flow rate: 52 l/min.
  • Water seal: 25 mm
  • Rotatable 360°

McAlpine Vertical V50 Technical diagram

Available Colour

This bathroom colour is rising in popularity again and is quickly becoming our most demanded option. It is historically tradition with its timeless elegant finished look. Brass is slightly less vibrant and dominant in colour, which makes it perfect for blending your bathroom decor colours.

Available Colour

Black is becoming the new modern alternative to conventional bathroom decor. Complete your wet room with bold, sleek fixtures and our drain to match. Black bathroom fixtures need a little extra care when it comes to maintenance. To keep its stunning look, you will need to simply wipe down your fixtures after use. A small price to pay for an amazing finish.

Available Colour

Gold will always speak volumes. A bathroom finished with gold fixtures is breath taking and prestigious in its own right. Gold is a very vibrant colour and will allow all your fixtures stand out in any wet room giving it a luxurious feeling.

Available Colour

Silver is a modern traditional colour for bathrooms. Not only will it be easy to match with other fixtures, but it will give any wet room a crisp, clean and refreshing feeling. It's common use means you will have a lot more options with available fixtures in multiple different designs.

All of our drains are made from high quality grade 304 stainless steel. The colour of each drain is due to the PVD coating process. PVD coating of metals has proven to be better than powder coating. It will be more durable and resistant to fading, scratch marks and overall wear and tear. Unlike the powder coating process, PVD coating, also has the added benefit of the metal finish being visible. Ultimately, your drain will look amazing and last for a lifetime.

If you wish to have your entire bathroom colour coordinated, from the tiles, to your bathroom fixtures, our PVD coated drains are sure to help you. We have taken the most popular colours our customers have been requesting and now have a selection of four PVD coated linear drain colours to choose from to compliment all of your bathroom fixtures.


Our Elite range has many options to choose from. However, the Elite linear drain has a unique feature that sets it apart from all others. It has been tested and thoughtfully designed with the ability to adjust its height during the installation process to match the build up space you require.

Its specialised frame and drain cover has been manufactured to be used in conjunction with an adjustment kit, that will allow you to match the thickness of your floor finish. Having this key integrated feature, the Elite linear drain allows you the freedom to install this tray and select from a wider range of thicker or thinner tiles available on the market today.


With our standard supplied adjustment kits, this Elite drain is able to accommodate between 8 mm to 50 mm for your tile and any other materials such as electric underfloor heating or Ditra mats. However, upon request, an adjustment kit to raise it higher than 50 mm is possibly available.

The parts included in each adjustment kit comprise of a set of specially designed spacers to raise and support the linear drain frame and chosen cover, along with six screws to lock everything into place. Each kit is designed for your chosen height and comes with the set number of spacers required, accompanied with the six appropriate length screws needed.

If you're undecided about the tile finish for your wet room, but have a schedule to keep, you can install the tray and waterproof the room whilst you decide. Your order will have a standard default kit supplied, but additional adjustment kits to match your tile thickness can be ordered separately at a later date after you have found the tile you want.

Double flow

One of the key features that sets the Showerlay Elite trays apart from the rest is that it offers an innovative secondary drainage system. The benefit of this feature is that if any water finds its way underneath the floor covering, it will have a way of draining into the channel and not pooling on top of the tray.

This is accomplished by having the integrated drain comprised of three pieces. The drain body which is factory imbedded into the tray, provides the channel for the primary and secondary drainage. The adjustable frame, which can be raised to the exact height of the finished floor, while also allowing for secondary drainage to find its way into the channel. Finally, the cover which is supported on the frame, providing an elegant finish while allowing access for quick and easy maintenance.

Double flow

This secondary drainage feature has no impact on the way the finished shower tray will look. Only the cover and top edge of the frame will be visible after installation just as if it was an ordinary drain. However the ability to adjust the frame around the channel significantly makes installation easier as you can adjust the height of the frame. All while giving you the added peace of mind that there is an added level of security to ensure water flows down the drain.

The secondary drainage feature, combined with proper waterproofing of the shower tray prior to laying down the floor covering will ensure that the area is dually secured and any moisture that gets below the surface will not cause any damage below. When it comes to the Showerlay Elite tray with this integrated Elite drain you really get a quality product that not only will do what is expected of it, and have the water drain away as quickly and efficiently as possible, but also look great in your new shower or wet room area.

The Showerlay Elite is available in three different surface finishes. Polished, Brushed and Matt. This is great if you are looking for a specific finish to match the rest of your fixtures. The three finishes are available for all available colour options, However the Brushed finish is the standard option that comes at no extra charge. The visible parts of the drain (the cover and frame) will come in the desired finish.

Surface Finish

Polished is a glossy finish. It has a smooth and shiny look that catches the eye. Characterized by a high degree of development, it's free from imperfections. There are numerous functional considerations, in addition to the visual appearance of polished stainless steel. Properly polished stainless steel looks good and helps to reduce the risk of bacteria being retained by the material when it is utilized in sanitary applications.

Surface Finish

Brushed finish is a semi gloss finish. The key difference between brushed and polished stainless steel is that brushed stainless steel has a rough surface, whereas polished stainless steel has a smooth surface. Brushed stainless steel is a type of metal having a dull polish that is made through friction. It is the the most practical of the three as it is the most scratch resistant.

Surface Finish

Matt is a dull finish. This is a very common stainless steel finish that is non-reflective and smooth in nature. The stainless steel is rolled through a special roller for a smooth, less pitted surface, before being descaled in an acid solution and polished for greater smoothness. It is commonly used for chemical and pharmaceutical equipment.

The technical drawing tab for the Elite linear drain provides detailed information on the dimensions and specifications of the product. The Elite linear drain is available in various widths to accommodate different shower sizes. This allows users to order a product that suits their specific needs and preferences.

Elite Regular Technical Drawing
