- New
Linear drain 800 mm Wiper MCR Ponente PVD Gold
Gold PVD painted Linear Shower Drain 80 cm for Microcement, Polished Concrete or Resin floor finish, in matt, brushed or polished surface finish including flange, sealing membrane, waste trap, detachable adjustable feet, frame and plain steel pattern drain cover Ponente
The Linear drain 800 mm Wiper MCR Ponente PVD Gold represents a range of drains carefully designed for microcement, resin and similar floor coverings. The frame and drain cover offers adjustment from 3 to 12 mm allowing a wide-range of materials to be used together with. Drain is available in variants, making it compatible with variety of shower sizes and designs.
The drain is featuring secondary drainage system, allowing water that seeps through the surface finish to the insulation layer to be drained. Other features list multiple fittings colour, painted in PVD method, a robust and long lasting solution. It is also possible to choose finishing for the drain surface, which can be brushed, polished or mat. Lastly, drain comes together with one of the 7 available drain cover styles, from filable style where material needs to be poured into the cover itself, to squared or stripped pattern.
Waste trap, sealing membrane and adjustable legs are always part of each supplied set. Choose the best waste trap for you, as they offer various flow rates, however requiring a different amount of space and having various connections. Sealing membrane will help you to waterproof the joint between the floor and the drain and legs are optional, can be detached, their role is to level the drain when installed in concrete floor.
As one of a standard product in our range, we aim to have them stocked with off-the-shelf dispatch availability and next day delivery. Multiple sizes and style variants mean that if you are looking for a drain for microcement - we are surely going to have something that will work for you, being delivered efficiently and product being of very high quality.
Based on current settings, if you Add to cart current set and then order, you will receive the following items:
Waste: McAlpine HC26-50
Size: not included

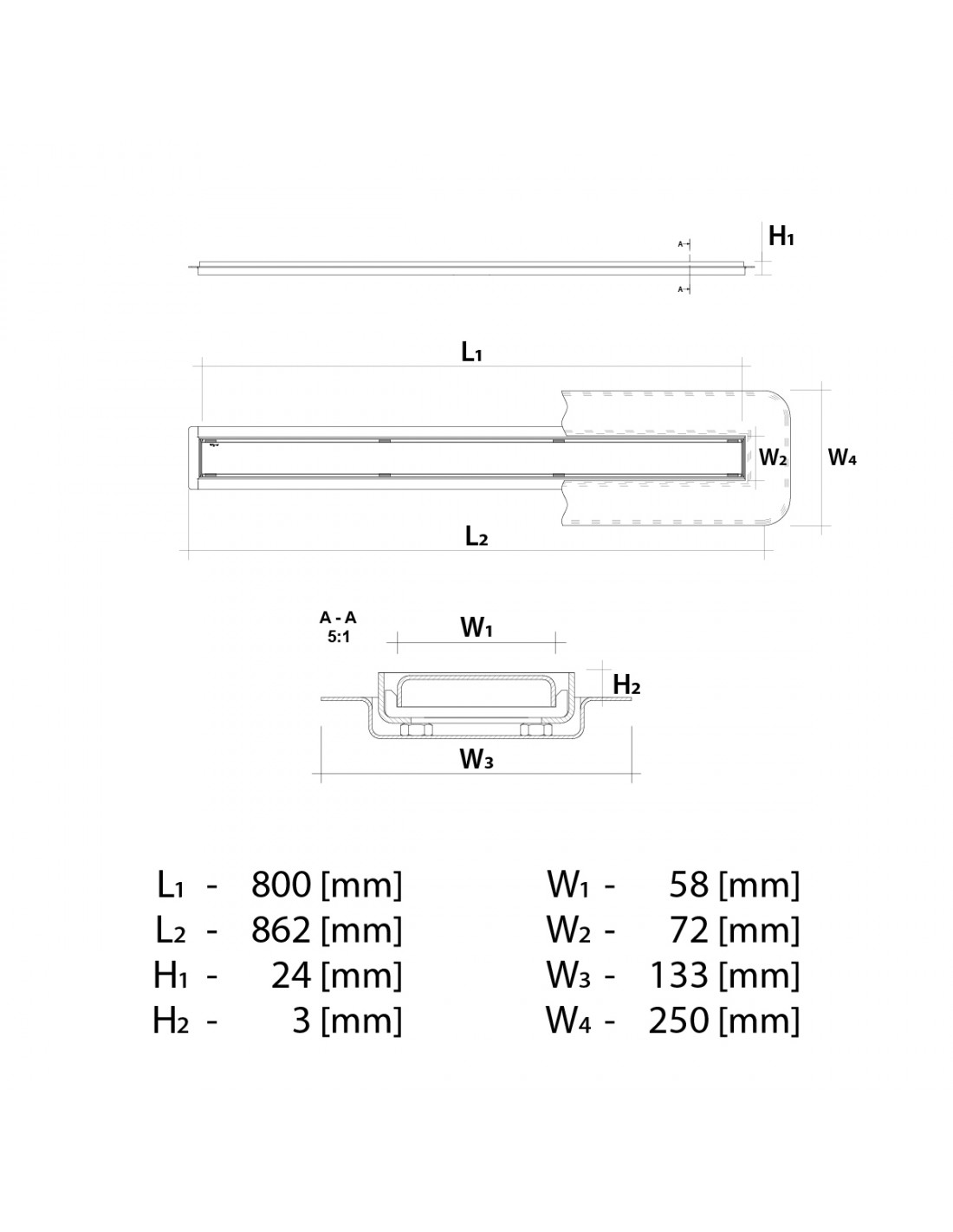

- Channel length
- 800 mm
- Grate style
- Ponente
- Channel height
- 25 mm
- Channel width
- 82 mm
- Total width
- 115 mm
- Material
- 304 S 15 grade stainless steel
- Additionals

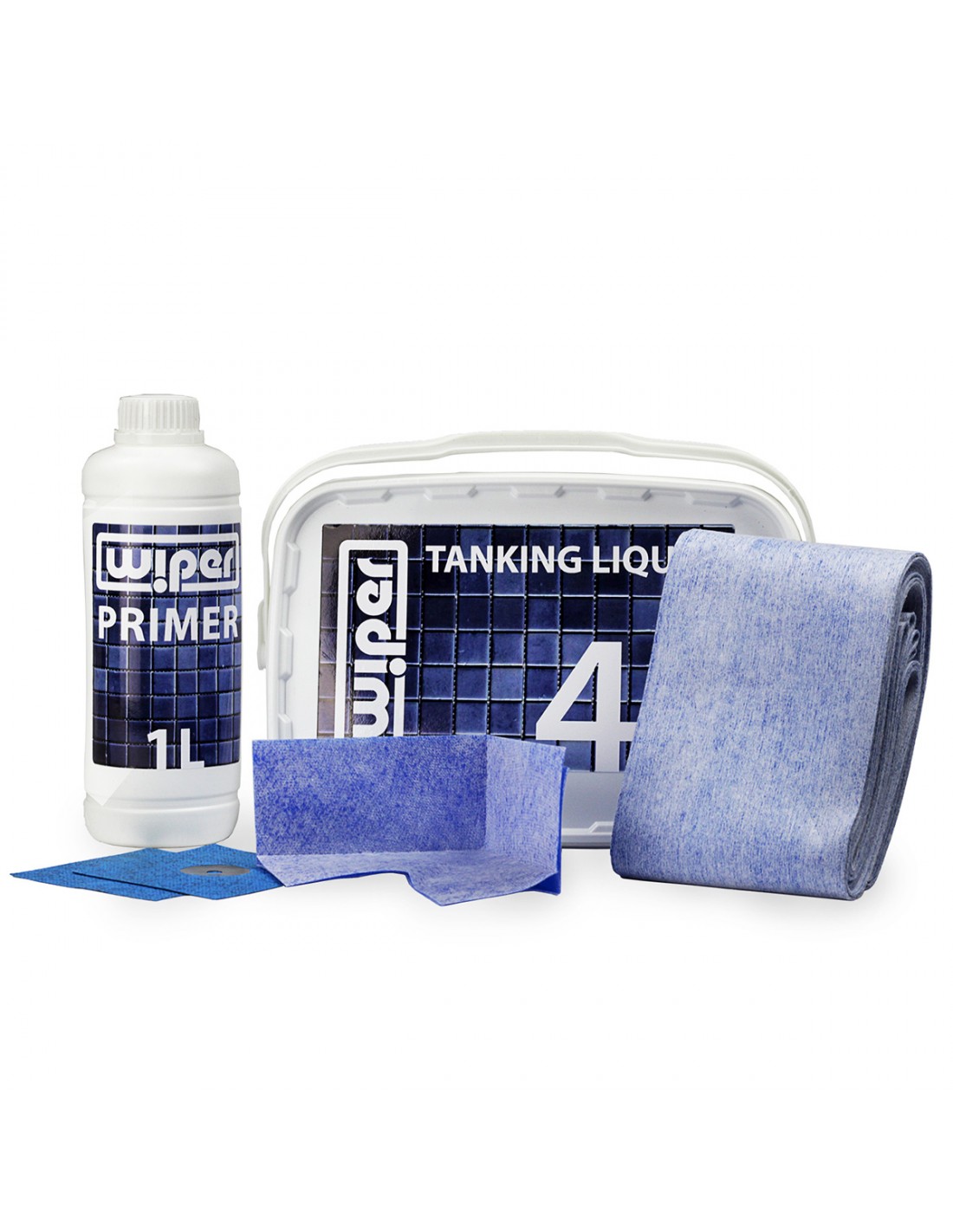

- Tanking kit, Adjustable legs
- Drain surface
- mirror · brush · matt
- Waste trap
- Plastic (PCV)
- Cleaning
- From above (Easy clean system)
- Model
- Linear Wiper MCR
- Set consists

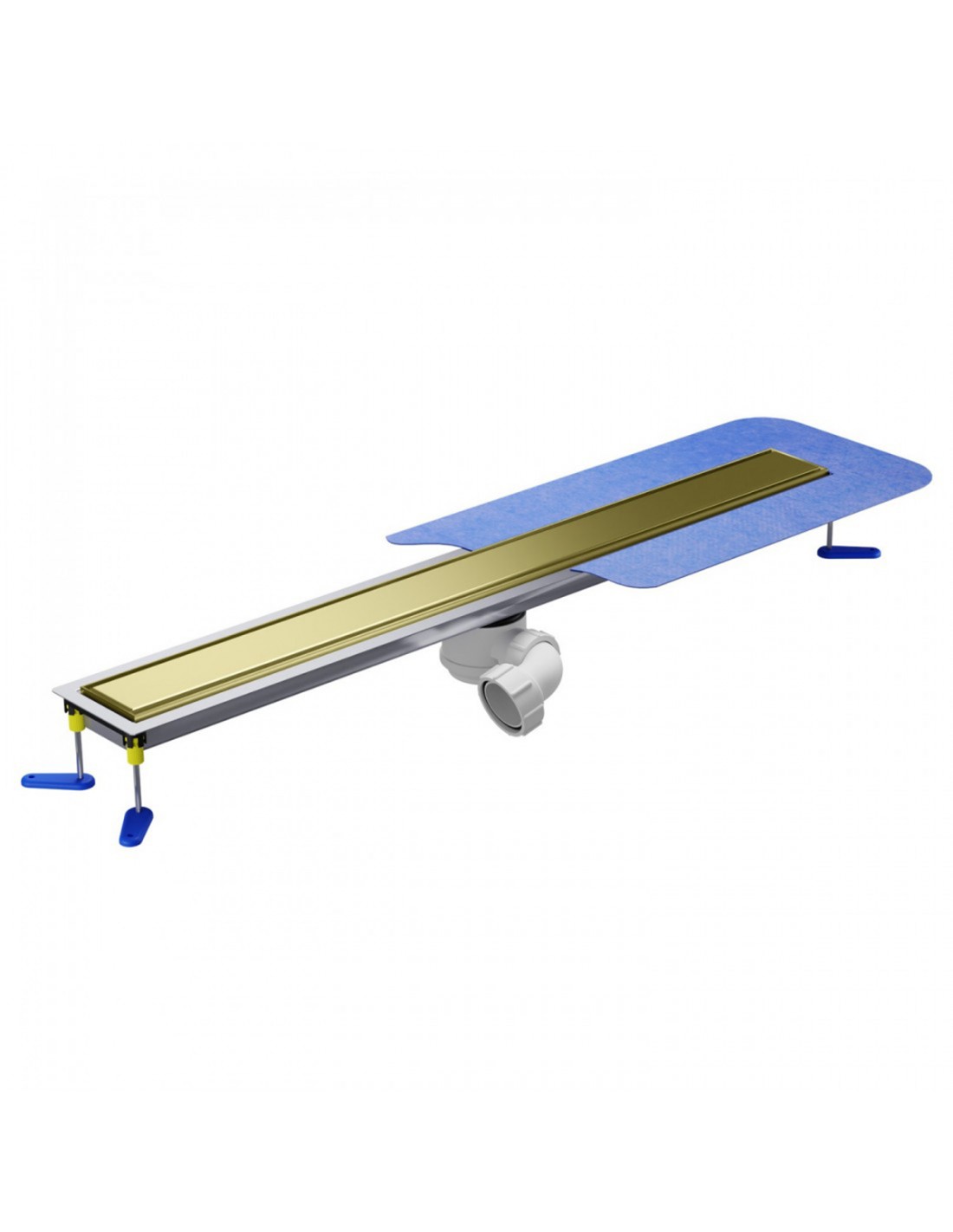

- Linear drain body · stainless steel collar · sealing membrane · drain grating · Adjustable legs · siphon trap
It is possible to include a complete Underfloor Heating Kit to your order. All you need to do is to choose the required size. Additional package, with heating mat, appropriate thermostat, sensor and instructions will be dispatched together with the other goods.
To calculate required mat size you need to get square coverage of the floor and exclude any permanent / fixed fixtures from them. It is also recommended to buy slightly smaller mat than calculated size - you can shape it but cannot cut the cables, therefore too large mat could not be installed.
SUNFLOOR Underfloor HeatingThe SUNFLOOR Electric Heating Mat is a unique type of floor heating mat. The system has been designed to be used on an existing tiled floor or an existing finished floor, so that floor heating can still be installed there. The mat is approximately 4 mm thick and can be included in a layer of adhesive without any demolishing or grinding. The mat fits virtually underneath the surface. This decreases the heating time of the floor, that also makes this system suitable for rooms that are not permanently occupied including bathrooms, studies, playrooms, etc.
Heating matUnderfloor heating mat set consists of all necessary parts for installation. One Thermostat is needed for every 23 m² of heating mat. It is included as optional, to allow ordering mat for custom areas, for example if you need 13 m² of mat total, you should buy 10 m² with one of the thermostats set as include and 3 m² with thermostat not included. In case you require less mat coverage than possible to buy from our product pictures, for example 14.5 m² you should always round low with your purchase and buy 14 m² as the mat is impossible to cut. It can be shaped but not shortened to size.
-
Details:
- 2.5 meter 3-core supply cable
- Fully encased in an aluminium earthed sheath
- Unique blind connection between the heating and the connection cable
- Chrome/Nickel resistance wire
- PTFE (Teflon) insulation
- PVC protective sheath
- 10 -11 watt per meter resistance wire, 230 Volt
- Cable diameter approximately 4 mm
- Complies with current NEN standards for installation in completely wet rooms
The C16Wi-Fi is an intuitive programmable thermostat used to control the electrical floor heating system or water heating system. It will keep home comfortable temp whilst minimizing energy use. Install the app on your smartphone to control the heating system remotely with the WiFi thermostat.
-
Specification:
- Voltage: 230 Volt - 50/60 Hz
- Maximum load: 16A / 3600W
- Temperature range: +5 to +40°C
- IP class: IP21
- Testing: CE
- Cable spec.: ≤ 2,5 mm²
- Standby power: ~ 2W
- Size: 85 x 85 mm
- Integral room sensor and floor sensor
- Colour: white or black
This stylish, colourful and refined digital clock thermostat has been specially designed for electric heating systems. The MAGNUM X-treme Control is supplied with every MAGNUM floor heating set (Mat,Cable and Foil types), including external floor sensor, a built-in air sensor and three different frames that suit most brands of switching equipment. The MAGNUM X-treme Control is simple and intuitive to operate using touch sensitive buttons under the display. The new chameleon function is simple to adapt to the colour of your interior. The stylish screensaver shows the time, temperature and current mode without touching the thermostat. The MAGNUM X-treme Control has a new help function that appears after 10 seconds in the menu with a complete description of the setting in question. The MAGNUM X-treme Control also has a wooden floor function whereby the temperature is limited to 28°C. This makes the MAGNUM X-treme Control the idea and safe solution for every electric heating system.
-
Specification:
- Voltage: 230 Volt - 50/60 Hz
- Maximum capacity: 16A - 3600 watt
- Temperature range: +5 to +40°C
- Frame: IP21
- Color: Polar white (RAL 9010)
- Testing: FI/CE
-
Technical details:
- Control via touch sensitive keys
- Chameleon function (8 colour themes)
- Screensaver night clock
- Automatic start-up menu
- Slow start-up function
- Wooden floor function (28 °C limit)
- Automatic summer and winter times
- Multi-programme function (2 periods per day)
- Programming multilingual
- Including floor and air sensors
- Multi-frame adapter system for: Gira, Jung, Elko, Merten, Busch Jager, etc.
In some situations the digital regulation is not required and so the preference is for a simple on/off operation. Specifically industrial applications where the heating must remain on at all times. Therefore MAGNUM has designed the Standard Control: a simple on/off thermostat with temperature regulation that is clearly easy to operate.
-
Specification:
- Voltage: 230 Volt - 50/60 Hz
- Maximum load: 16A / 230 V
- Temperature range: +5 to +40°C
- Housing: IP21
- Color: Polar white (RAL 9010)
- Testing: CE
-
Technical details:
- On/off thermostat complete with temperature regulation
- Including floor sensor
- Integral room sensor and floor limit sensor
- Multi frame adapter system for: Gira, Jung, Elko, Merten, Busch Jager, etc.
PVD stands for Physical Vapor Deposition. The PVD coating process creates a thin film coating over a solid material which is vaporized in a vacuum chamber and deposited onto a target material. It is used to change the surface properties of the object to be coated, where new mechanical, chemical, electrical or optical characteristics are needed.
There are many benefits of PVD coating. It can provide a lifetime of protection from daily cleaning, which adds durability and value to our products. Traditional powder coating of stainless steel degrades with time and can easily tarnish or chip. PVD requires no clear top coats that fade or dull. It is four times harder than chrome which makes it corrosion and scratch resistant.
Benefits of PVD technology are Superior Wear Resistance, Superior Corrosion Resistance, Superior Chemical Resistance, Low Coefficient of Friction, Excellent Adhesion, Brilliant Decorative Finish, High Hardness (2nd to Diamond), Uniform Coating, Will not Chip, Tarnish or Fade, Low Maintenance and to top it all off, it is an Environmentally Friendly Process.
Extensive tests have been carried out to make sure that the normal usage of a shower will not effect the look and longevity of these drains and that they will remain in the same state as the day they were installed, for years to come. Additionally the Drains can be PVD coated after the steel is finished. so there is a range of finishes available in every colour.
A McAlpine brand PVC siphon. With 20 mm water seal and a 40 mm connection. It only needs 68 mm height below the product and can be rotated 360°. Significant height reduction in relation to standard waste traps reduces the installation depth. Rotatable elbow connector makes installation simple in any conditions. Comfortable use thanks to Easy Clean System. Each set contains special key, which helps with installation.
- Low profile perfect for wetroom shower trays, linear and square drains
- Durable material
- Easy Clean System
- Mounting spanner and hair trap included
- Simple and tight construction
- 95° connector included
High flow Shower Waste Trap Efficient shower trap made of durable Hostalen PP. Innovative solution adapted to the most rigorous standards of use. It has a high level of water seal (35 mm) with a very small overall height (63 mm). Dedicated mainly to linear shower drains for wet-rooms. Small dimensions makes installation in both concrete and wooden floors a lot easier. High flow rate (48 l/min) guarantees trouble-free use even when heavily loaded with water (eg. with a rainhead shower). The set includes a dedicated spanner that simplifies the installation of a waste trap to the drain, and a strainer made of stainless steel.
- High 35 mm water seal
- Low overall height (63 mm)
- Included: strainer, spanner
- Made durable polypropylene
- Very high flow rate (48 l/min)
- Easy Clean System
Slim Shower Waste Trap High-quality low-profile siphon made of durable polypropylene plastic. The special slim shape of the waste allows maximum reduction of installation depth. Perfect product for walk-in type shower. It makes wet-room installation significantly easier. Sometimes shower waste with such a low profile may be the only possible choice. Equipped with a special wide Evoprene seal for maximum tightness. For ease of installation, the appropriate spanner is included. High flow rate (36 l/min) guarantees trouble-free use.
- Extra slim low profile
- High flow rate up to 36 l/min
- Included: strainer, spanner, 40/50 mm pipe reducer
- Durable polypropylene
- Easy Clean System
Vertical ACO V50 waste trap supplied with EU to UK 50mm adapter. High drainage capacity, but low water seal level. The siphon can be rotated 360° and offers the best solution for bypassing beams and pipes.
- Durable polypropylene
- Height: 132 mm
- Flow rate: 52 l/min.
- Water seal: 25 mm
- Rotatable 360°
Brass
This bathroom colour is rising in popularity again and is quickly becoming our most demanded option. It is historically tradition with its timeless elegant finished look. Brass is slightly less vibrant and dominant in colour, which makes it perfect for blending your bathroom decor colours.
Black
Black is becoming the new modern alternative to conventional bathroom decor. Complete your wet room with bold, sleek fixtures and our drain to match. Black bathroom fixtures need a little extra care when it comes to maintenance. To keep its stunning look, you will need to simply wipe down your fixtures after use. A small price to pay for an amazing finish.
Gold
Gold will always speak volumes. A bathroom finished with gold fixtures is breath taking and prestigious in its own right. Gold is a very vibrant colour and will allow all your fixtures stand out in any wet room giving it a luxurious feeling.
Silver
Silver is a modern traditional colour for bathrooms. Not only will it be easy to match with other fixtures, but it will give any wet room a crisp, clean and refreshing feeling. It's common use means you will have a lot more options with available fixtures in multiple different designs.
All of our drains are made from high quality grade 304 stainless steel. The colour of each drain is due to the PVD coating process. PVD coating of metals has proven to be better than powder coating. It will be more durable and resistant to fading, scratch marks and overall wear and tear. Unlike the powder coating process, PVD coating, also has the added benefit of the metal finish being visible. Ultimately, your drain will look amazing and last for a lifetime.
If you wish to have your entire bathroom colour coordinated, from the tiles, to your bathroom fixtures, our PVD coated drains are sure to help you. We have taken the most popular colours our customers have been requesting and now have a selection of four PVD coated linear drain colours to choose from to compliment all of your bathroom fixtures.
The Wiper MCR is available in three different surface finishes. Polished, Brushed and Matt. This is great if you are looking for a specific finish to match the rest of your fixtures. The three finishes are available for all available colour options, However the Brushed finish is the standard option that comes at no extra charge. The visible parts of the drain (the cover and frame) will come in the desired finish.
Polished is a glossy finish. It has a smooth and shiny look that catches the eye. Characterized by a high degree of development, it's free from imperfections. There are numerous functional considerations, in addition to the visual appearance of polished stainless steel. Properly polished stainless steel looks good and helps to reduce the risk of bacteria being retained by the material when it is utilized in sanitary applications.
Brushed finish is a semi gloss finish. The key difference between brushed and polished stainless steel is that brushed stainless steel has a rough surface, whereas polished stainless steel has a smooth surface. Brushed stainless steel is a type of metal having a dull polish that is made through friction. It is the the most practical of the three as it is the most scratch resistant.
Matt is a dull finish. This is a very common stainless steel finish that is non-reflective and smooth in nature. The stainless steel is rolled through a special roller for a smooth, less pitted surface, before being descaled in an acid solution and polished for greater smoothness. It is commonly used for chemical and pharmaceutical equipment.
