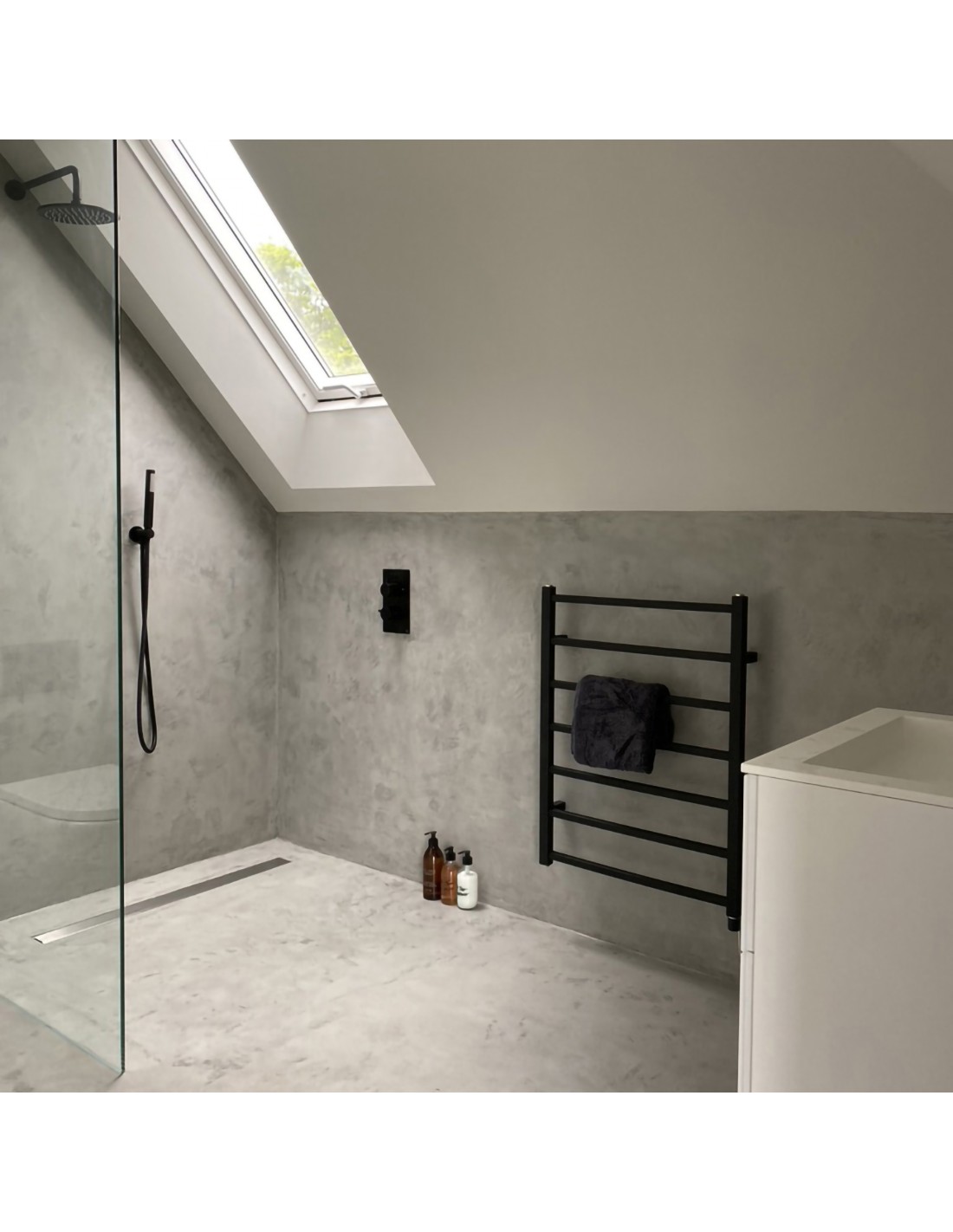

Microcement floor Shower drain kit: Linear drain with waste trap and cover Tivano Gold

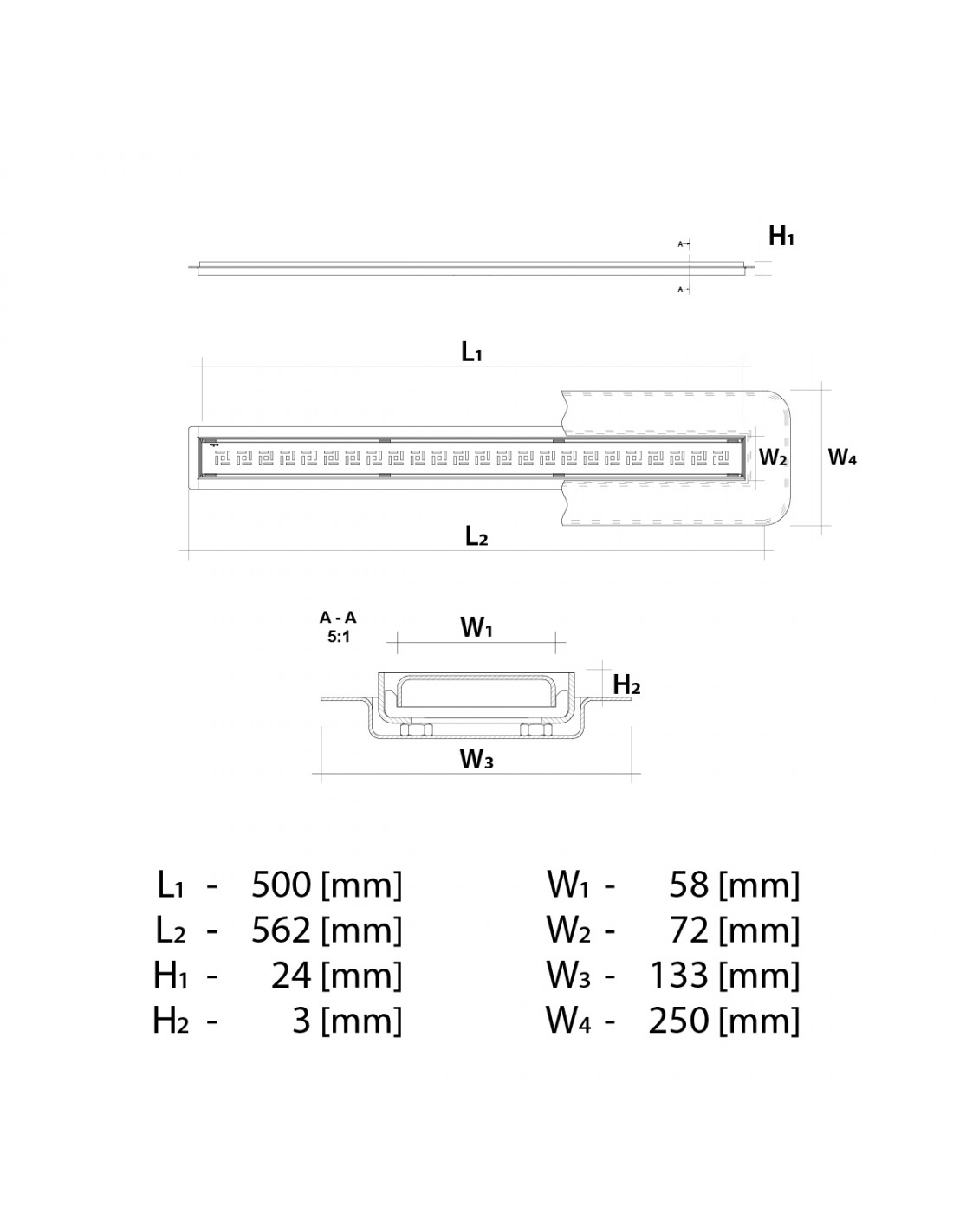

Technical diagram: Linear drain 500 mm Wiper MCR Tivano PVD Gold

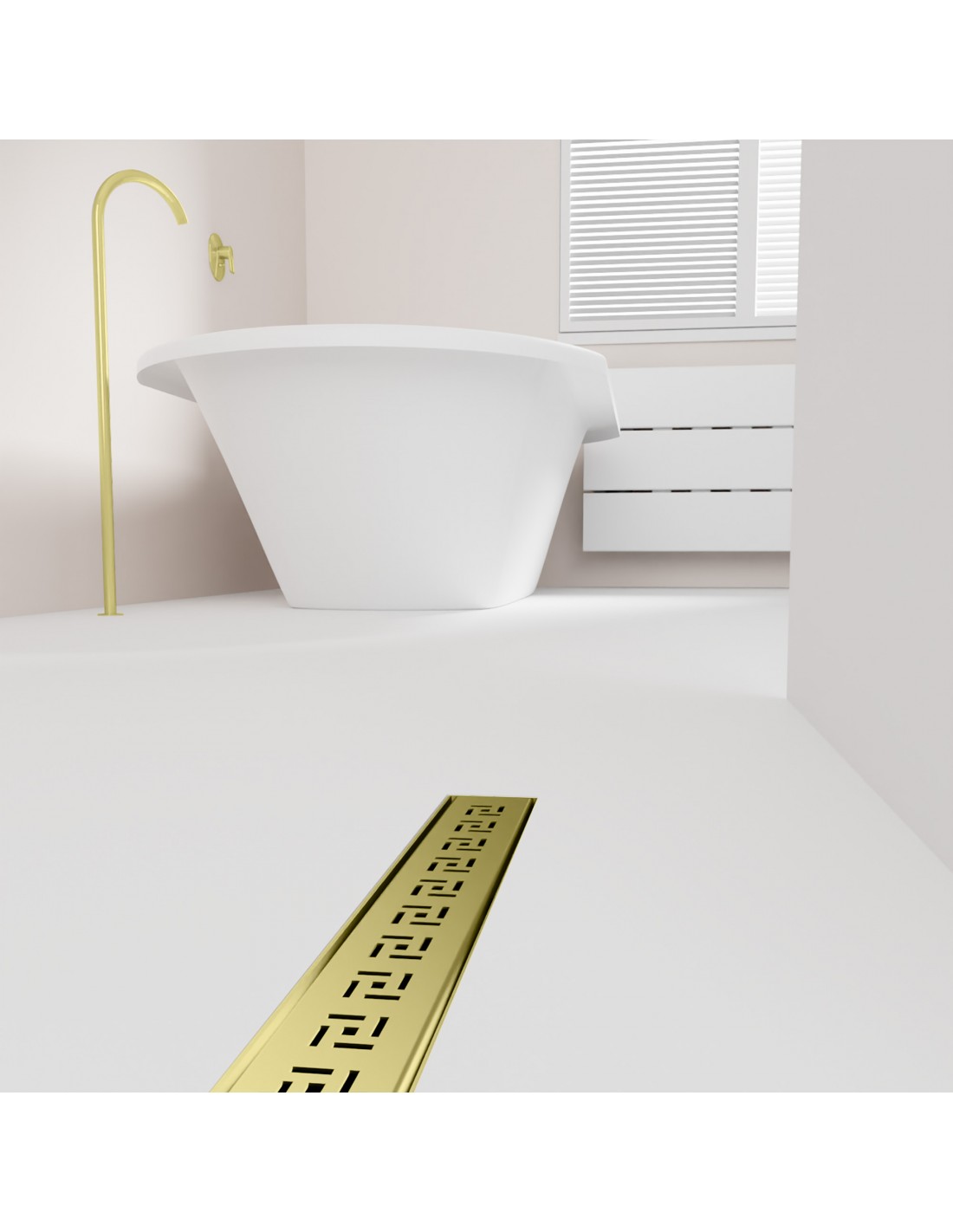

Dark bathroom with microcement floor with a free-standing bath tub and an open shower area

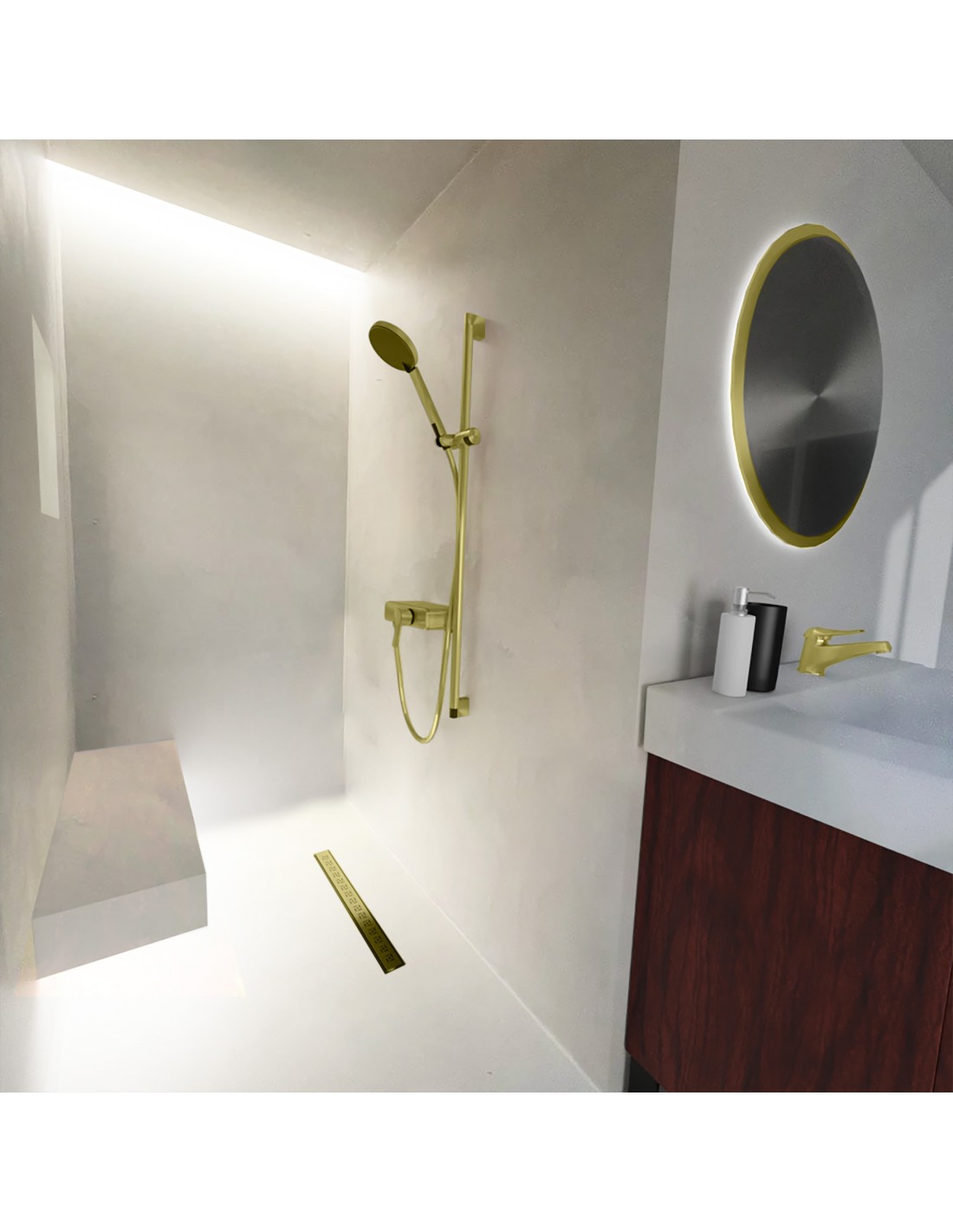

Niche shower area with ceiling lights on bright floor and microcemented walls, with elements in Gold

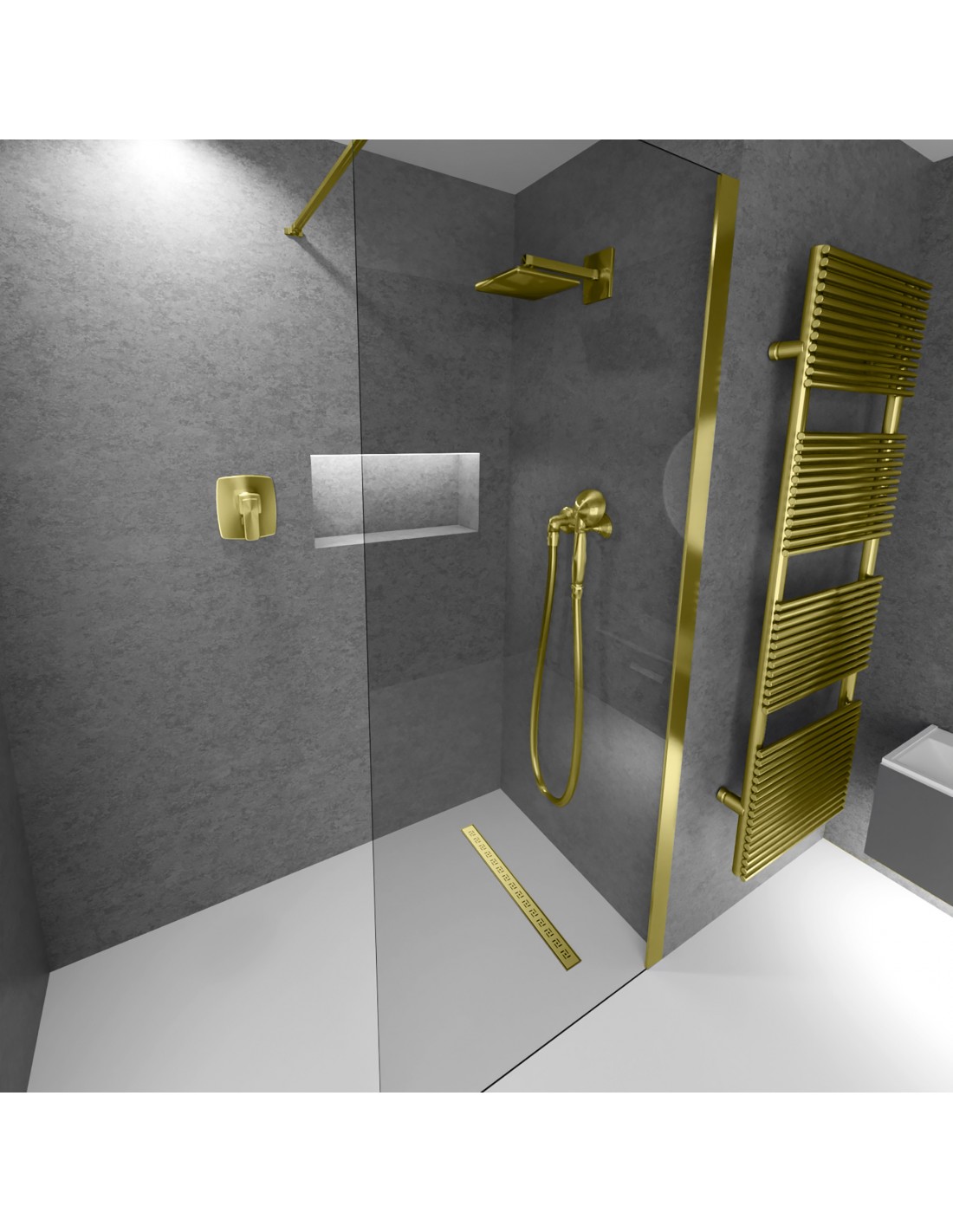

Open bathroom with bathtub and integrated shower drain in Gold in light microcement flooring
Open walk-in shower, surrounded by light-colored microcement floor and walls, with fittings in Gold

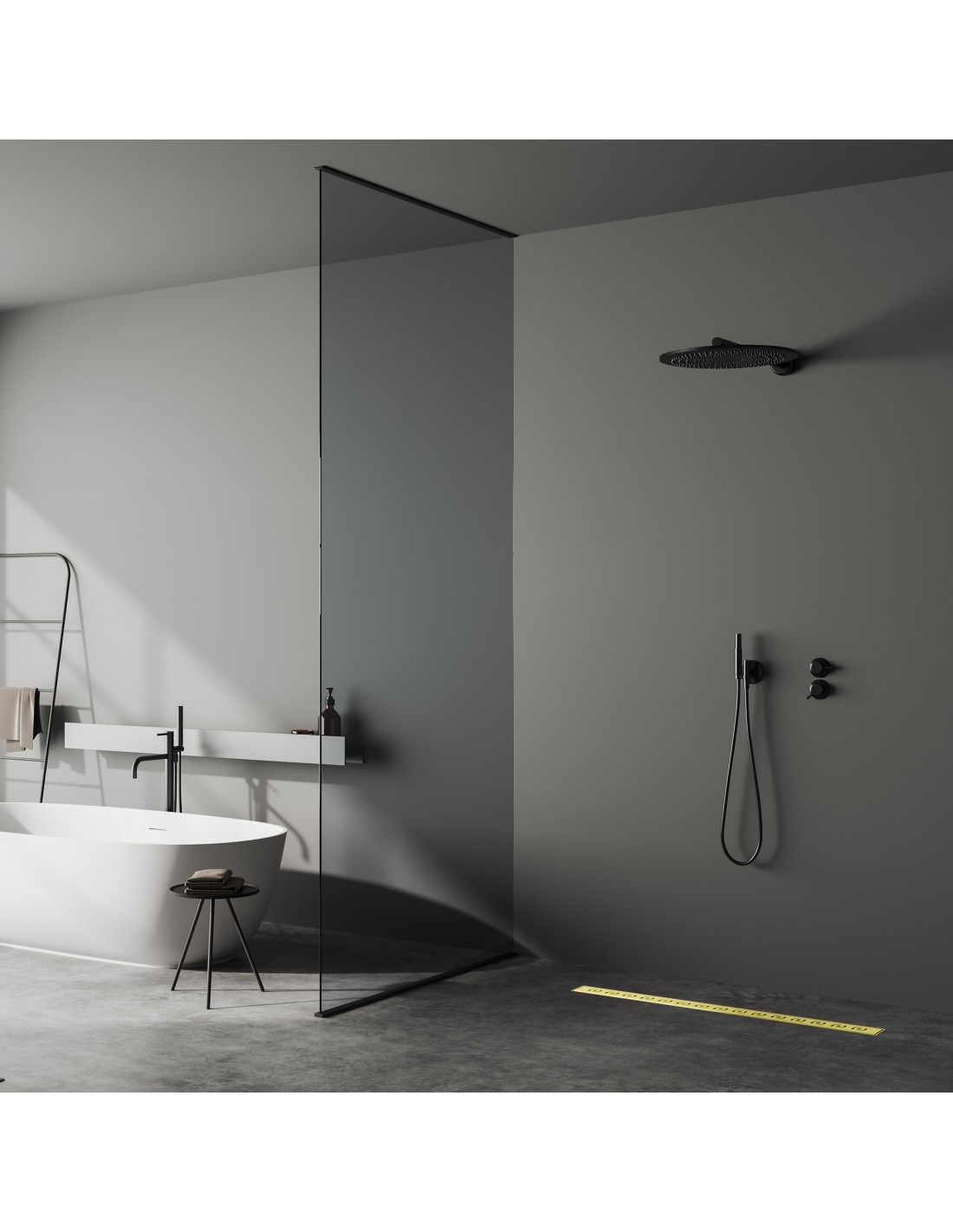

Modern shower room with gray walls and light microcement flooring, combined with bathroom fittings in Gold
Shower area made of microcement in an industrial look with linear channel and fittings in Gold

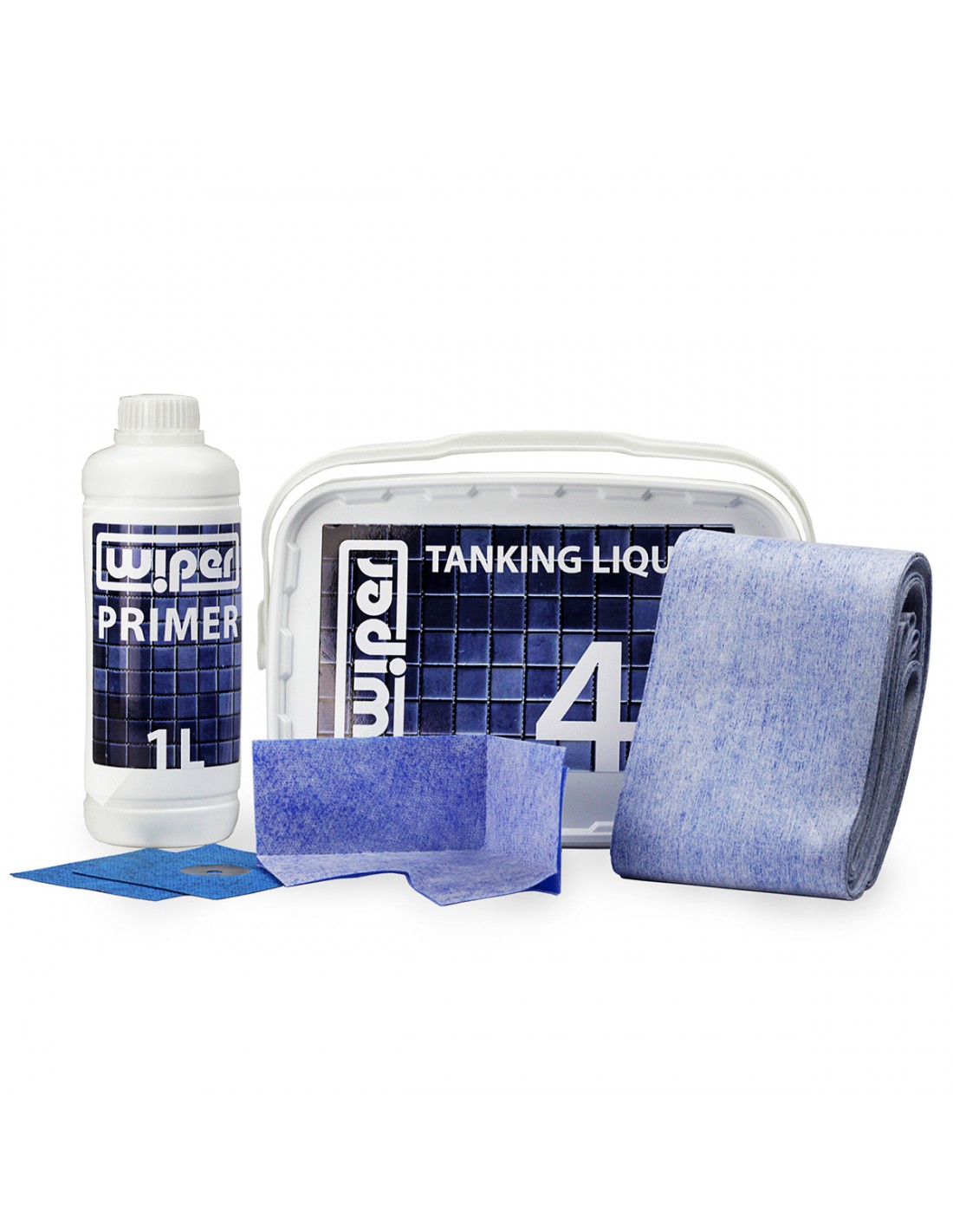

Wiper shower waterproofing kit incl. primer, tanking liquid, sealing tape, sealing corners and flexible pipe collar

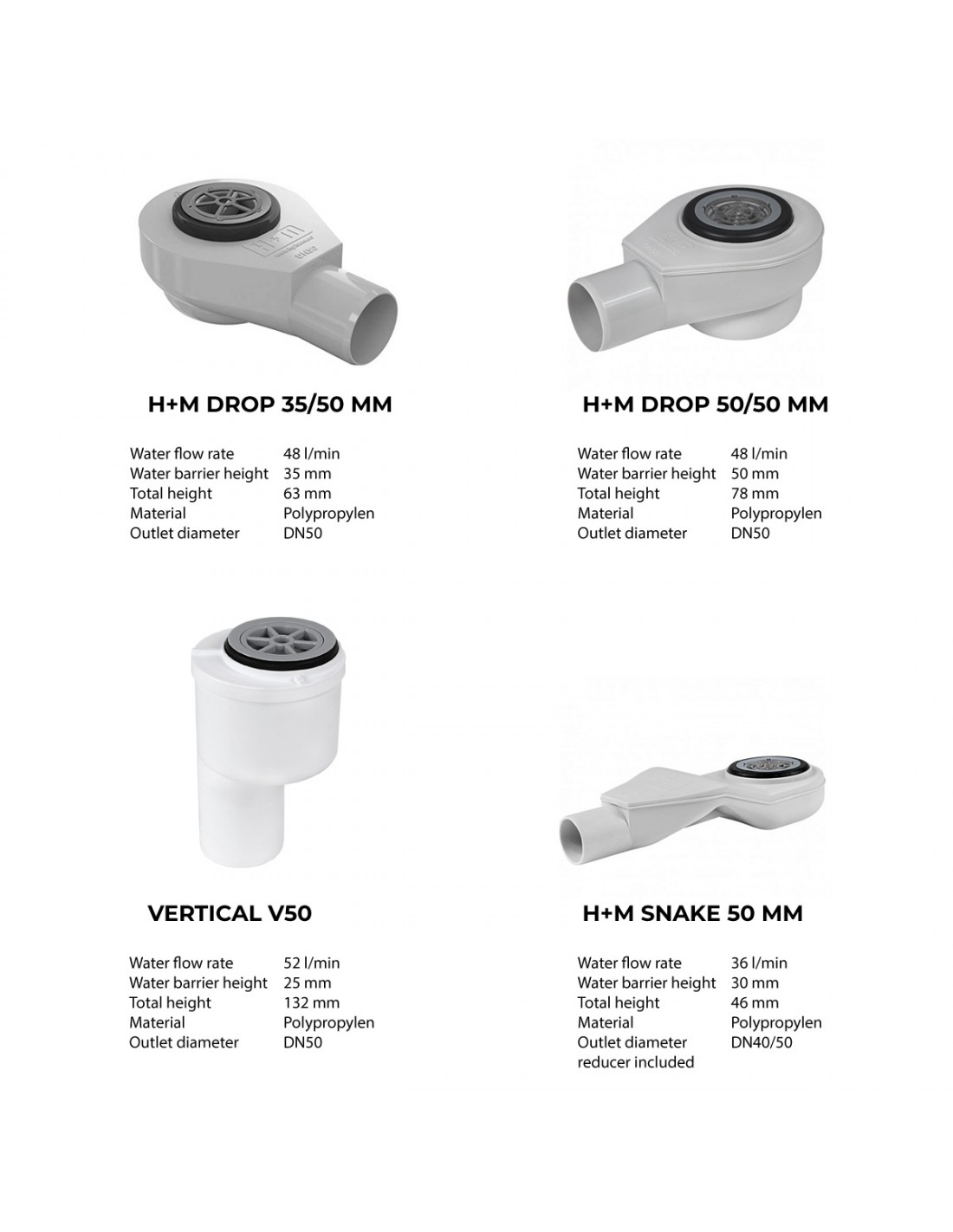

Different syphons by choice (vertical or horizontal outlet), included in set
  • New

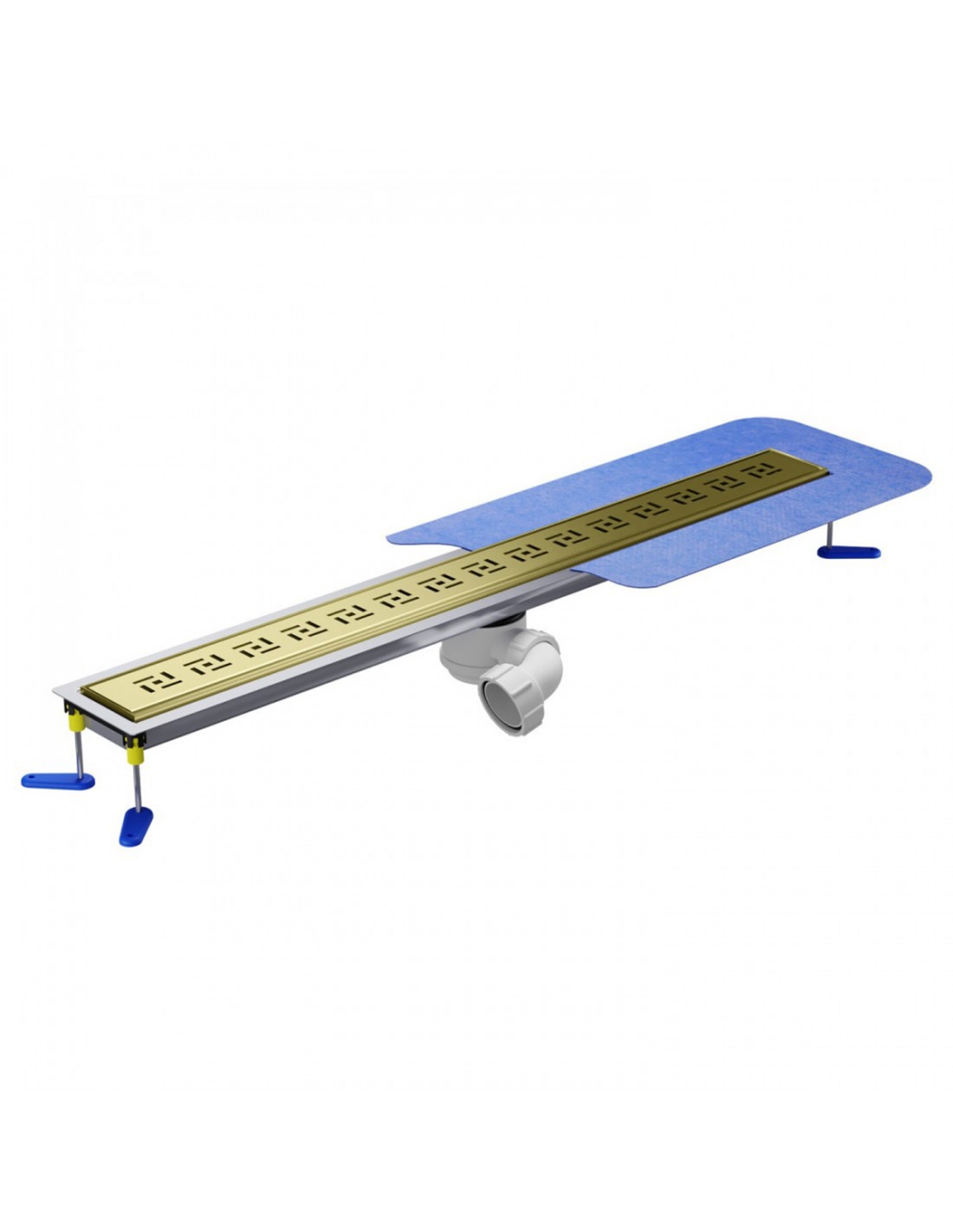

Microcement floor Shower drain kit: Linear drain with waste trap and cover Tivano Gold
Technical diagram: Linear drain 500 mm Wiper MCR Tivano PVD Gold
Dark bathroom with microcement floor with a free-standing bath tub and an open shower area
Niche shower area with ceiling lights on bright floor and microcemented walls, with elements in Gold
Open bathroom with bathtub and integrated shower drain in Gold in light microcement flooring
Open walk-in shower, surrounded by light-colored microcement floor and walls, with fittings in Gold
Modern shower room with gray walls and light microcement flooring, combined with bathroom fittings in Gold
Shower area made of microcement in an industrial look with linear channel and fittings in Gold
Wiper shower waterproofing kit incl. primer, tanking liquid, sealing tape, sealing corners and flexible pipe collar
Different syphons by choice (vertical or horizontal outlet), included in set

Linear drain 500 mm Wiper MCR Tivano PVD Gold

Gold PVD painted Linear Shower Drain 50 cm for Microcement, Polished Concrete or Resin floor finish, in matt, brushed or polished surface finish including flange, sealing membrane, waste trap, detachable adjustable feet, frame and L-shaped figures pattern drain cover Tivano

See parts included
Bespoke Linear Drains

The Linear drain 500 mm Wiper MCR Tivano PVD Gold represents a range of drains carefully designed for microcement, resin and similar floor coverings. The frame and drain cover offers adjustment from 3 to 12 mm allowing a wide-range of materials to be used together with. Drain is available in variants, making it compatible with variety of shower sizes and designs.

The drain is featuring secondary drainage system, allowing water that seeps through the surface finish to the insulation layer to be drained. Other features list multiple fittings colour, painted in PVD method, a robust and long lasting solution. It is also possible to choose finishing for the drain surface, which can be brushed, polished or mat. Lastly, drain comes together with one of the 7 available drain cover styles, from filable style where material needs to be poured into the cover itself, to squared or stripped pattern.

Waste trap, sealing membrane and adjustable legs are always part of each supplied set. Choose the best waste trap for you, as they offer various flow rates, however requiring a different amount of space and having various connections. Sealing membrane will help you to waterproof the joint between the floor and the drain and legs are optional, can be detached, their role is to level the drain when installed in concrete floor.

As one of a standard product in our range, we aim to have them stocked with off-the-shelf dispatch availability and next day delivery. Multiple sizes and style variants mean that if you are looking for a drain for microcement - we are surely going to have something that will work for you, being delivered efficiently and product being of very high quality.

Product Type
  • Linear Drain MCR

Consider your floor finish type — tiles, micro cement, or vinyl — choose a finish that complements your bathroom style. Evaluate dimensions and features to match your requirements.

Drain Length

Drain is available in 8 standard lengths. Although they have same technical performance, length of the drain should be matched room requirements. For an instance 700 mm Drain length is recommended for 1000 mm wide shower.

Drain Cover
  • Tivano

There are 7 drain cover patterns available. The flow rate is the same for all of them. They are interchangeable and can be swapped even after installation. Each drain sent out is equipped with a lifting hook which makes cleaning easy.

Drain Colour
  • Gold

The visible parts of the drain after installation, the frame and cover,can be supplied in different colours. Thanks to PVD coating, which offers high durability and resistance to discolouration, fading or braking down, you can get a drain that will match the rest of your fixtures.

Surface Finish
  • Brushed

There are 3 steel surface finishes available. The Matt finish is a uniform, slightly rough dull finish. The Brushed is a grind steel-smooth finish with visible , one directional brush stroke across the finished surface. The Polished finish is a high gloss, No. 8 mirror finish.

Waste Trap
  • McAlpine HC26-50

Before choosing, you should measure your available installation height. Especially in old flats or builds, where the space is limited, a lower height waste is recommended. As long as you have the space, you could choose one of the higher traps, which also offer high flow rate and better water seal. The following applies to the sealing water: 1 cm of sealing water recedes after approx. one week. Thus, for example, if you choose the "Drop 50", unpleasant odours remain sealed for about 5 weeks.

Waste trap
Drain finish
Waterproofing kit

Waterproofing kit is used to seal shower tray as well as connections between walls and floor. It is recommended for concrete and mandatory for timber flooring. Each kit contains 4kg tanking liquid, 1l primer, 10m sealing tape, 2 corners, 2 pipe collars. One kit covers 3 m² with 2 coats. Waterproofing kit

More
Calculate coverage

Shower head

Thermostatic Shower Column is a luxury product available in silver, black, or brass. Painted with a more advanced technique than a simple shower head, it offers exceptional durability and aesthetic appeal. This shower column features both a rainhead and a handheld shower wand, providing versatility and convenience. It also includes an on-top-of-the-tiles option for easy installation. This shower column complements our drain range perfectly, adding a touch of elegance to your bathroom. Shower column

Underfloor heating kit

Complete Sunfloor Underfloor heating set, including mat, Wi-Fi thermostat, floor sensor and fitting instructions. Fully suitable with our other products. Advanced thermostat with and iOS/Android app allows to set desired temperature of the floor from distance as well as create schedules.
Complete Sunfloor Underfloor heating set

More
Calculate coverage

Tile Backer boards

Tile backer boards are used to create the perfect substrate to tile onto in wet rooms and bathrooms. Superior to cement boards and plywood, due to its waterproof and thermal insulation properties. Tile backer boards

More
Calculate coverage

Shower screen

The Wiper Verre Shower Screen is one of Wiper's new shower enclosures. It is available in multiple standard sizes making it fit in small and large wet rooms. Black and silver options make it looks minimalistic and modern. Perfect choice for any wet room upgrade. Made of 8 mm toughened clear glass with Active Shield coating, 2000 mm high. Included fittings are made of stainless steel. The Verre Shower Screen from Wiper

More
Choose best size

LMCR5TGBWMH95
£531.46
Tax included
To get an extra 5% discount simply increase your cart value to £500.
Read more
Trade discounts are available for both wholesalers and loyal customers. To receive a discount, your cart total value, overall purchase value, or overall account purchases must cross the required threshold. Trade discount policy

Threshold Discount
£500 5%
£1000 10%
£2000 15%
£5000 20%
£10000 25%
£25000 30%

or for further details explore our trade discounts.
Add to cart your current selections, and you will be eligible for 5% discount and need only £468.54 to get 10% discount.
Pay with PayPal

In order to place 1-click PayPal order with your PayPal account or card.
1. Add the products you want to buy to your shopping cart.
2. Use the button below to proceed to checkout.
3. During checkout press 1-click Pay with PayPal button.

Pay with PayPal

Pay with Amazon

In order to place 1-click Amazon order with your Amazon account.
1. Add the products you want to buy to your shopping cart.
2. Use the button below to proceed to checkout.
3. During checkout press 1-click Pay with Amazon button.

Pay with Amazon

Amount of product sales 3 Sold during the last 90 days
Amount of product views 4 Views during the last 24 hours
Based on current settings, if you Add to cart current set and then order, you will receive the following items:
Wall upstand drain channel
Drain body

Main drainage part, stainless steel channel drain, 20 mm high, 48 mm wide. Outlet is welded to the channel, fixed in central position. Drain is extended by steel flange on all four sides, 20 mm wide, important for insulation. Elite drains feature secondondary drainage system which allows water trapped under tiles to be drained. Overall height required for installation with default trap is 98 mm.

with secondary drainage

Wet Room linear drain cover
Brushed Drain grating

Brushed stainless steel drain grating with perforated rectangles and squares is included. To clean the drain, you can lift it up. It is equipped with lifting hook which makes it easier. All covers available share technical properties, but are the only visible part of the drain visible after installation is over so it should be chosen by appearance.

Tivano

Waste trap
Waste trap

Choose between the following options:
McAlpine HC26-50: flow rate 26 l / min, water seal height: 20 mm
Drop 50: flow rate 48 l / min, water seal height: 50 mm
Drop 35: flow rate 48 l / min, water seal height: 35 mm
Vertical: flow rate 52 l / min, water seal height: 25 mm

Waste: McAlpine HC26-50

Linear drain accessories
Accessories & Guarantee

Product is supplied as complete set. Sealing membrane, detachable adjustable feet and appropriate fitting instructions come together with the goods to make sure it's installed correctly. Lifting hook for drain grating and other fitting parts also in the package.

In addition to our 30 days unconditional return right, there is 10 years guarantee on the product given by the manufacturer. Guarantee is extended to 25 years if the product is purchased together with waterproofing kit.

For fitting and using

Waterproofing kit
Waterproofing kit

Easy to use set of ready-mixed sealing materials suitable for the waterproofing of floor and walls. Contains 4kg of PCI Lastogum tanking paint, 1l of primer, 10m sealing tape, 2 corners and 2 pipe collars per every 3.5 m² purchased. Should be used to seal the joints between the floor and walls and to waterproof the drainage. Can be used for your entire bathroom insulation. Not required if you have your own waterproofing materials, otherwise very useful and recommended.

Size: not included

Underfloor heating kit
Underfloor heating kit

Complete electric underfloor heating set, including mat, optional thermostat (WiFi available), floor sensor and fitting instructions. Fully suitable for use with our other products. Advanced thermostat with and iOS/Android app allows you to set your desired temperature of the floor remotely, as well as create schedules.

Size: not included

Thermostat
Thermostat

Thermostat is a control device for the mat. SUNFLOOR Smart WiFi Digital Thermostat is a wireless controller including the sensor for adjustment of temperature remotely. Allows you to set the floor temperature away from the thermostat, as well as create periods throughout the day with specific temperatures. For example 26° when you may usually have a shower in the morning.

Size: not included

Shower screen
Shower screen

The Verre Shower Screen is one of Wiper's new shower enclosures. It is available in multiple standard sizes making it fit in small and large wet rooms. Black and silver options make it looks minimalistic and modern. Perfect choice for any wet room upgrade. Made of 8 mm toughened clear glass with Active Shield coating, 2000 mm high. Included fittings are made of stainless steel.

Size: not included


Channel length
500 mm
Grate style
Tivano
Channel height
25 mm
Channel width
82 mm
Total width
115 mm
Material
304 S 15 grade stainless steel
Additionals
Tanking kit, Adjustable legs
Drain surface
mirror · brush · matt
Waste trap
Plastic (PCV)
Cleaning
From above (Easy clean system)
Model
Linear Wiper MCR
Set consists
Linear drain body · stainless steel collar · sealing membrane · drain grating · Adjustable legs · siphon trap
Tanking kit

The tanking kit is a ready-mixed, under-tile tanking system to protect water sensitive substrates from exposure to water. Suitable for wet areas such as bathrooms, showers in residential buildings, hotels, old people's homes and hospitals. Should not be used in places exposed to pressurised water, for an instance swimming pools. Ready to use, no mixing required and easy to apply with a roller. The kit includes a high performance joint reinforcing tape to protect against movement in floor joins and corners etc. The contents are all INSIDE the bucket and the contents are protected in the bucket with polystyrene infill's to stop transit damage.The instructions are printed on the rear of the tanking kit.

For anti-moisture insulation systems in wet rooms and rooms intended for human residence. The tanking liquid is a ready-to-use singlecomponent, solvent-free sealant composed of polymer dispersion, fillers and modifying additives. When applied to the surface, upon binding it creates a flexible and water-insulating layer.

Tanking kit contains:
  • 4kg Tanking Liquid
  • 1l Primer
  • 10 Metres flexible Sealing Tape
  • 2 Flexible Pipe Collars
  • 2 Corners
Features:
  • Consumption to 1,2kg/m²
  • Solvent free
  • Drying time: 2h
Tanking liquid and primer
Tanking liquid
Tanking liquid

The tanking liquid is a ready to use, single component, solvent-free sealant mass, consisting of polymer dispersion, fillers and additives. When applied to a substrate and cured, it forms a flexible waterproofing coating. The product is intended for use inside places intended for human residence, especially in humid areas (such as bathrooms, kitchens, laundries), to perform insulation against moisture under linings and coverings, such as ceramic tiles, glazed tiles, terracotta, wooden floors and panels, and synthetic carpets.

The product is intended for priming absorbent and porous surfaces, inside and outside buildings. It is especially recommended for cement - limestone plaster, gas concrete, plaster-carton boards and cement plaster. The primer has a high penetration ability, is deeply absorbed into the substrate, thus strengthening it, while allowing for „breathing”. These benefits improve the structure of the substrates, which, due to the passage of time, have lost their appropriate parameters. The priming solution improves adhesion to the surface of other materials that will be used on the primed substrate. By reducing the absorbency of the substrate, the wear of the applied coating materials, emulsion paints, glues, mineral putties reduces as well. The solution, due to the content of the biocide and fungicide, protects the primed substrate against the formation of mold and bacteria in the product.

Primer
Waterproofing Calculator

Waterproofing Calculator

Optimize Your Waterproofing with Our Calculator – Accurate, Customizable, and Easy to Use. Get your waterproofing needs sorted with our advanced waterproofing calculator, designed for accuracy and ease of use. Whether you’re waterproofing a bathroom, kitchen, or any other room, our tool allows you to calculate your requirements in three different ways: by room dimensions, simple room coverage, or exact square meter needs. Additionally, you can exclude specific areas like doors and windows, or even calculate for multiple rooms at once. Our calculator provides a tailored list of necessary products, ensuring you get only what you need. Download your estimate as a PDF or add the items directly to your cart for a streamlined ordering experience.

Calculate Needed Waterproofing
PVD Coating

PVD stands for Physical Vapor Deposition. The PVD coating process creates a thin film coating over a solid material which is vaporized in a vacuum chamber and deposited onto a target material. It is used to change the surface properties of the object to be coated, where new mechanical, chemical, electrical or optical characteristics are needed.

There are many benefits of PVD coating. It can provide a lifetime of protection from daily cleaning, which adds durability and value to our products. Traditional powder coating of stainless steel degrades with time and can easily tarnish or chip. PVD requires no clear top coats that fade or dull. It is four times harder than chrome which makes it corrosion and scratch resistant.

PVD Coating

Benefits of PVD technology are Superior Wear Resistance, Superior Corrosion Resistance, Superior Chemical Resistance, Low Coefficient of Friction, Excellent Adhesion, Brilliant Decorative Finish, High Hardness (2nd to Diamond), Uniform Coating, Will not Chip, Tarnish or Fade, Low Maintenance and to top it all off, it is an Environmentally Friendly Process.

Extensive tests have been carried out to make sure that the normal usage of a shower will not effect the look and longevity of these drains and that they will remain in the same state as the day they were installed, for years to come. Additionally the Drains can be PVD coated after the steel is finished. so there is a range of finishes available in every colour.

h+m drop 35
McAlpine HC26-50

A McAlpine brand PVC siphon. With 20 mm water seal and a 40 mm connection. It only needs 68 mm height below the product and can be rotated 360°. Significant height reduction in relation to standard waste traps reduces the installation depth. Rotatable elbow connector makes installation simple in any conditions. Comfortable use thanks to Easy Clean System. Each set contains special key, which helps with installation.

  • Low profile perfect for wetroom shower trays, linear and square drains
  • Durable material
  • Easy Clean System
  • Mounting spanner and hair trap included
  • Simple and tight construction
  • 95° connector included
McAlpine HC26-50 Technical diagram
H+M Drop 50

High flow Shower Waste Trap Efficient shower trap made of durable Hostalen PP. Innovative solution adapted to the most rigorous standards of use. It has a high level of water seal (35 mm) with a very small overall height (63 mm). Dedicated mainly to linear shower drains for wet-rooms. Small dimensions makes installation in both concrete and wooden floors a lot easier. High flow rate (48 l/min) guarantees trouble-free use even when heavily loaded with water (eg. with a rainhead shower). The set includes a dedicated spanner that simplifies the installation of a waste trap to the drain, and a strainer made of stainless steel.

  • High 35 mm water seal
  • Low overall height (63 mm)
  • Included: strainer, spanner
  • Made durable polypropylene
  • Very high flow rate (48 l/min)
  • Easy Clean System
H+M Drop 50 Technical diagram
h+m drop 50
h+m drop 35
H+M Drop 35

Slim Shower Waste Trap High-quality low-profile siphon made of durable polypropylene plastic. The special slim shape of the waste allows maximum reduction of installation depth. Perfect product for walk-in type shower. It makes wet-room installation significantly easier. Sometimes shower waste with such a low profile may be the only possible choice. Equipped with a special wide Evoprene seal for maximum tightness. For ease of installation, the appropriate spanner is included. High flow rate (36 l/min) guarantees trouble-free use.

  • Extra slim low profile
  • High flow rate up to 36 l/min
  • Included: strainer, spanner, 40/50 mm pipe reducer
  • Durable polypropylene
  • Easy Clean System
H+M Drop 35 Technical diagram
H+M Vertical

Vertical ACO V50 waste trap supplied with EU to UK 50mm adapter. High drainage capacity, but low water seal level. The siphon can be rotated 360° and offers the best solution for bypassing beams and pipes.

  • Durable polypropylene
  • Height: 132 mm
  • Flow rate: 52 l/min.
  • Water seal: 25 mm
  • Rotatable 360°
McAlpine Vertical V50 Technical diagramt
vertical
Available Colour

Brass
This bathroom colour is rising in popularity again and is quickly becoming our most demanded option. It is historically tradition with its timeless elegant finished look. Brass is slightly less vibrant and dominant in colour, which makes it perfect for blending your bathroom decor colours.

Available Colour

Black
Black is becoming the new modern alternative to conventional bathroom decor. Complete your wet room with bold, sleek fixtures and our drain to match. Black bathroom fixtures need a little extra care when it comes to maintenance. To keep its stunning look, you will need to simply wipe down your fixtures after use. A small price to pay for an amazing finish.

Available Colour

Gold
Gold will always speak volumes. A bathroom finished with gold fixtures is breath taking and prestigious in its own right. Gold is a very vibrant colour and will allow all your fixtures stand out in any wet room giving it a luxurious feeling.

Available Colour

Silver
Silver is a modern traditional colour for bathrooms. Not only will it be easy to match with other fixtures, but it will give any wet room a crisp, clean and refreshing feeling. It's common use means you will have a lot more options with available fixtures in multiple different designs.

All of our drains are made from high quality grade 304 stainless steel. The colour of each drain is due to the PVD coating process. PVD coating of metals has proven to be better than powder coating. It will be more durable and resistant to fading, scratch marks and overall wear and tear. Unlike the powder coating process, PVD coating, also has the added benefit of the metal finish being visible. Ultimately, your drain will look amazing and last for a lifetime.

If you wish to have your entire bathroom colour coordinated, from the tiles, to your bathroom fixtures, our PVD coated drains are sure to help you. We have taken the most popular colours our customers have been requesting and now have a selection of four PVD coated linear drain colours to choose from to compliment all of your bathroom fixtures.

The Wiper MCR is available in three different surface finishes. Polished, Brushed and Matt. This is great if you are looking for a specific finish to match the rest of your fixtures. The three finishes are available for all available colour options, However the Brushed finish is the standard option that comes at no extra charge. The visible parts of the drain (the cover and frame) will come in the desired finish.

Surface Finish

Polished is a glossy finish. It has a smooth and shiny look that catches the eye. Characterized by a high degree of development, it's free from imperfections. There are numerous functional considerations, in addition to the visual appearance of polished stainless steel. Properly polished stainless steel looks good and helps to reduce the risk of bacteria being retained by the material when it is utilized in sanitary applications.

Surface Finish

Brushed finish is a semi gloss finish. The key difference between brushed and polished stainless steel is that brushed stainless steel has a rough surface, whereas polished stainless steel has a smooth surface. Brushed stainless steel is a type of metal having a dull polish that is made through friction. It is the the most practical of the three as it is the most scratch resistant.

Surface Finish

Matt is a dull finish. This is a very common stainless steel finish that is non-reflective and smooth in nature. The stainless steel is rolled through a special roller for a smooth, less pitted surface, before being descaled in an acid solution and polished for greater smoothness. It is commonly used for chemical and pharmaceutical equipment.
