Square gully Wiper Top Sirocco
Dry trap Square shower drain 12.2 x 12.2 cm model Sirocco for tiled floor with flange, sealing membrane, waste trap, detachable adjustable feet, adjustable height and cover

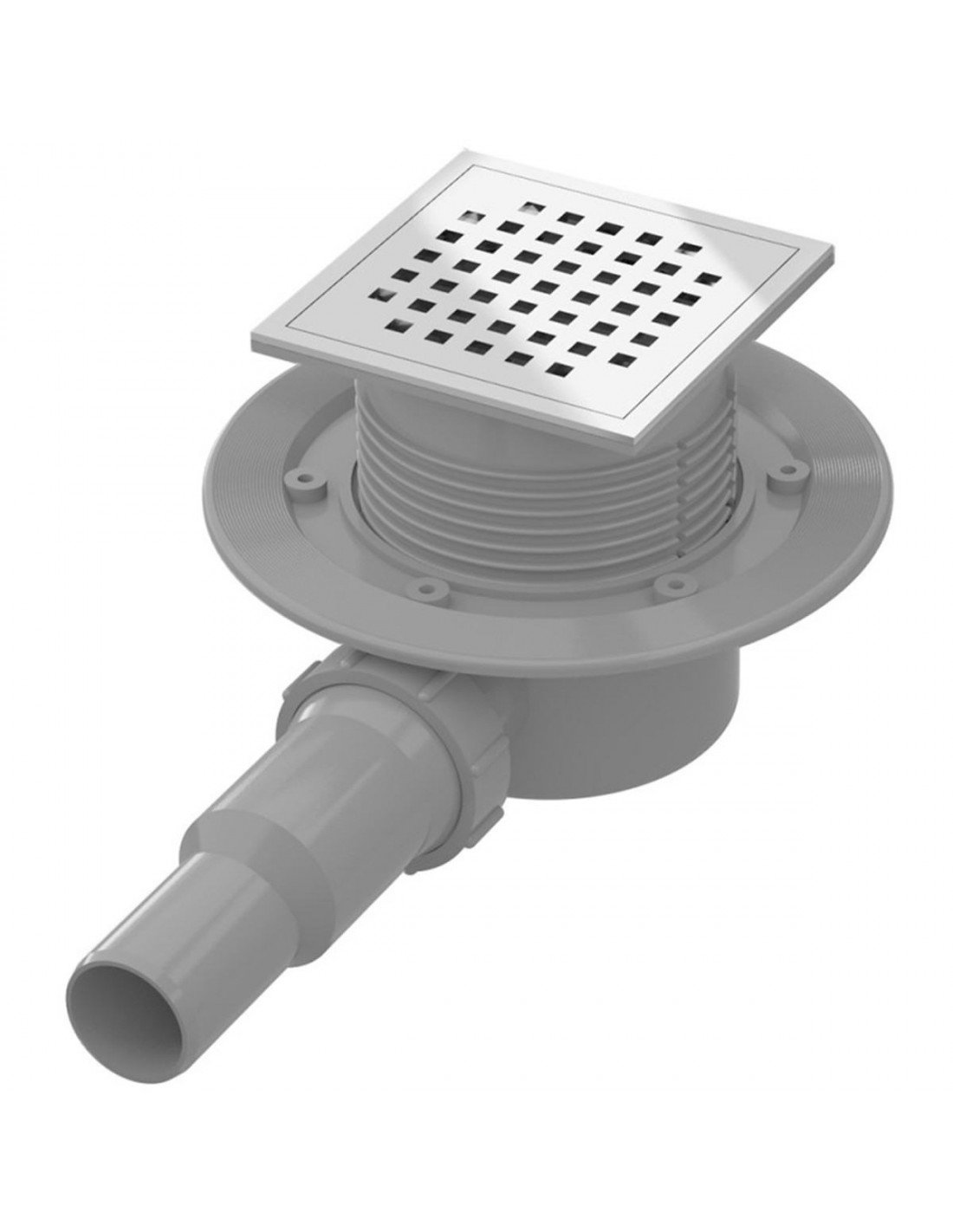

Square shower drain Wiper Top Sirocco cover and frame is made of stainless steel and waste pipe and plastic non-return valve McAlpine siphon trap and pipe. Dedicated non-vowen fabric sealing membrane and stainless steel collar with screws is included, for easier installation.
Total height of the drain is 143 mm. It can be cut to decrease size and minimum height is 97 mm. Gully comes with Sirocco grate, which is patterned with regularly placed squares which are sufficient for water to flow. Insulating flange radius is 100 mm. Stainless steel is finished with brush, which is very practical and long lasting solution, even after scratching it damage will usually not be visible.
Convenient McAlpine siphon trap comes with the drain. It is dry trap, which means that it will stop the smells from returning back to shower even after water evaporates. It's flow rate is 32 l / min which is more than enough for standard shower, which requires only 24 l /min. Siphon outlet can be connected to 40 and 50 mm waste pipes.
Based on current settings, if you Add to cart current set and then order, you will receive the following items:
Flow rate: 32 l/min
Size: not included
- Made of high quality stainless steel
- Size: 122 x 122 [mm]
- Total height: 97 - 143 [mm] (adjustable)
- Throughput: 32 [l/min]
- Insulating stainless steel flange included
- Perforated sealing membrane included
- McAlpine non-return dry trap included
- Drain's cover included.
- Brushed Stainless Steel Finish
- Complete siphon, pipe diameter: 40mm / 50 mm (british standard size),

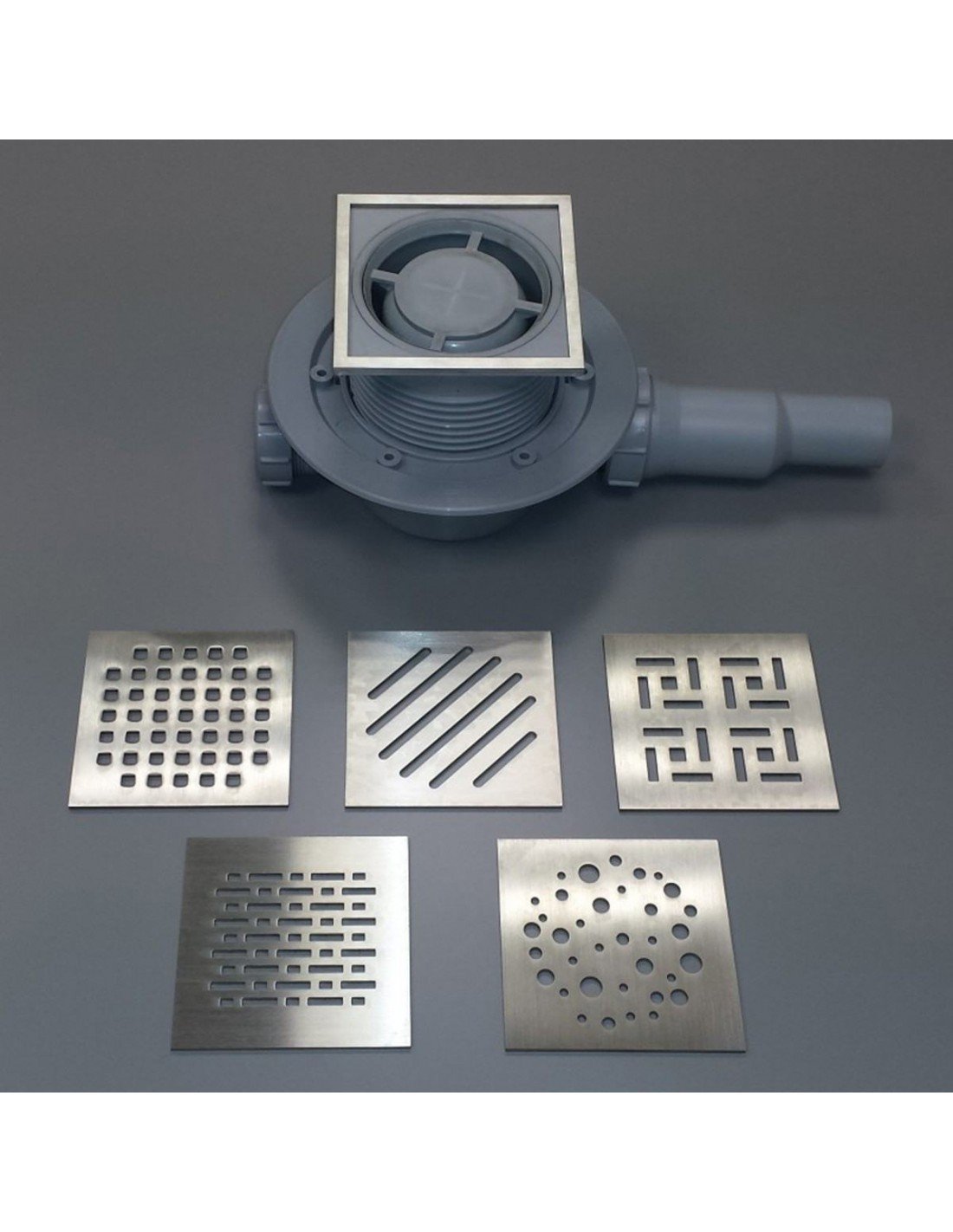

Grating patterns available for this product:
- Cover size
- 104 x 104 mm
- Collar size
- 200 mm
- Grate style
- Sirocco
- Total height
- 97 - 143 mm
- Material
- 304 S 15 grade stainless steel
- Additionals
- Tanking kit
- Drain surface
- mirror · brush · matt
- Waste trap
- Plastic (PCV)
- Steel collar
- Integrated
- Cleaning
- From above (Easy clean system)
- Set consists
- Square drain body · stainless steel collar · sealing membrane · drain grating · siphon trap
- Size
- 122 x 122 mm
Product comes with dedicated McAlpine non-return valley (dry trap) an has a flow rate 32 l / min. The discharge outlet pipe is suitable for 40 mm and 50mm diameter pipes.
If you purchase this you will receive complete drain with cover and siphon that is adjustable and ready to be connected to your waste system.
The tanking kit is a ready-mixed, under-tile tanking system to protect water sensitive substrates from exposure to water. Suitable for wet areas such as bathrooms, showers in residential buildings, hotels, old people's homes and hospitals. Should not be used in places exposed to pressurised water, for an instance swimming pools. Ready to use, no mixing required and easy to apply with a roller. The kit includes a high performance joint reinforcing tape to protect against movement in floor joins and corners etc. The contents are all INSIDE the bucket and the contents are protected in the bucket with polystyrene infill's to stop transit damage.The instructions are printed on the rear of the tanking kit.
For anti-moisture insulation systems in wet rooms and rooms intended for human residence. The tanking liquid is a ready-to-use singlecomponent, solvent-free sealant composed of polymer dispersion, fillers and modifying additives. When applied to the surface, upon binding it creates a flexible and water-insulating layer.
- 4kg Tanking Liquid
- 1l Primer
- 10 Metres flexible Sealing Tape
- 2 Flexible Pipe Collars
- 2 Corners
- Consumption to 1,2kg/m²
- Solvent free
- Drying time: 2h
The tanking liquid is a ready to use, single component, solvent-free sealant mass, consisting of polymer dispersion, fillers and additives. When applied to a substrate and cured, it forms a flexible waterproofing coating. The product is intended for use inside places intended for human residence, especially in humid areas (such as bathrooms, kitchens, laundries), to perform insulation against moisture under linings and coverings, such as ceramic tiles, glazed tiles, terracotta, wooden floors and panels, and synthetic carpets.
The product is intended for priming absorbent and porous surfaces, inside and outside buildings. It is especially recommended for cement - limestone plaster, gas concrete, plaster-carton boards and cement plaster. The primer has a high penetration ability, is deeply absorbed into the substrate, thus strengthening it, while allowing for „breathing”. These benefits improve the structure of the substrates, which, due to the passage of time, have lost their appropriate parameters. The priming solution improves adhesion to the surface of other materials that will be used on the primed substrate. By reducing the absorbency of the substrate, the wear of the applied coating materials, emulsion paints, glues, mineral putties reduces as well. The solution, due to the content of the biocide and fungicide, protects the primed substrate against the formation of mold and bacteria in the product.
Waterproofing Calculator
Optimize Your Waterproofing with Our Calculator – Accurate, Customizable, and Easy to Use. Get your waterproofing needs sorted with our advanced waterproofing calculator, designed for accuracy and ease of use. Whether you’re waterproofing a bathroom, kitchen, or any other room, our tool allows you to calculate your requirements in three different ways: by room dimensions, simple room coverage, or exact square meter needs. Additionally, you can exclude specific areas like doors and windows, or even calculate for multiple rooms at once. Our calculator provides a tailored list of necessary products, ensuring you get only what you need. Download your estimate as a PDF or add the items directly to your cart for a streamlined ordering experience.
Calculate Needed WaterproofingThe tanking kit is a ready-mixed, under-tile tanking system to protect water sensitive substrates from exposure to water. Suitable for wet areas such as bathrooms, showers in residential buildings, hotels, old people's homes and hospitals. Should not be used in places exposed to pressurised water, for an instance swimming pools. Ready to use, no mixing required and easy to apply with a roller. The kit includes a high performance joint reinforcing tape to protect against movement in floor joins and corners etc. The contents are all INSIDE the bucket and the contents are protected in the bucket with polystyrene infill's to stop transit damage.The instructions are printed on the rear of the tanking kit.
For anti-moisture insulation systems in wet rooms and rooms intended for human residence. The tanking liquid is a ready-to-use singlecomponent, solvent-free sealant composed of polymer dispersion, fillers and modifying additives. When applied to the surface, upon binding it creates a flexible and water-insulating layer.
- 4kg Tanking Liquid
- 1l Primer
- 10 Metres flexible Sealing Tape
- 2 Flexible Pipe Collars
- 2 Corners
- Consumption to 1,2kg/m²
- Solvent free
- Drying time: 2h
The tanking liquid is a ready to use, single component, solvent-free sealant mass, consisting of polymer dispersion, fillers and additives. When applied to a substrate and cured, it forms a flexible waterproofing coating. The product is intended for use inside places intended for human residence, especially in humid areas (such as bathrooms, kitchens, laundries), to perform insulation against moisture under linings and coverings, such as ceramic tiles, glazed tiles, terracotta, wooden floors and panels, and synthetic carpets.
The product is intended for priming absorbent and porous surfaces, inside and outside buildings. It is especially recommended for cement - limestone plaster, gas concrete, plaster-carton boards and cement plaster. The primer has a high penetration ability, is deeply absorbed into the substrate, thus strengthening it, while allowing for „breathing”. These benefits improve the structure of the substrates, which, due to the passage of time, have lost their appropriate parameters. The priming solution improves adhesion to the surface of other materials that will be used on the primed substrate. By reducing the absorbency of the substrate, the wear of the applied coating materials, emulsion paints, glues, mineral putties reduces as well. The solution, due to the content of the biocide and fungicide, protects the primed substrate against the formation of mold and bacteria in the product.
Waterproofing Calculator
Optimize Your Waterproofing with Our Calculator – Accurate, Customizable, and Easy to Use. Get your waterproofing needs sorted with our advanced waterproofing calculator, designed for accuracy and ease of use. Whether you’re waterproofing a bathroom, kitchen, or any other room, our tool allows you to calculate your requirements in three different ways: by room dimensions, simple room coverage, or exact square meter needs. Additionally, you can exclude specific areas like doors and windows, or even calculate for multiple rooms at once. Our calculator provides a tailored list of necessary products, ensuring you get only what you need. Download your estimate as a PDF or add the items directly to your cart for a streamlined ordering experience.
Calculate Needed Waterproofing
